As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

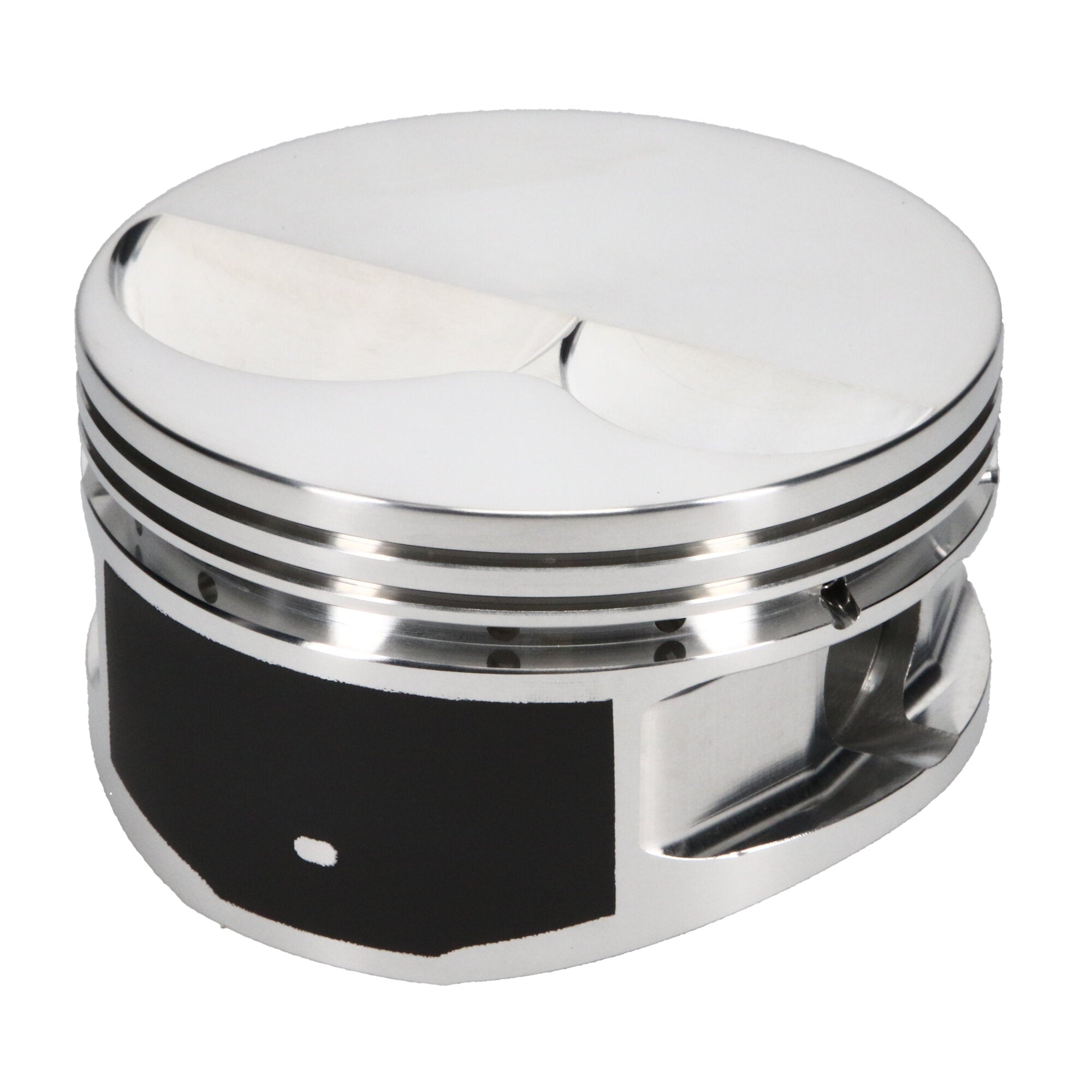

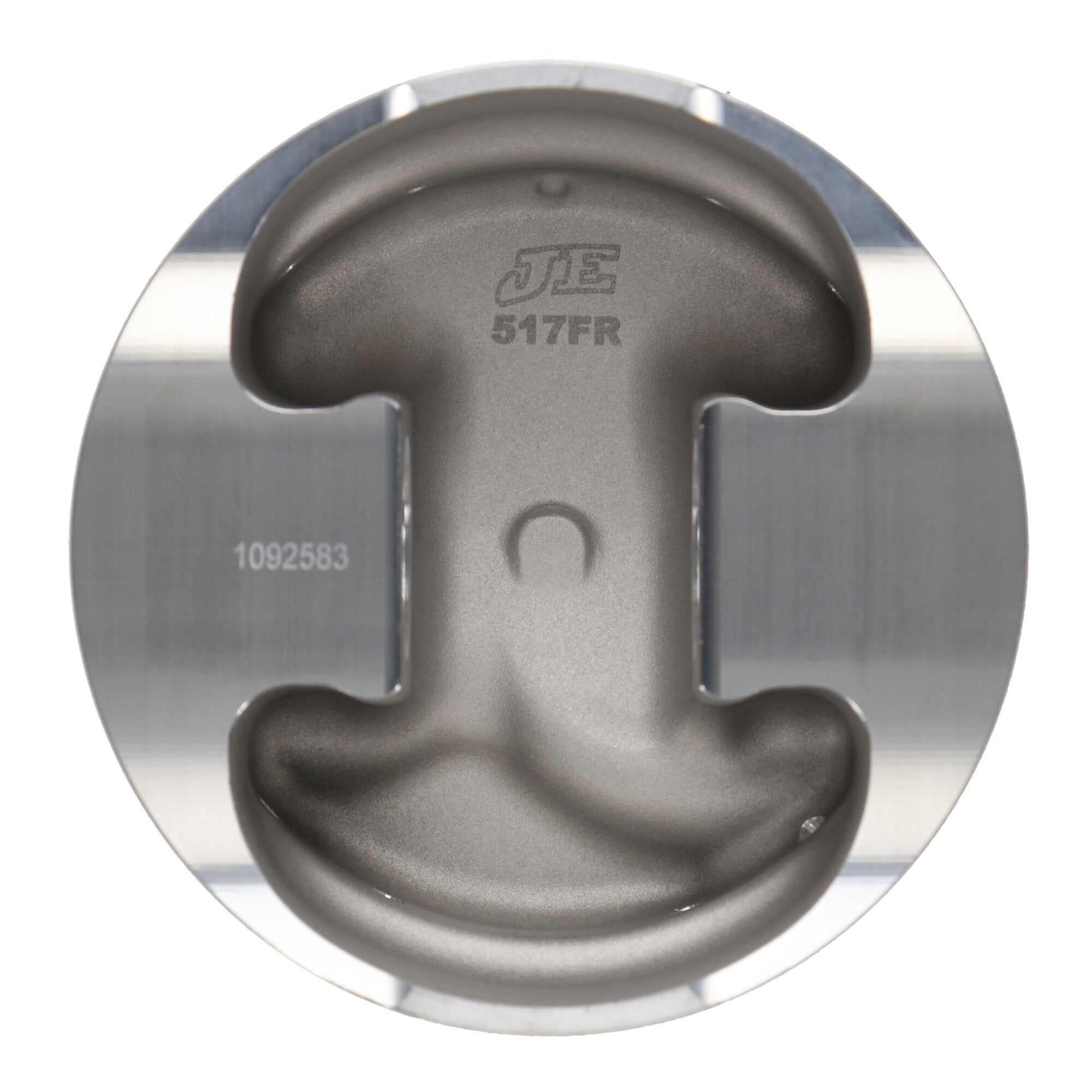

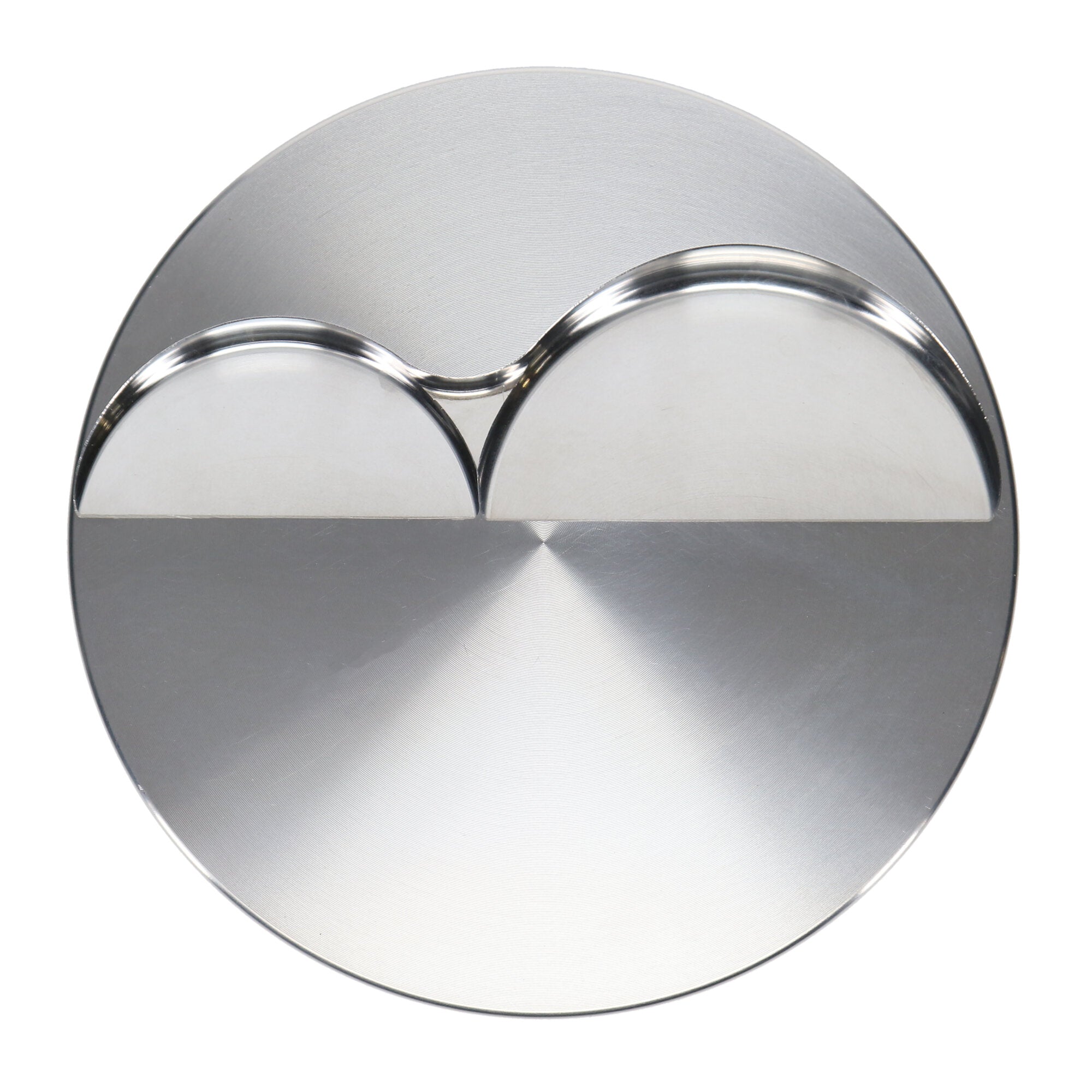

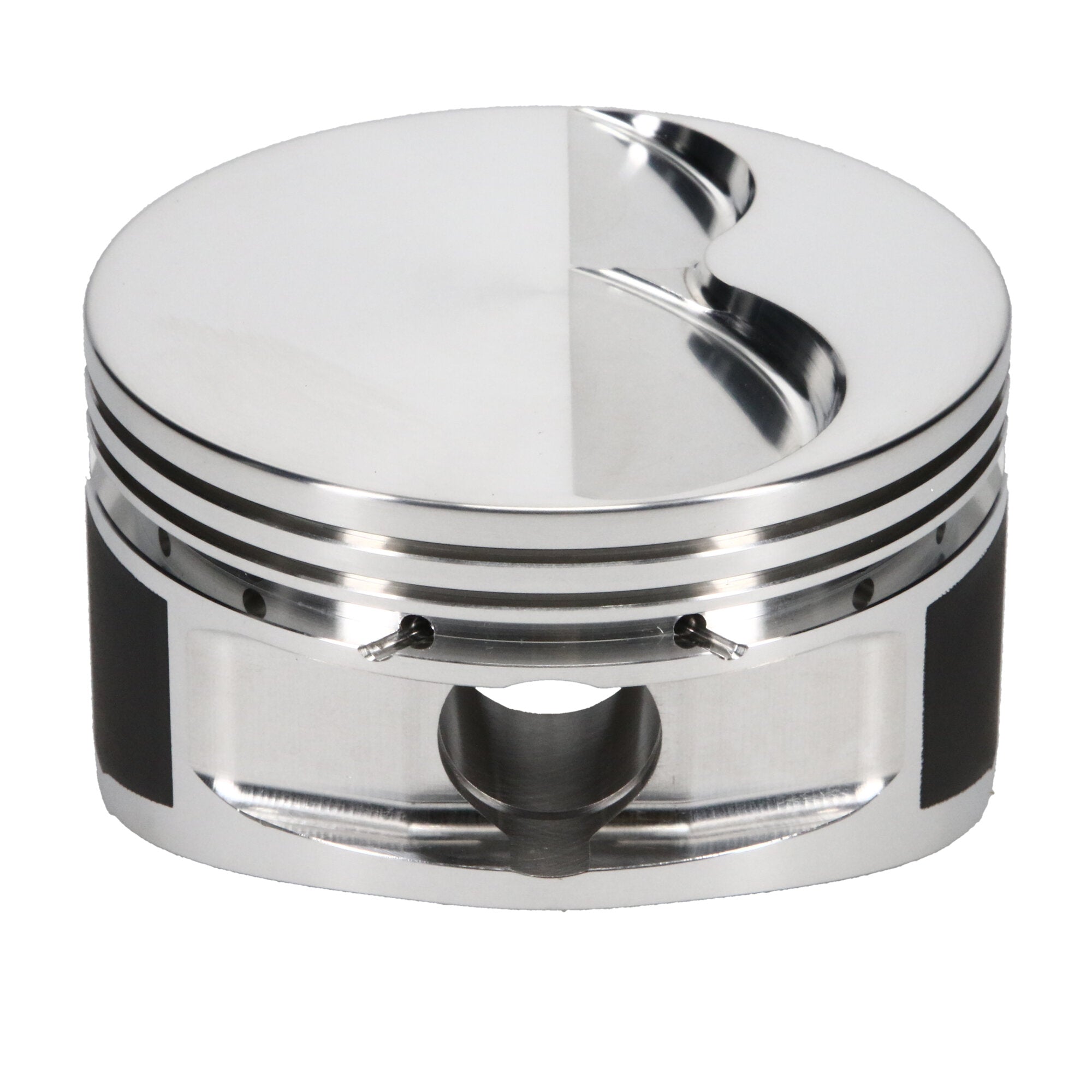

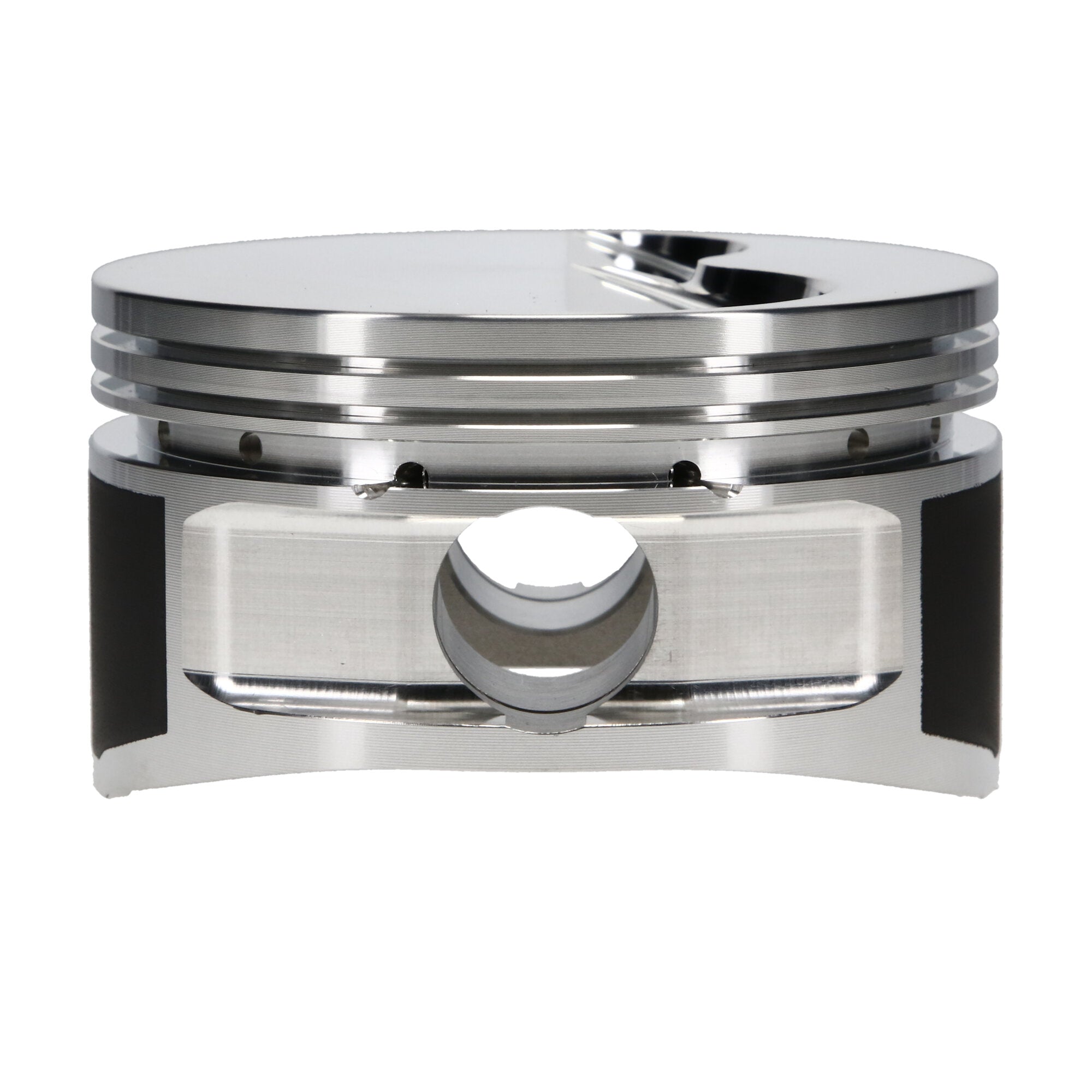

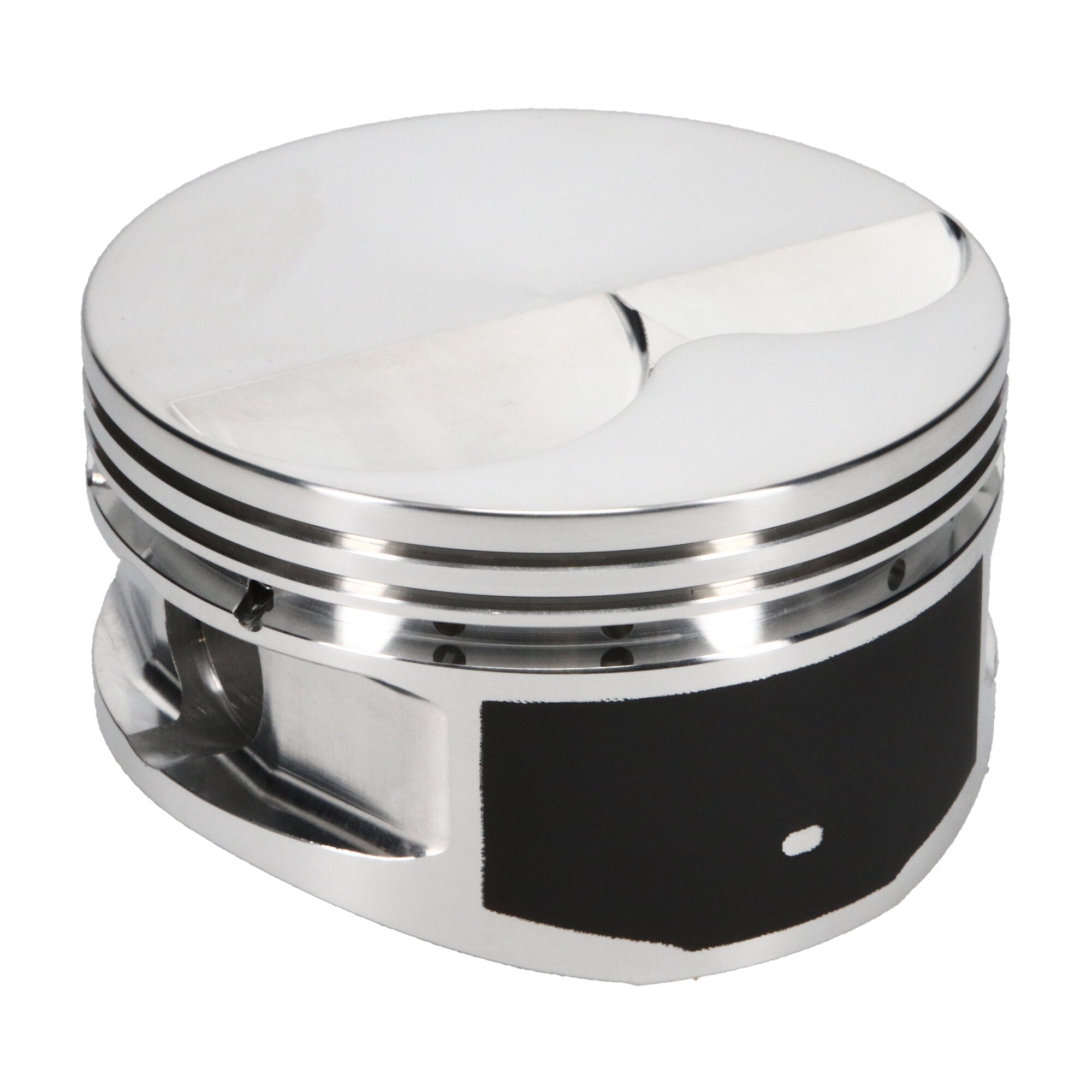

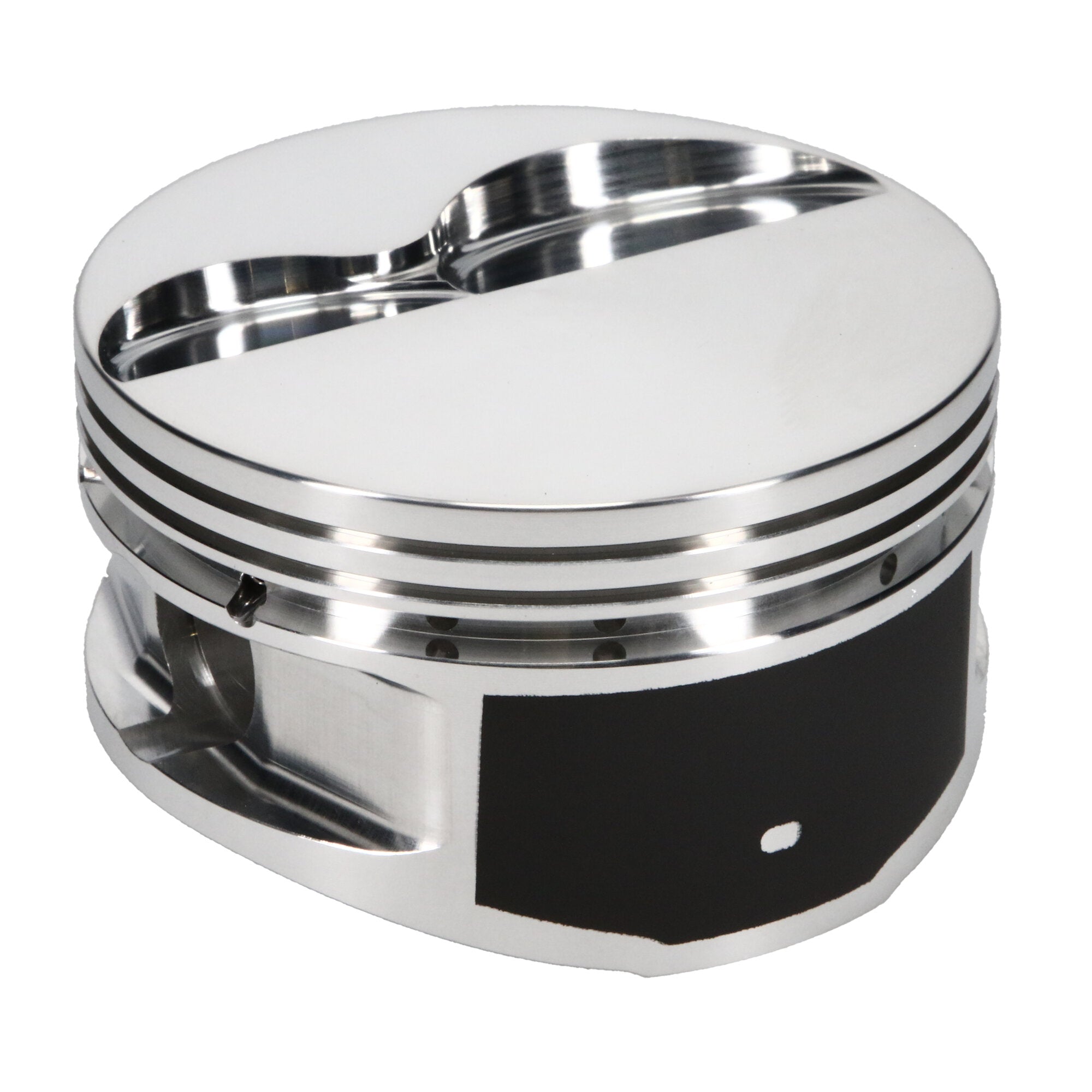

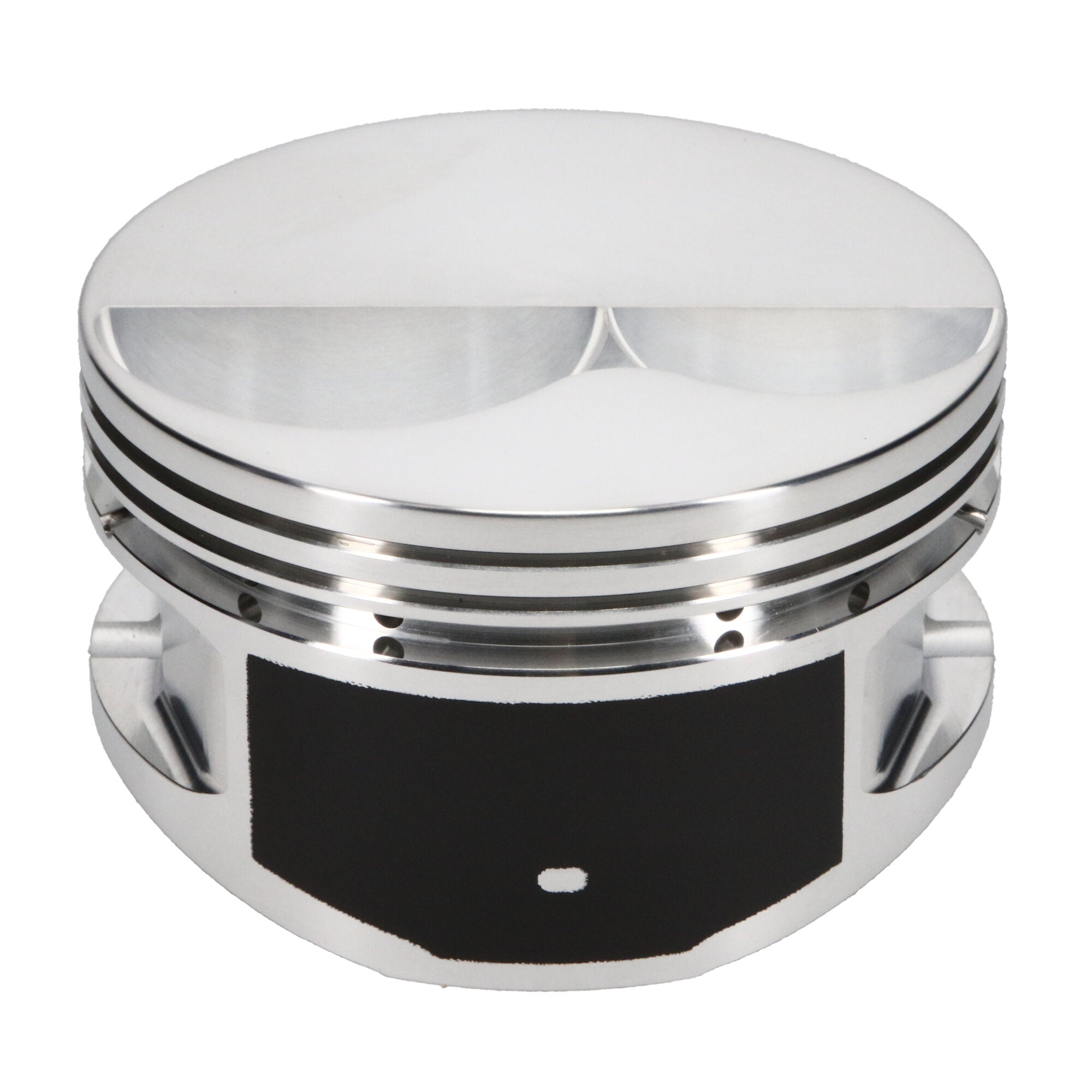

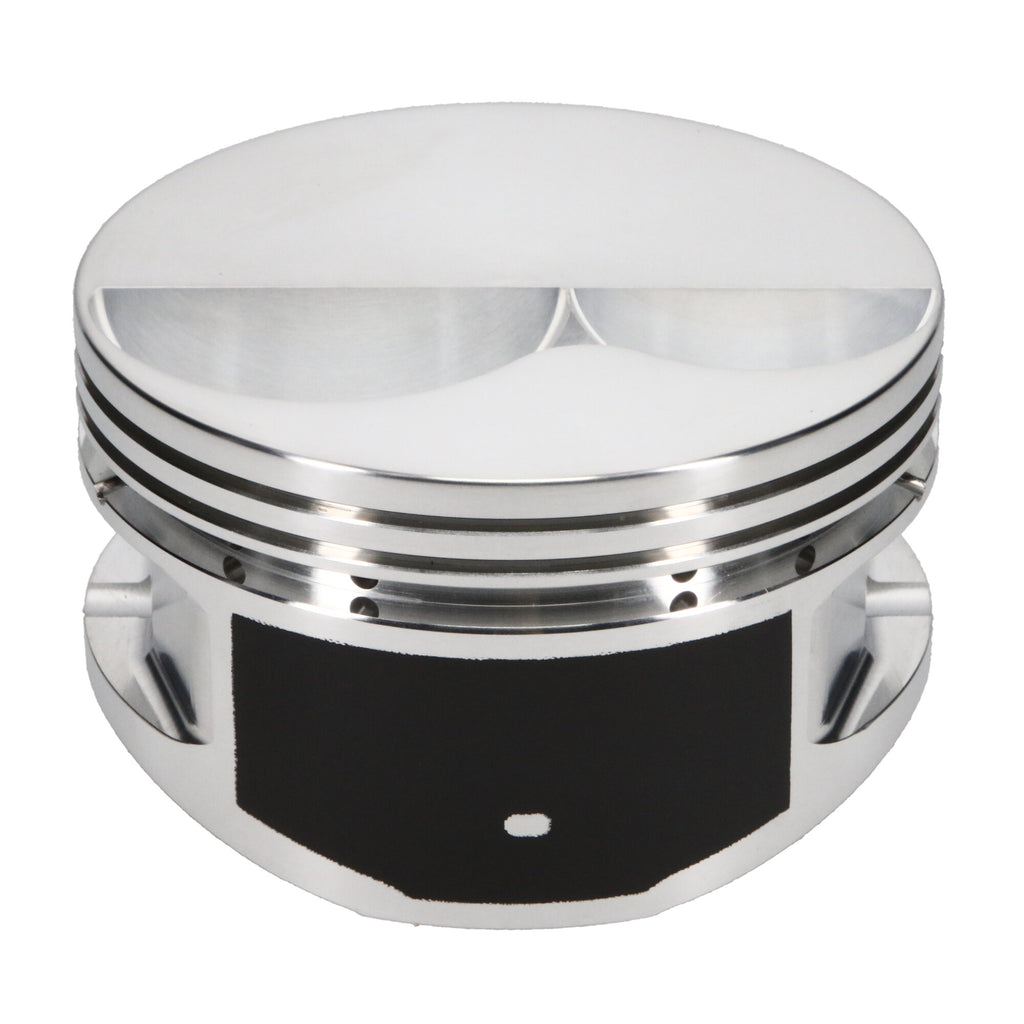

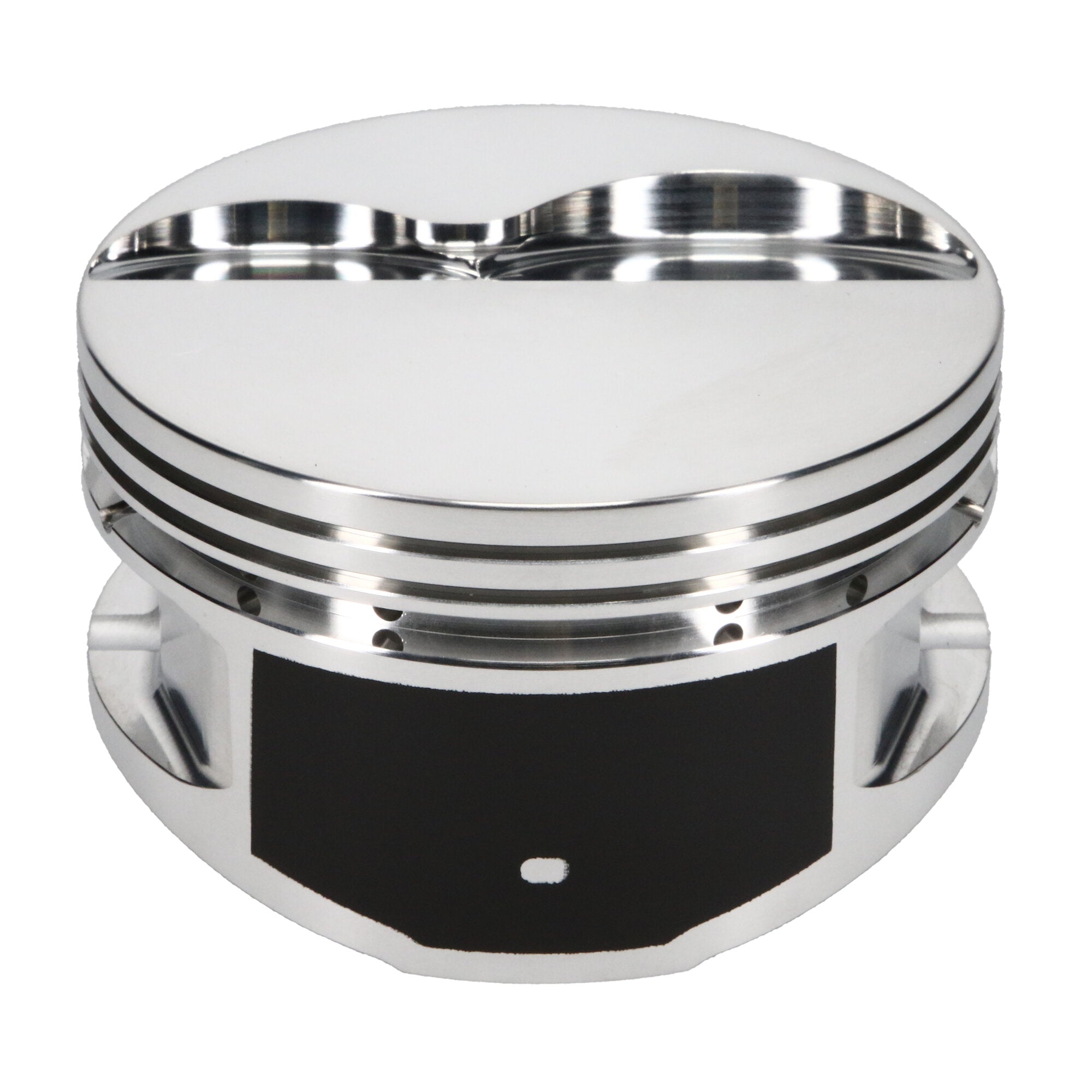

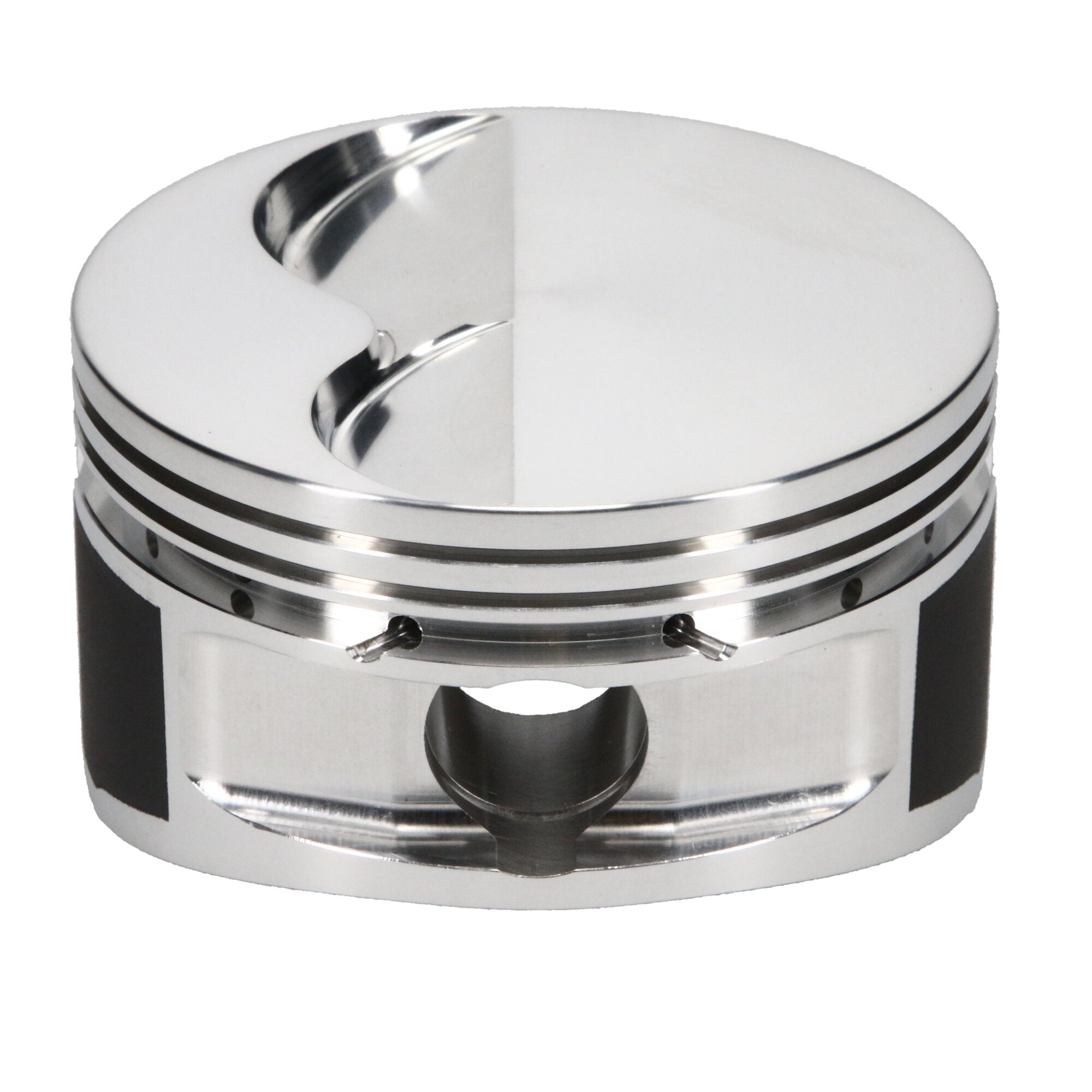

Piston Set, 2618, Flat Top, 4.130 Bore, 1.062 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.130 in. Bore, 1.062 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400, 4.130 Bore, Flat, Set of 8 |
| Out of Stock Message |
Call for Availability |
| Title |
JE Pistons - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Compression Height |
1.062 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.062 in. CH, -5.90 CC |
| Bore Diameter |
4.130 |
| Piston Average Weight |
437 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Add-On |
927-073-AS |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J10008-4130-5 |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-2950-15-51S |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Cylinder Head |
CHEVROLET 18 DEG |
| Piston Pin Length |
2.950 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.218 |
| Piston Head Type |
Flat |
| Piston Volume |
-5.90 |
| Piston Material |
2618 |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Length |
2.950 |
| Forging Type |
Round |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Ringset Included |
No |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Engine |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
