As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

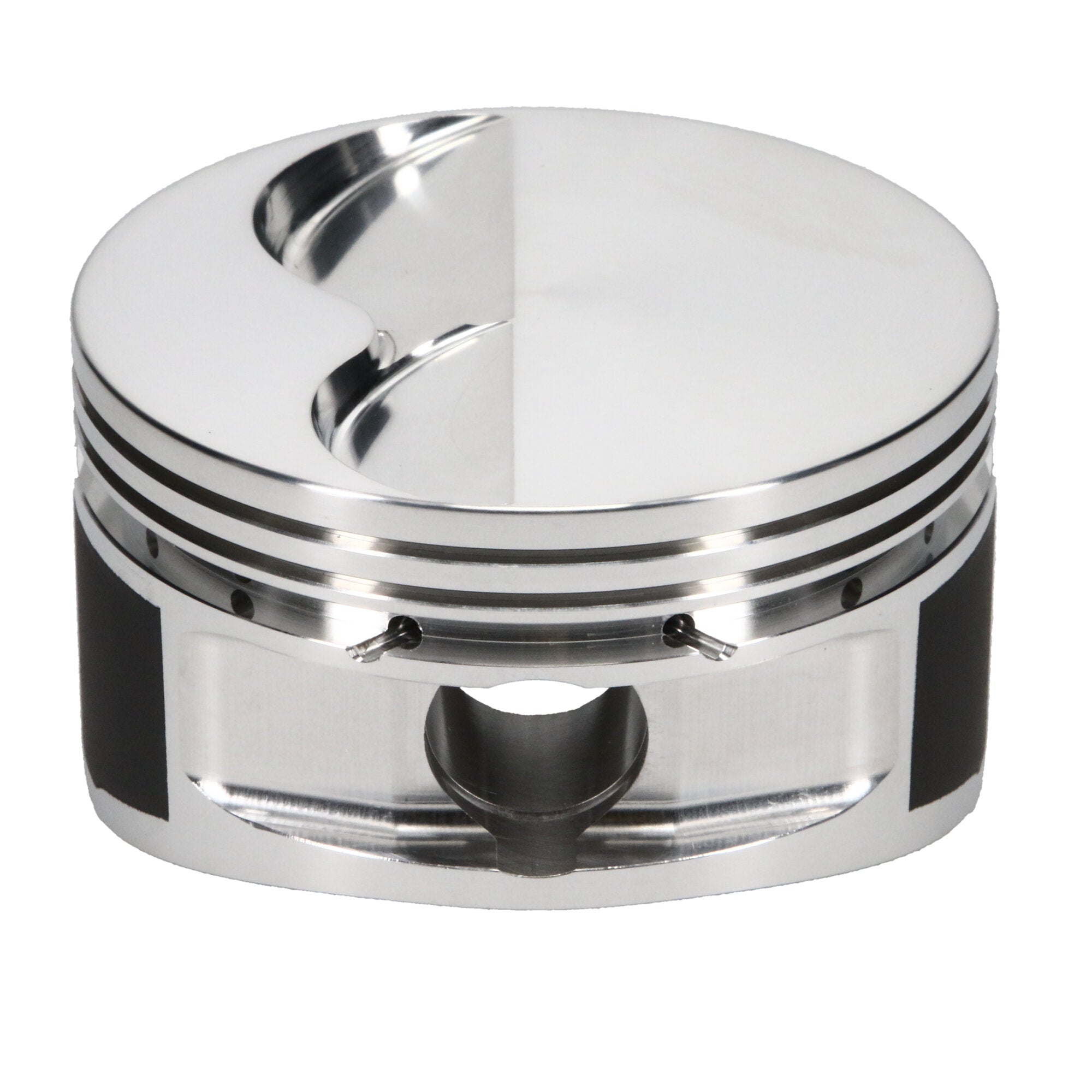

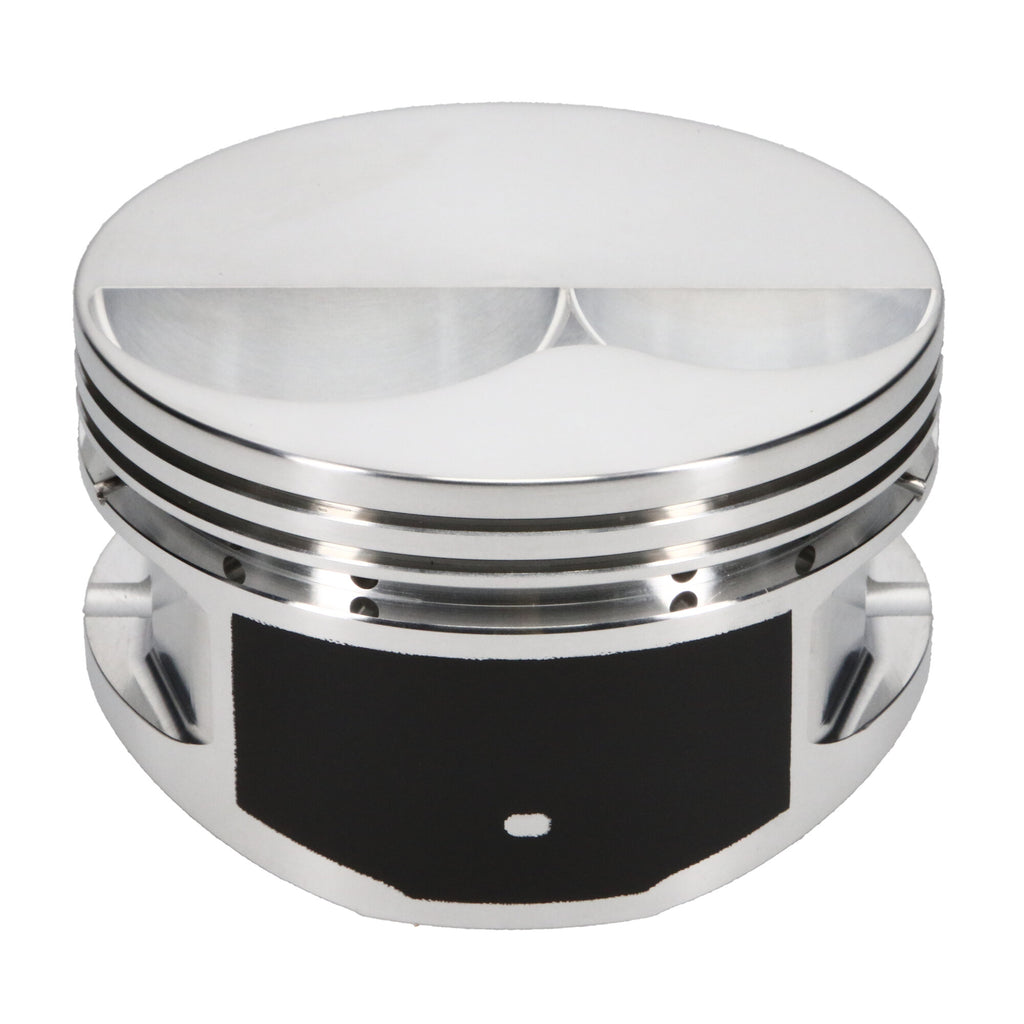

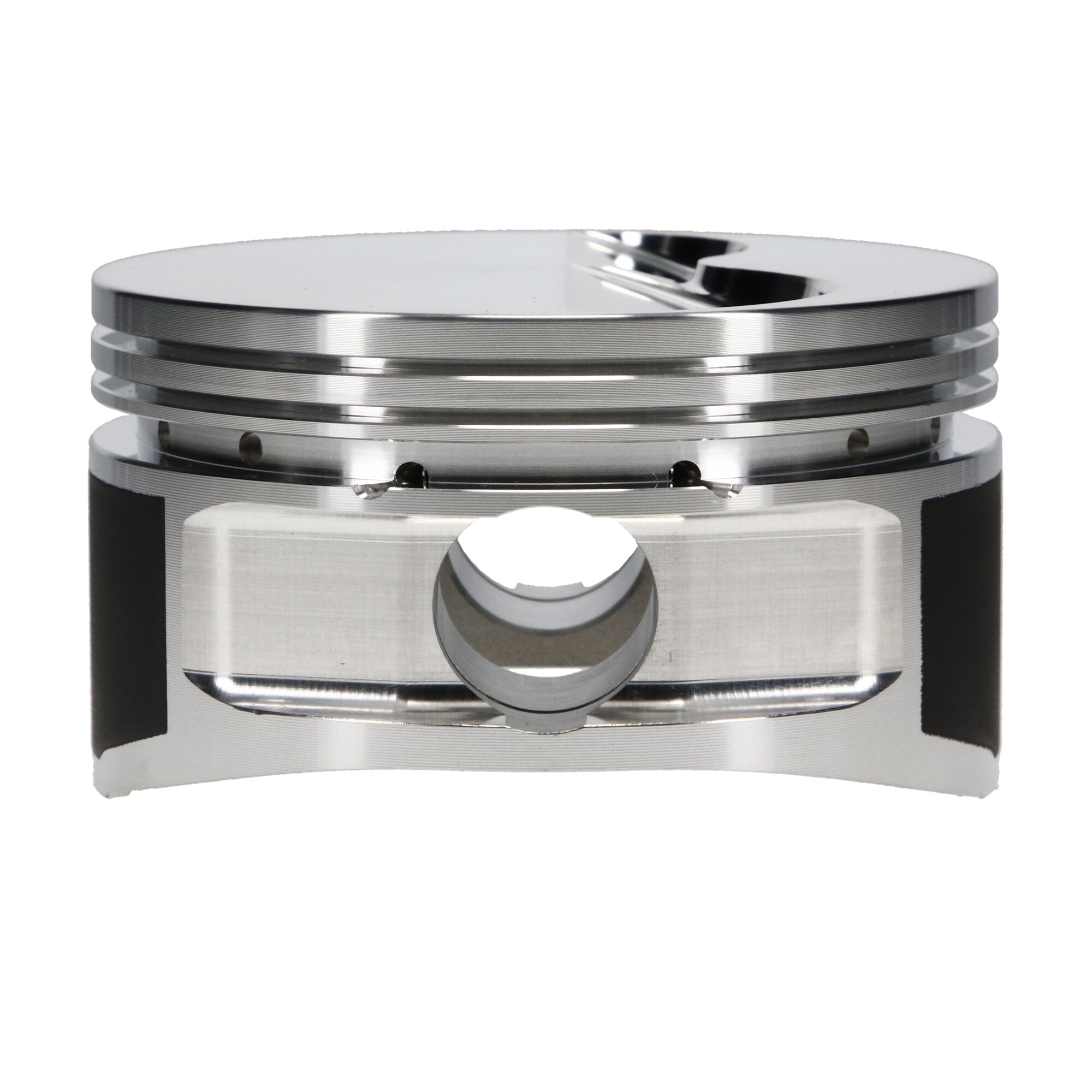

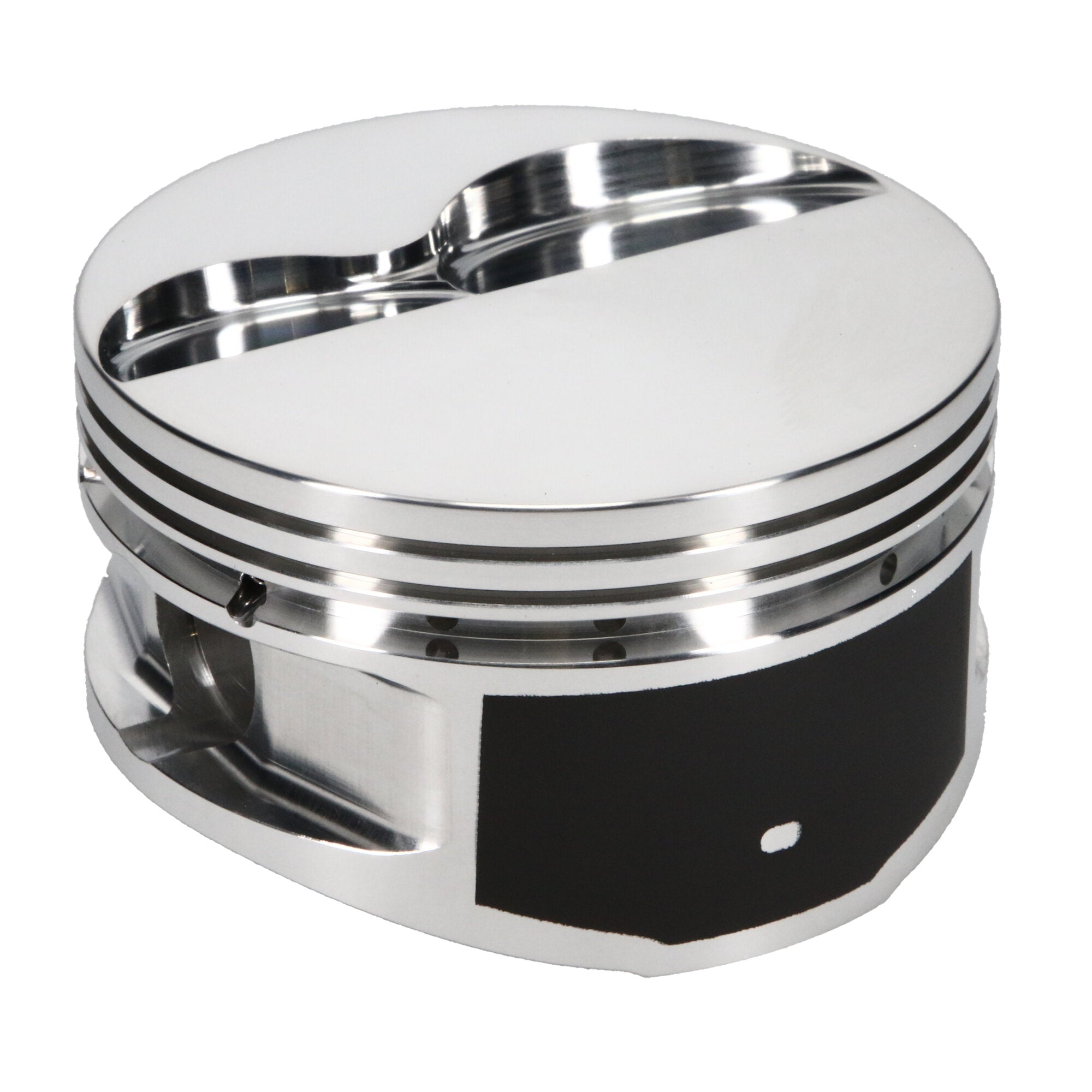

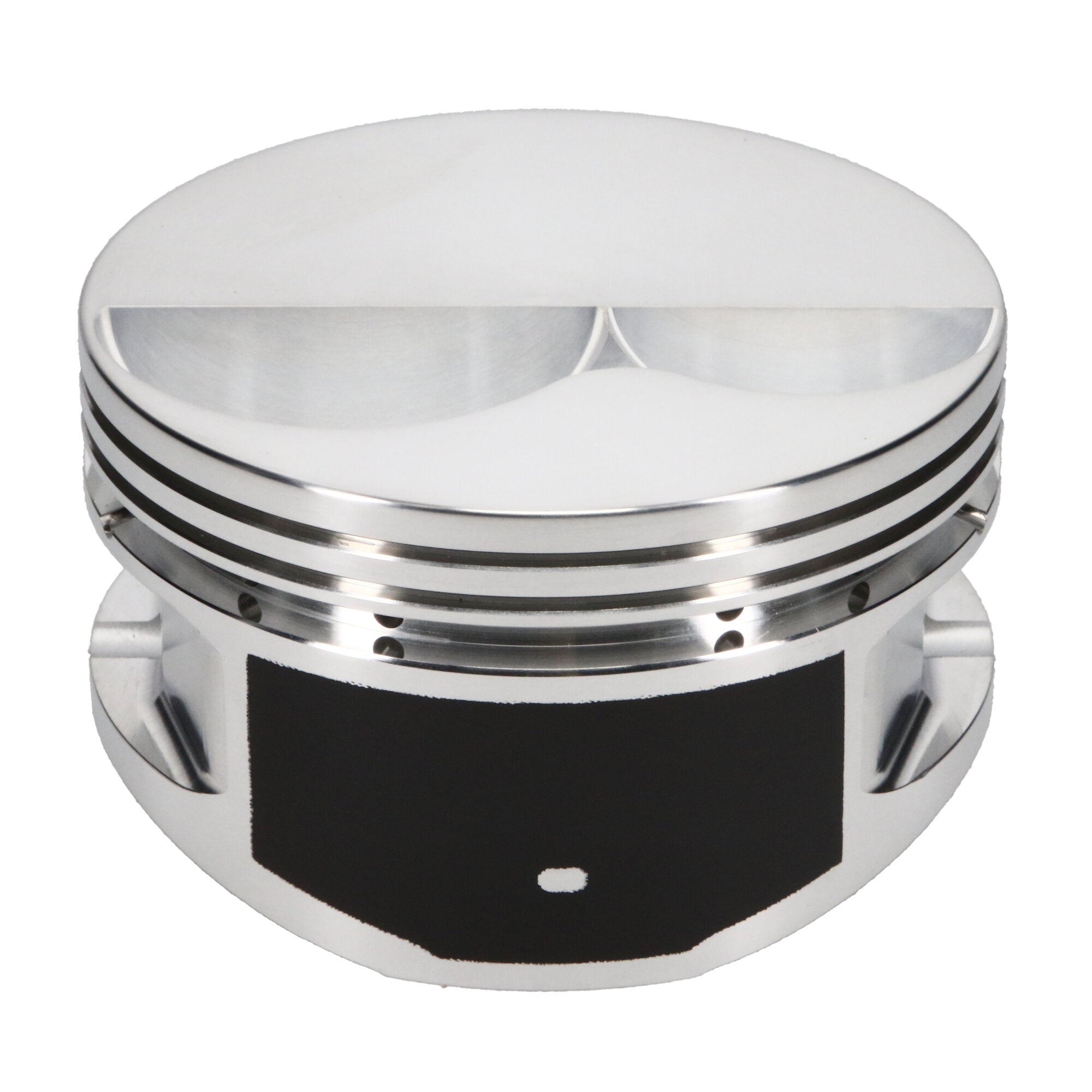

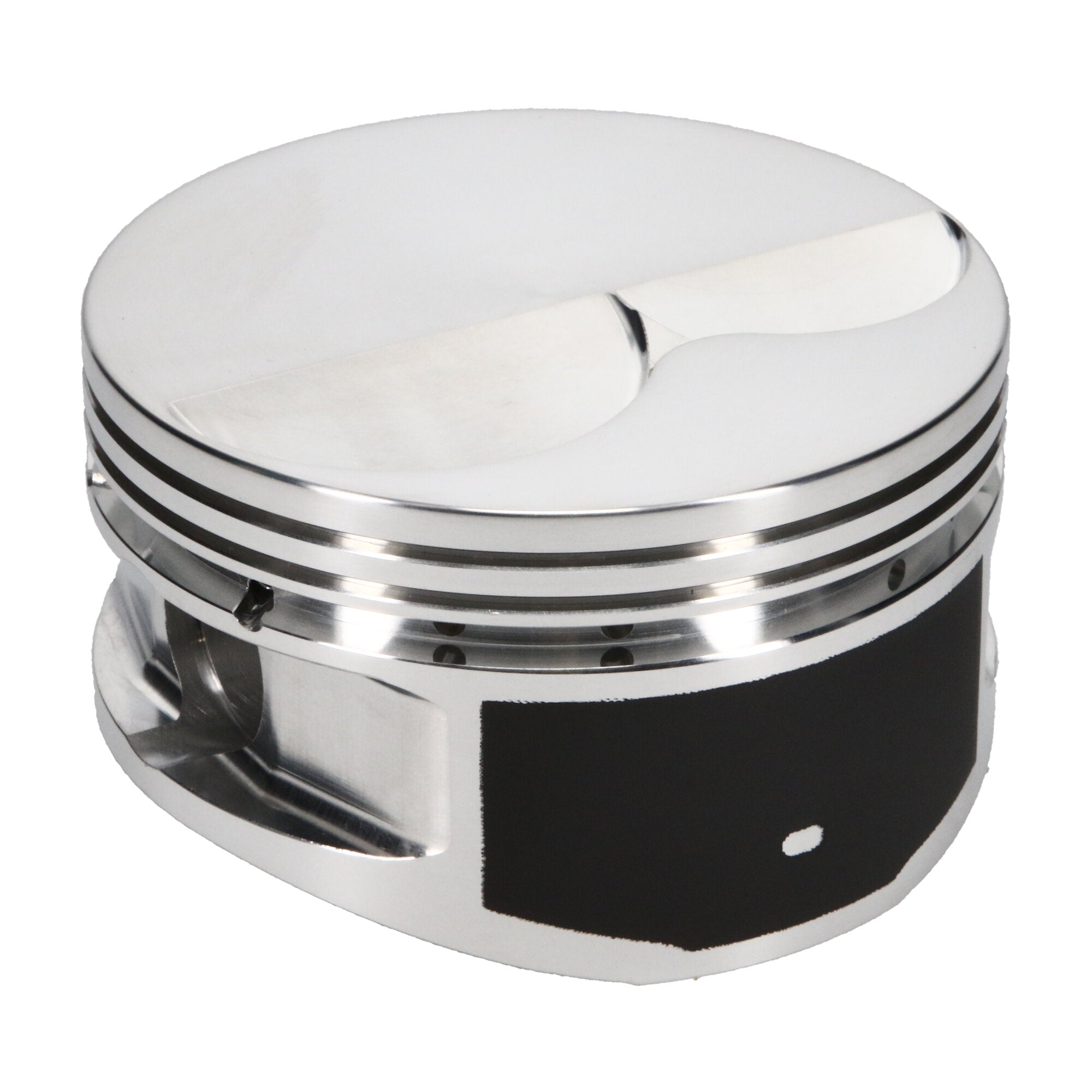

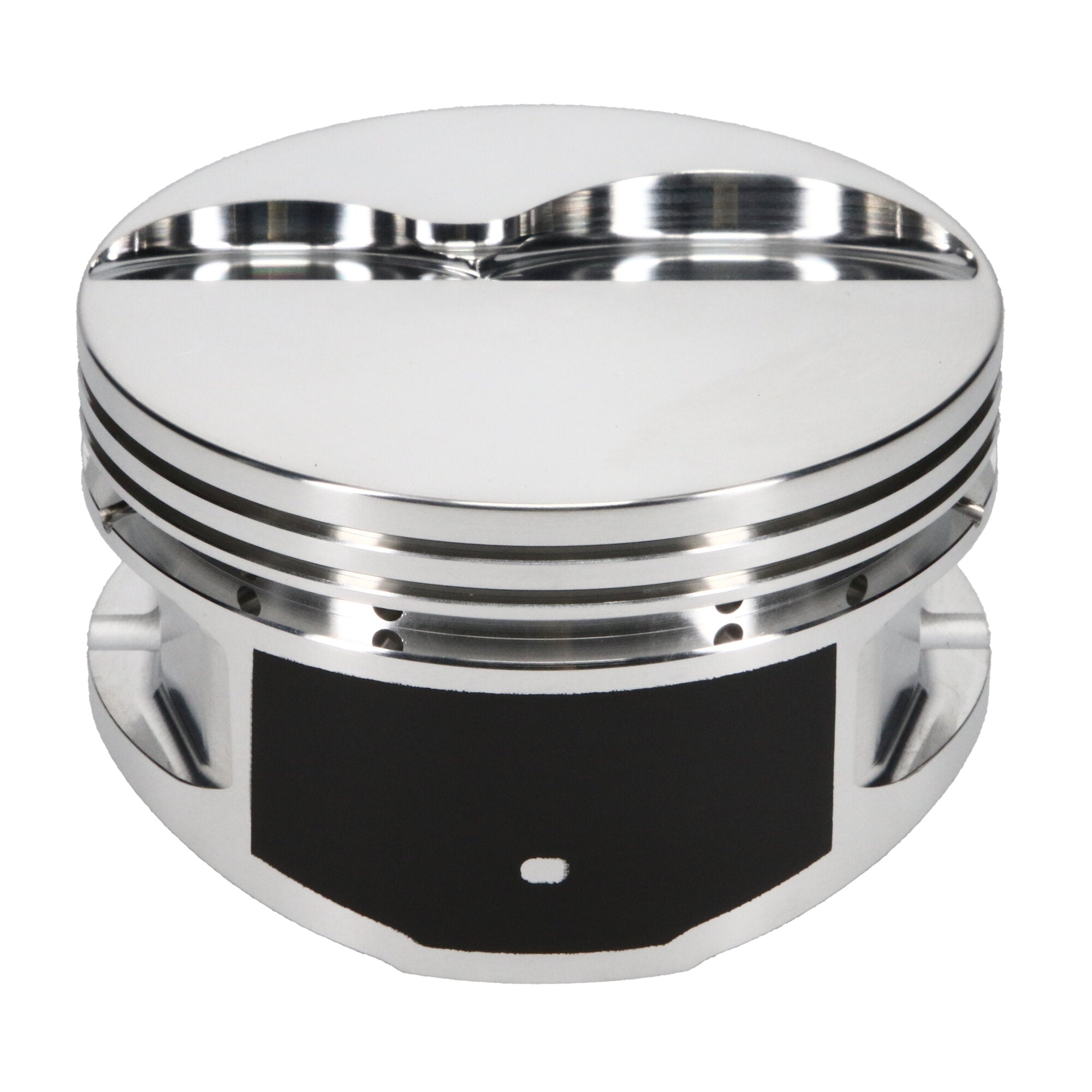

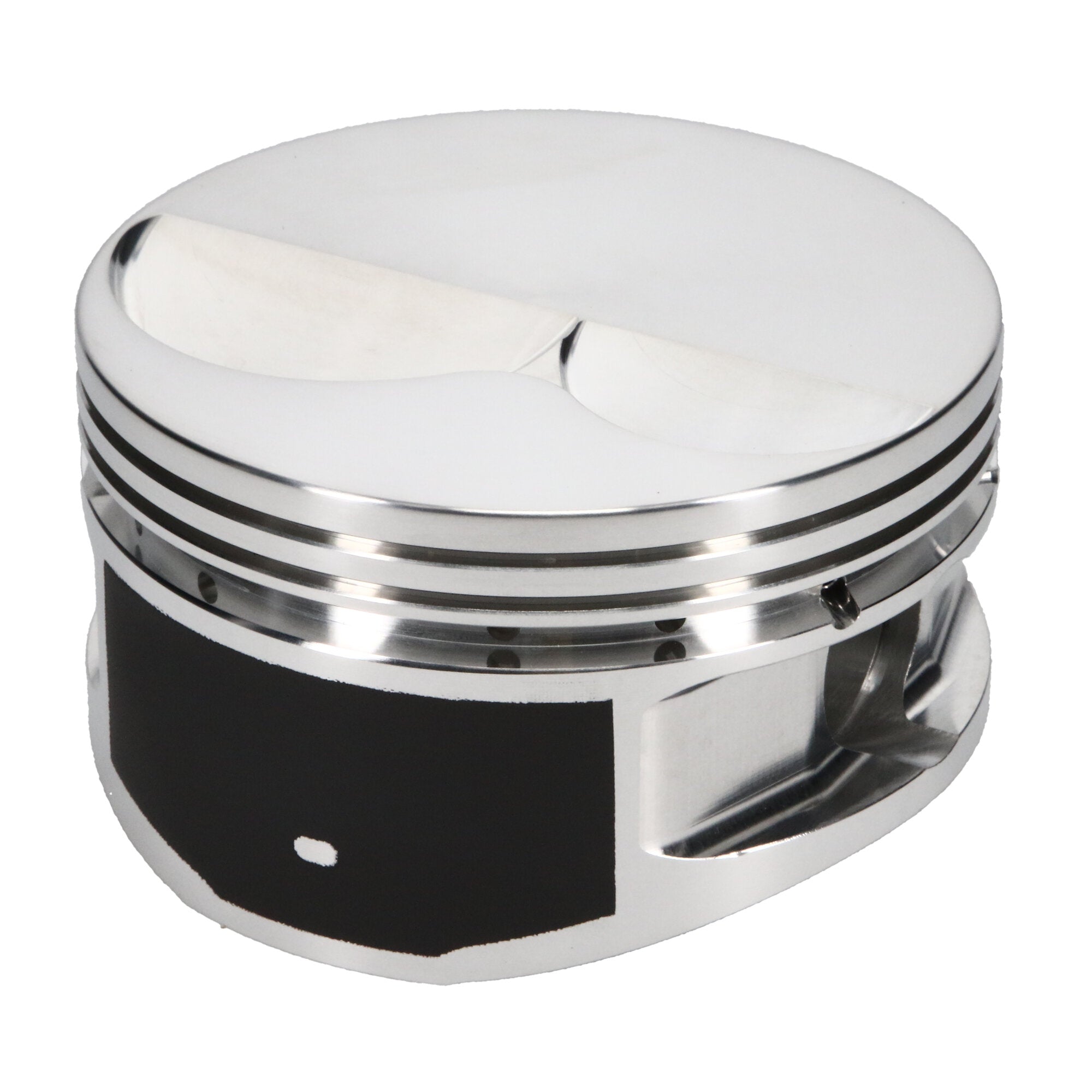

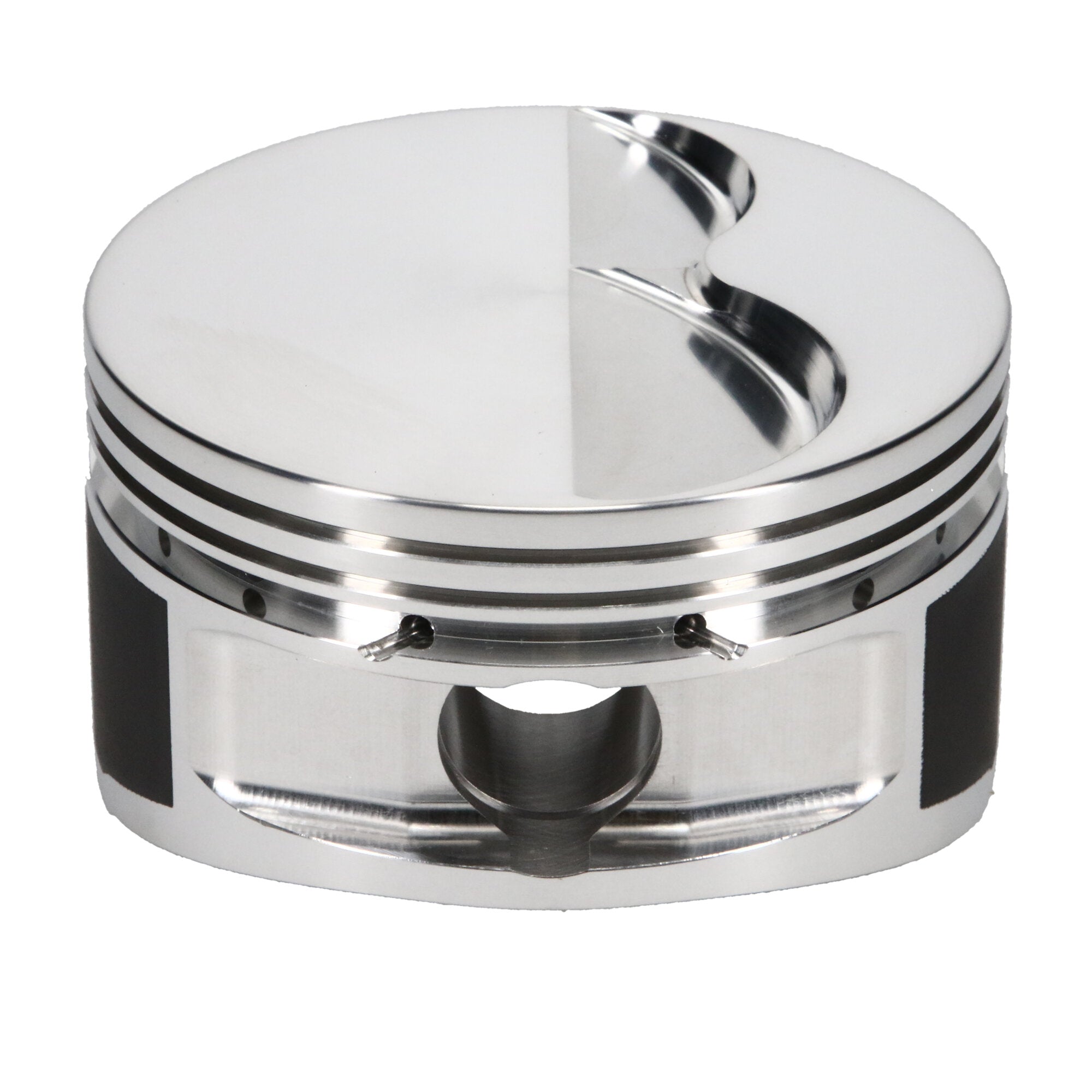

Piston Set, 2618, Flat Top, 4.155 Bore, 1.000 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.155 in. Bore, 1.000 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

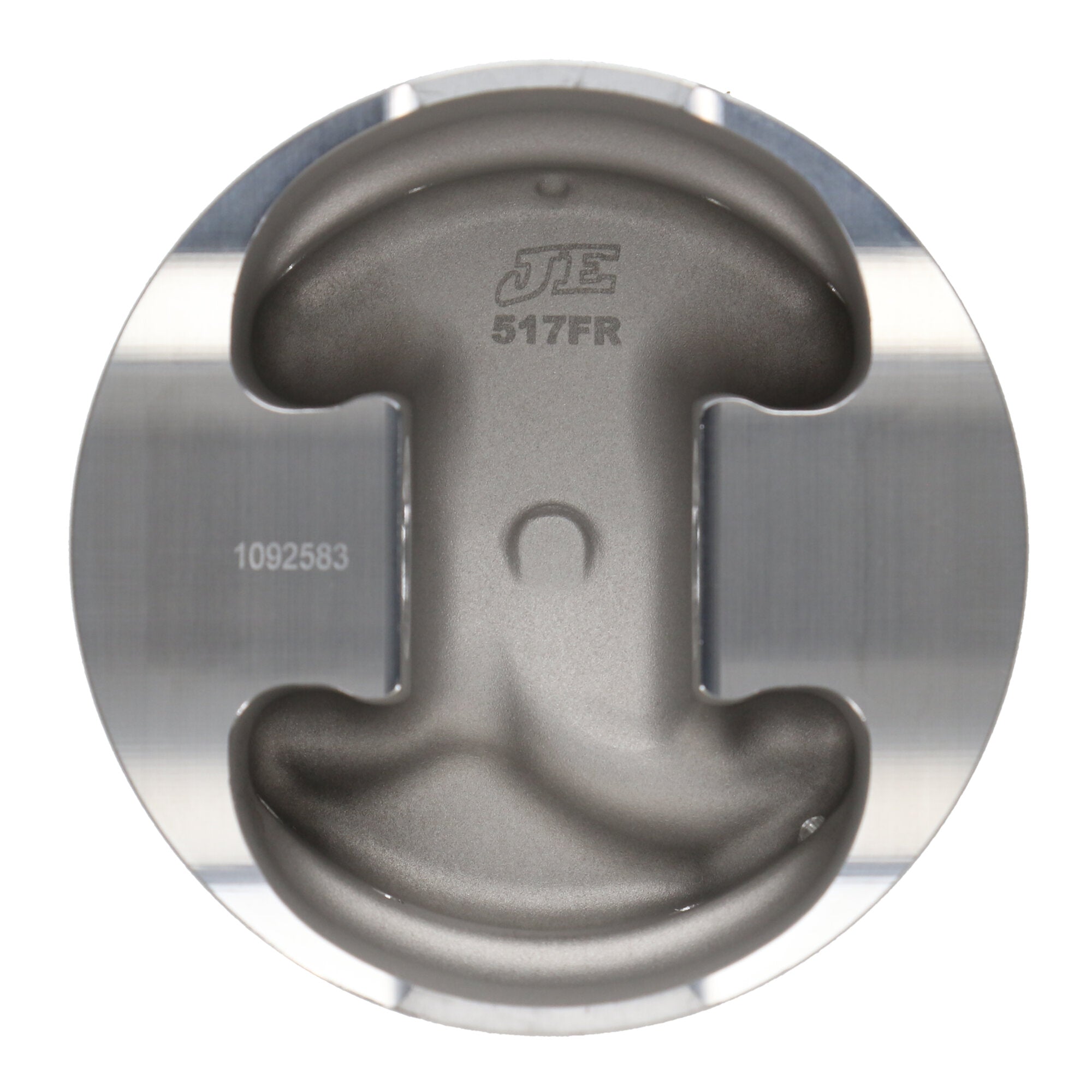

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400, 4.155 Bore, Flat, Set of 8 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Series |
JE Pistons |
| Piston Head Type |

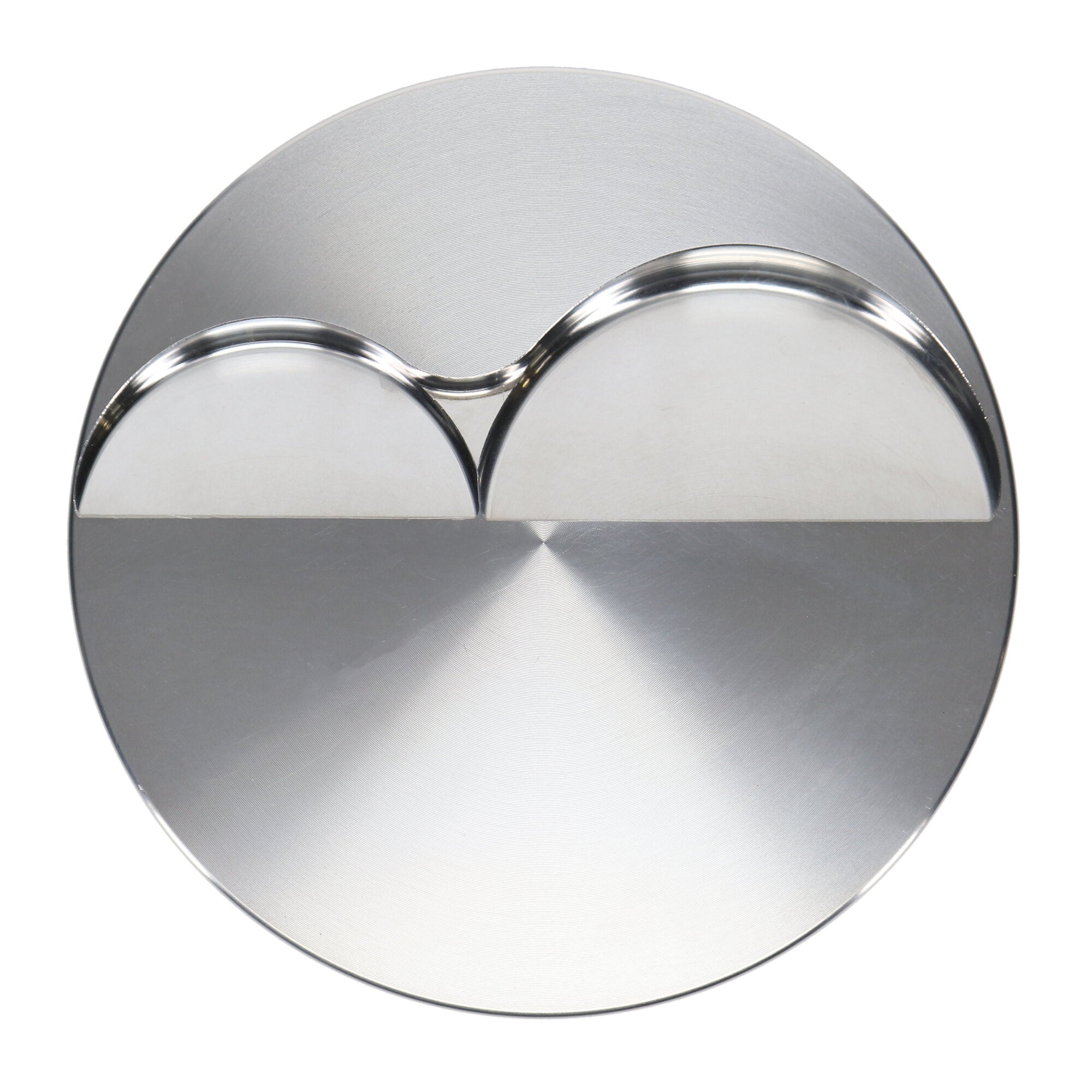

Flat |
| Ringset Included |
No |
| Make |
CHEVROLET |
| Engine |
Small Block |
| Forging Type |
Round |
| Title |
JE Pistons - Chevrolet, Small Block, 4.155 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Piston Pin Length |
2.950 |
| Piston Pin Material |
5115 |
| Compression Height |
1.000 |
| Oil Ring Thickness |
0.218 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Material |
2618 |
| Add-On |
927-073-AS |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J10008-4155-5 |
| Industry |
Automotive |
| Piston Volume |
-5.90 |
| Engine Type |
ICE |
| Bore Diameter |
4.155 |
| Piston Average Weight |
436 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 18 DEG |
| Add-On |
927-2950-15-51S |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.155 in. Bore - 1.000 in. CH, -5.90 CC |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Wall Thickness |
0.150 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Length |
2.950 |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
