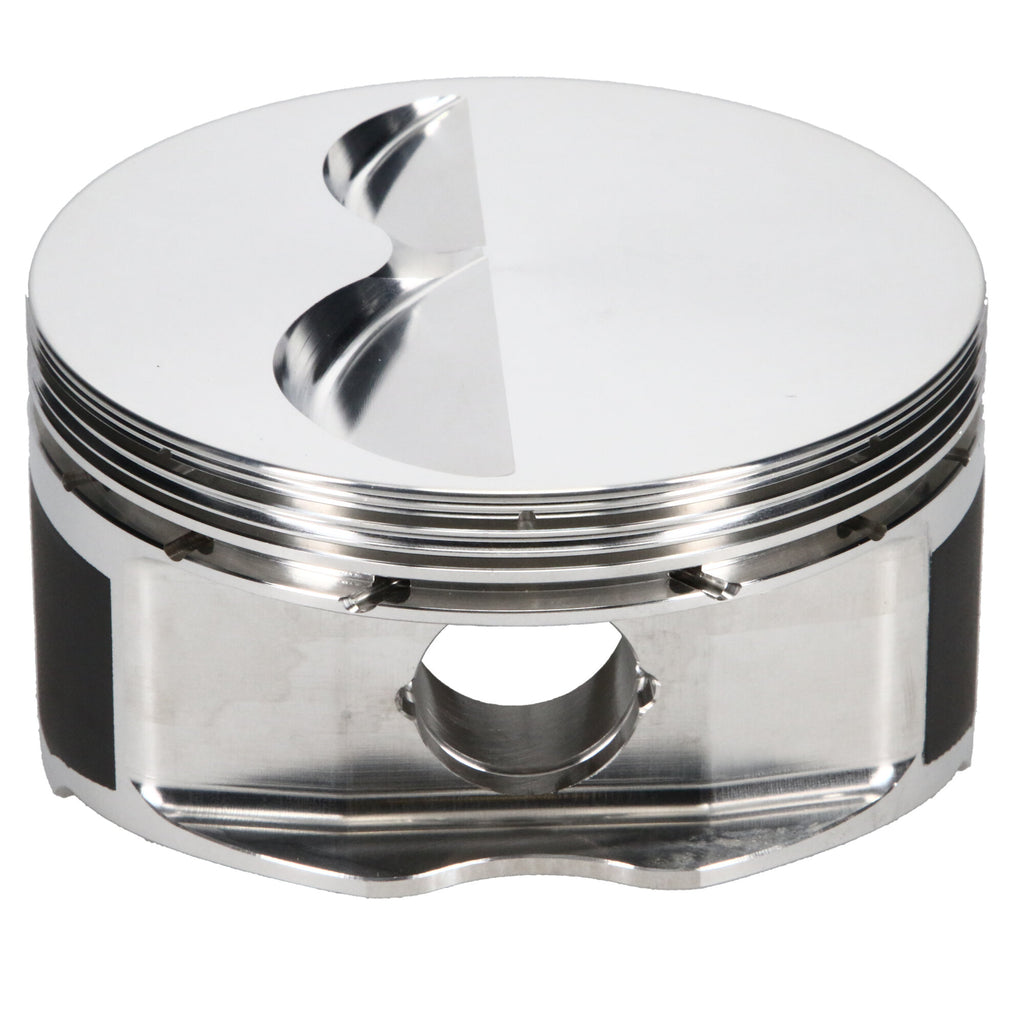

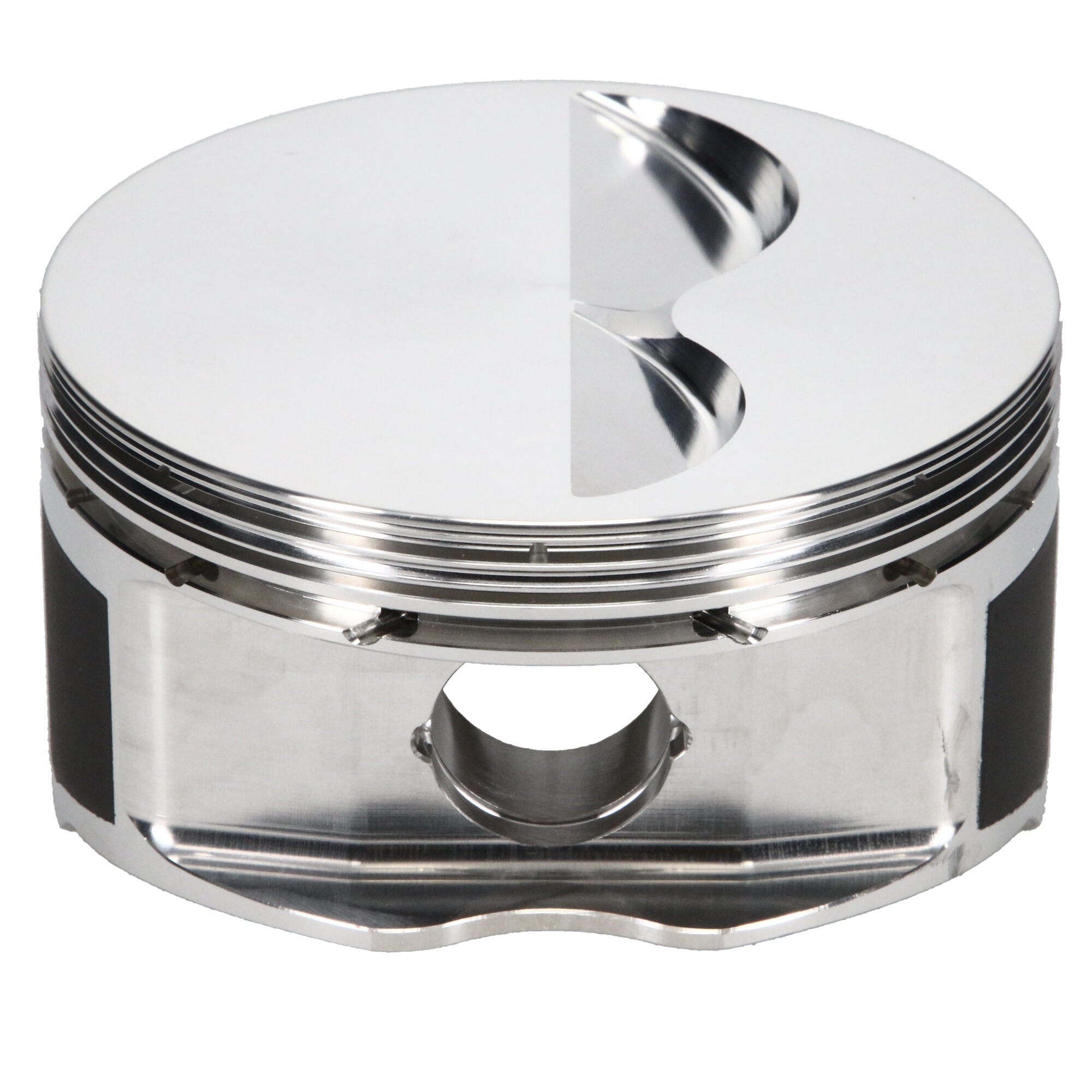

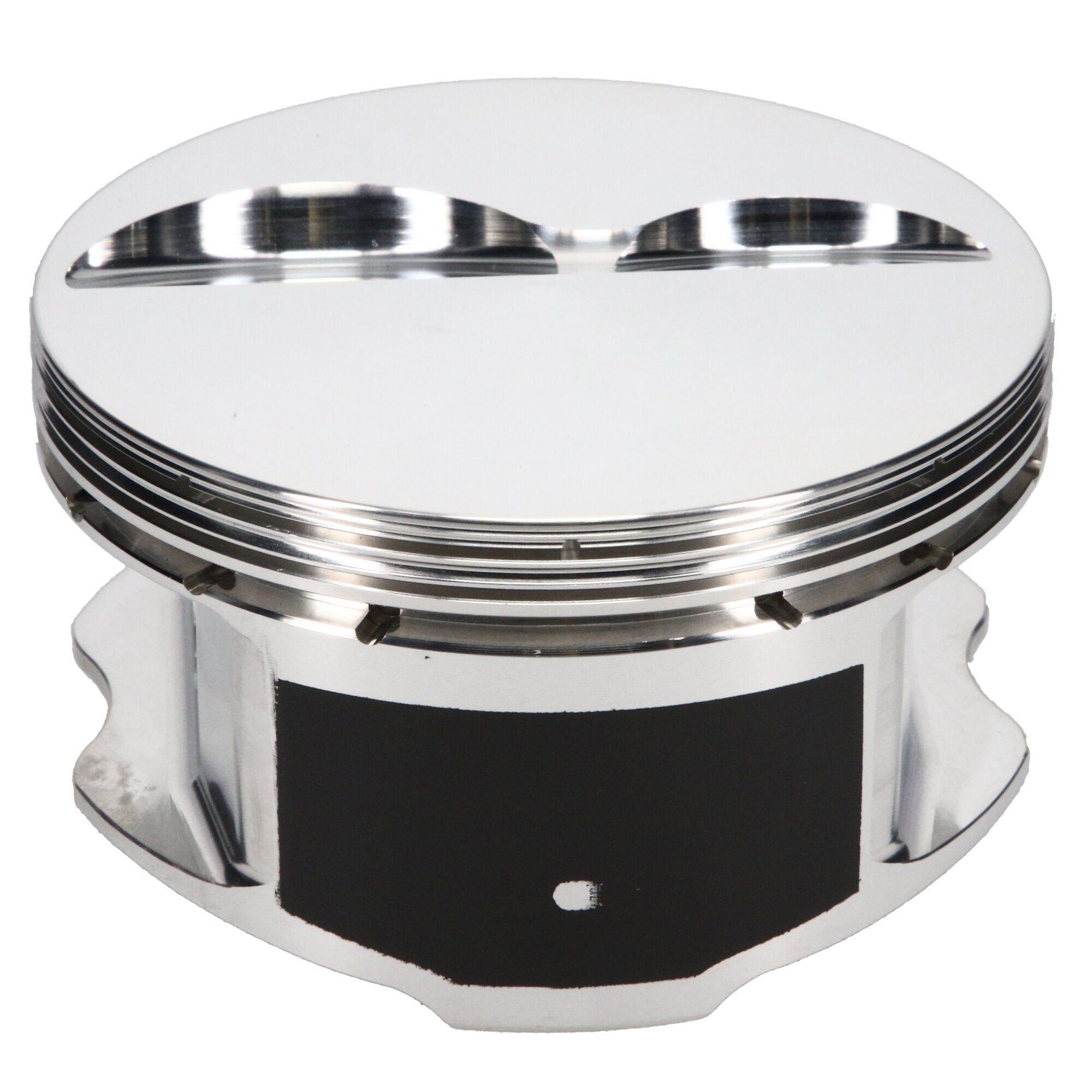

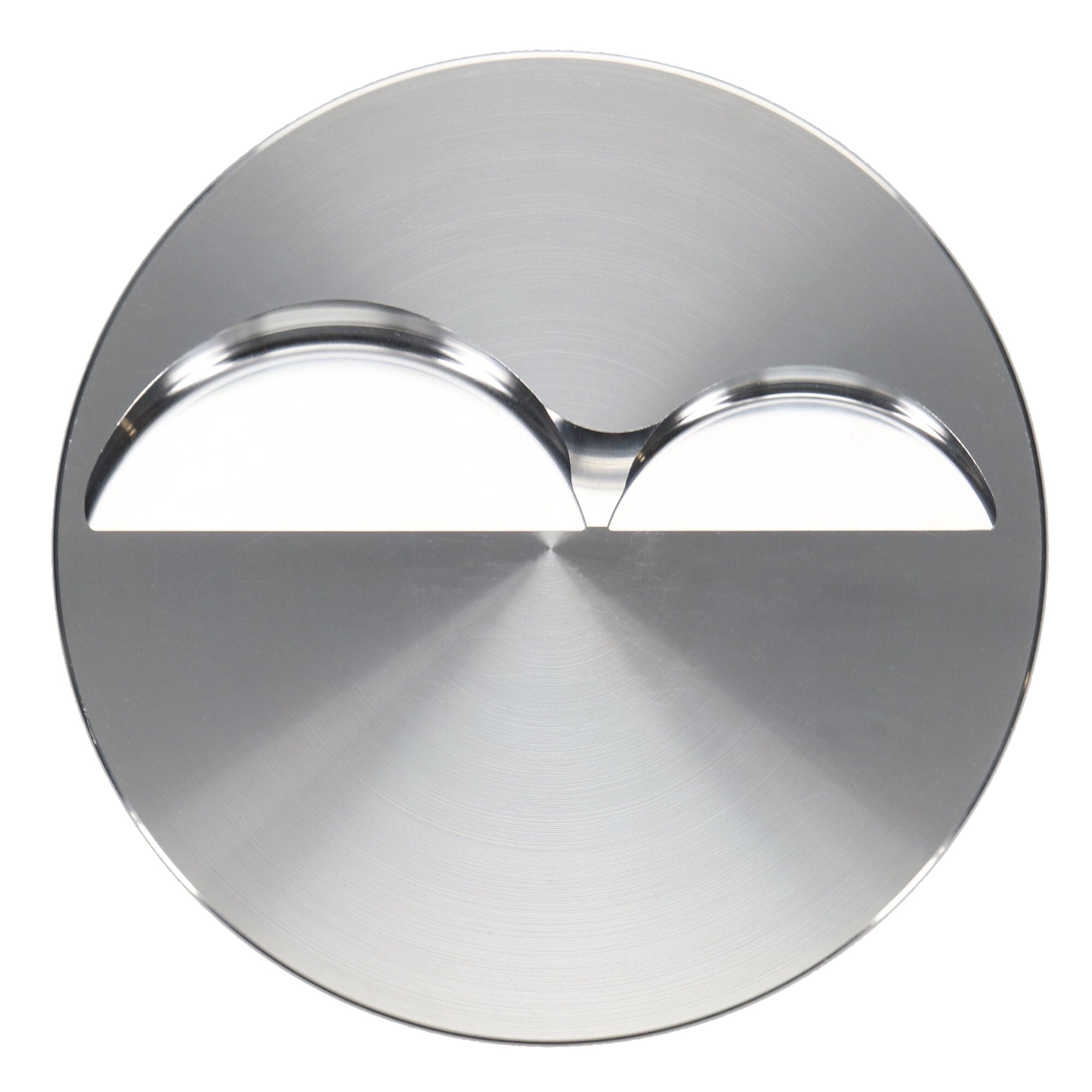

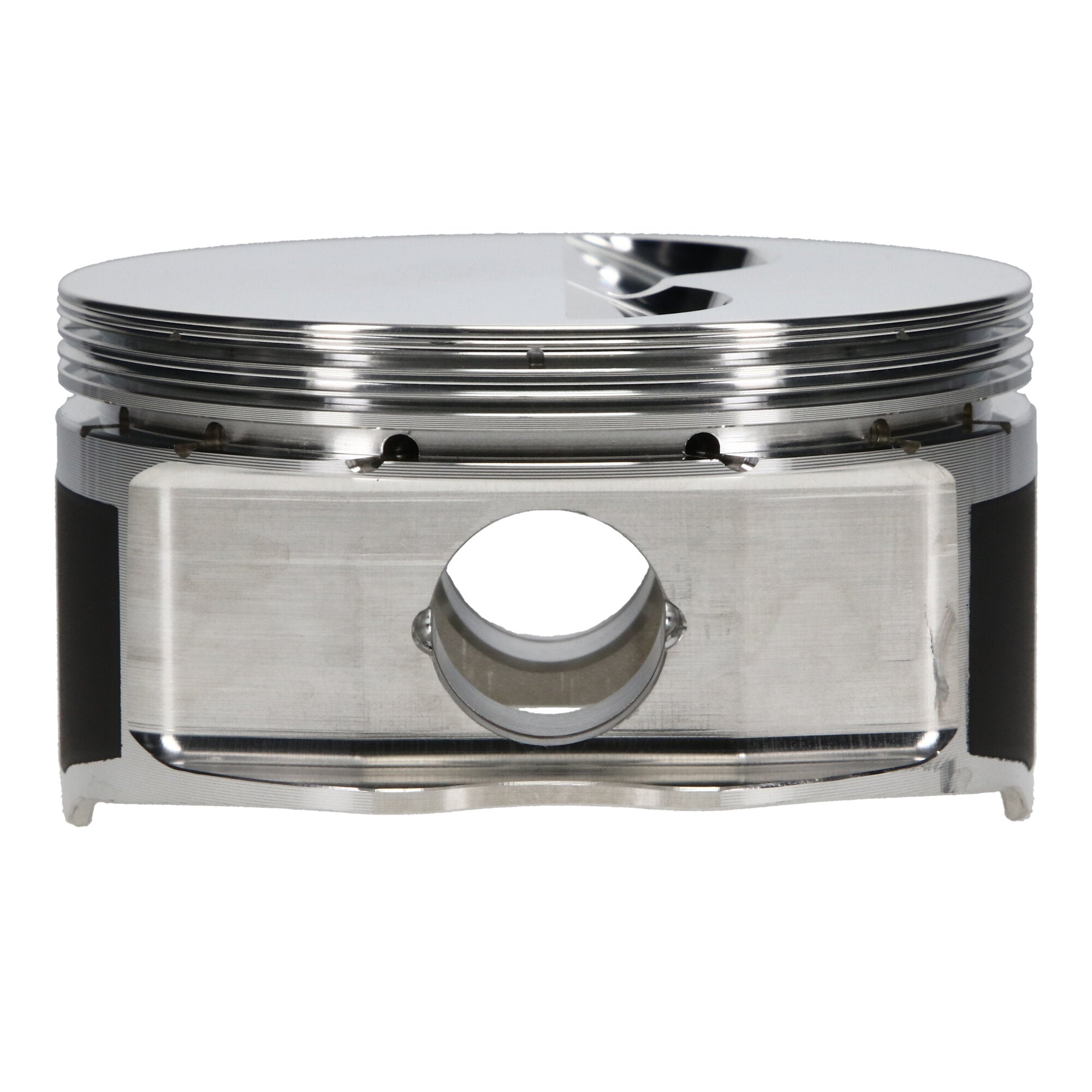

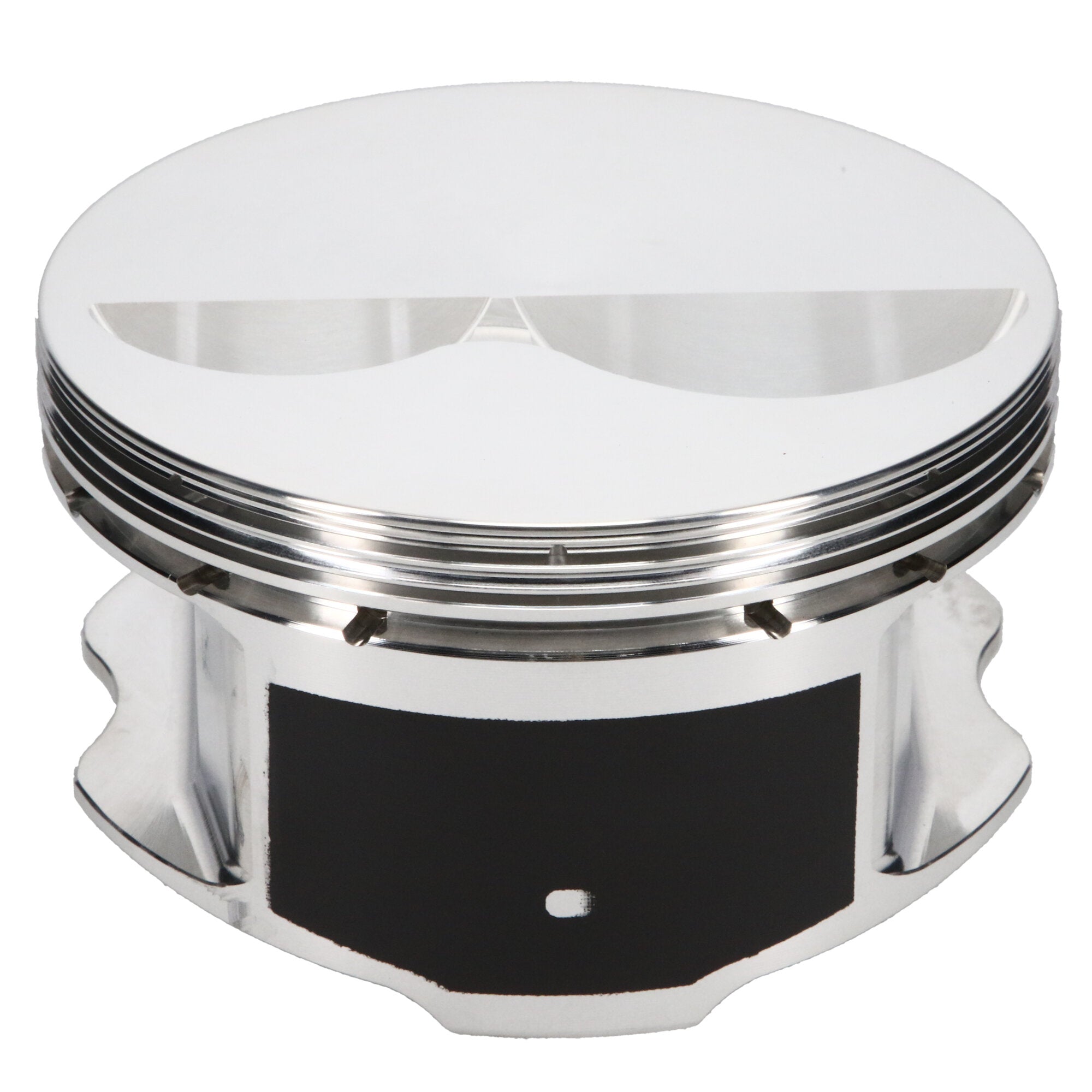

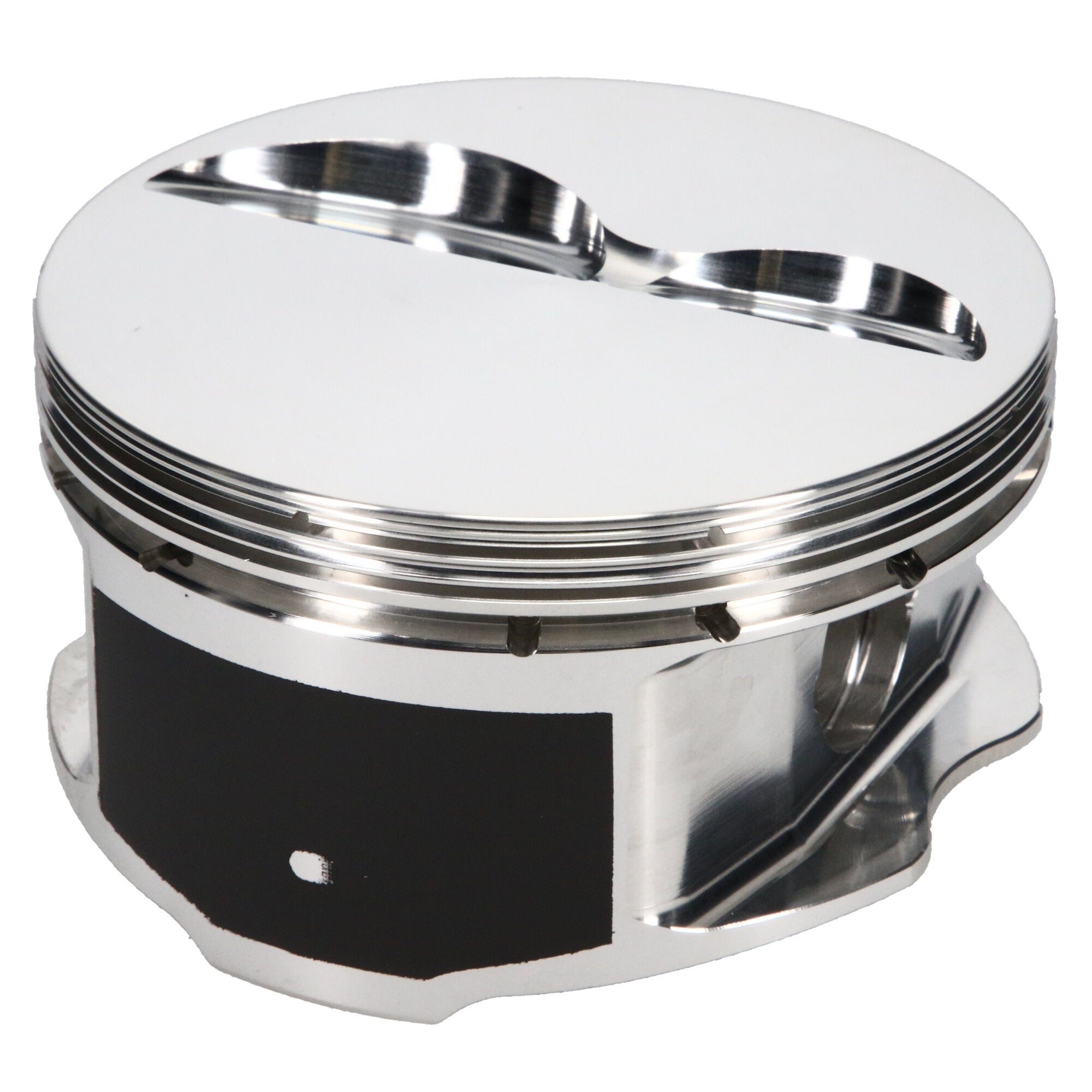

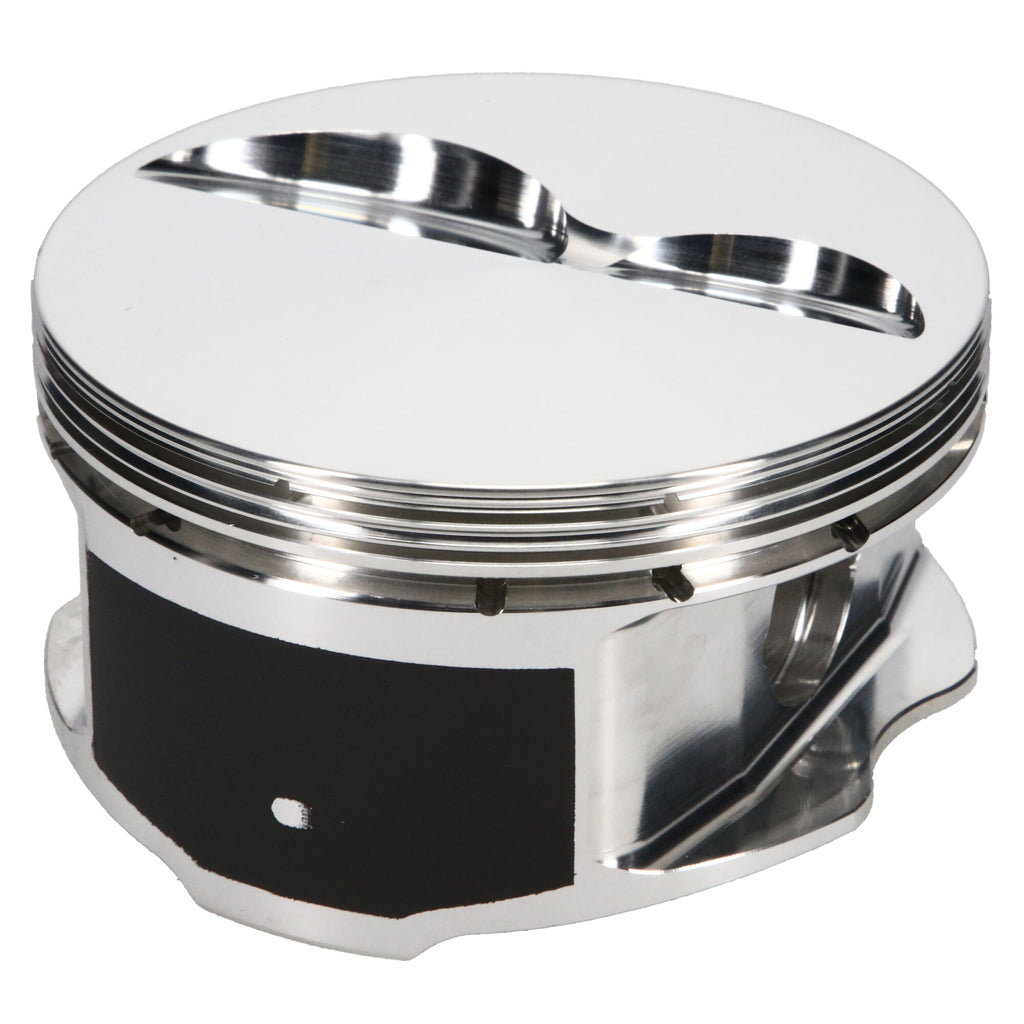

  • JE Pistons 177848R Piston Single, 2618, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.125-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

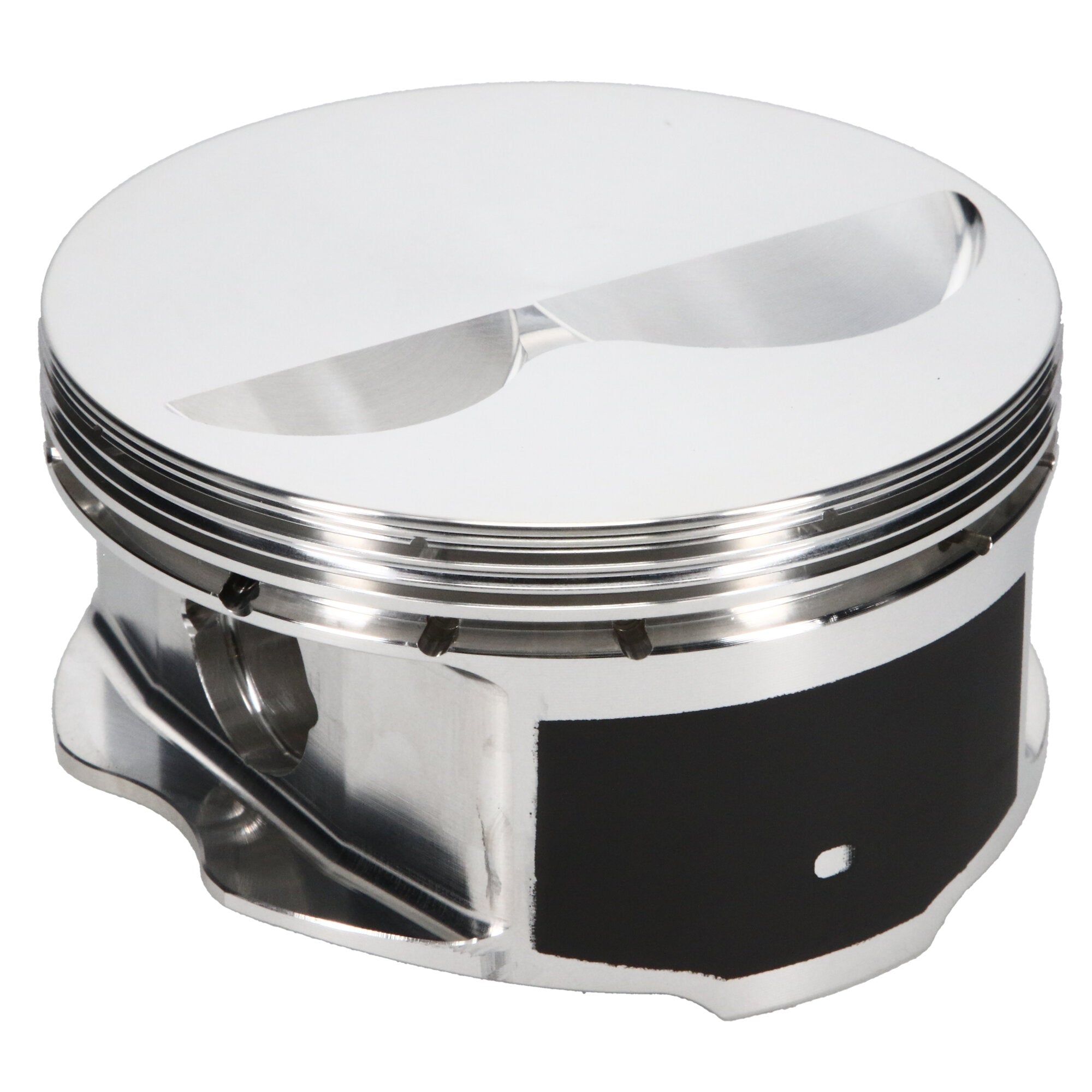

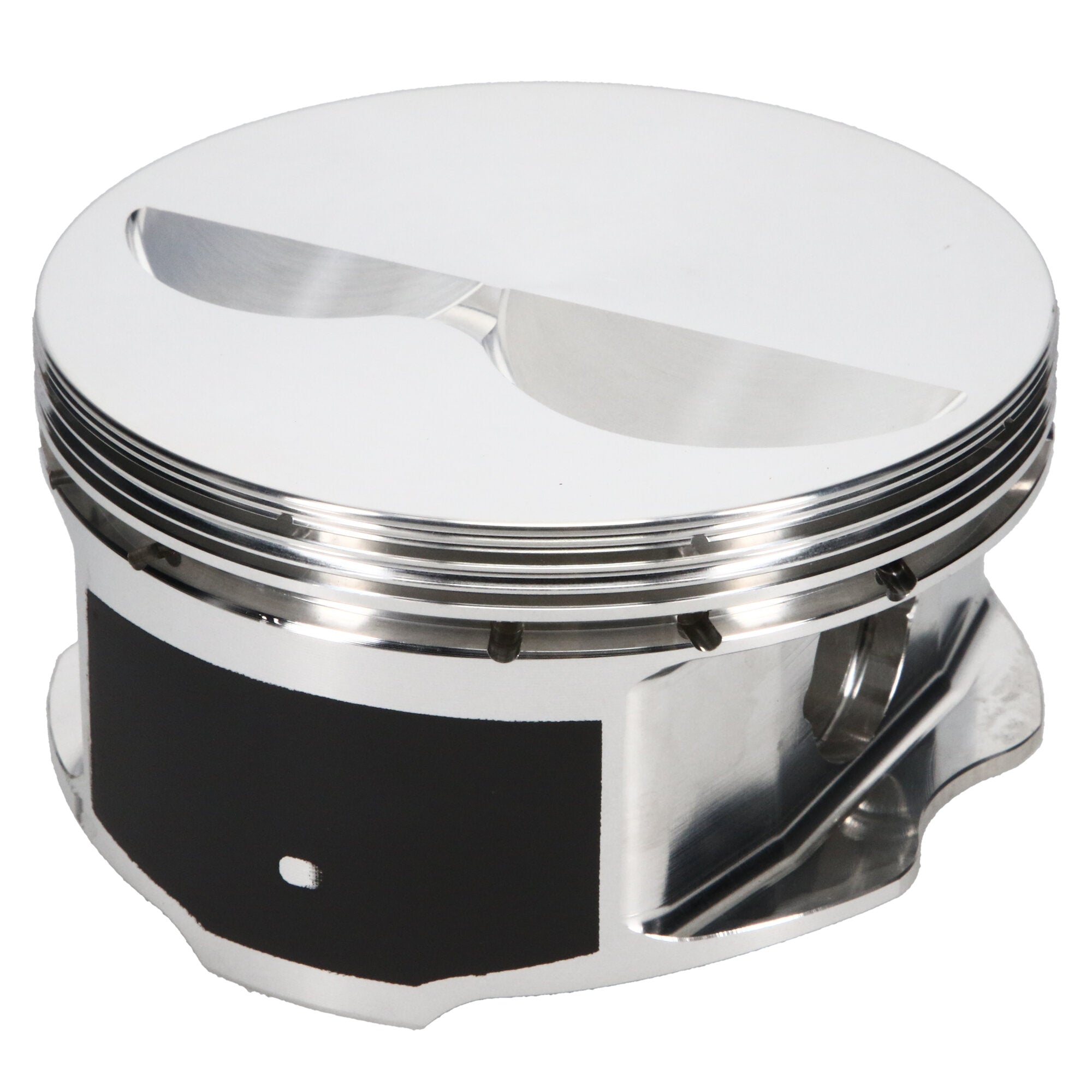

JE Pistons 177848R Piston Single, 2618, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_177848R
Engine Piston
$343.75
customers are viewing this product
JE Pistons 170752R Piston Single, 2618, Dome, 4.155 Bore, 1.000 CD, 0.927 Pin, Set of 1.
JE Pistons 170752R Piston Single, 2618, Dome, 4.155 Bore, 1.000 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 170766R Piston Single, 2618, Dome, 4.145 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 170766R Piston Single, 2618, Dome, 4.145 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 177848R Piston Single, 2618, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
Details

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
Description_INV JE Pistons, Piston
Description_EXT JE Ultra, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.125 CD, Flat Top, Right Piston
Description_FAB
  • Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
  • Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
  • Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
  • Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
  • High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
  • Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
  • Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
  • Made 100% in the USA
Description_MKT Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Description_SHO Piston
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Oil Ring Thickness 0.119
Wrist Pin Wall Thickness 0.130
Piston Volume -1.50
Engine Type ICE
Piston Pin Wall Thickness 0.130
Piston Pin Material 5115
Forging Type Round
Compression Height 1.125
Piston Series JE Ultra Series
Product Market Domestic
Category Hierarchy Auto>JE Ultra Series>Single Replacement Pistons>Domestic
Bore Diameter 4.030
Piston Orientation Right
Make CHEVROLET
Piston Pin Outside Diameter 0.927
Top Compression Ring Thickness 0.0436
Ring Set Included No
Wrist Pin Length 2.400
Wrist Pin Outer Diameter 0.927
Piston Pin Length 2.400
Piston Average Weight 342
Product Type Engine Piston
Add-On 927-2400-13-51C
Title - Web JE Ultra Series Chevrolet Small Block Piston - 4.030 in. Bore - 1.125 in. CH, -1.50 CC
Add-On J71408-4030-5
Prop 65 Yes/No Yes
Engine Small Block
Second Compression Ring Thickness 0.0440
Prop 65 (C, R or CR) CR
Ringset Included No
Title JE Ultra Series - Chevrolet, Small Block, 4.030 in. Bore, Piston
Out of Stock Message Call for Availability
Add-On 927-073-MW
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Engine - Web Small Block
Make - Web Chevrolet
Cylinder Head STD CHEVROLET 23 DEG
Piston Head Type Flat
Industry Automotive
Piston Material 2618
Prop 65 - Short Label Prop 65 Warning Label.JPG
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
