As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 305 SBC APBA 4V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

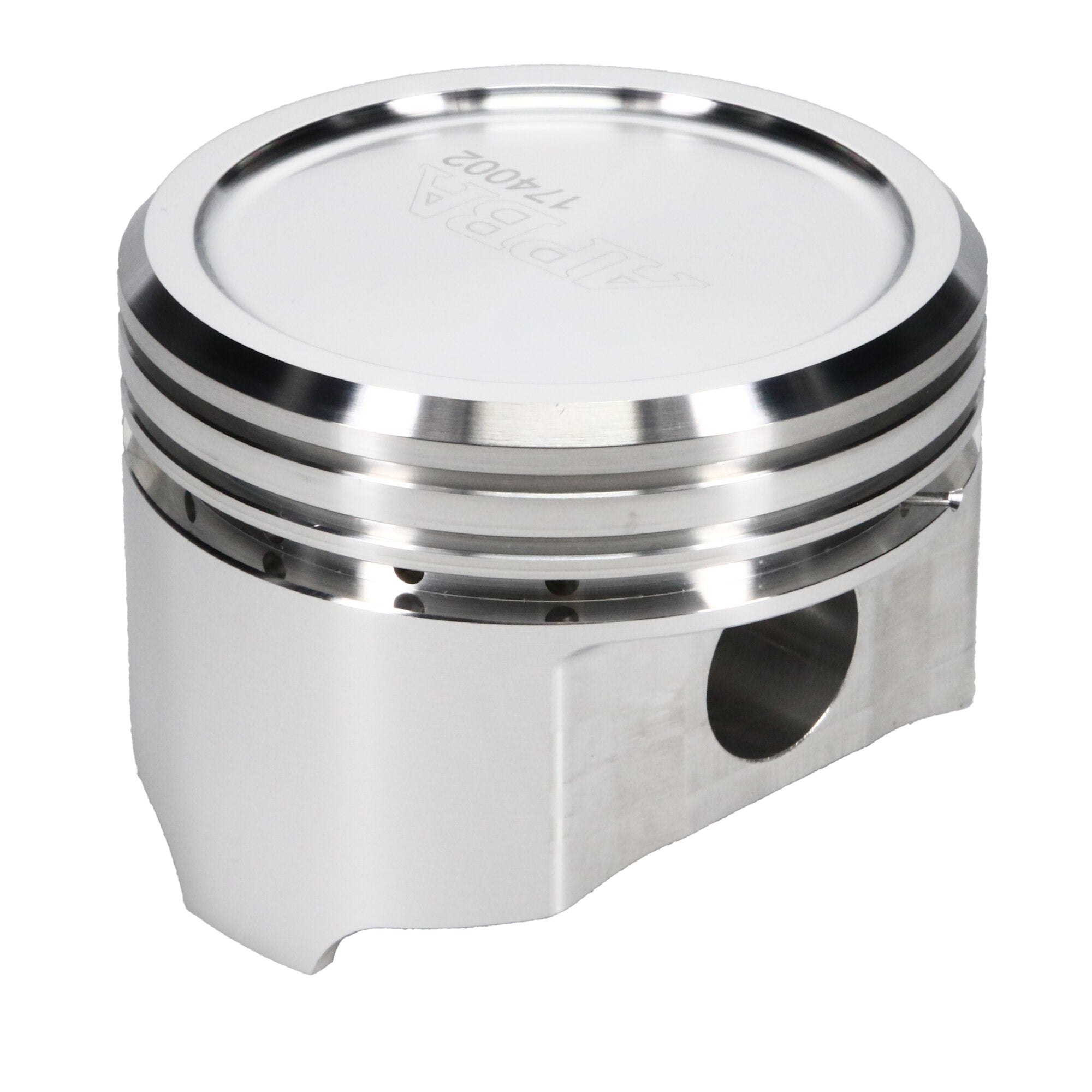

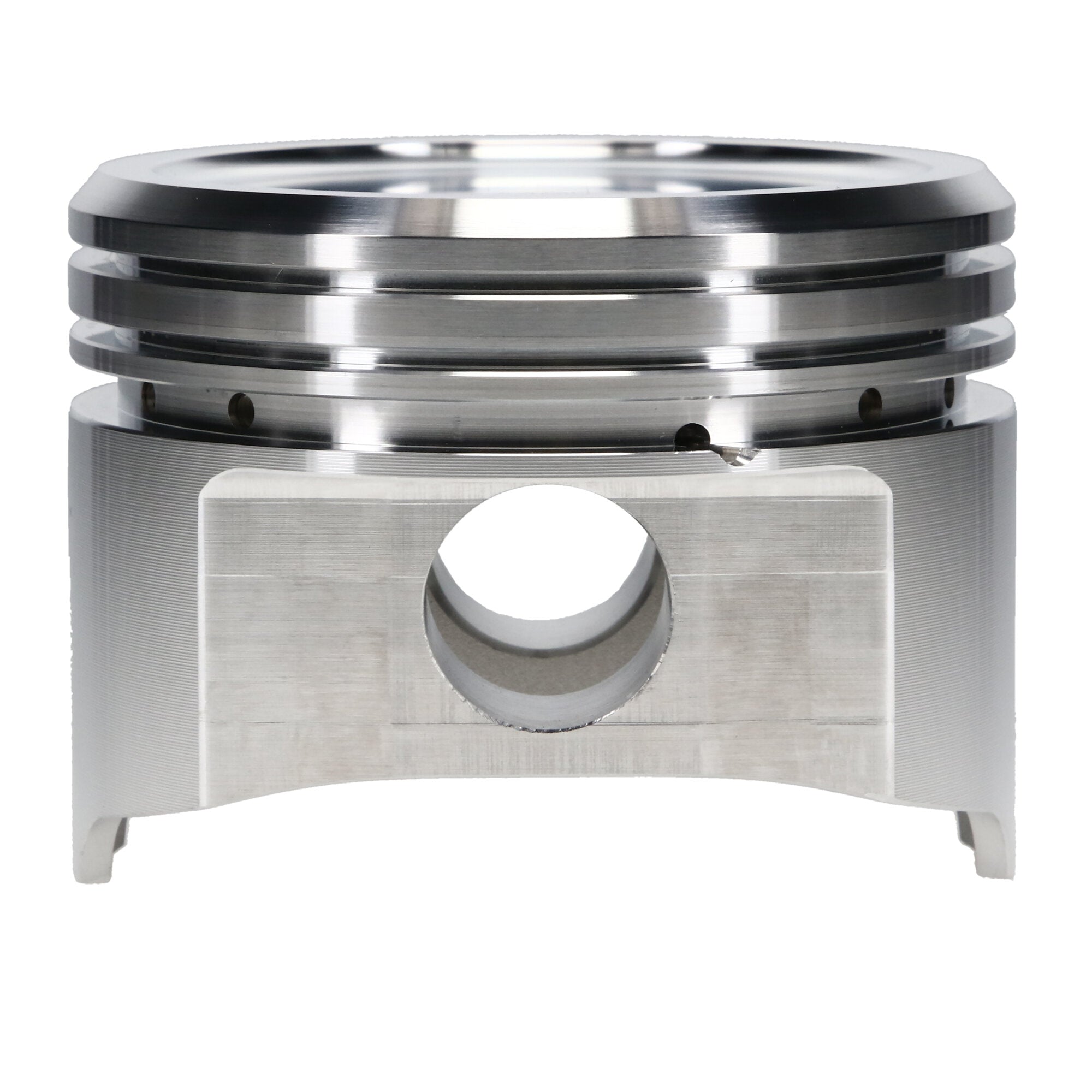

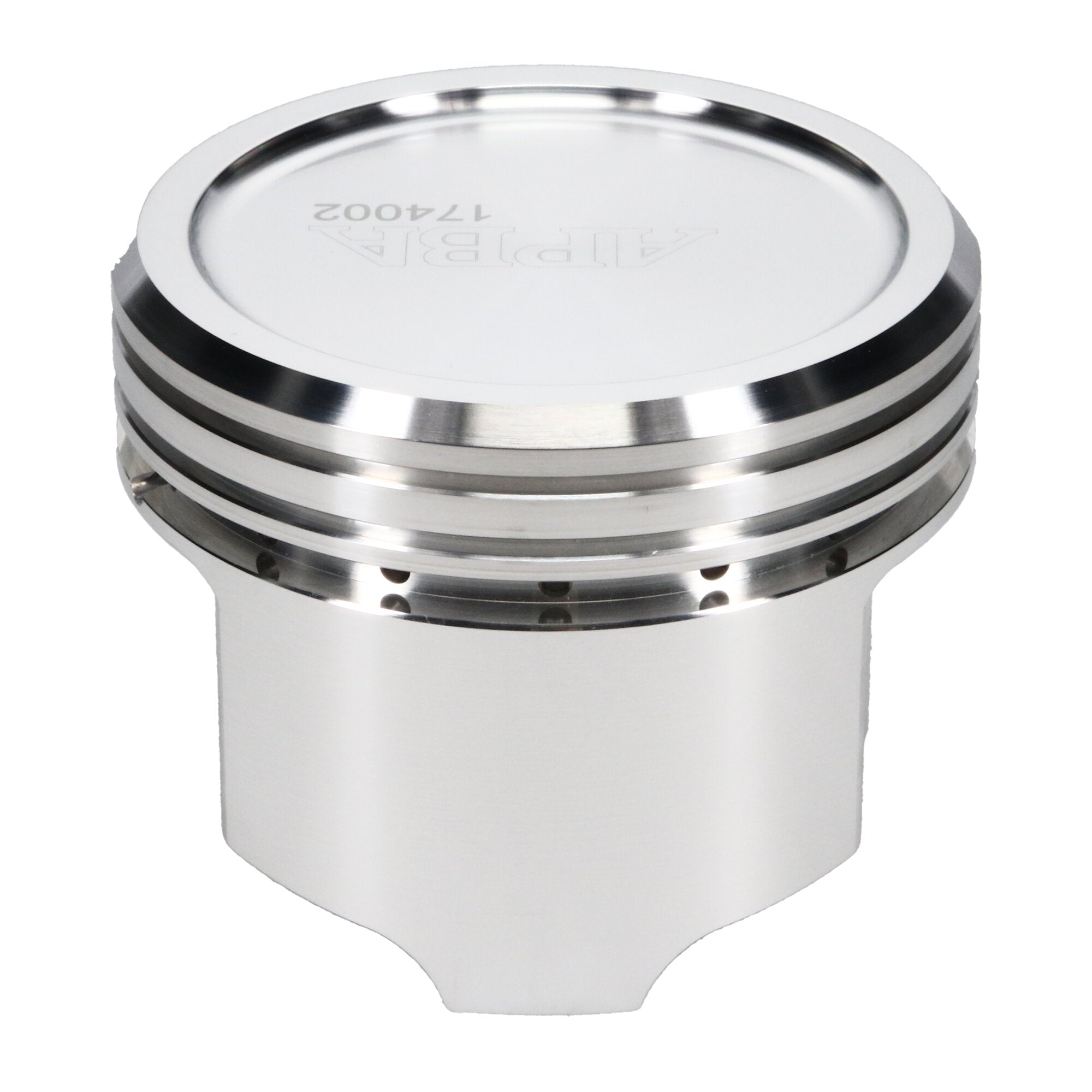

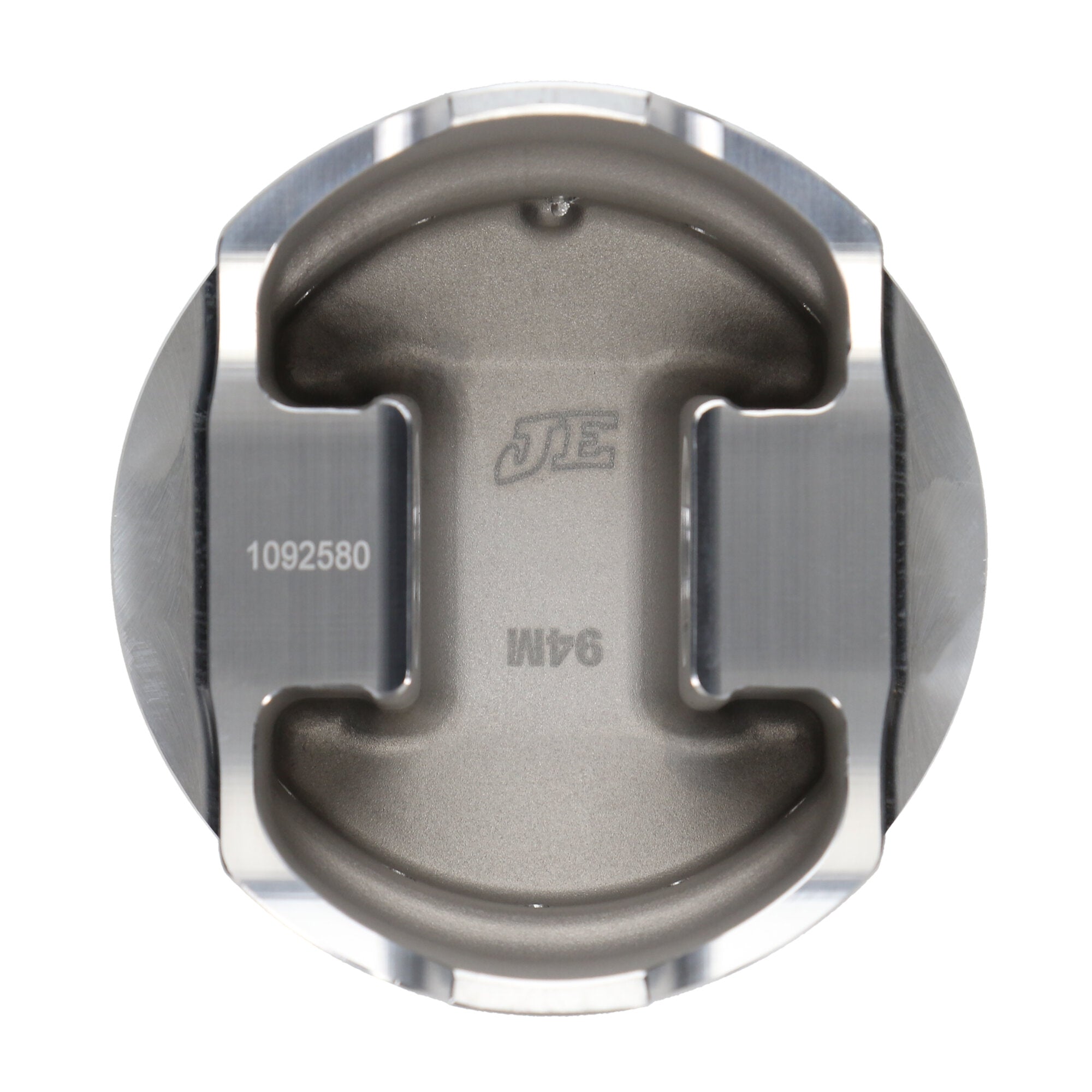

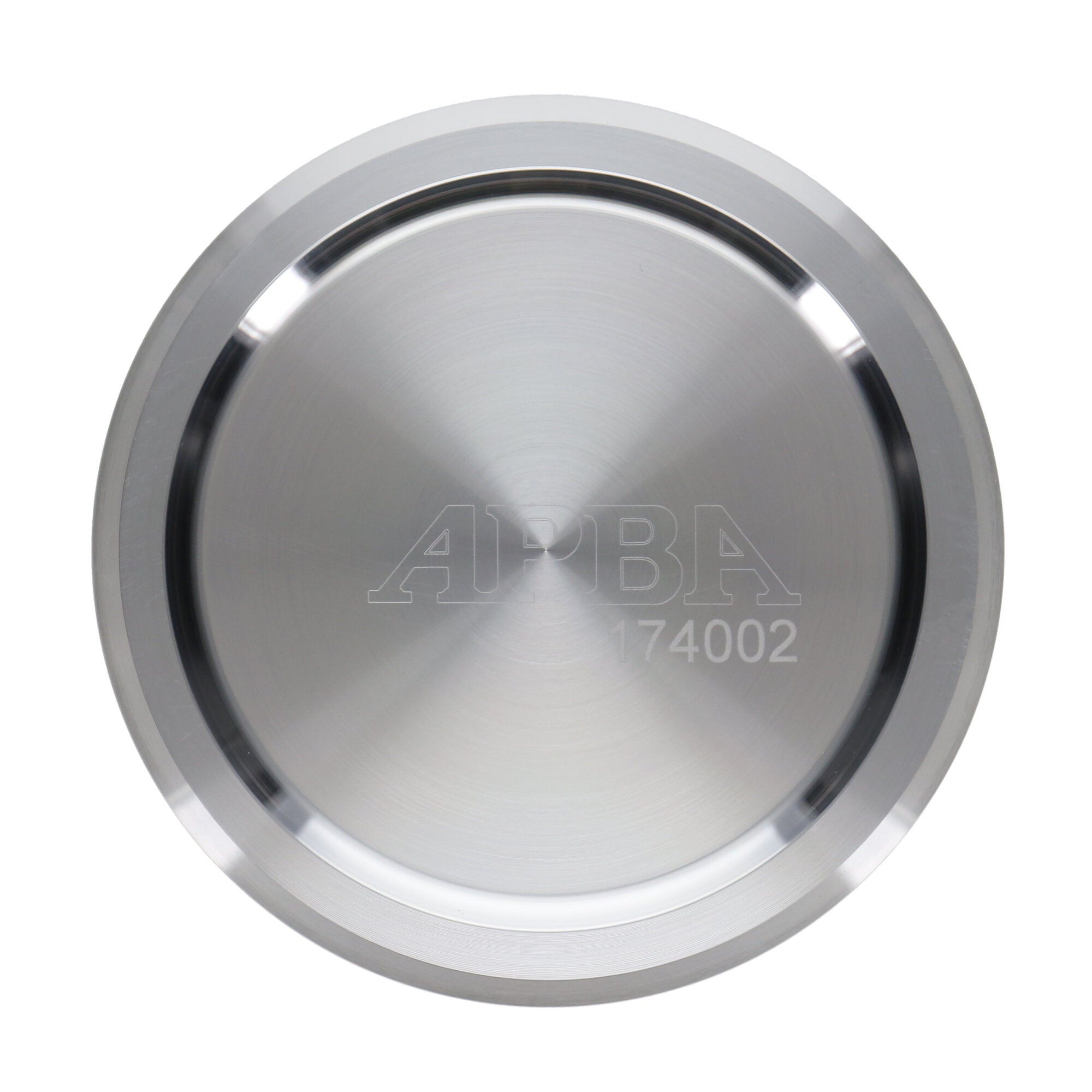

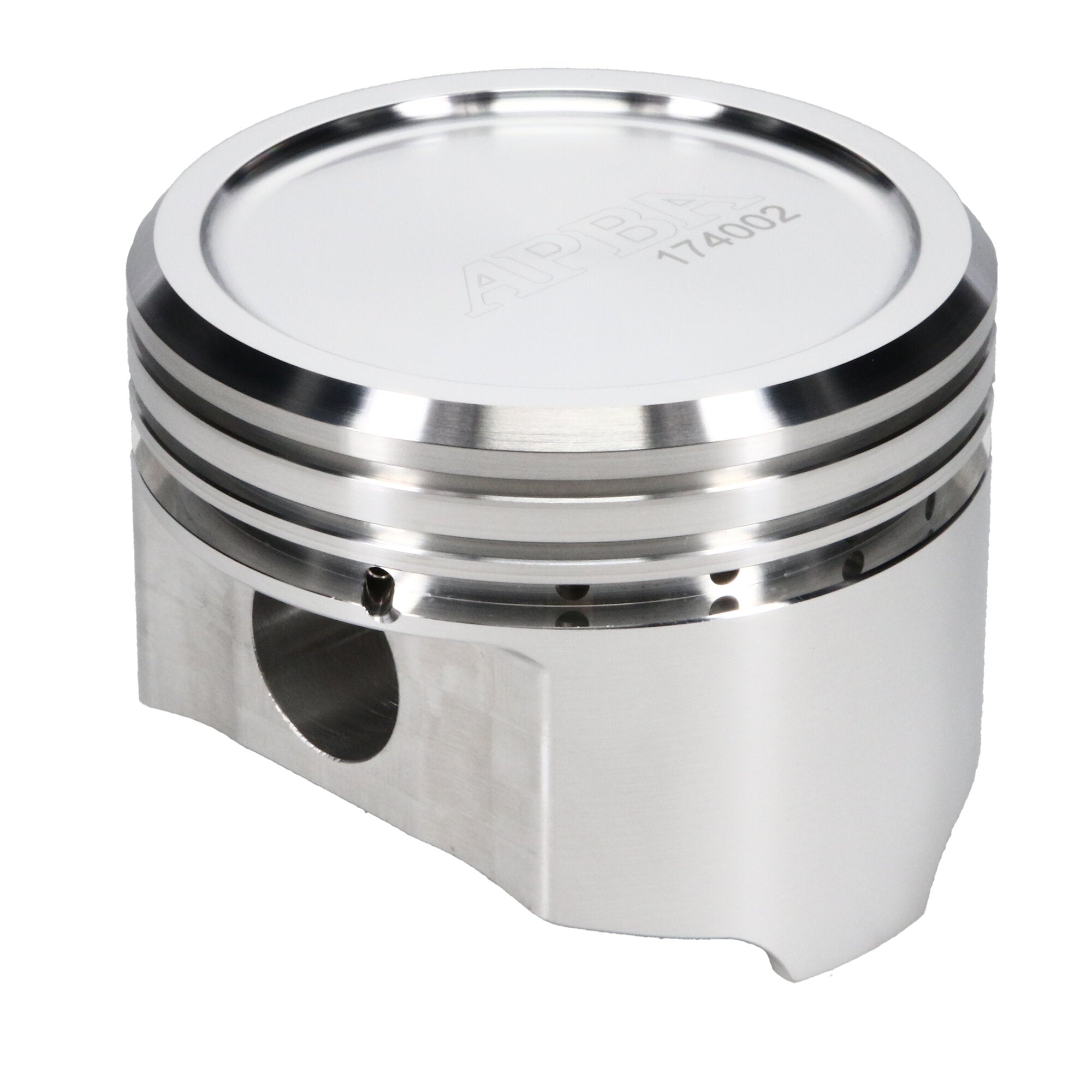

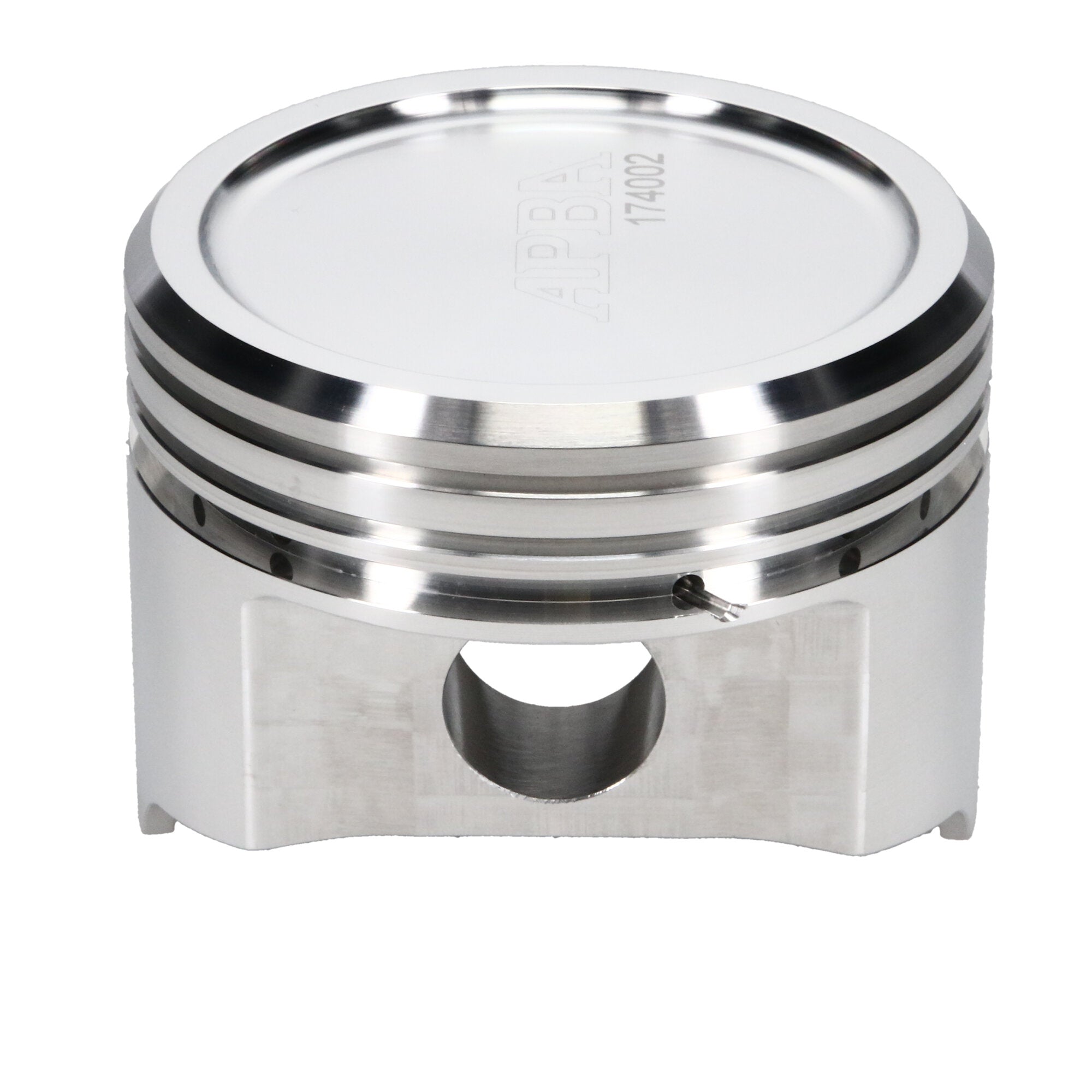

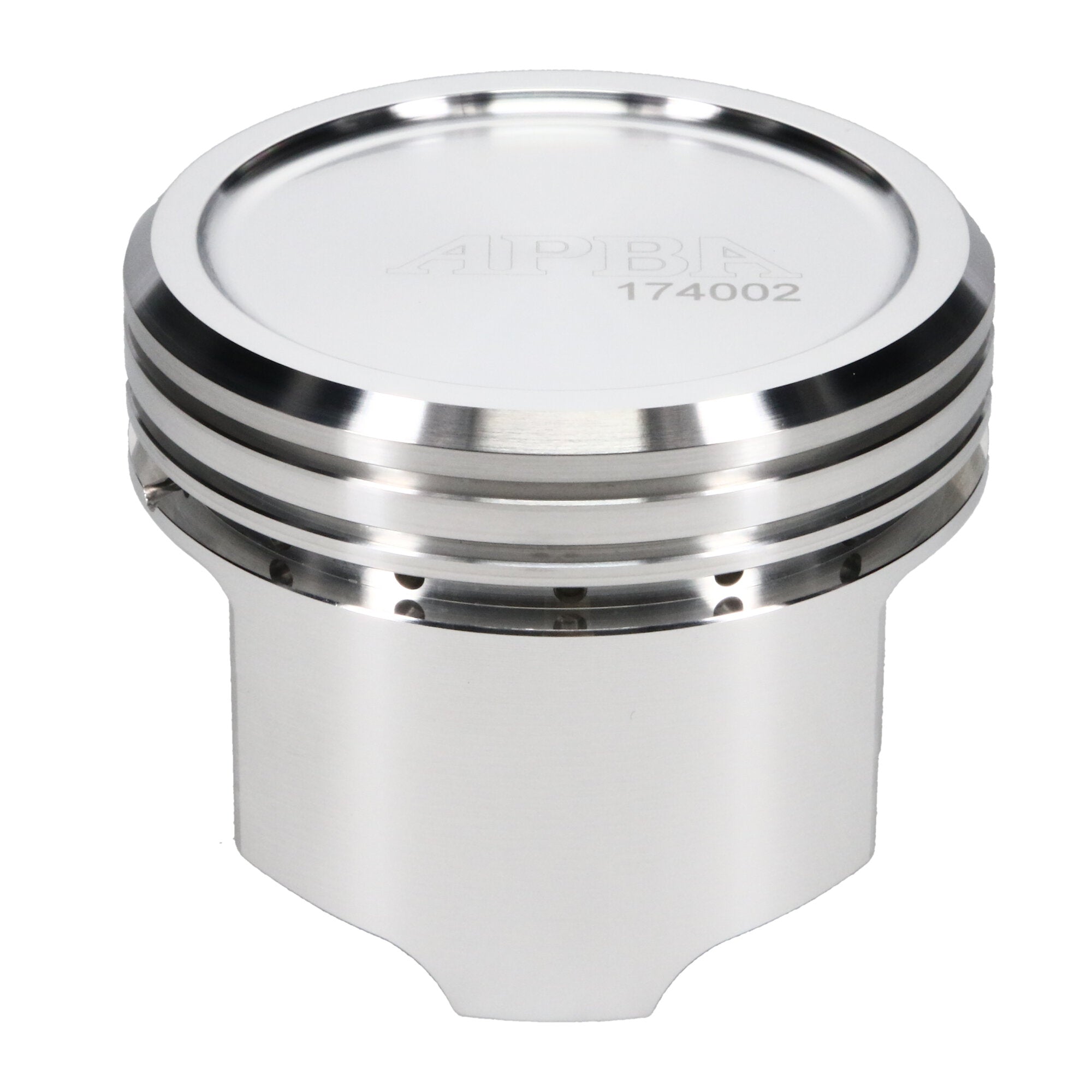

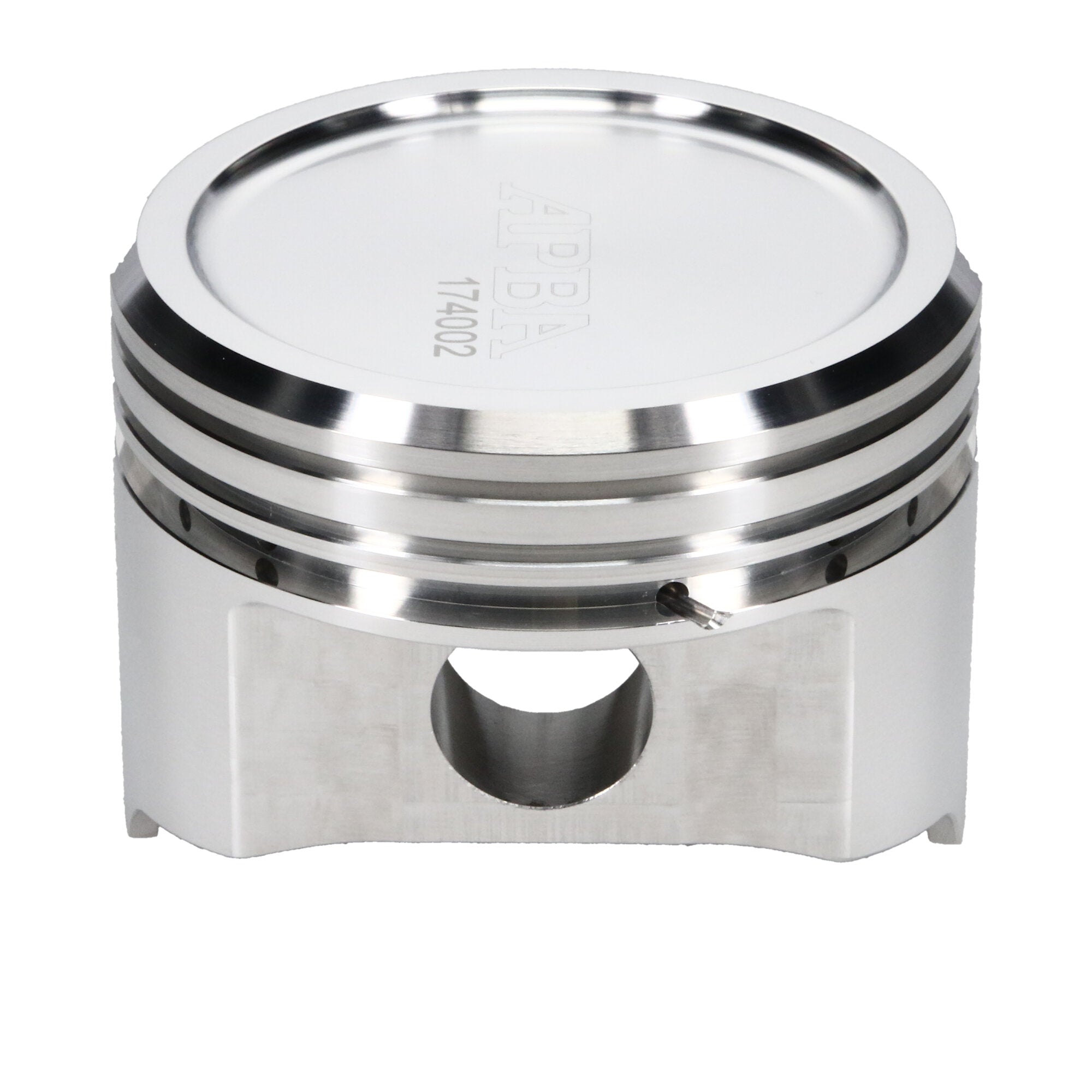

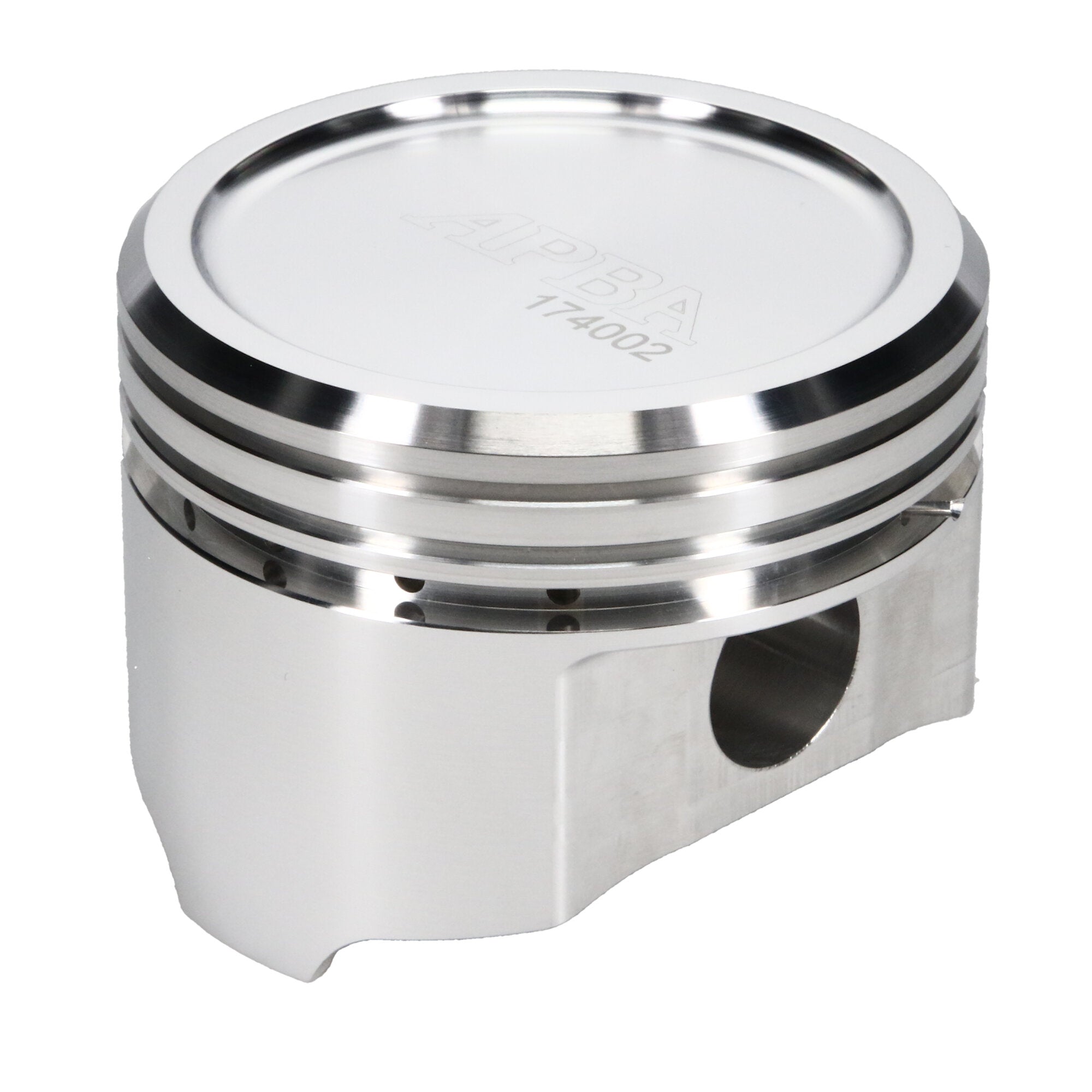

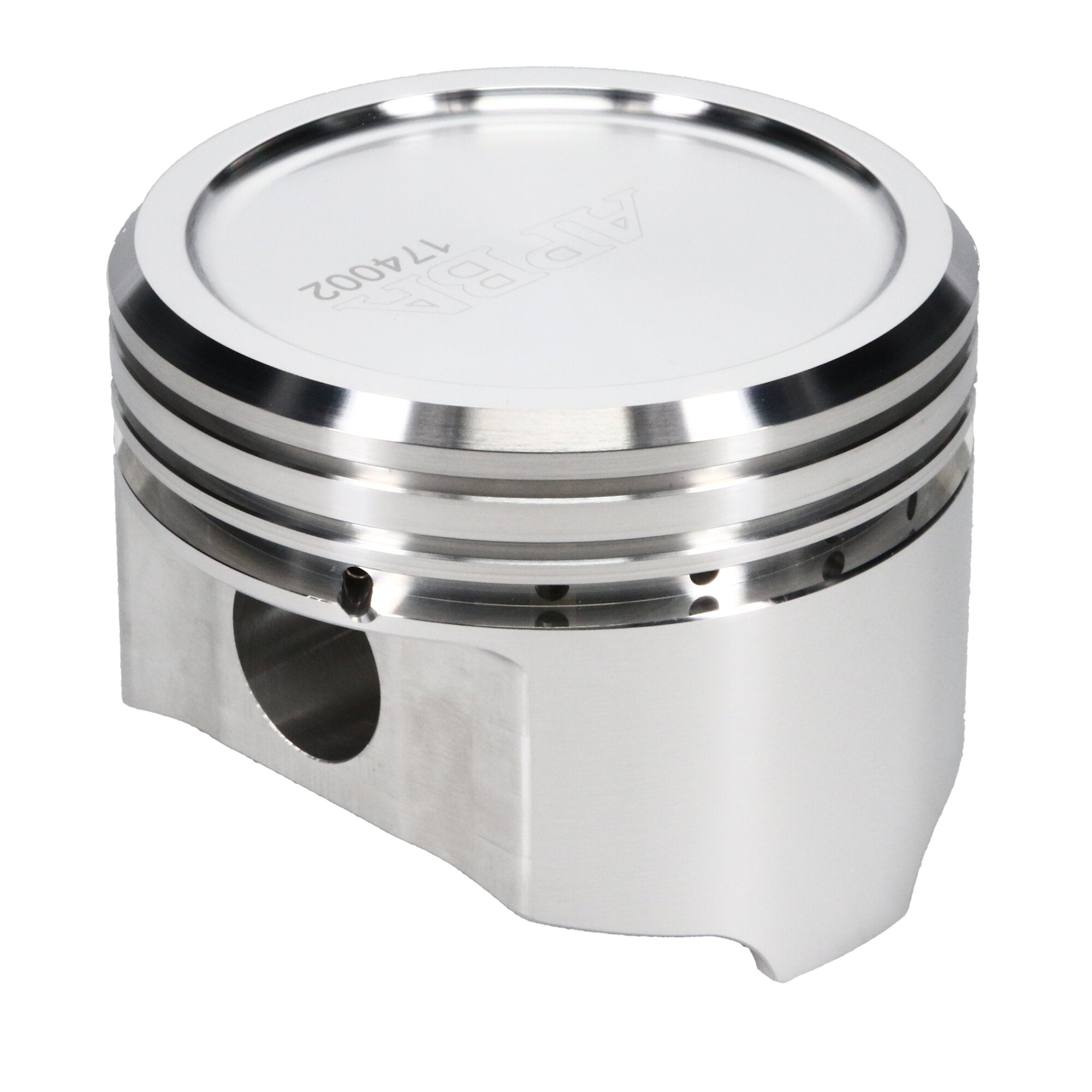

Piston Set, 2618, Flat Top, 3.766 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 3.766 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 305, 3.766 Bore, Flat, Set of 8 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
Round |
| Engine Type |
ICE |
| Piston Pin Length |
2.850 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 3.766 in. Bore - 1.560 in. CH, -5.00 CC |
| Engine |
Small Block |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Piston Pin Wall Thickness |
0.150 |
| Second Compression Ring Thickness |
0.0800 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Make - Web |
Chevrolet |
| Add-On |
927-2850-15-51S |
| Oil Ring Thickness |
0.188 |
| Top Compression Ring Thickness |
0.0795 |
| Title |
JE Pistons - Chevrolet, Small Block, 3.766 in. Bore, Piston Kit |
| Cylinder Head |
4-VALVE |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
3.766 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
-5.00 |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Product Market |
Domestic |
| Compression Height |
1.560 |
| Make |
CHEVROLET |
| Piston Material |
2618 |
| Piston Average Weight |
516 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.850 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
14.0000 |
