As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |

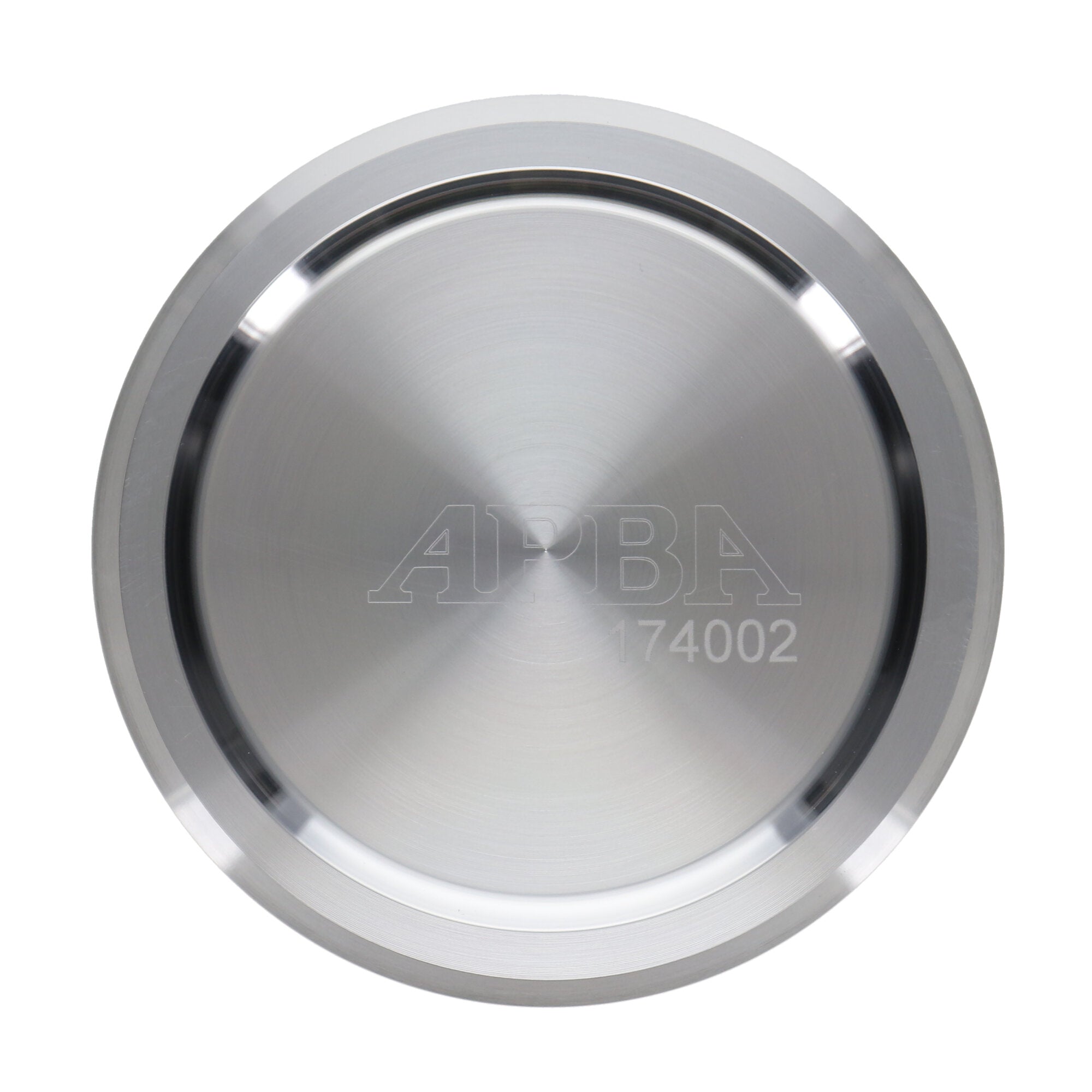

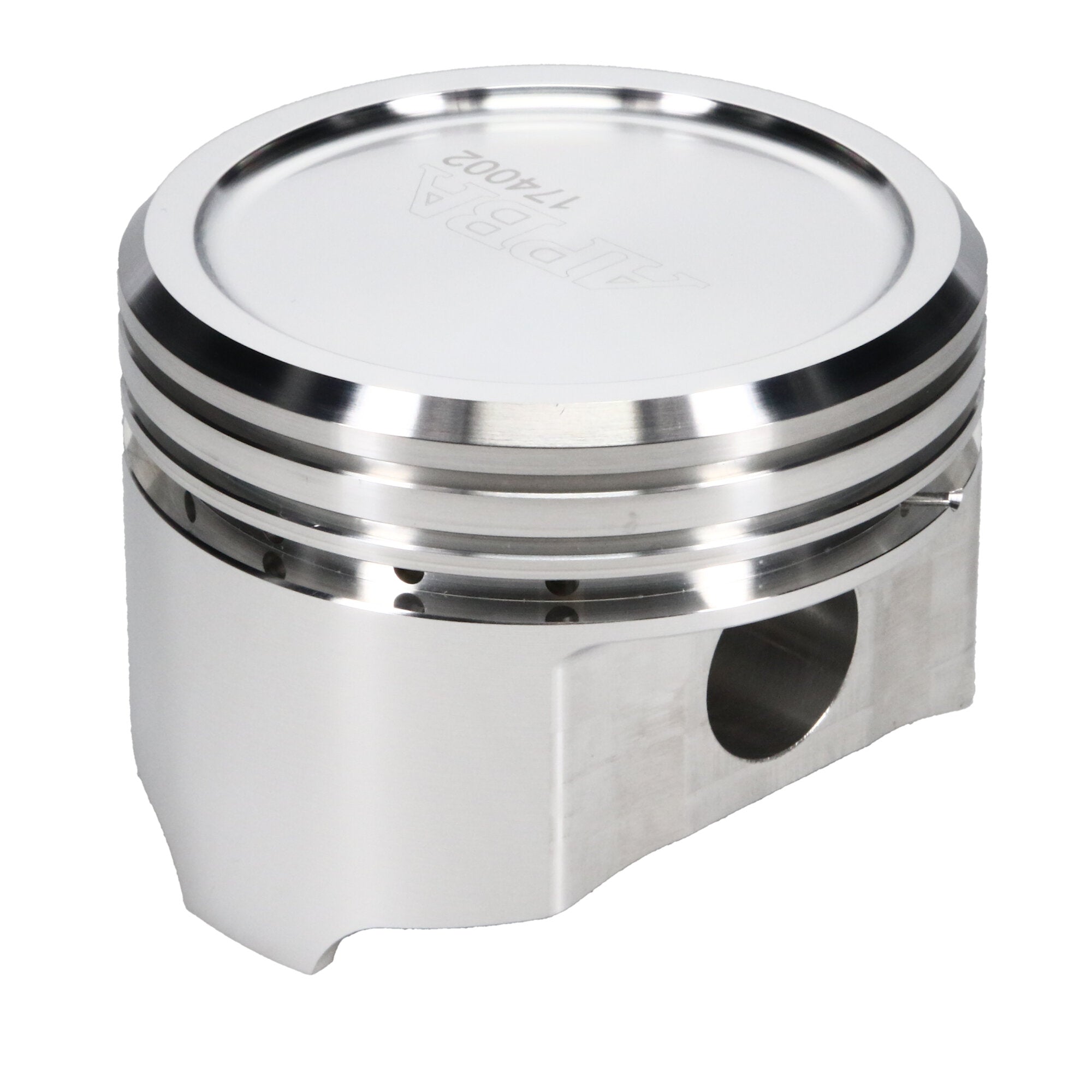

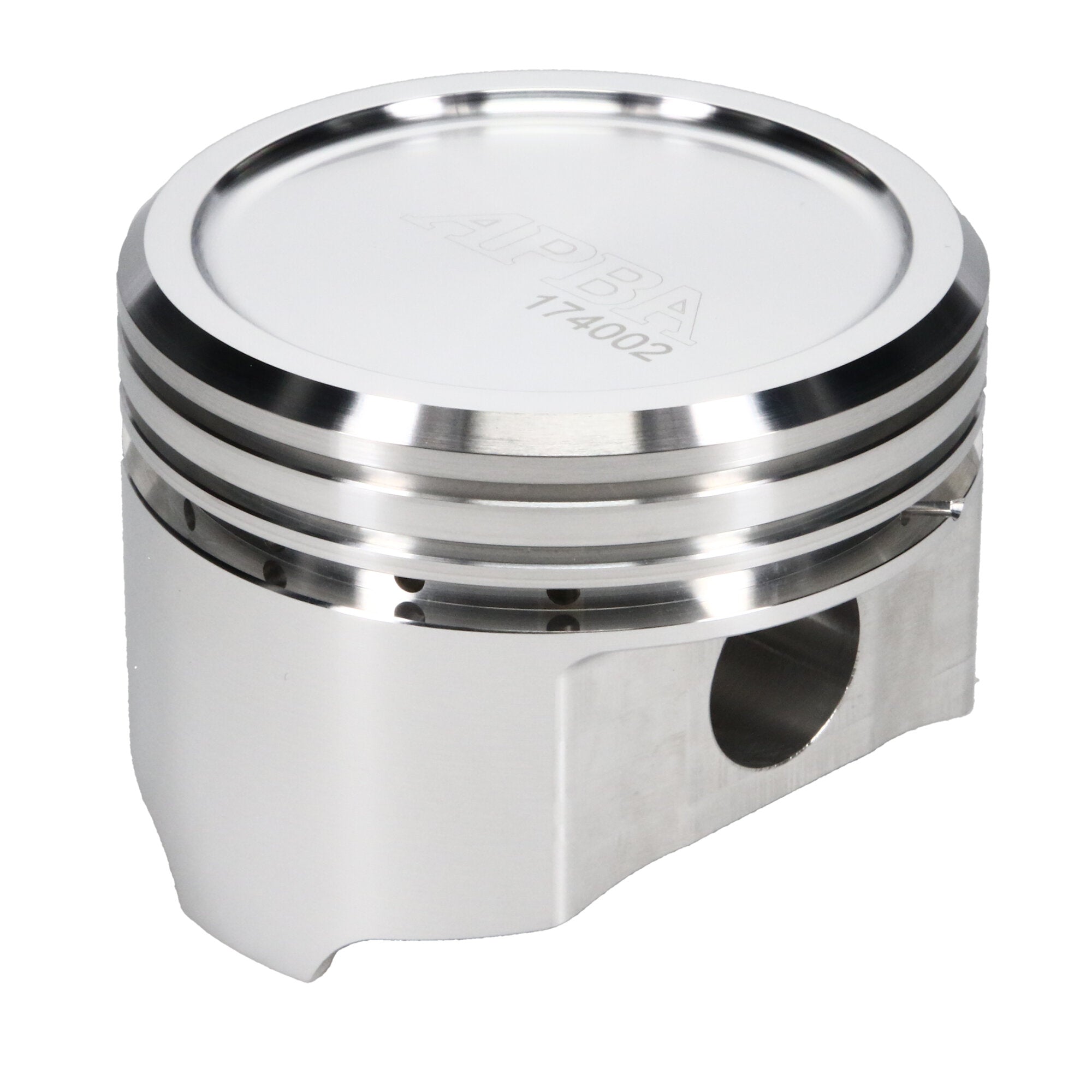

Chevrolet 305 SBC APBA |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 3.766 in. Bore, 1.560 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_DES |

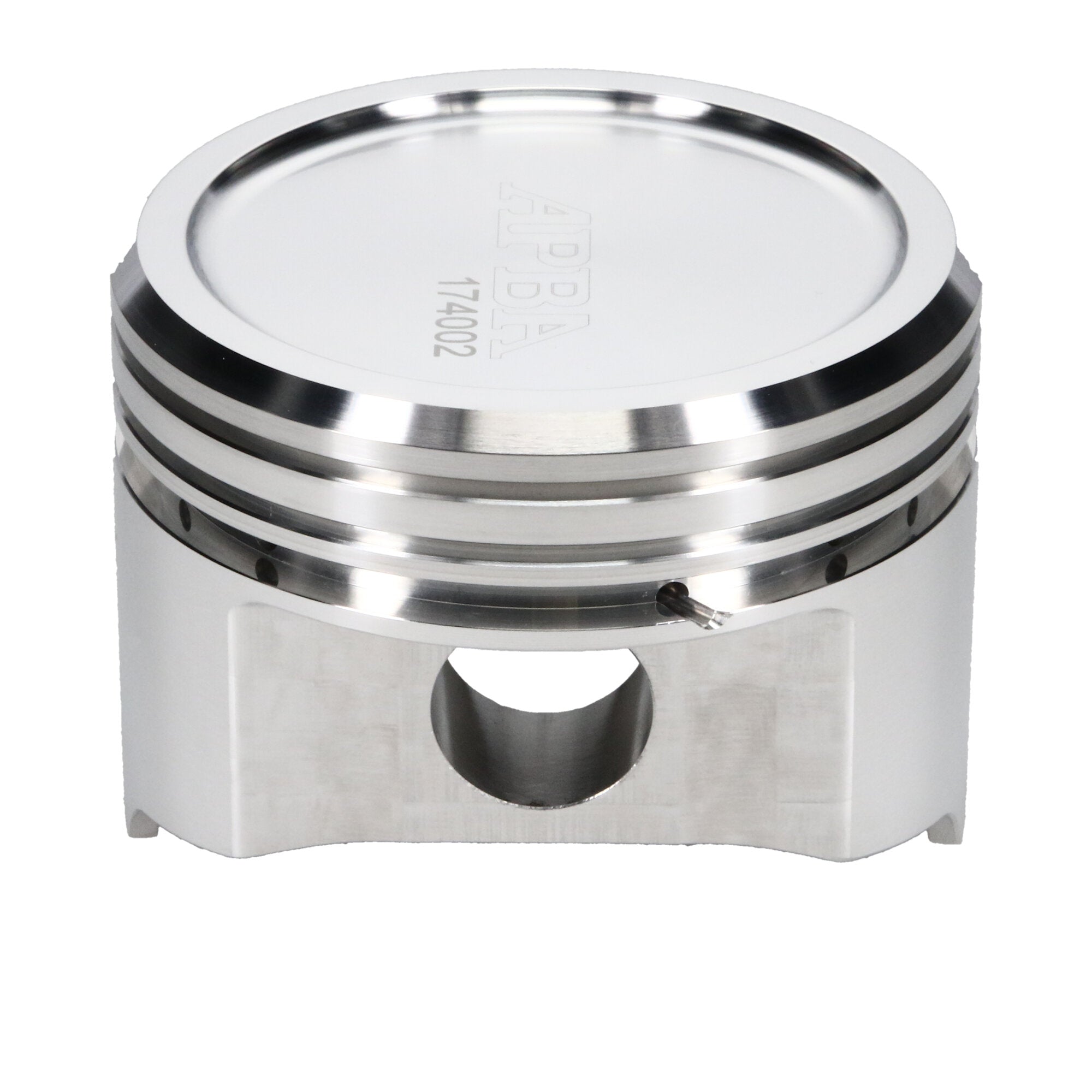

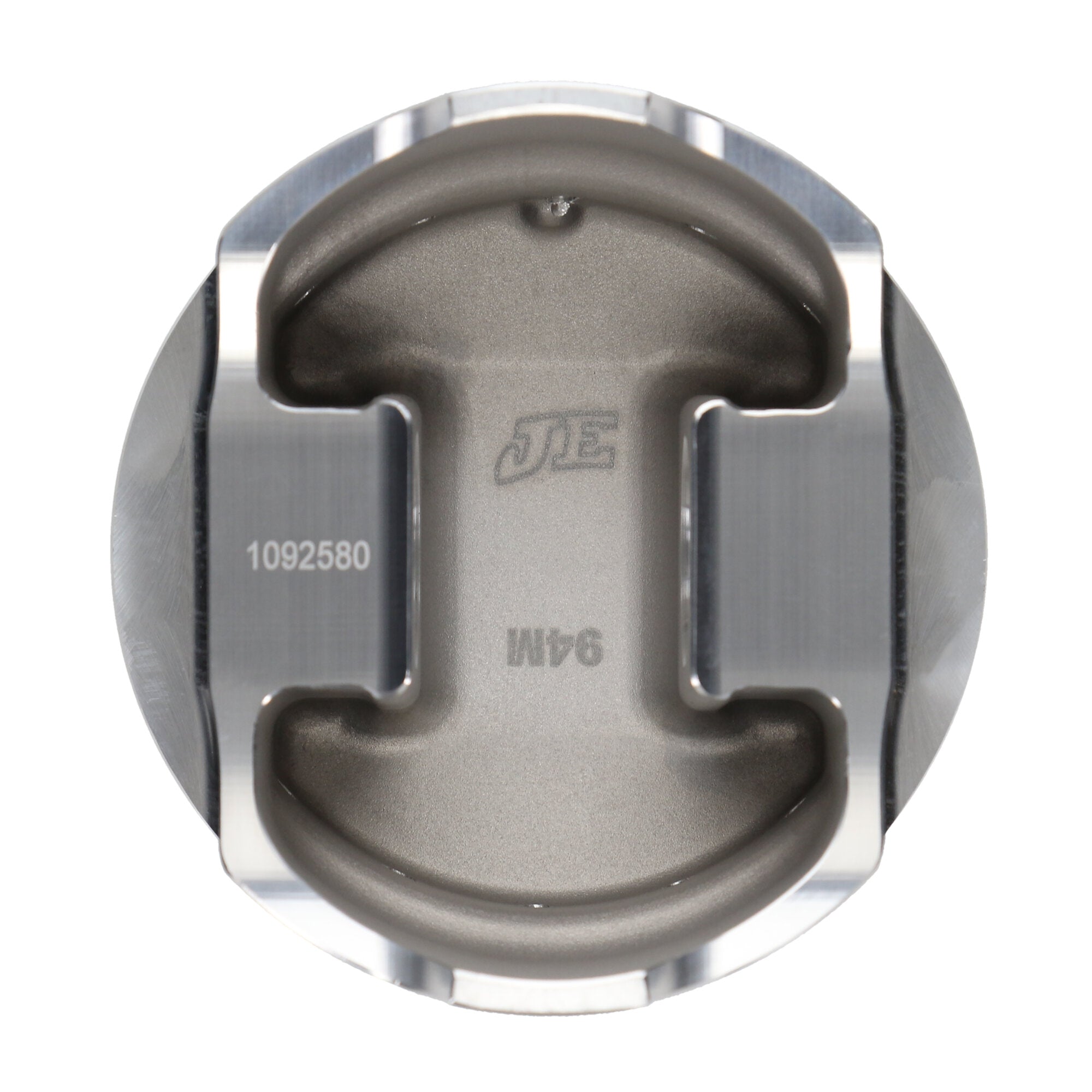

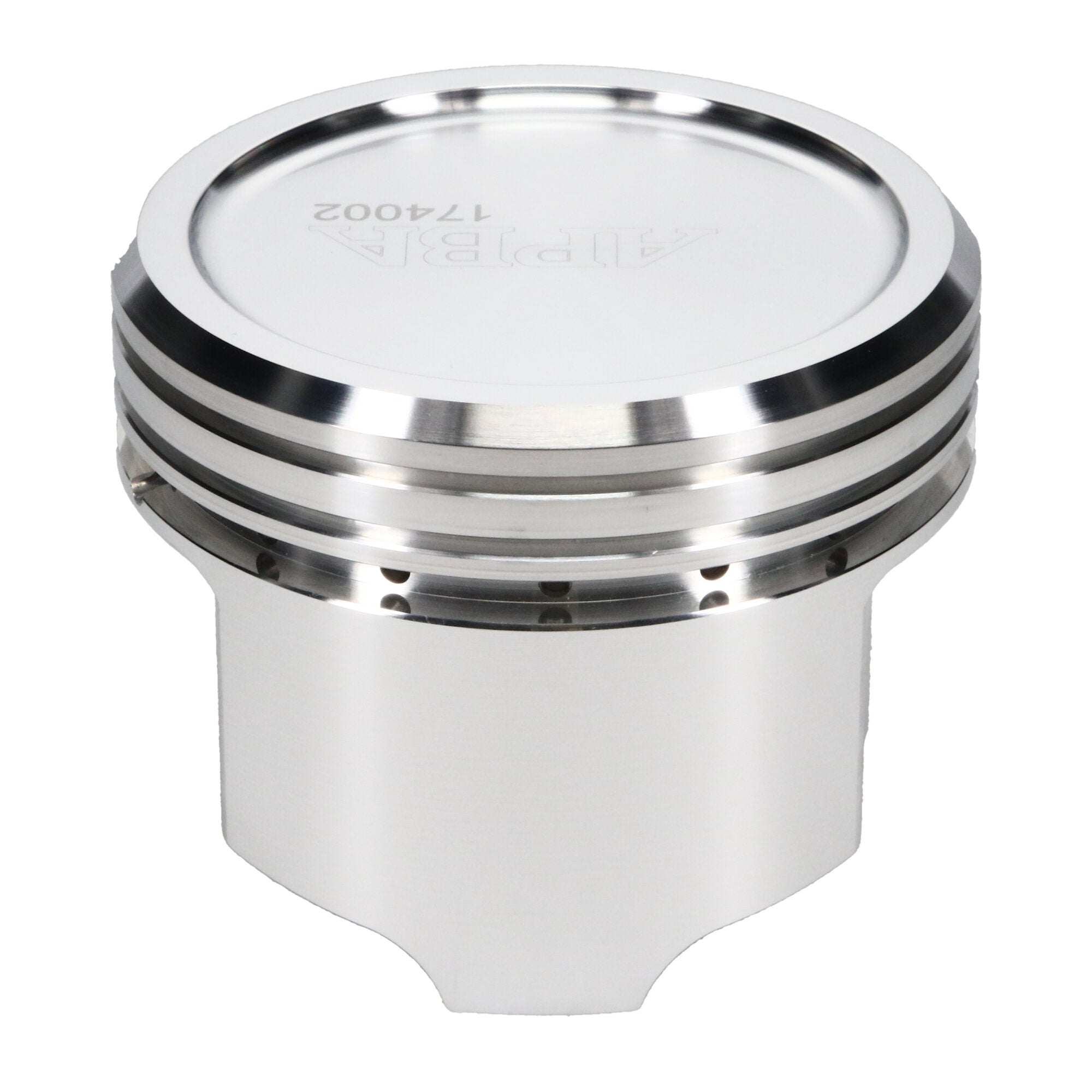

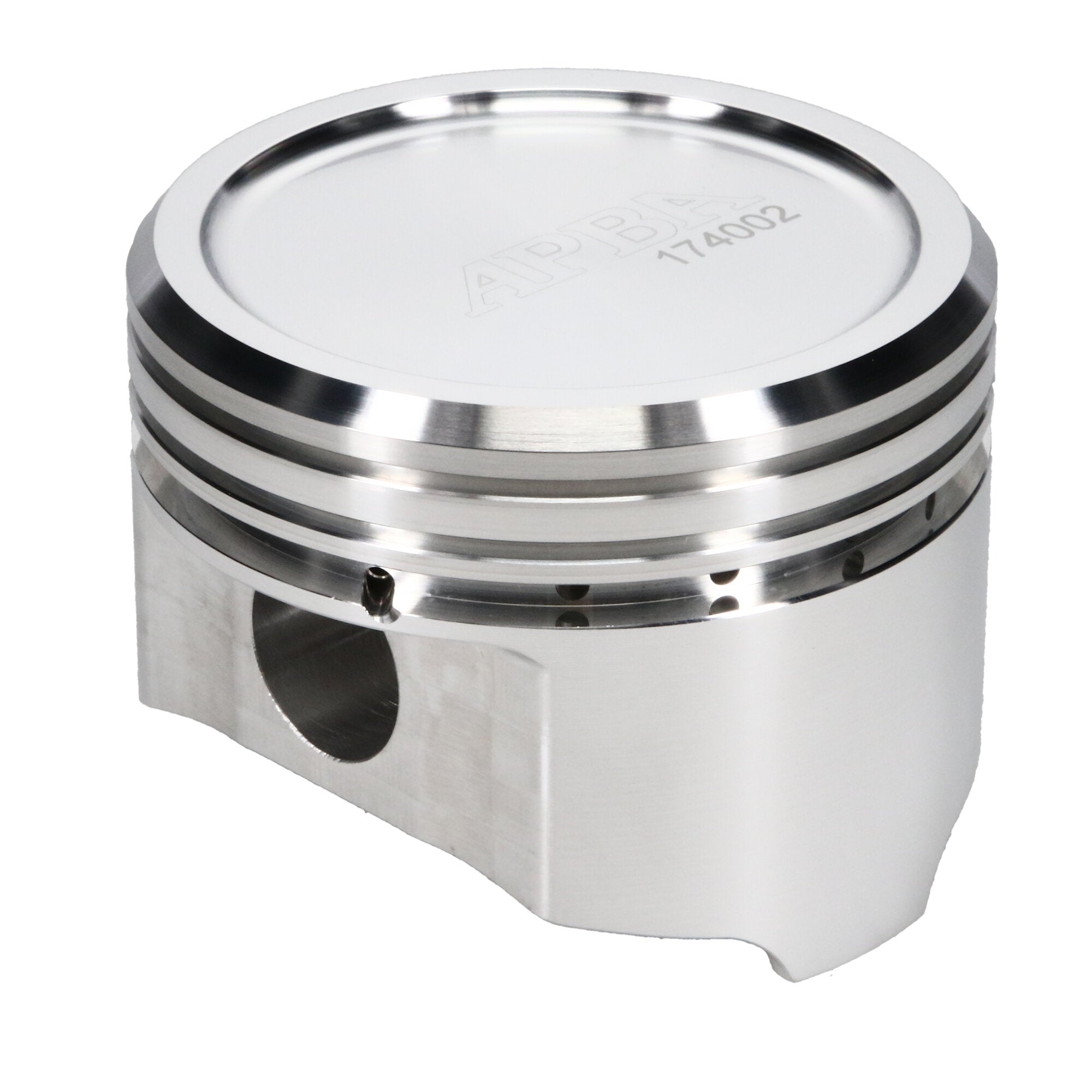

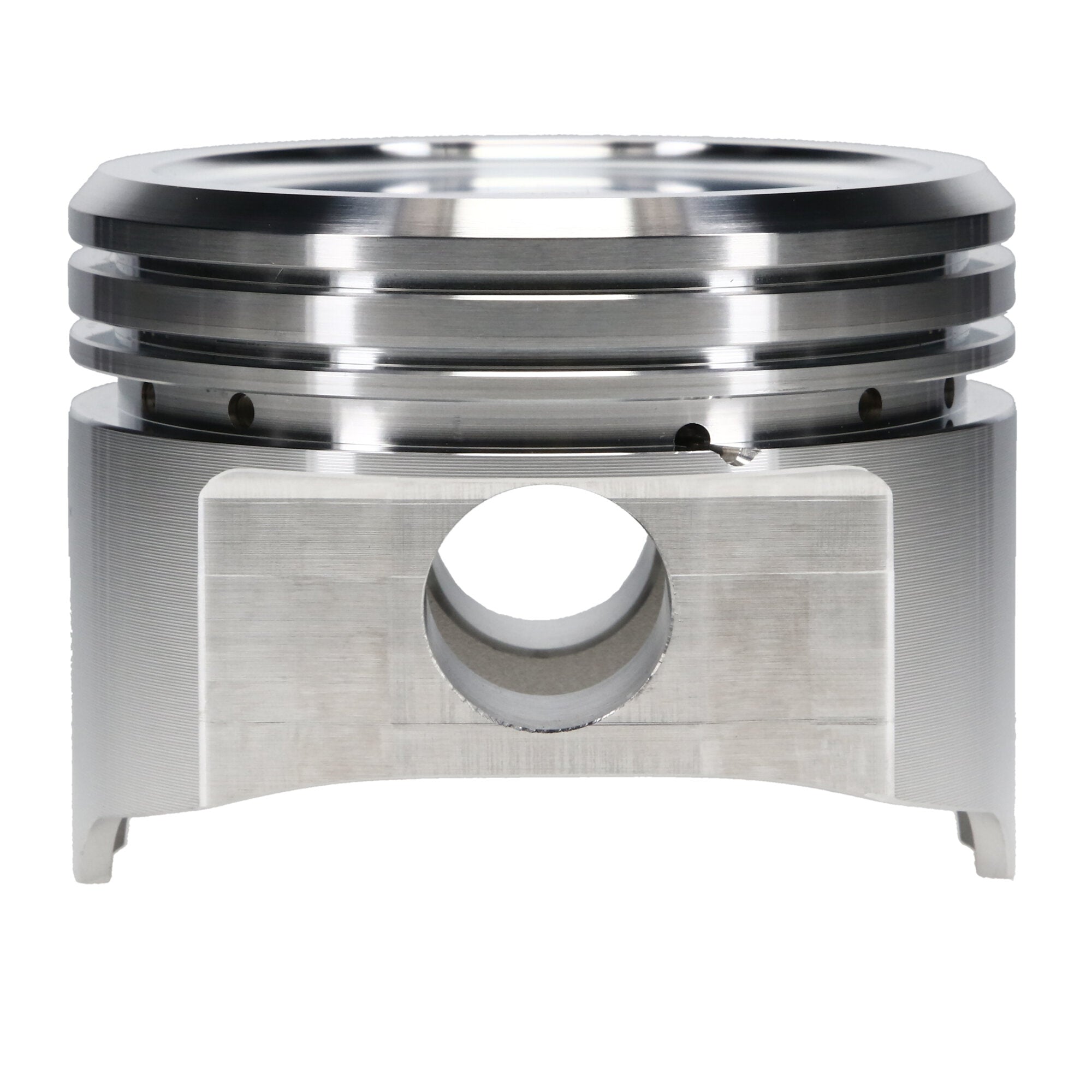

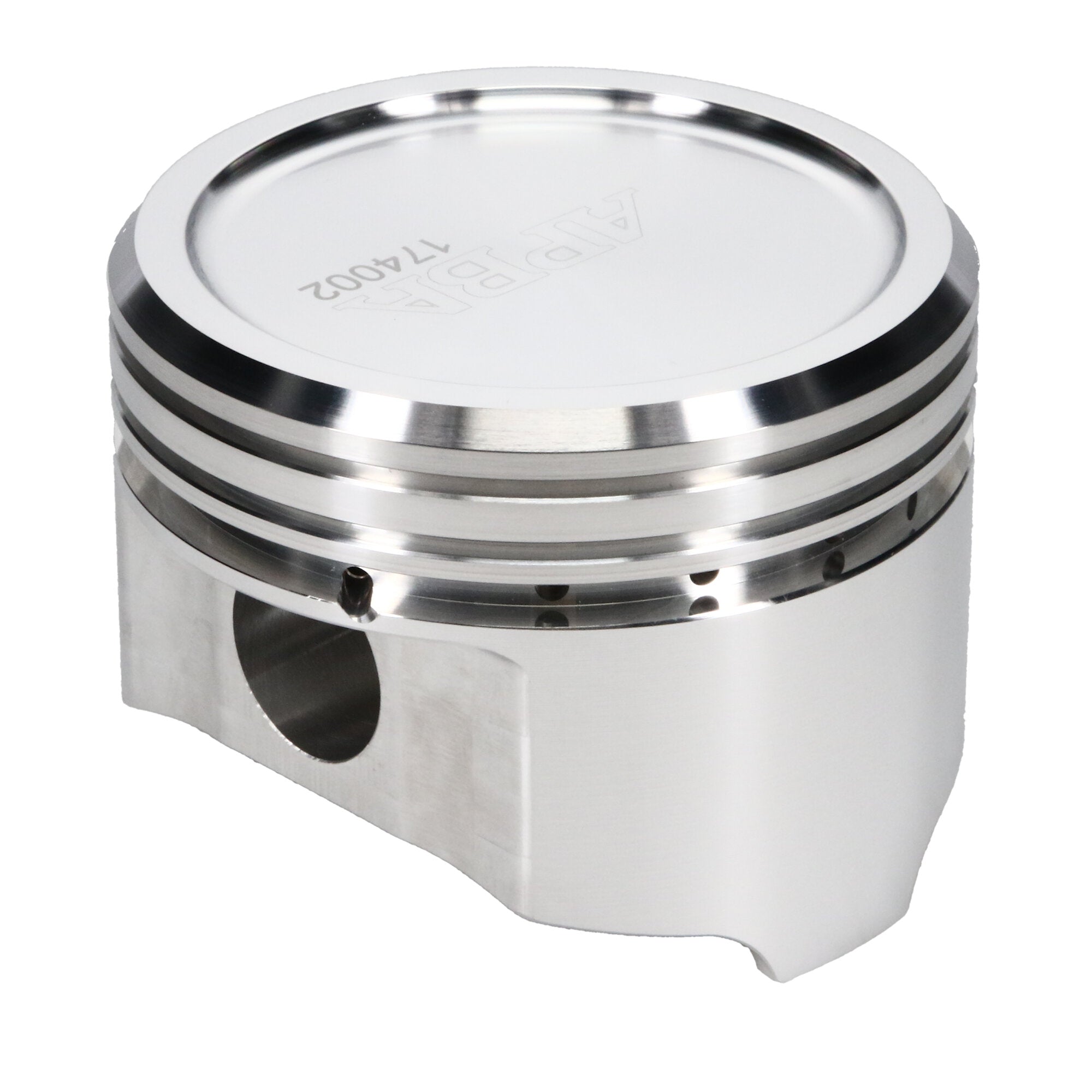

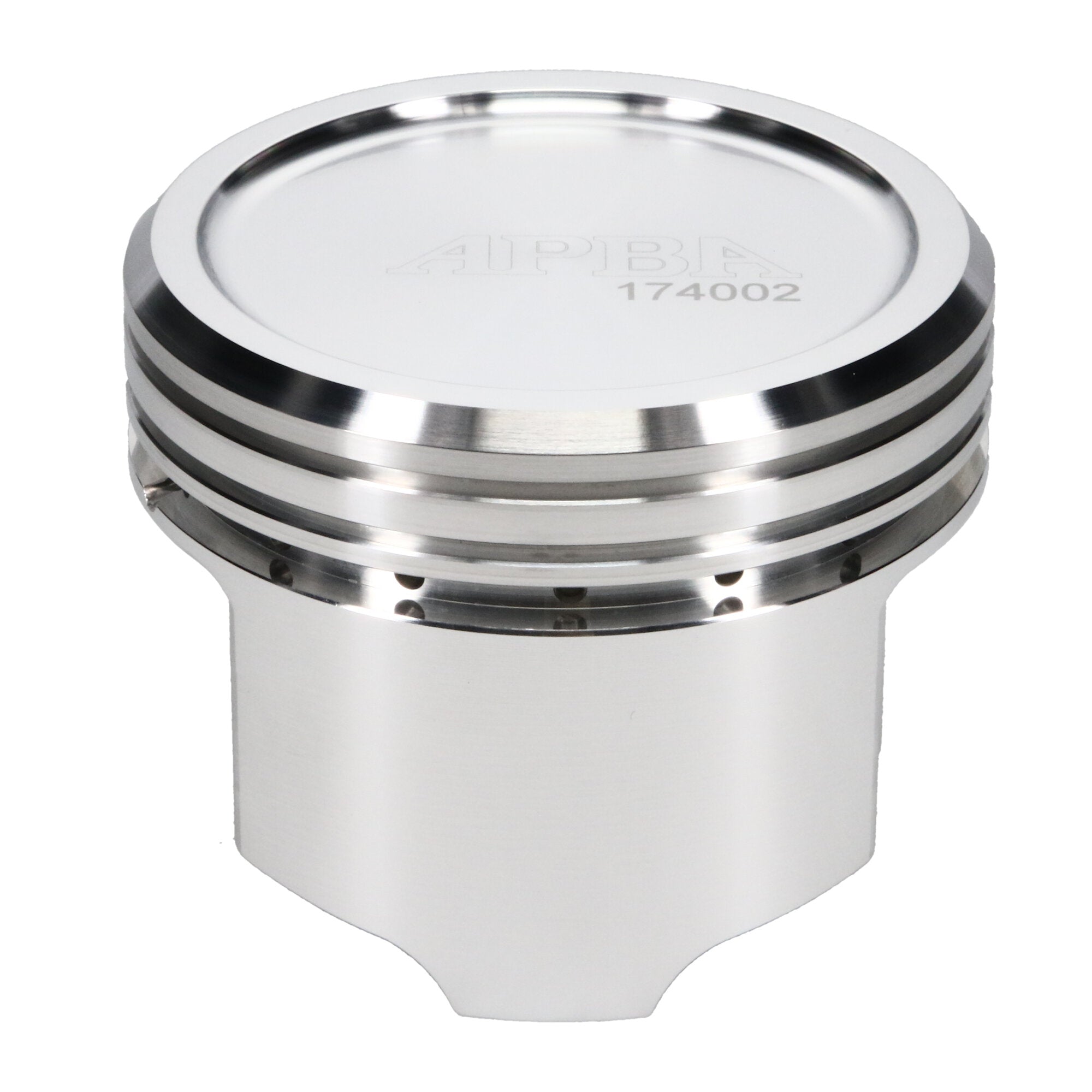

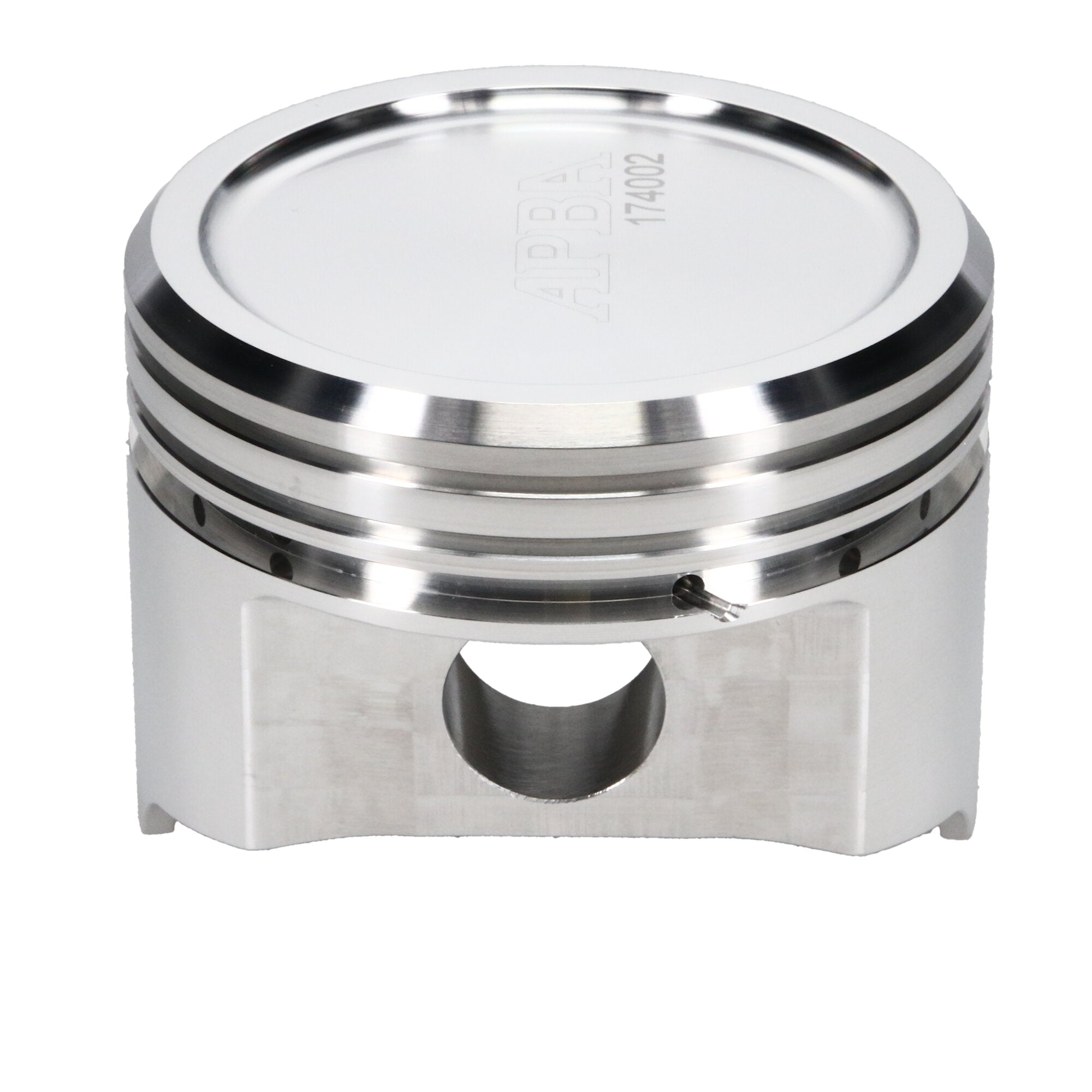

Piston Set, 2618, Inv Dome/Dish, 3.766 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 305, 3.766 Bore, Dish, Set of 8 |
| Wrist Pin Length |
2.850 |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0800 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-12.00 |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
3.766 |
| Add-On |
927-2850-15-51S |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 3.766 in. Bore - 1.560 in. CH, -12.00 CC |
| Top Compression Ring Thickness |
0.0795 |
| Piston Average Weight |
489 |
| Industry |
Automotive |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.850 |
| Compression Height |
1.560 |
| Ringset Included |
No |
| Engine |
Small Block |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Title |
JE Pistons - Chevrolet, Small Block, 3.766 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.188 |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
13.0000 |
