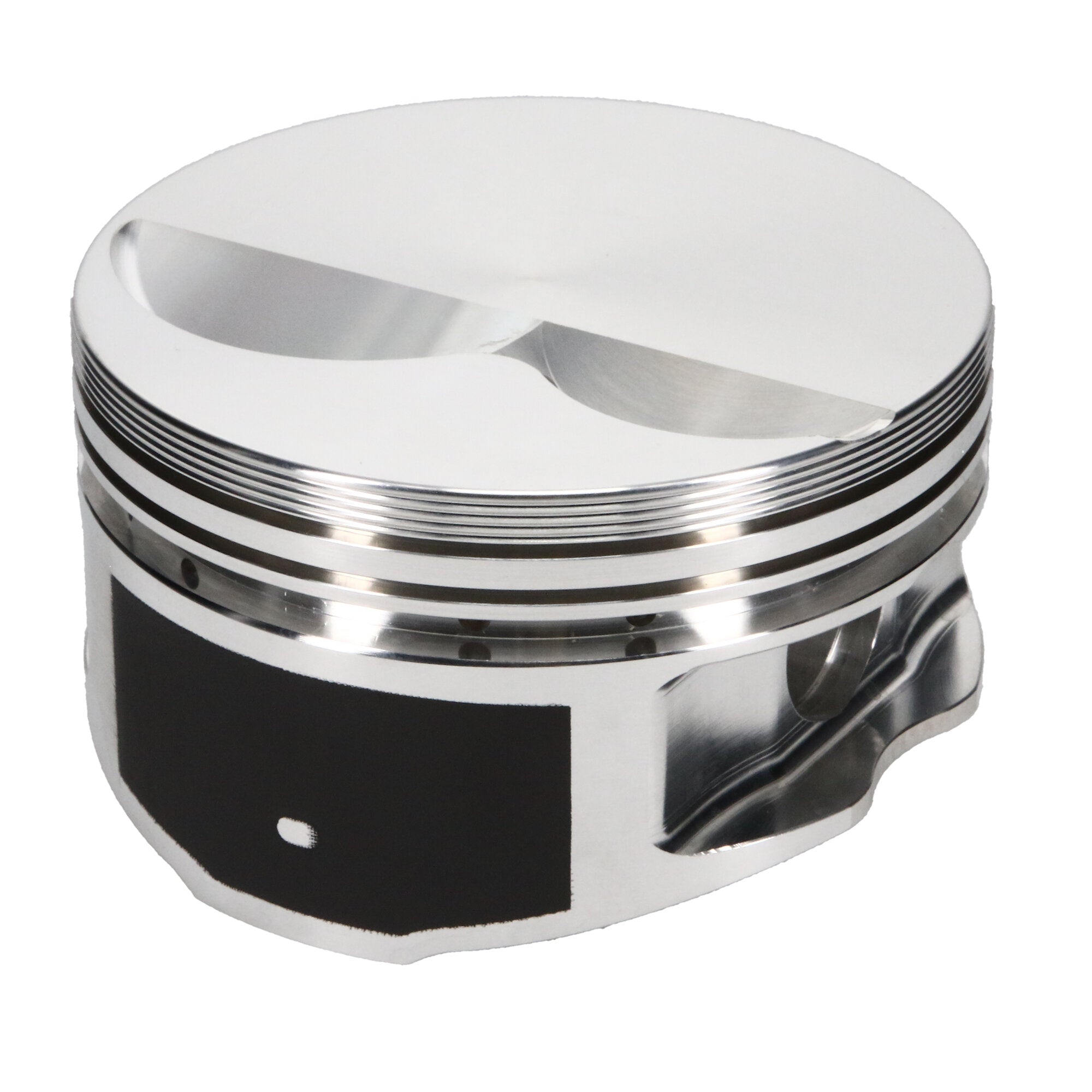

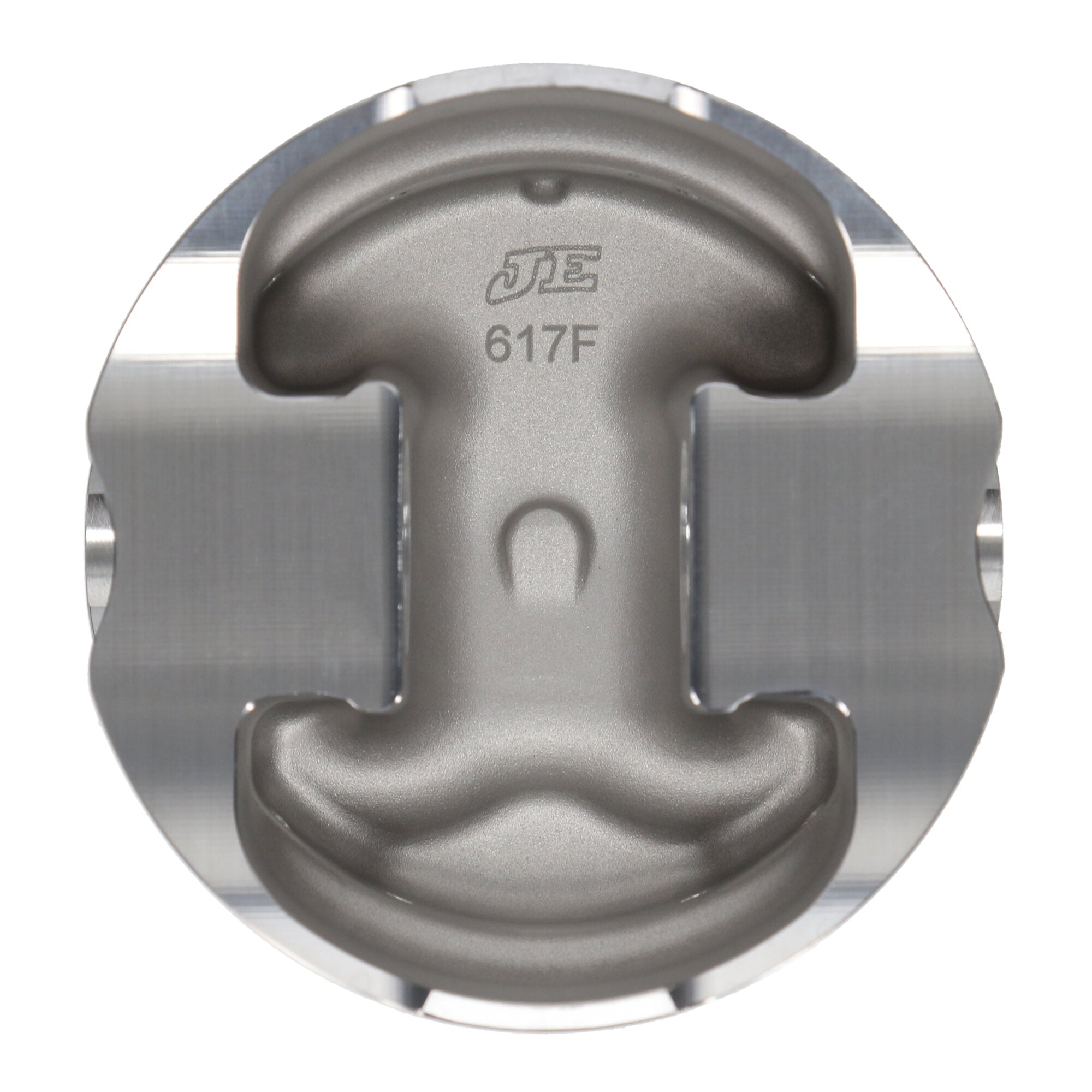

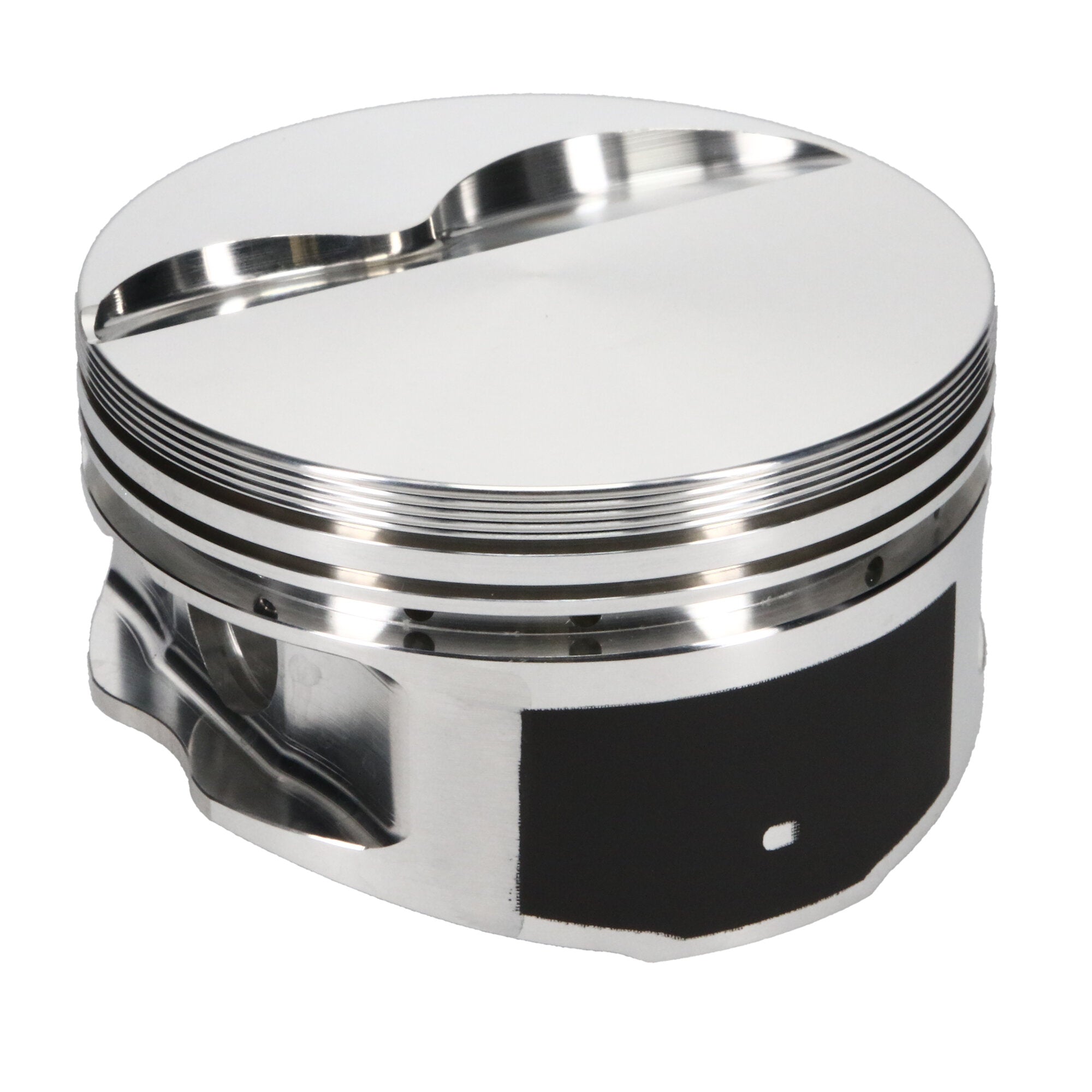

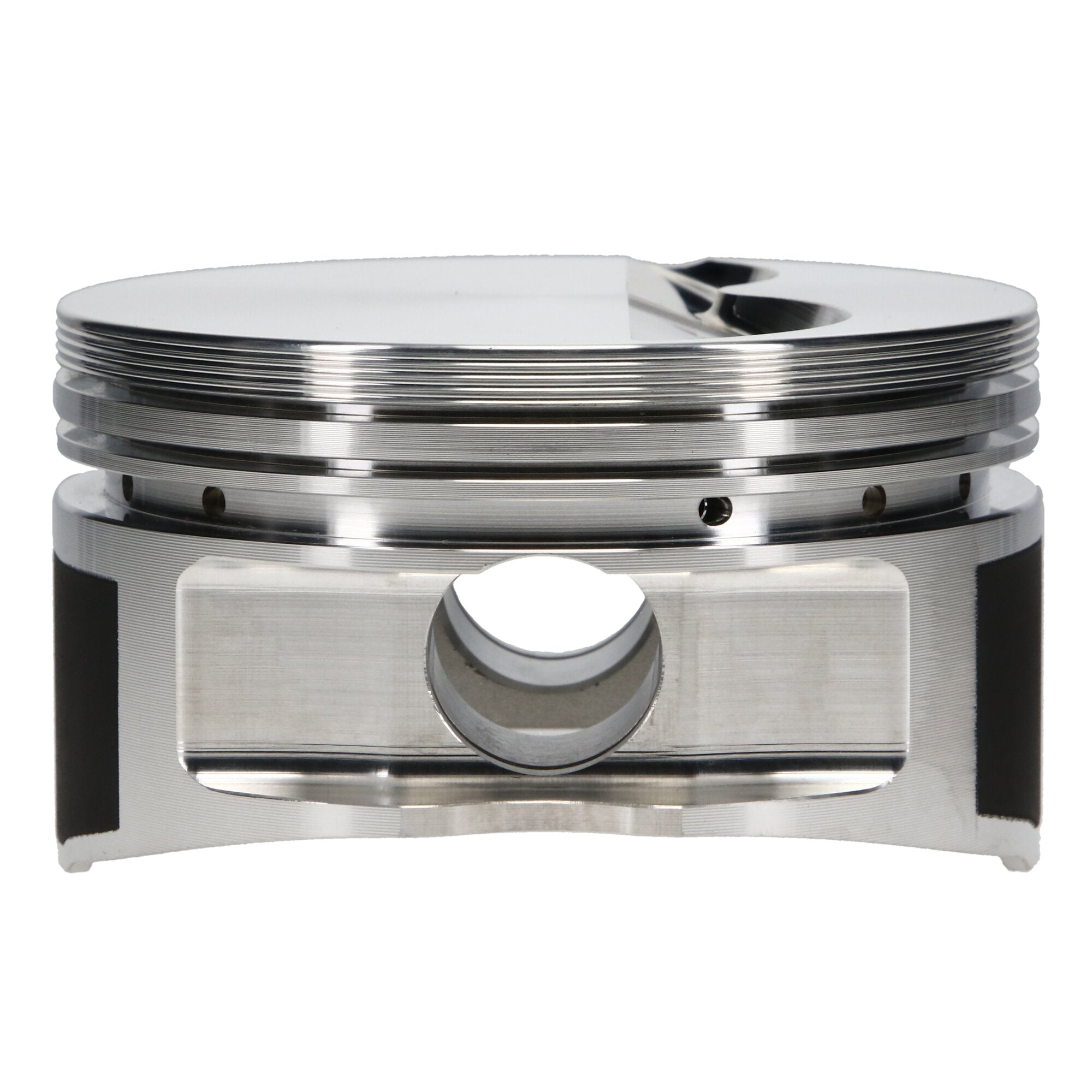

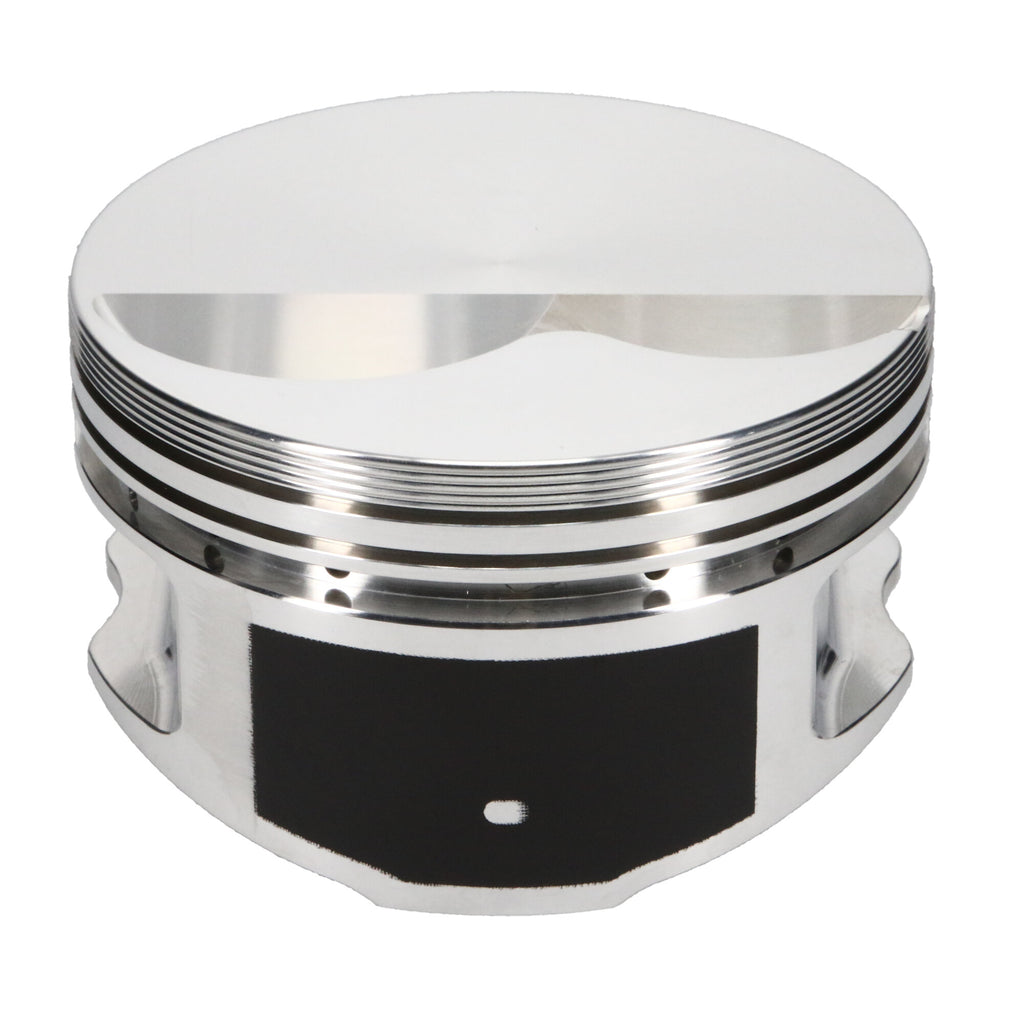

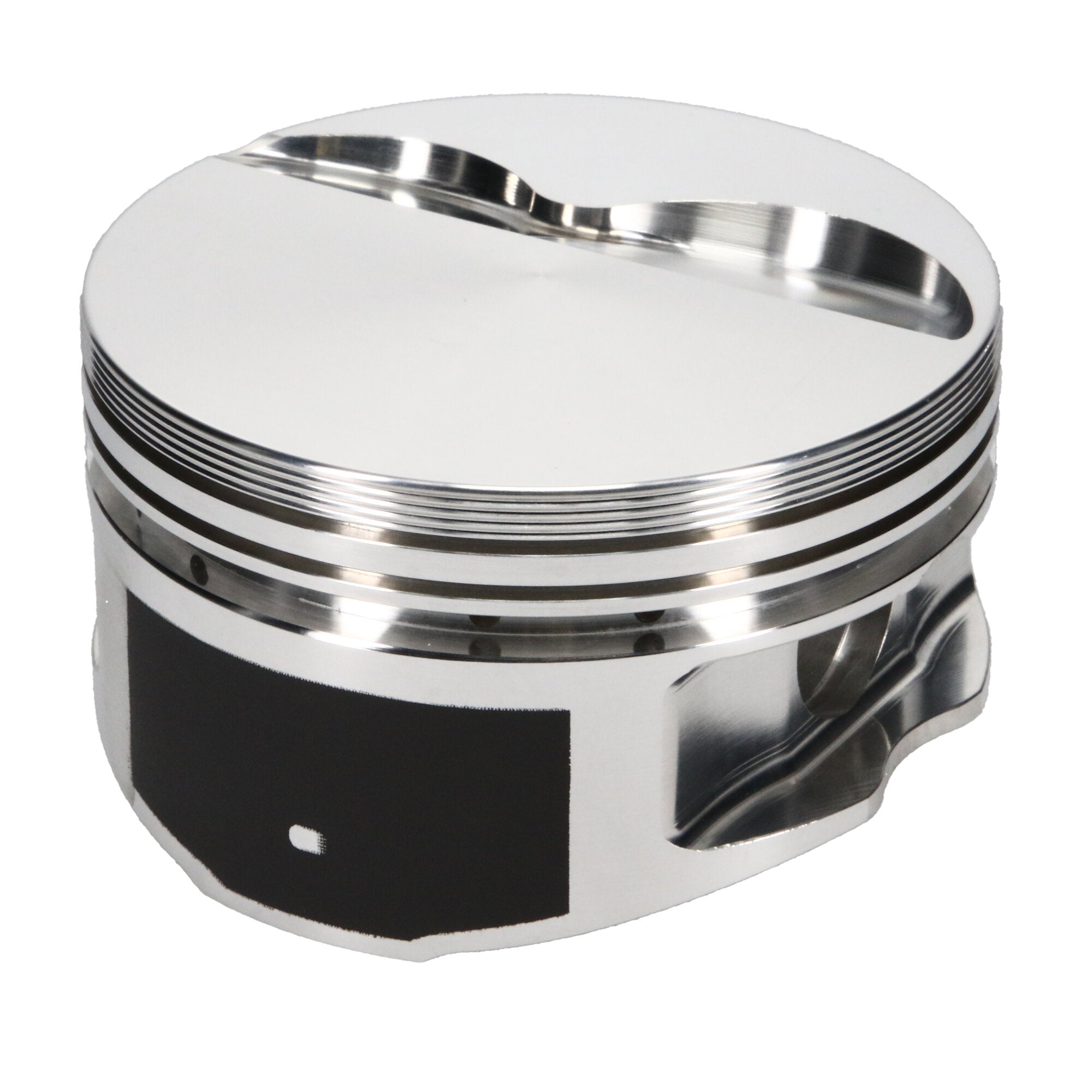

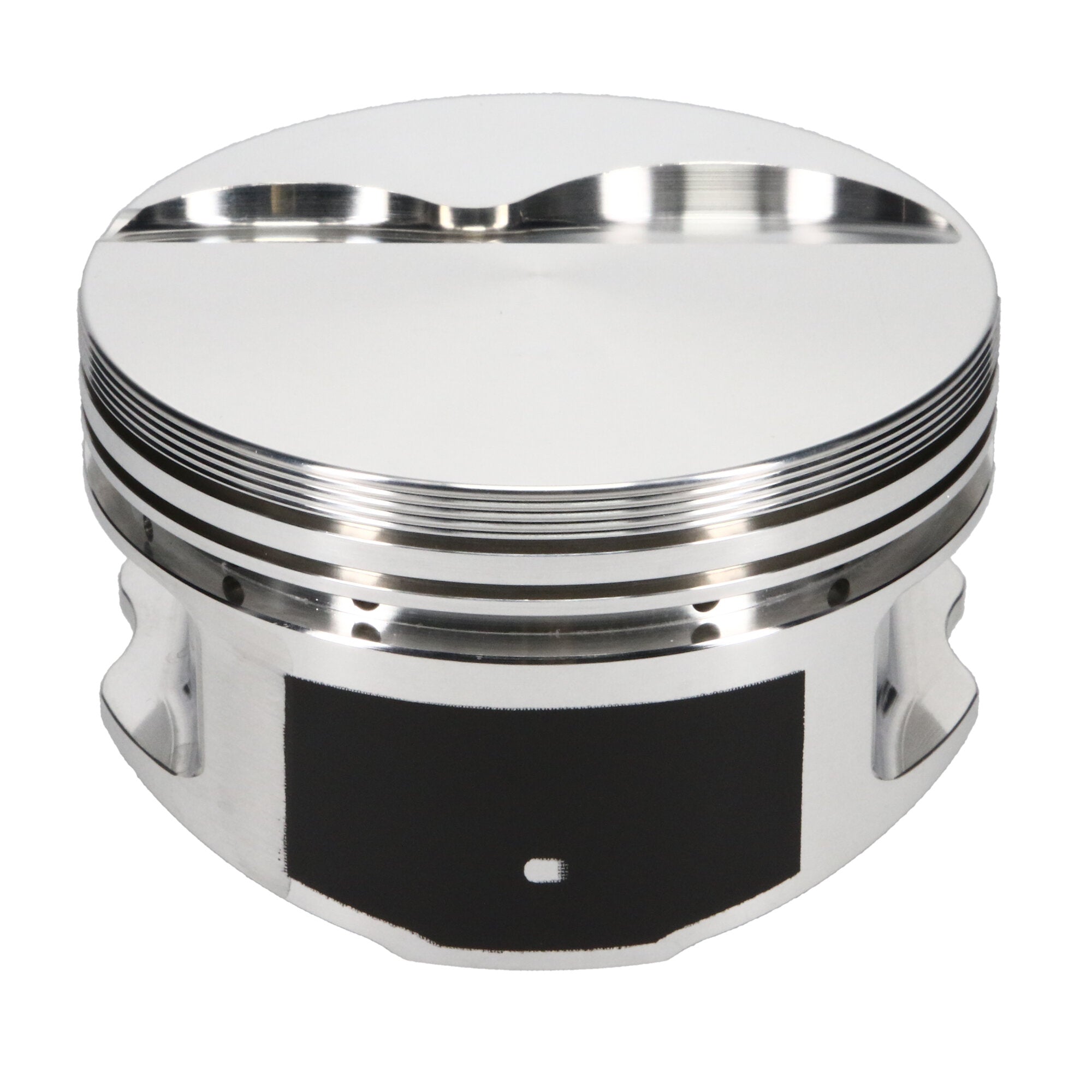

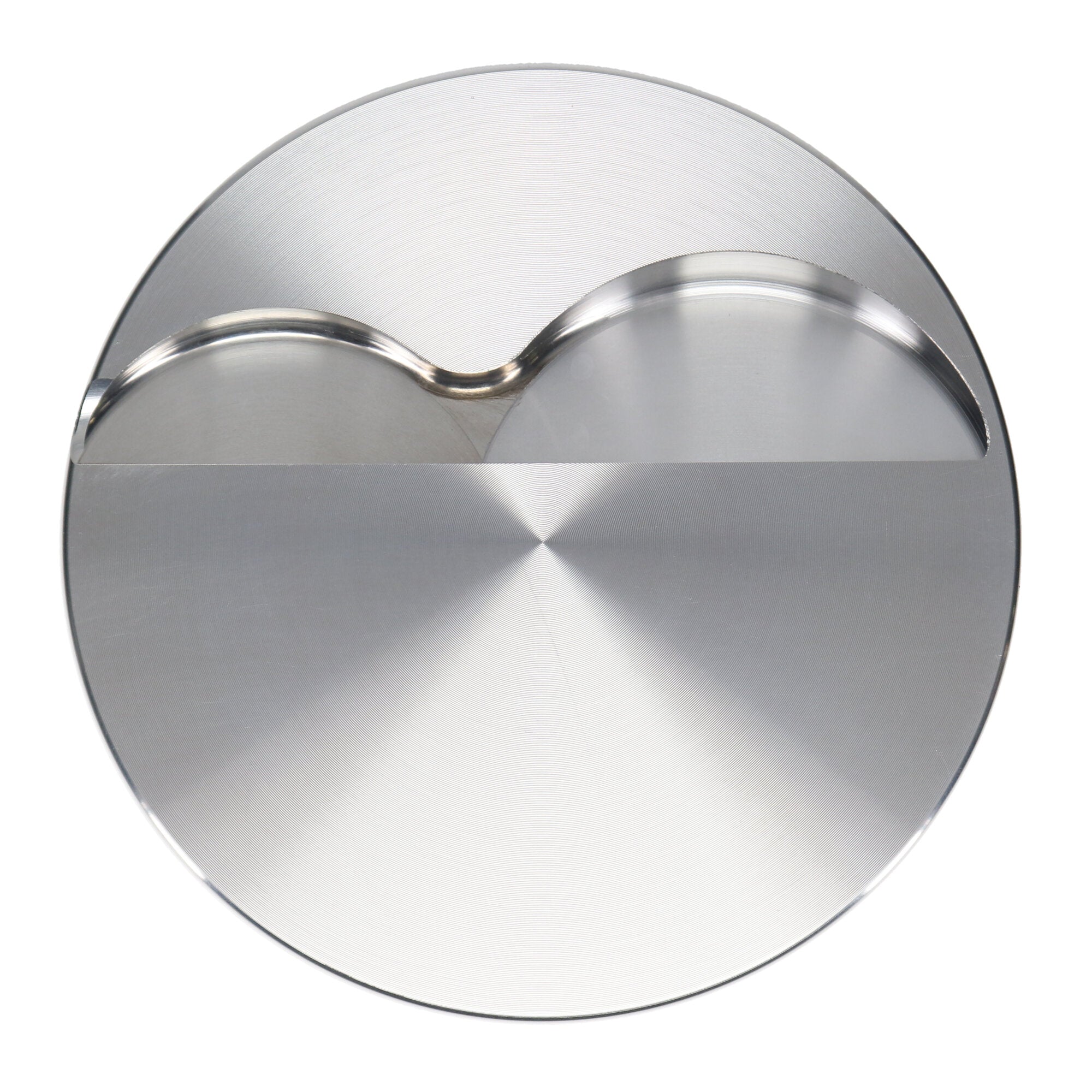

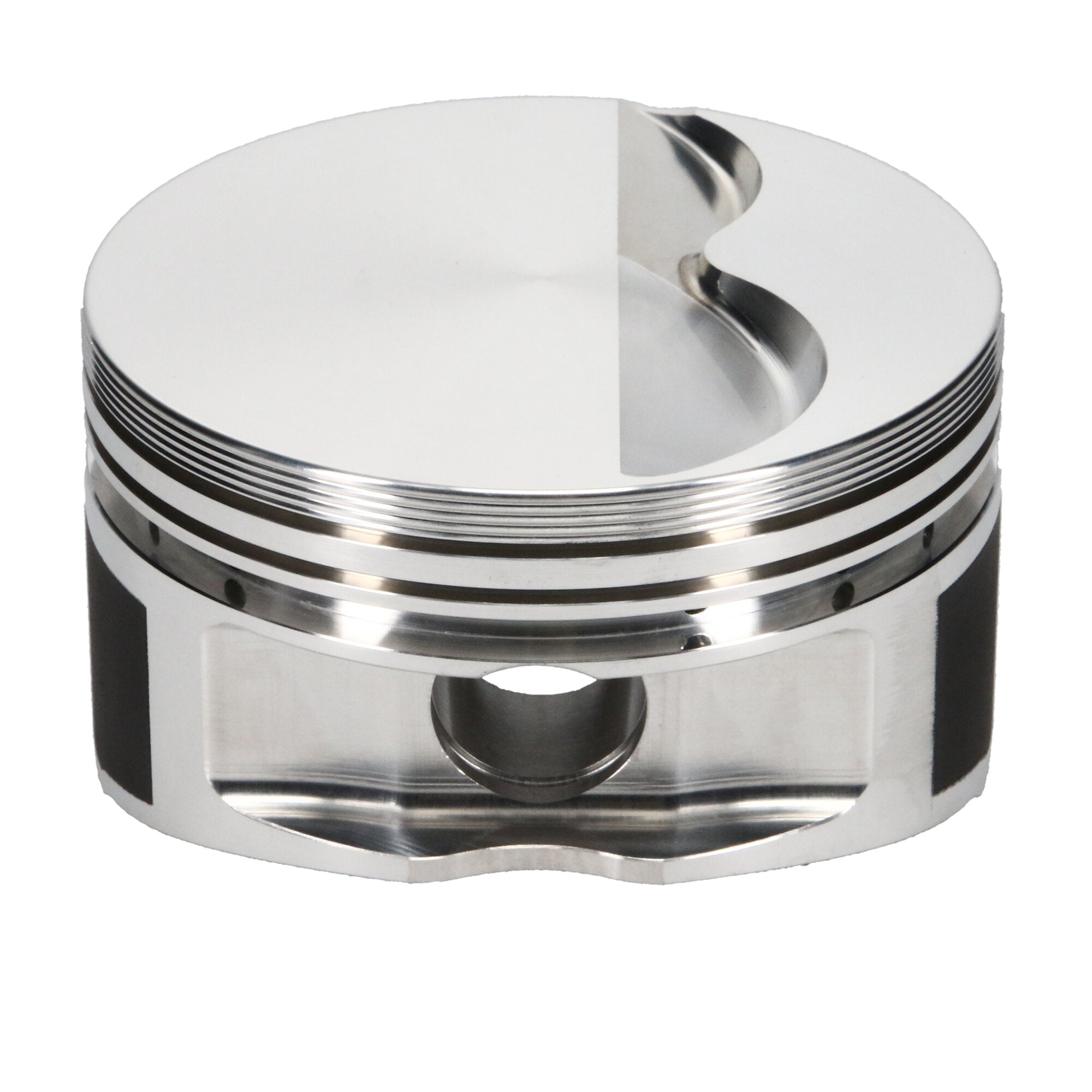

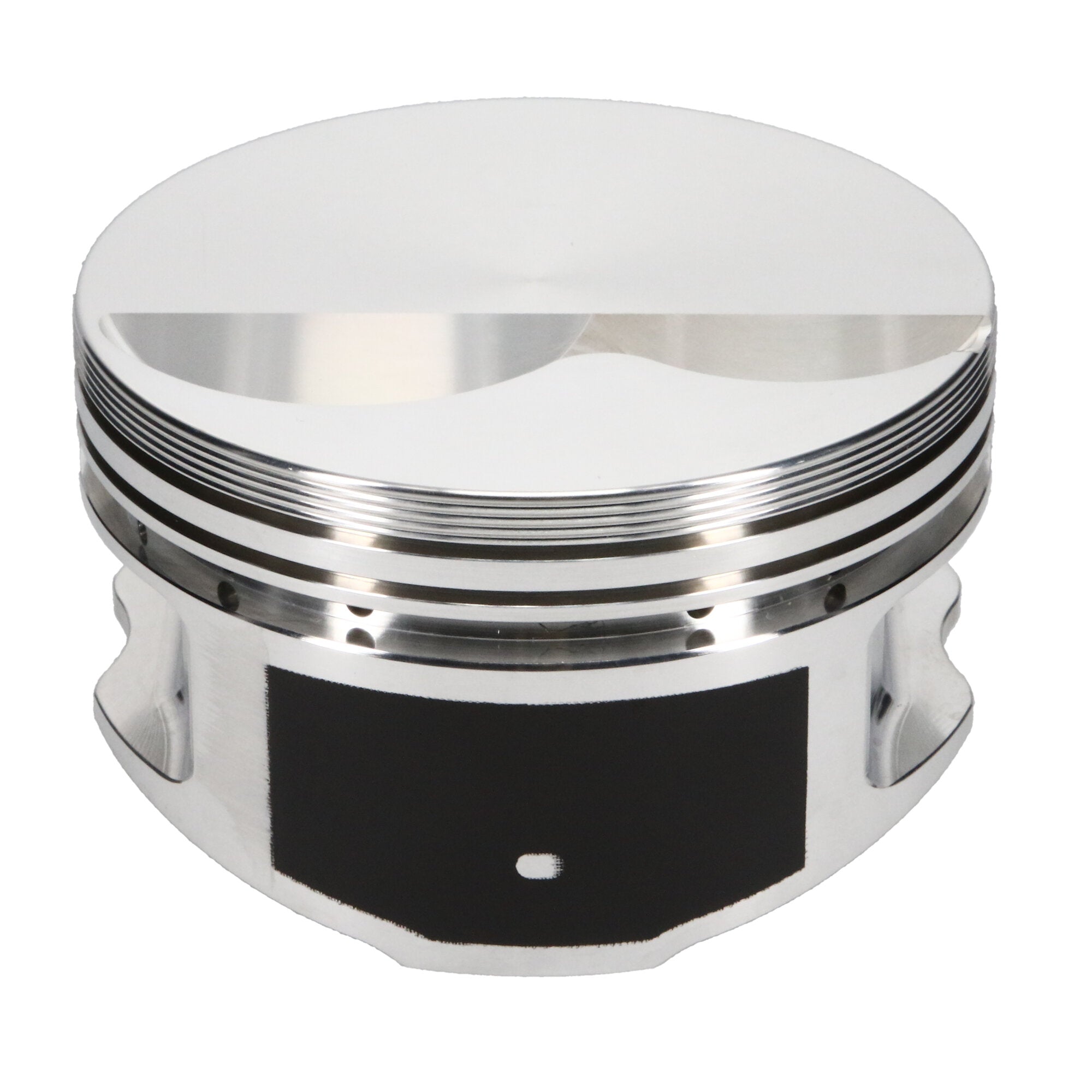

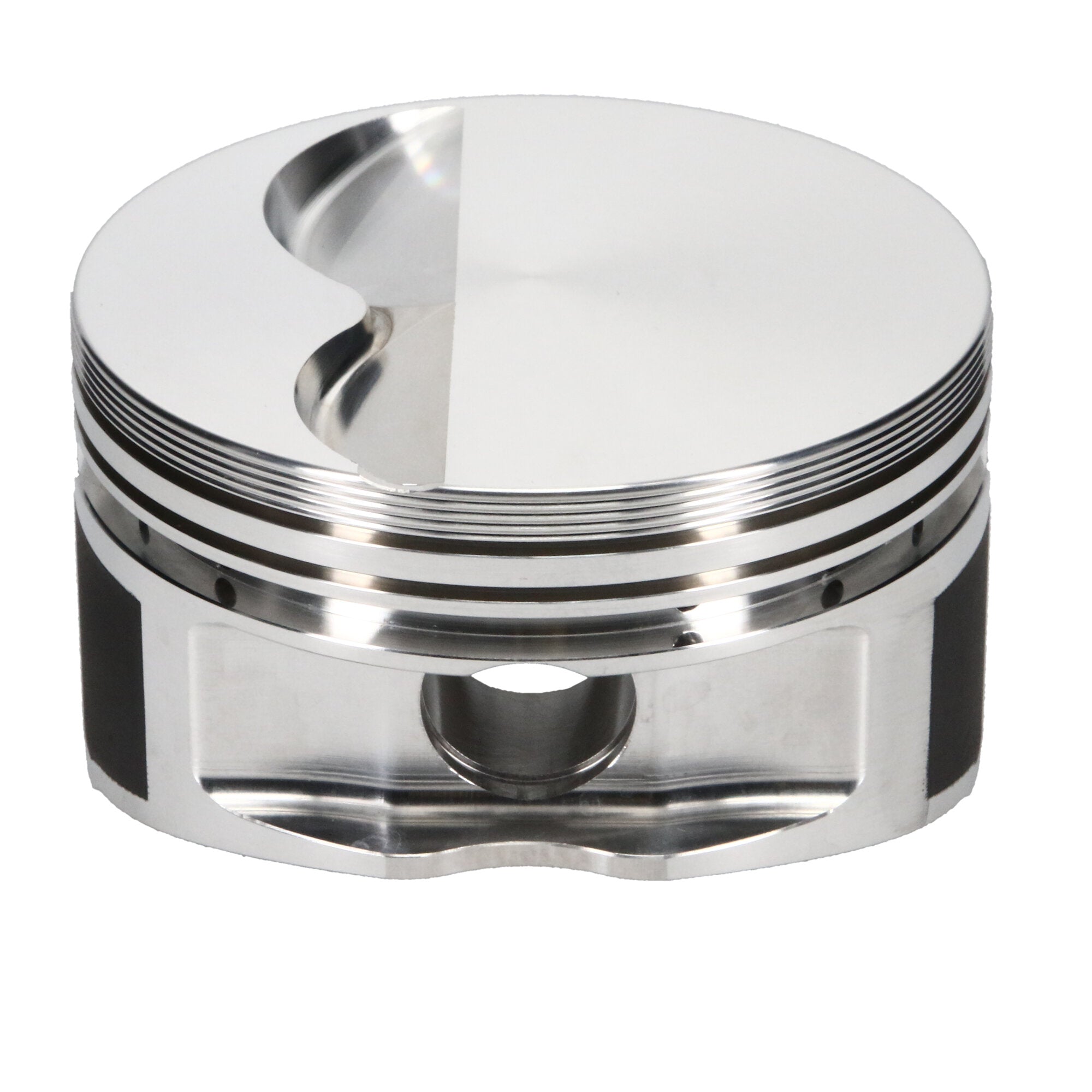

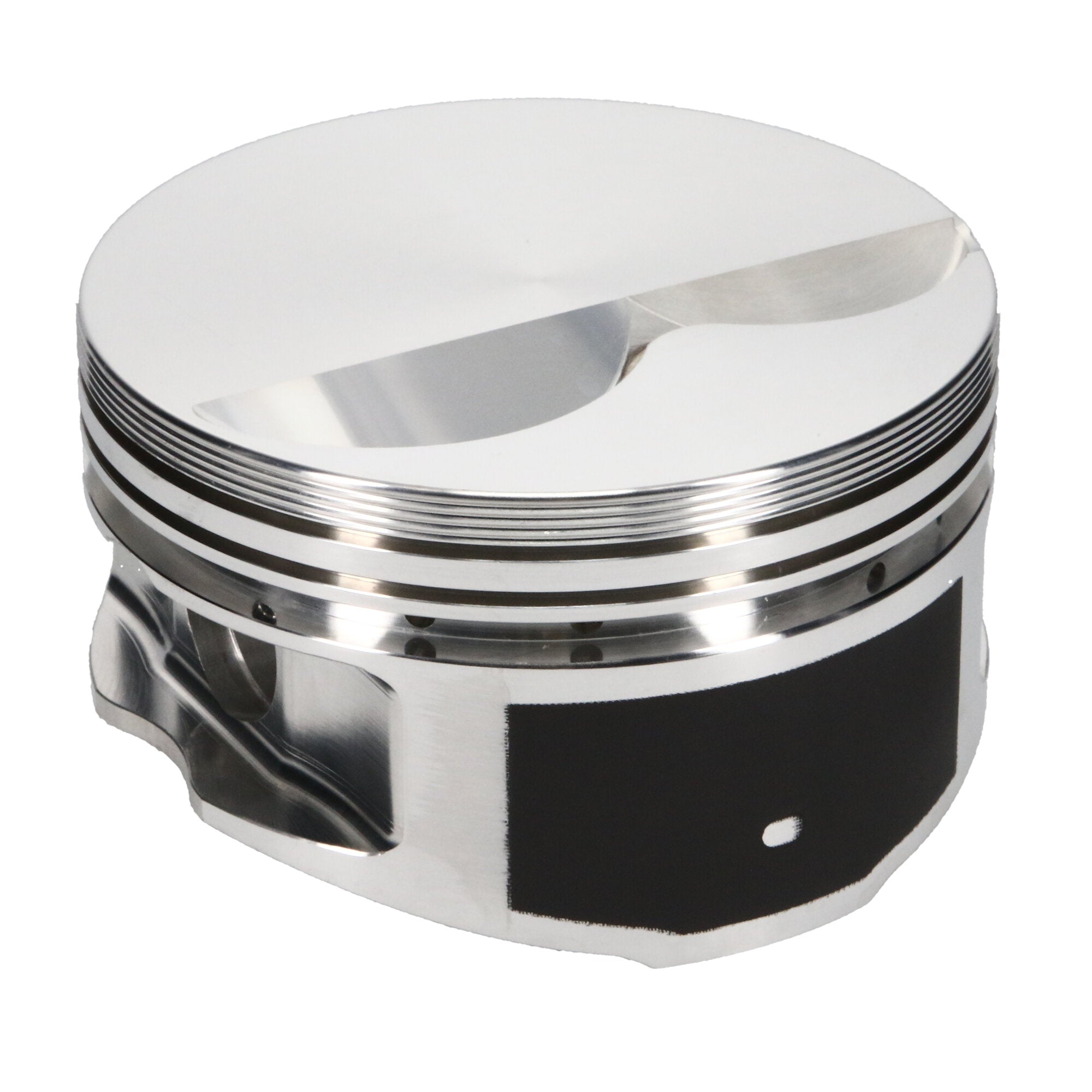

JE Pistons 173677R Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_173677R
Engine Piston
$343.75
customers are viewing this product
OMIX-ADA 17427.08 Piston 2.5
OMIX-ADA 17427.08 Piston 2.5
$81.35
JE Pistons 194340L Piston Single, 2618, Flat Top, 4.165 Bore, 1.000 CD, 0.927 Pin, Set of 1.
JE Pistons 194340L Piston Single, 2618, Flat Top, 4.165 Bore, 1.000 CD, 0.927 Pin, Set of 1.
$302.07
JE Pistons 173677R Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Flat Top, Right Piston
Description_INV JE Pistons, Piston
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Make - Web Chevrolet
Cylinder Head STD CHEVROLET 23 DEG
Second Compression Ring Thickness 0.0480
Piston Volume 0.00
Piston Material 2618
Product Type Engine Piston
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Length 2.350
Ring Set Included No
Add-On 927-073-MW
Industry Automotive
Piston Pin Length 2.350
Add-On J93008-4030-5
Add-On 927-2350-15-51C
Prop 65 (C, R or CR) CR
Piston Quantity 1
Prop 65 Yes/No Yes
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Piston Pin Material 5115
Ringset Included No
Out of Stock Message Call for Availability
Top Compression Ring Thickness 0.0477
Piston Average Weight 340
Bore Diameter 4.030
Piston Series JE Pistons
Product Market Domestic
Title - Web JE Pistons Chevrolet Small Block Piston - 4.030 in. Bore - 1.250 in. CH, 0.00 CC
Engine Small Block
Title JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston
Wrist Pin Wall Thickness 0.150
Piston Orientation Right
Piston Pin Outside Diameter 0.927
Piston Pin Wall Thickness 0.150
Compression Height 1.250
Make CHEVROLET
Engine Type ICE
Forging Type FSR
Oil Ring Thickness 0.119
Piston Head Type Flat
Engine - Web Small Block
Wrist Pin Outer Diameter 0.927
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
