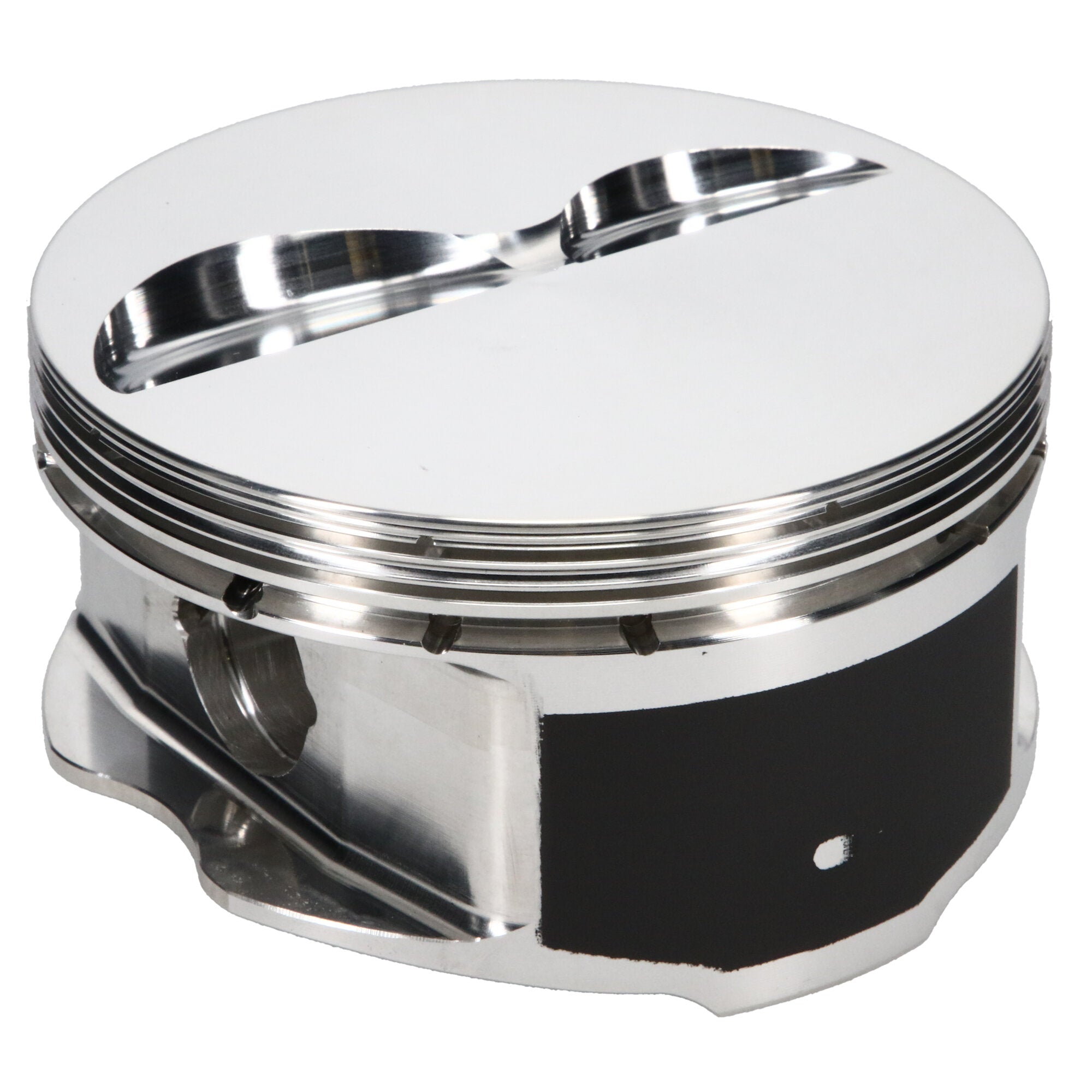

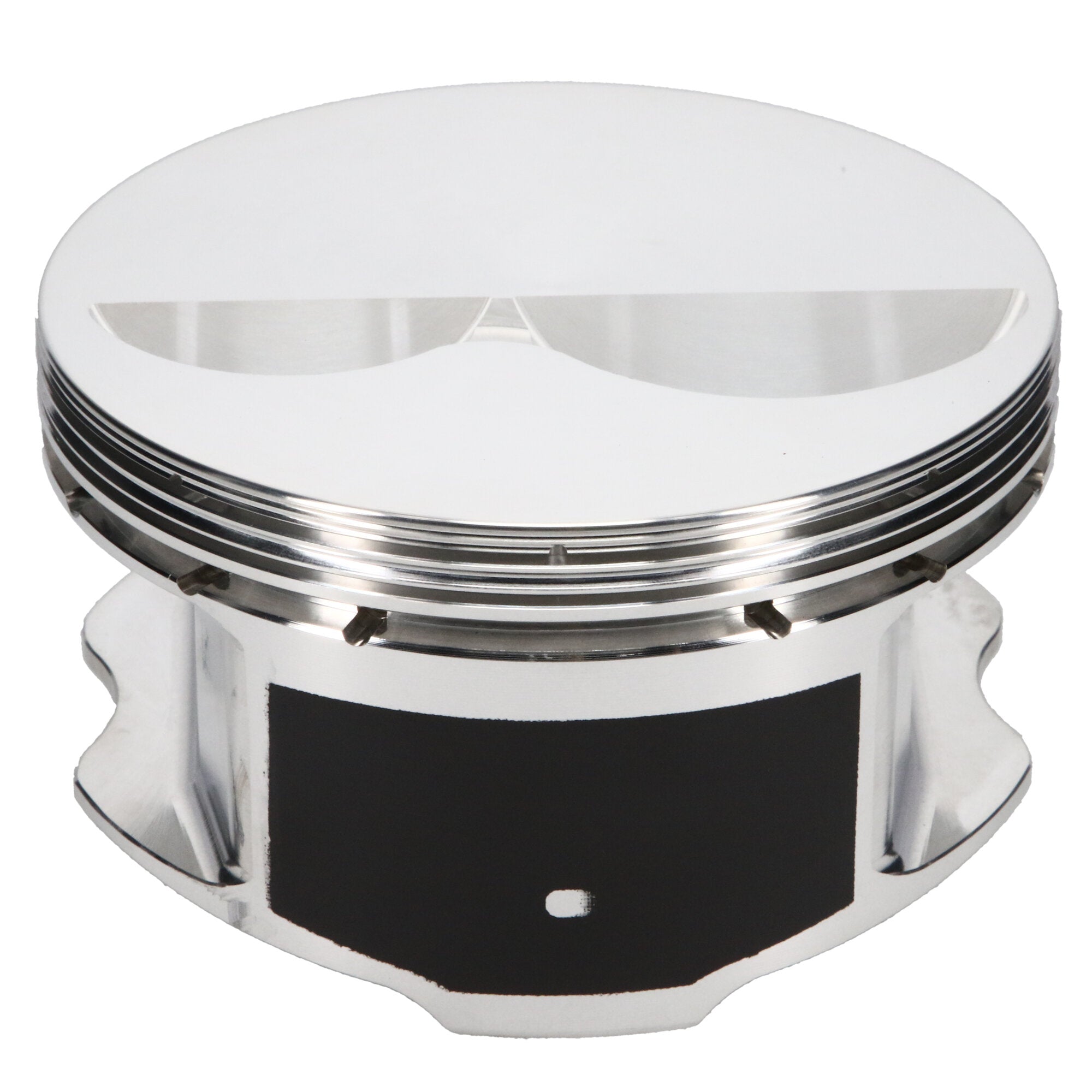

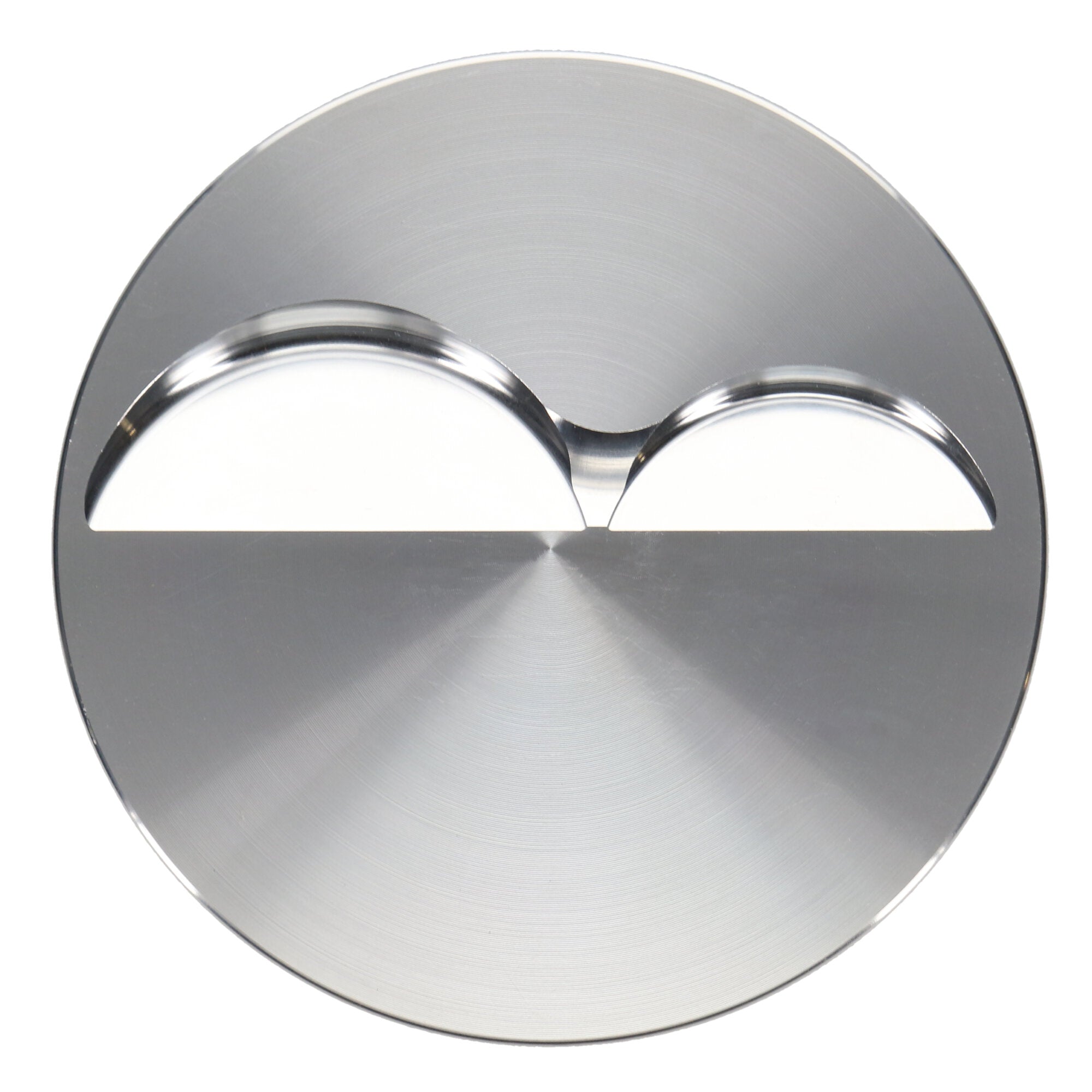

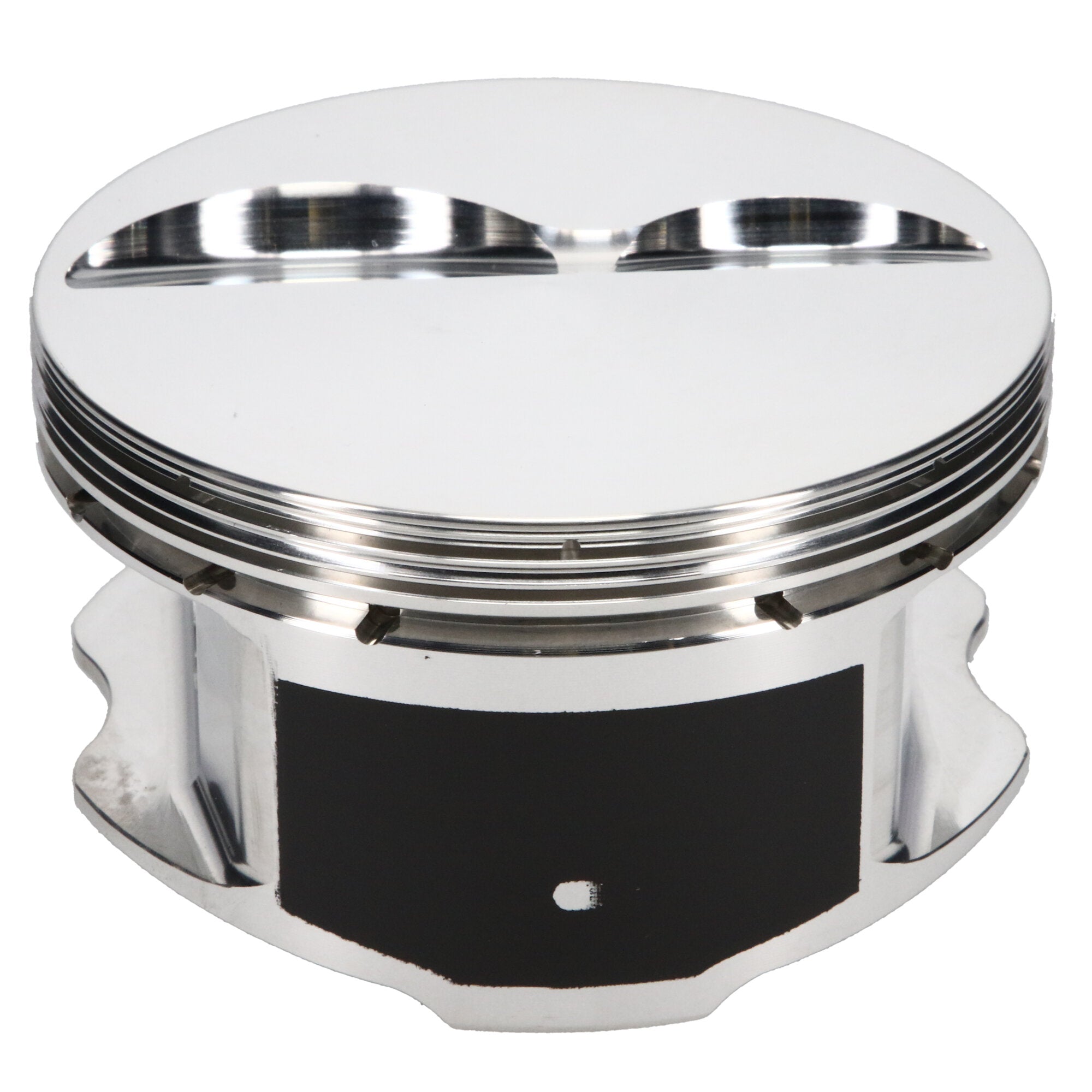

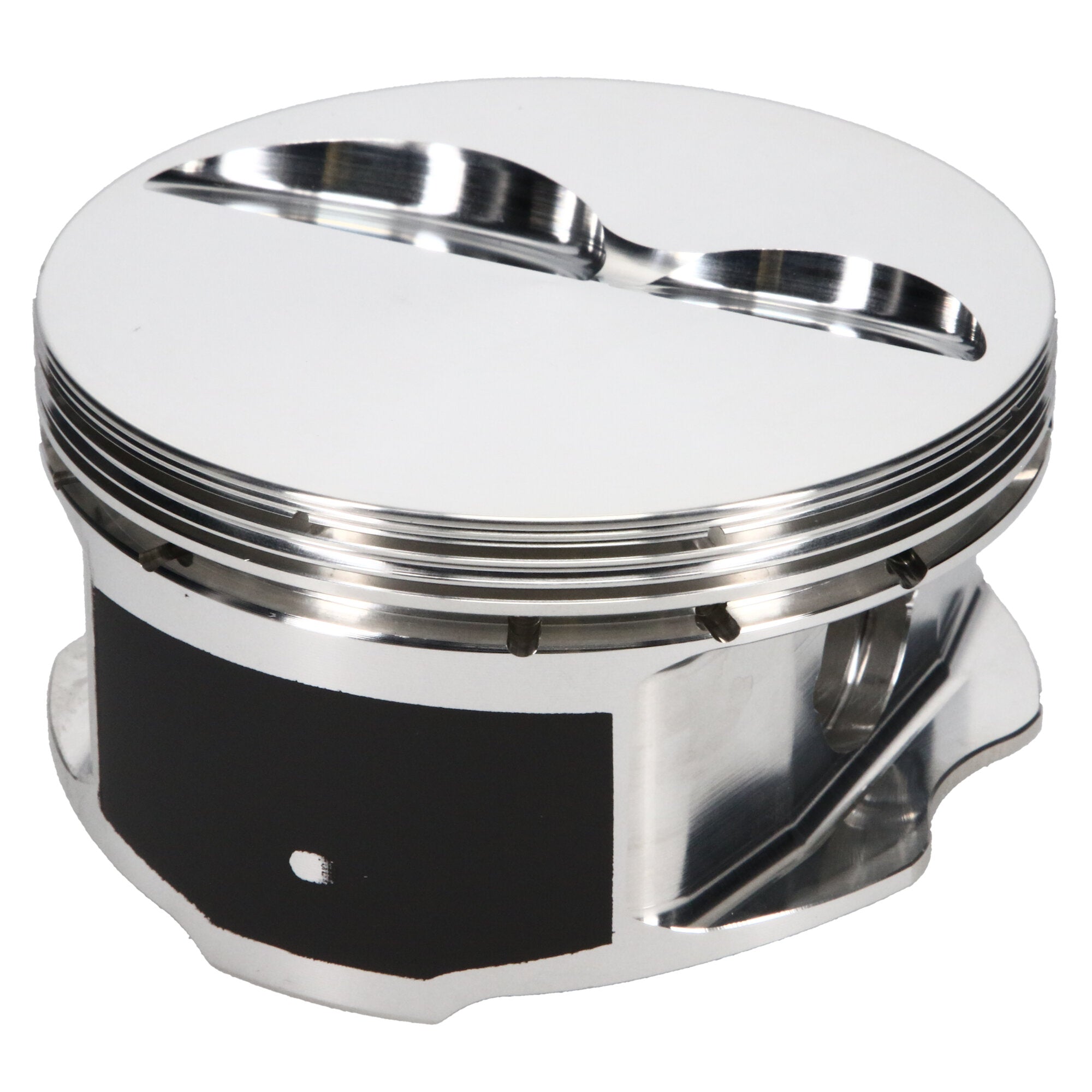

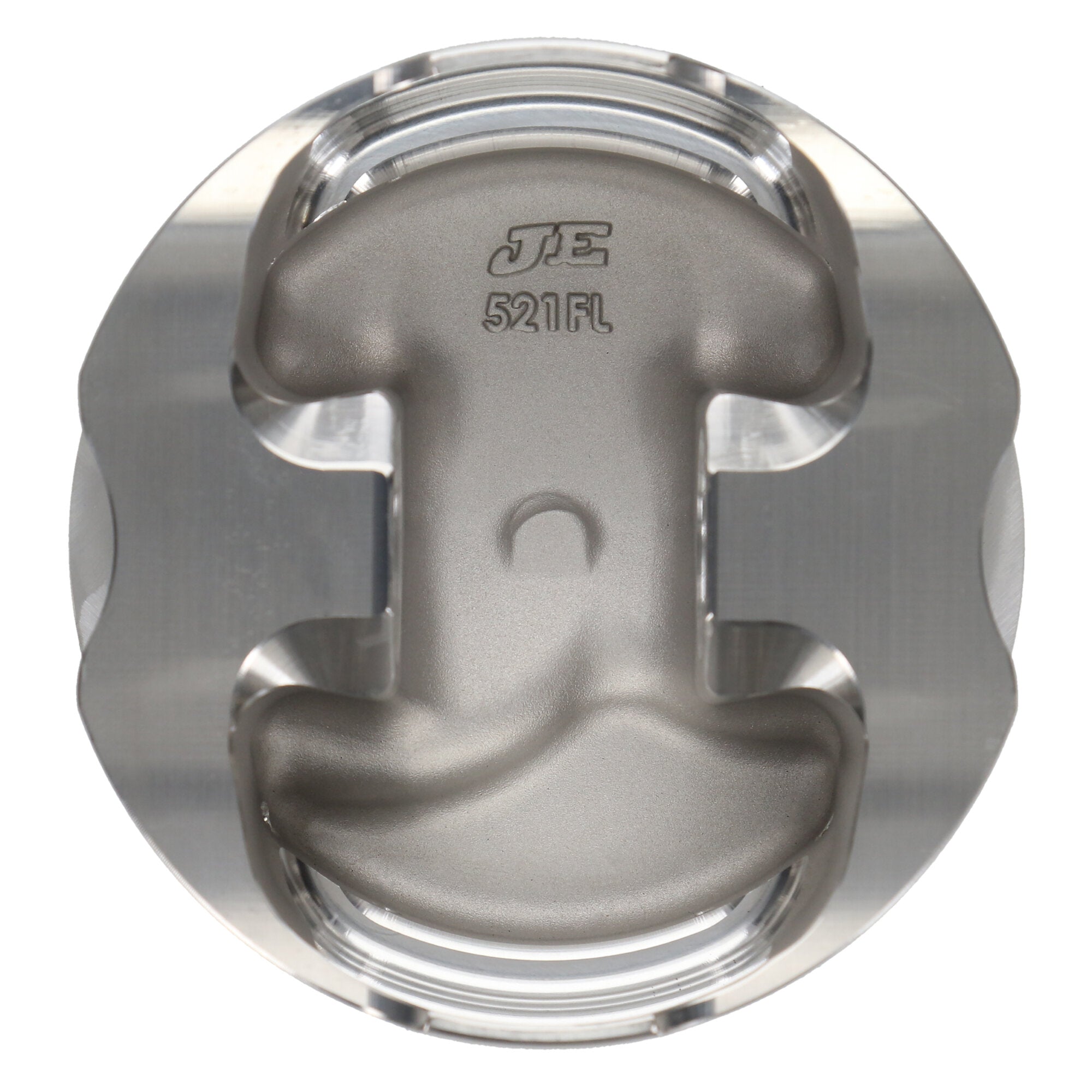

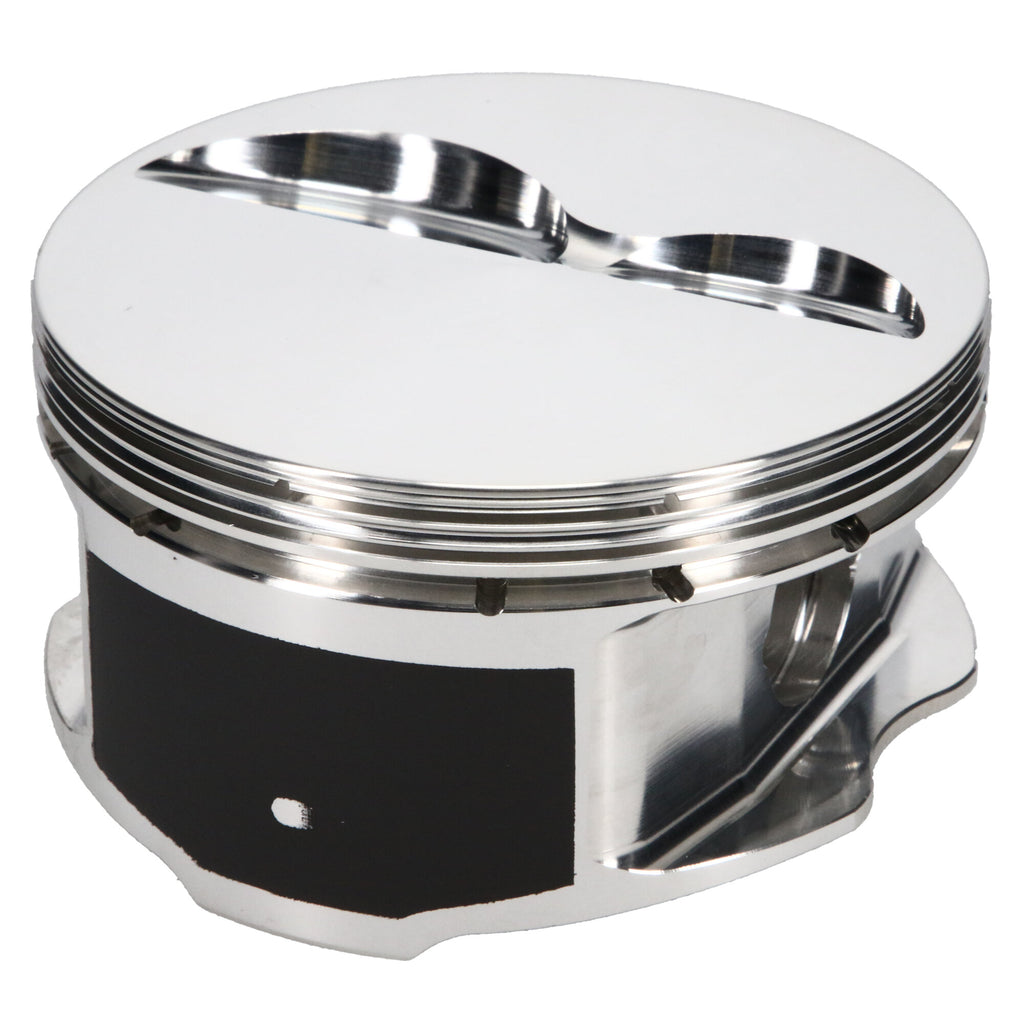

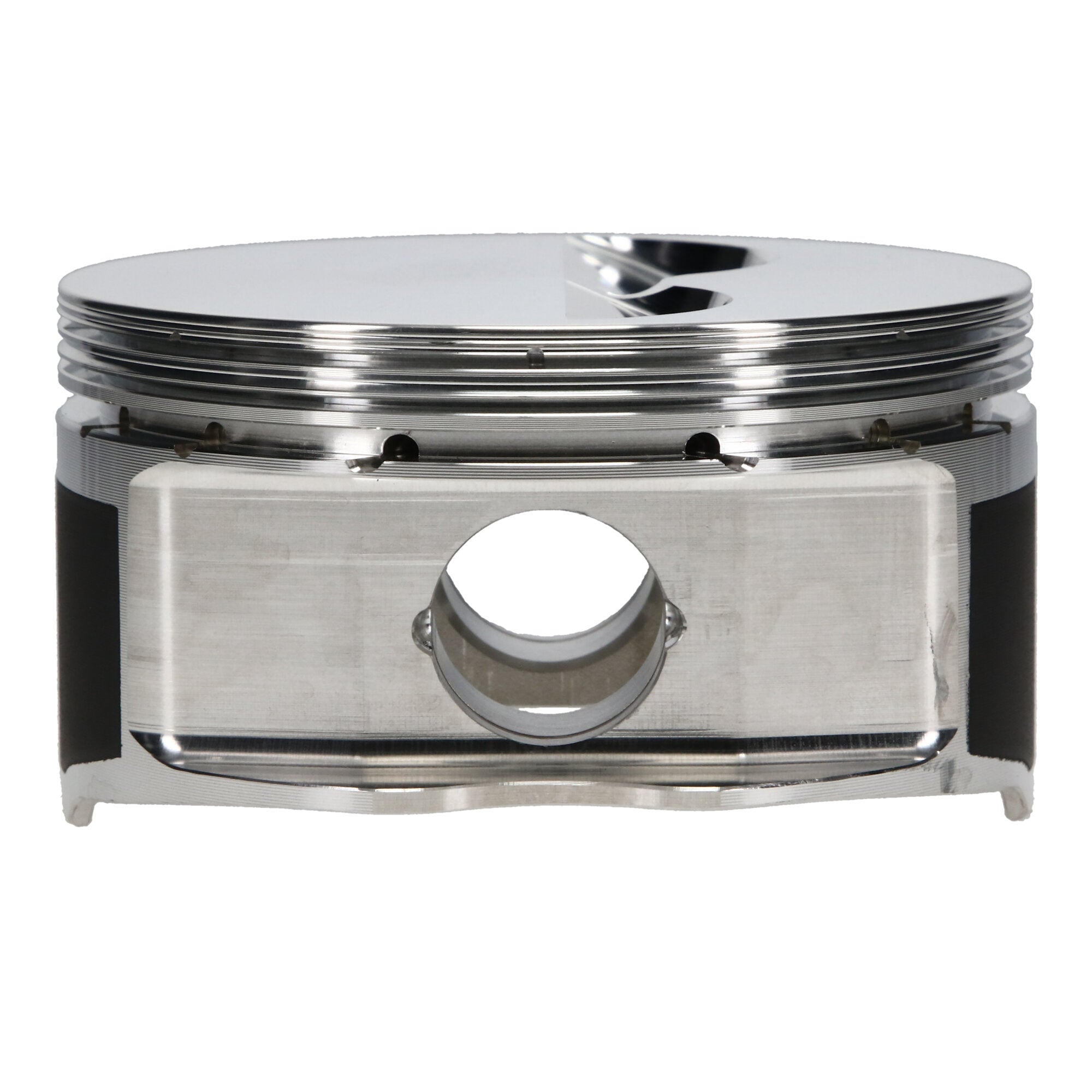

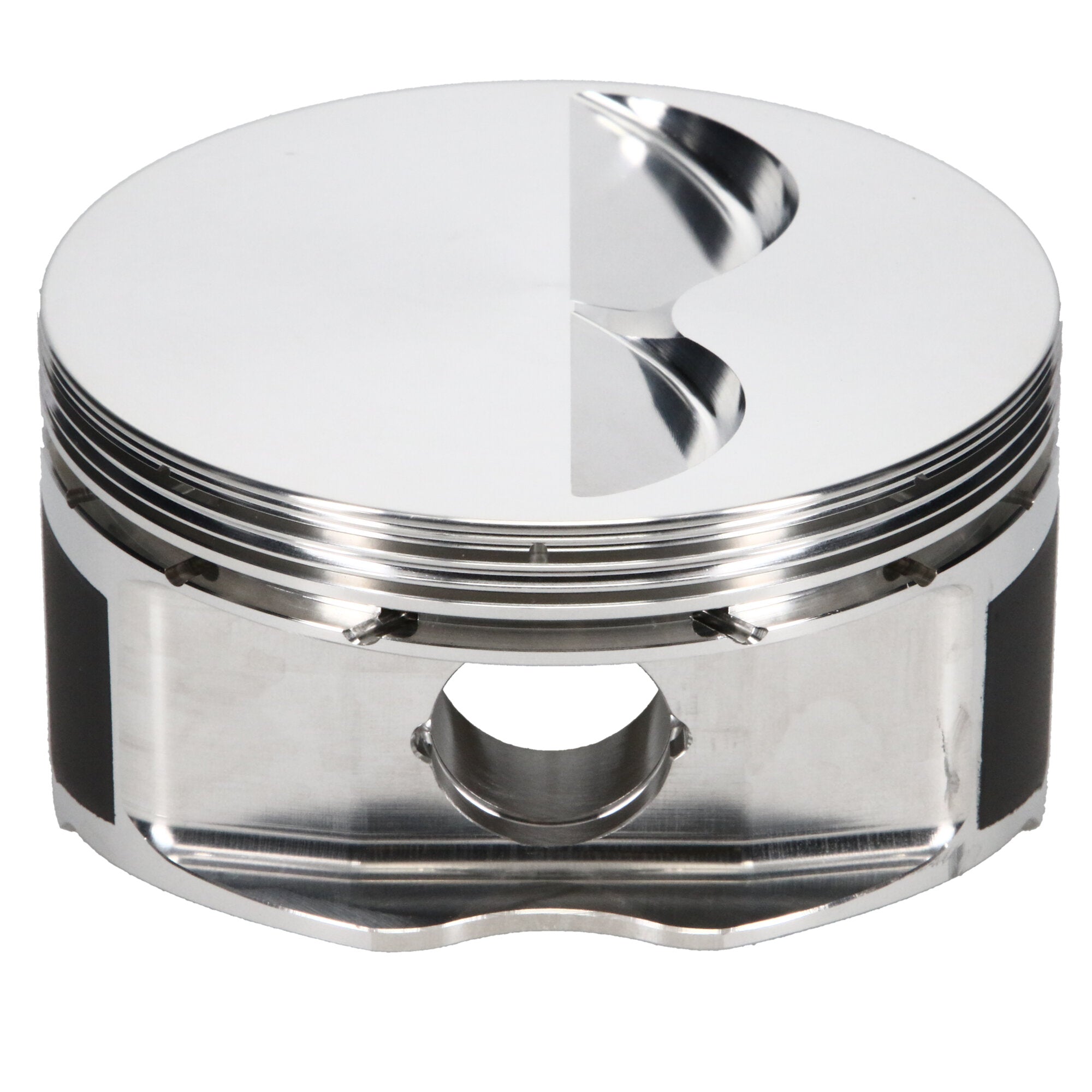

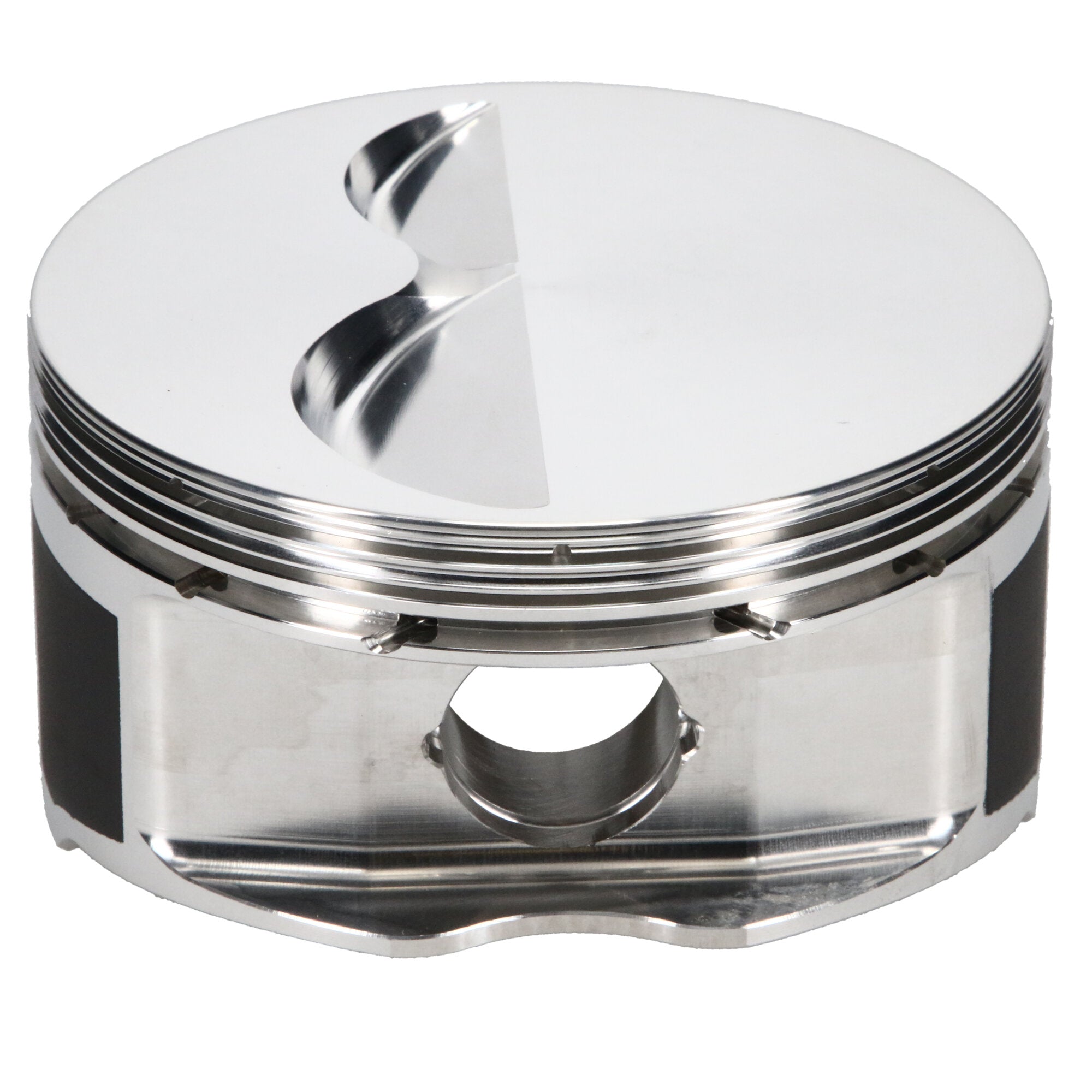

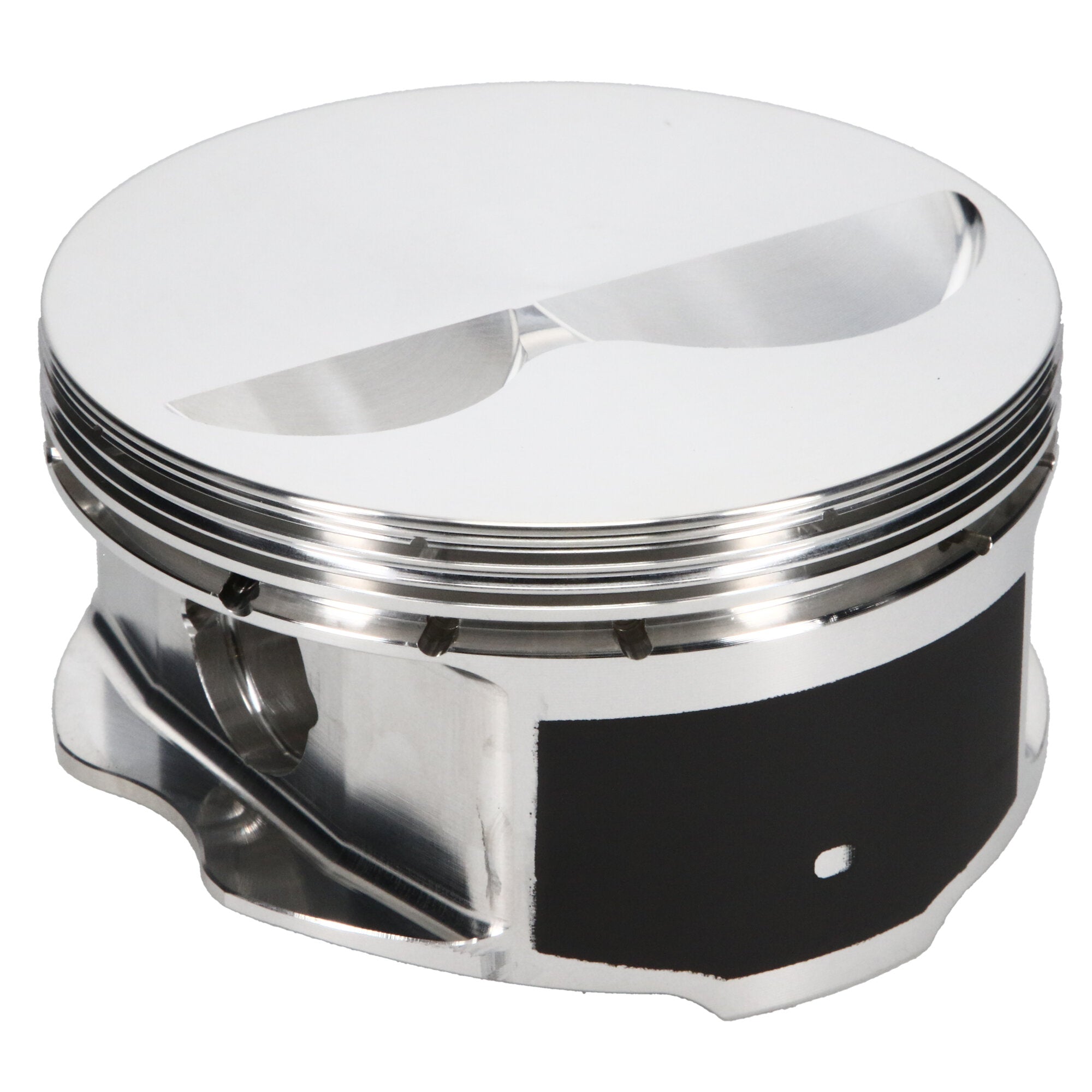

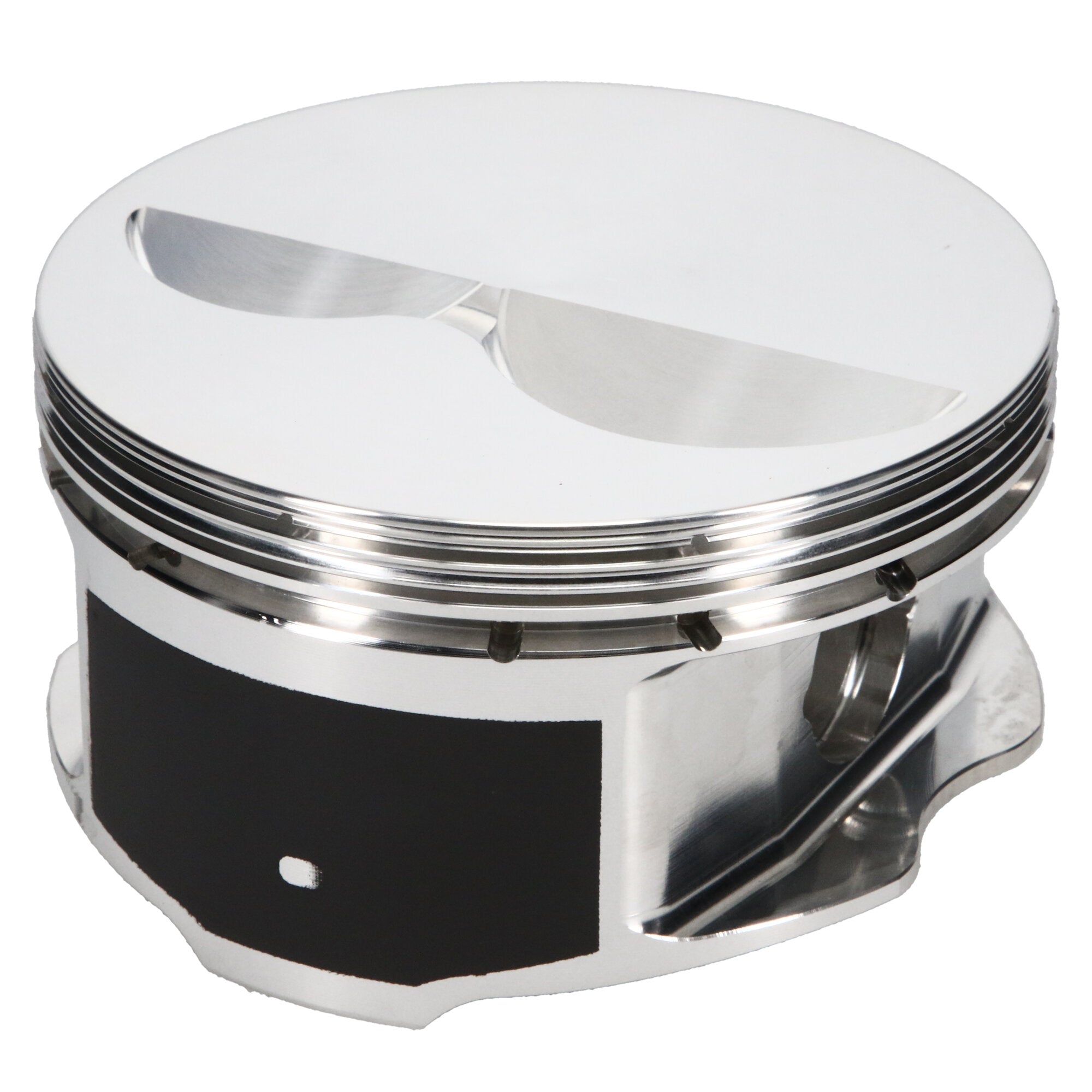

JE Pistons 173617R Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_173617R
Engine Piston
$343.75
customers are viewing this product
JE Pistons 173581L Piston Single, 2618, Inv Dome/Dish, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 173581L Piston Single, 2618, Inv Dome/Dish, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 338091S Piston Single, 2618, Dome, 3.248 Bore, 1.181 CD, 0.827 Pin, Set of 1.
JE Pistons 338091S Piston Single, 2618, Dome, 3.248 Bore, 1.181 CD, 0.827 Pin, Set of 1.
$451.87
JE Pistons 173617R Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Details

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
  • Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
  • Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
  • Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
  • High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
  • Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
  • Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
  • Made 100% in the USA
Description_EXT JE Ultra, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.550 CD, Flat Top, Right Piston
Description_INV JE Pistons, Piston
Description_SHO Piston
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Description_MKT Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Piston Series JE Ultra Series
Piston Head Type Flat
Engine Small Block
Piston Pin Material 5115
Second Compression Ring Thickness 0.0440
Title - Web JE Ultra Series Chevrolet Small Block Piston - 4.030 in. Bore - 1.550 in. CH, -1.50 CC
Piston Pin Length 2.400
Forging Type Round
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Compression Height 1.550
Piston Orientation Right
Engine Type ICE
Piston Average Weight 395
Product Market Domestic
Oil Ring Thickness 0.119
Ringset Included No
Piston Pin Wall Thickness 0.130
Make CHEVROLET
Piston Pin Outside Diameter 0.927
Category Hierarchy Auto>JE Ultra Series>Single Replacement Pistons>Domestic
Wrist Pin Wall Thickness 0.130
Make - Web Chevrolet
Wrist Pin Outer Diameter 0.927
Engine - Web Small Block
Prop 65 - Short Label Prop 65 Warning Label.JPG
Top Compression Ring Thickness 0.0436
Piston Material 2618
Product Type Engine Piston
Add-On 927-073-MW
Industry Automotive
Bore Diameter 4.030
Prop 65 Yes/No Yes
Add-On 927-2400-13-51C
Prop 65 (C, R or CR) CR
Out of Stock Message Call for Availability
Title JE Ultra Series - Chevrolet, Small Block, 4.030 in. Bore, Piston
Piston Volume -1.50
Cylinder Head STD CHEVROLET 23 DEG
Add-On J71408-4030-5
Ring Set Included No
Wrist Pin Length 2.400
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
