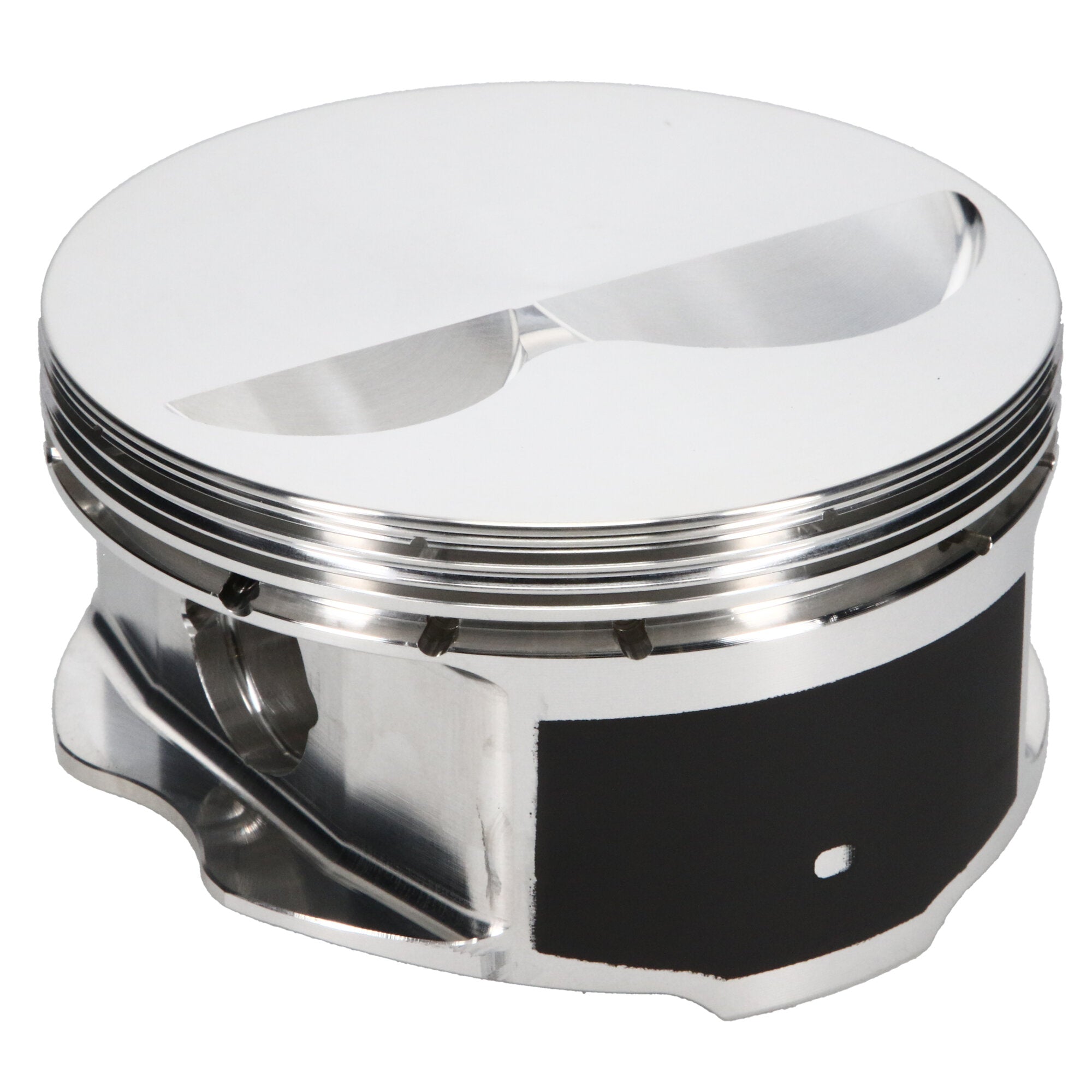

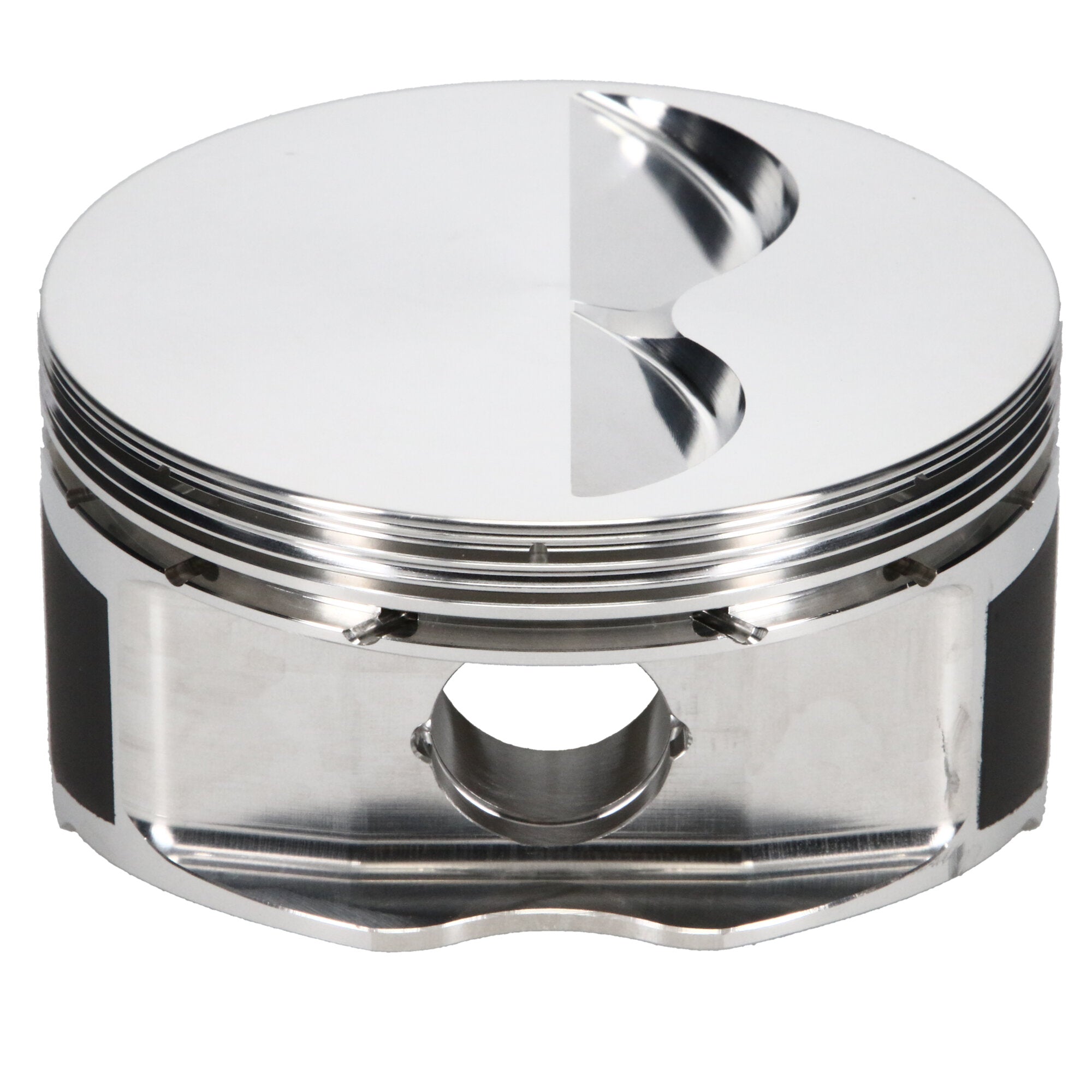

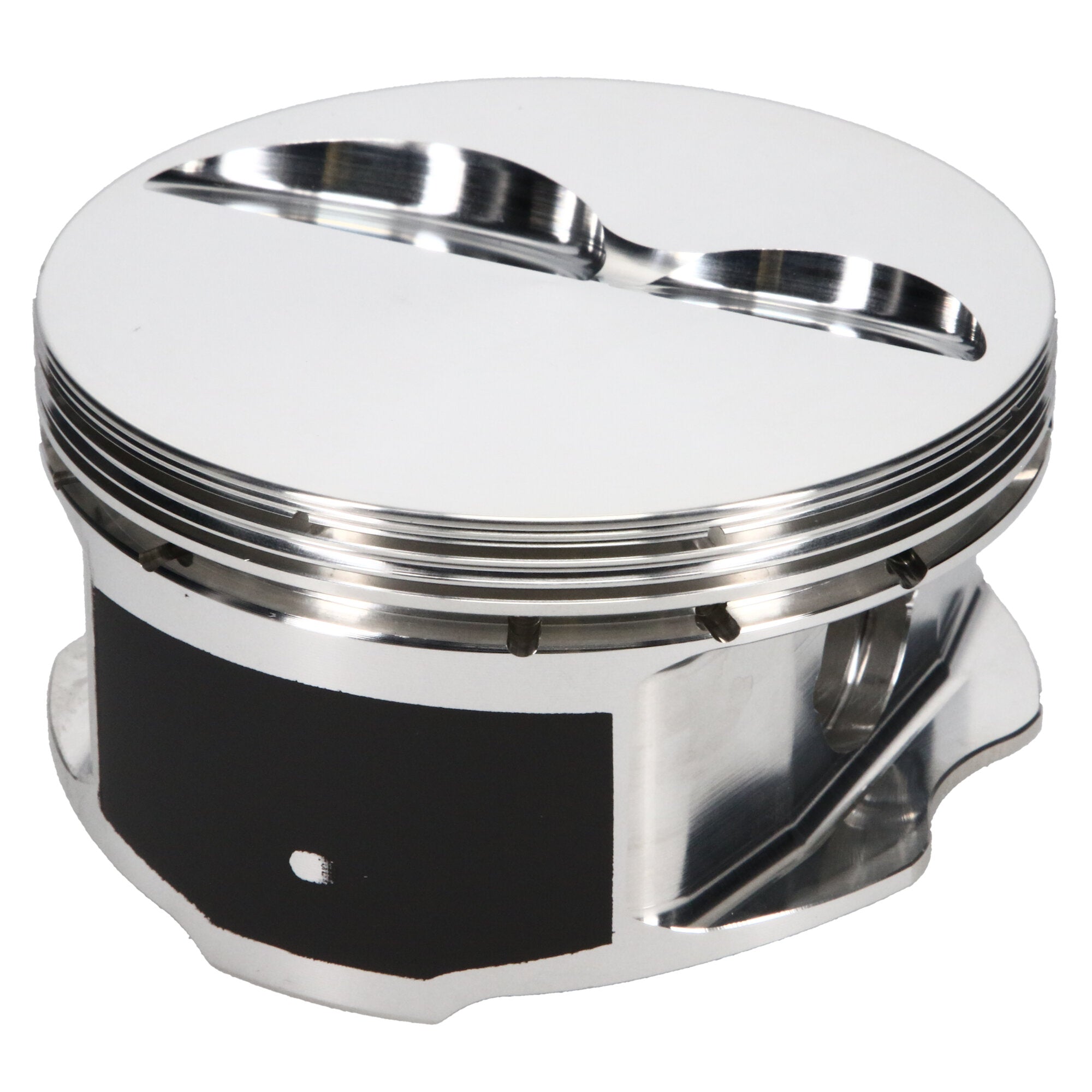

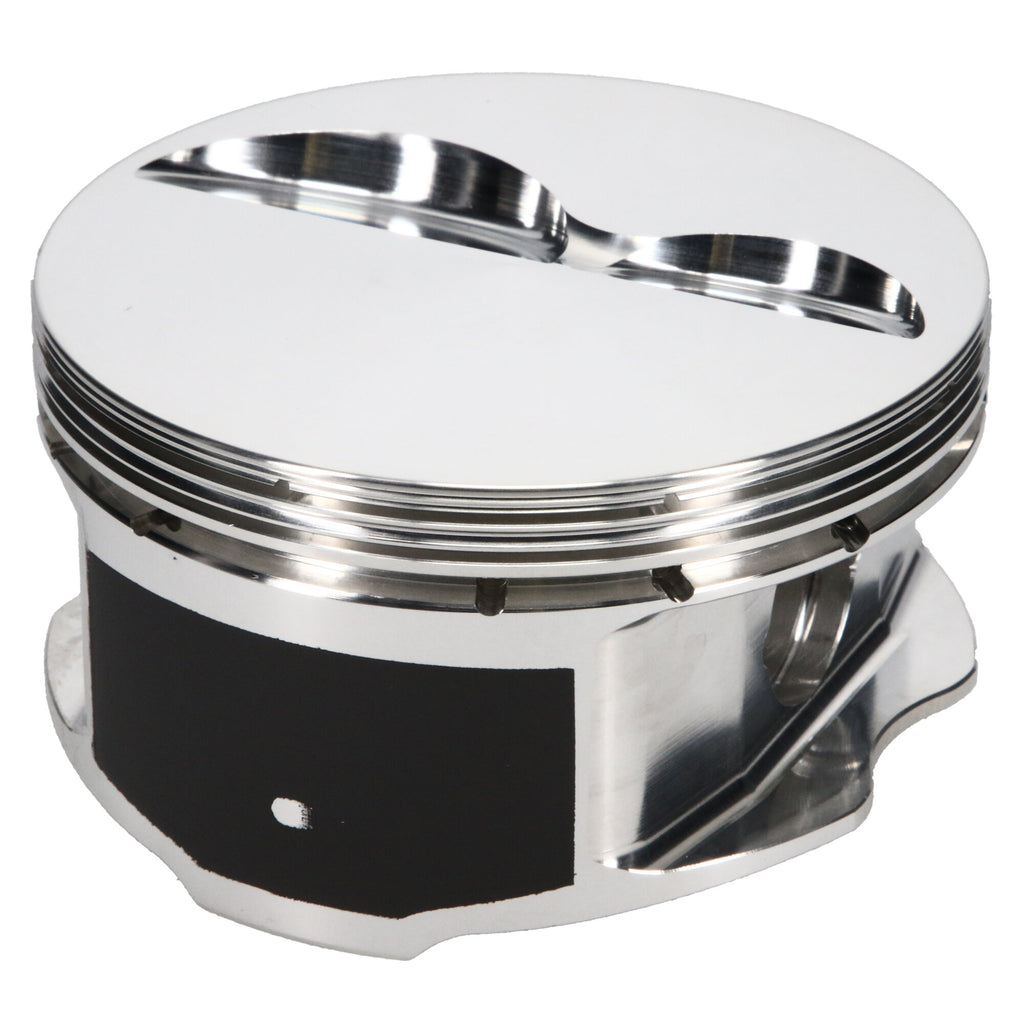

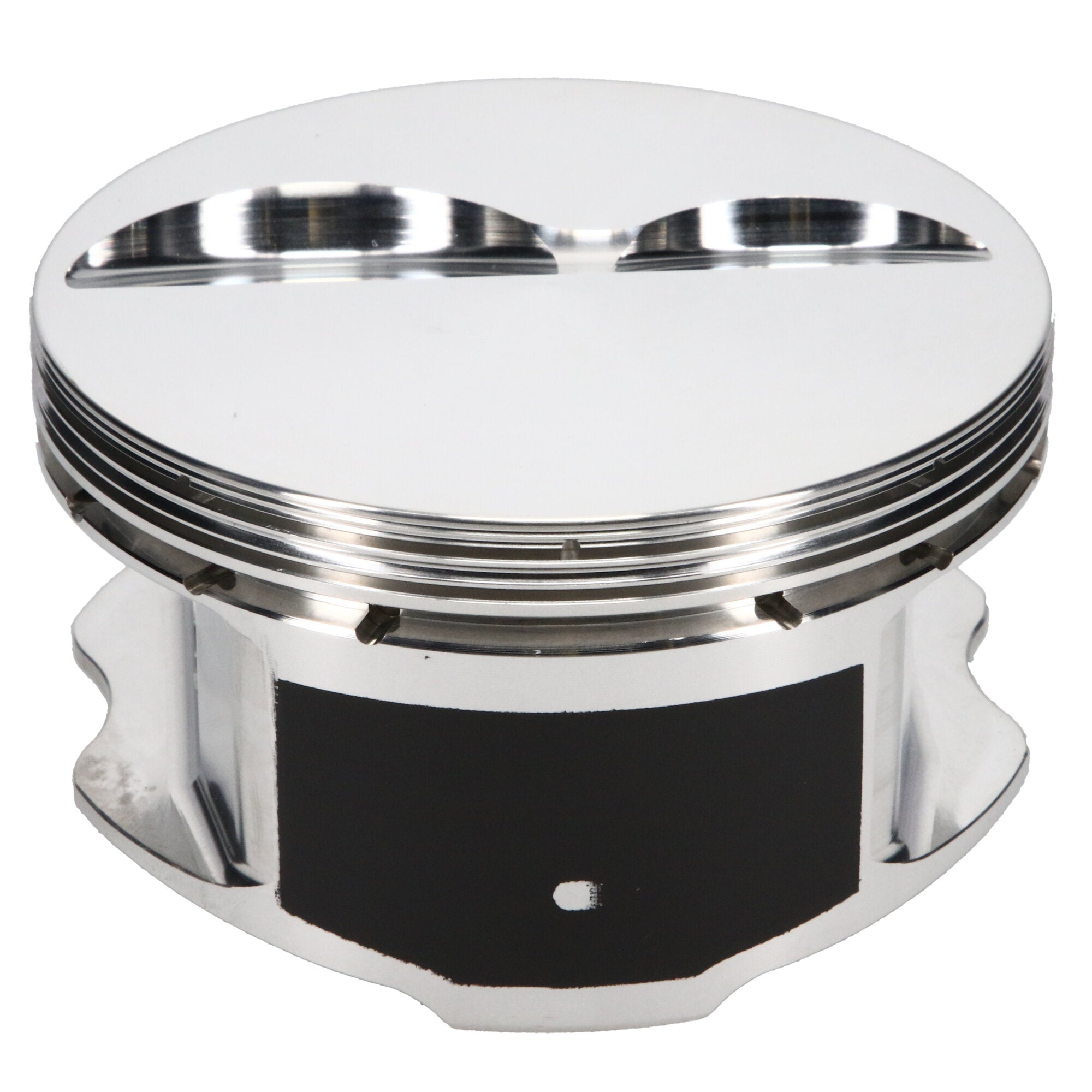

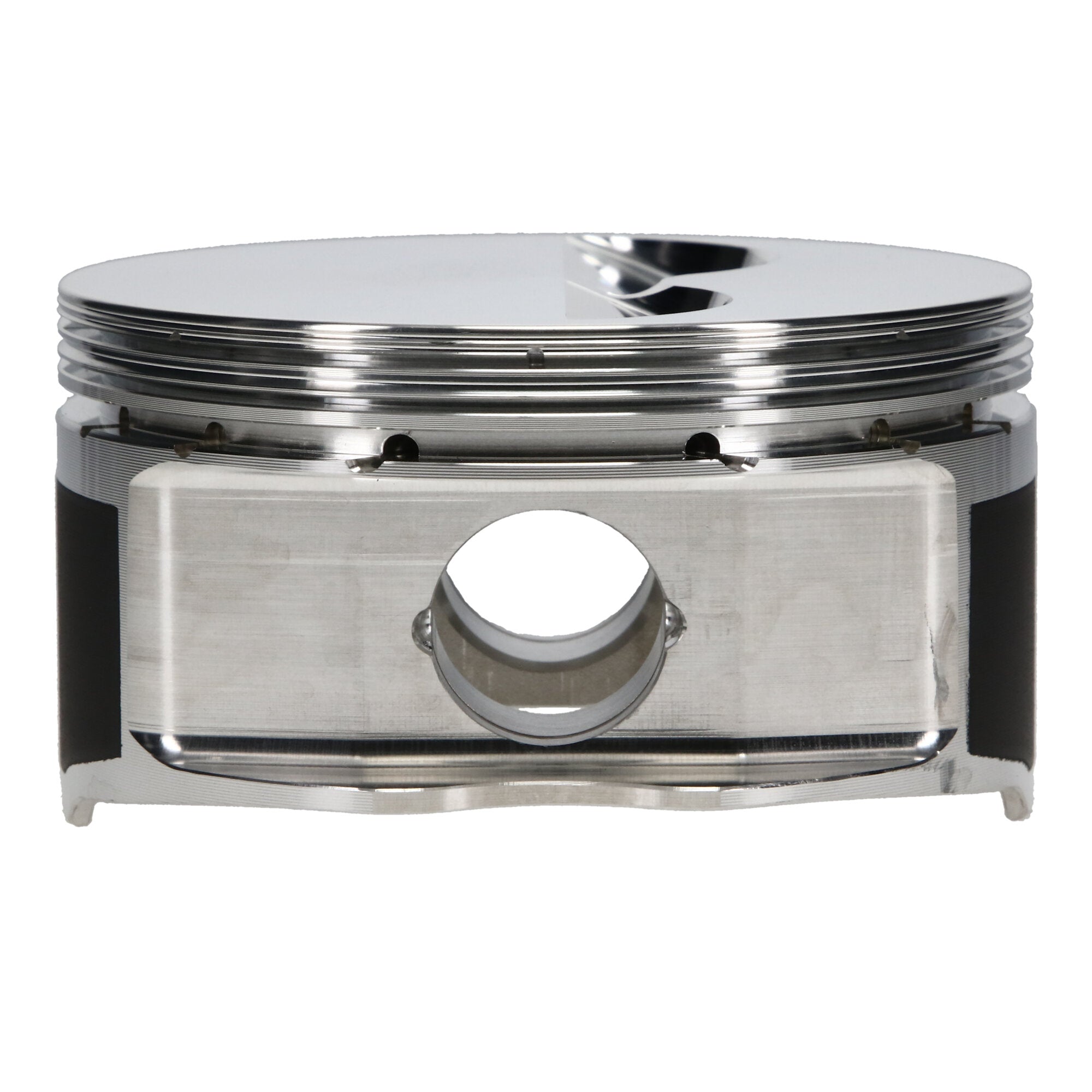

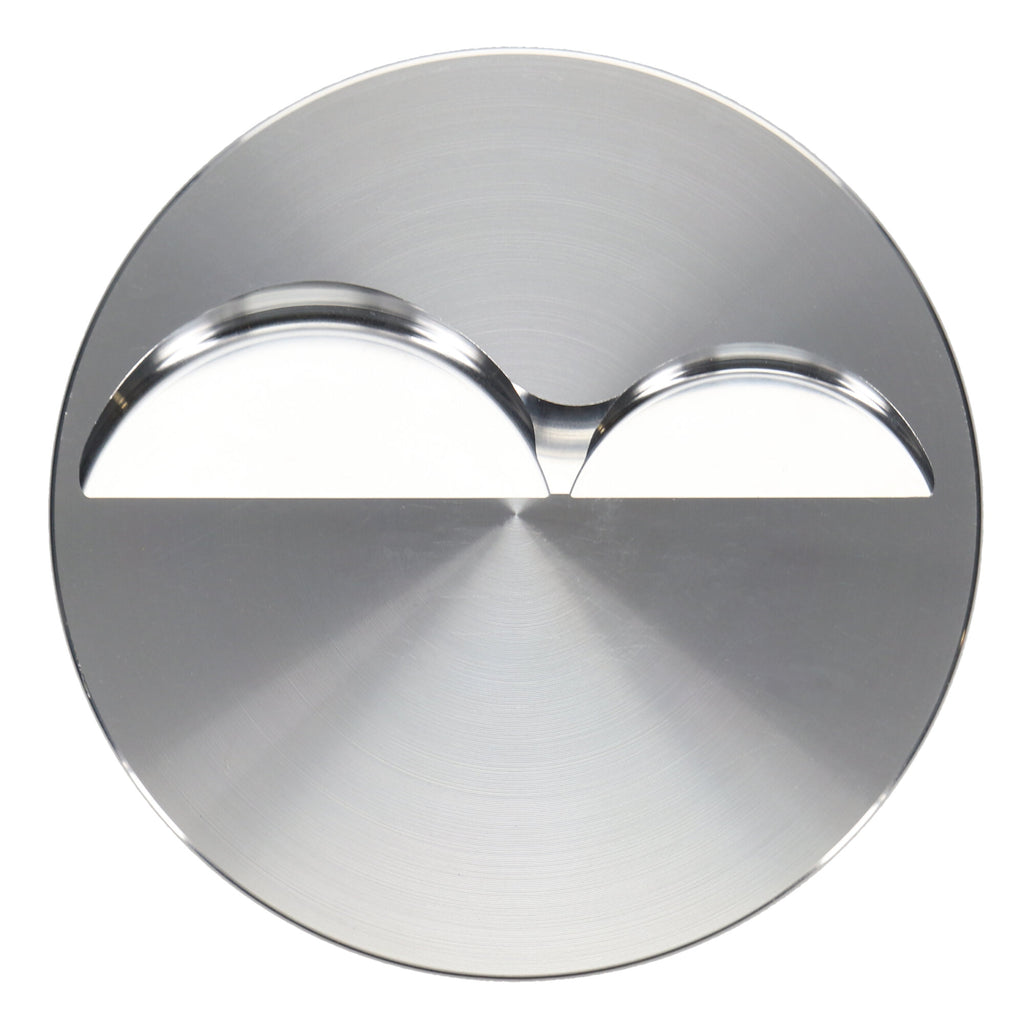

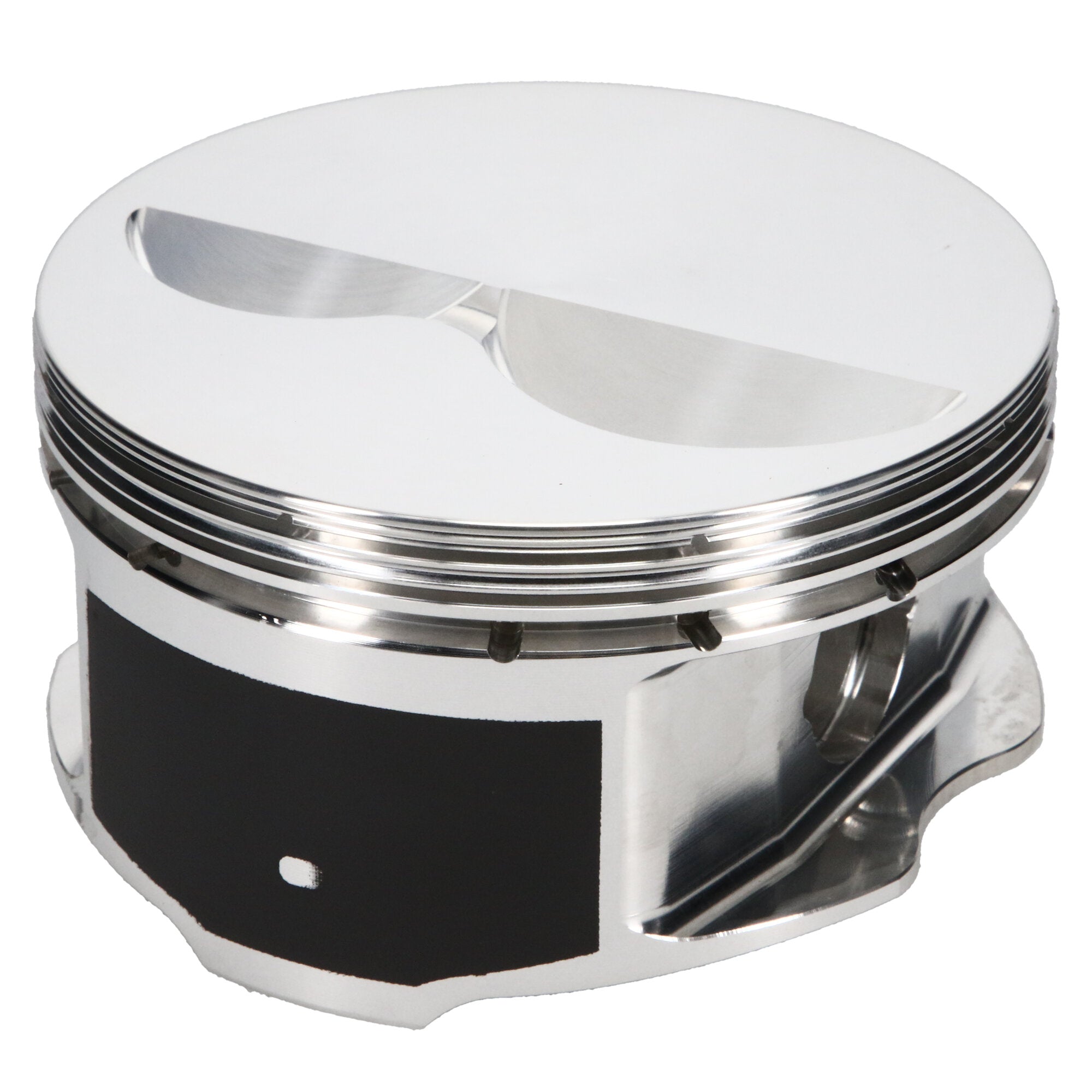

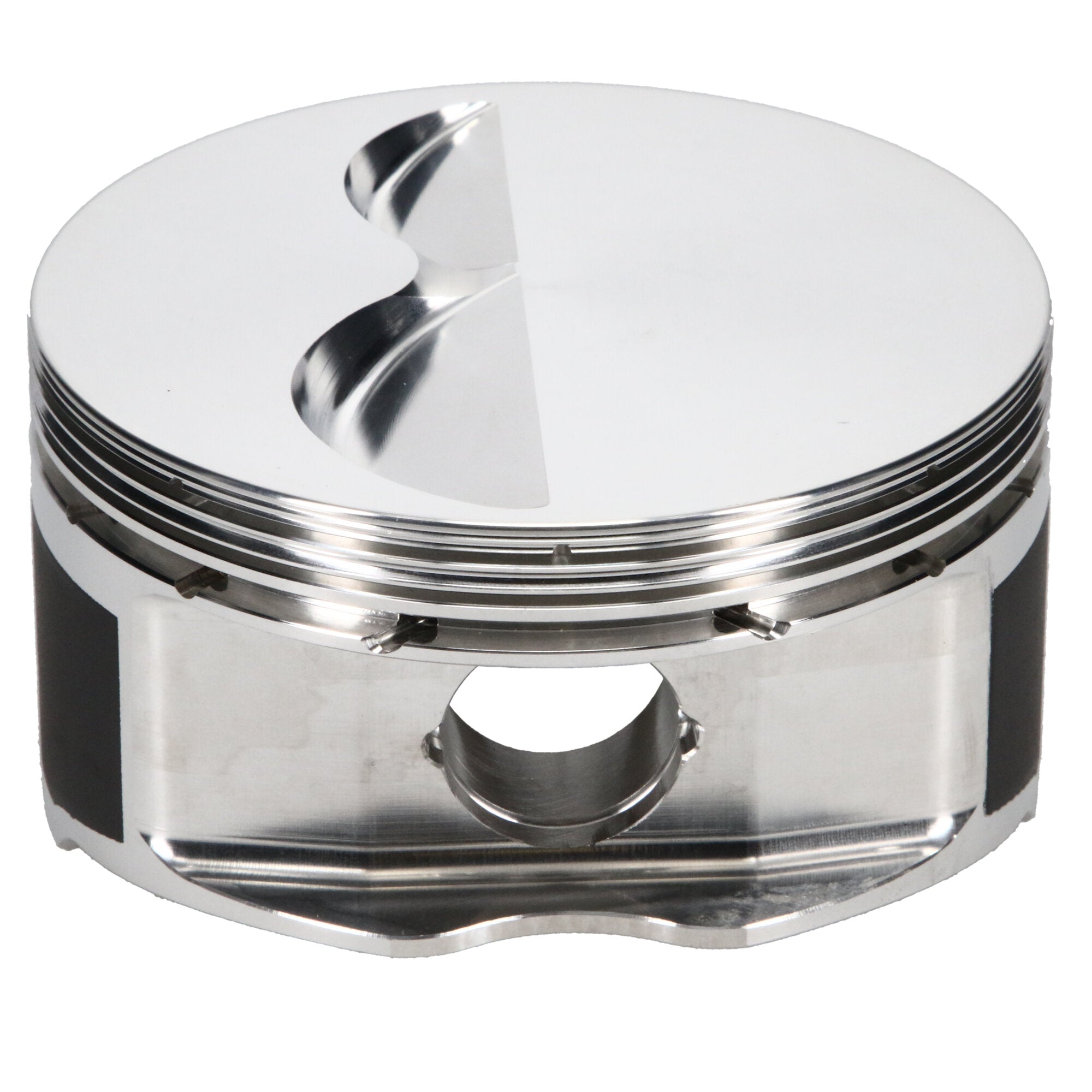

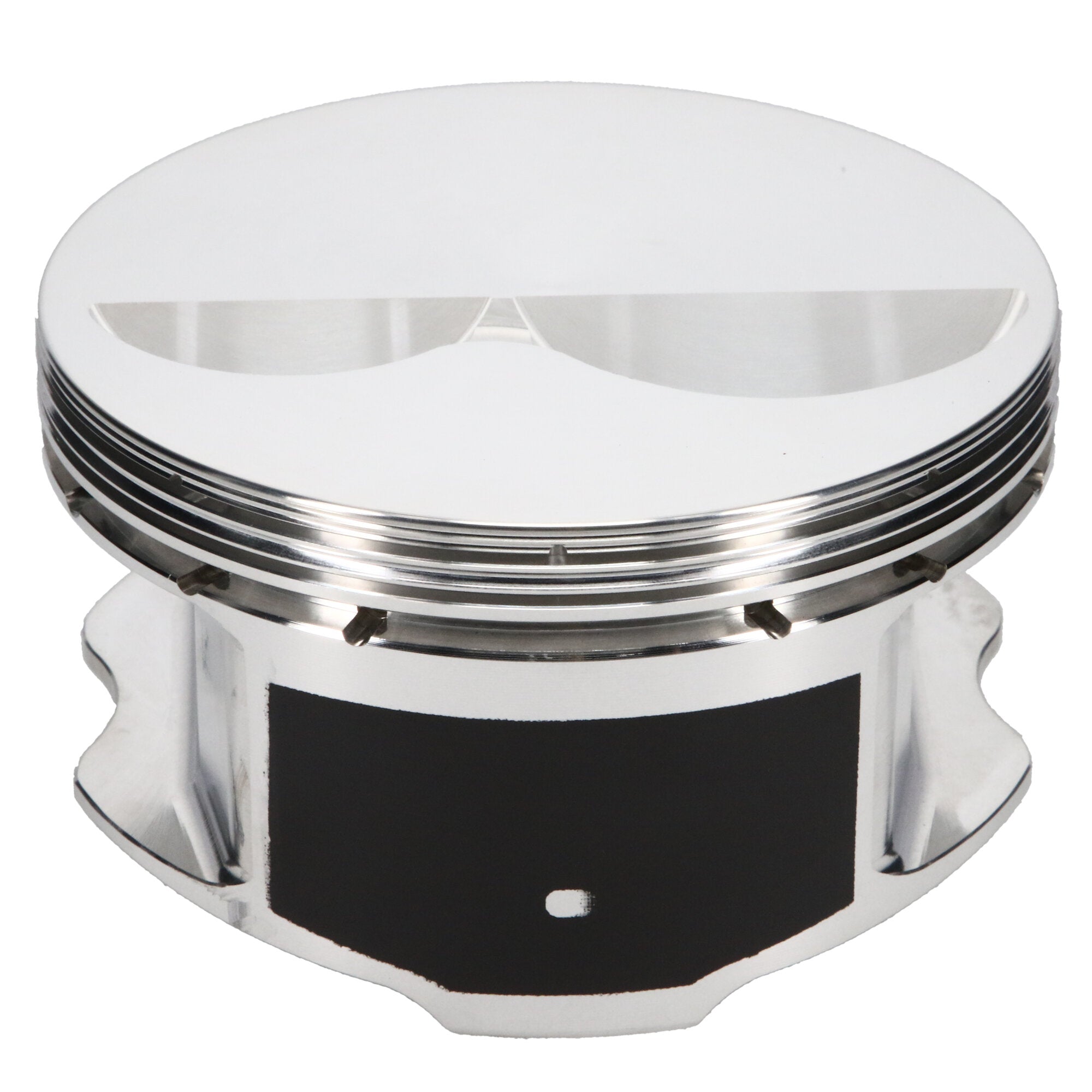

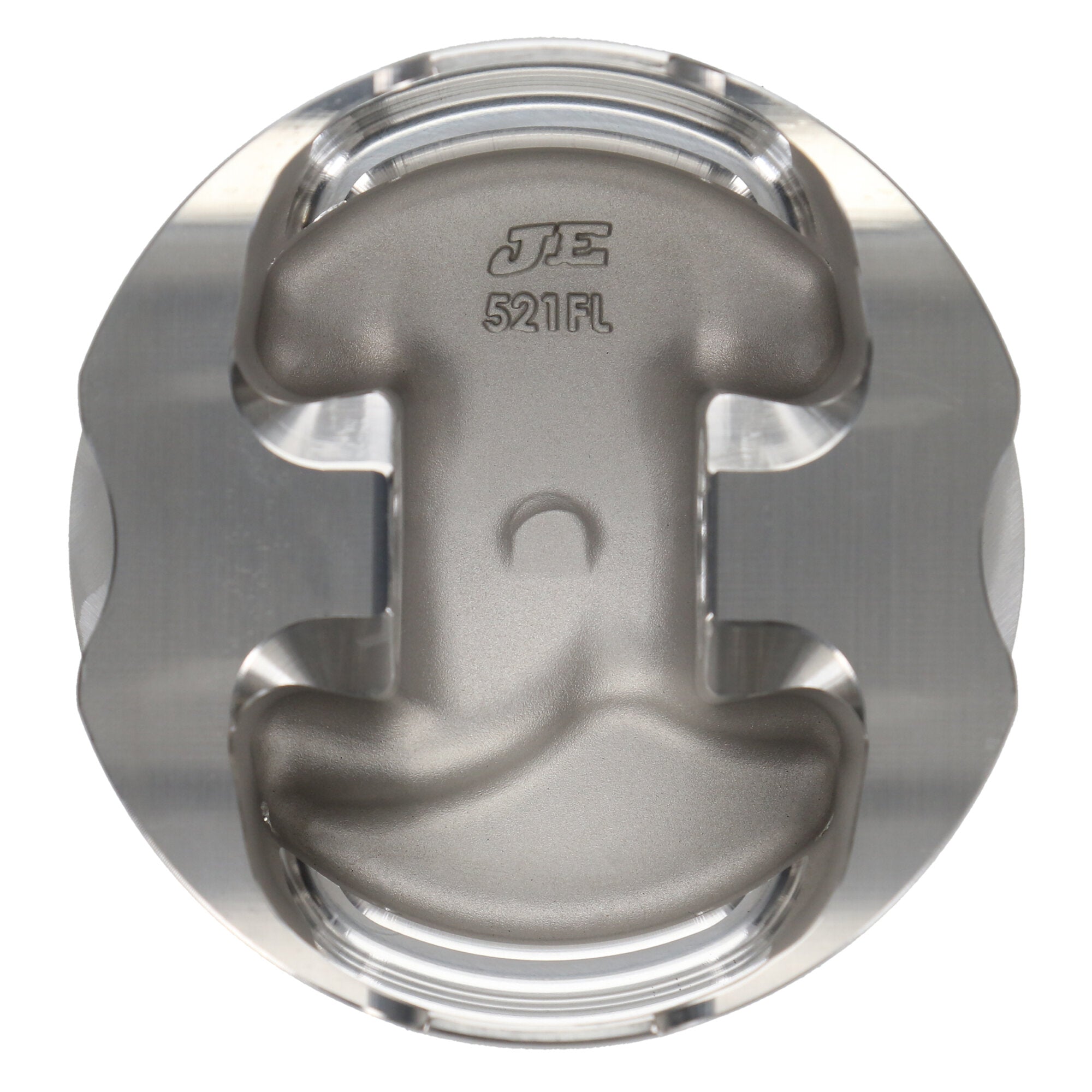

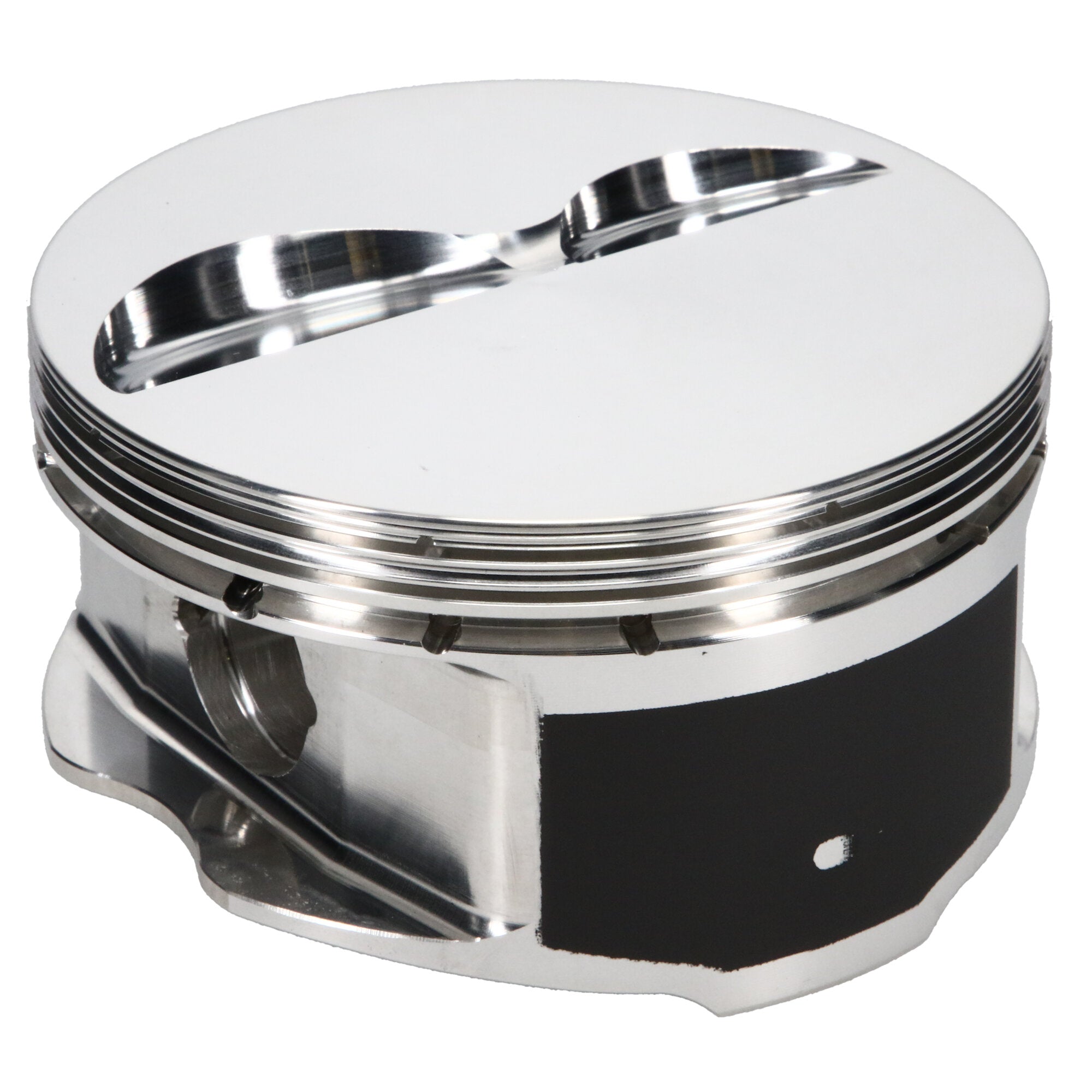

Ultra Series forged pistons from JE are the industry s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE Ultra, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA. |
| Description_FAB |
- Designed for Power: Every feature on Ultra Series Pistons are optimized to perform high-horsepower racing engines
- Aligned Grain Flow Technology: Exclusively available on JE Ultra Series, this proprietary, in-house forging process maximizes tensile strength to withstand the stresses of high-performance engine environments
- Skirt Coating: Reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise, especially on cold start
- Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging
- High-Strength Wrist Pins: Premium thick-wall wrist pins are manufactured by Trend Performance in the USA and are designed for the demands of high-performance/power-adder builds
- Lateral Gas Ports: Help maintain power-producing ring seal at the top compression ring, even in high RPM and high boost situations
- Optimized Pin Oiling: Enhanced pin oiling features keep pin, pin bores, and small-end lubricated for reduced heat, friction, and wear
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.040 Bore, Flat, Set of 8 |
| Title - Web |
JE Ultra Series Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.250 in. CH, -1.50 CC |
| Second Compression Ring Thickness |
0.0440 |
| Add-On |
927-2400-13-51C |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Add-On |
J71408-4040-5 |
| Piston Pin Length |
2.400 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Head Type |
Flat |
| Forging Type |
Round |
| Engine |
Small Block |
| Ringset Included |
No |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Wall Thickness |
0.130 |
| Bore Diameter |
4.040 |
| Piston Volume |
-1.50 |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Ultra Series - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Ultra Series>Piston Kits>Domestic |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
362 |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.119 |
| Compression Height |
1.250 |
| Piston Series |
JE Ultra Series |
| Top Compression Ring Thickness |
0.0436 |
| Make |
CHEVROLET |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.130 |
| Wrist Pin Length |
2.400 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
