As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Big Block 460 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

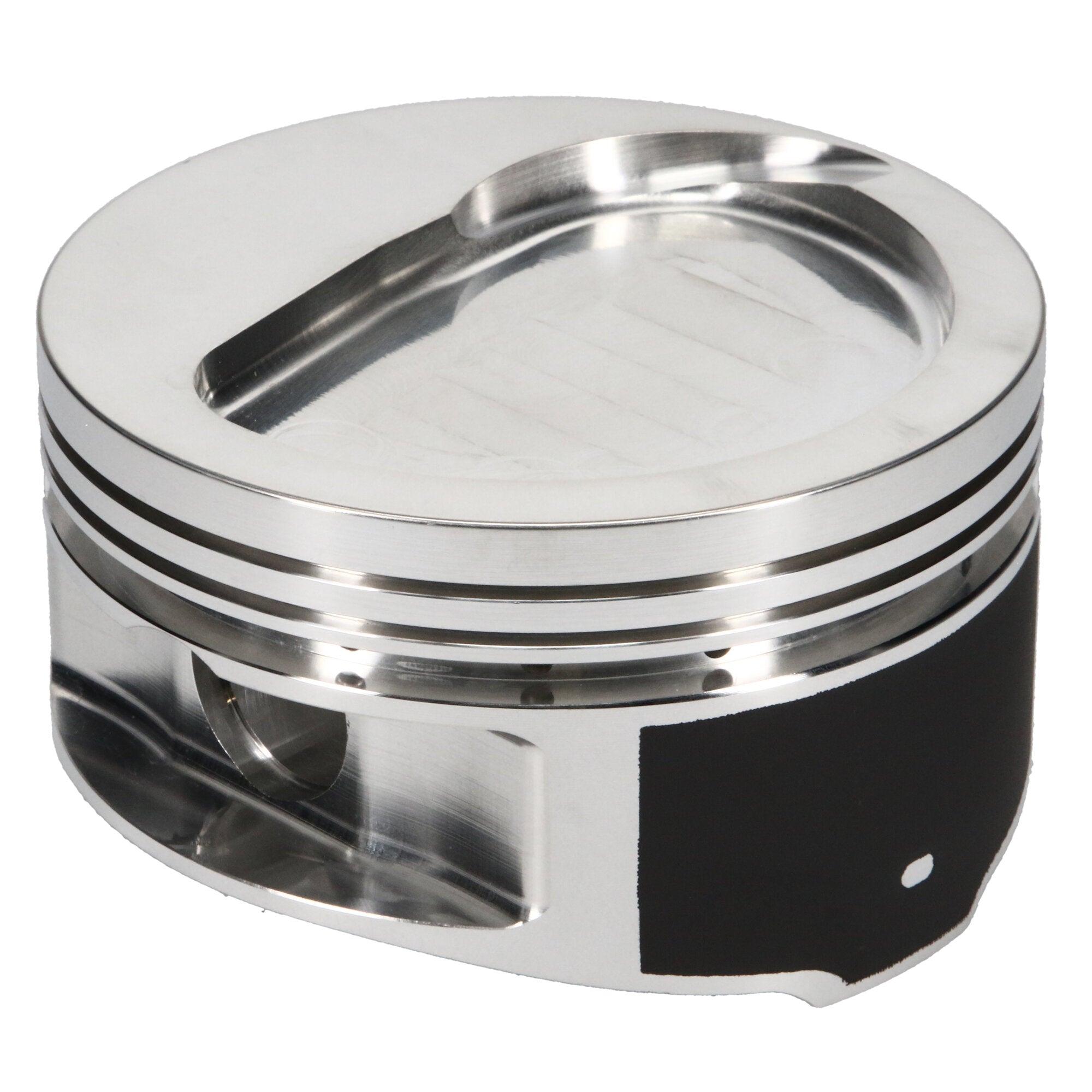

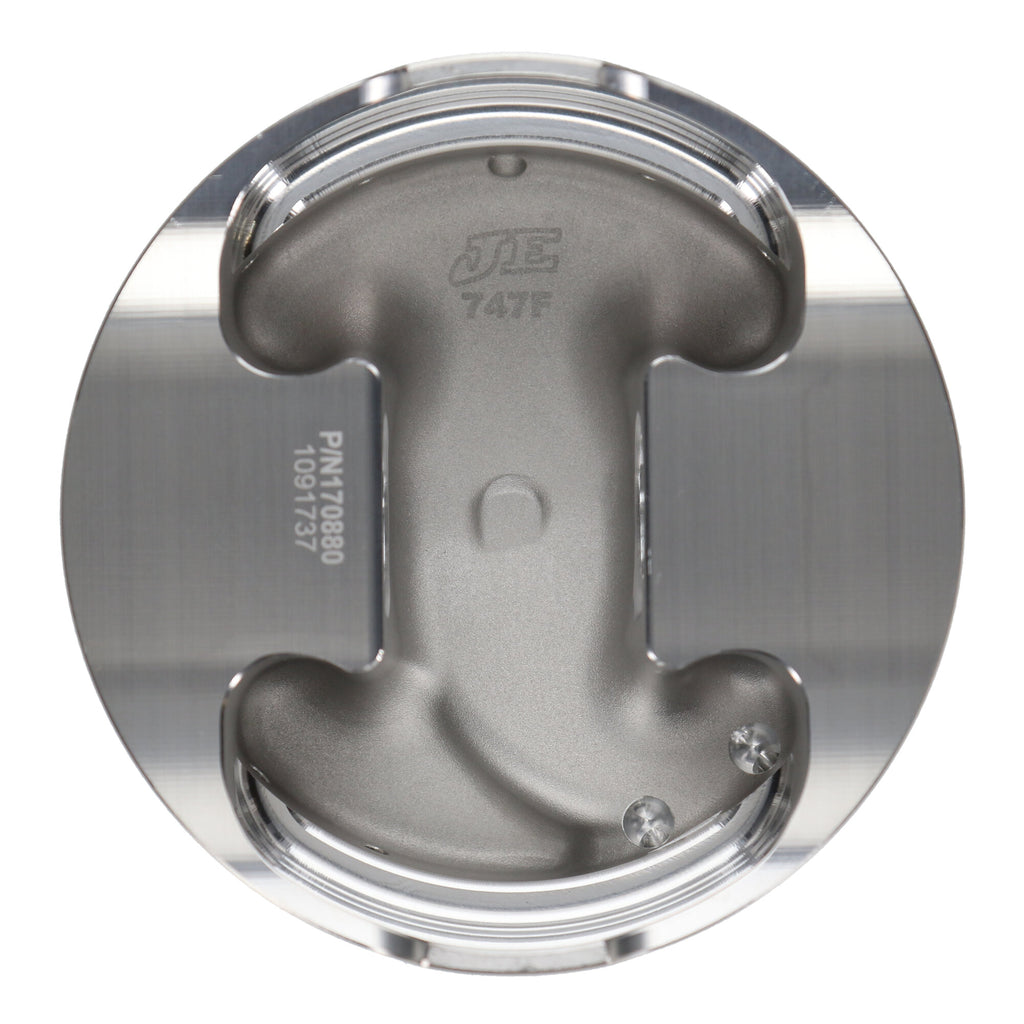

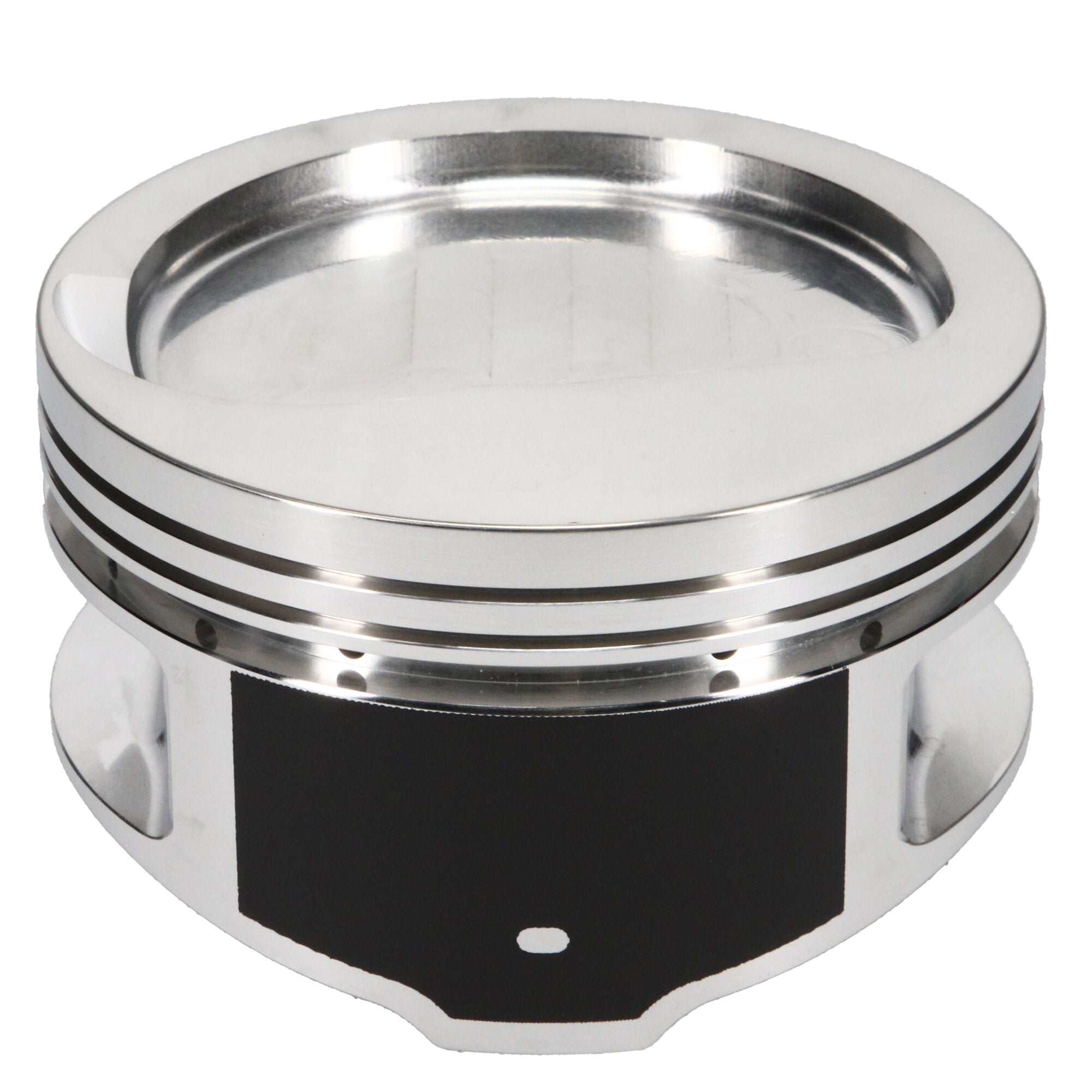

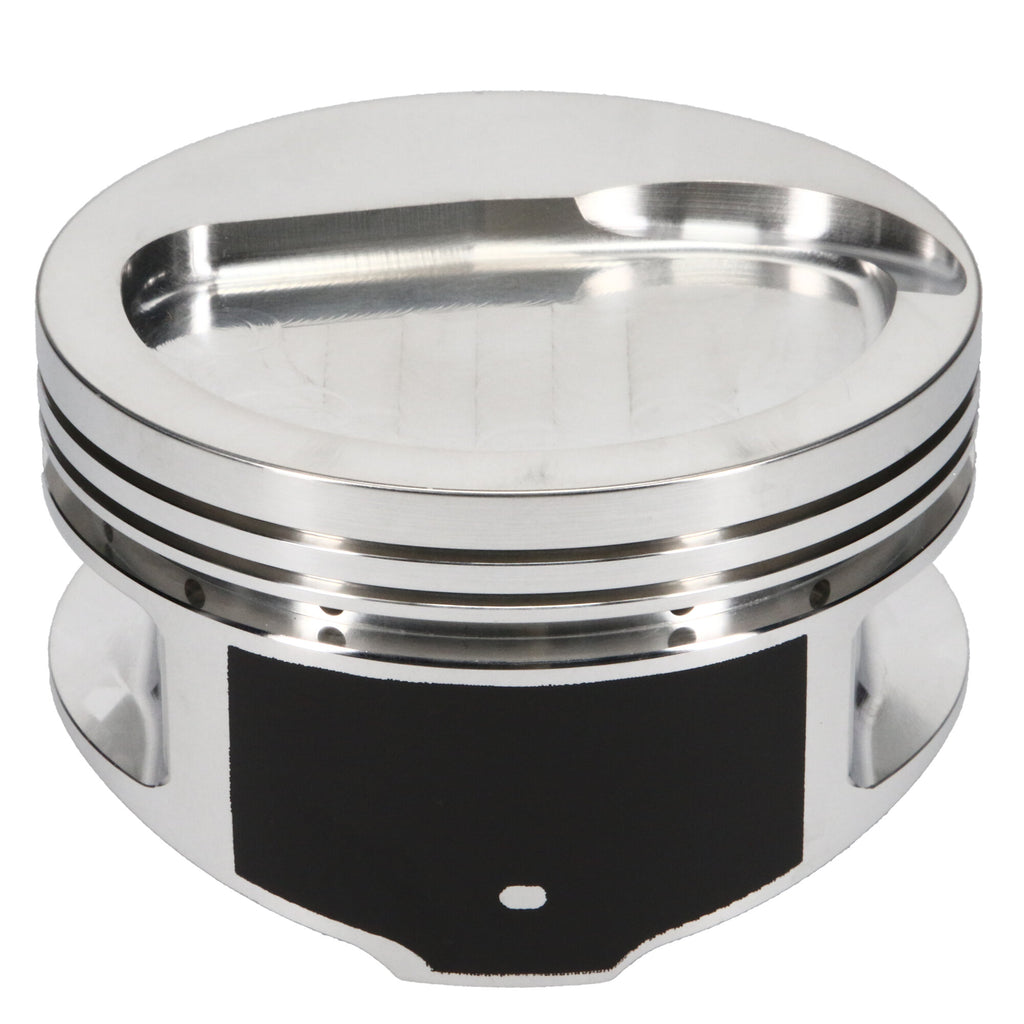

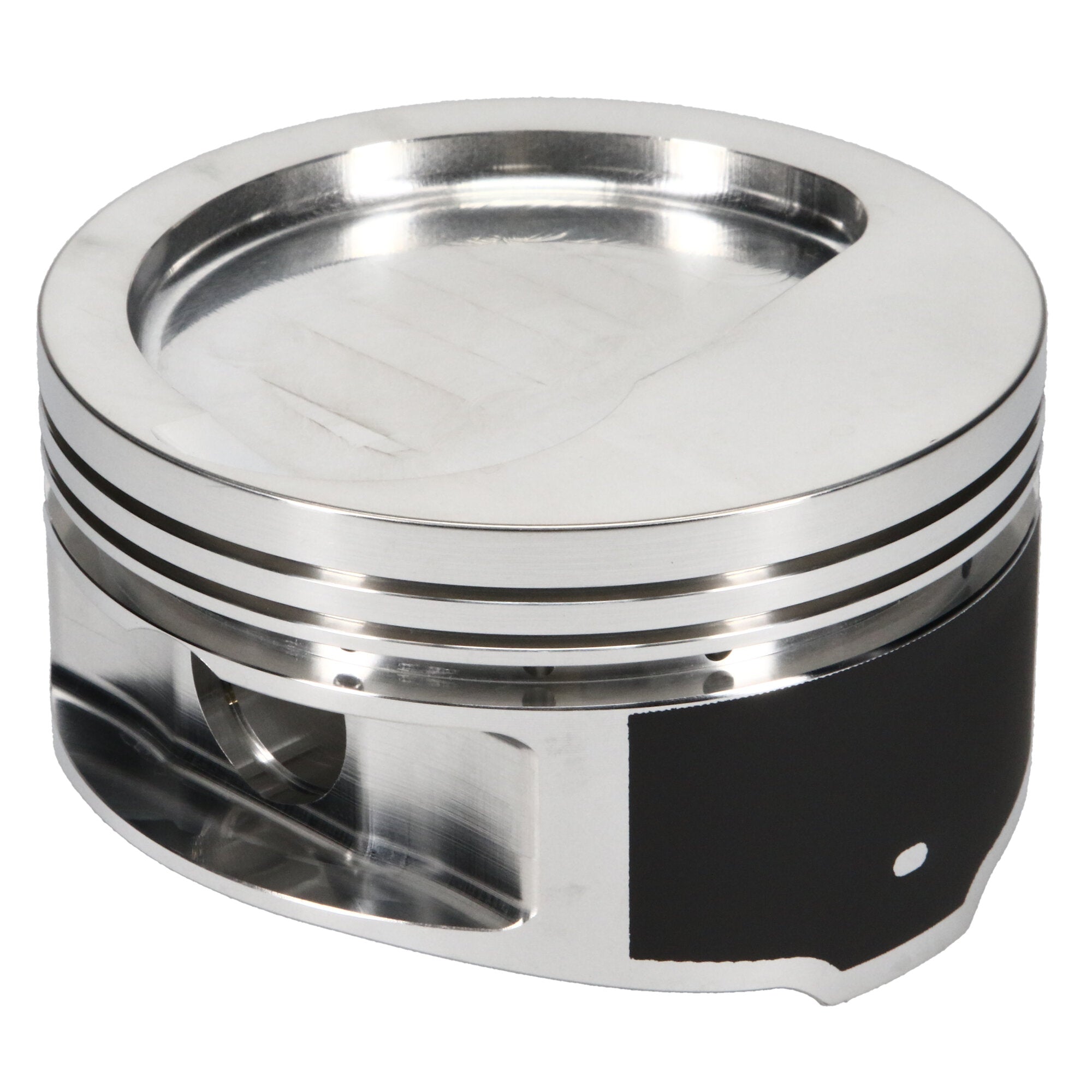

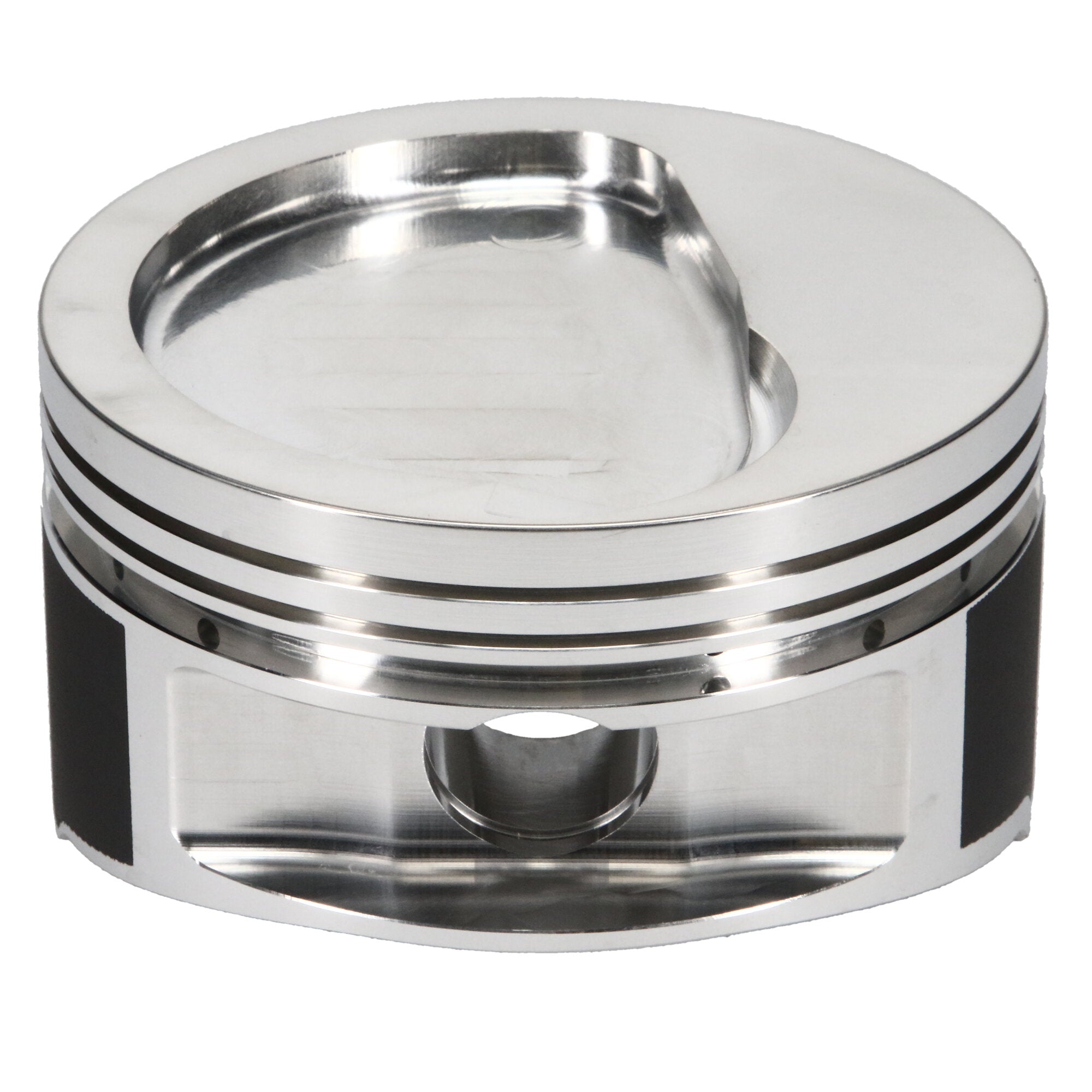

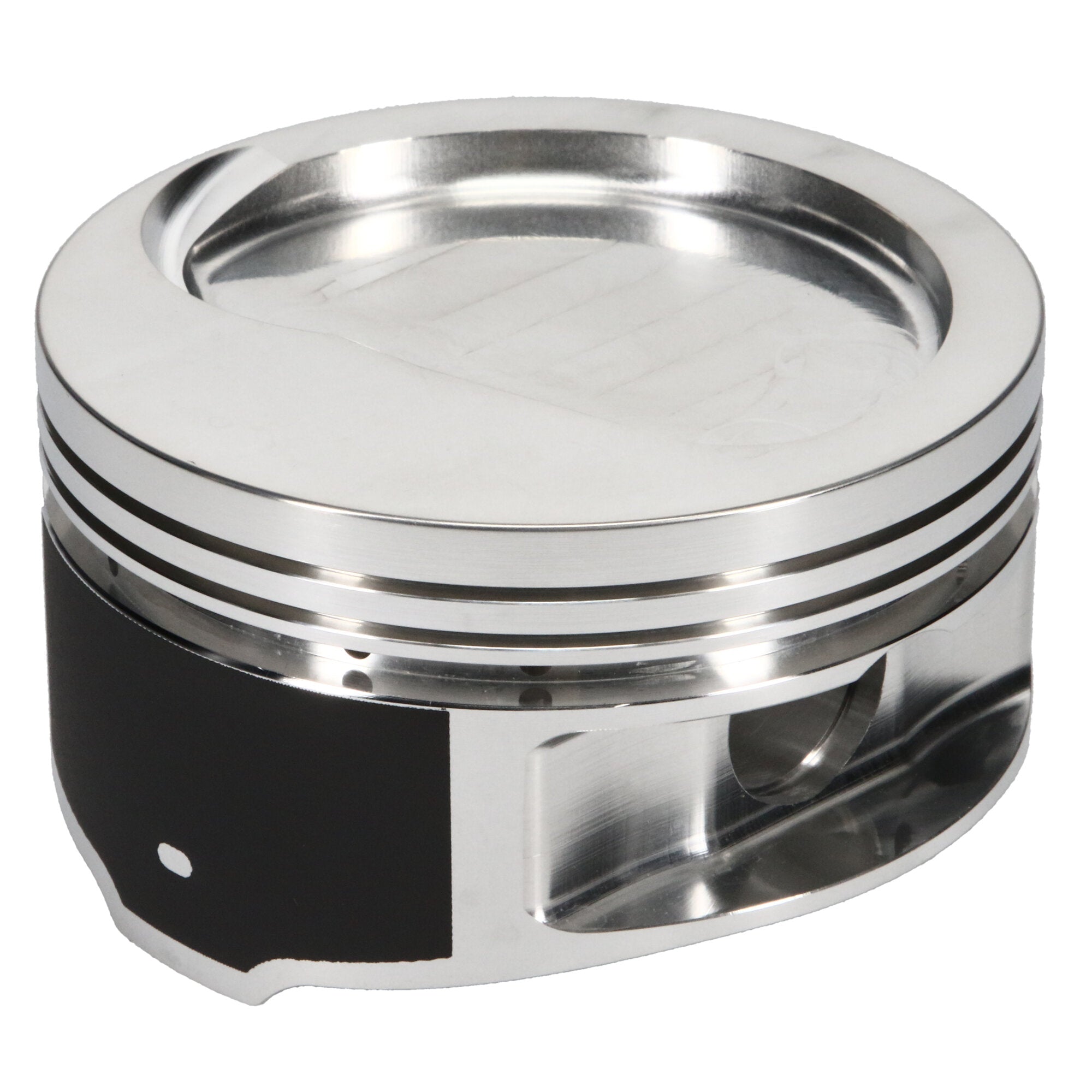

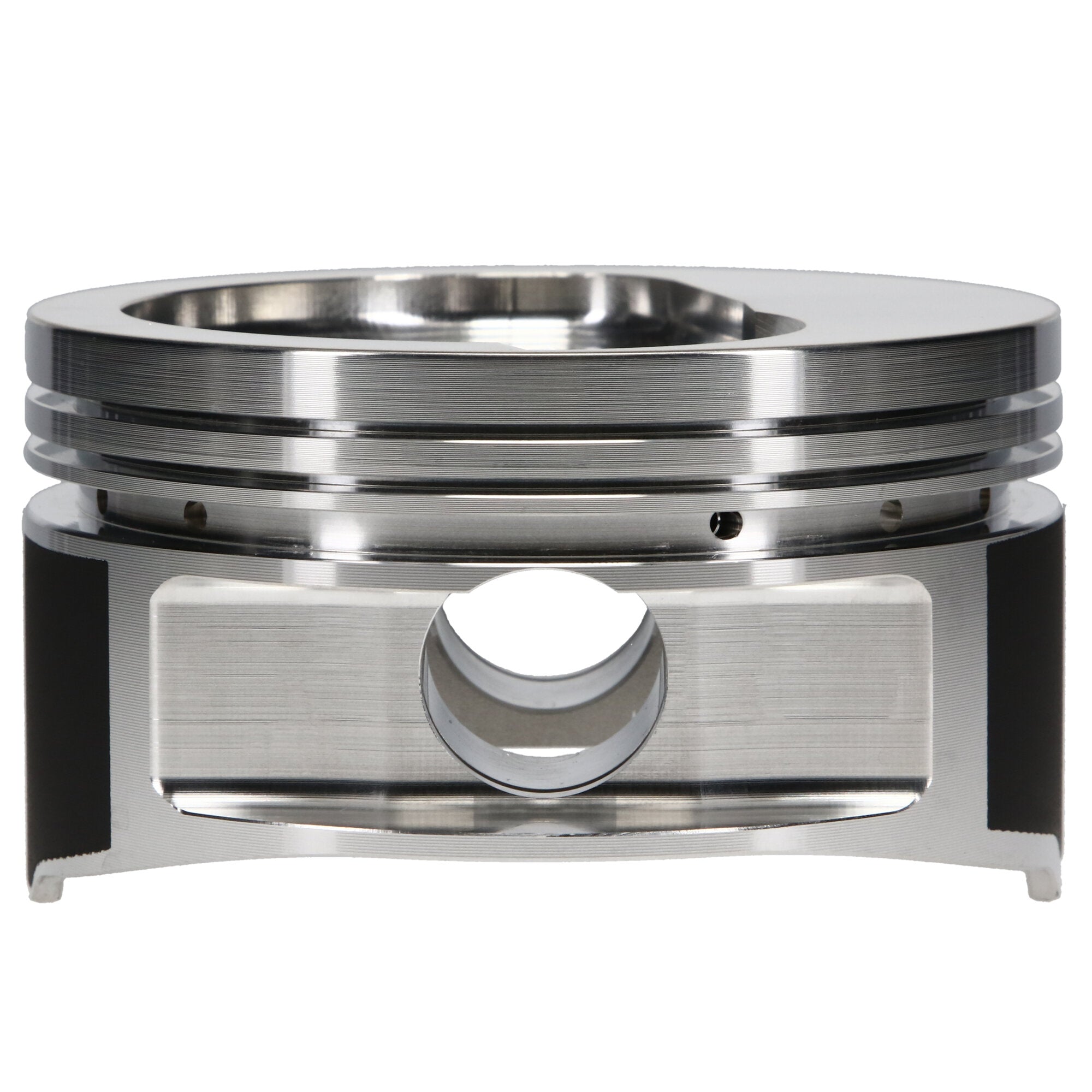

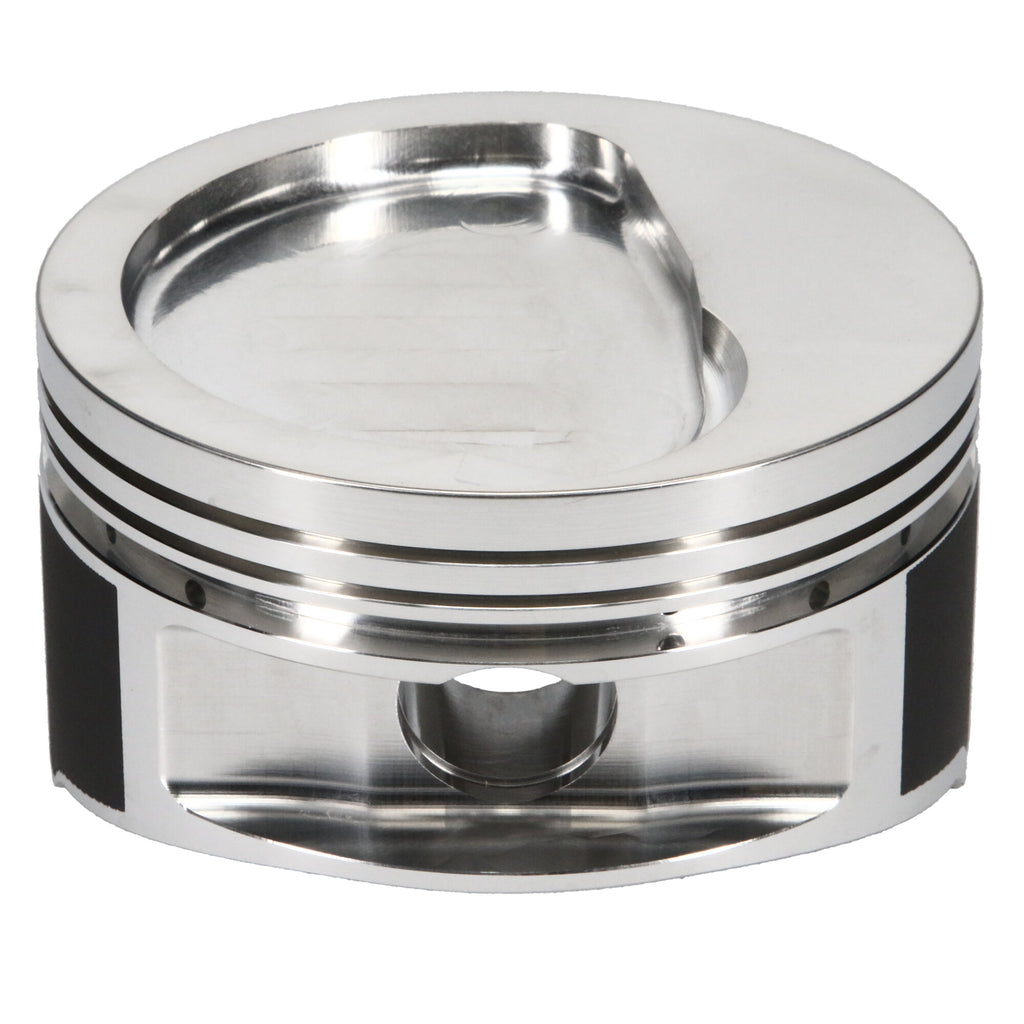

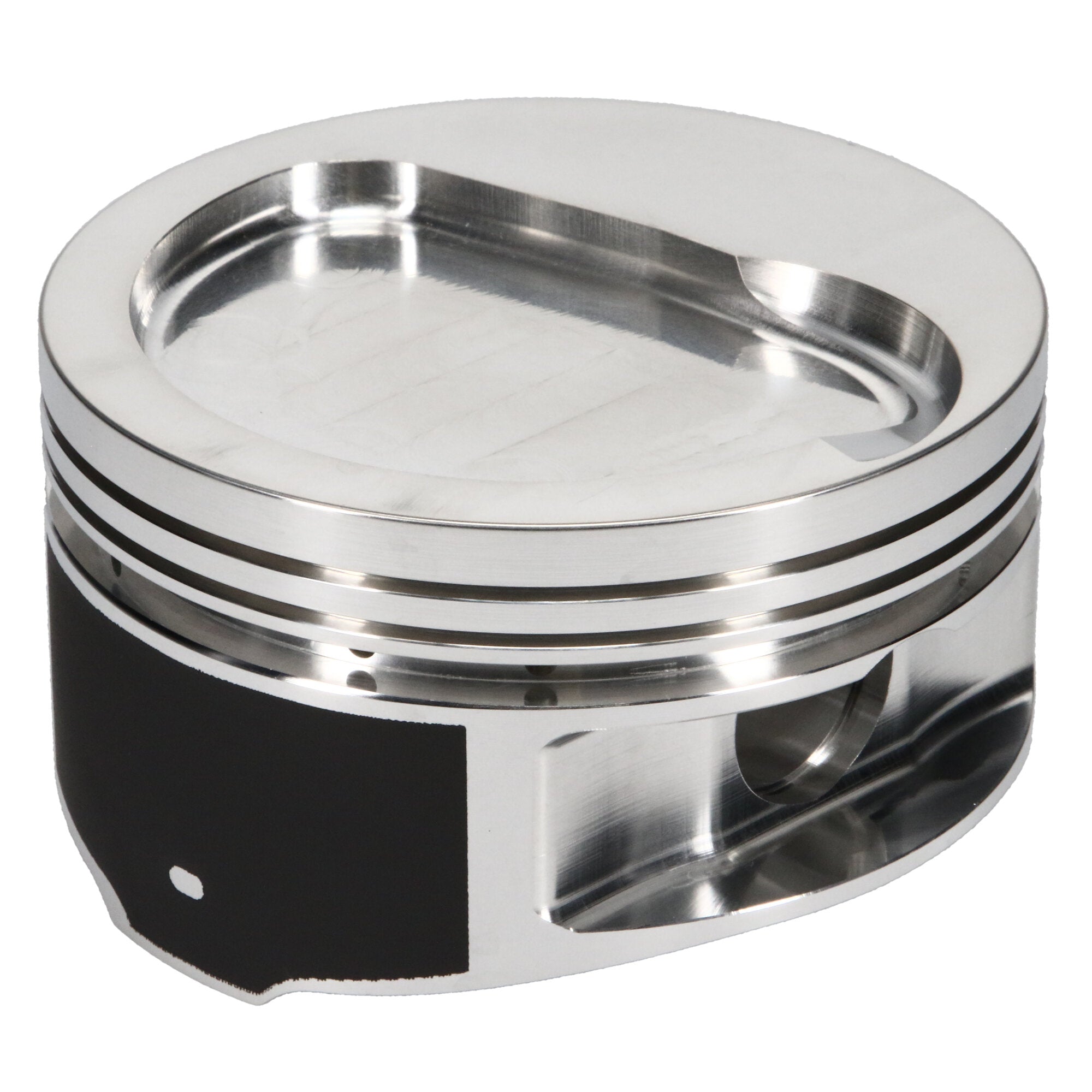

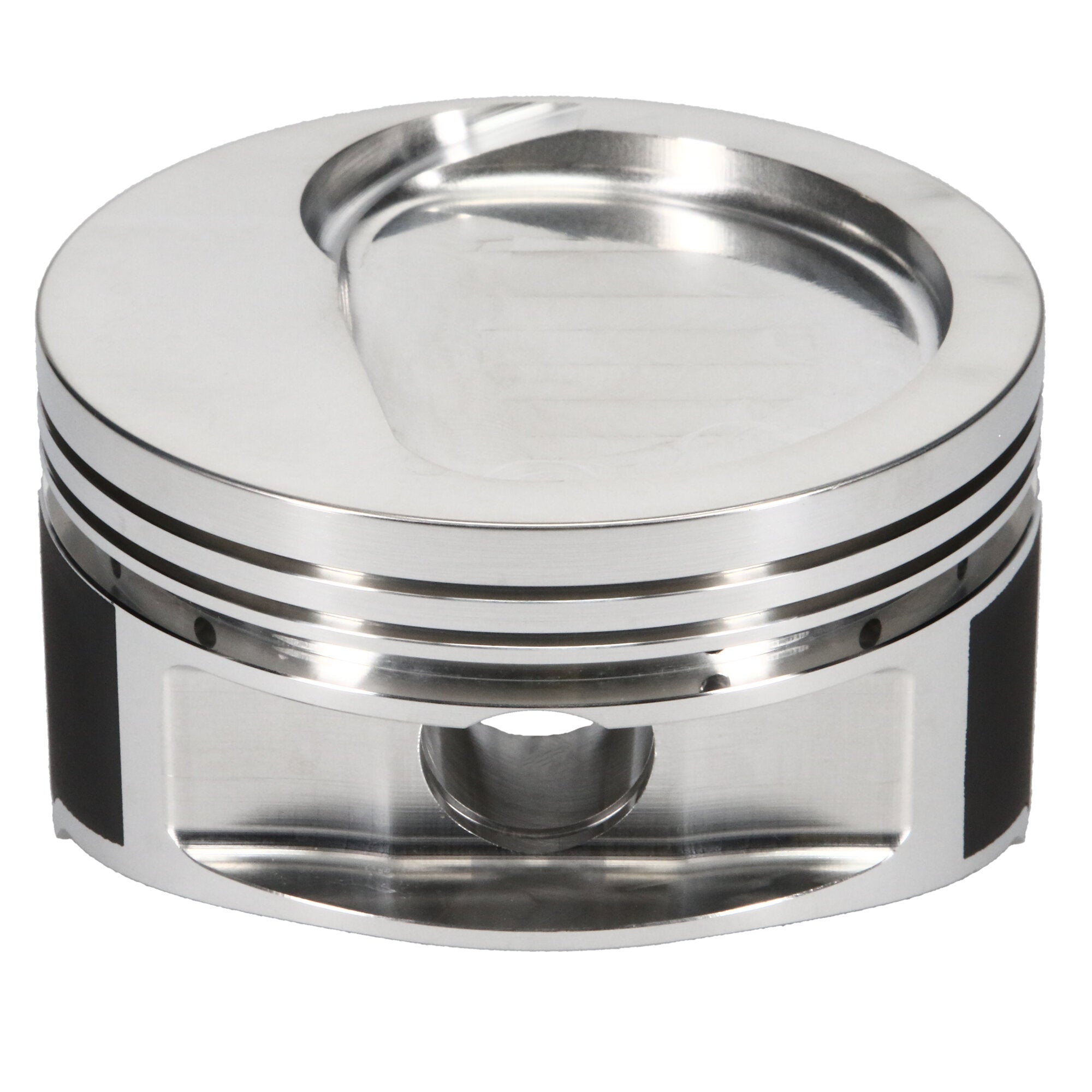

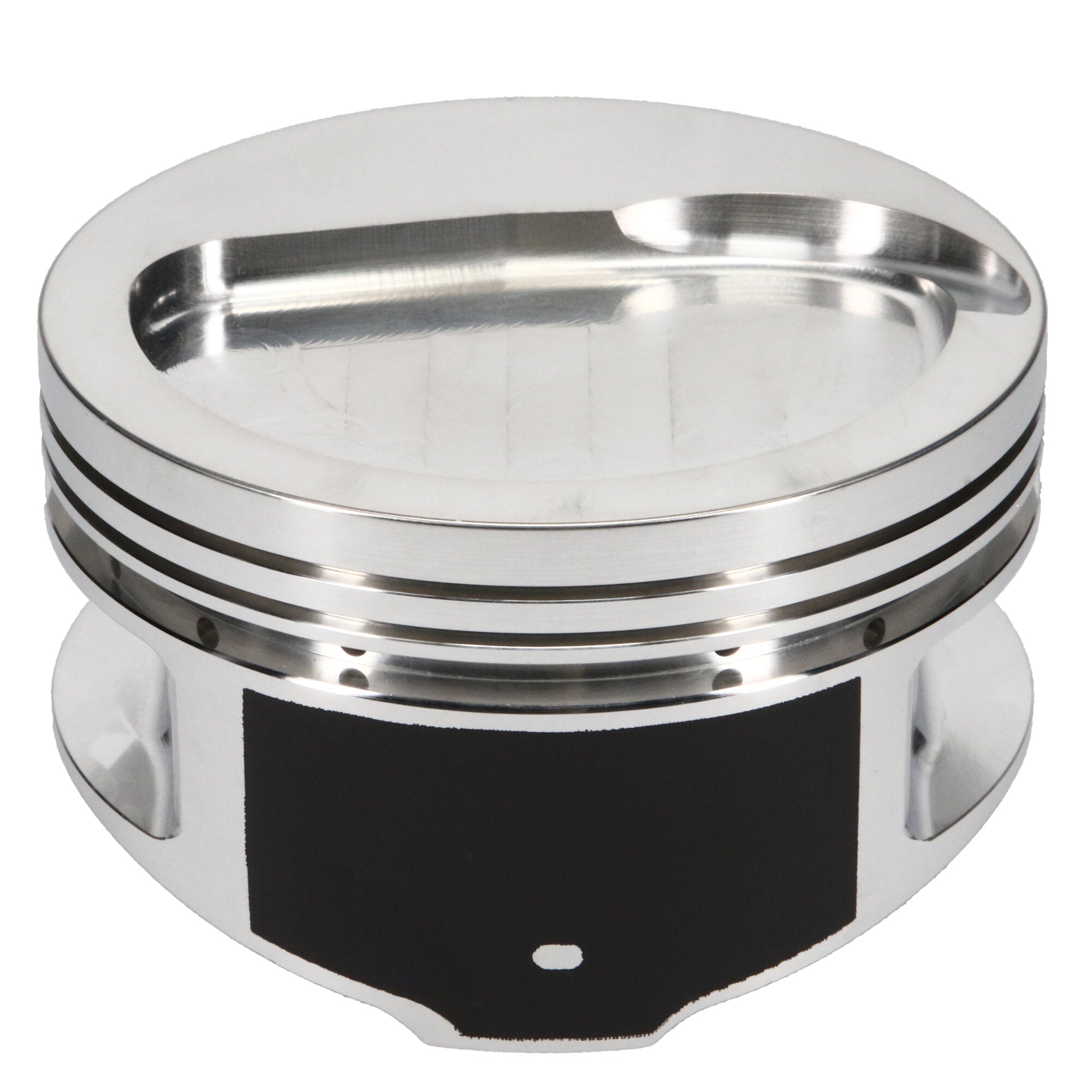

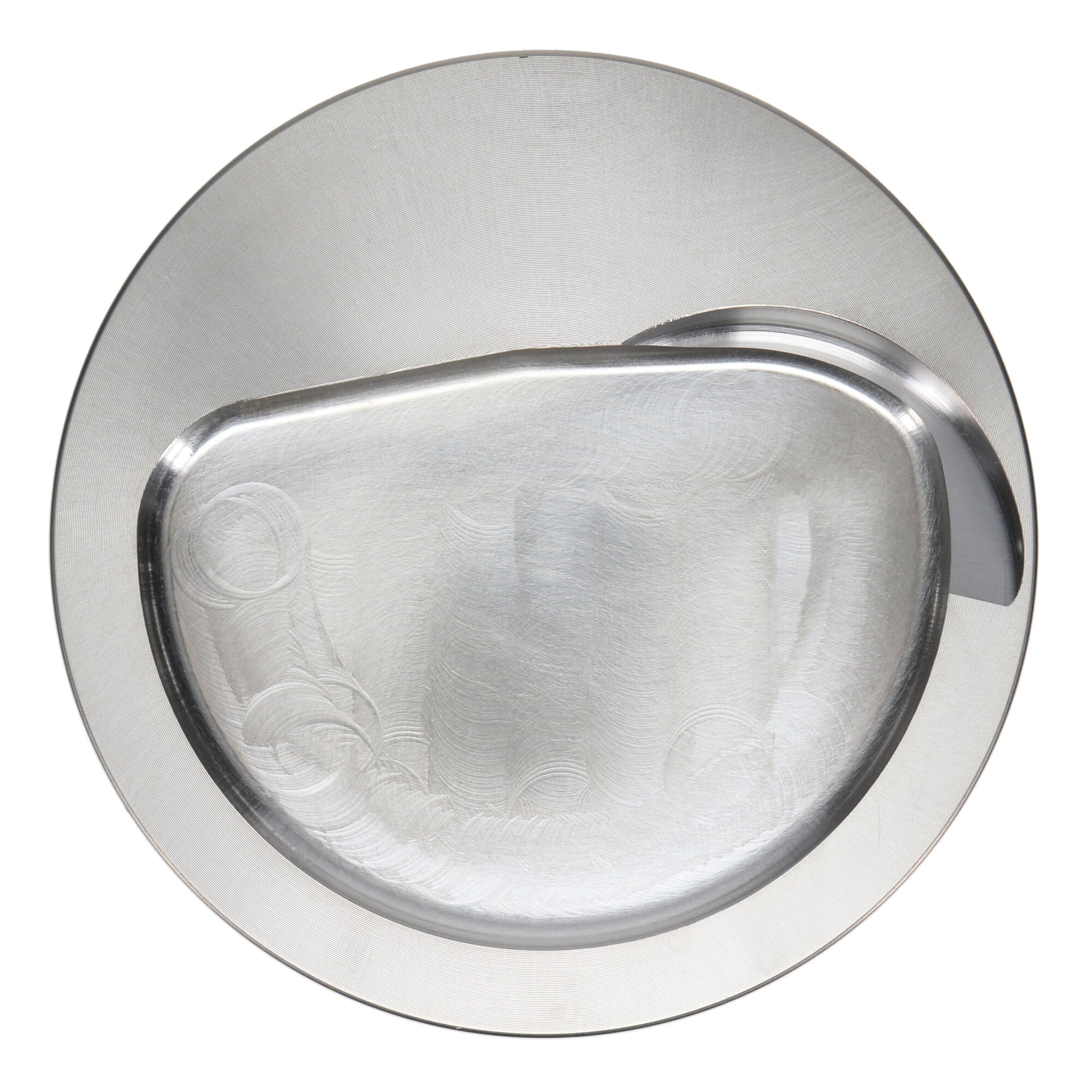

Piston Set, 2618, Inv Dome/Dish, 4.440 Bore, 1.350 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Big Block Ford, 4.440 in. Bore, 1.350 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 460, 4.440 Bore, Dish, Set of 8 |
| Make |
FORD |
| Piston Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.180 |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Ford, Big Block, 4.440 in. Bore, Piston Kit |
| Engine |
Big Block |
| Ringset Included |
No |
| Compression Height |
1.350 |
| Piston Series |
JE Pistons |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Volume |
-39.00 |
| Piston Quantity |
8 |
| Add-On |
990-042-CS |
| Title - Web |
JE Pistons Ford Big Block Piston Kit - 4.440 in. Bore - 1.350 in. CH, -39.00 CC |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Average Weight |
596 |
| Add-On |
J10008-4440-5 |
| Cylinder Head |
429 SUPER COBRA JET |
| Prop 65 Yes/No |
Yes |
| Forging Type |
Round |
| Add-On |
990-2930-18-51S |
| Prop 65 (C, R or CR) |
CR |
| Top Compression Ring Thickness |
0.0640 |
| Second Compression Ring Thickness |
0.0640 |
| Oil Ring Thickness |
0.188 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.990 |
| Bore Diameter |
4.440 |
| Make - Web |
Ford |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.930 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
