As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 305 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 3.766 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |

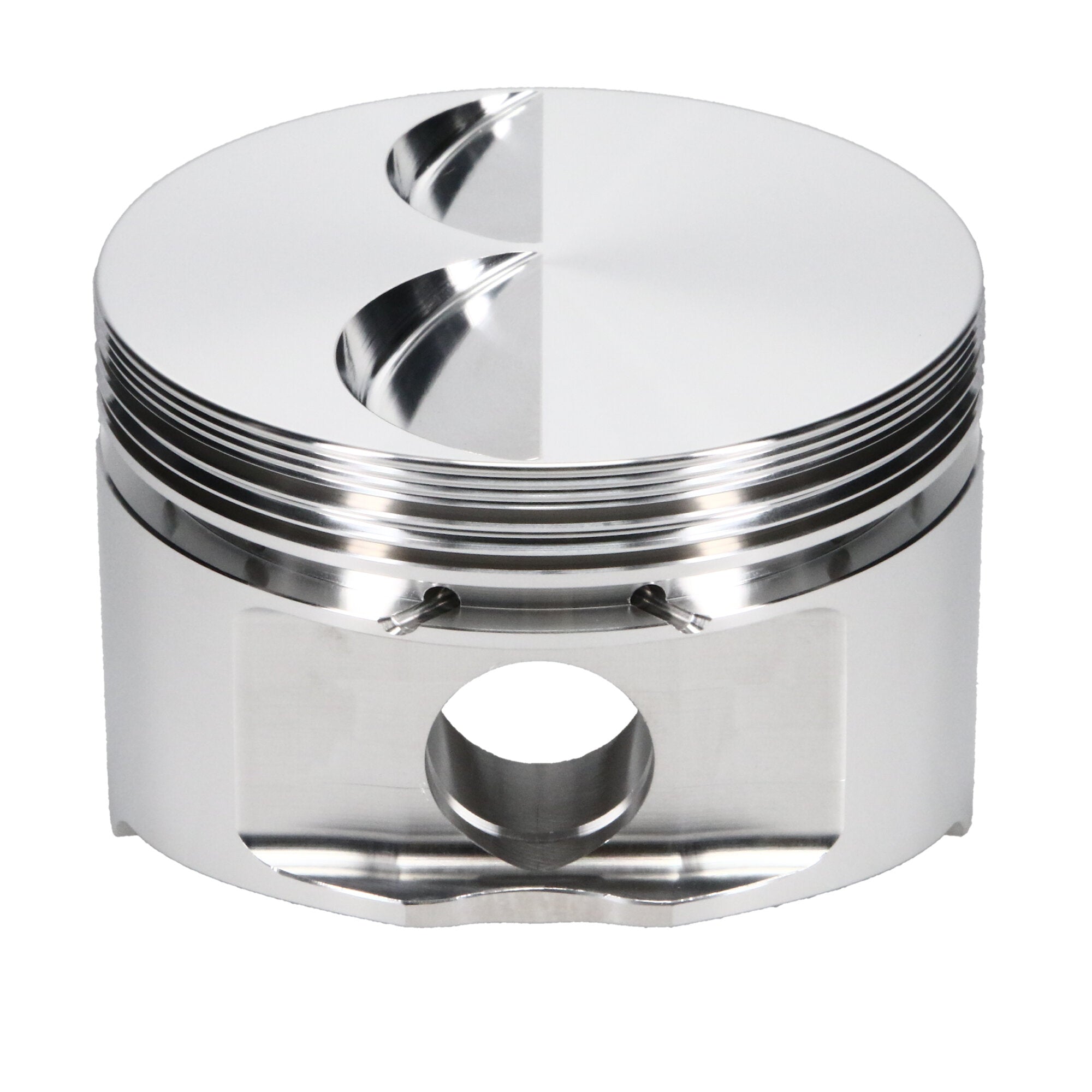

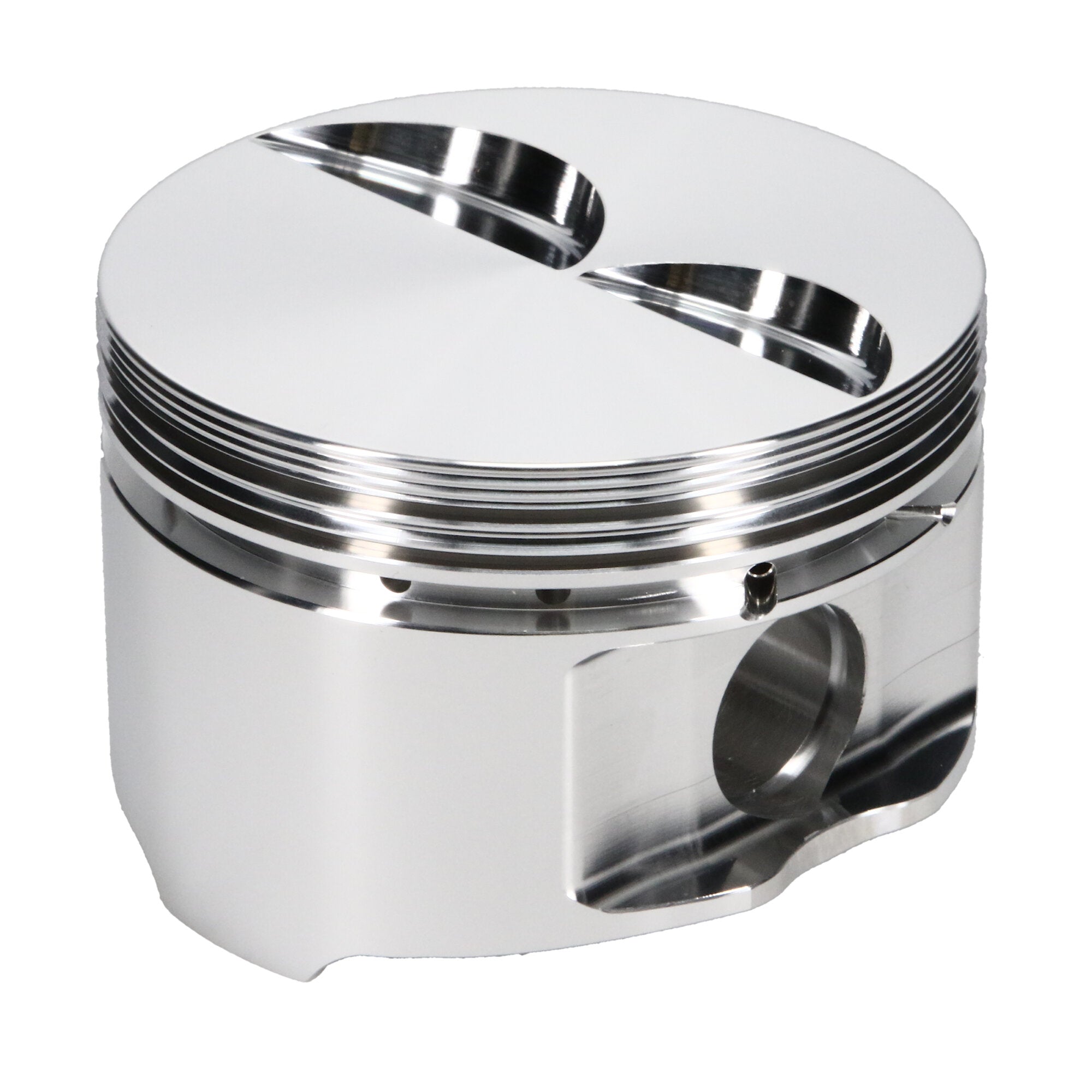

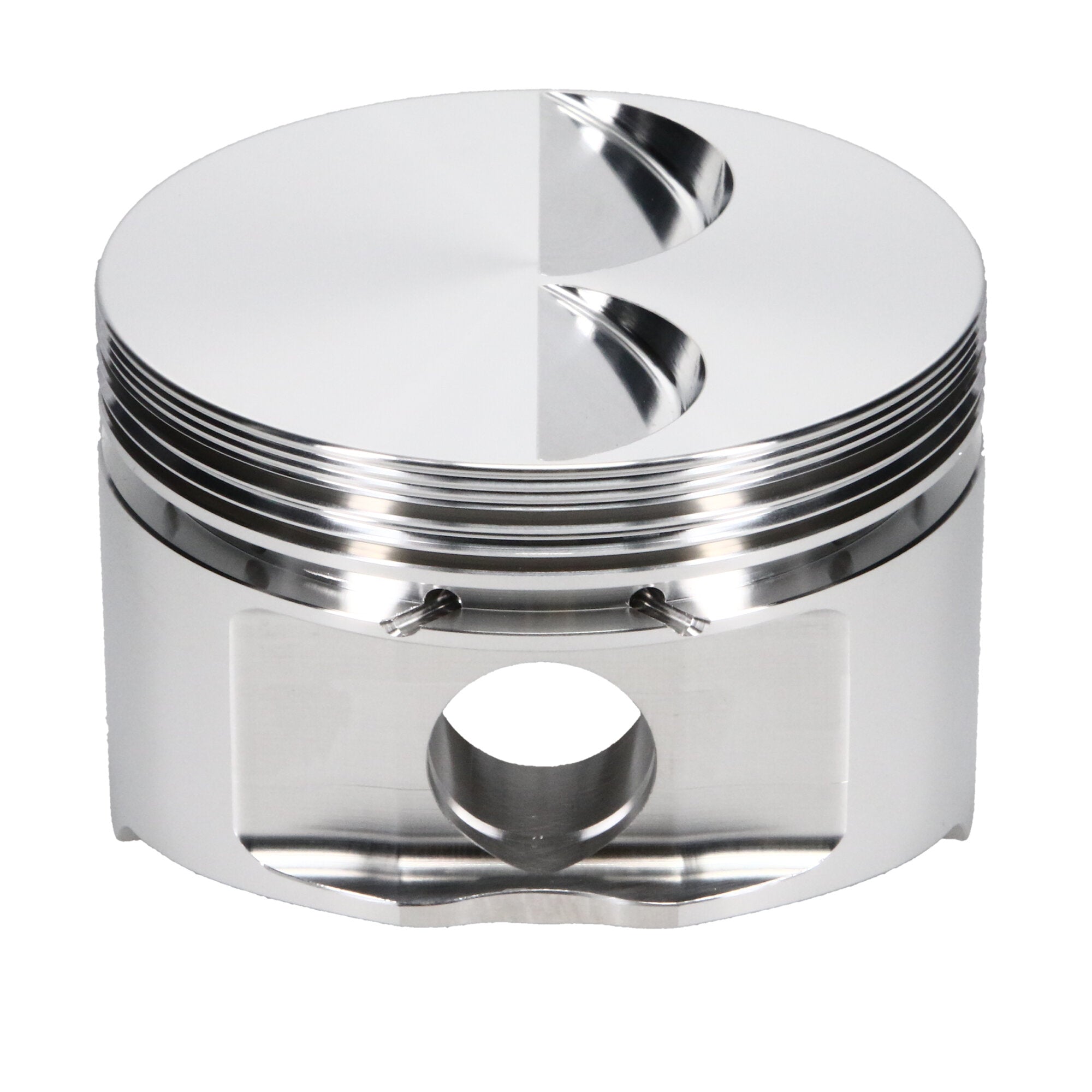

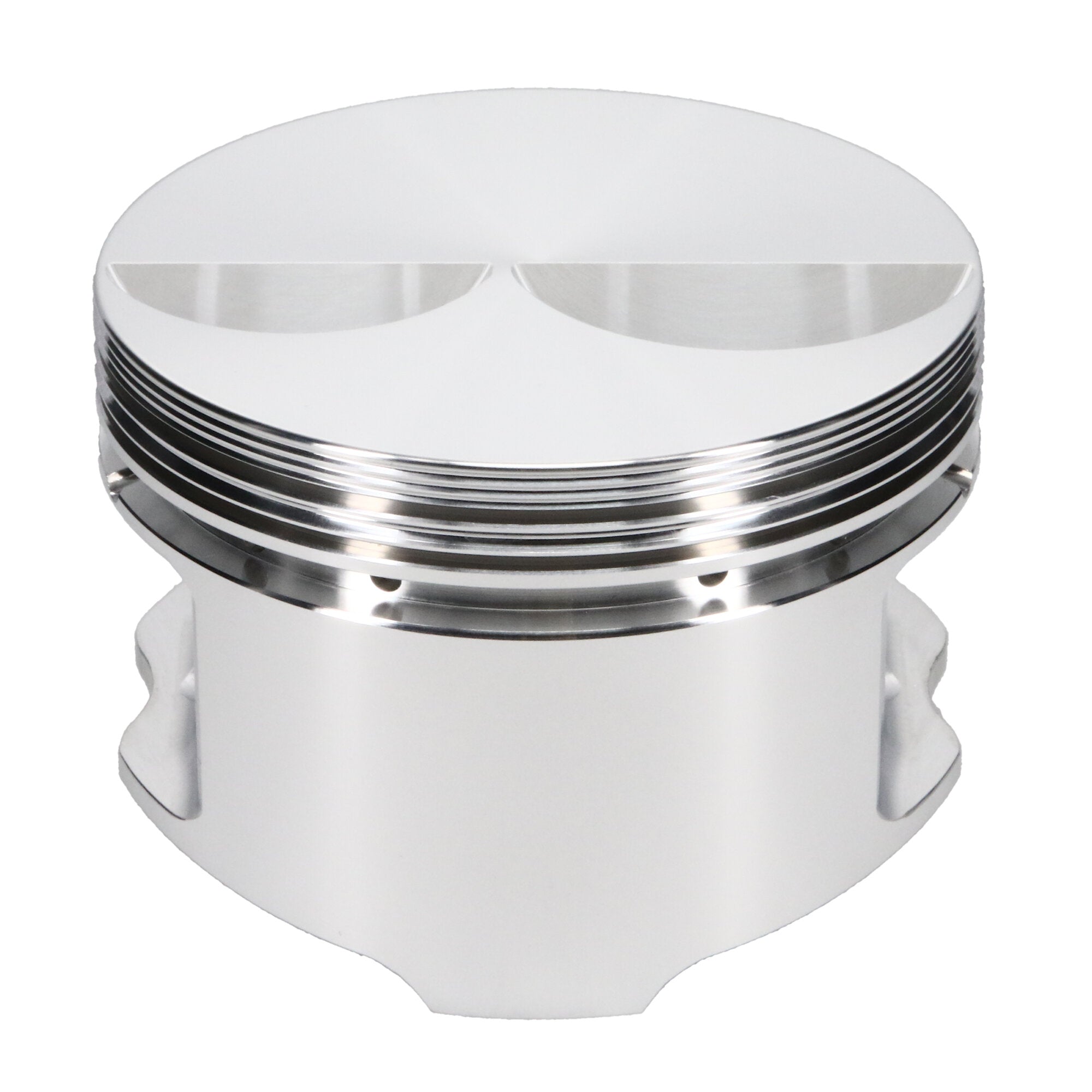

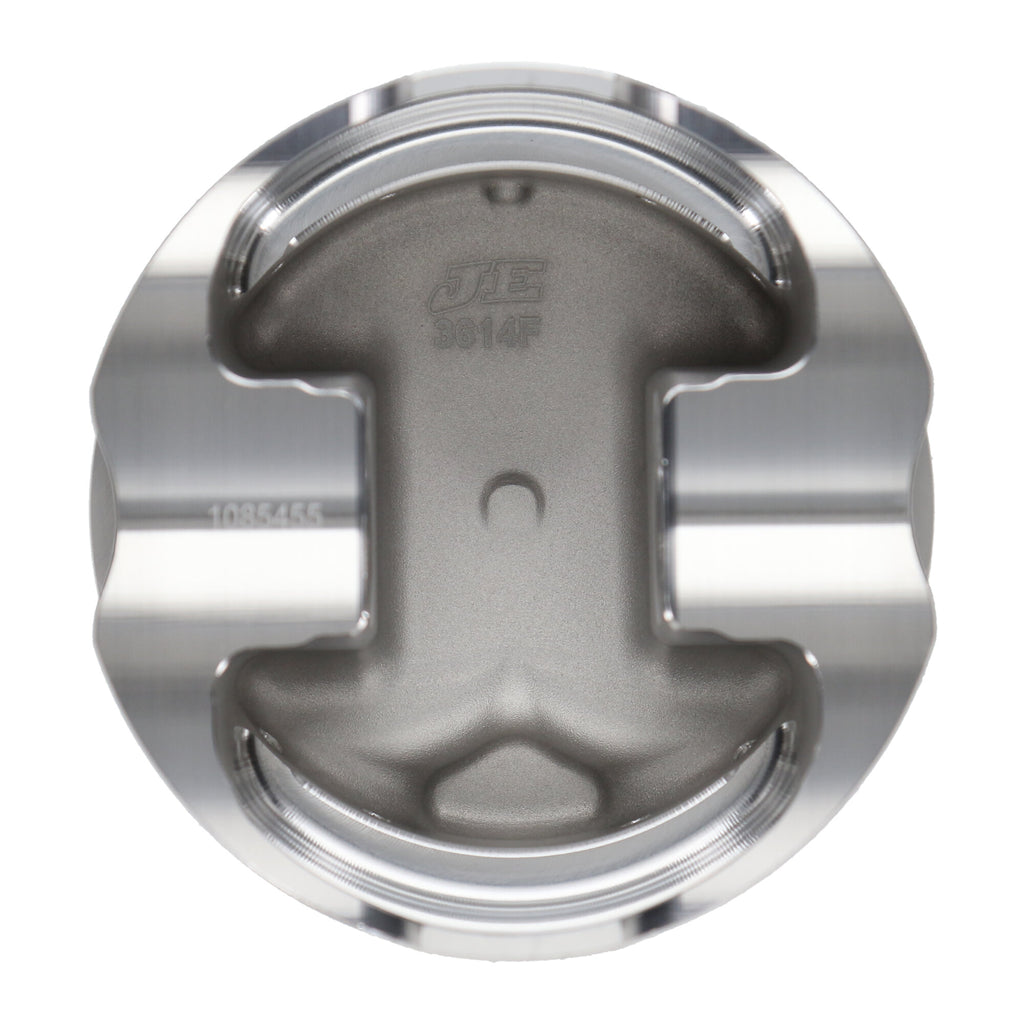

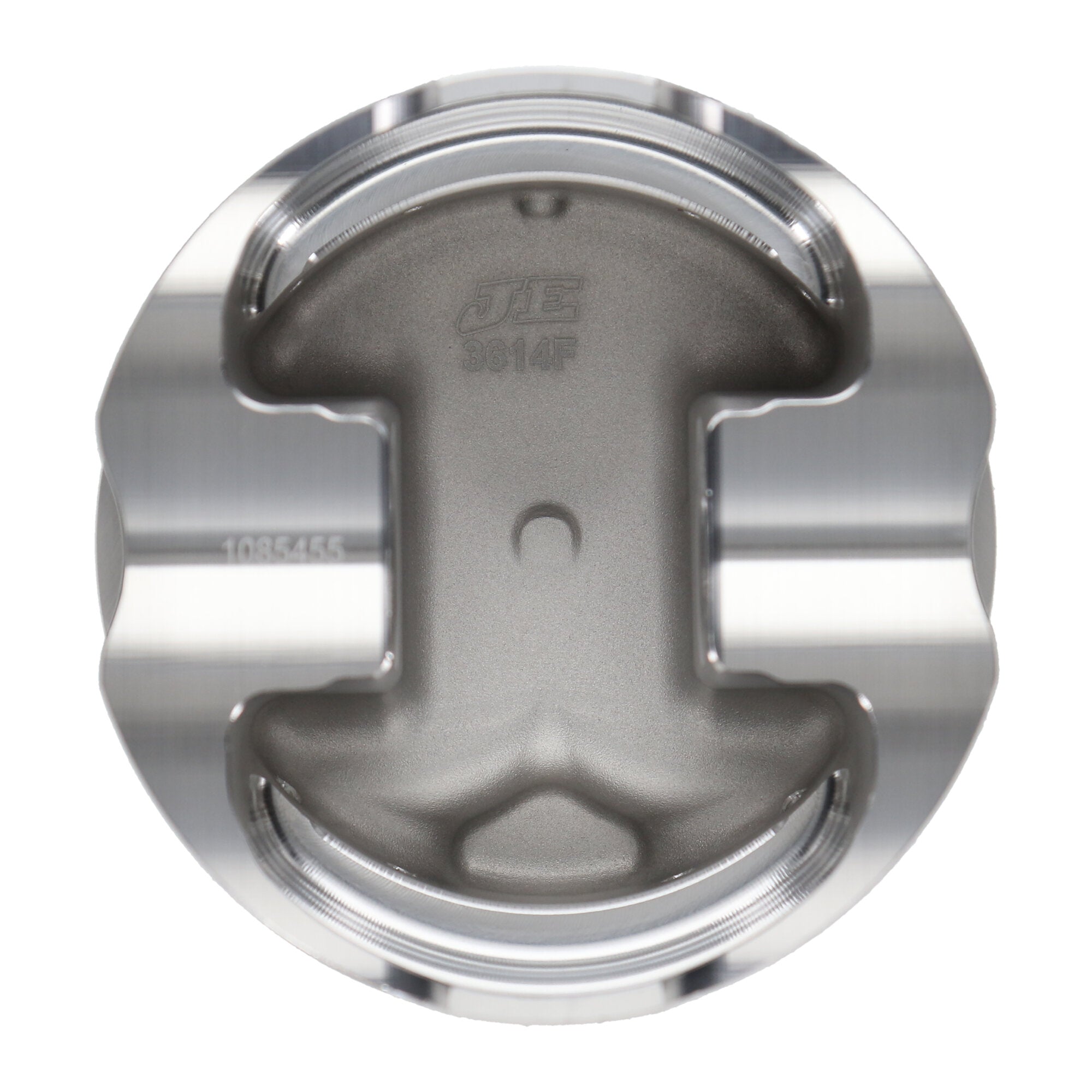

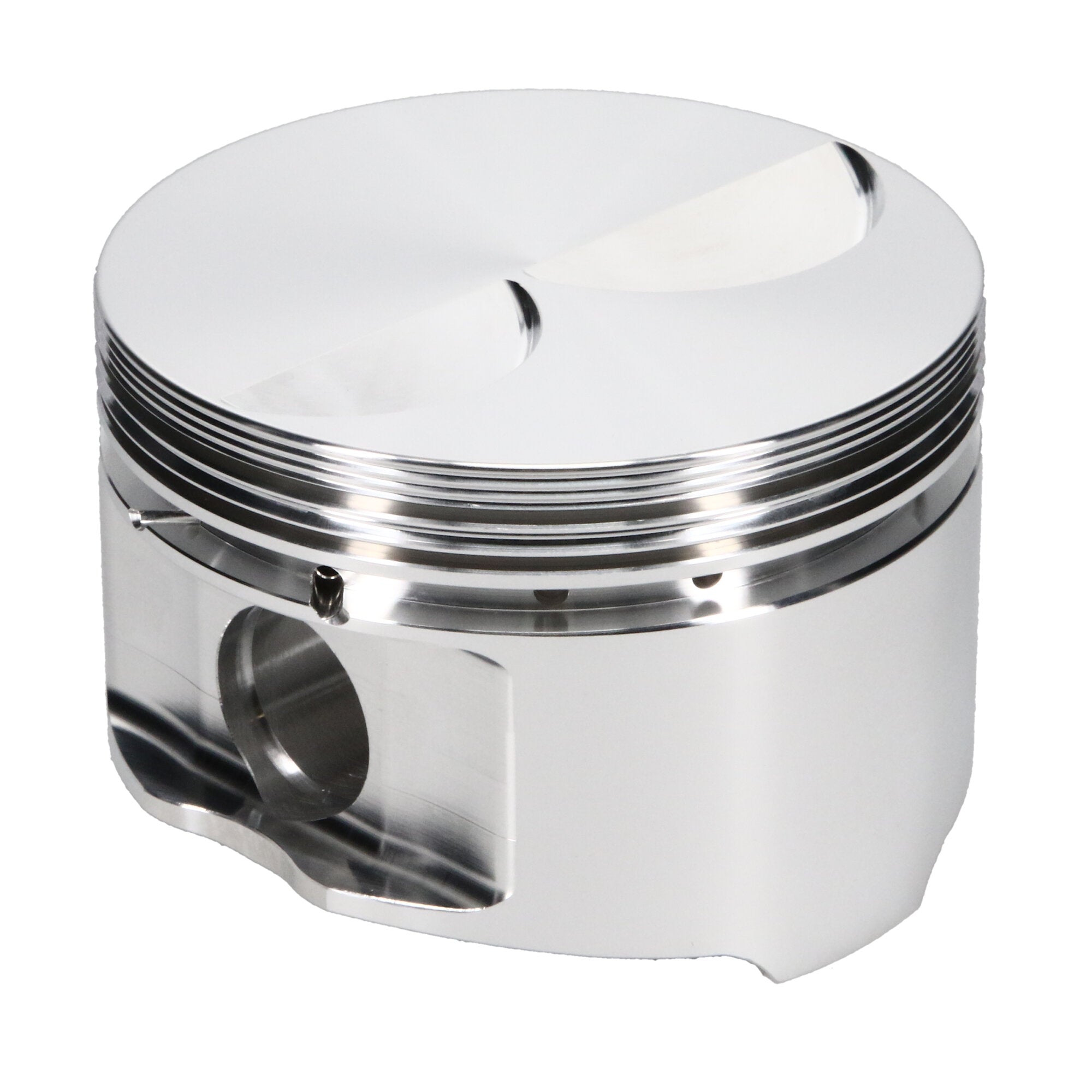

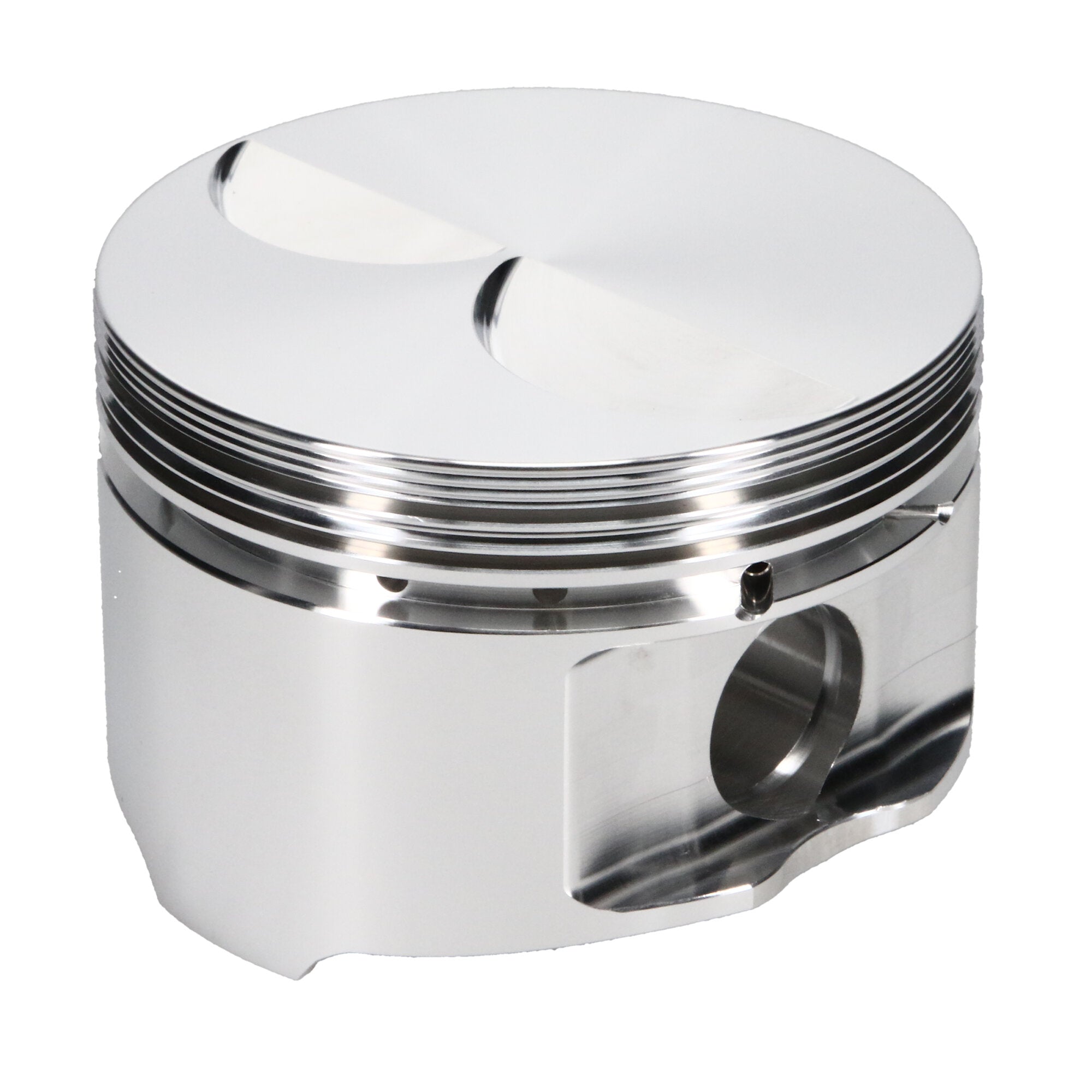

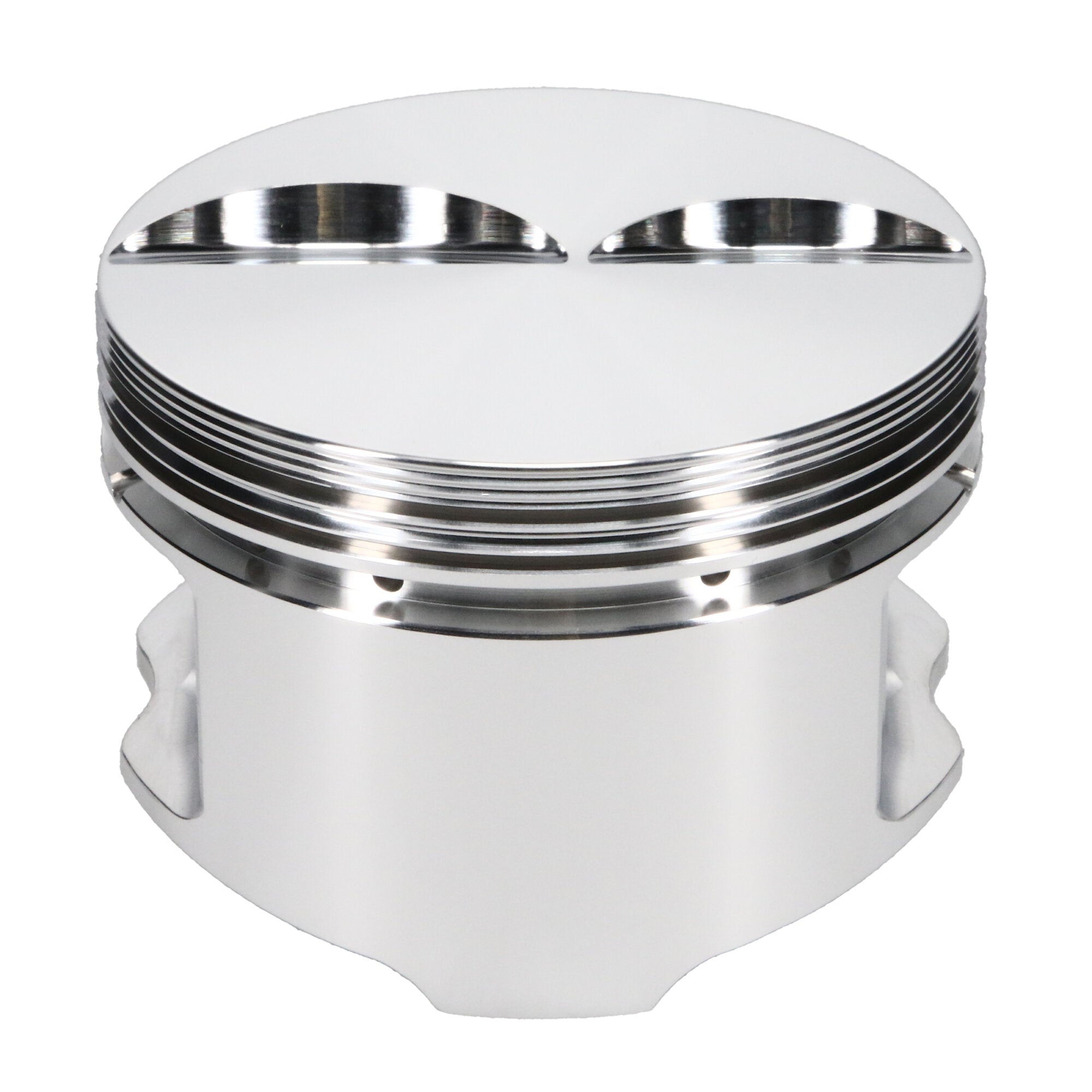

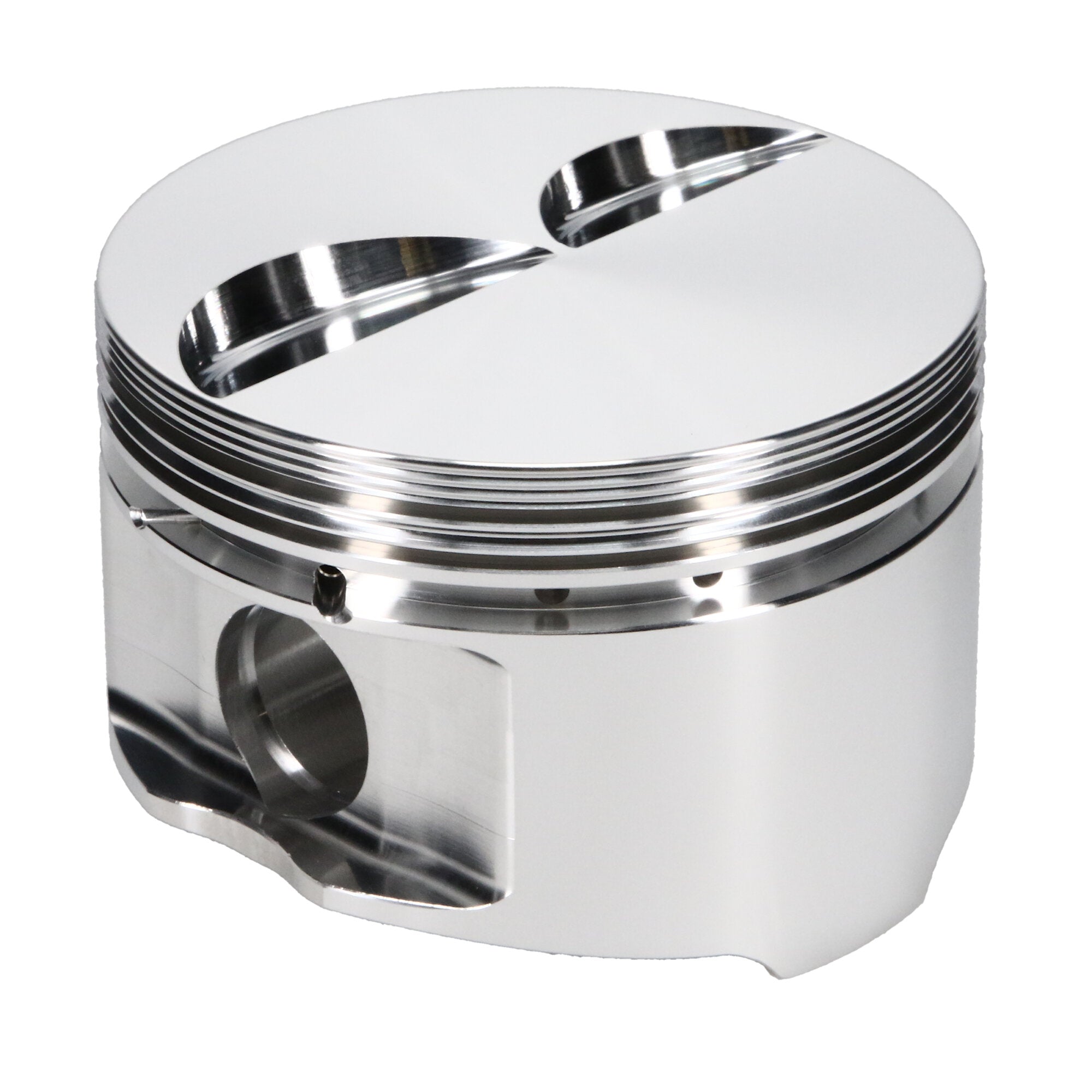

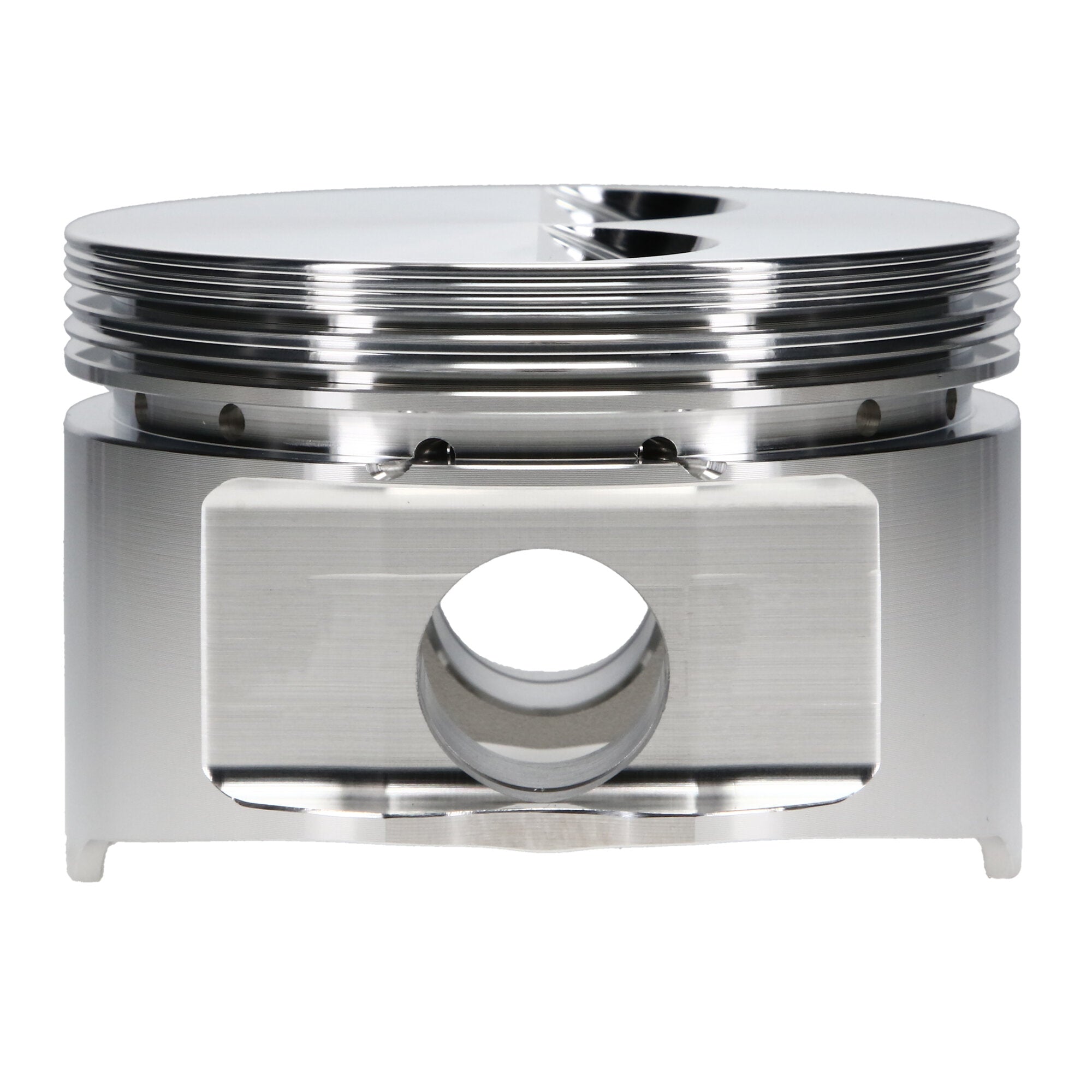

Piston Set, 2618, Flat Top, 3.766 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 305, 3.766 Bore, Flat, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 3.766 in. Bore - 1.560 in. CH, -5.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Piston Pin Length |
2.500 |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Forging Type |
Round |
| Add-On |
927-2500-15-51S |
| Engine |
Small Block |
| Add-On |
J100F8-3766-5 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Piston Pin Outside Diameter |
0.927 |
| Compression Height |
1.560 |
| Piston Quantity |
8 |

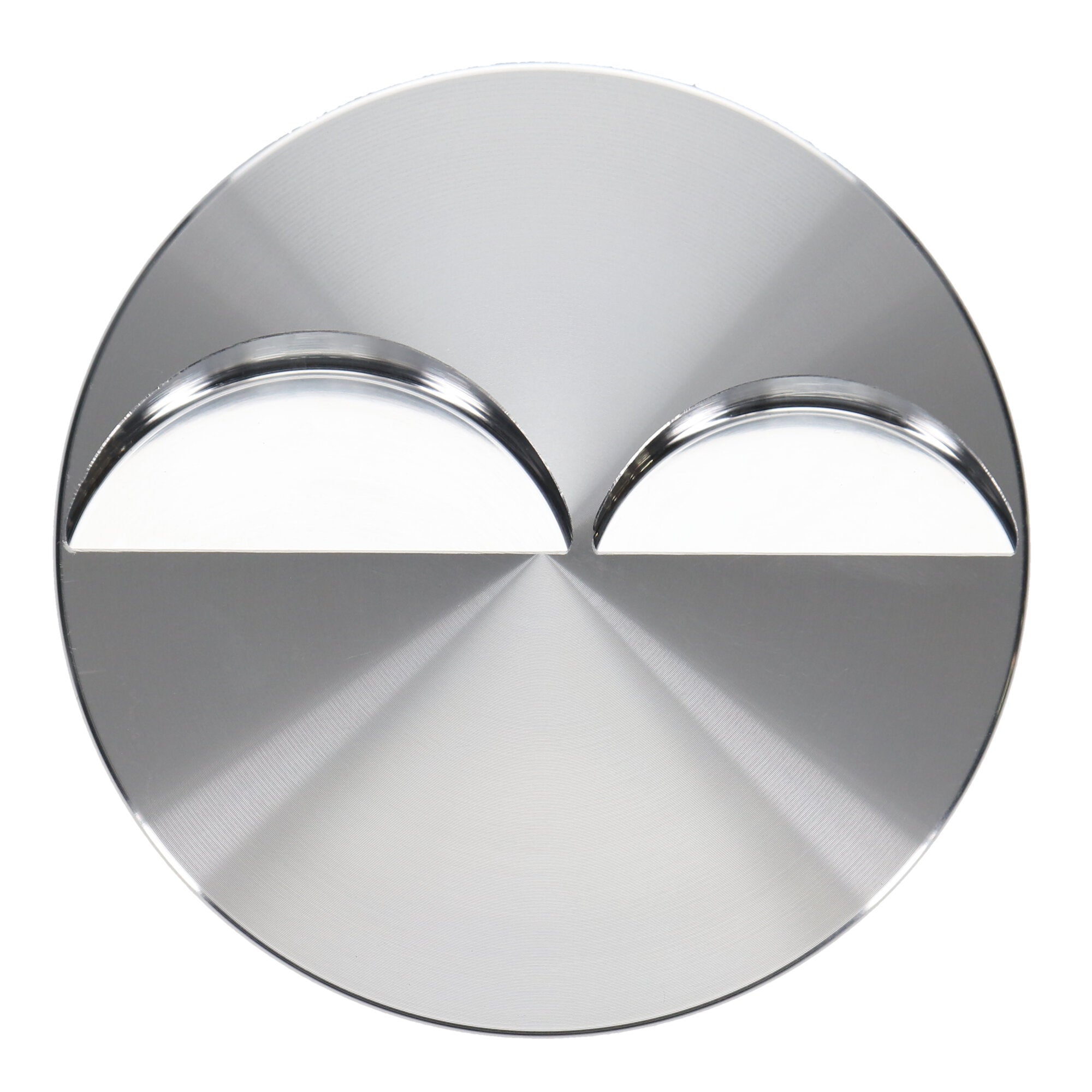

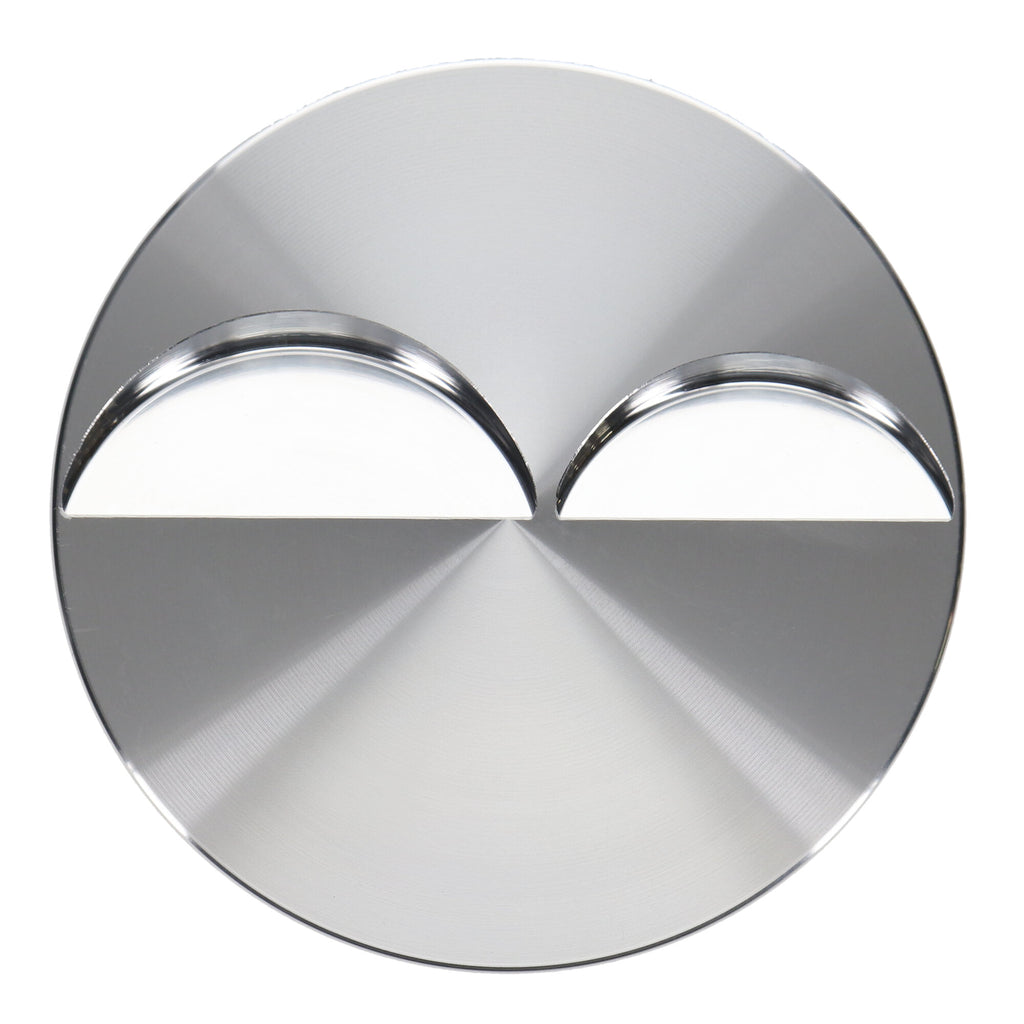

| Piston Head Type |
Flat |
| Bore Diameter |
3.766 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Make |
CHEVROLET |
| Piston Volume |
-5.00 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.188 |
| Piston Average Weight |
412 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Chevrolet, Small Block, 3.766 in. Bore, Piston Kit |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.500 |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
12.0000 |
