As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

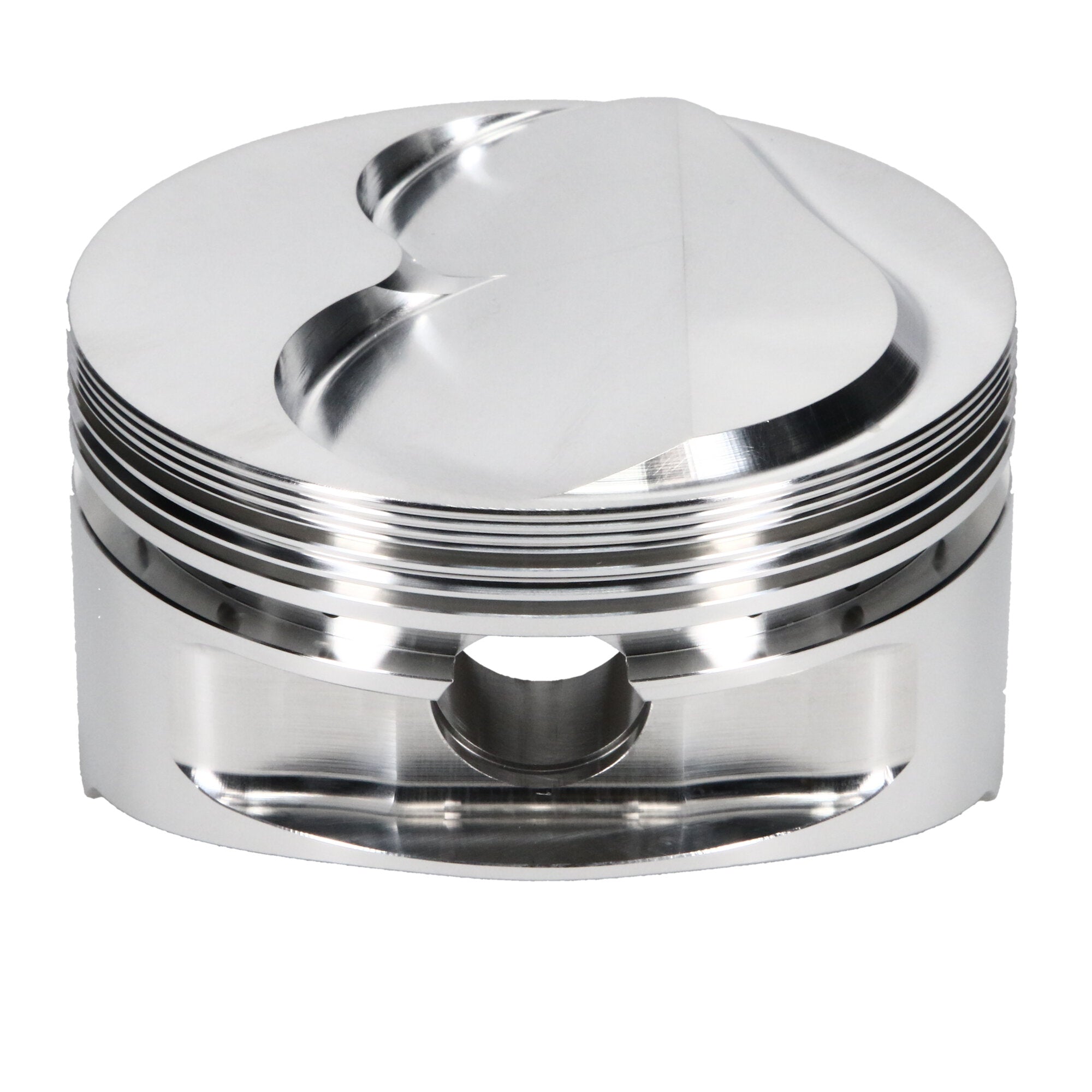

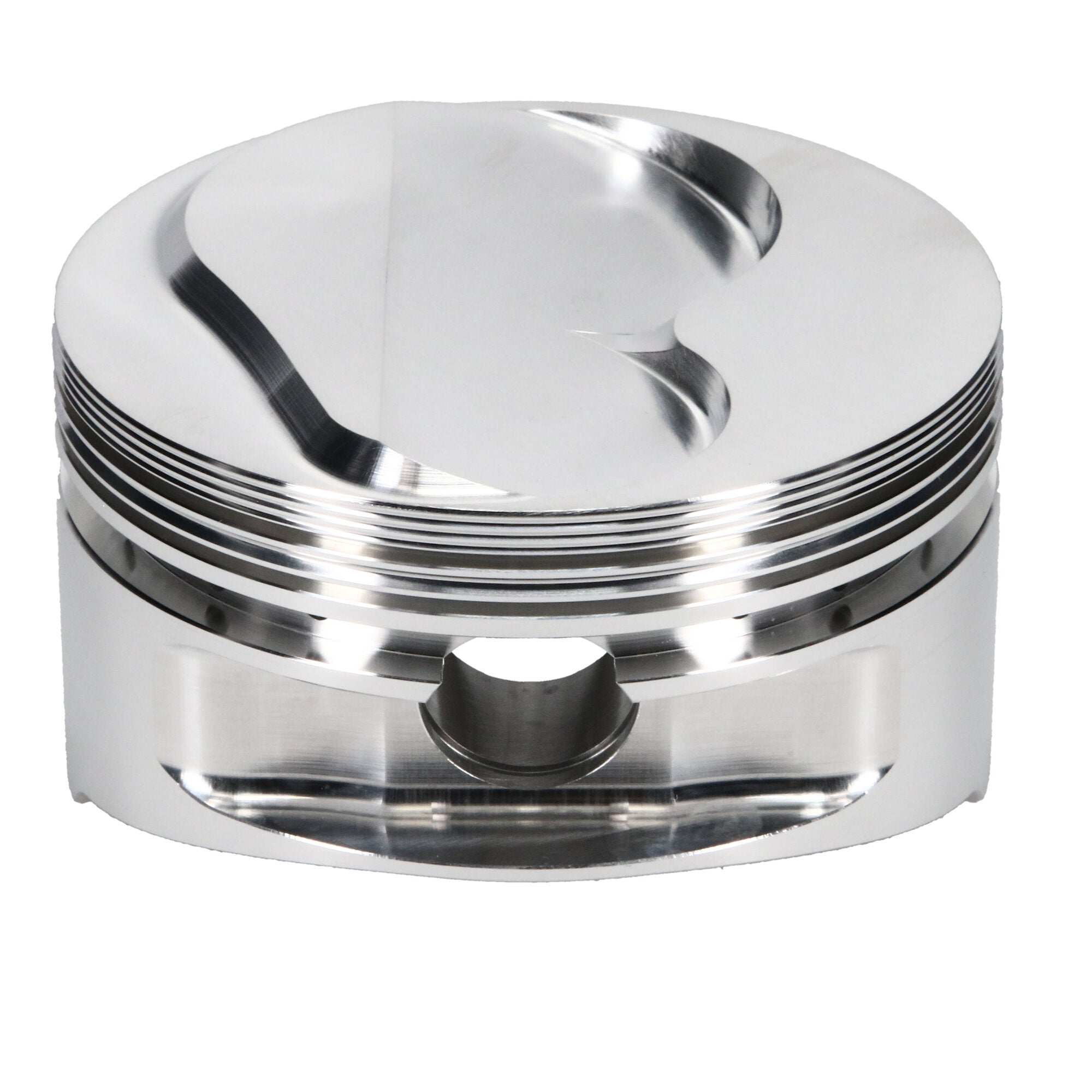

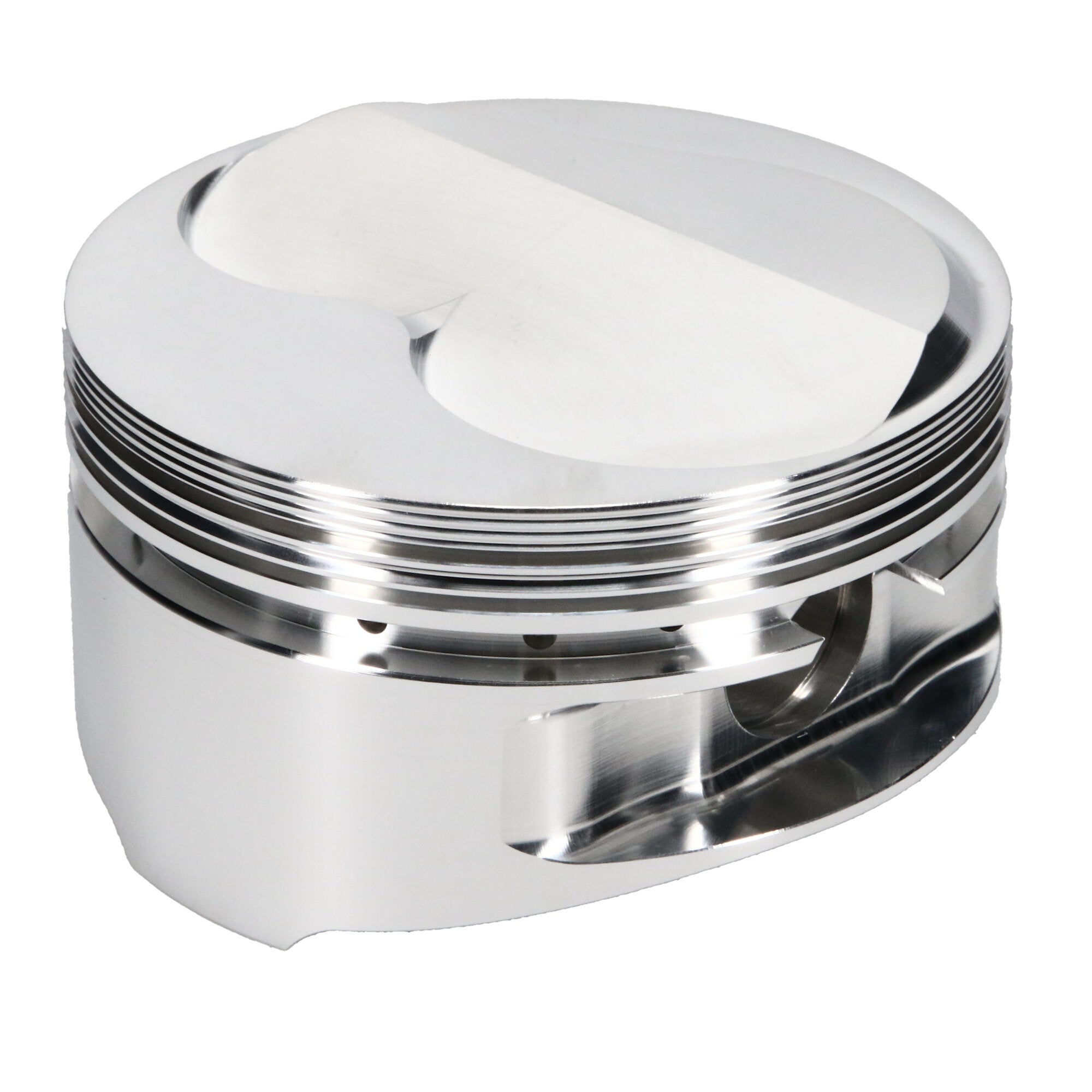

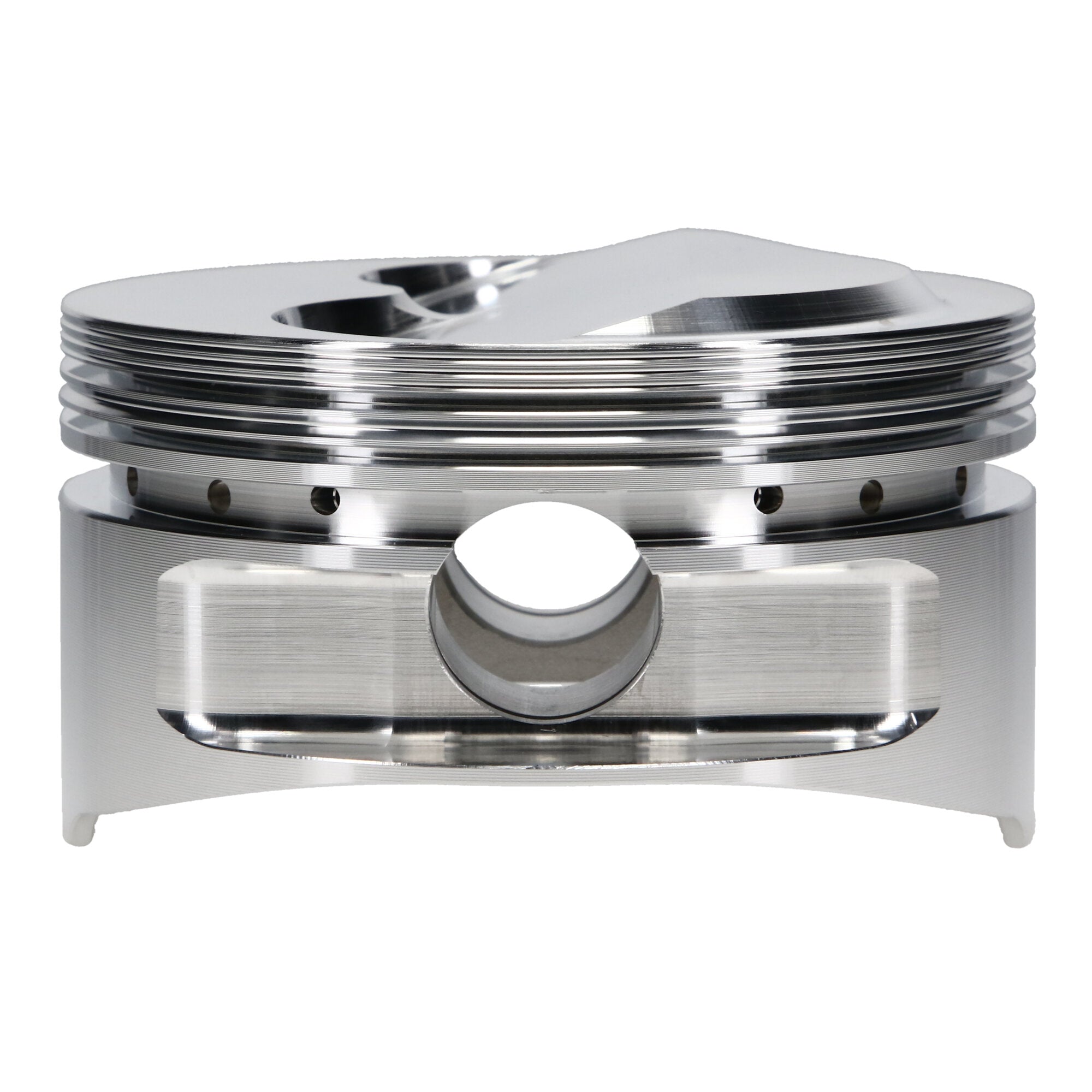

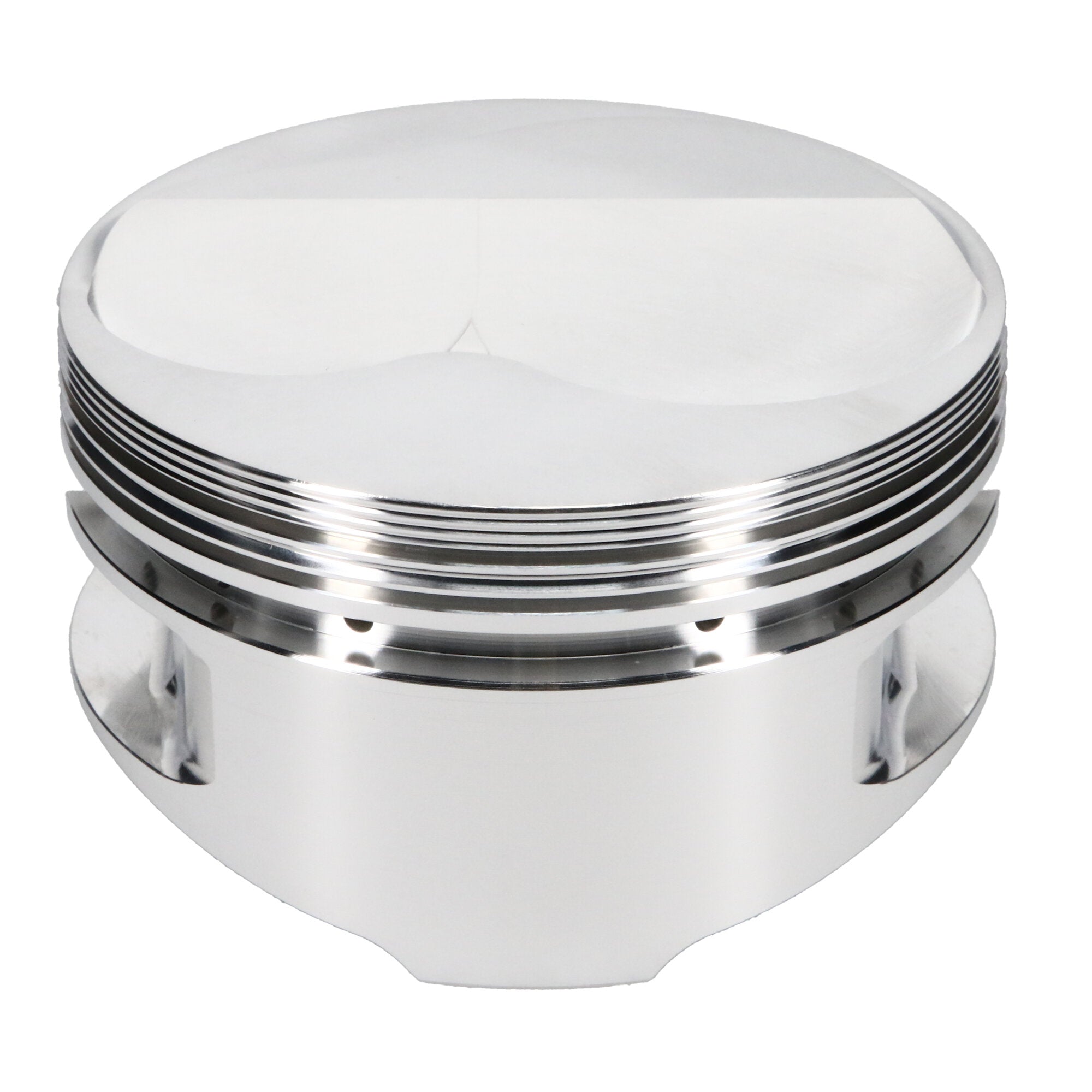

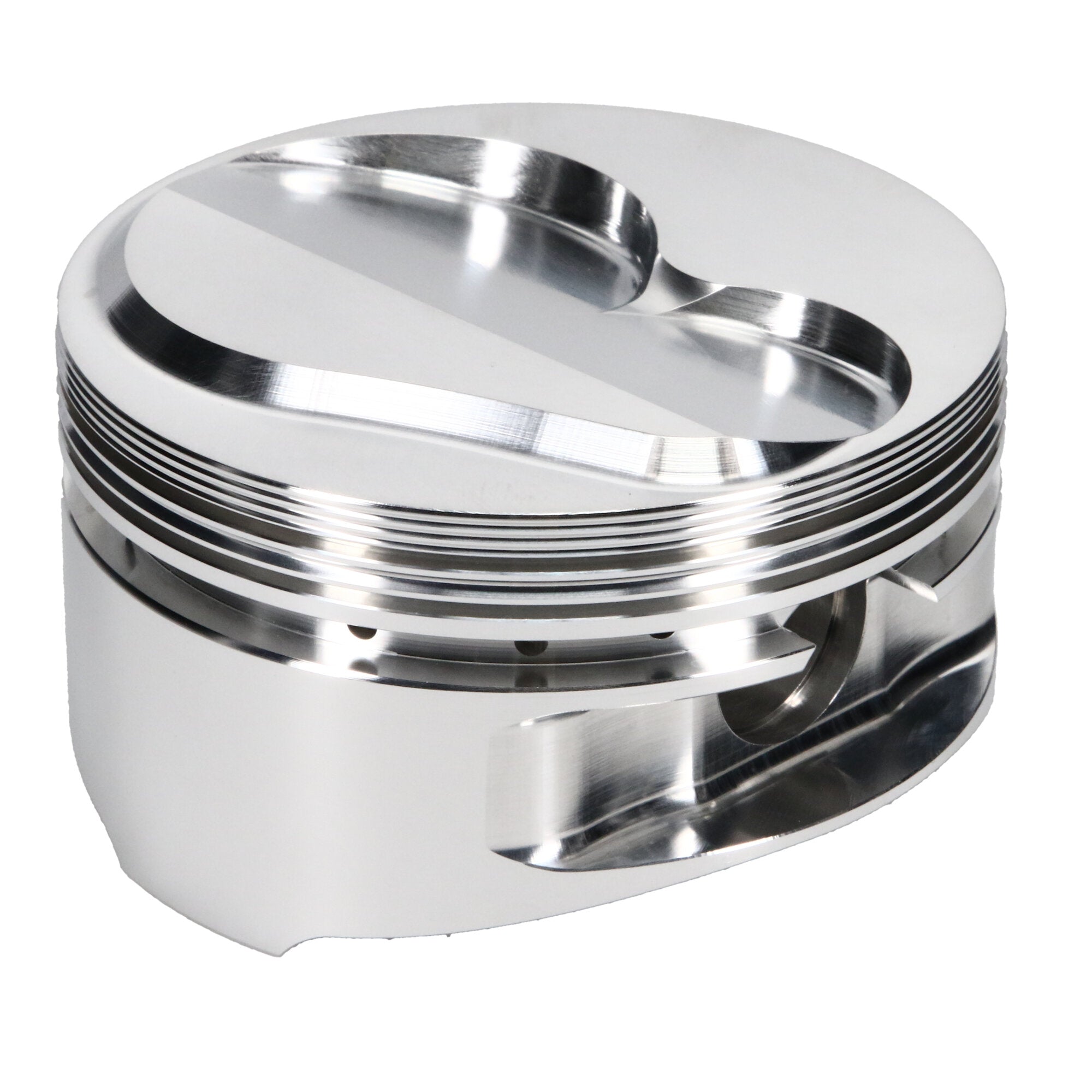

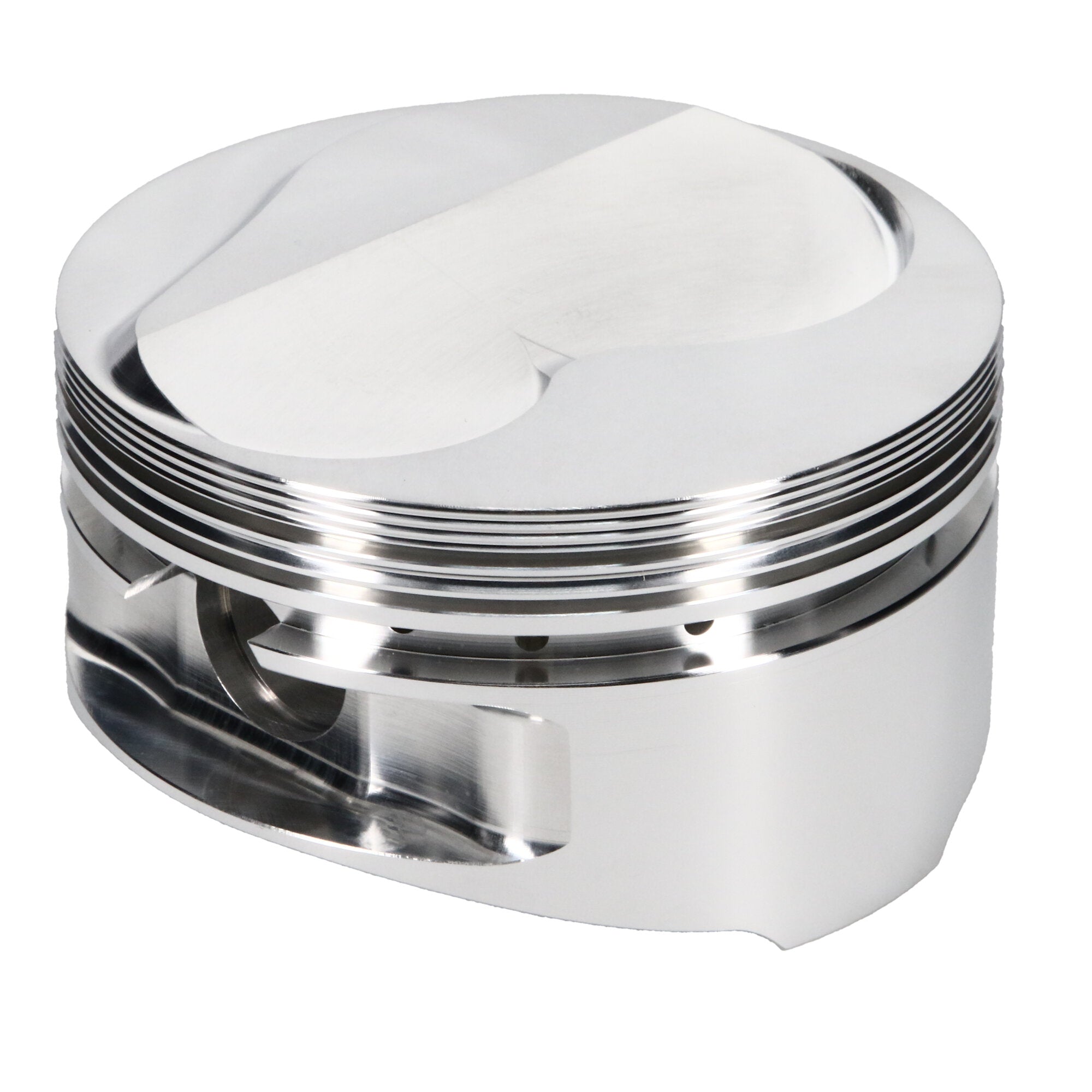

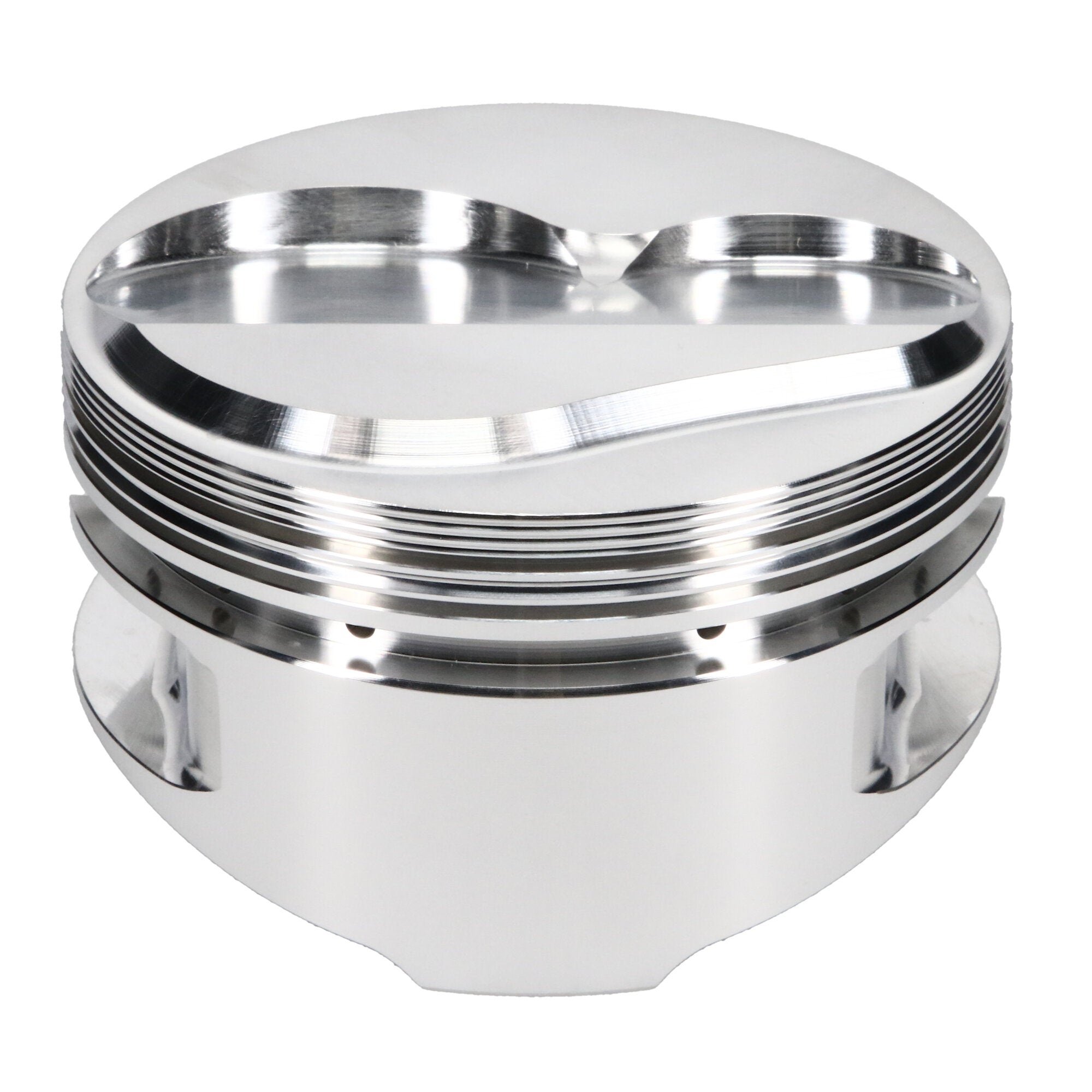

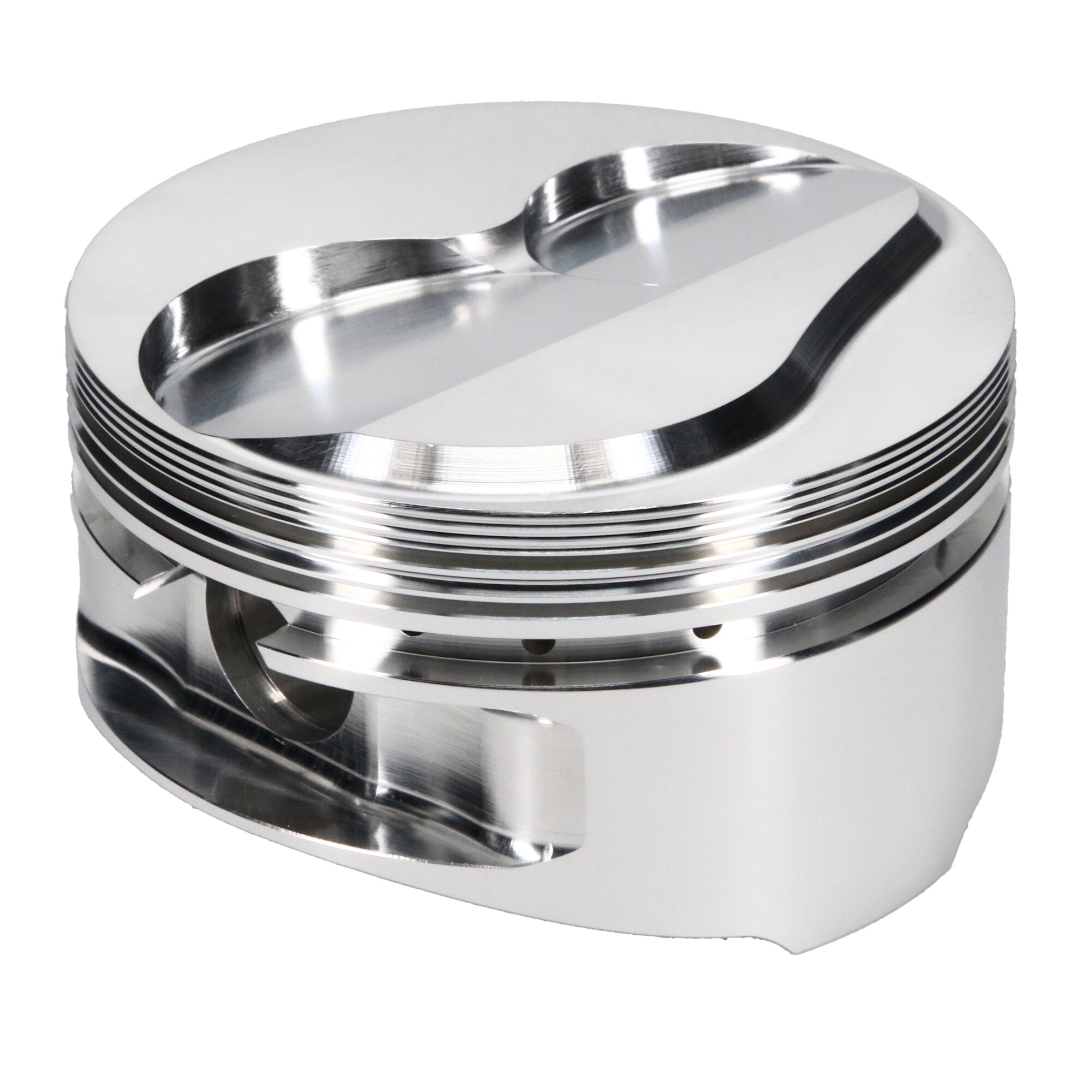

Piston Set, 2618, Dome, 4.165 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.165 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 400, 4.165 Bore, Dome, Set of 8 |
| Piston Material |
2618 |
| Cylinder Head |
BRODIX -12 15 DEG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Chevrolet |
| Ringset Included |
No |
| Engine |
Small Block |
| Engine Type |
ICE |
| Piston Pin Length |
2.750 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.165 in. Bore - 1.100 in. CH, 2.60 CC |
| Add-On |
J10008-4165-5 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-2750-15-51S |
| Piston Head Type |
Dome |
| Add-On |
927-042-CS |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.150 |
| Industry |
Automotive |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
2.60 |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Bore Diameter |
4.165 |
| Product Market |
Domestic |
| Piston Average Weight |
468 |
| Compression Height |
1.100 |
| Top Compression Ring Thickness |
0.0640 |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.218 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.165 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.750 |
| Engine - Web |
Small Block |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
