As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

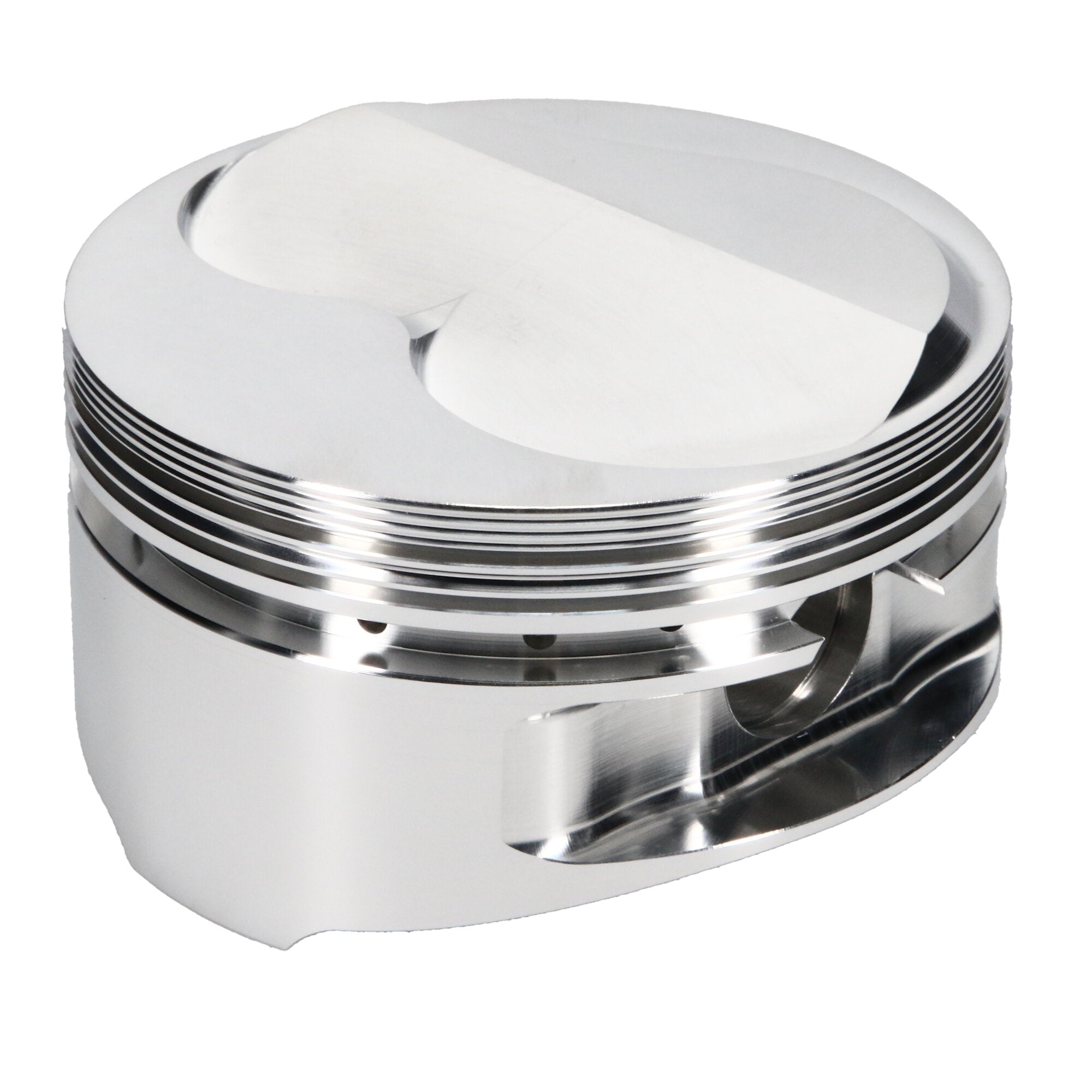

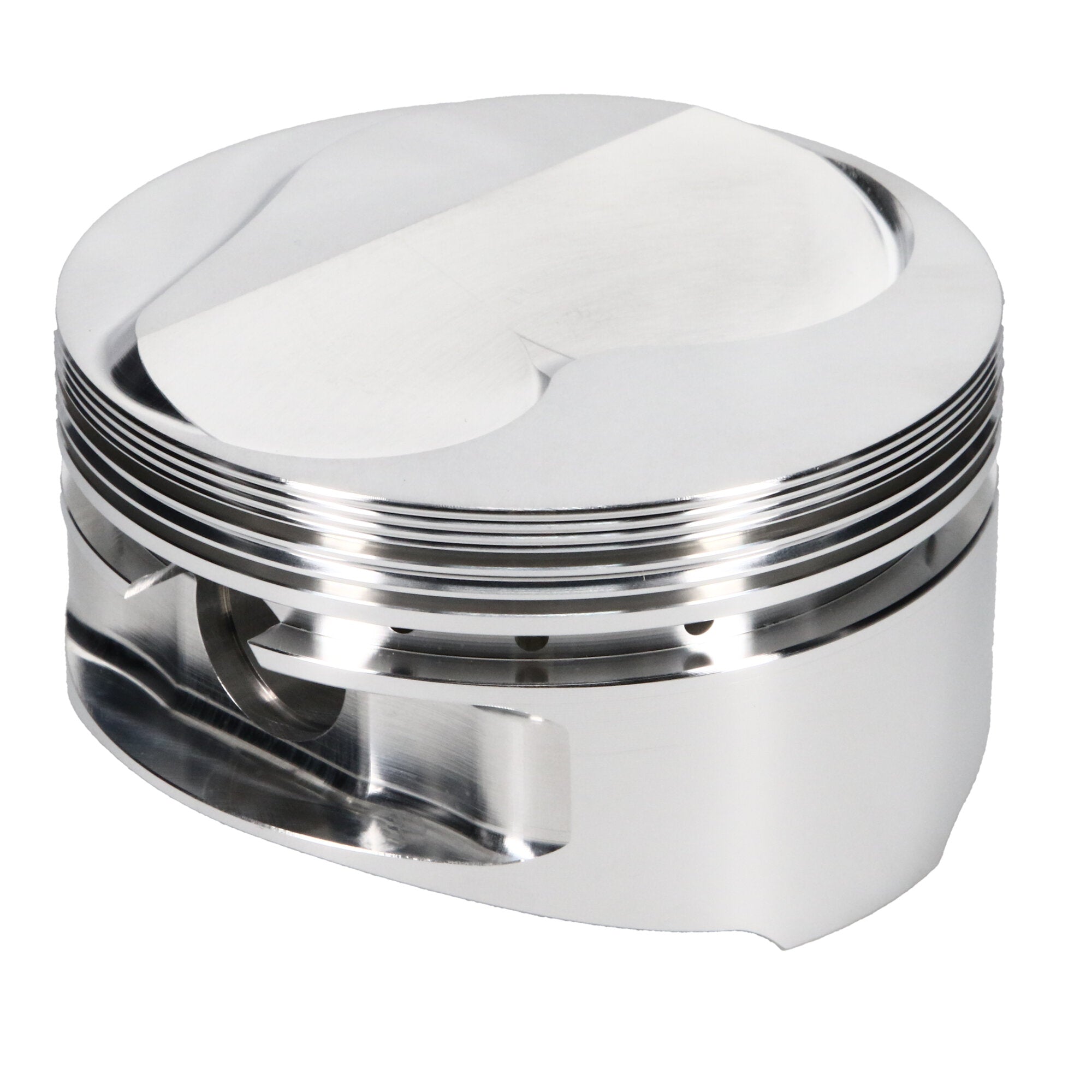

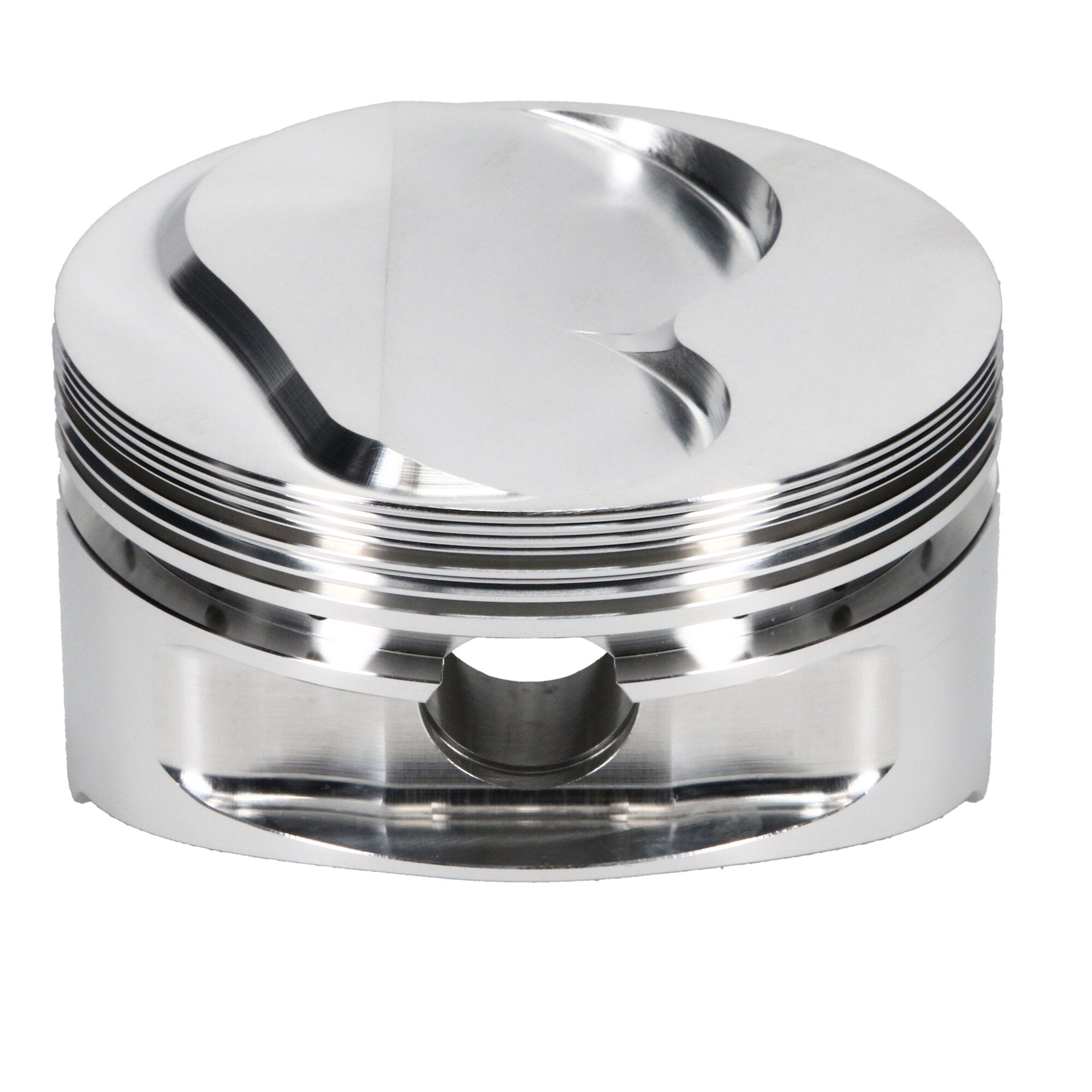

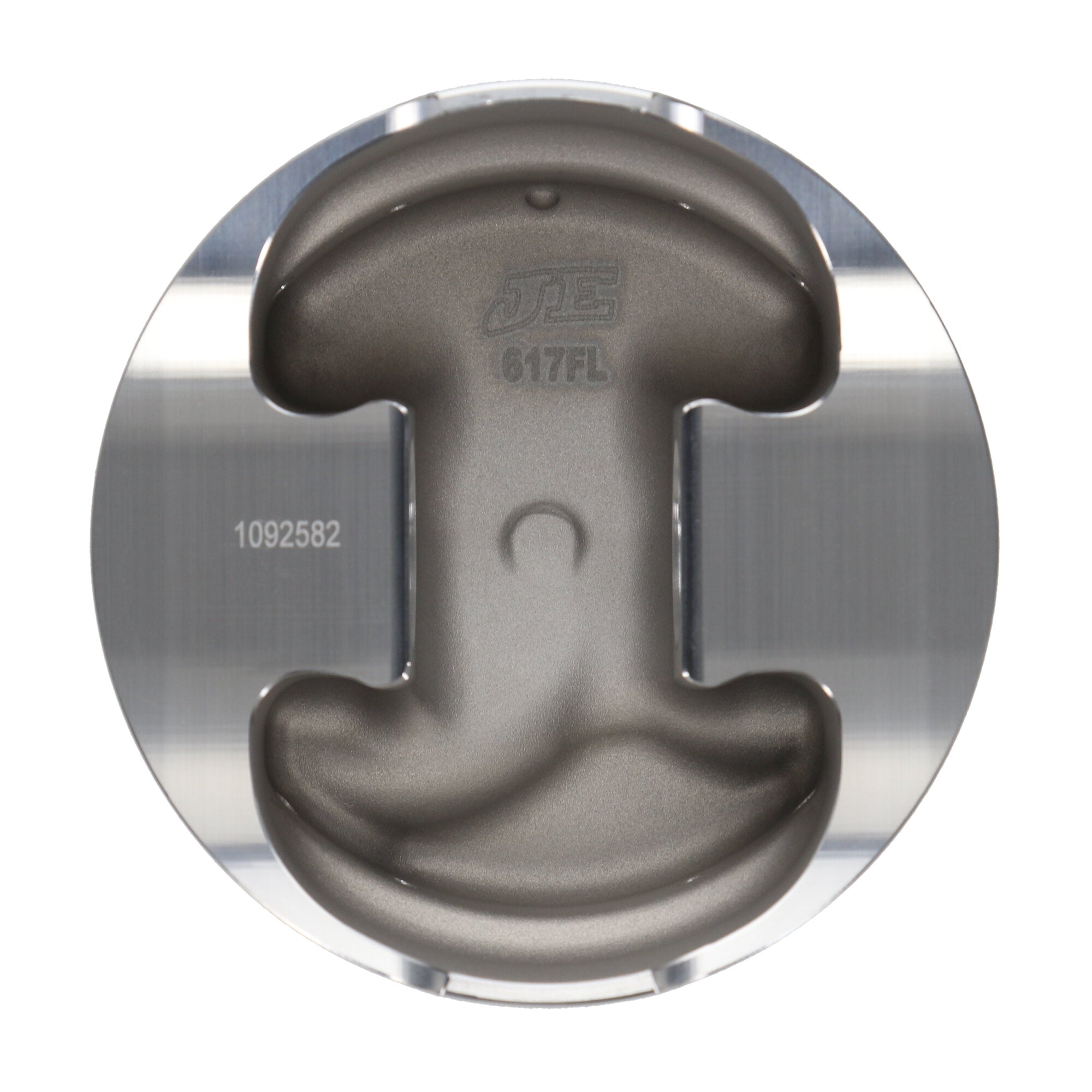

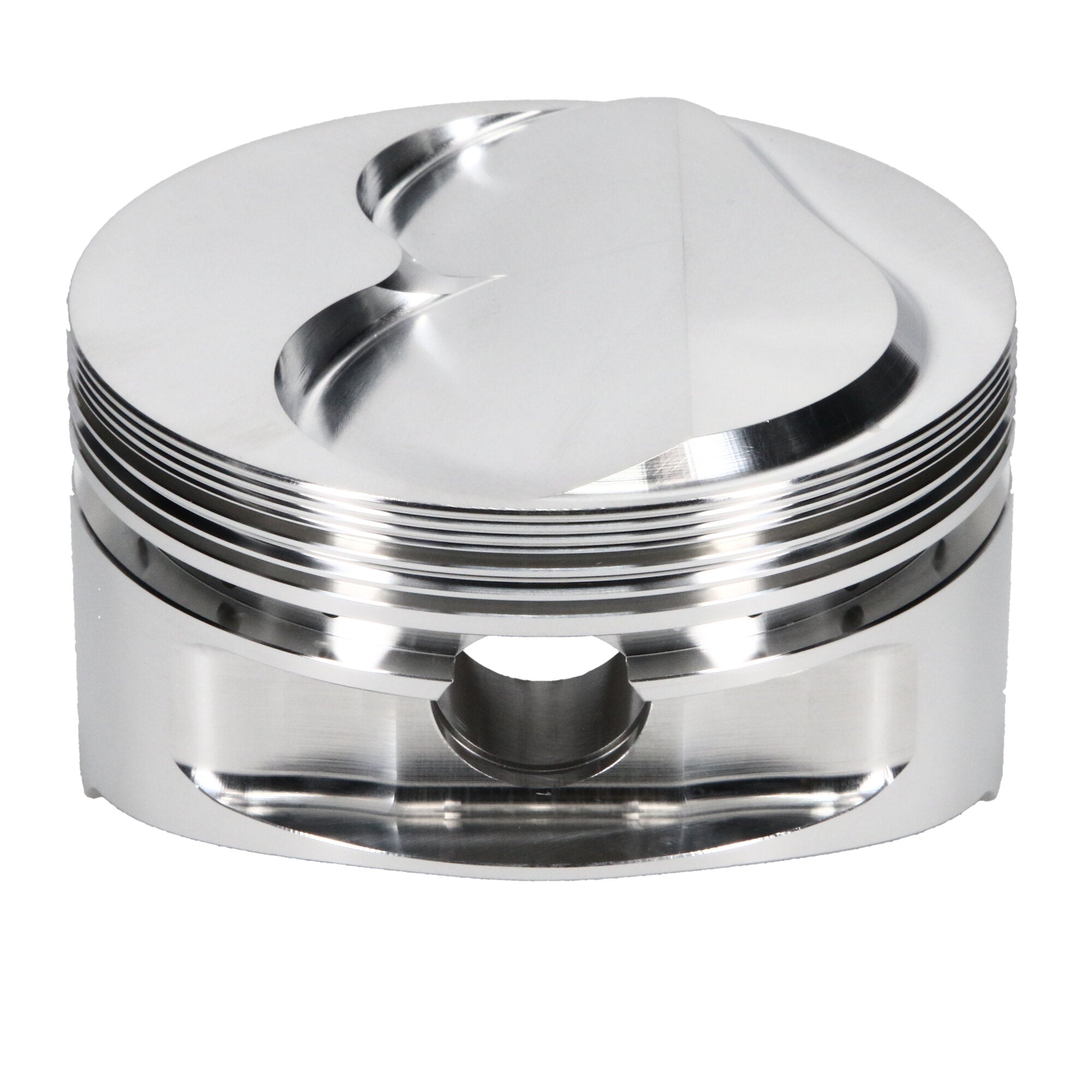

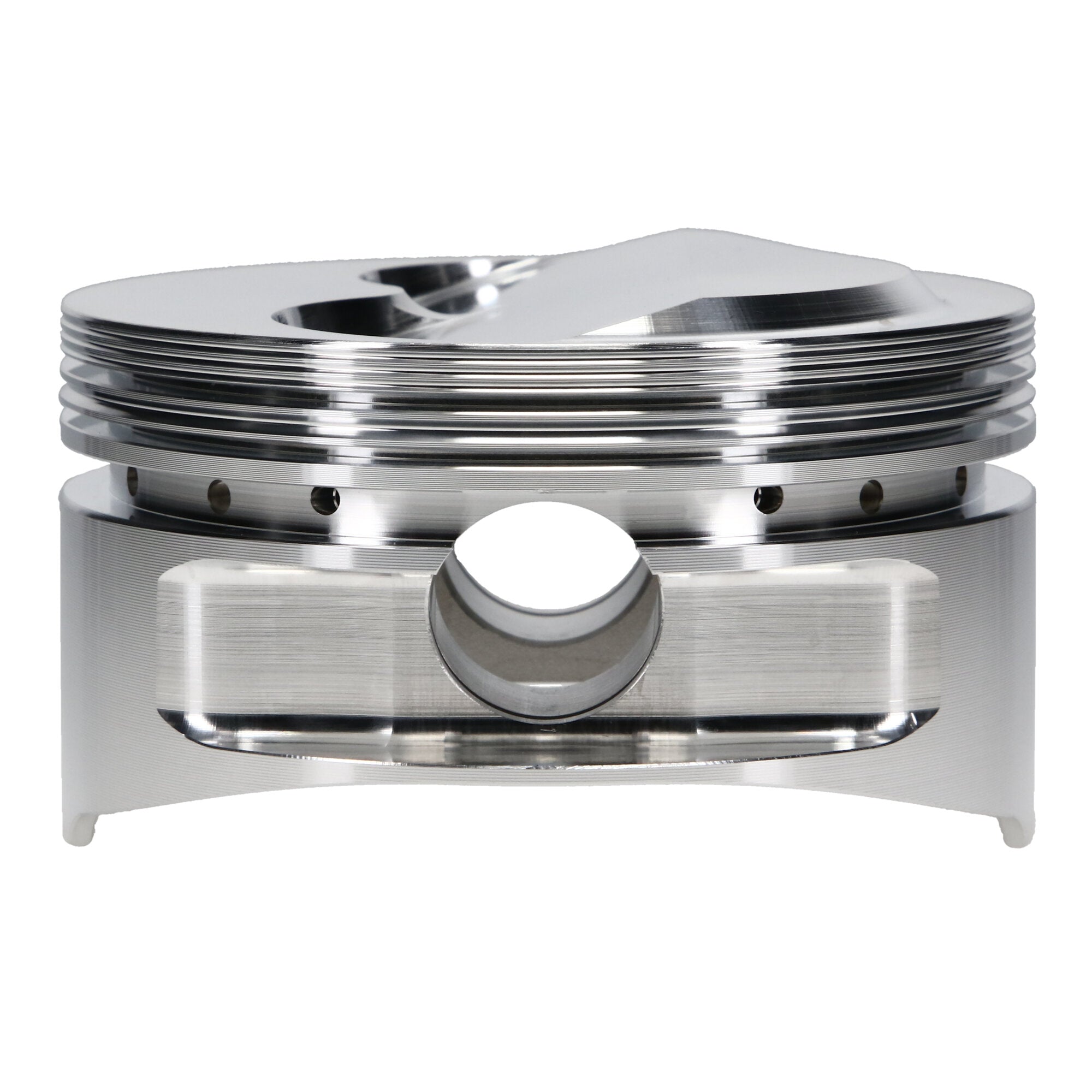

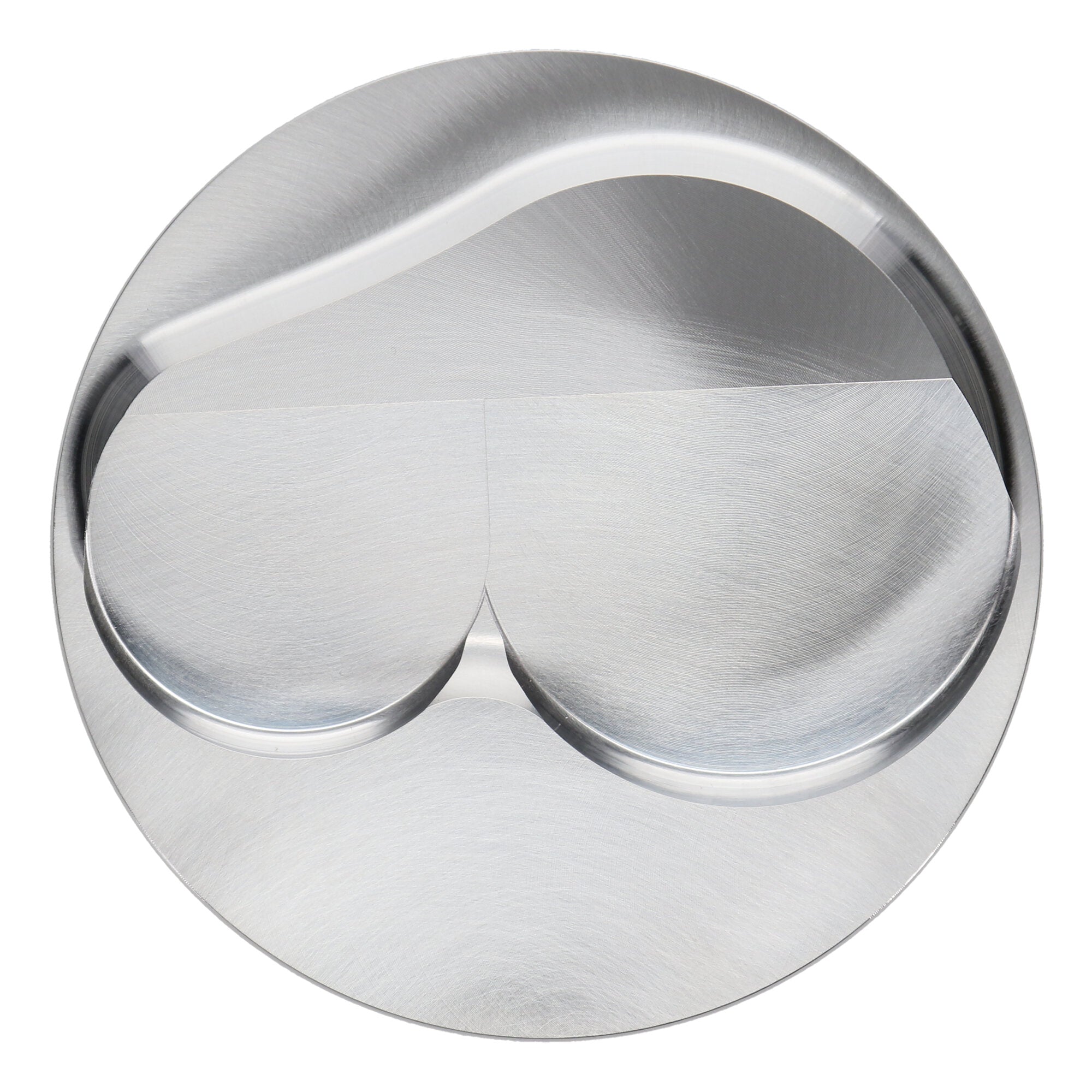

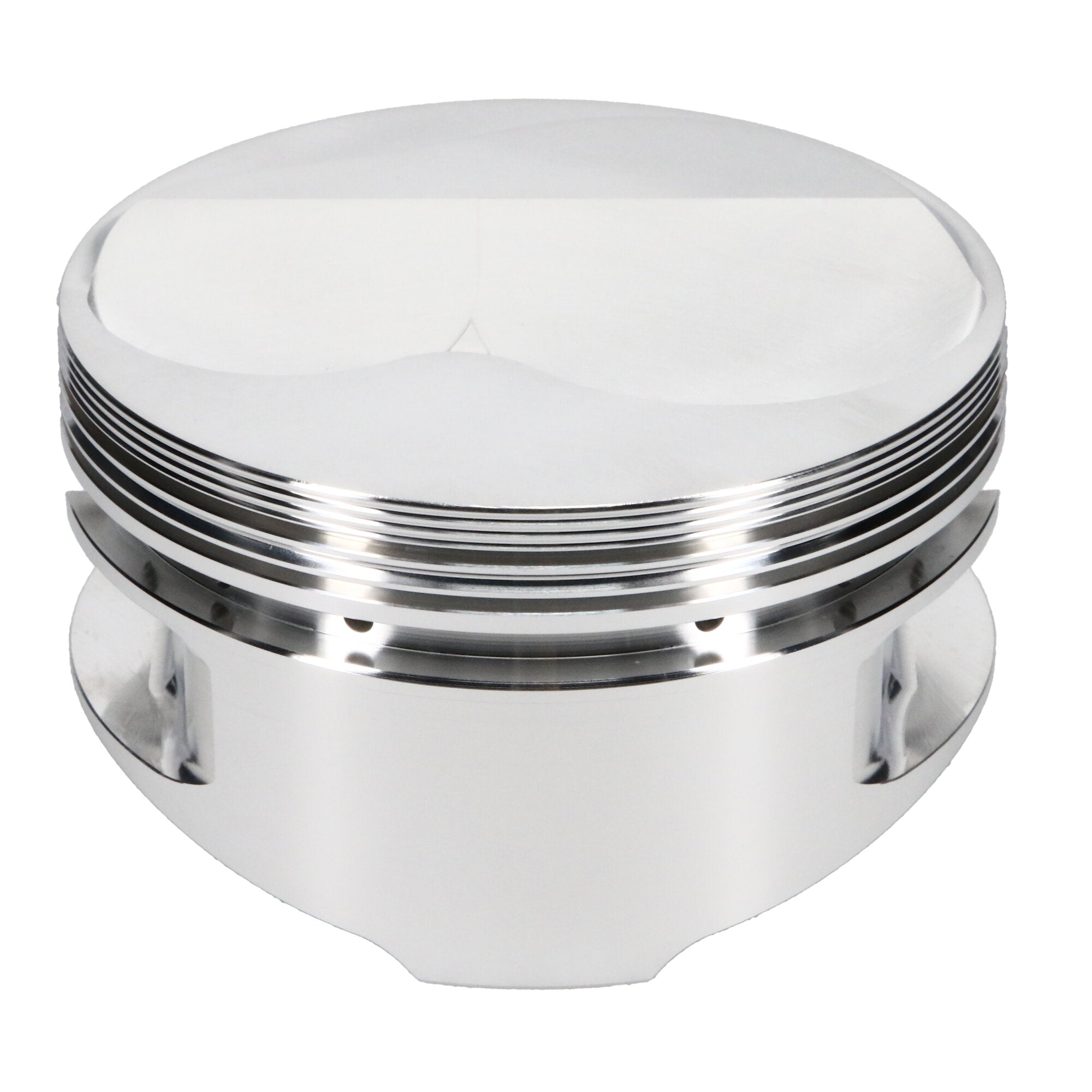

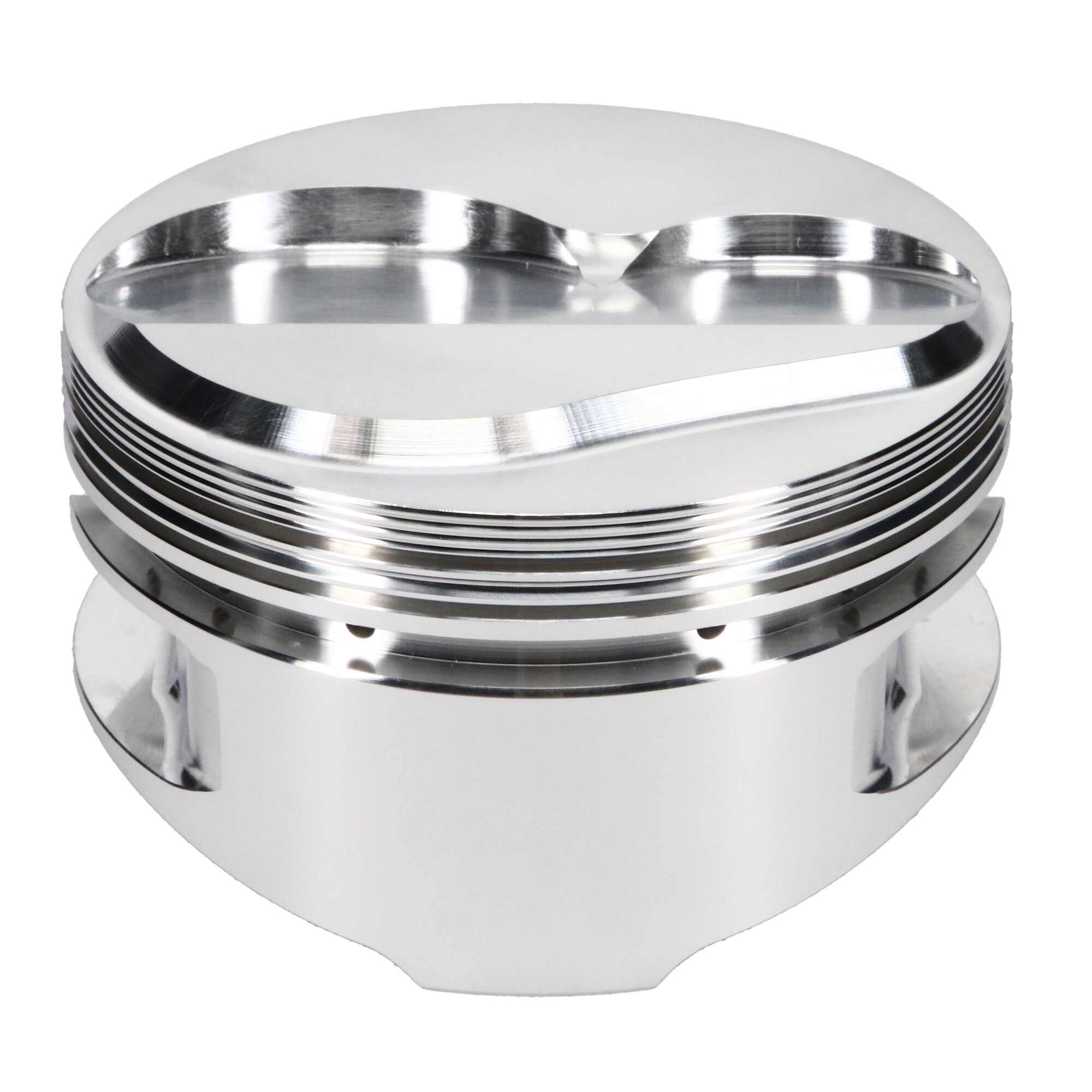

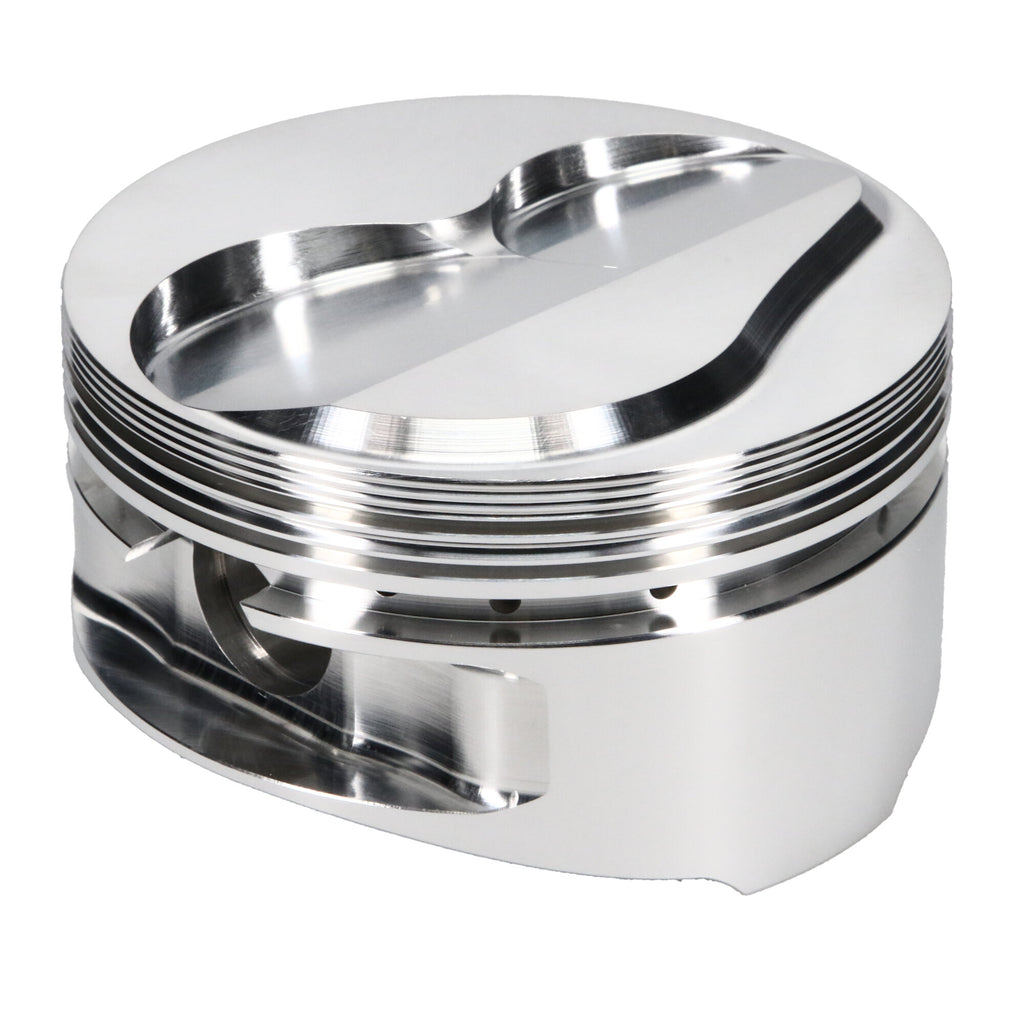

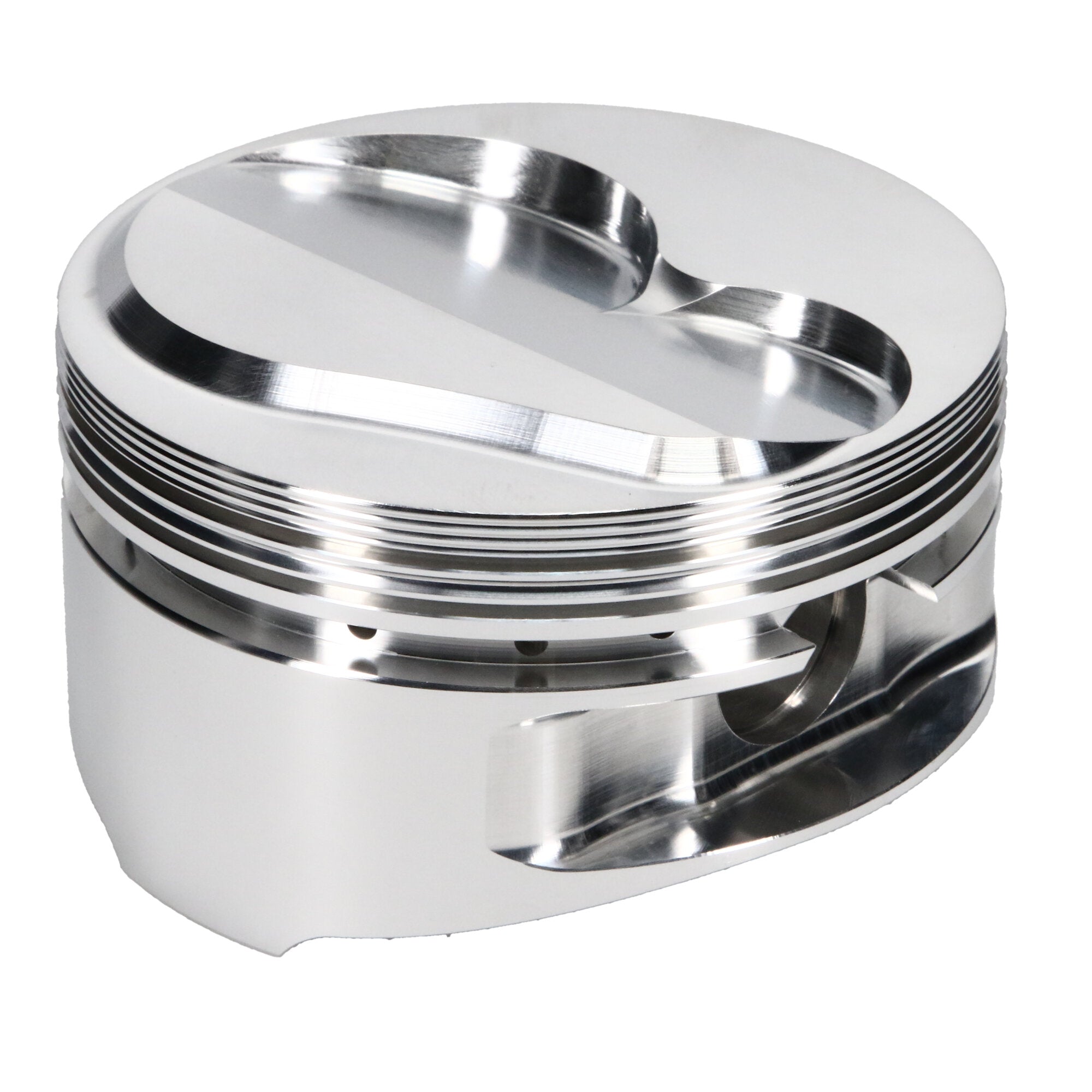

Piston Set, 2618, Dome, 4.135 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Dome, Set of 8 |
| Piston Material |
2618 |
| Add-On |
J10008-4135-5 |
| Cylinder Head |
BRODIX -12 15 DEG |
| Add-On |
927-2750-15-51S |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Chevrolet |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.100 in. CH, 2.60 CC |
| Prop 65 (C, R or CR) |
CR |
| Ringset Included |
No |
| Engine |
Small Block |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Top Compression Ring Thickness |
0.0640 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Forging Type |
Round |
| Oil Ring Thickness |
0.218 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Product Market |
Domestic |
| Piston Average Weight |
465 |
| Engine Type |
ICE |
| Bore Diameter |
4.135 |
| Make |
CHEVROLET |
| Compression Height |
1.100 |
| Piston Volume |
2.60 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Length |
2.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
