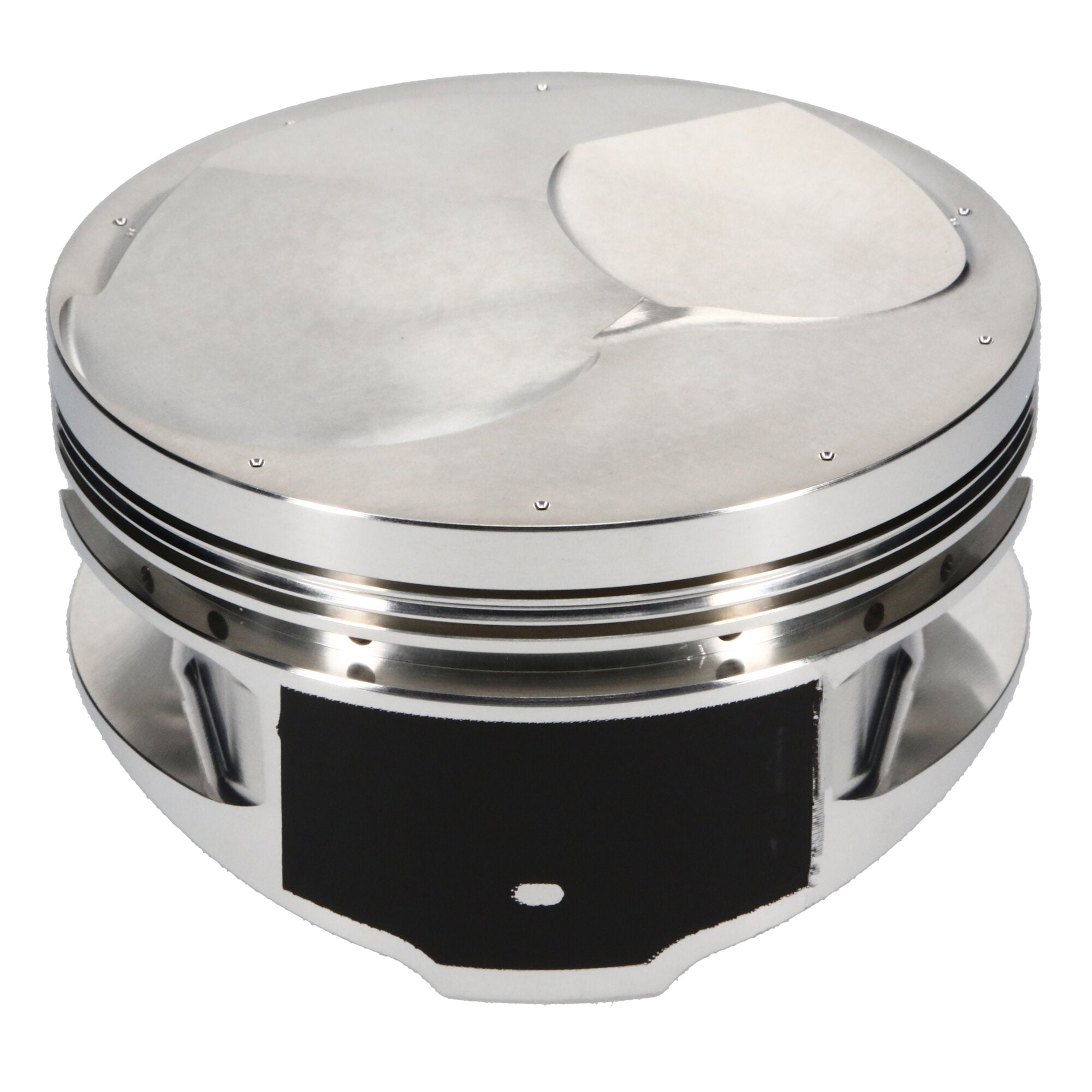

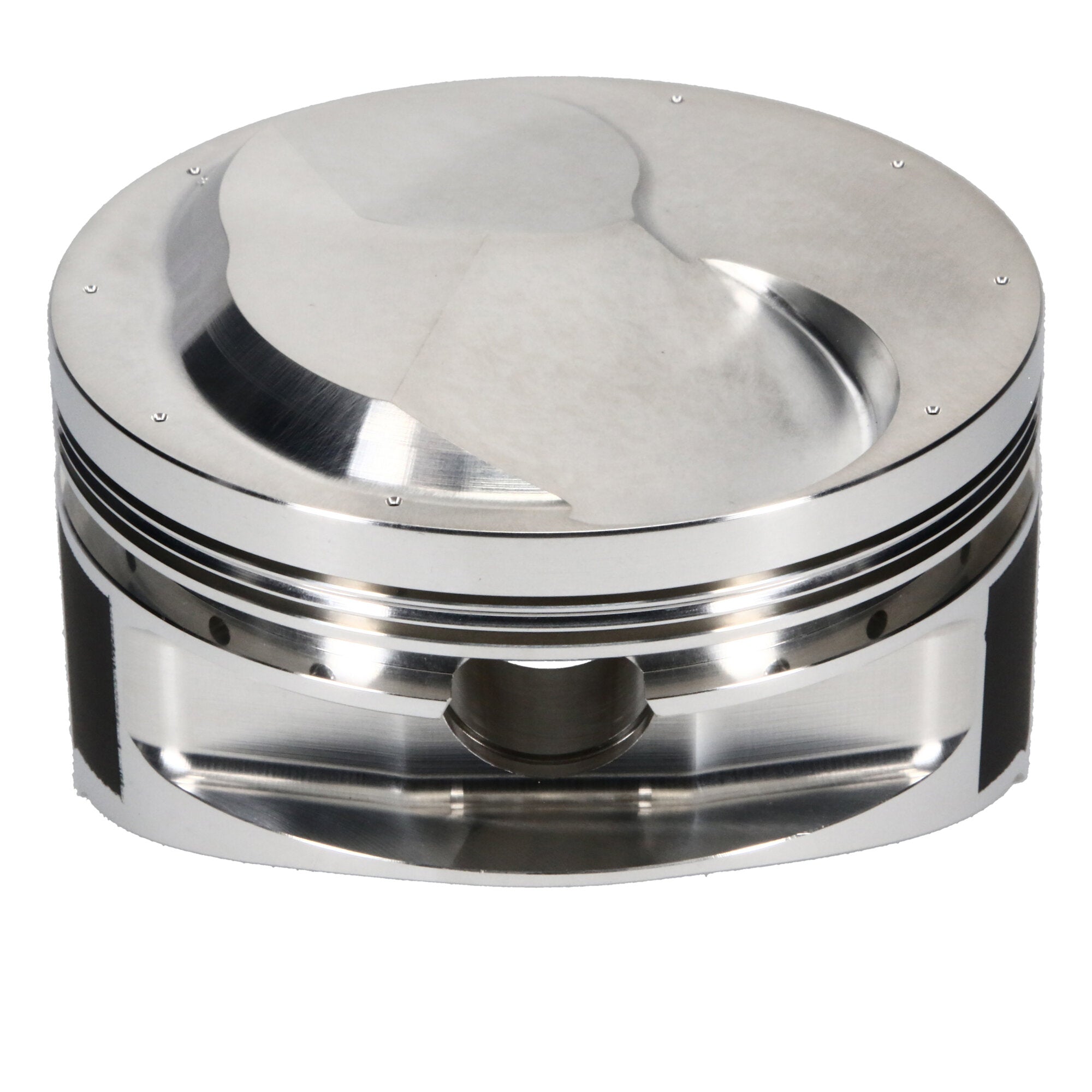

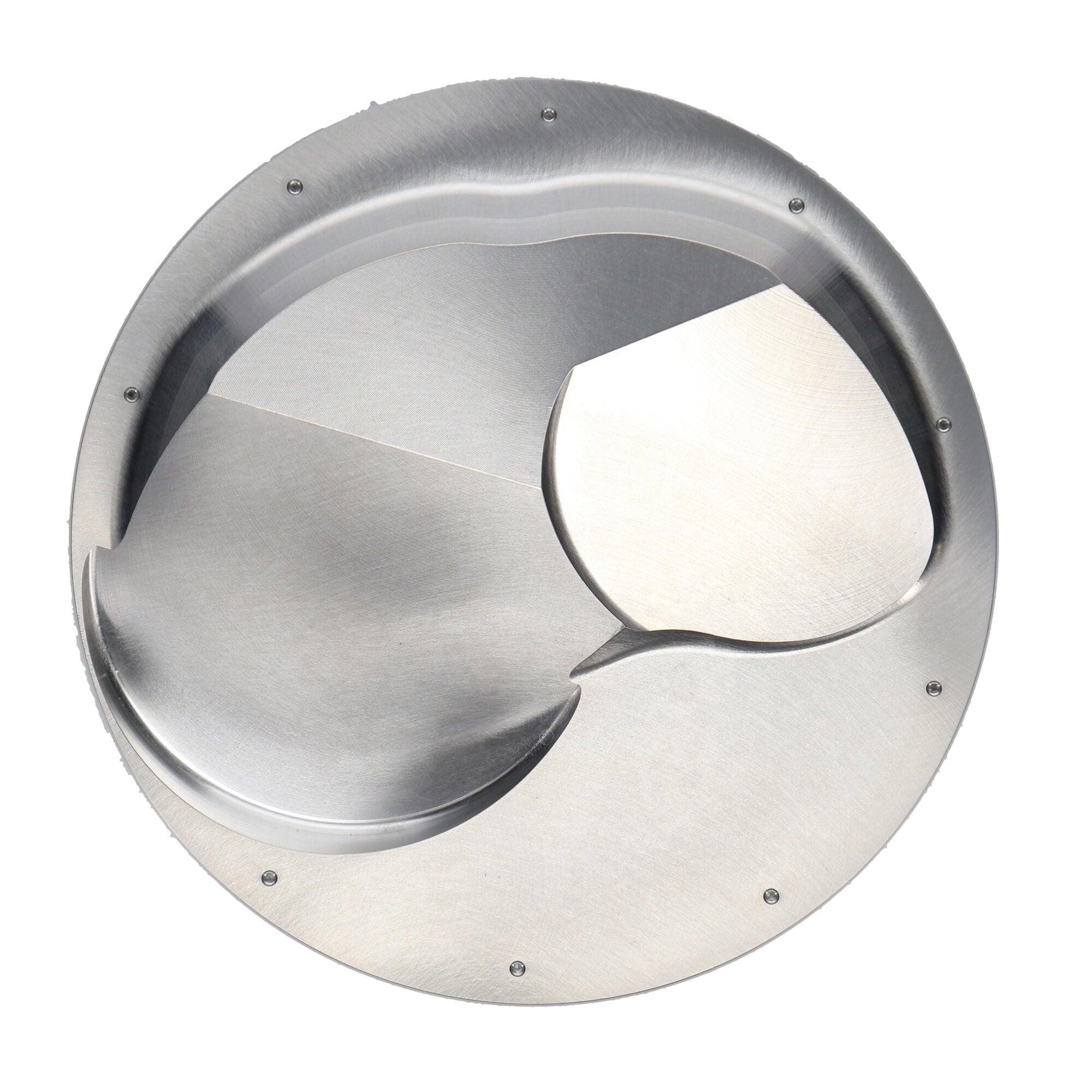

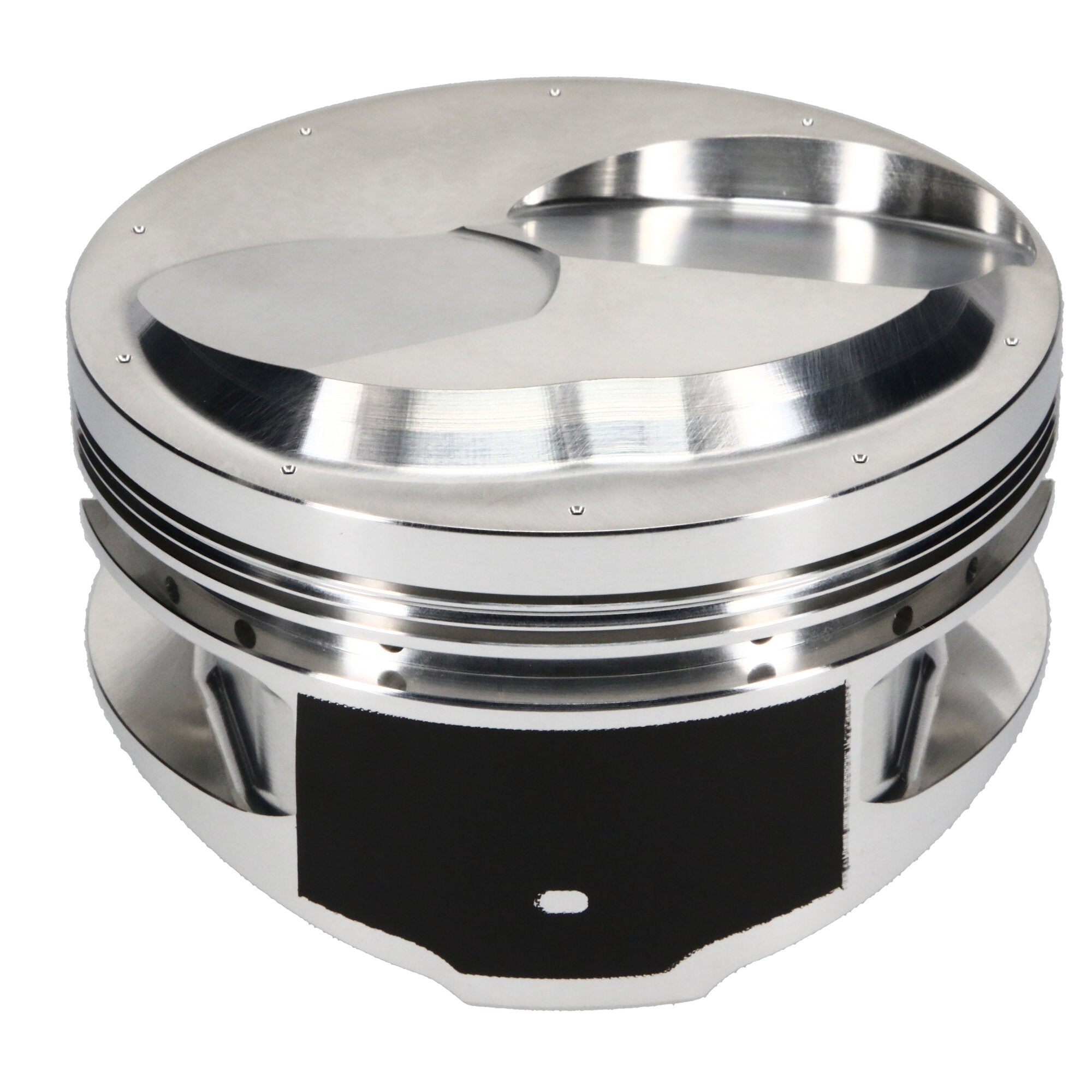

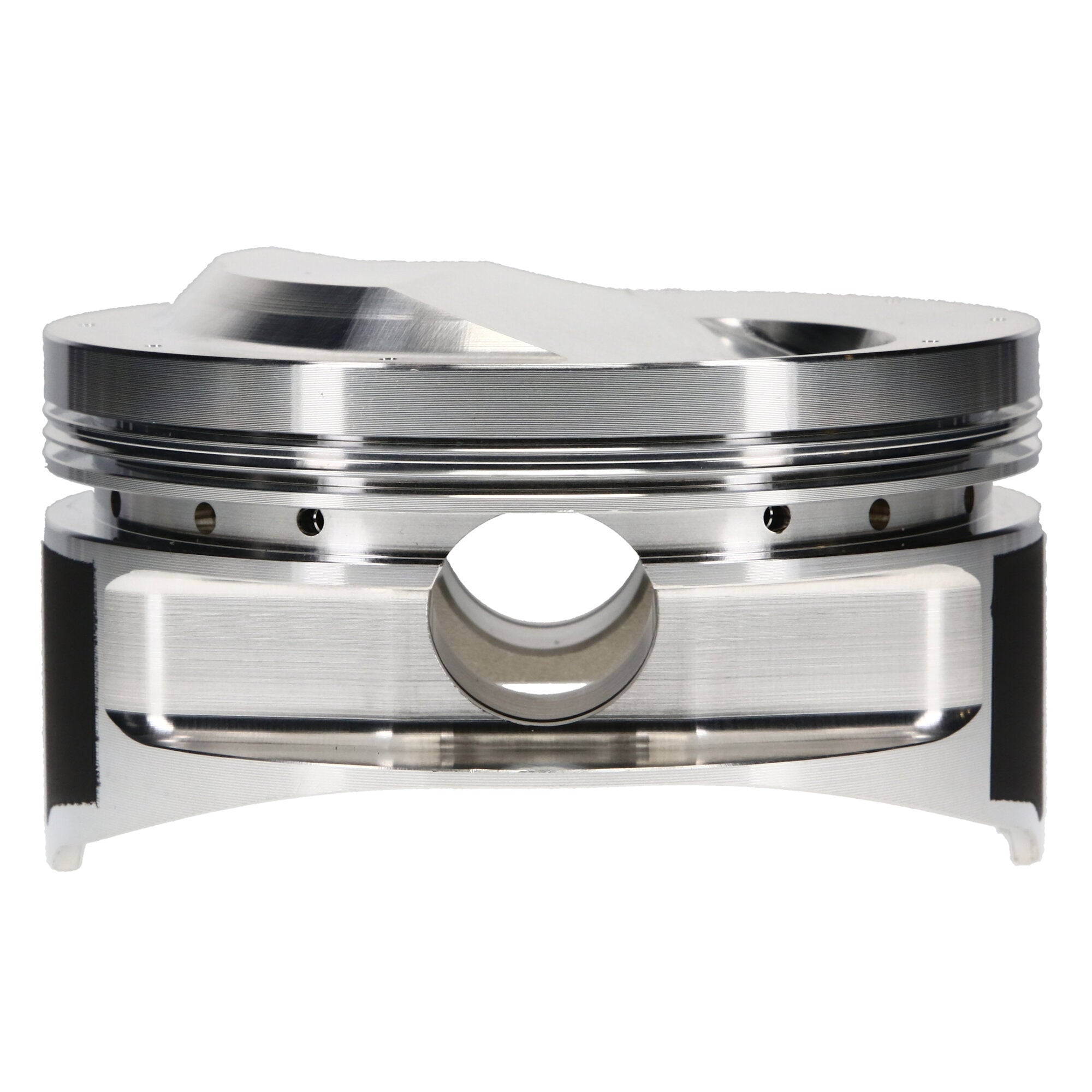

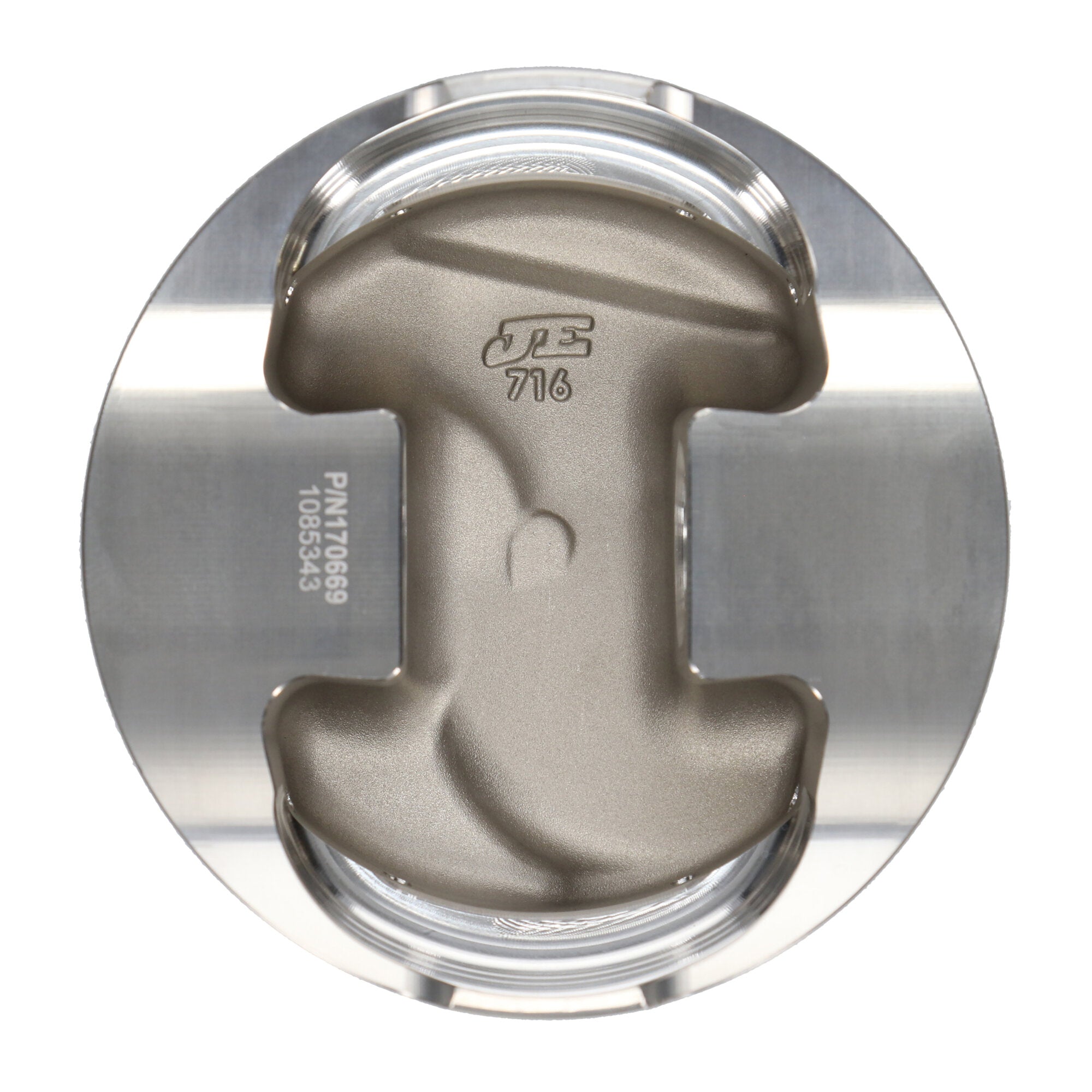

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_DEF |
Engine Piston Kit |
| Description_ASM |
Chevrolet Big Block 454 |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.600 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.600 Bore, Dome, Set of 8 |
| Piston Material |
2618 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
13.00 |
| Engine - Web |
Big Block |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Industry |
Automotive |
| Cylinder Head |
BIG CHIEF |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Average Weight |
641 |
| Top Compression Ring Thickness |
0.0436 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Bore Diameter |
4.600 |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-2930-15-51S |
| Piston Pin Outside Diameter |
0.990 |
| Add-On |
J200U8-4600-5 |
| Product Type |
Engine Piston Kit |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Add-On |
990-042-CS |
| Compression Height |
1.270 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Engine Type |
ICE |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.270 in. CH, 13.00 CC |
| Piston Pin Length |
2.930 |
| Forging Type |
Round |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.218 |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Engine |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
