As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

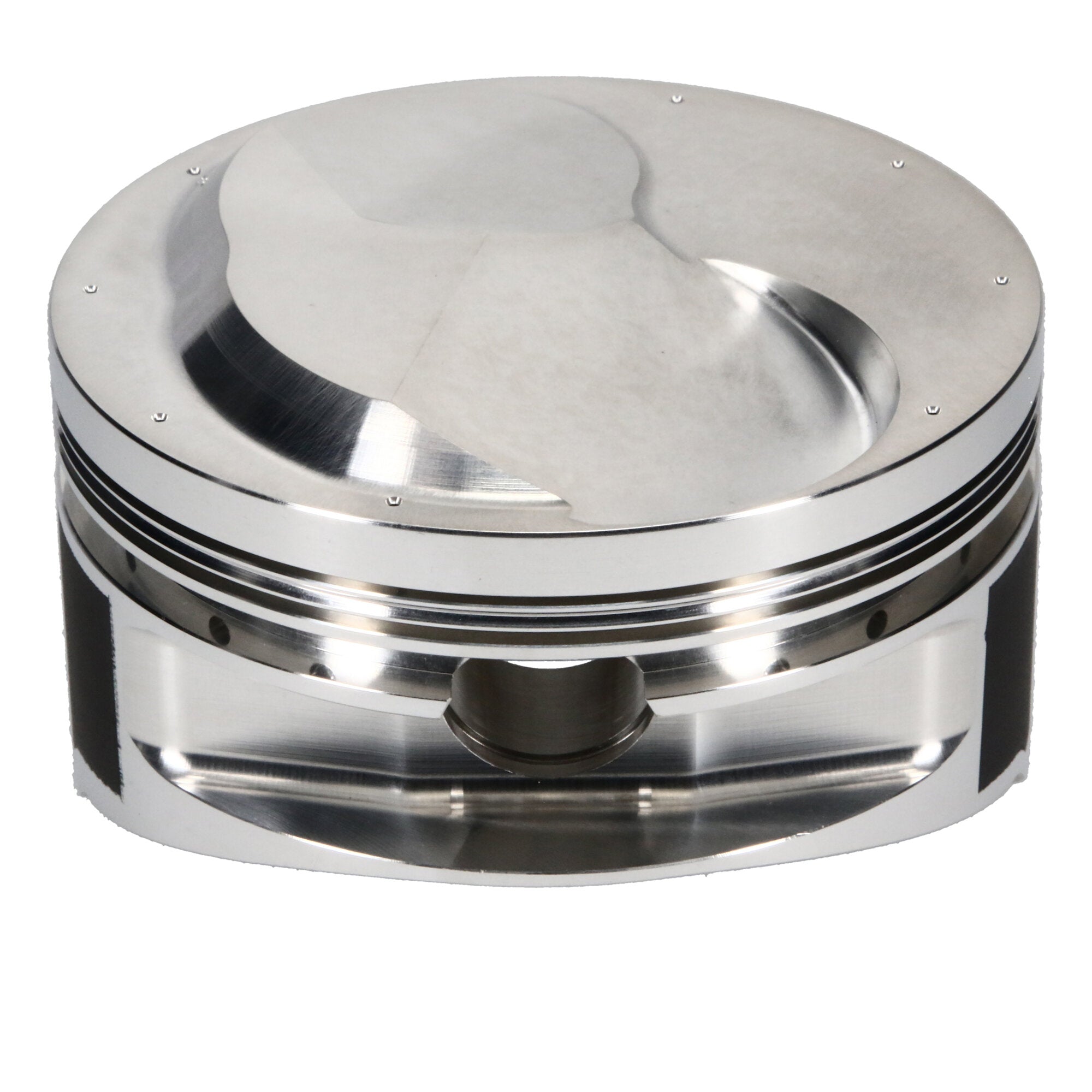

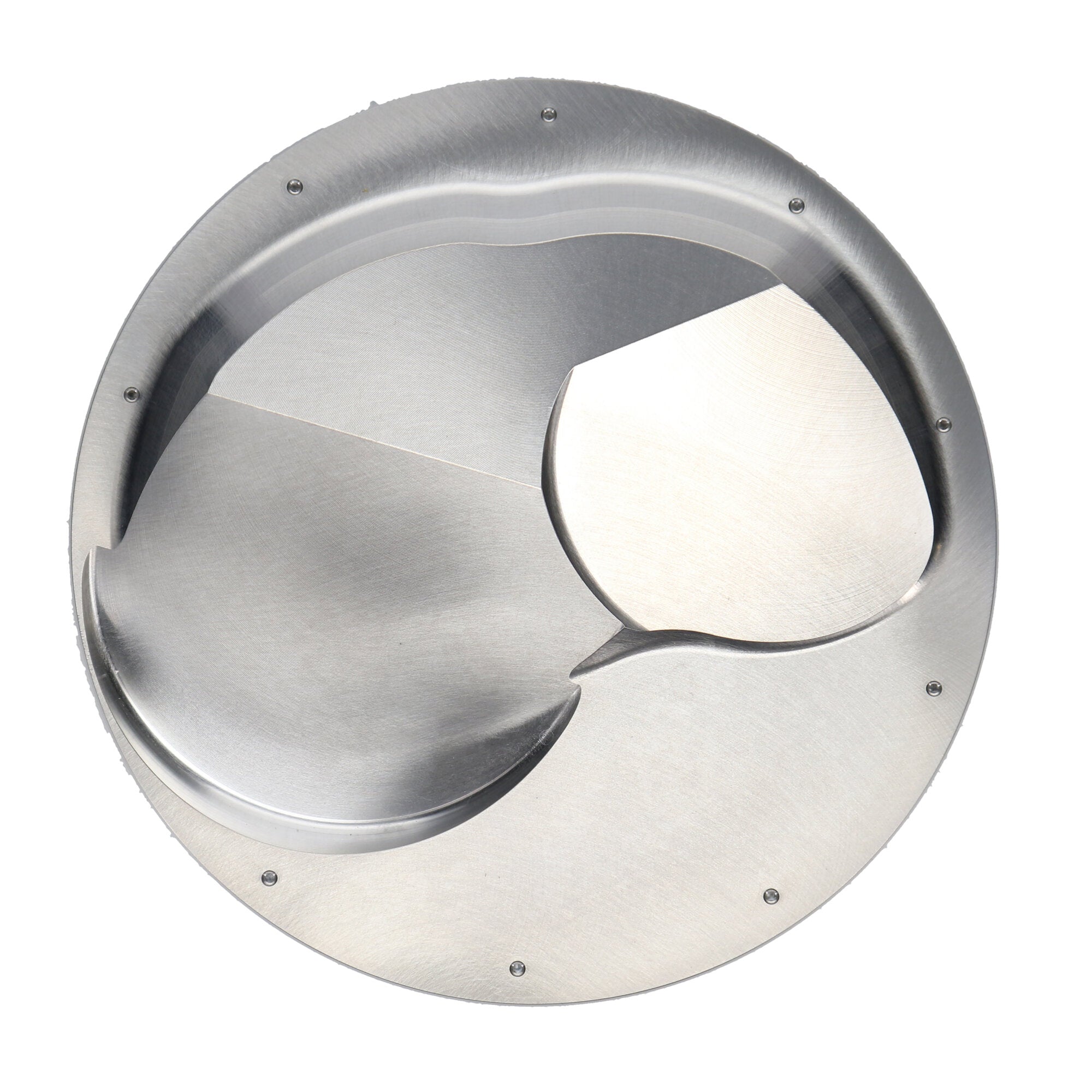

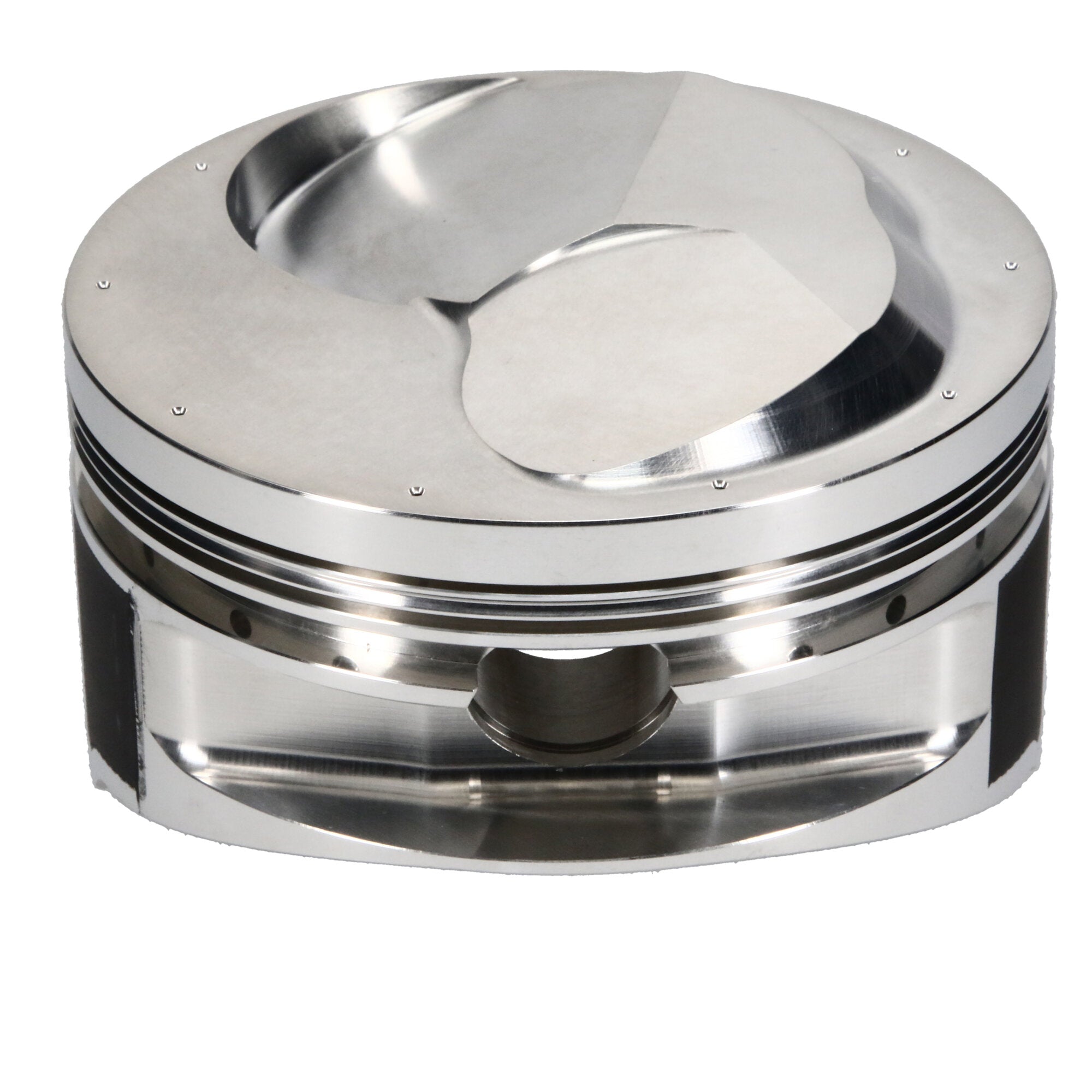

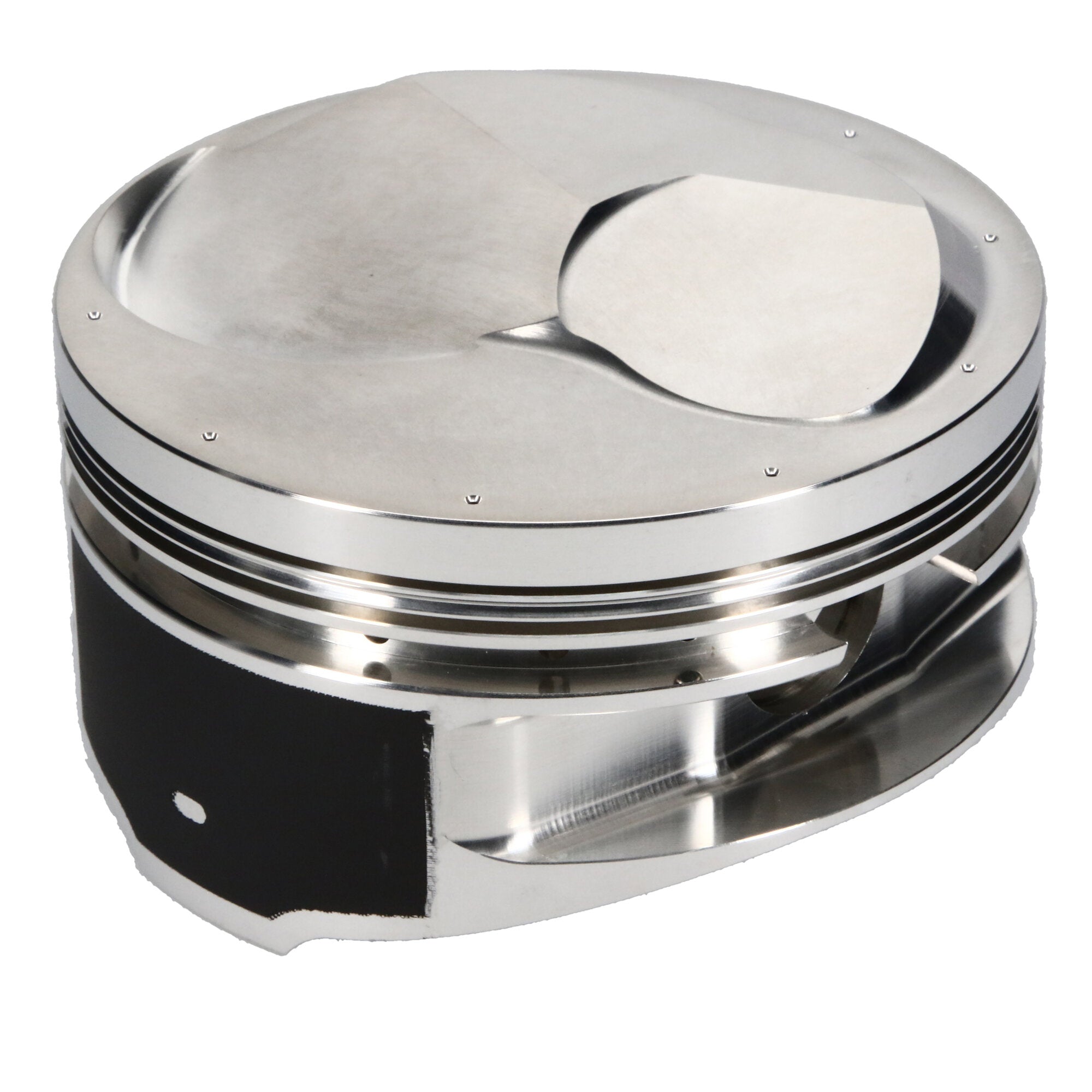

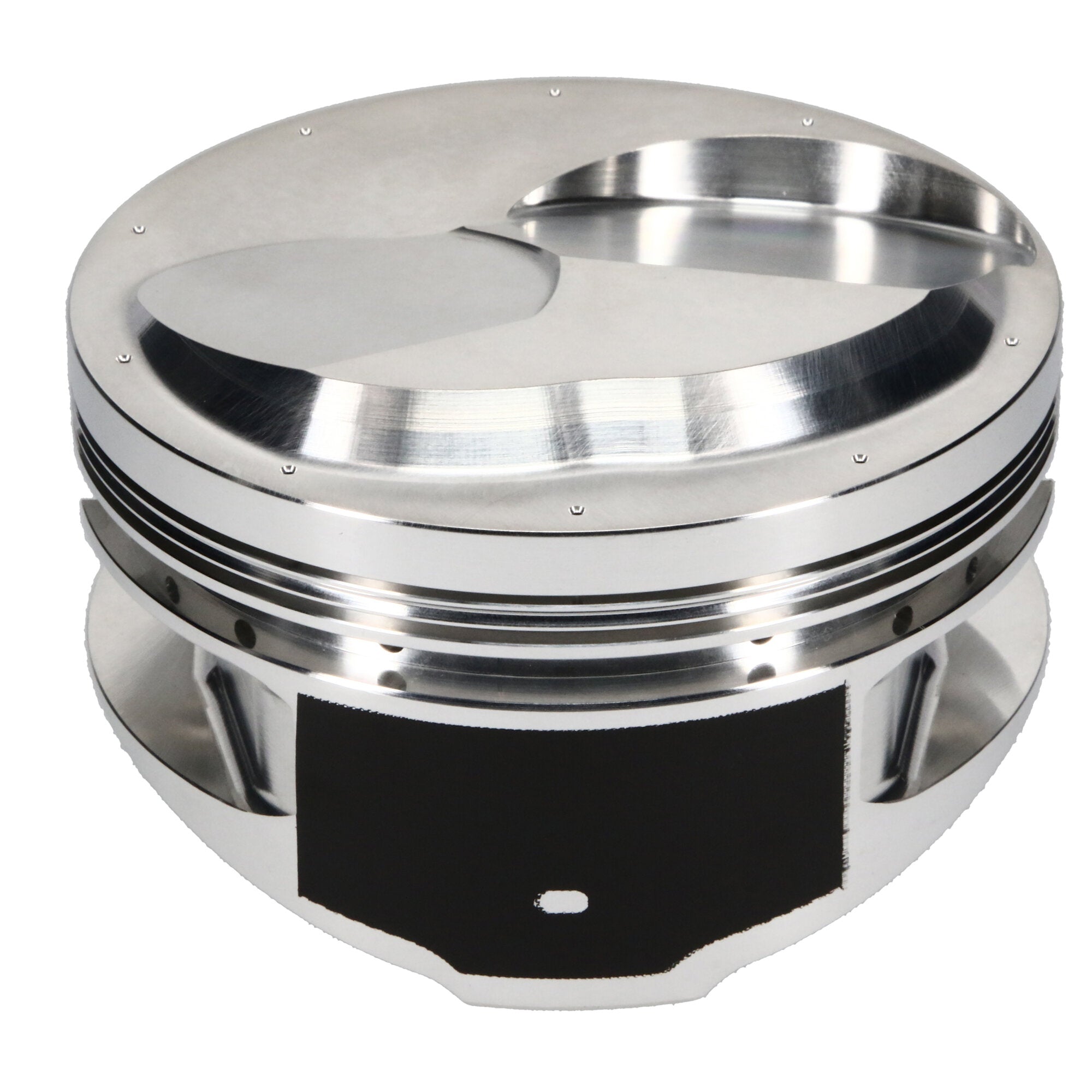

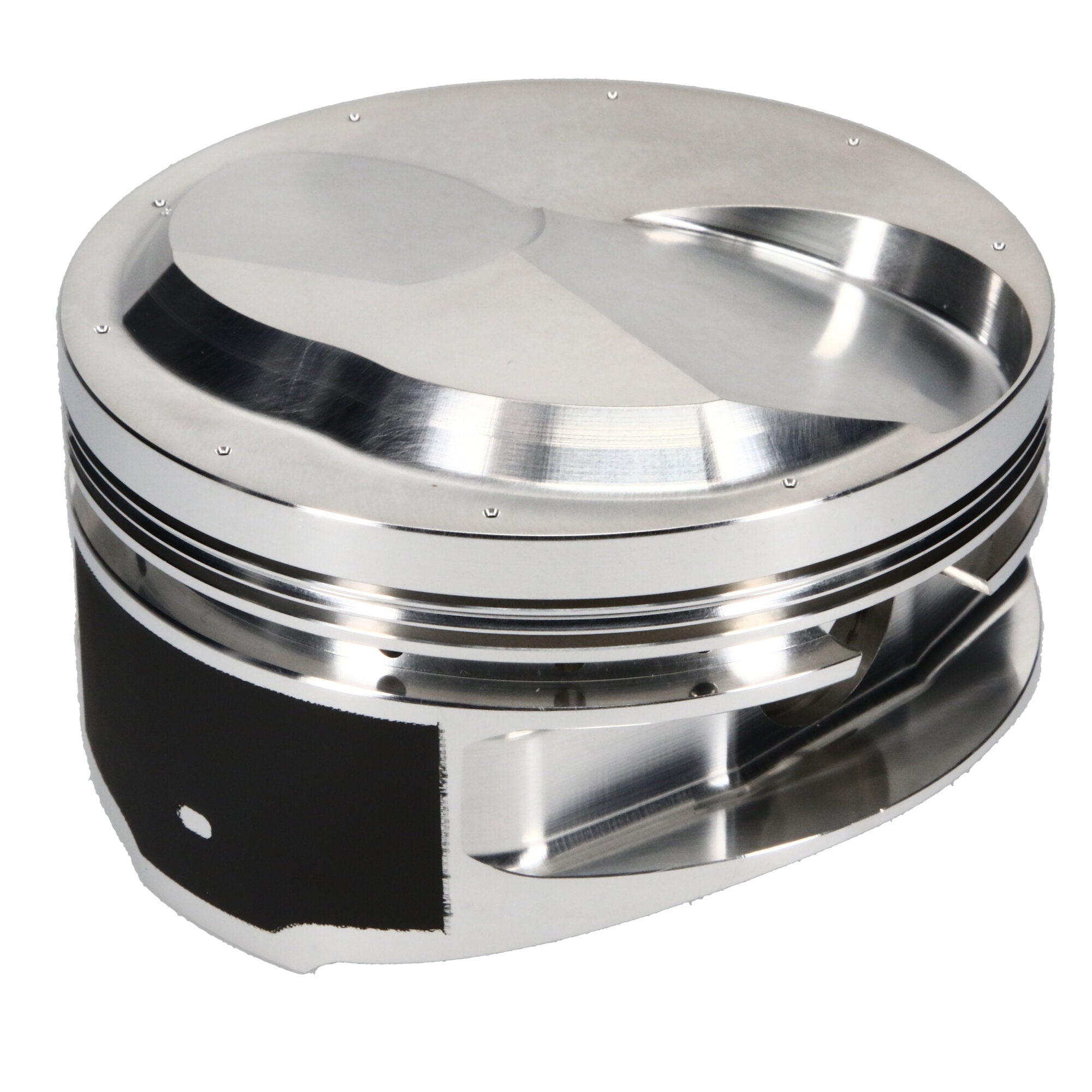

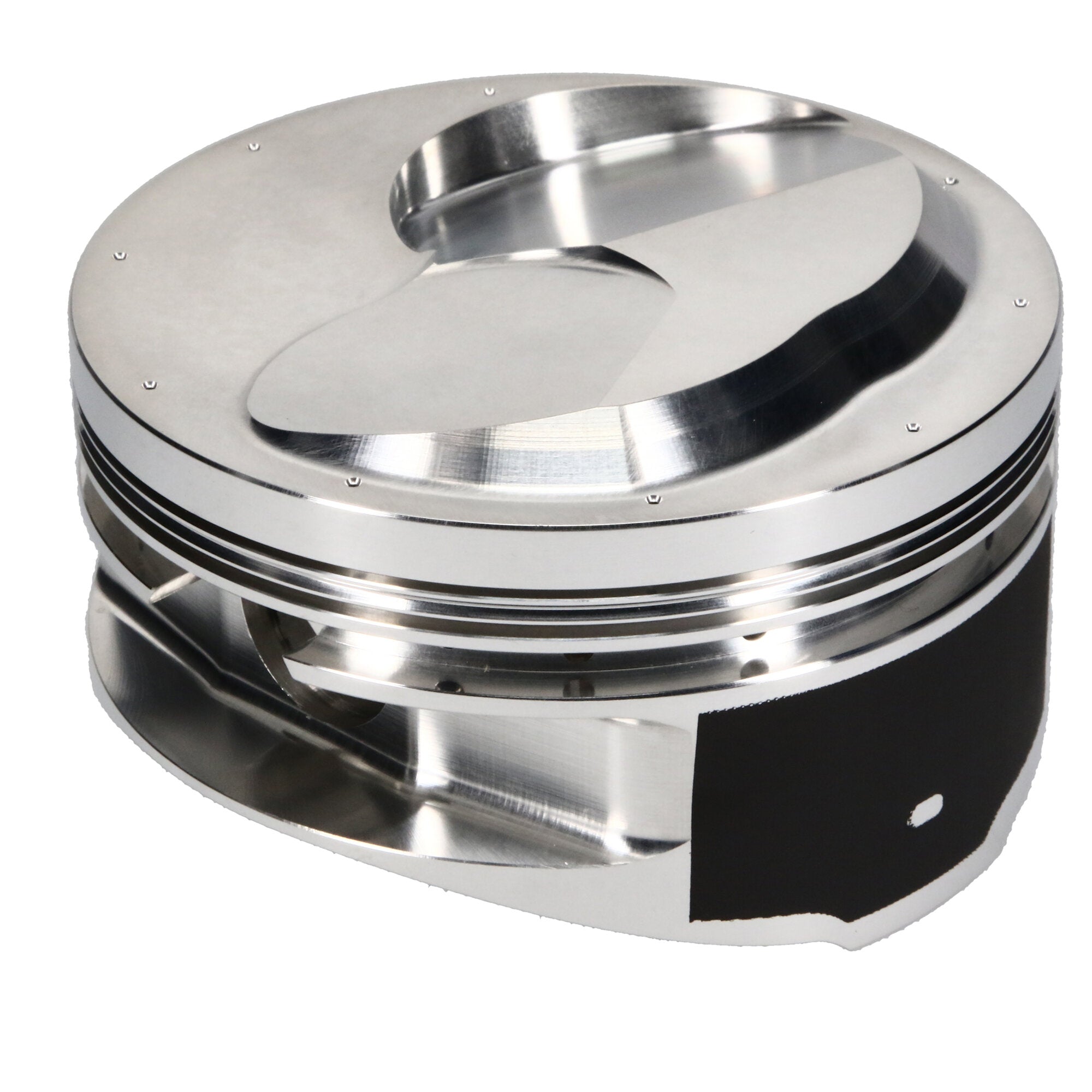

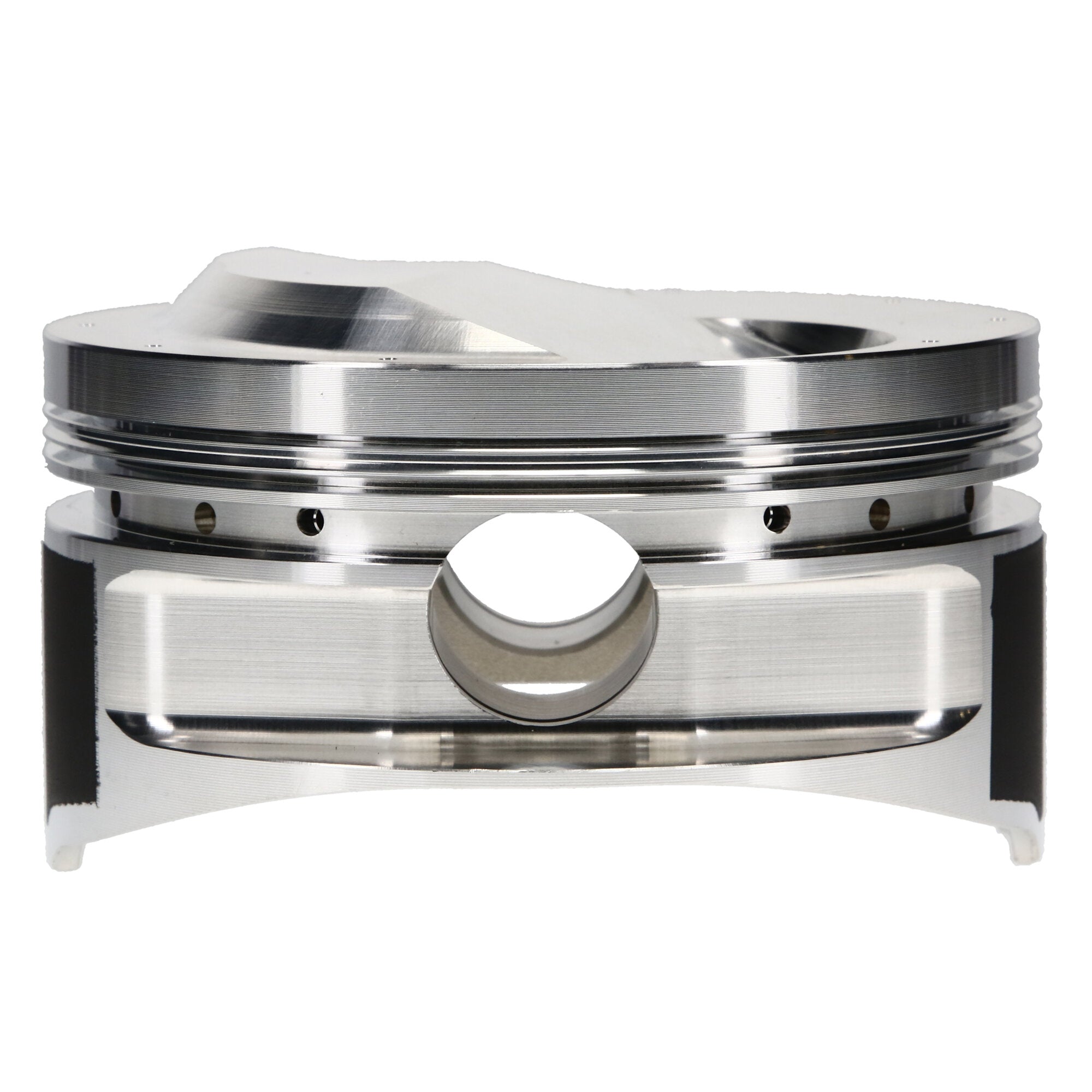

JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_DES |

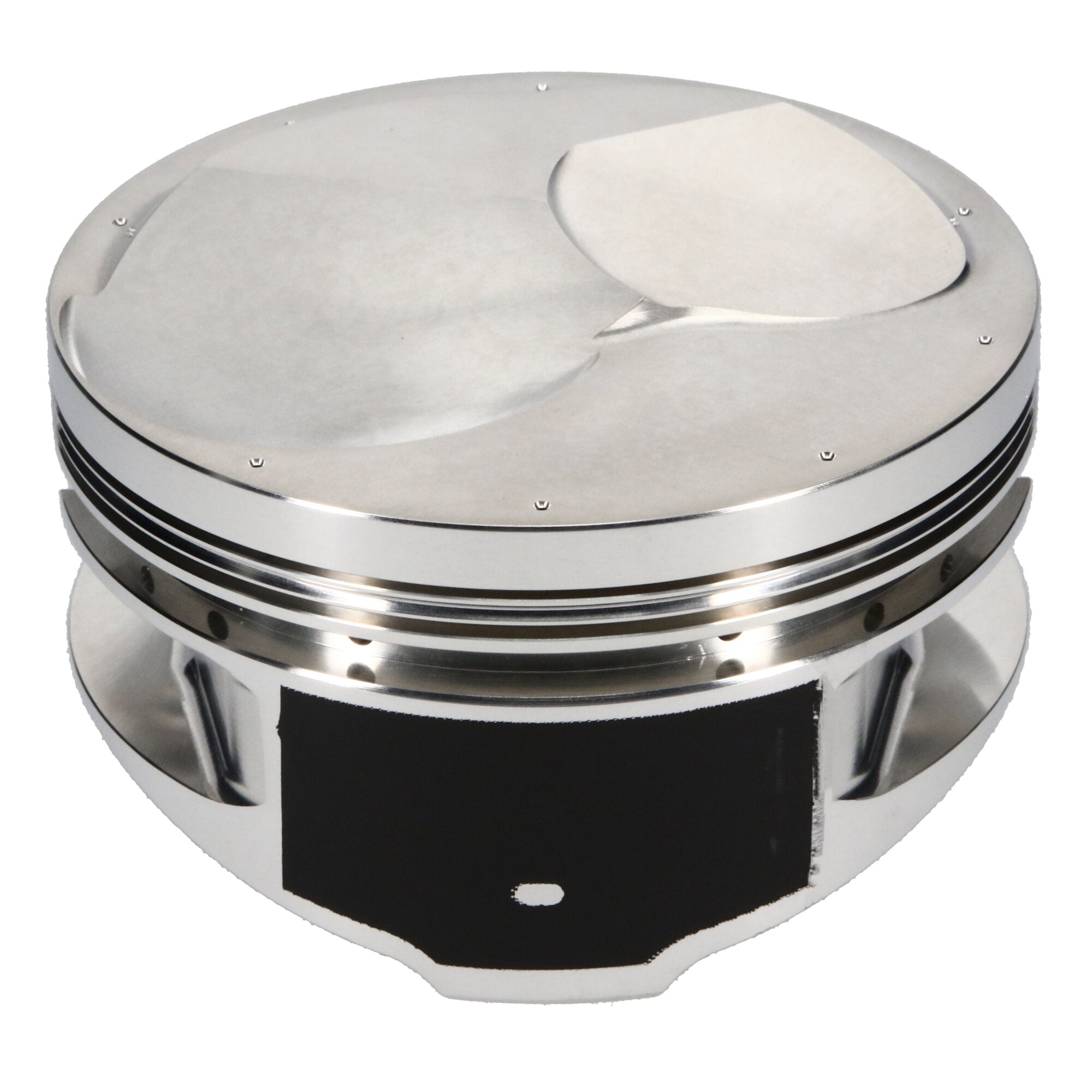

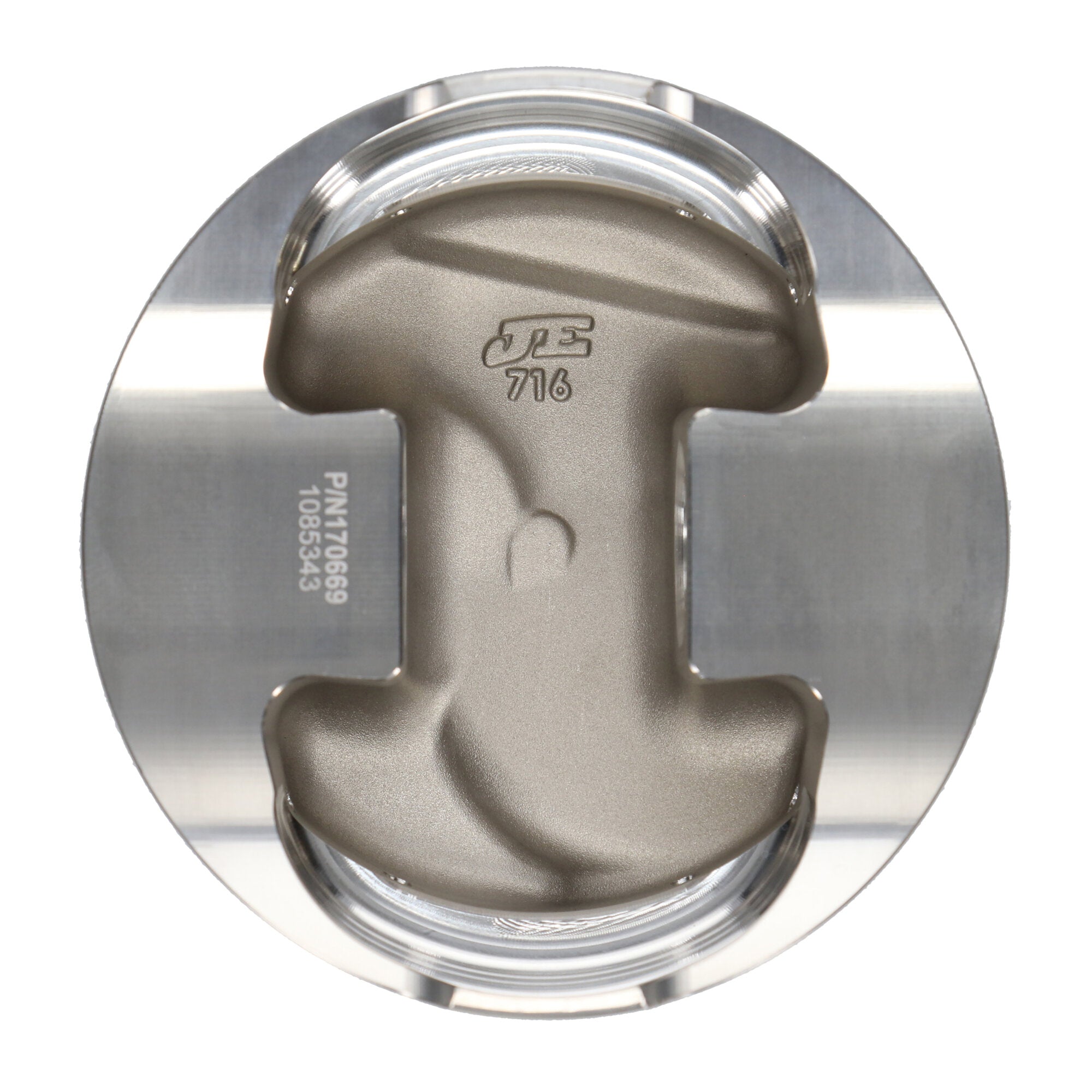

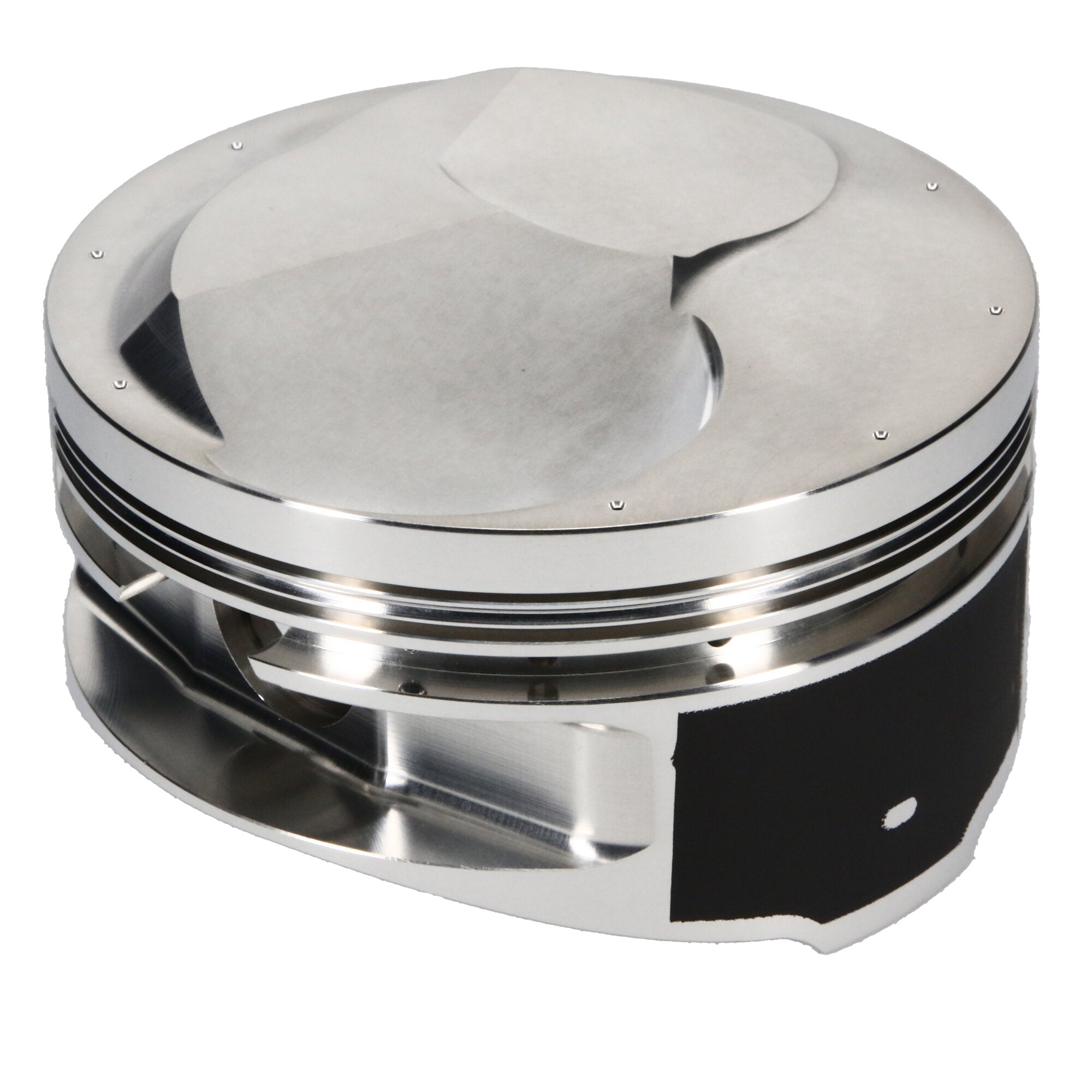

Piston Set, 2618, Dome, 4.600 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.600 Bore, Dome, Set of 8 |
| Wrist Pin Length |
2.930 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
No |
| Piston Average Weight |
603 |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Piston Material |
2618 |
| Piston Volume |
13.00 |
| Piston Pin Length |
2.930 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.120 in. CH, 13.00 CC |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-2930-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Ringset Included |
No |
| Piston Pin Material |
5115 |
| Cylinder Head |
BIG CHIEF |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Add-On |
J200U8-4600-5 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Bore Diameter |
4.600 |
| Top Compression Ring Thickness |
0.0436 |
| Make |
CHEVROLET |
| Piston Head Type |
Dome |
| Compression Height |
1.120 |
| Piston Pin Outside Diameter |
0.990 |
| Product Market |
Domestic |
| Engine |
Big Block |
| Engine Type |
ICE |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.218 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
