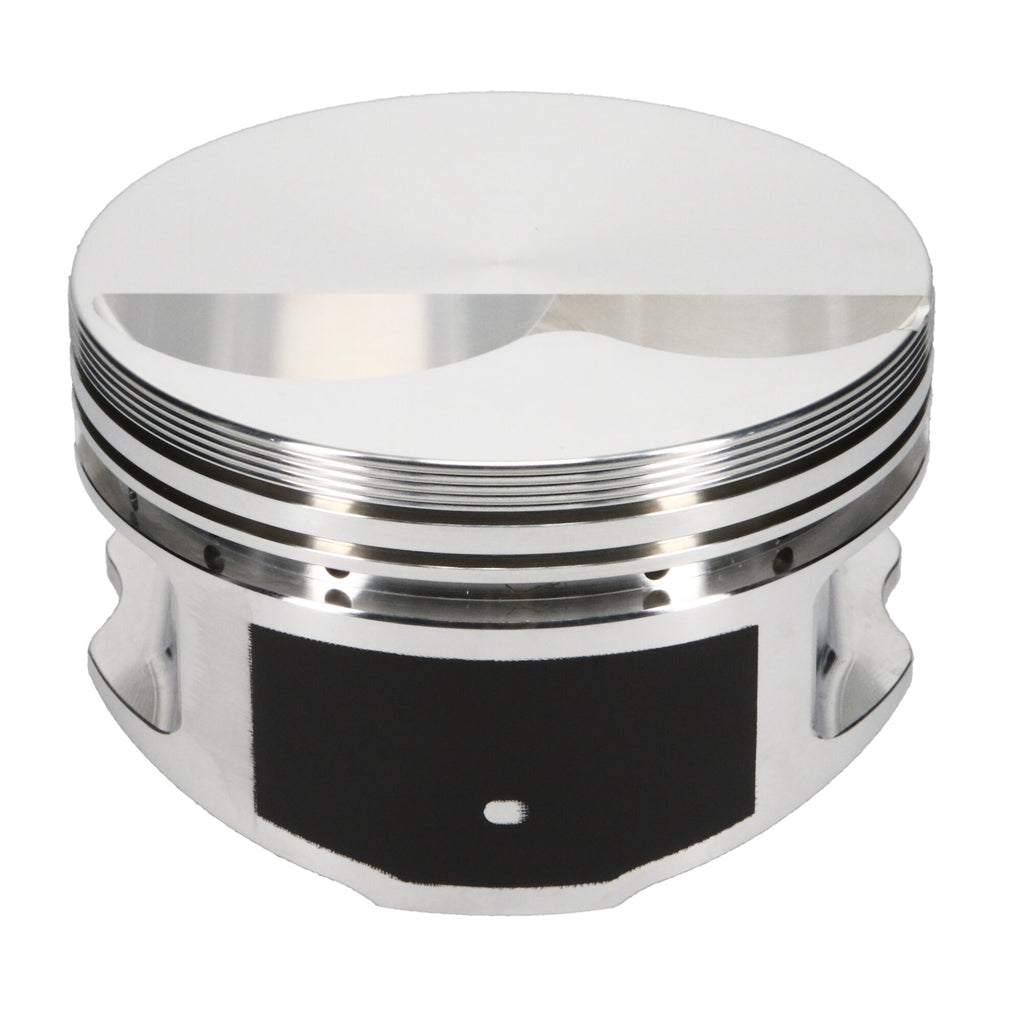

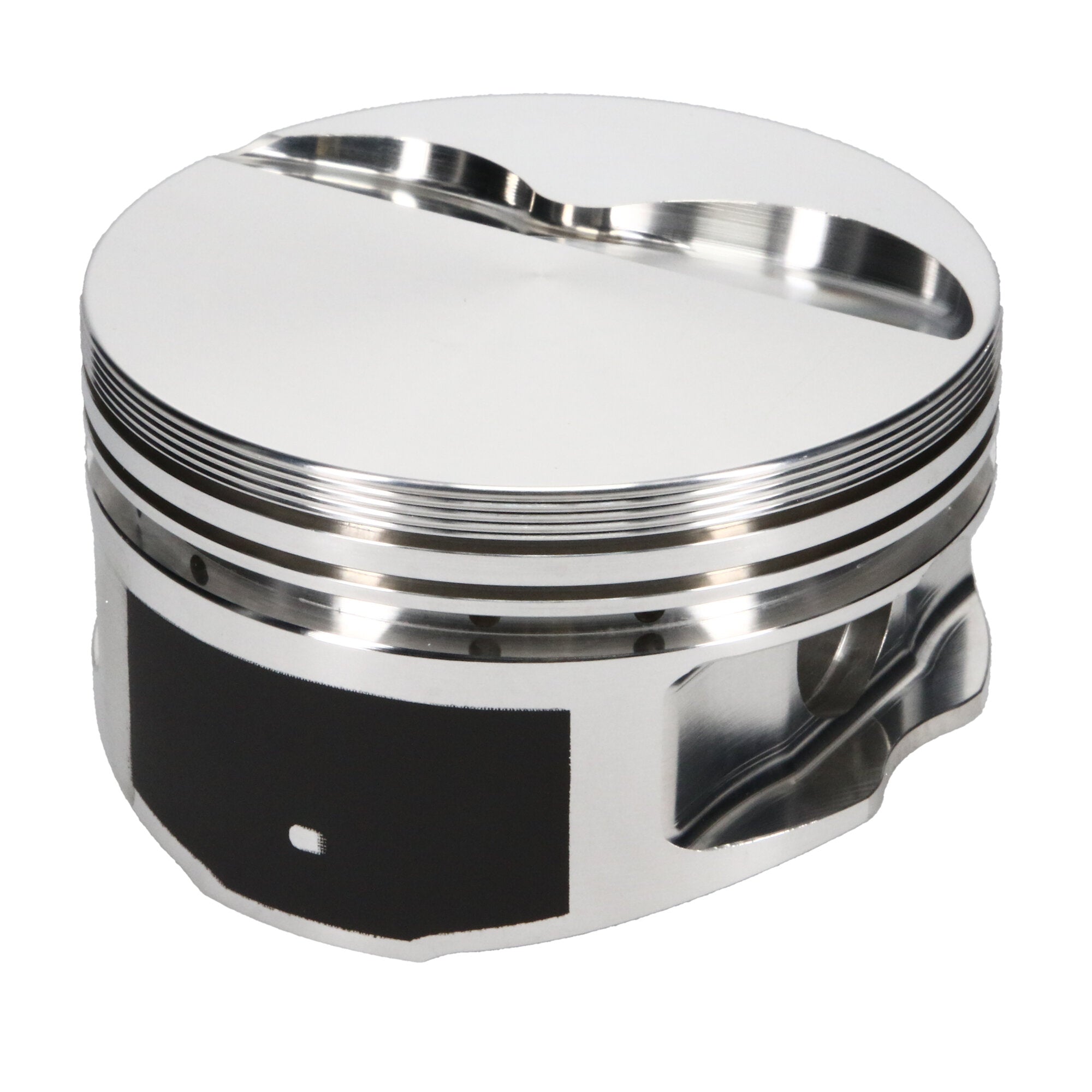

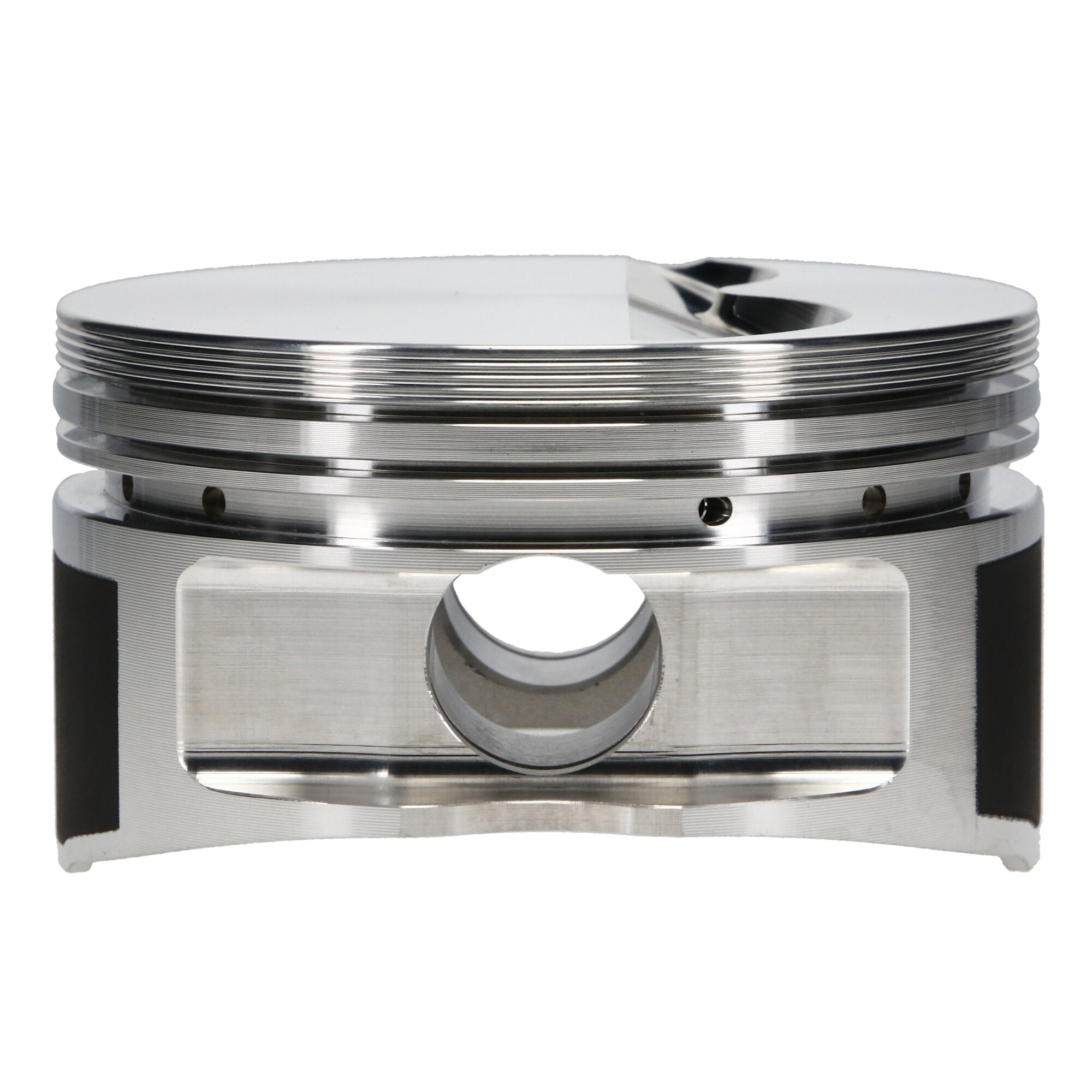

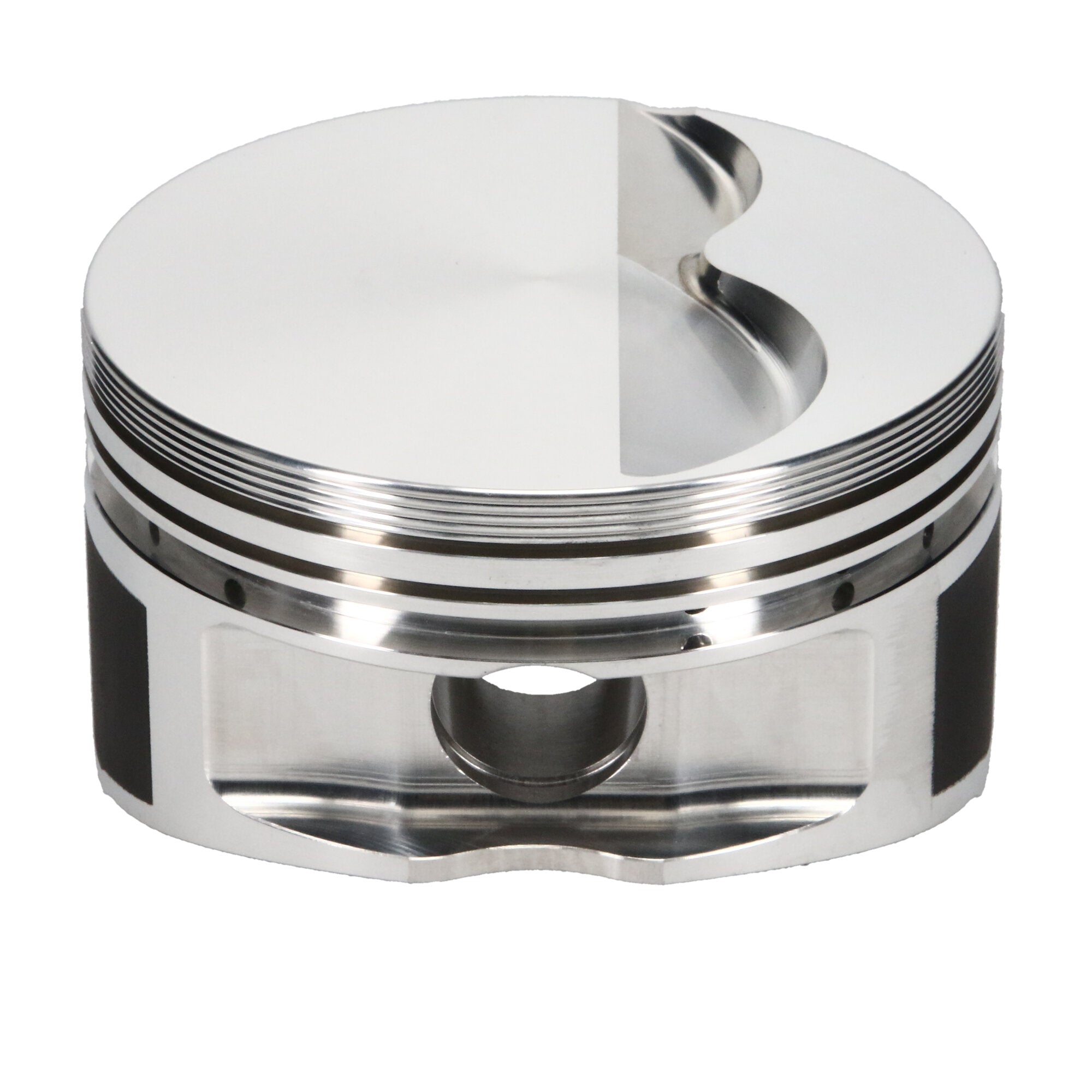

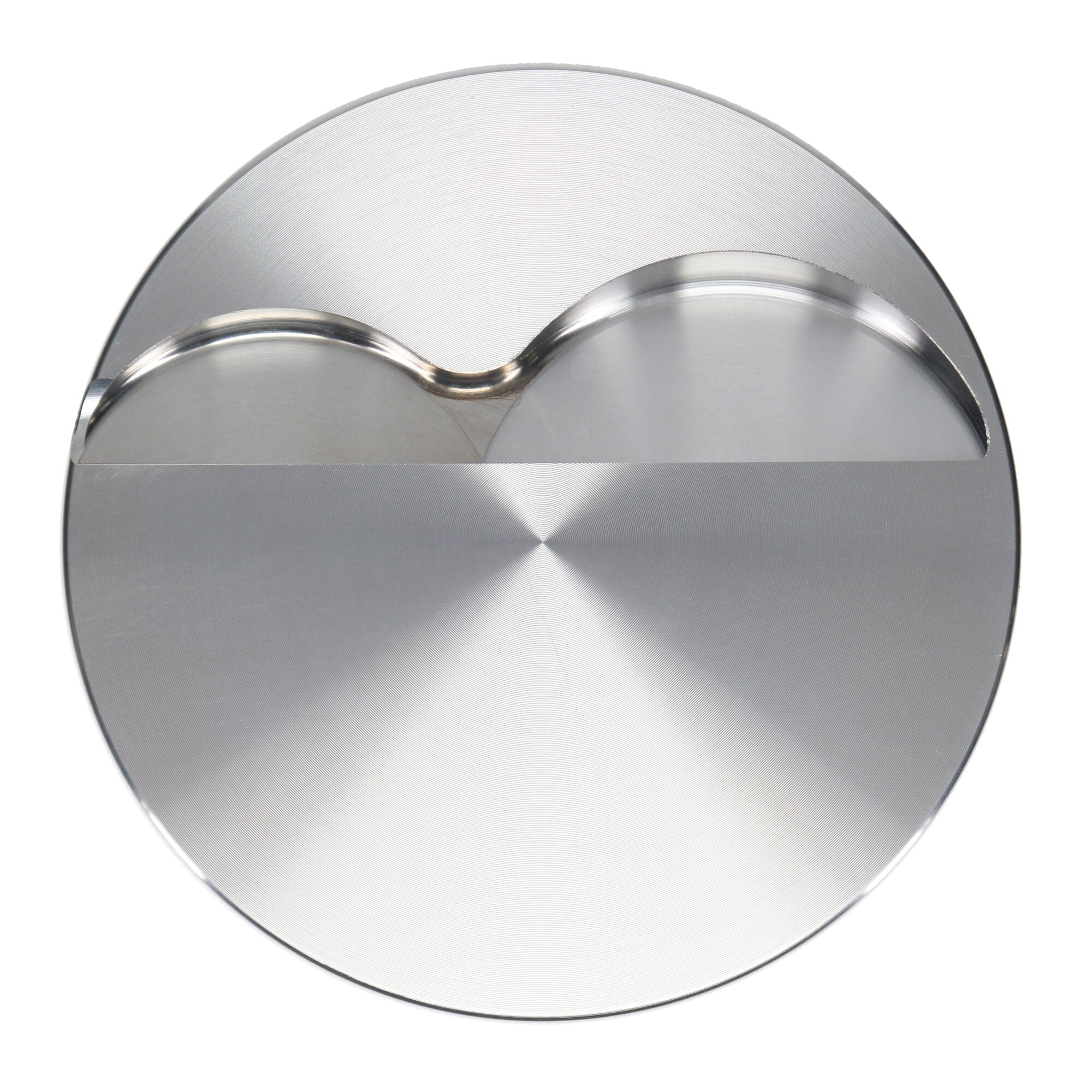

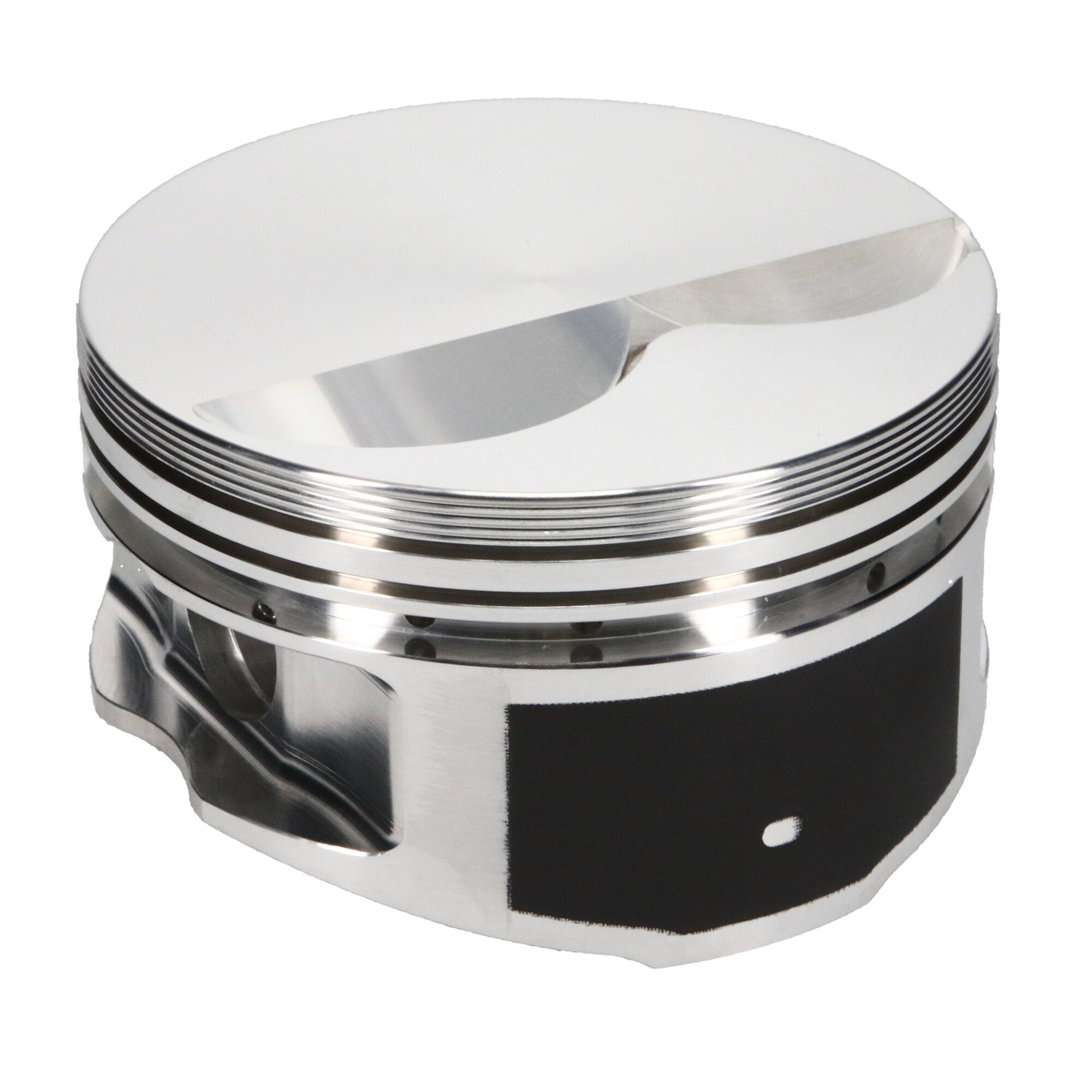

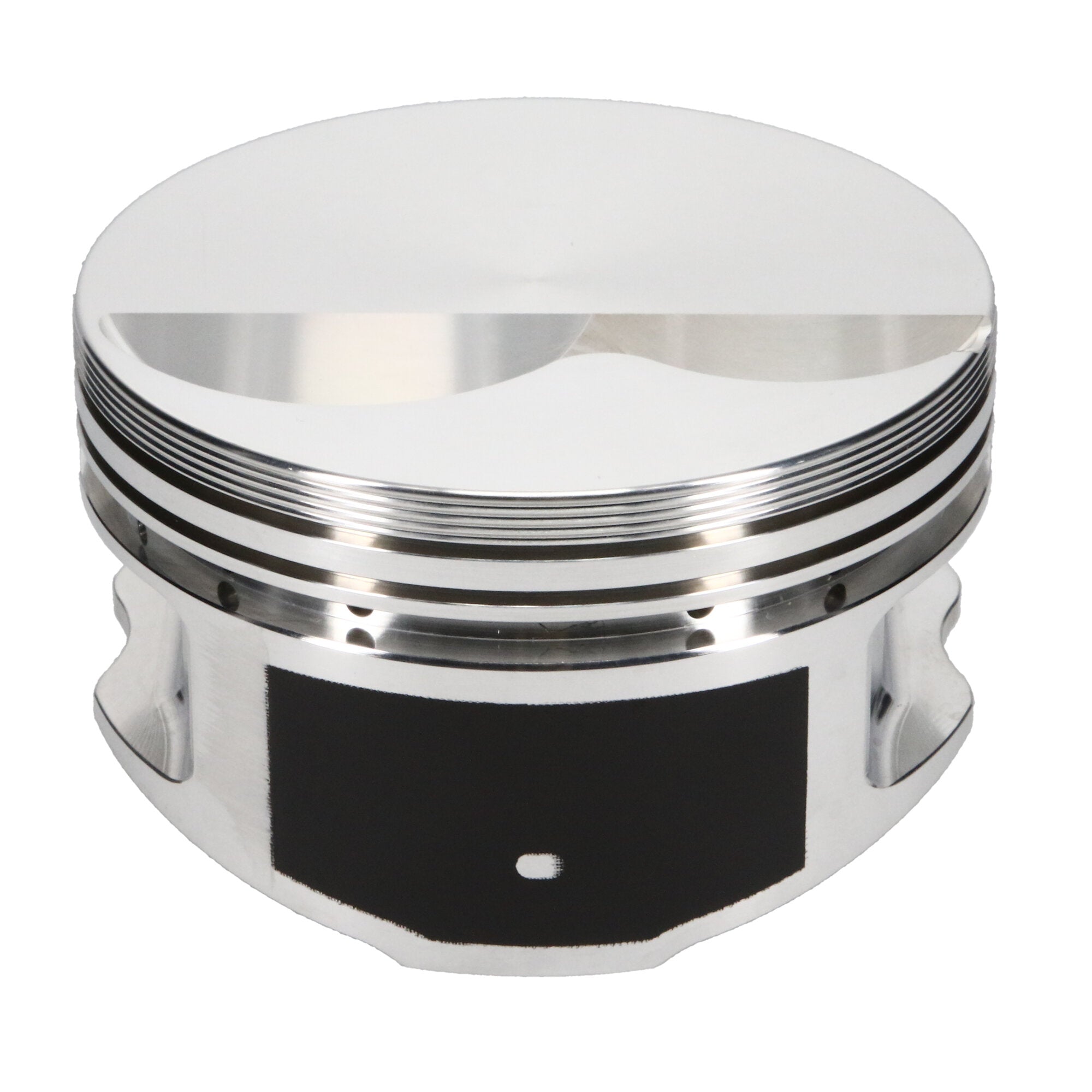

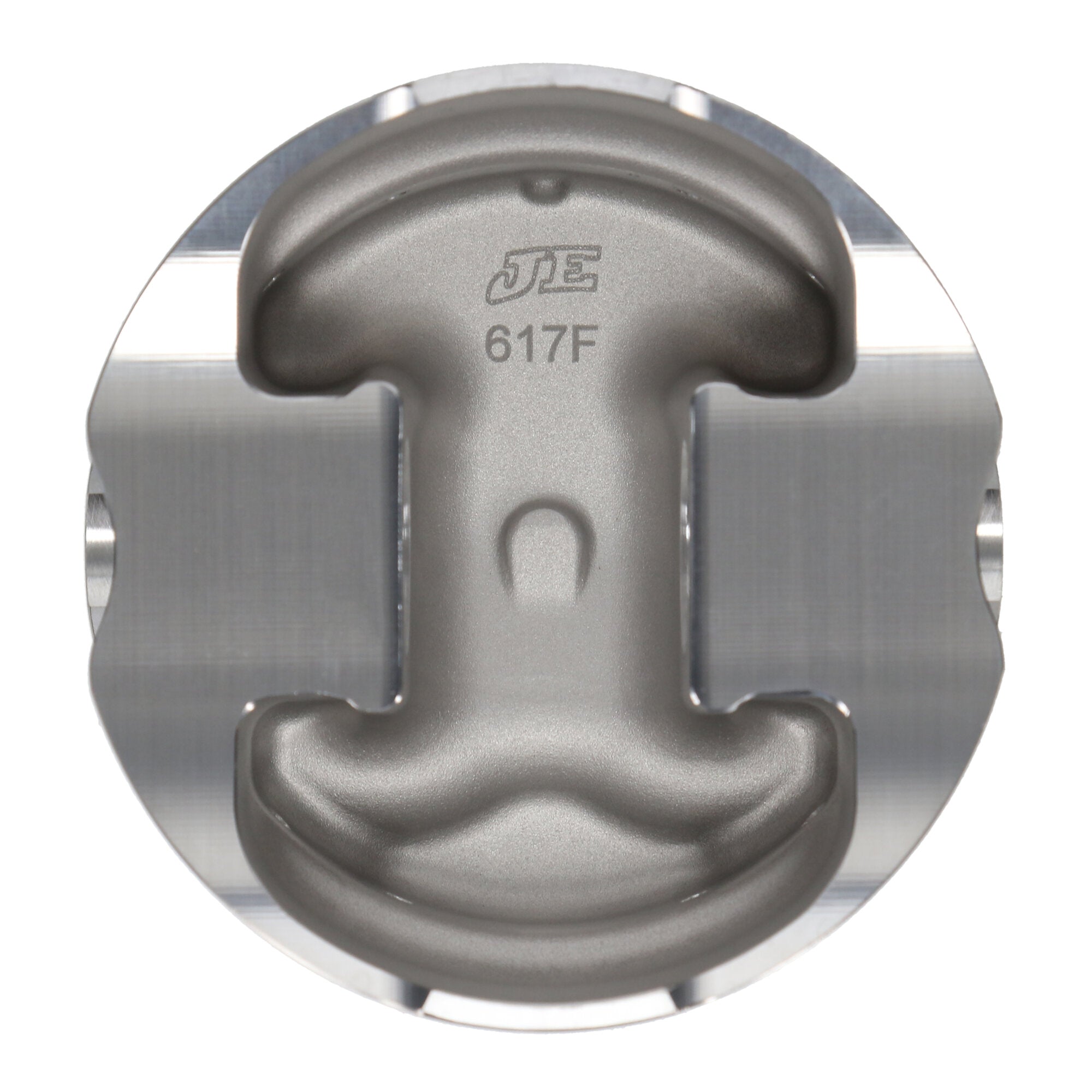

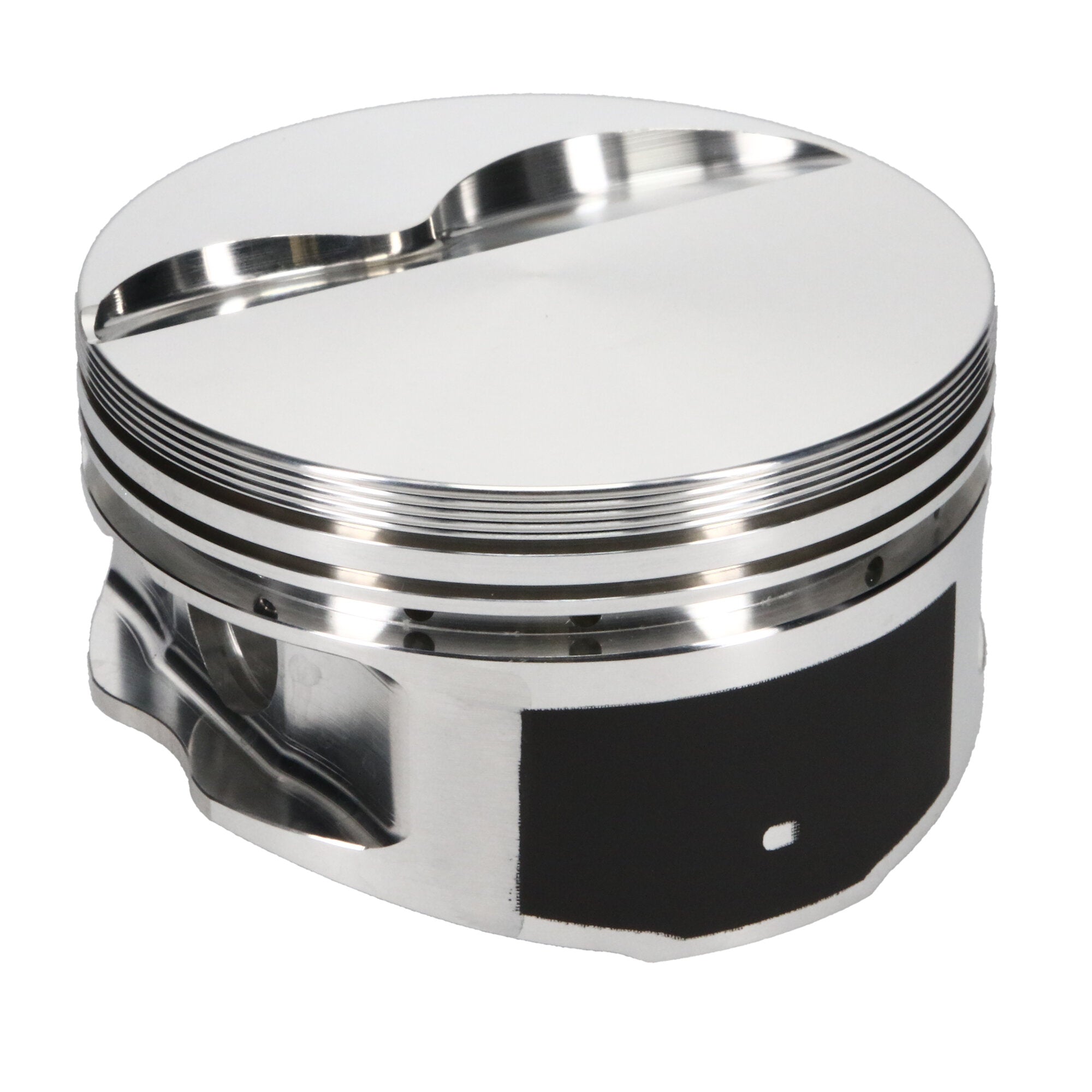

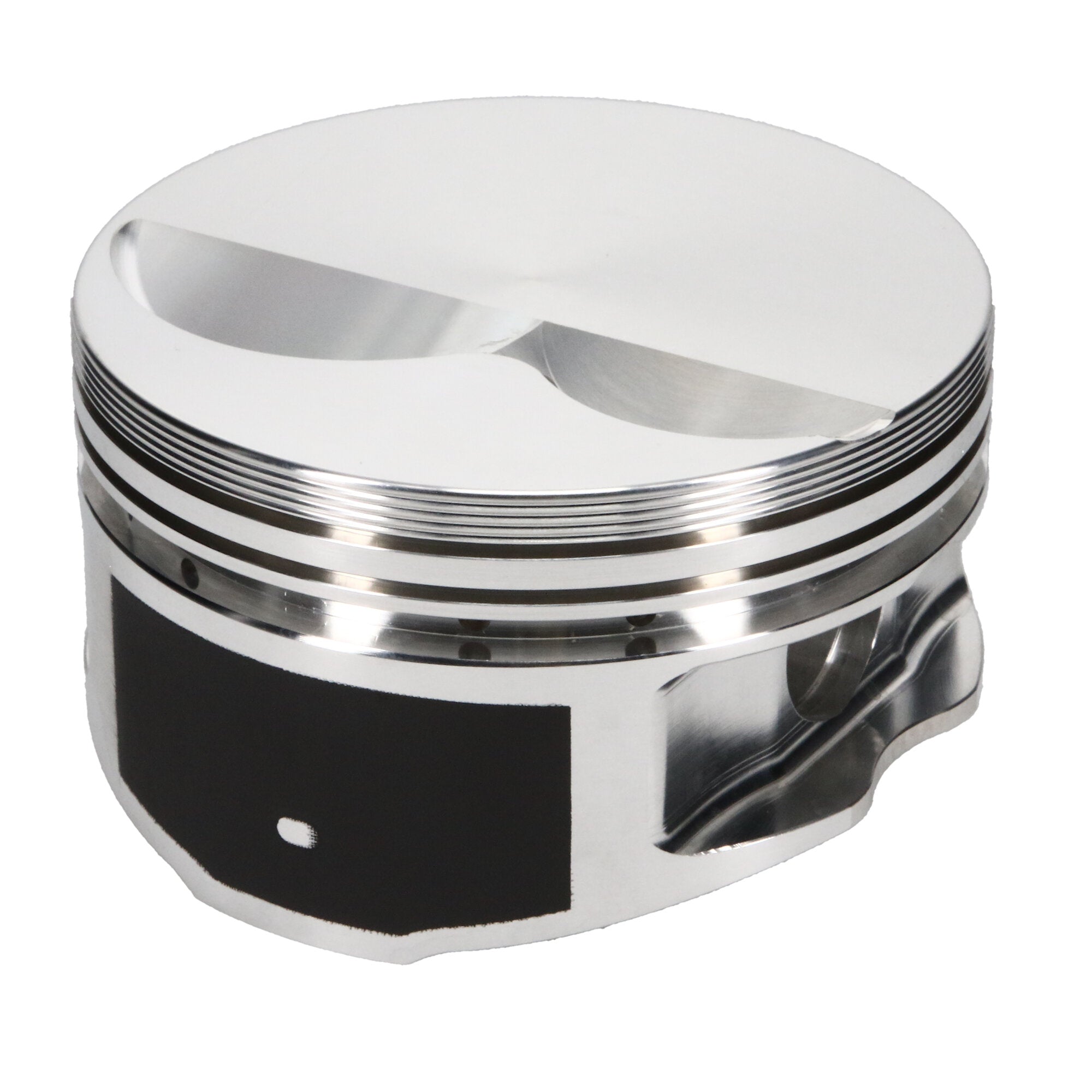

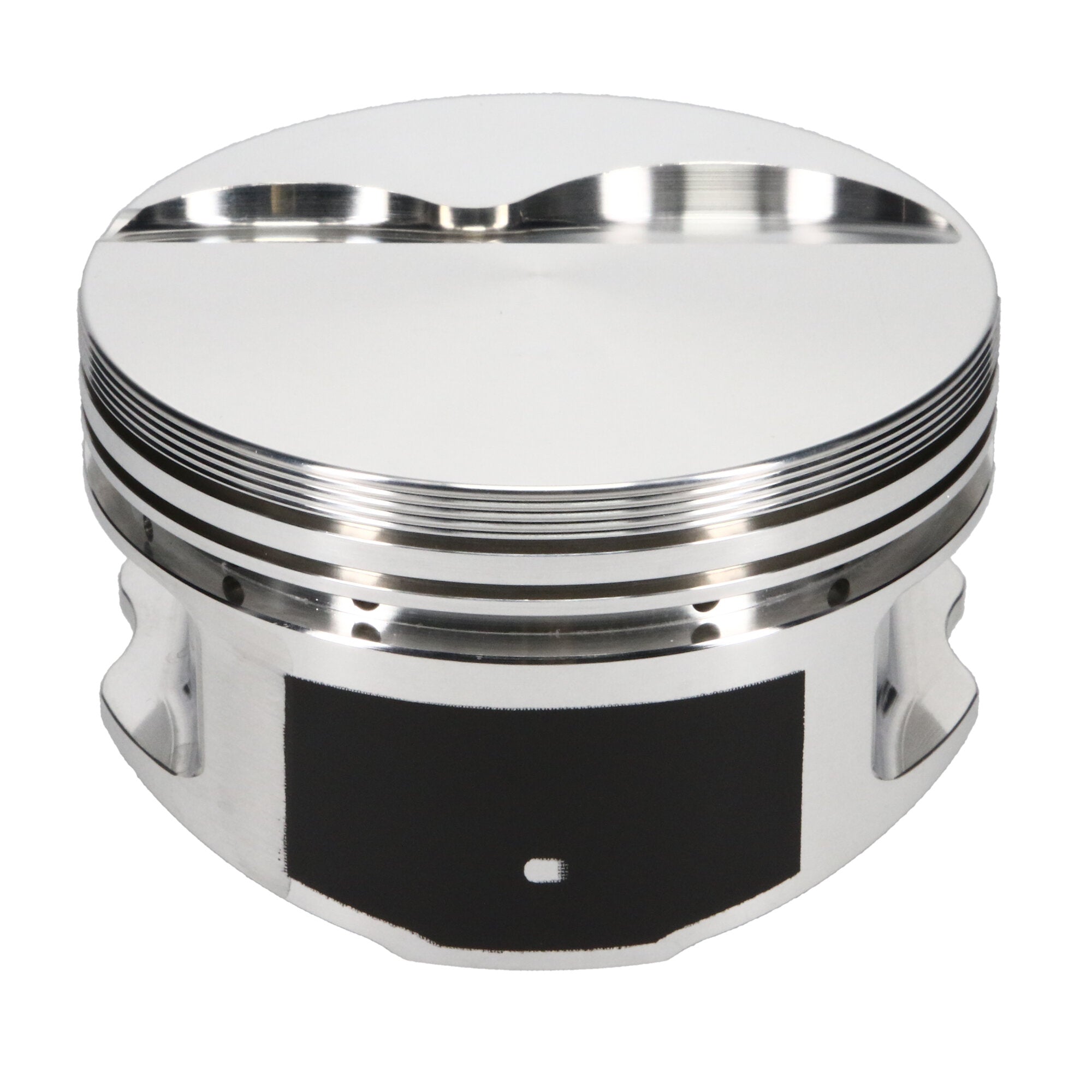

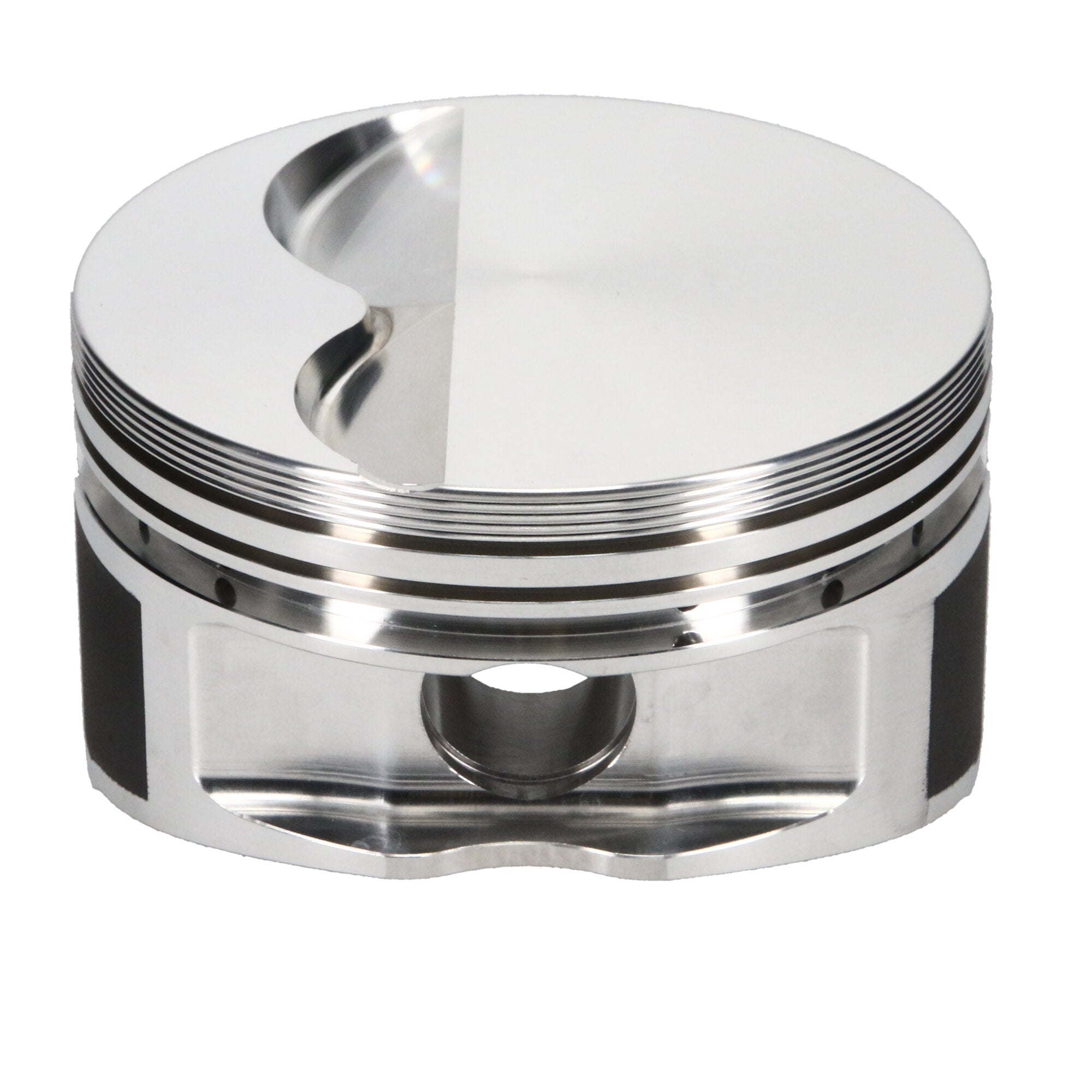

JE Pistons 170232S Piston Single, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_170232S
Engine Piston
$321.46
customers are viewing this product
JE Pistons 366400S Piston Single, 4032, Inv Dome/Dish, 4.360 Bore, 1.815 CD, 0.990 Pin, Set of 1.
JE Pistons 366400S Piston Single, 4032, Inv Dome/Dish, 4.360 Bore, 1.815 CD, 0.990 Pin, Set of 1.
$229.56
JE Pistons 361463S Piston Single, 2618, Inv Dome/Dish, 3.406 Bore, 1.331 CD, 0.866 Pin, Set of 1.
JE Pistons 361463S Piston Single, 2618, Inv Dome/Dish, 3.406 Bore, 1.331 CD, 0.866 Pin, Set of 1.
$526.15
JE Pistons 170232S Piston Single, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Ford Small Block 351W Windsor
Description_DEF Engine Piston
Description_EXT JE, Ford, Small Block Ford, 4.030 in. Bore, 1.280 CD, Flat Top, Single Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 1.
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_TLE Ford 351 Windsor, 4.030 Bore, Flat, Set of 1
Prop 65 - Short Label Prop 65 Warning Label.JPG
Out of Stock Message Call for Availability
Add-On J10008-4030-5
Prop 65 Yes/No Yes
Add-On 927-042-CS
Add-On 927-2750-15-51S
Cylinder Head SMALL BLOCK FORD 20 DEG
Industry Automotive
Prop 65 (C, R or CR) CR
Ringset Included No
Second Compression Ring Thickness 0.0640
Piston Material 2618
Make - Web Ford
Engine Small Block
Piston Pin Length 2.750
Piston Pin Wall Thickness 0.150
Bore Diameter 4.030
Make FORD
Oil Ring Thickness 0.188
Title - Web JE Pistons Ford Small Block Piston - 4.030 in. Bore - 1.280 in. CH, -5.00 CC
Engine Type ICE
Wrist Pin Outer Diameter 0.927
Wrist Pin Wall Thickness 0.150
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Piston Head Type Flat
Piston Pin Outside Diameter 0.927
Product Market Domestic
Product Type Engine Piston
Forging Type Round
Title JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston
Piston Pin Material 5115
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Average Weight 478
Top Compression Ring Thickness 0.0640
Compression Height 1.280
Piston Quantity 1
Piston Volume -5.00
Piston Series JE Pistons
Engine - Web Small Block
Wrist Pin Length 2.750
Ring Set Included No
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
