Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

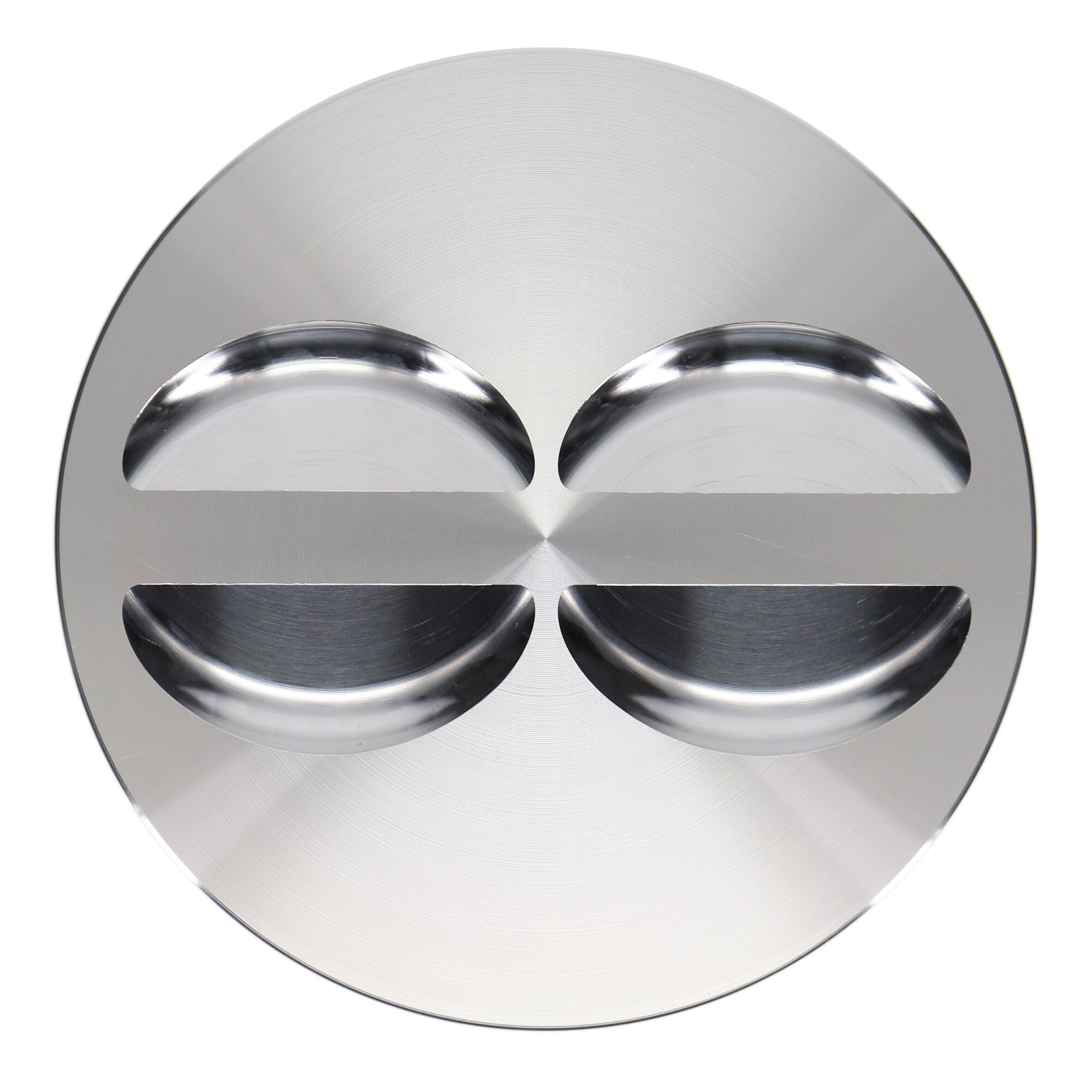

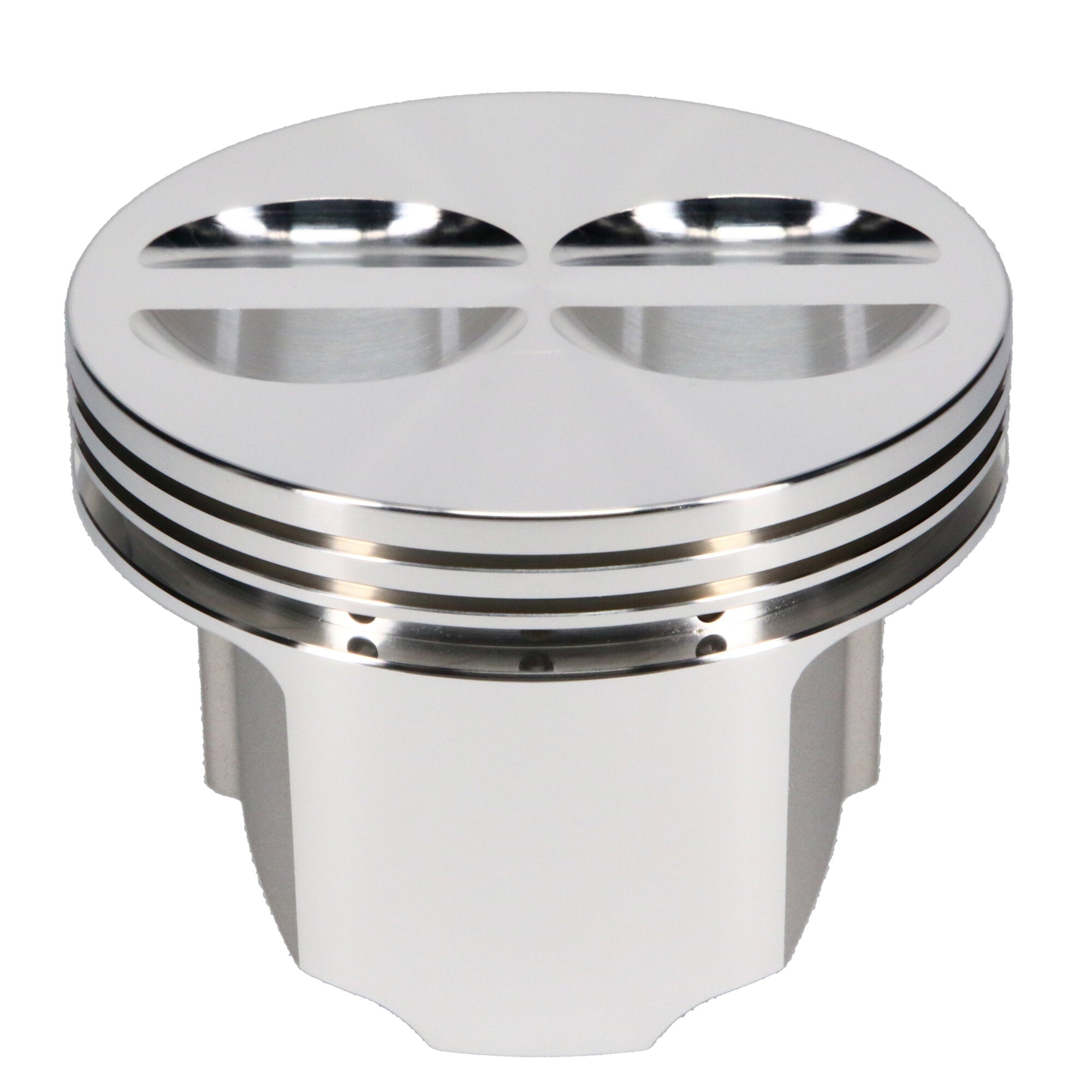

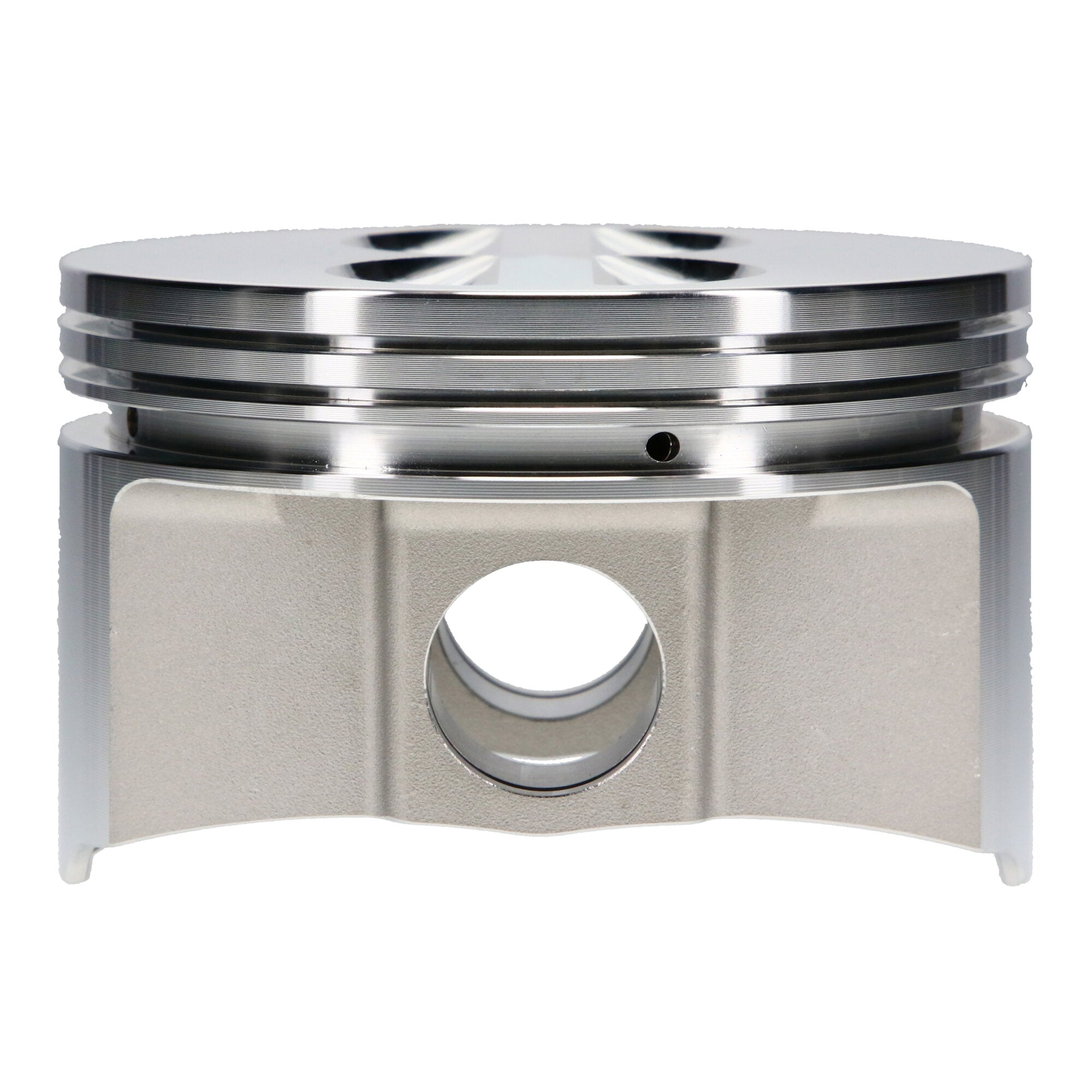

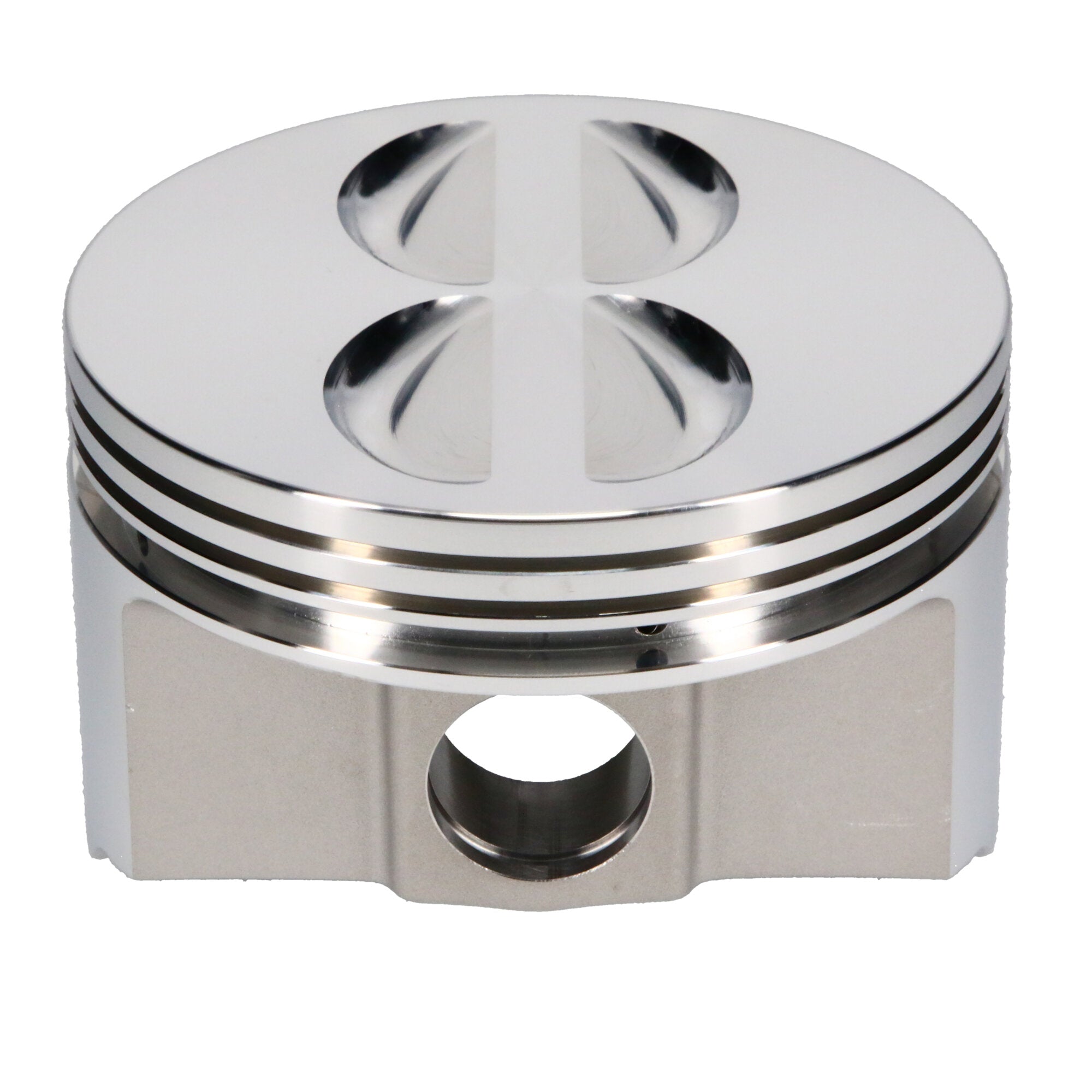

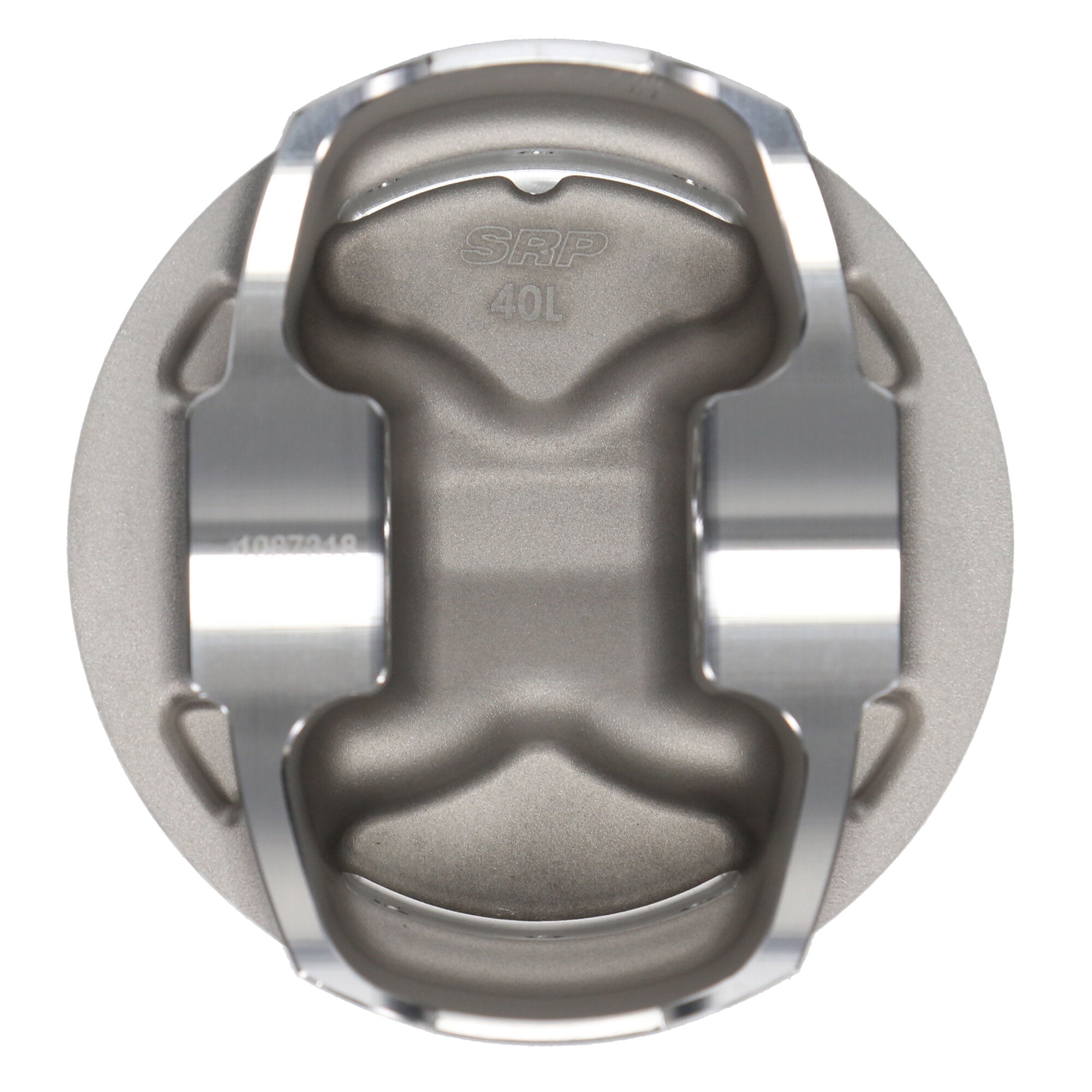

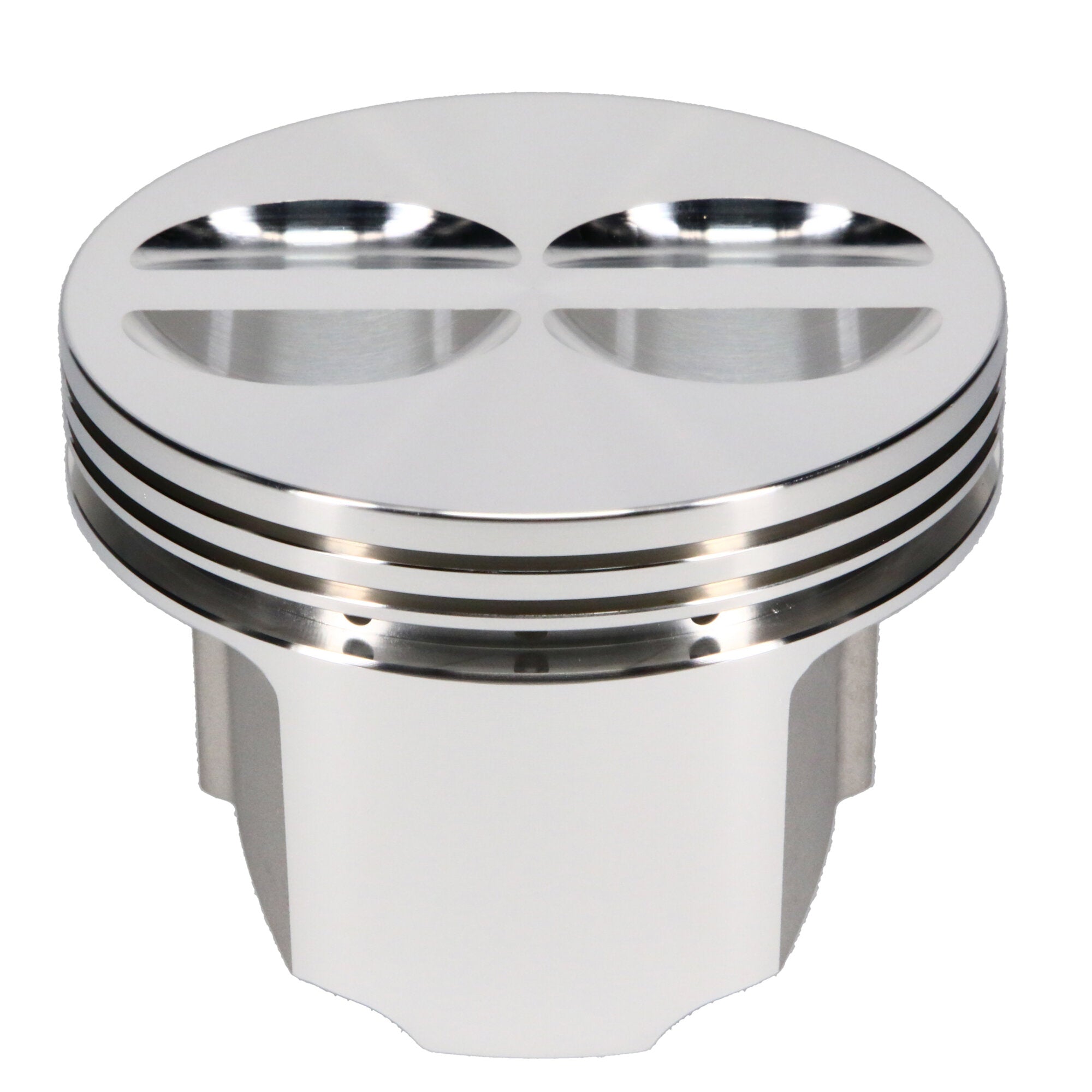

Piston Set, 2618, Flat Top, 4.060 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.060 Bore, Flat, Set of 8 |
| Oil Ring Thickness |
0.188 |
| Engine |
Small Block |
| Ringset Included |
No |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.130 |
| Piston Pin Length |
2.500 |
| Piston Head Type |
Flat |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.130 |
| Make - Web |
Chevrolet |
| Out of Stock Message |
Call for Availability |
| Make |
CHEVROLET |
| Piston Average Weight |
468 |
| Product Market |
Domestic |
| Add-On |
S100S8-4060-5 |
| Piston Series |
SRP |
| Prop 65 Yes/No |
Yes |
| Bore Diameter |
4.060 |
| Add-On |
927-2500-13-51S |
| Piston Volume |
-5.00 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.560 in. CH, -5.00 CC |
| Add-On |
927-042-CS |
| Wrist Pin Length |
2.500 |
| Ring Set Included |
No |
| Title |
SRP - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Cylinder Head |
4-VALVE |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0640 |
| Compression Height |
1.560 |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 (C, R or CR) |
CR |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
