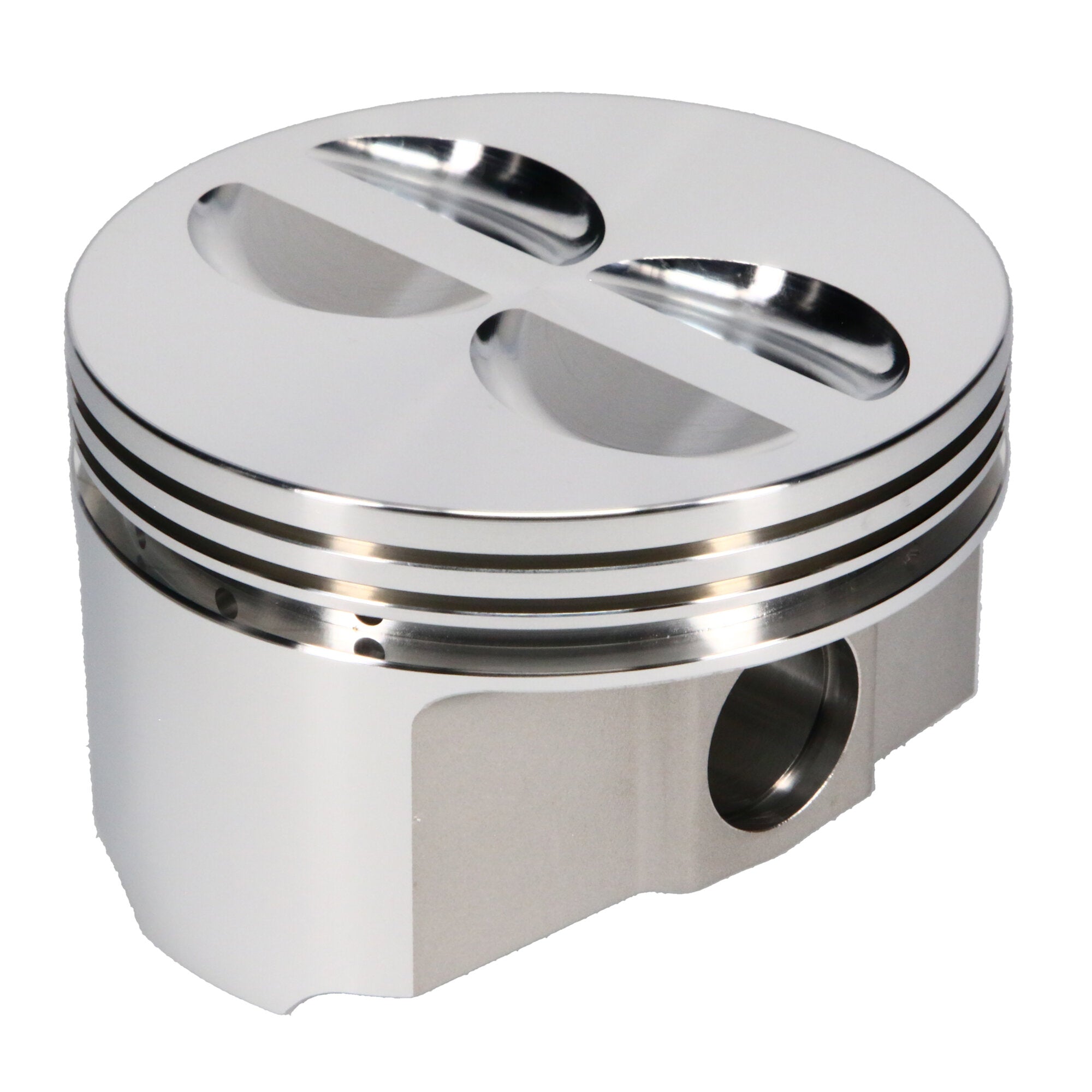

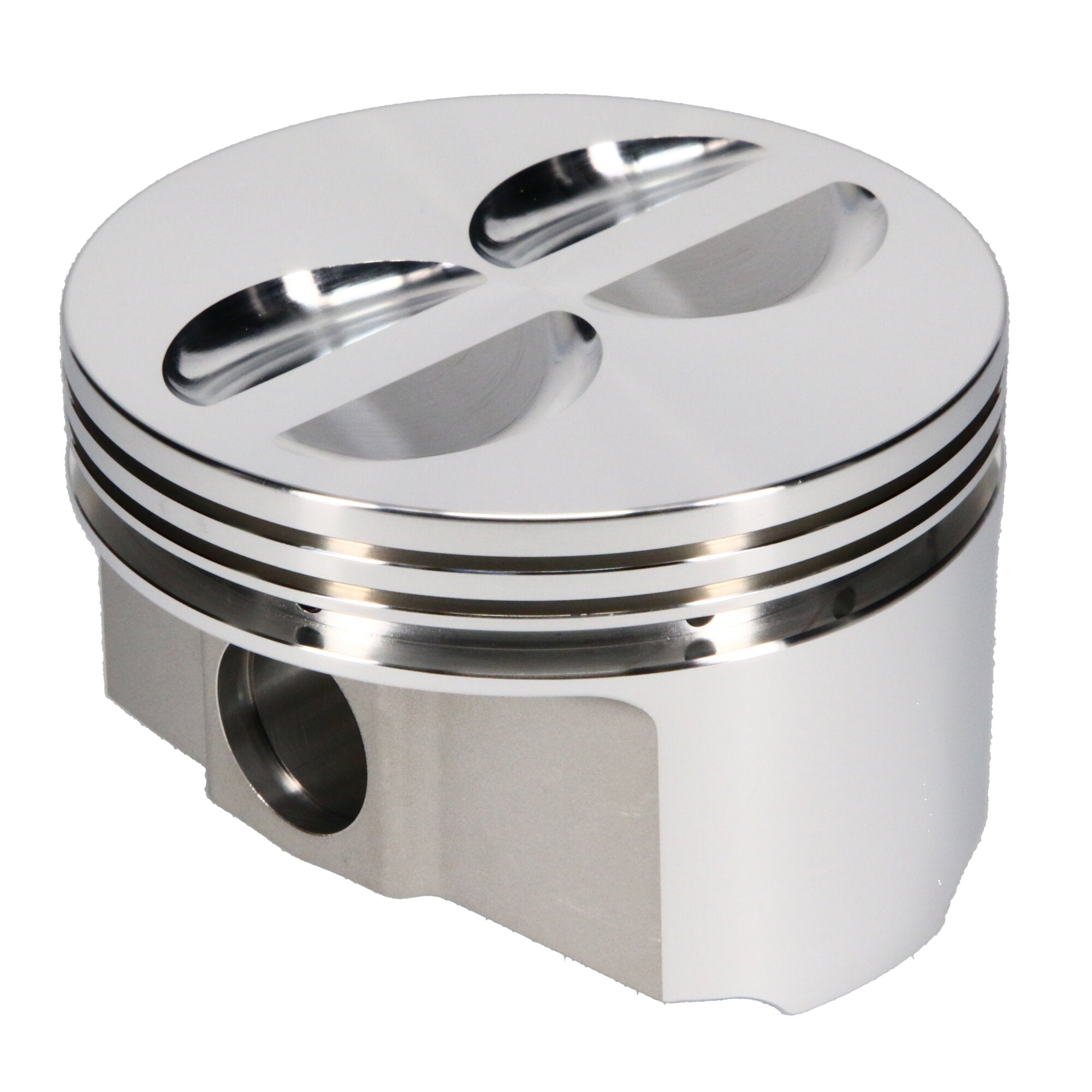

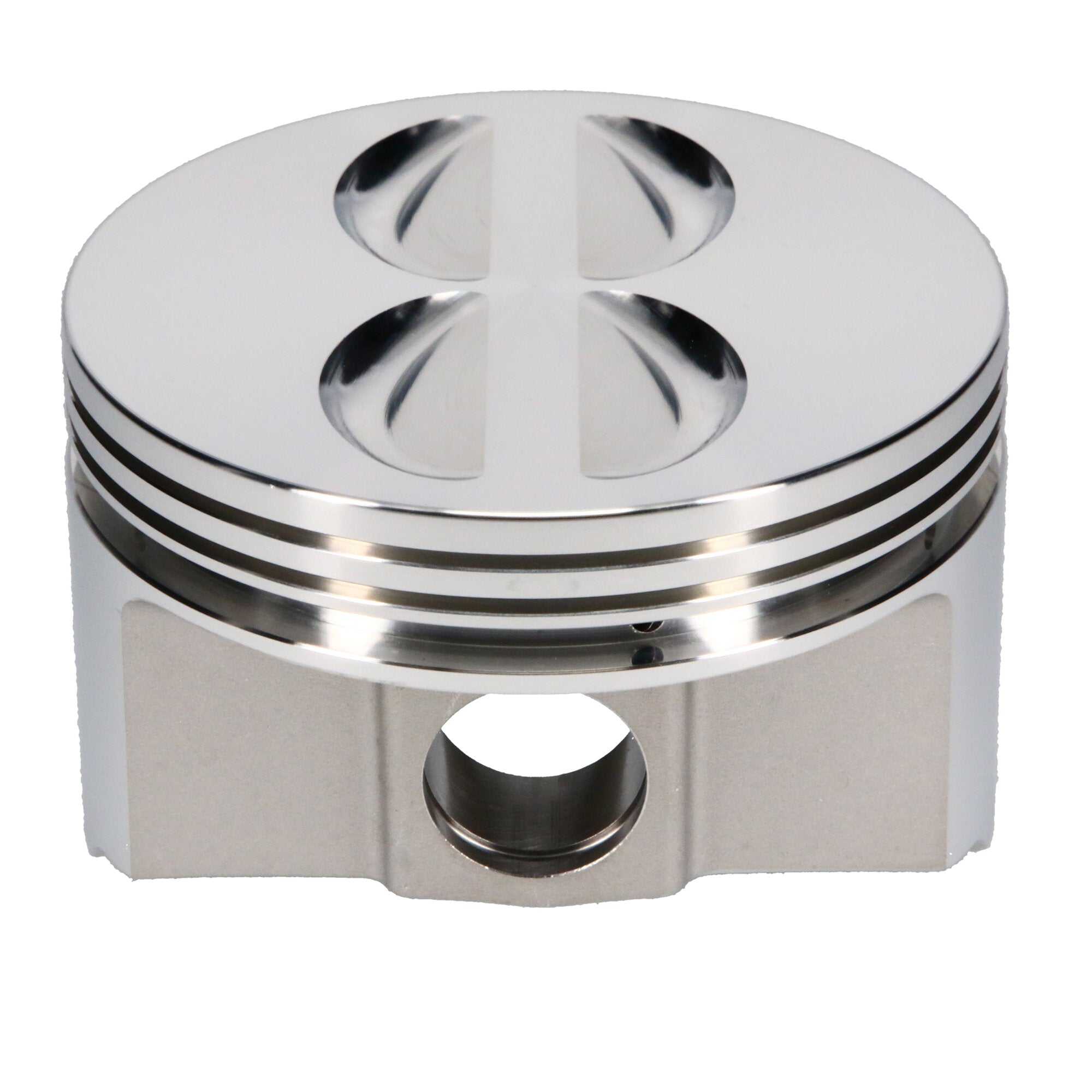

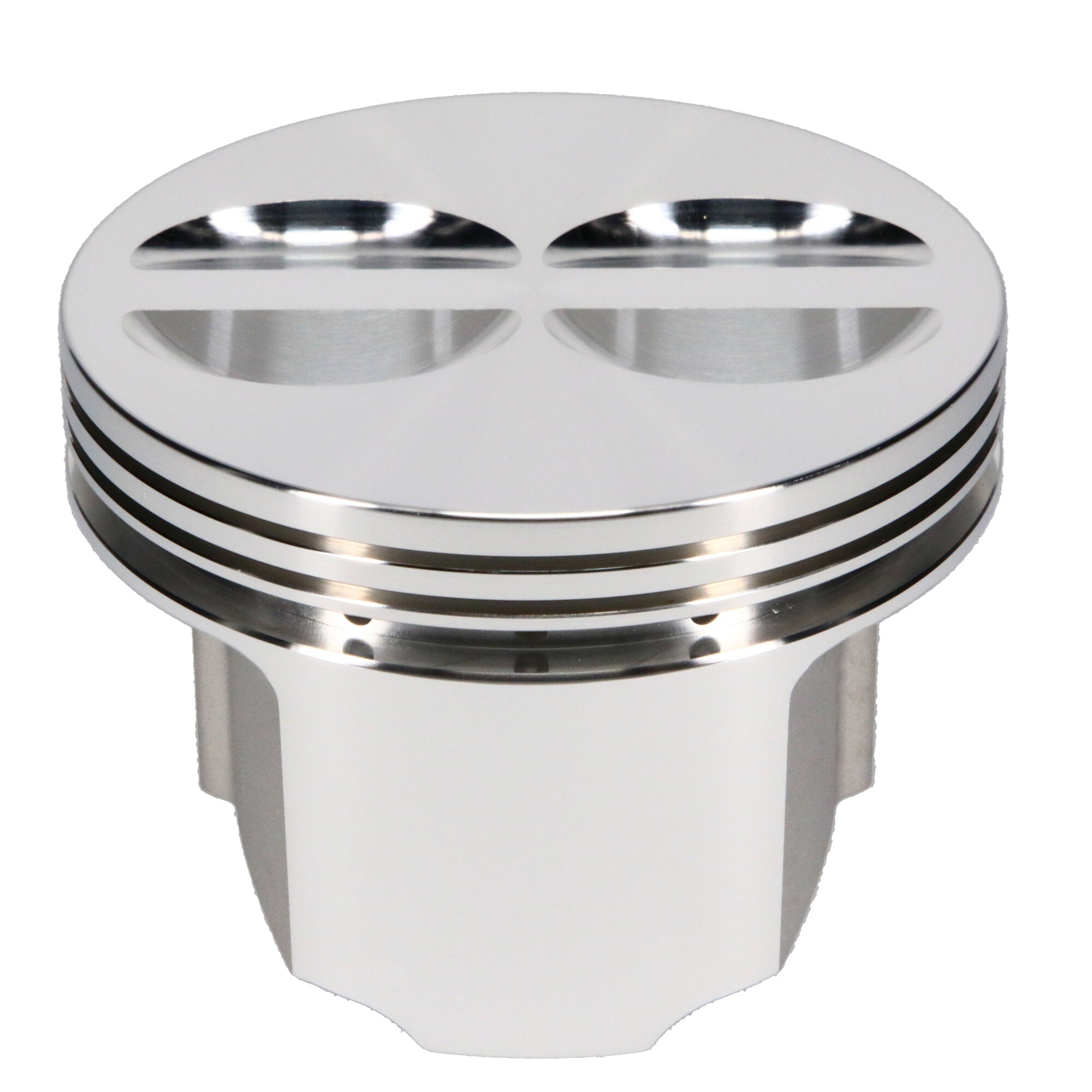

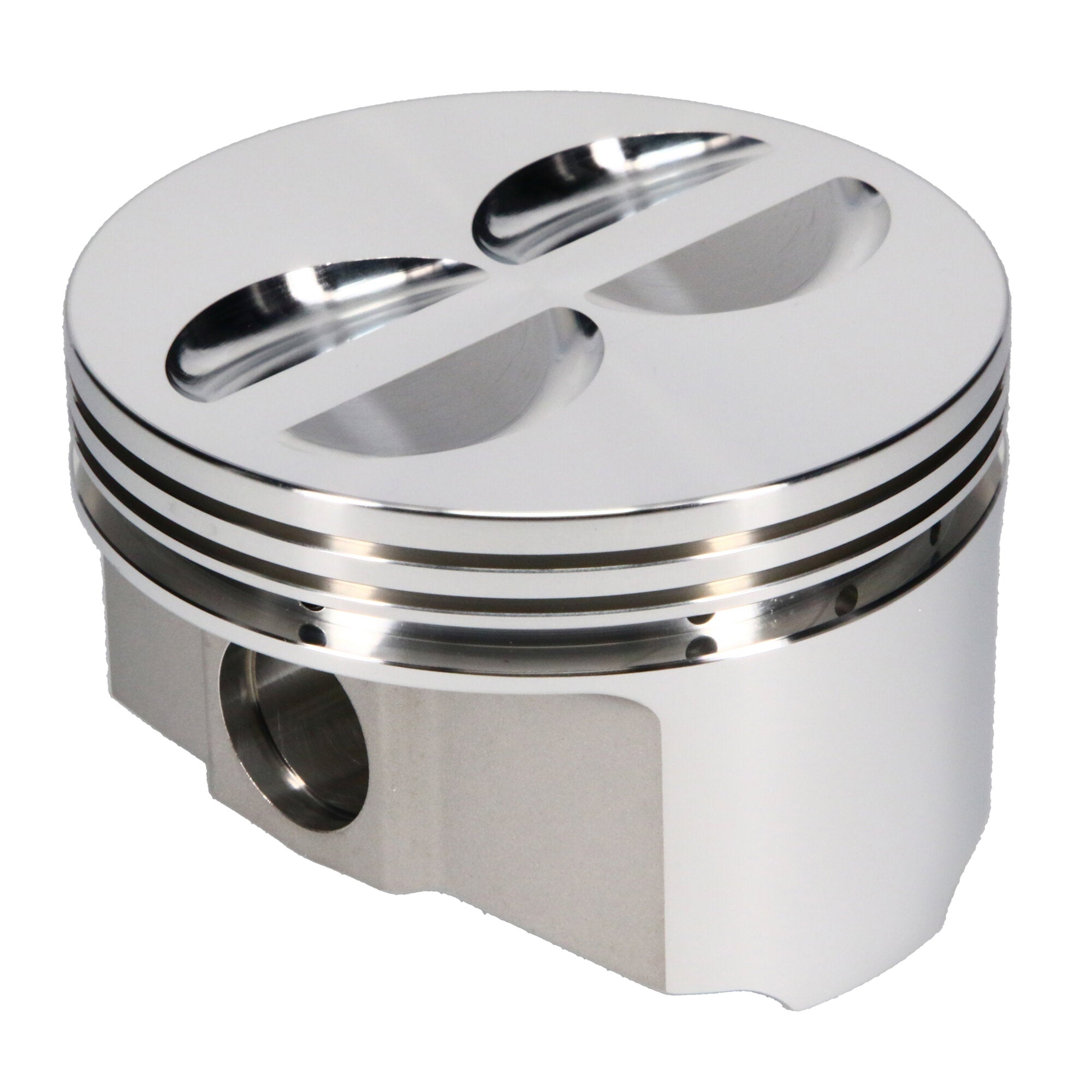

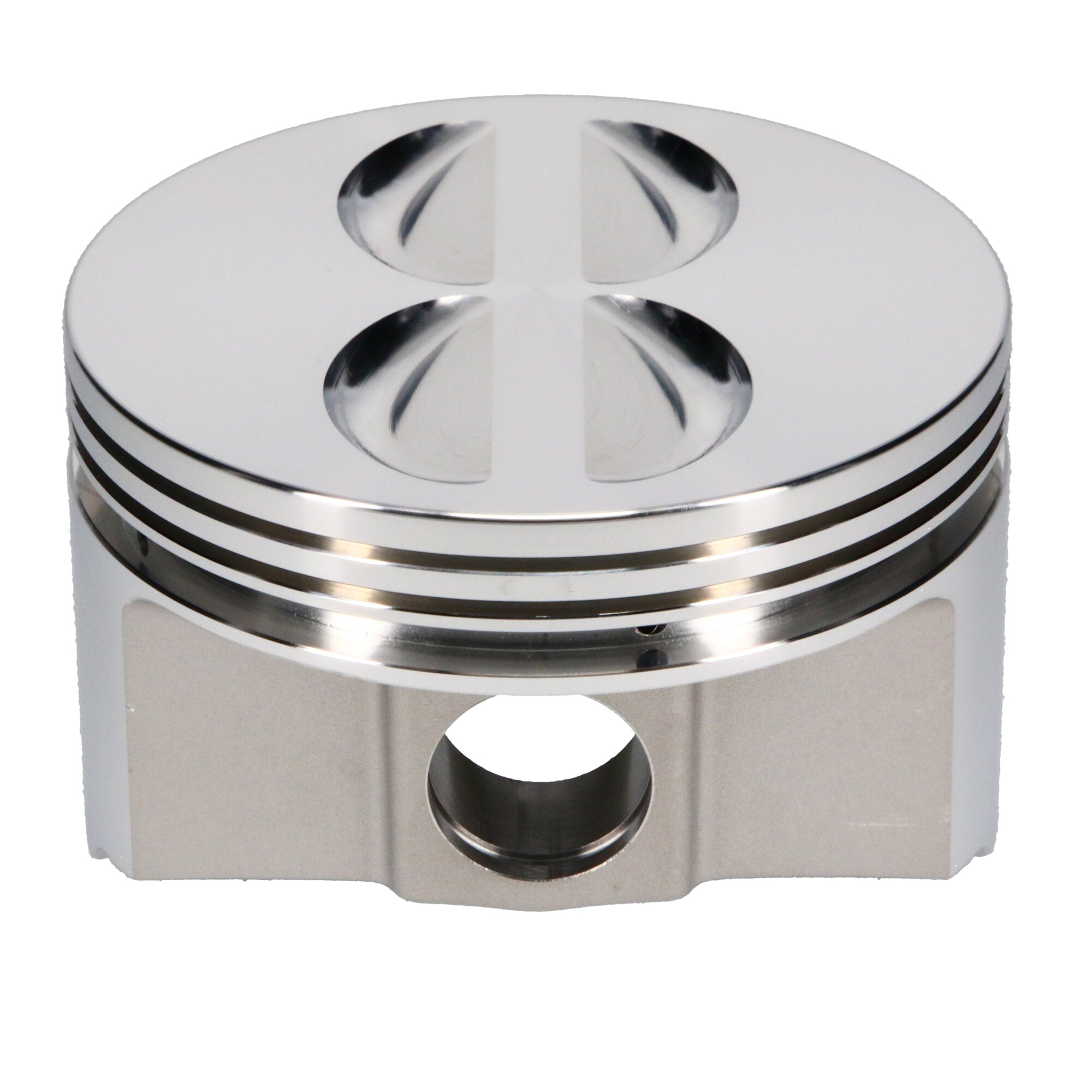

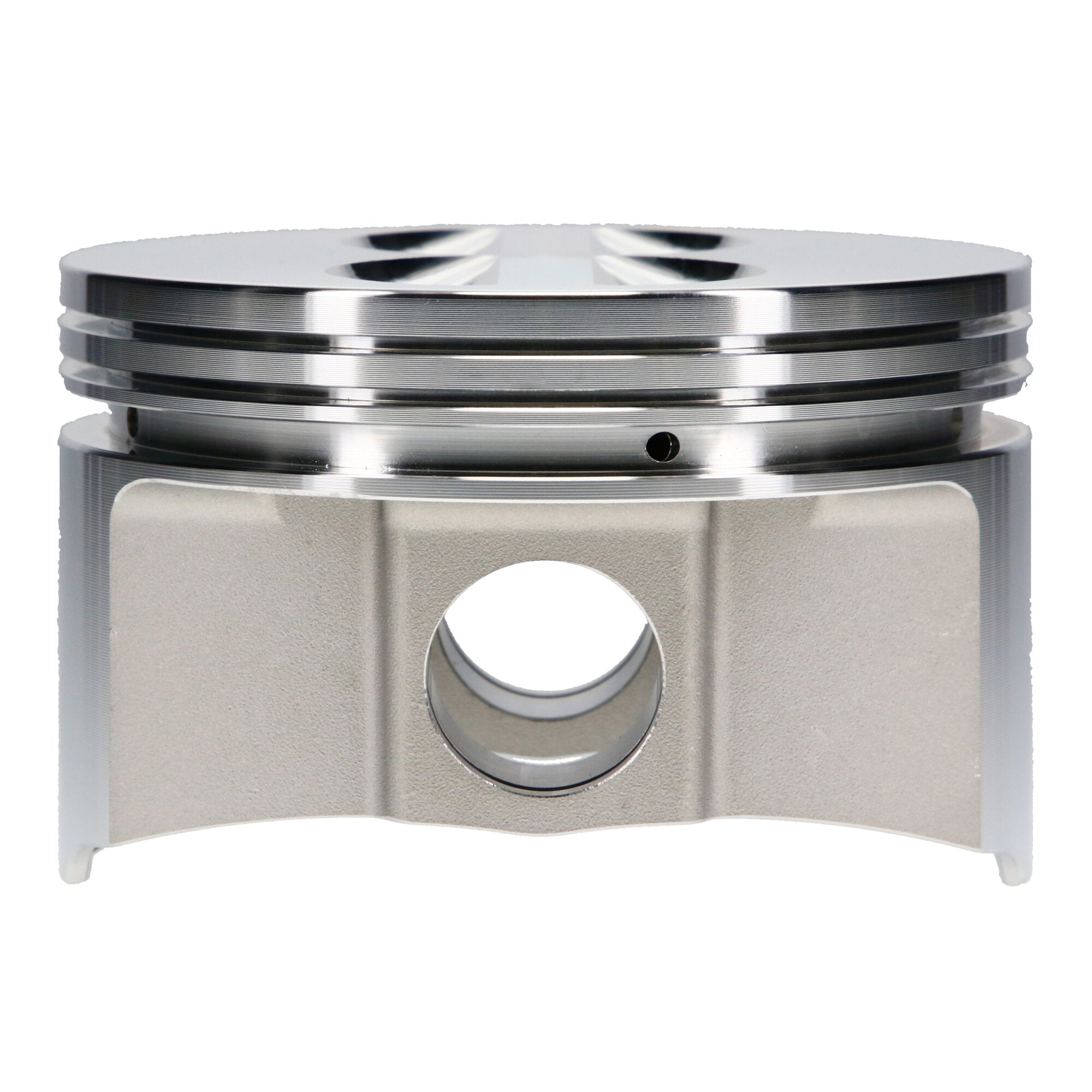

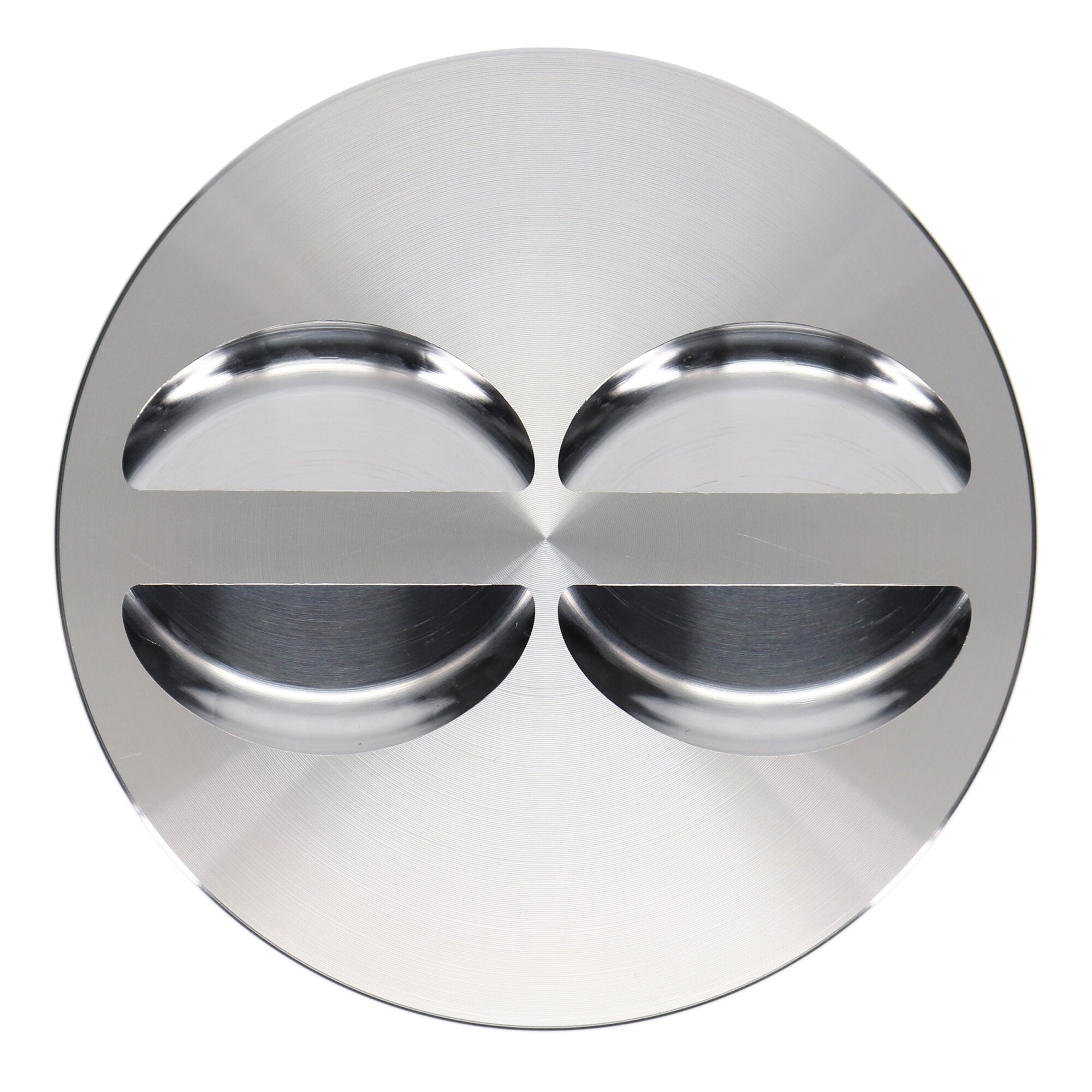

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DES |
Piston Set, 2618, Flat Top, 4.030 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Piston Pin Wall Thickness |
0.130 |
| Wrist Pin Length |
2.500 |
| Top Compression Ring Thickness |
0.0640 |
| Make |
CHEVROLET |
| Add-On |
927-042-CS |
| Title |
SRP - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Add-On |
S100S8-4030-5 |
| Piston Volume |
-5.00 |
| Add-On |
927-2500-13-51S |
| Piston Average Weight |
457 |
| Industry |
Automotive |
| Ring Set Included |
No |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.560 |
| Bore Diameter |
4.030 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.130 |
| Engine - Web |
Small Block |
| Prop 65 Yes/No |
Yes |
| Ringset Included |
No |
| Piston Pin Length |
2.500 |
| Prop 65 (C, R or CR) |
CR |
| Piston Head Type |
Flat |
| Cylinder Head |
4-VALVE |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Piston Material |
2618 |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.560 in. CH, -5.00 CC |
| Piston Pin Outside Diameter |
0.927 |
| Second Compression Ring Thickness |
0.0640 |
| Oil Ring Thickness |
0.188 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
Small Block |
| Piston Series |
SRP |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
