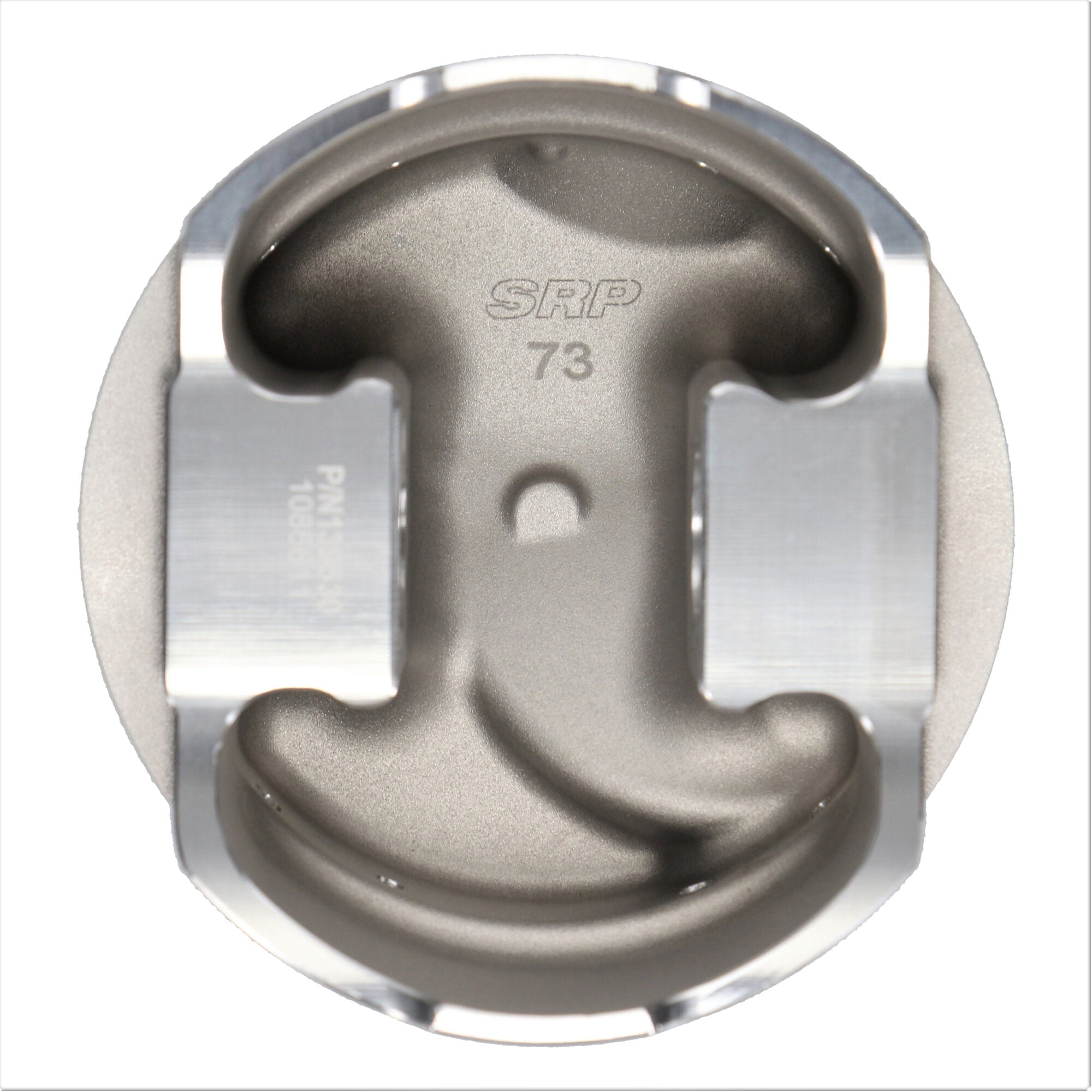

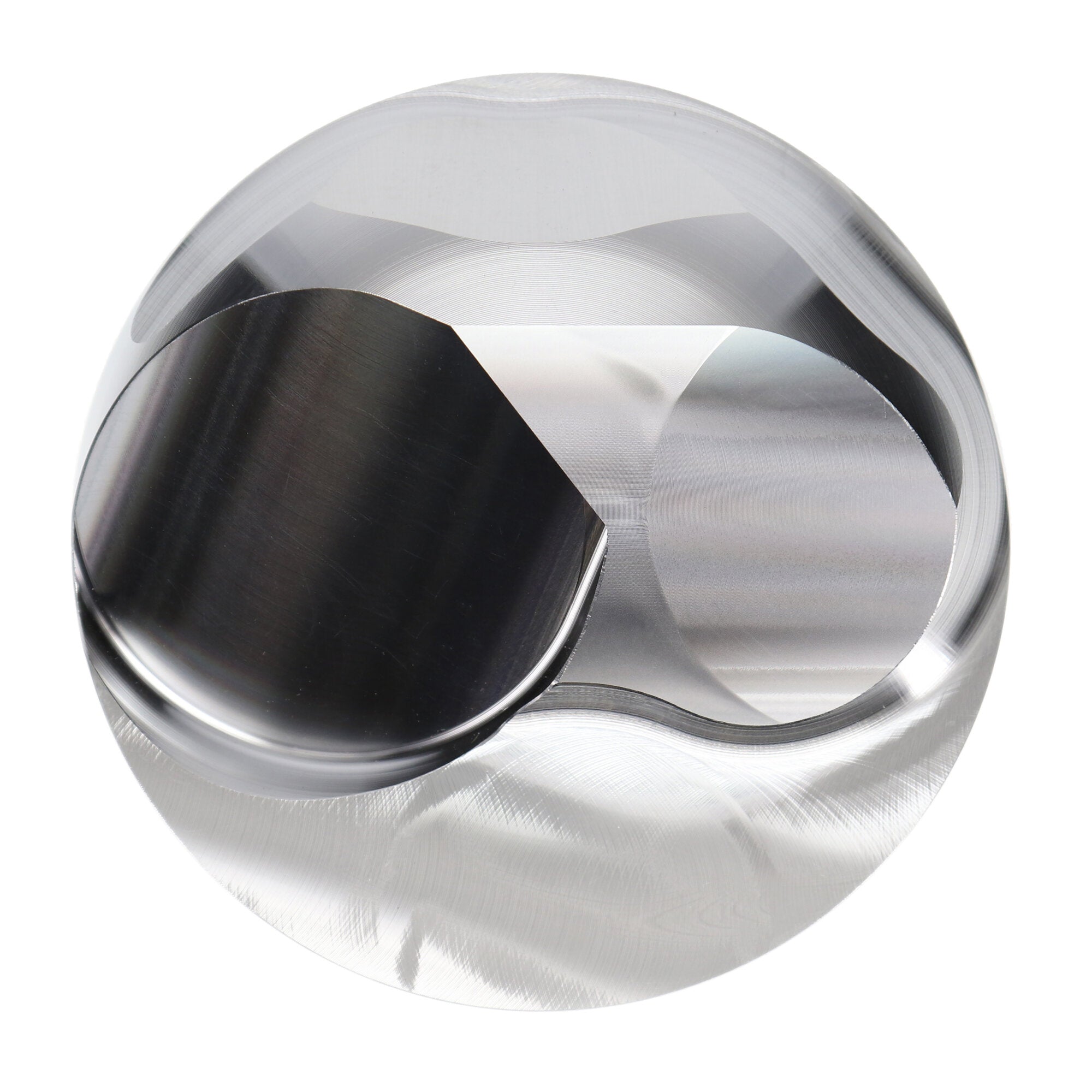

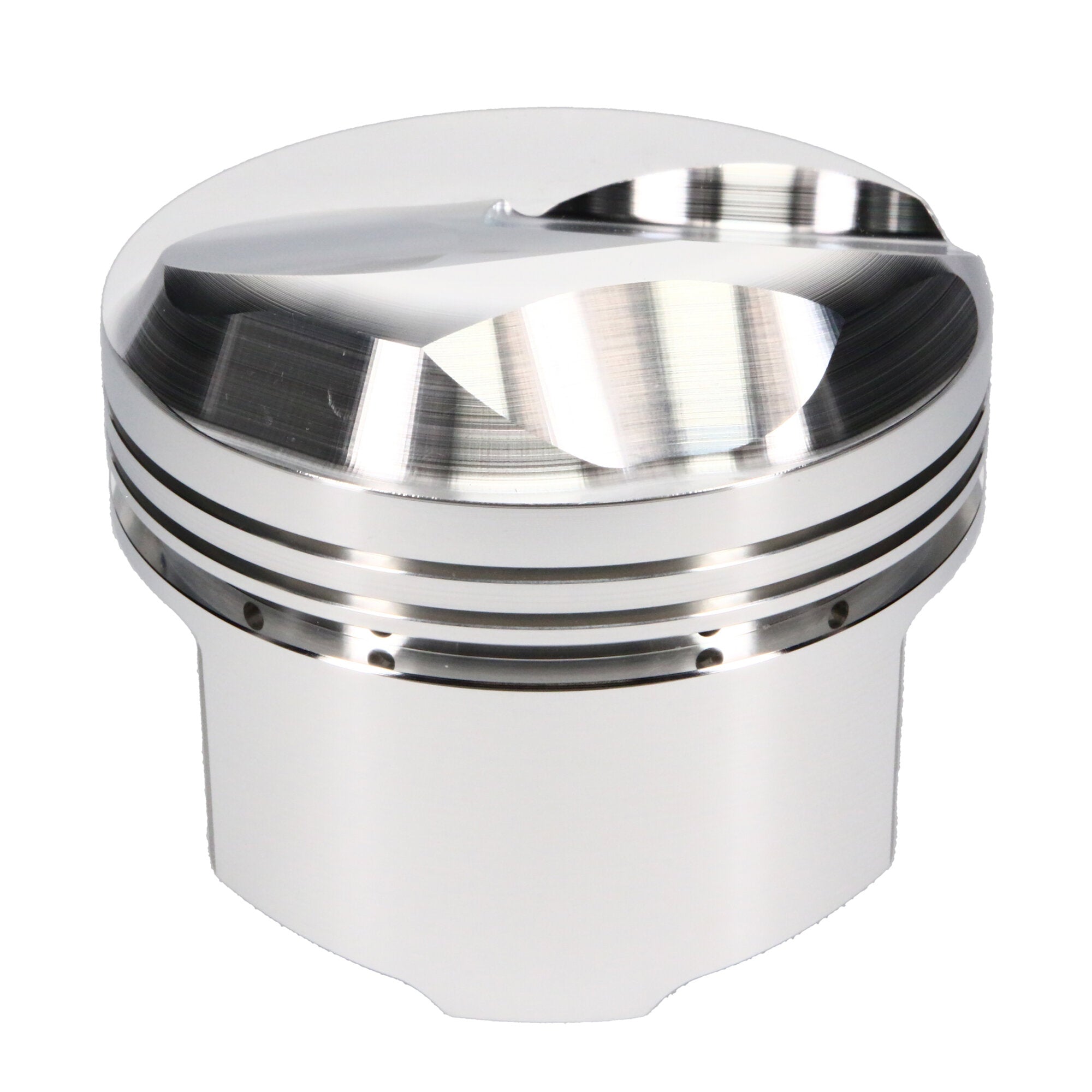

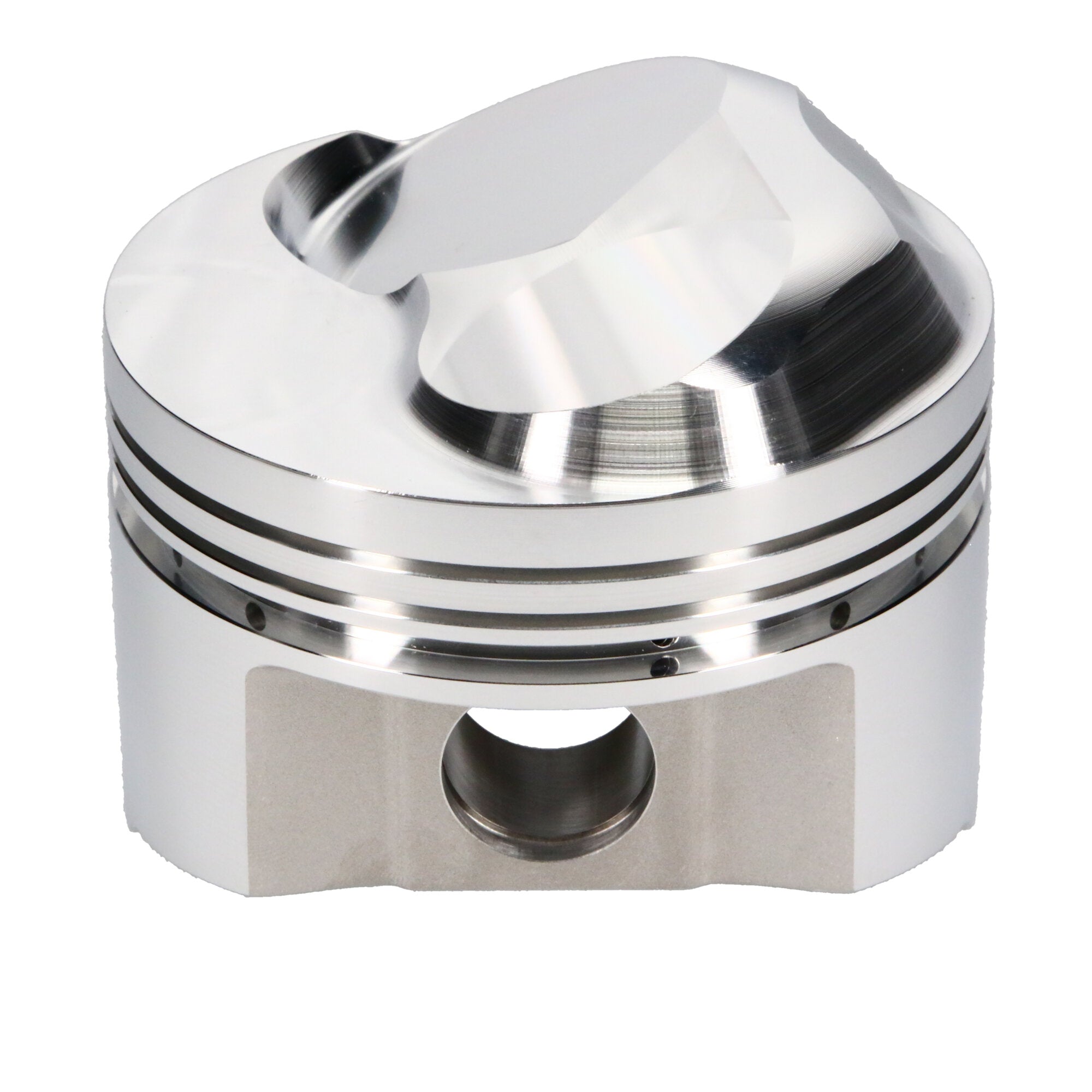

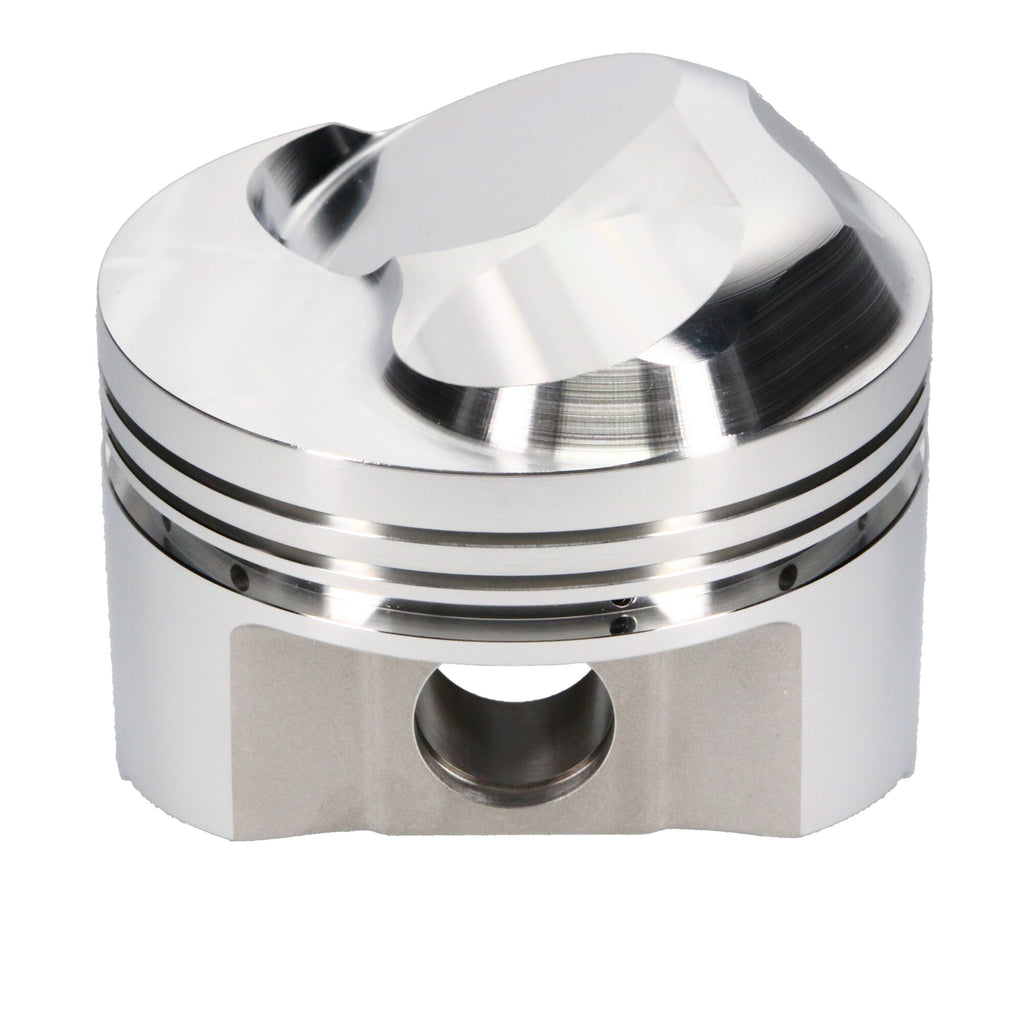

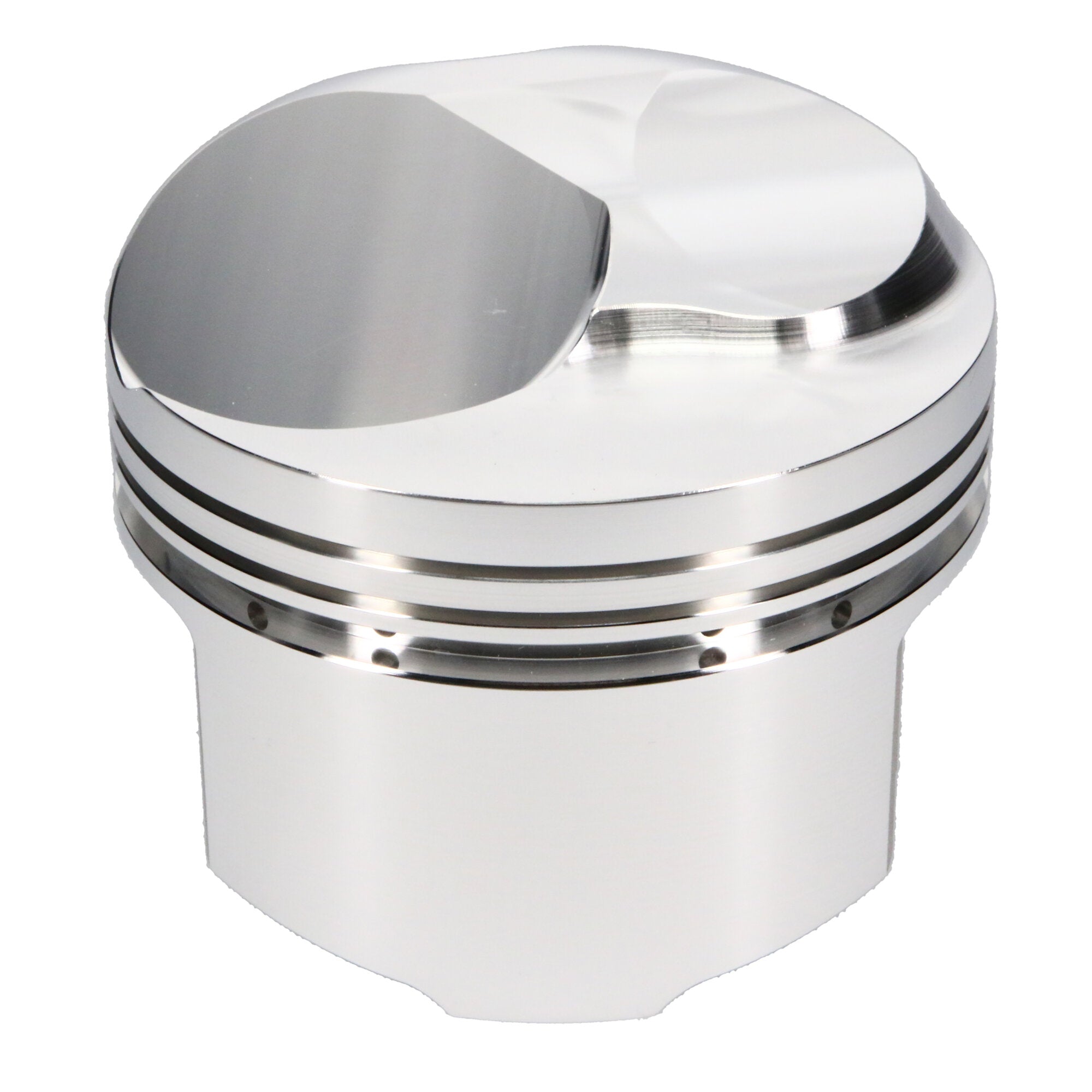

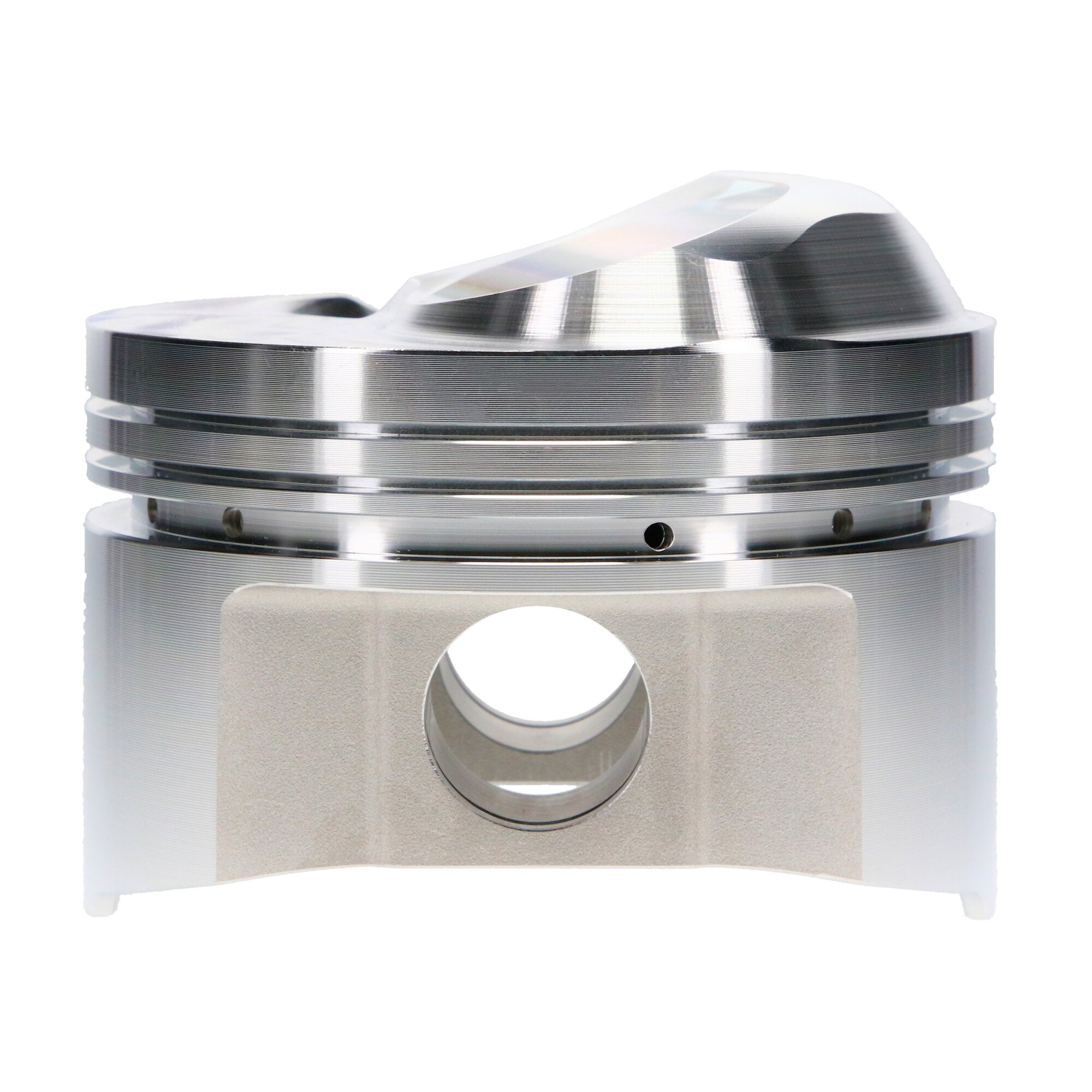

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.560 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_SHO |
Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.560 Bore, Dome, Set of 8 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
990-042-CS |
| Add-On |
990-2930-15-51S |
| Add-On |
S100S8-4560-5 |
| Piston Material |
2618 |
| Piston Pin Length |
2.930 |
| Piston Volume |
33.00 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
No |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Big Block |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.560 in. Bore - 1.270 in. CH, 33.00 CC |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title |
SRP - Chevrolet, Big Block, 4.560 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Make |
CHEVROLET |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.270 |
| Ringset Included |
No |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Piston Series |
SRP |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Product Market |
Domestic |
| Bore Diameter |
4.560 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Average Weight |
631 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
