Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Pontiac 400 Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

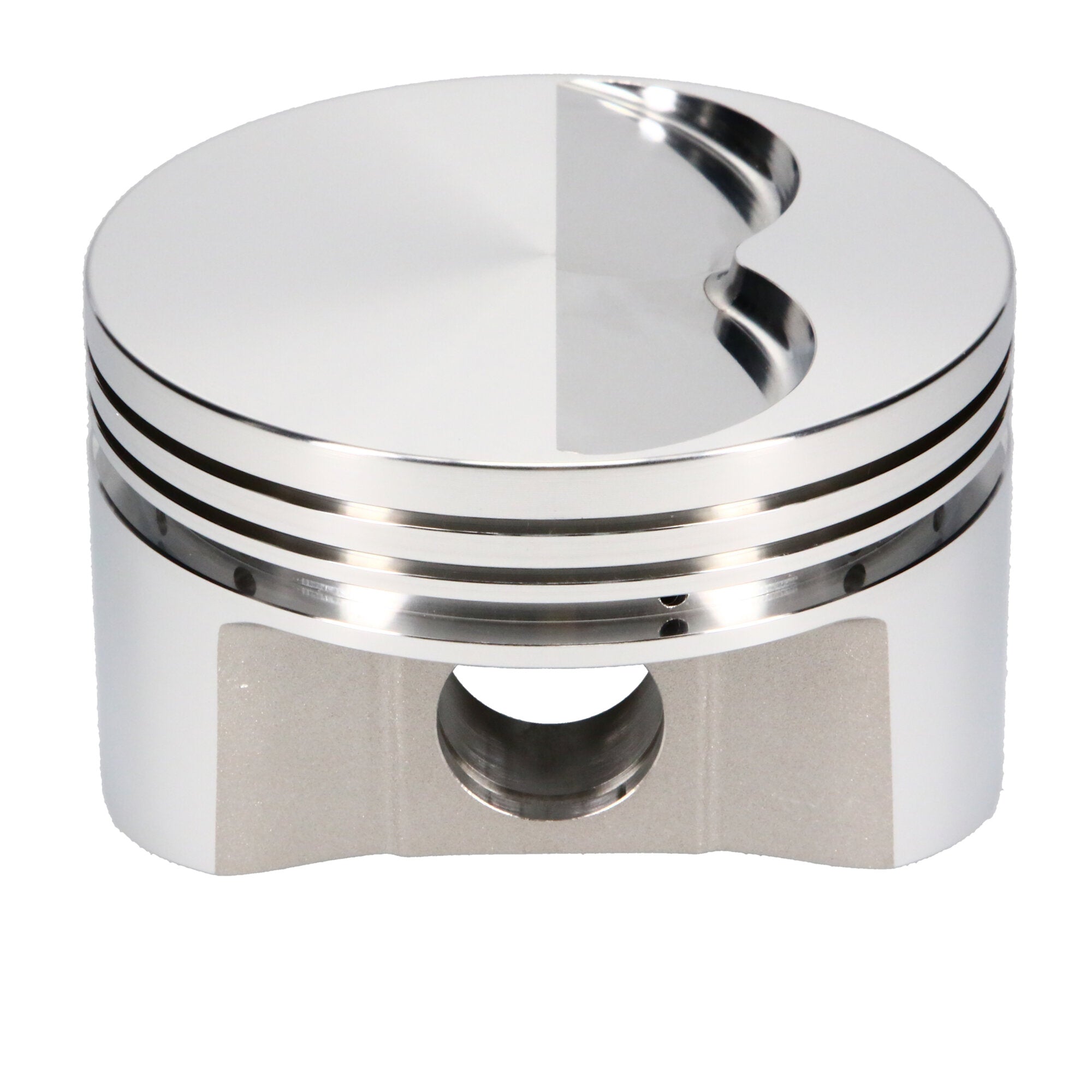

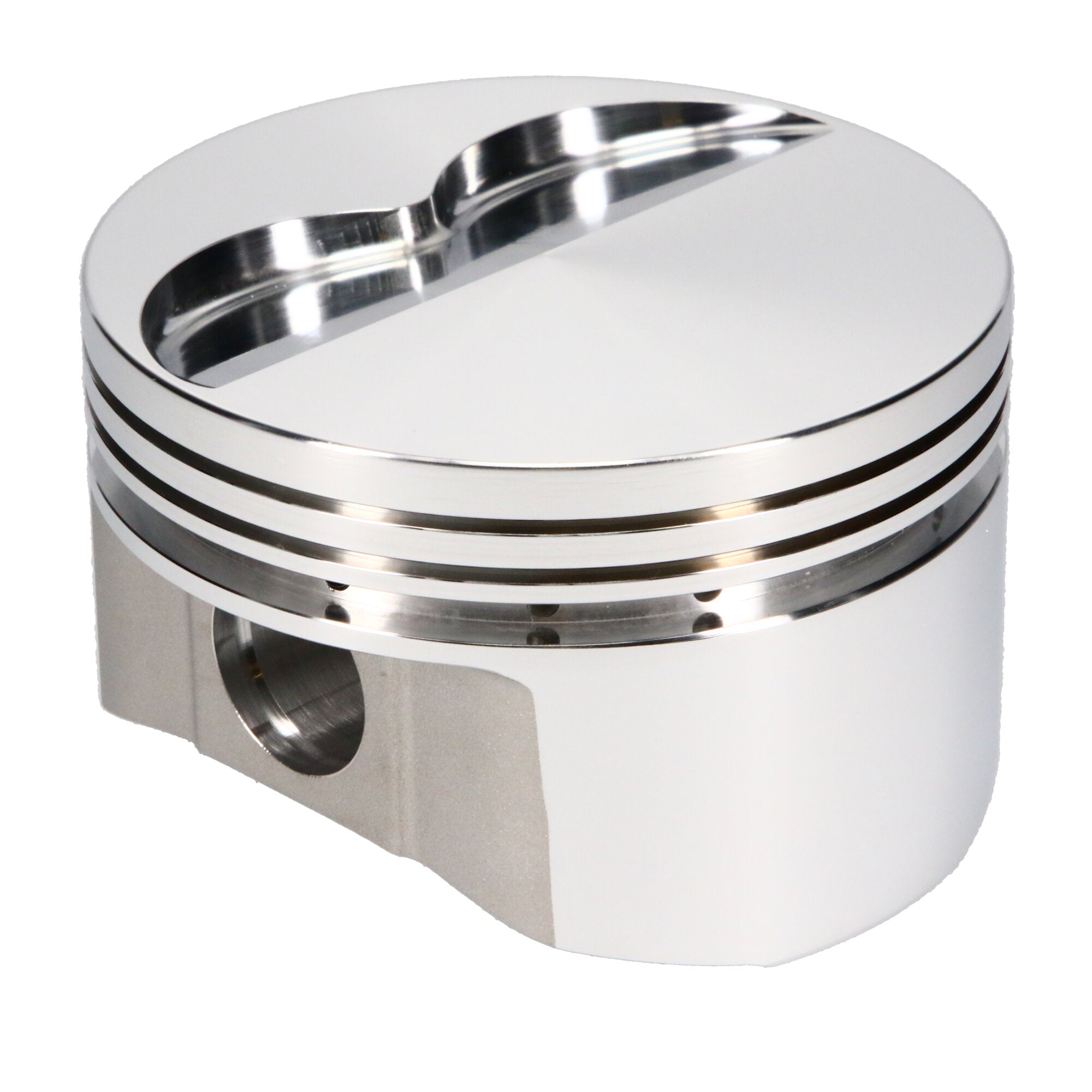

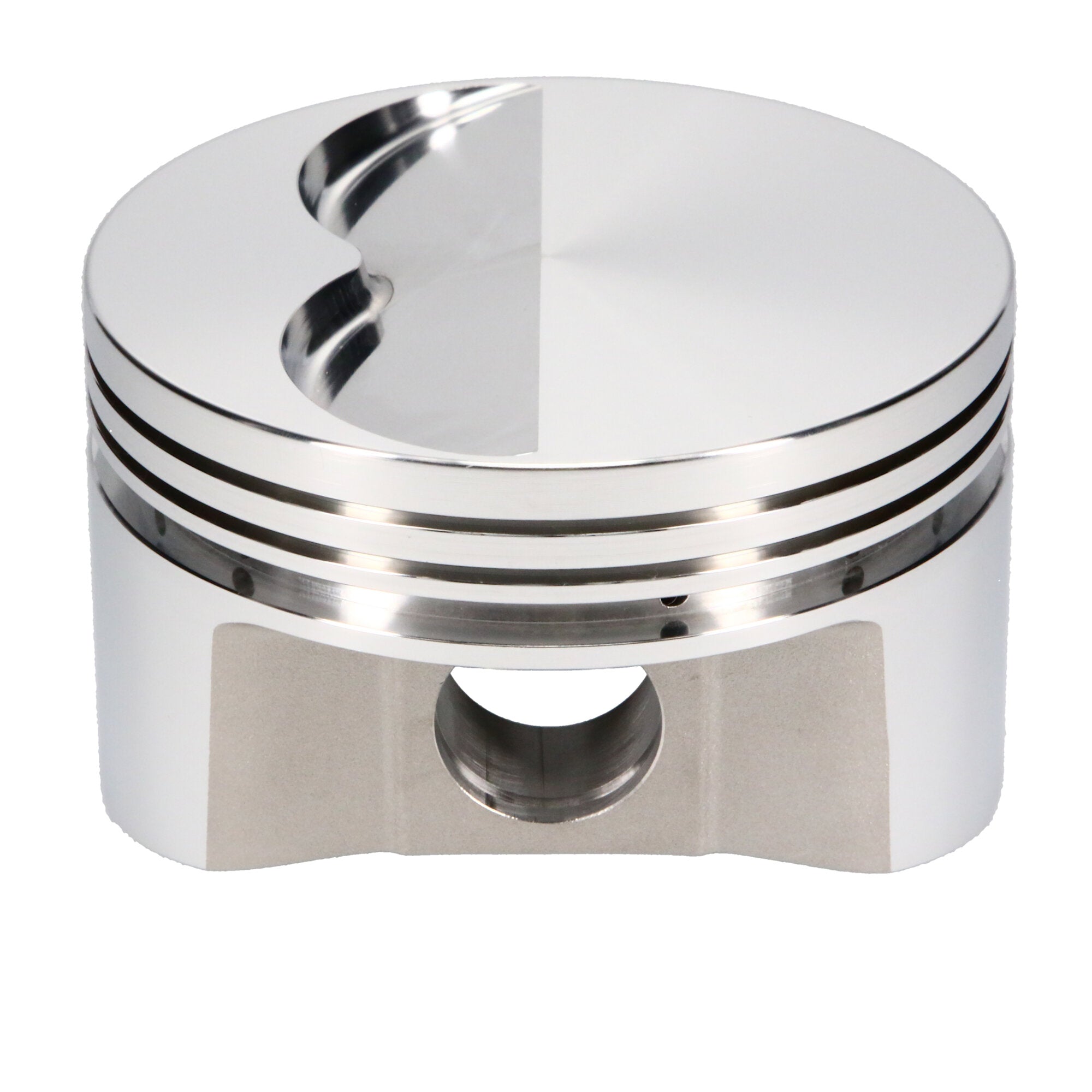

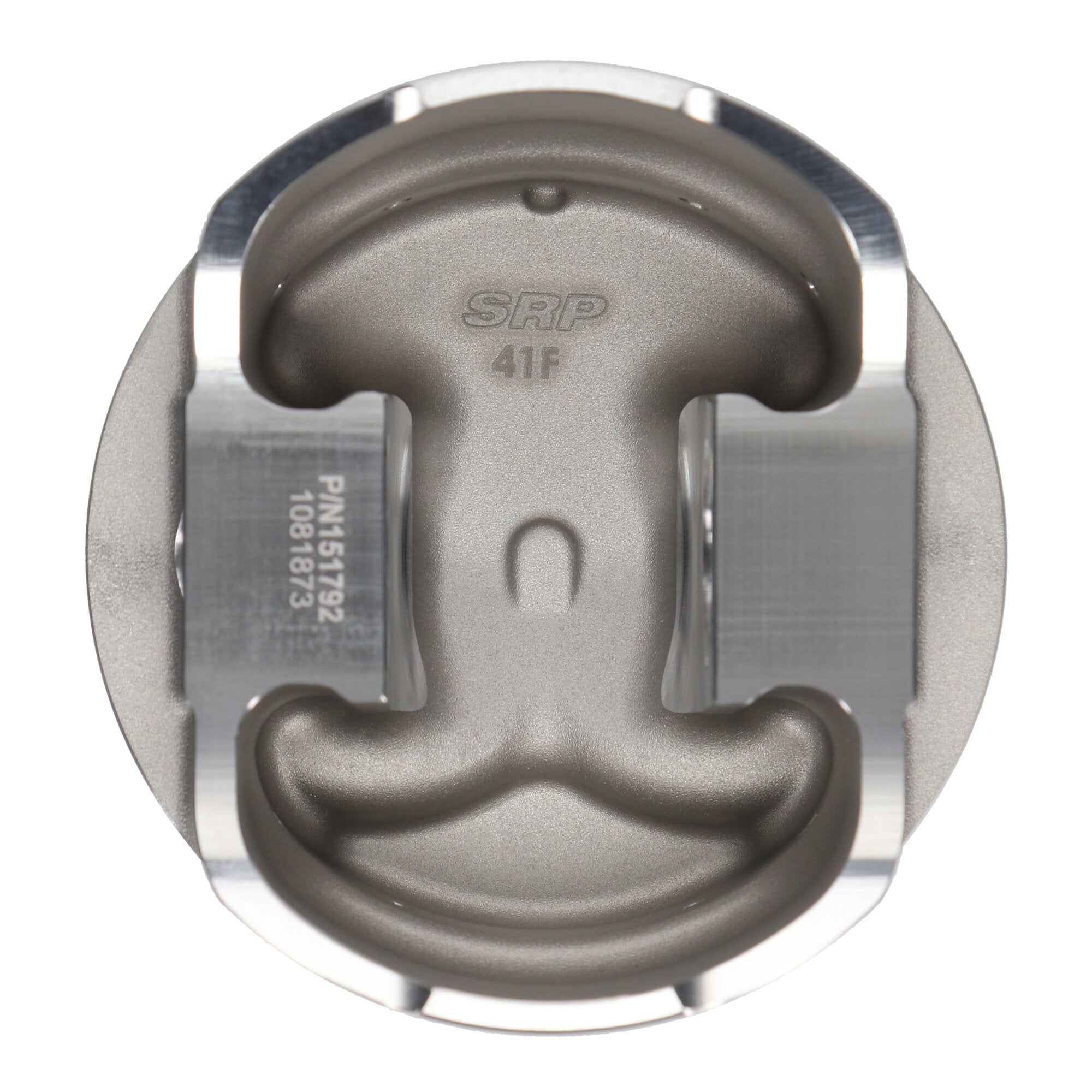

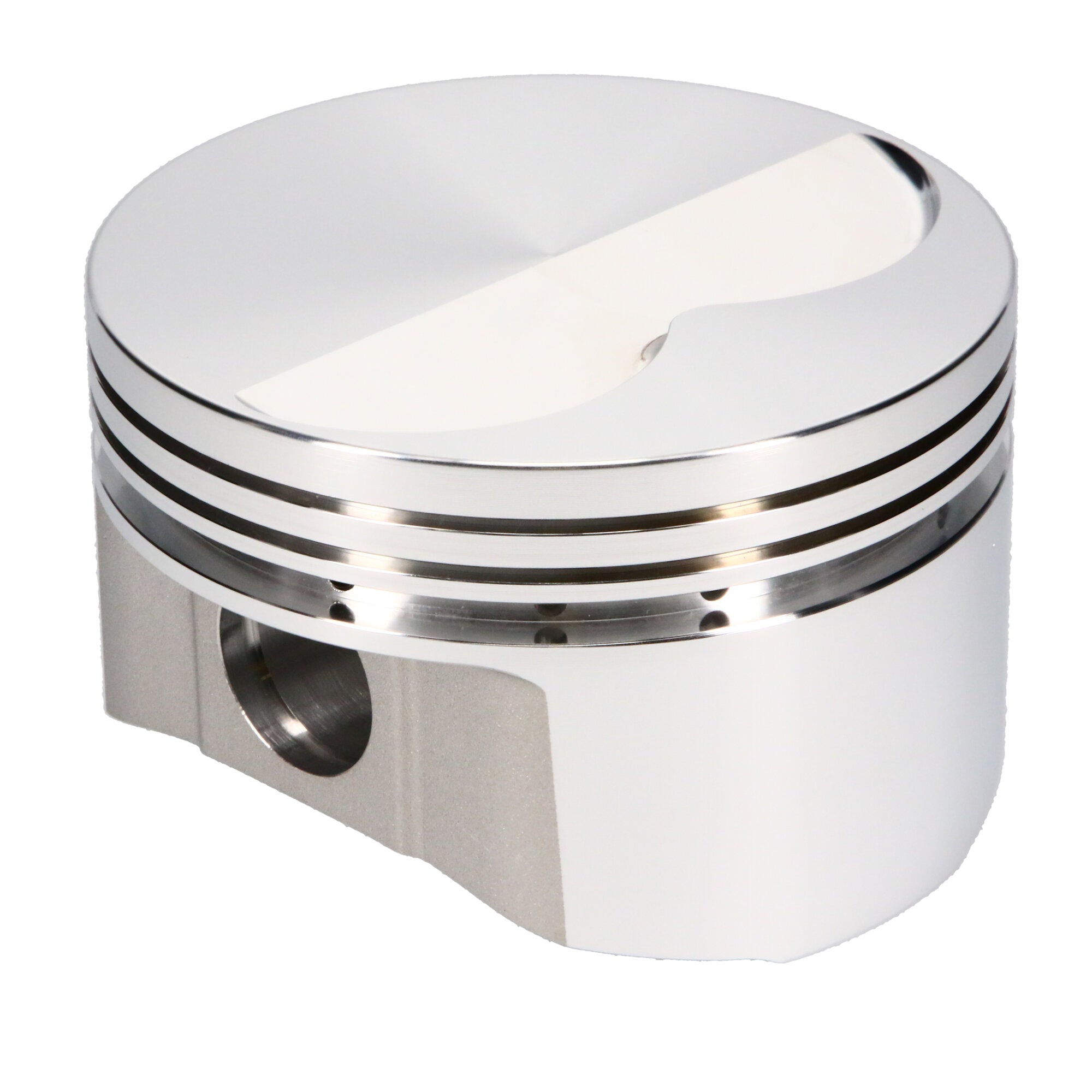

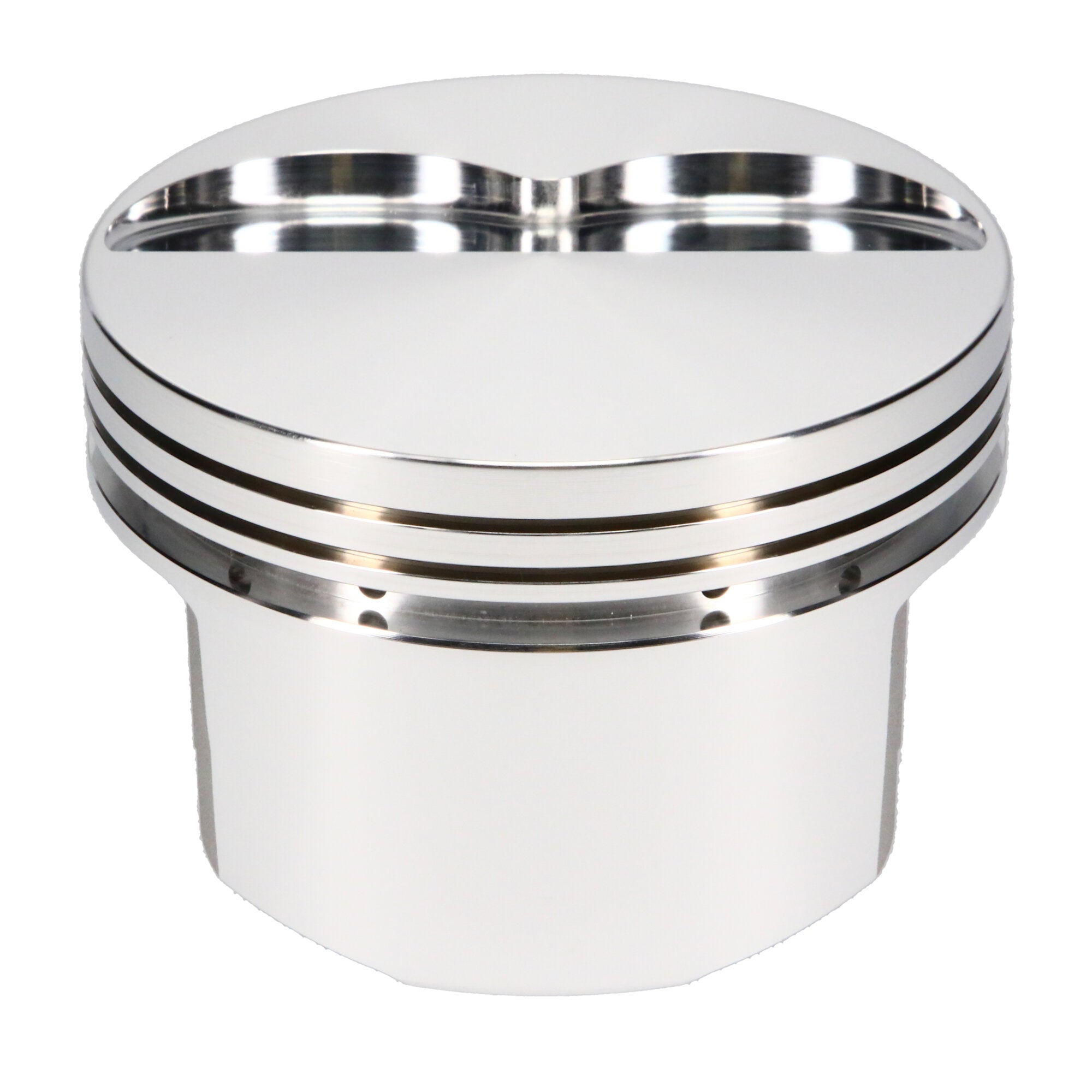

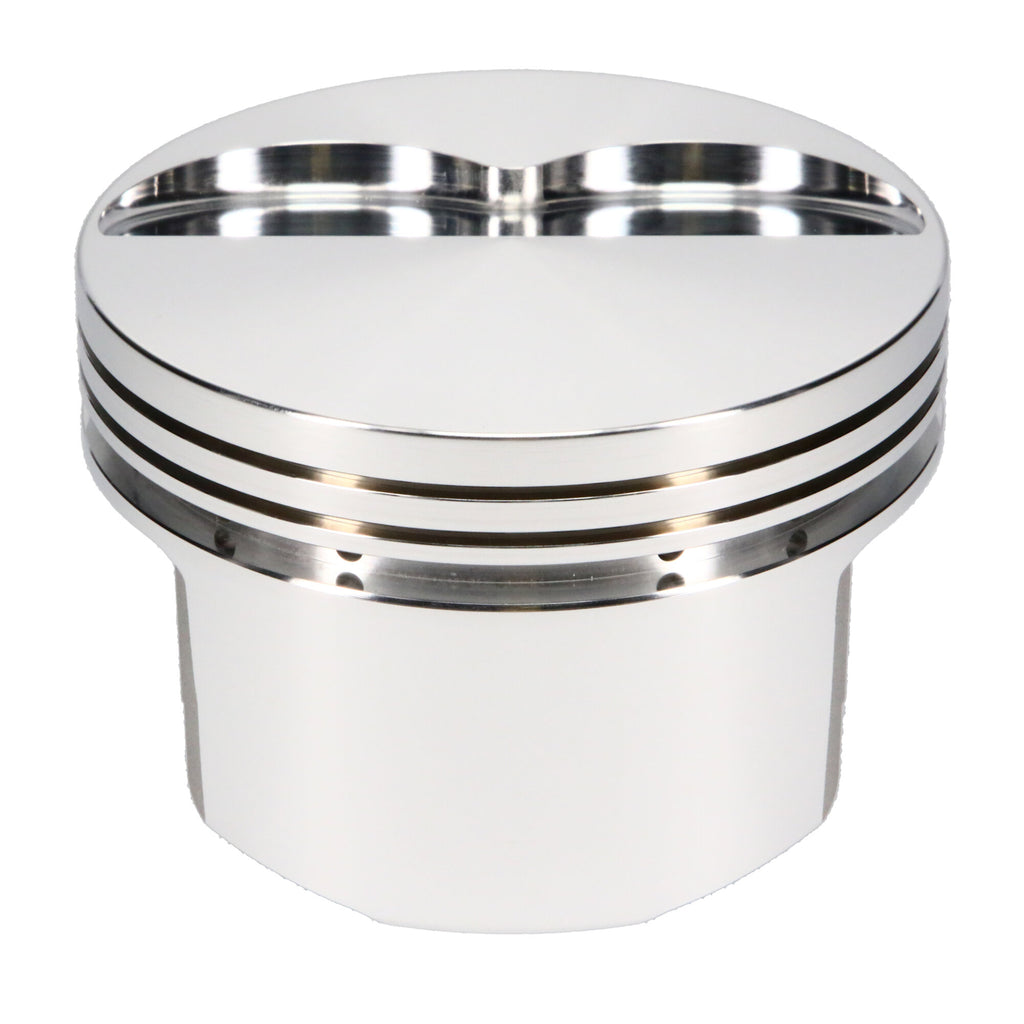

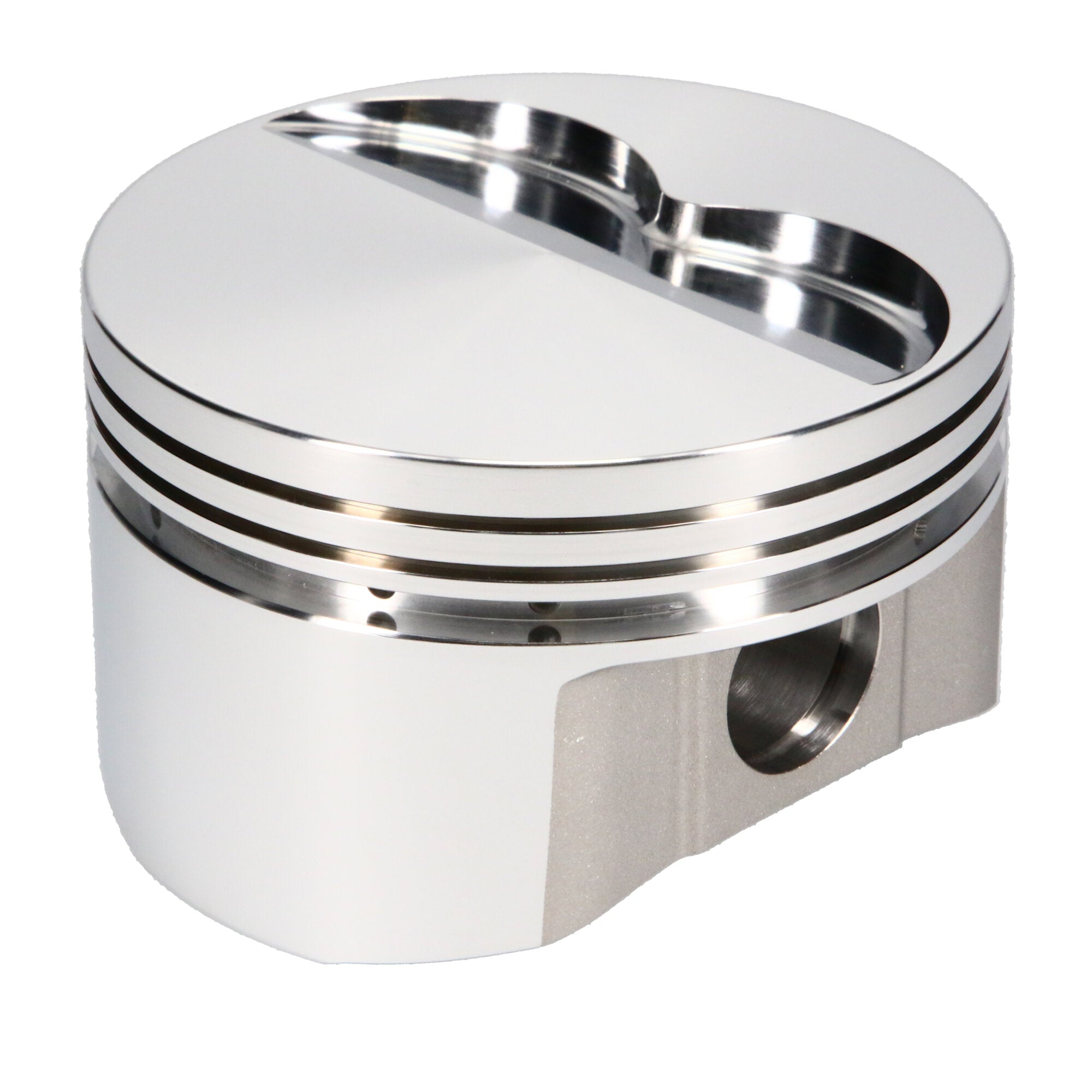

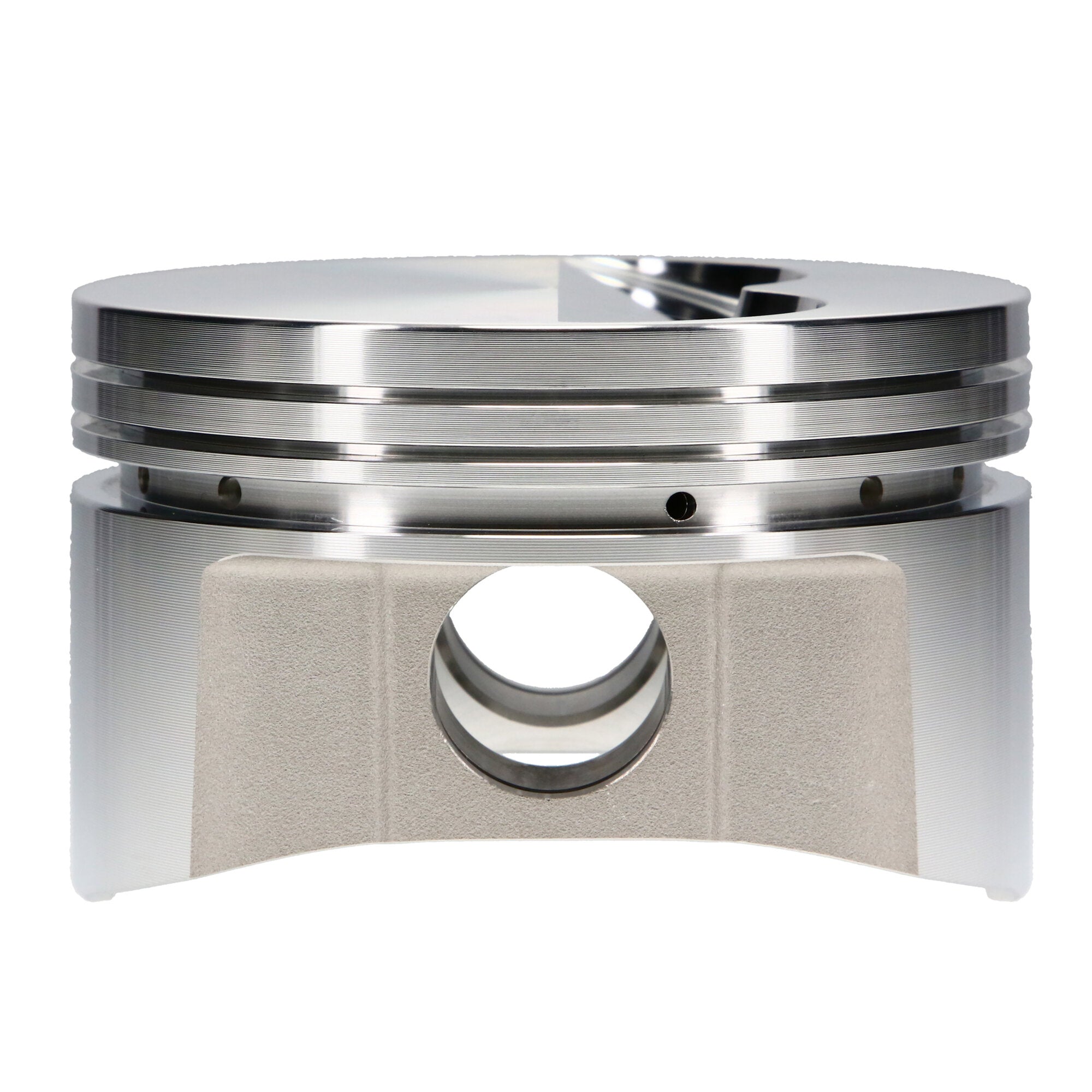

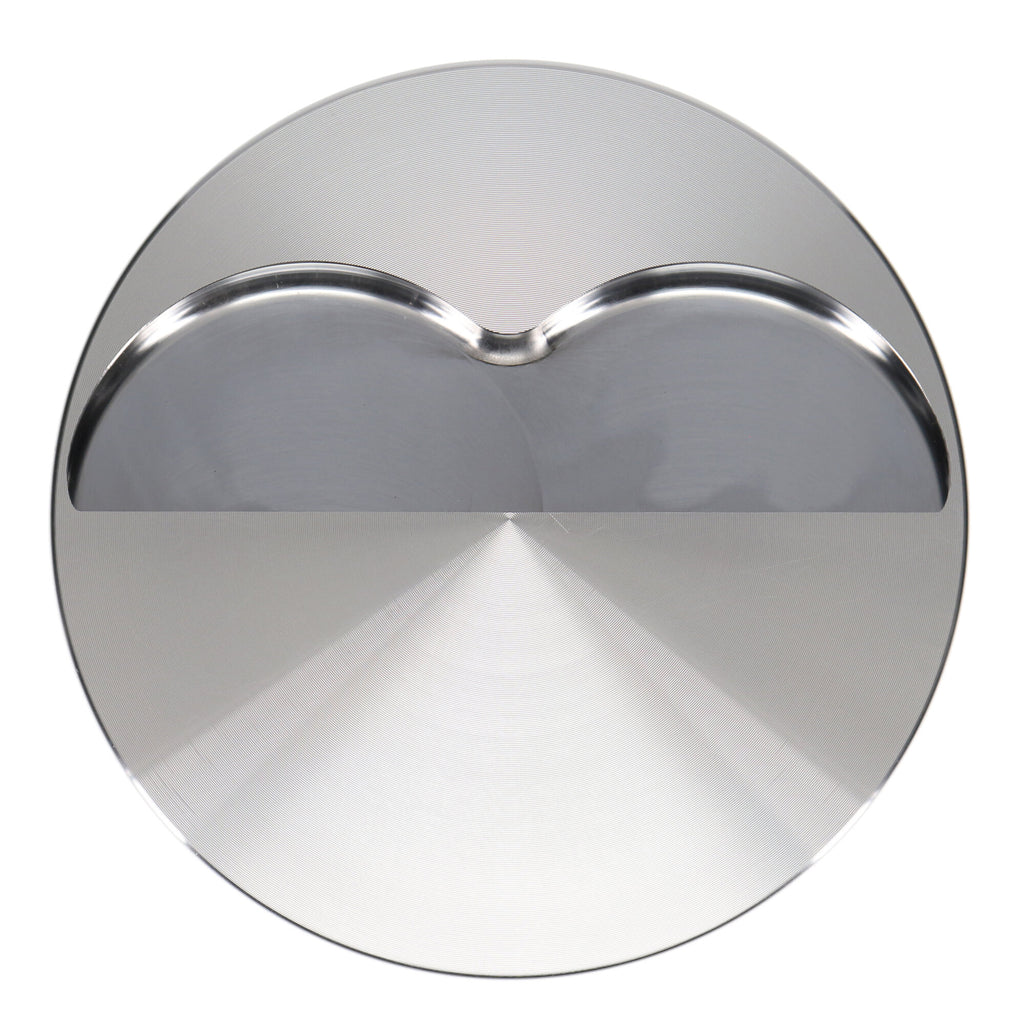

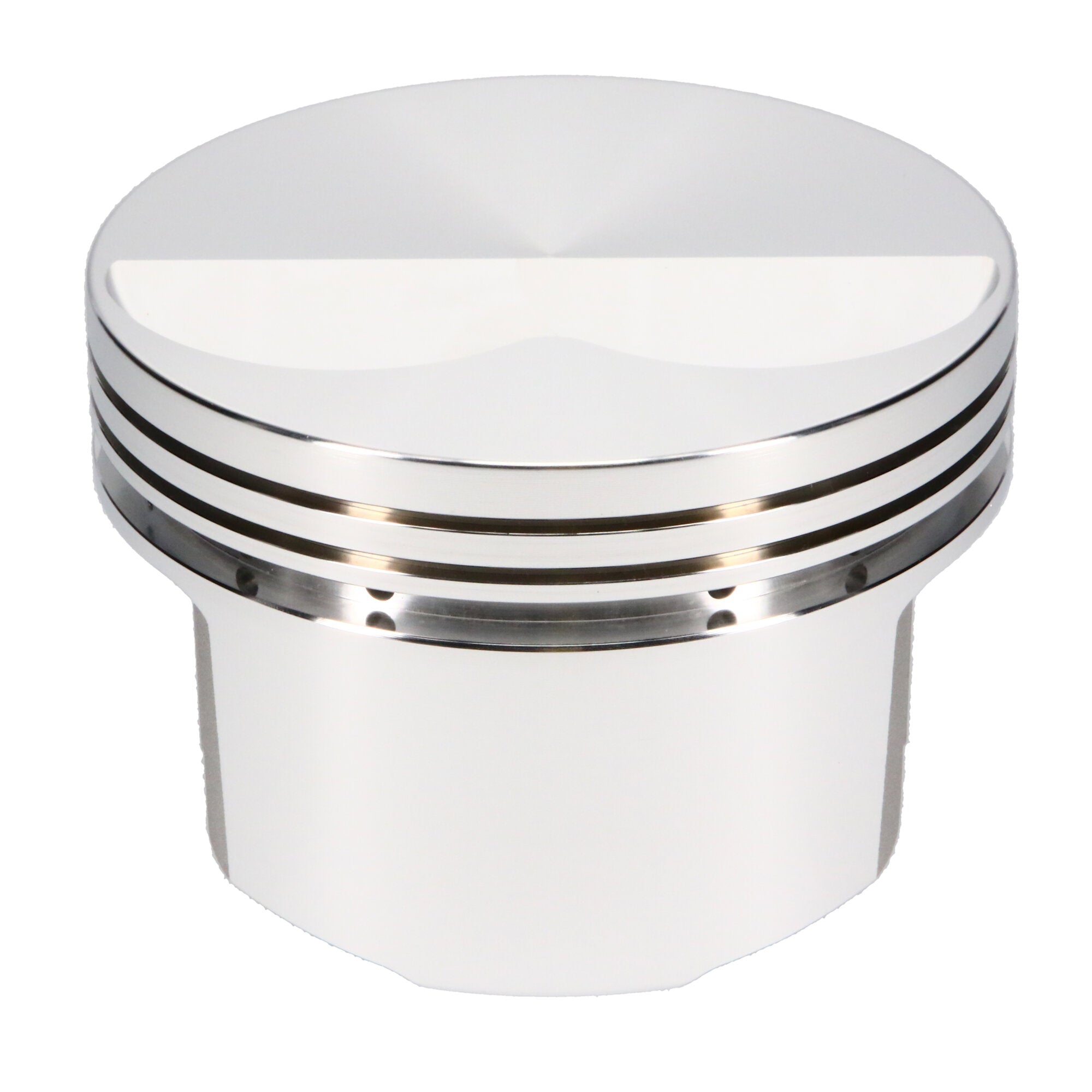

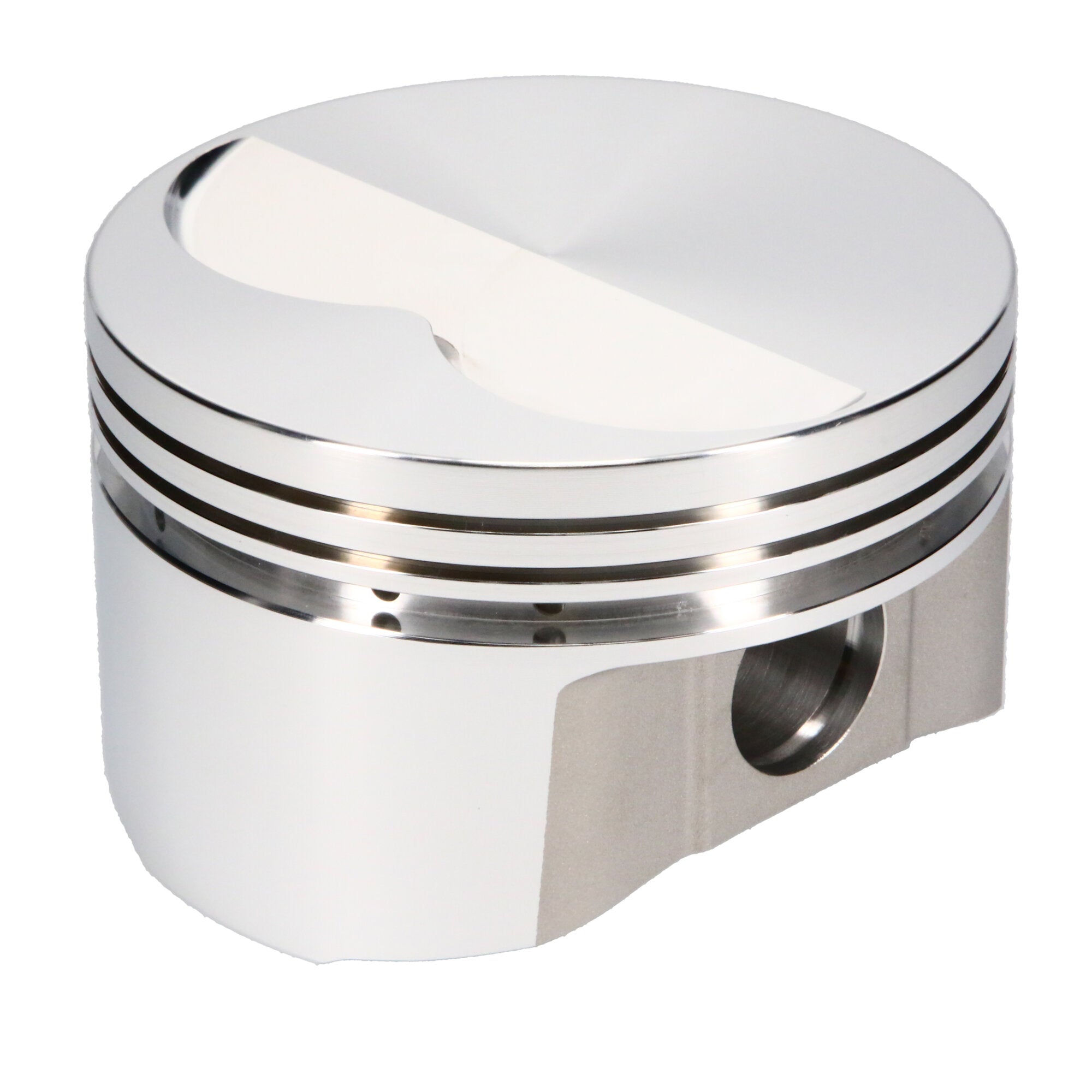

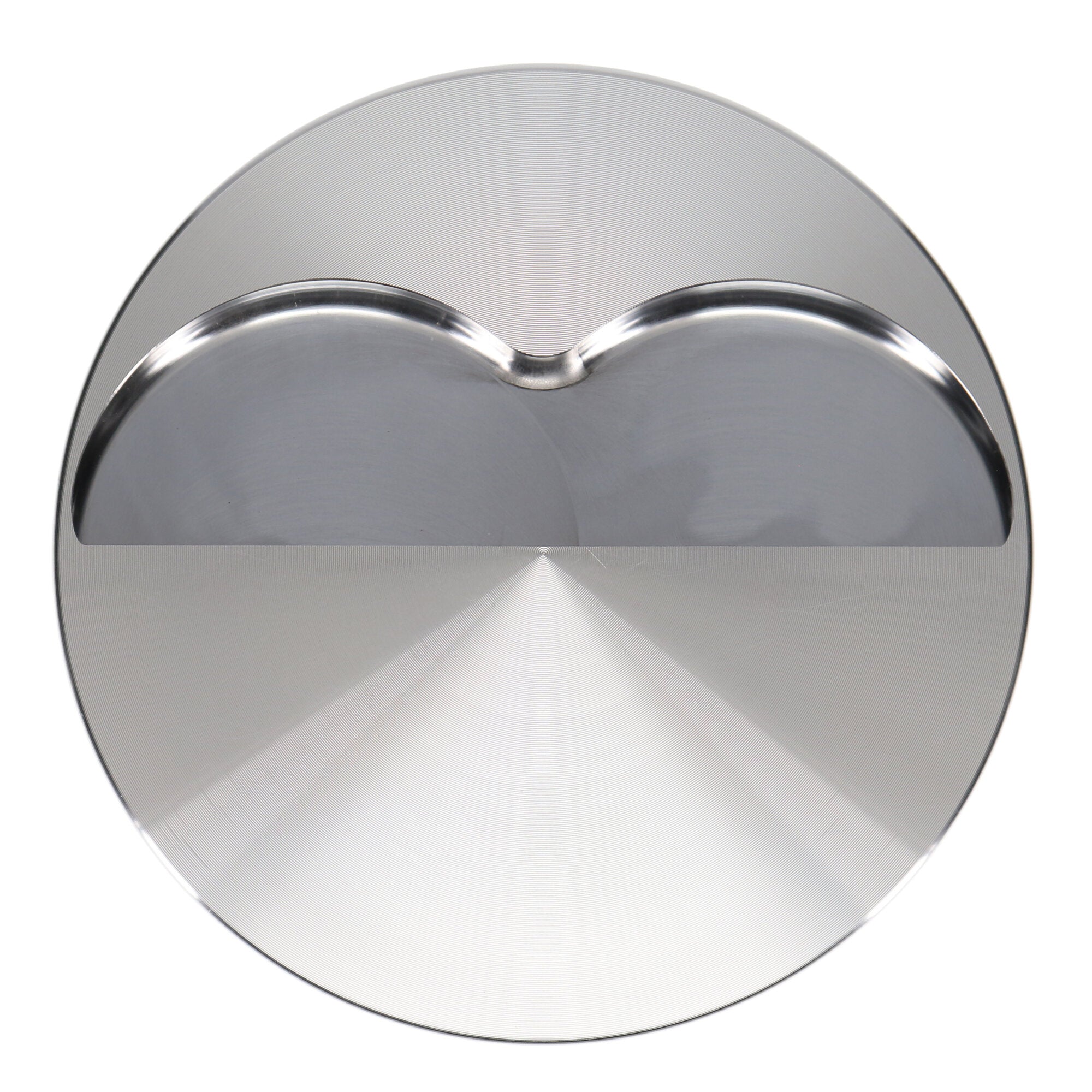

Piston Set, 4032, Flat Top, 4.160 Bore, 1.480 CD, 0.980 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Pontiac, Big Block Pontiac, 4.160 in. Bore, 1.480 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_TLE |
Pontiac 400, 4.160 Bore, Flat, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Piston Head Type |
Flat |
| Piston Series |
SRP |
| Ringset Included |
No |
| Make |
PONTIAC |
| Engine |
Big Block |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.188 |
| Compression Height |
1.480 |
| Wrist Pin Outer Diameter |
0.980 |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Title |
SRP - Pontiac, Big Block, 4.160 in. Bore, Piston Kit |
| Piston Pin Length |
2.750 |
| Piston Volume |
-5.00 |
| Product Market |
Domestic |
| Cylinder Head |
PONTIAC 455 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
504 |
| Bore Diameter |
4.160 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.980 |
| Title - Web |
SRP Pontiac Big Block Piston Kit - 4.160 in. Bore - 1.480 in. CH, -5.00 CC |
| Add-On |
990-042-CS |
| Add-On |
S100S8-4155-5 |
| Piston Material |
4032 |
| Industry |
Automotive |
| Add-On |
980-2750-15-51S |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Pontiac |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
