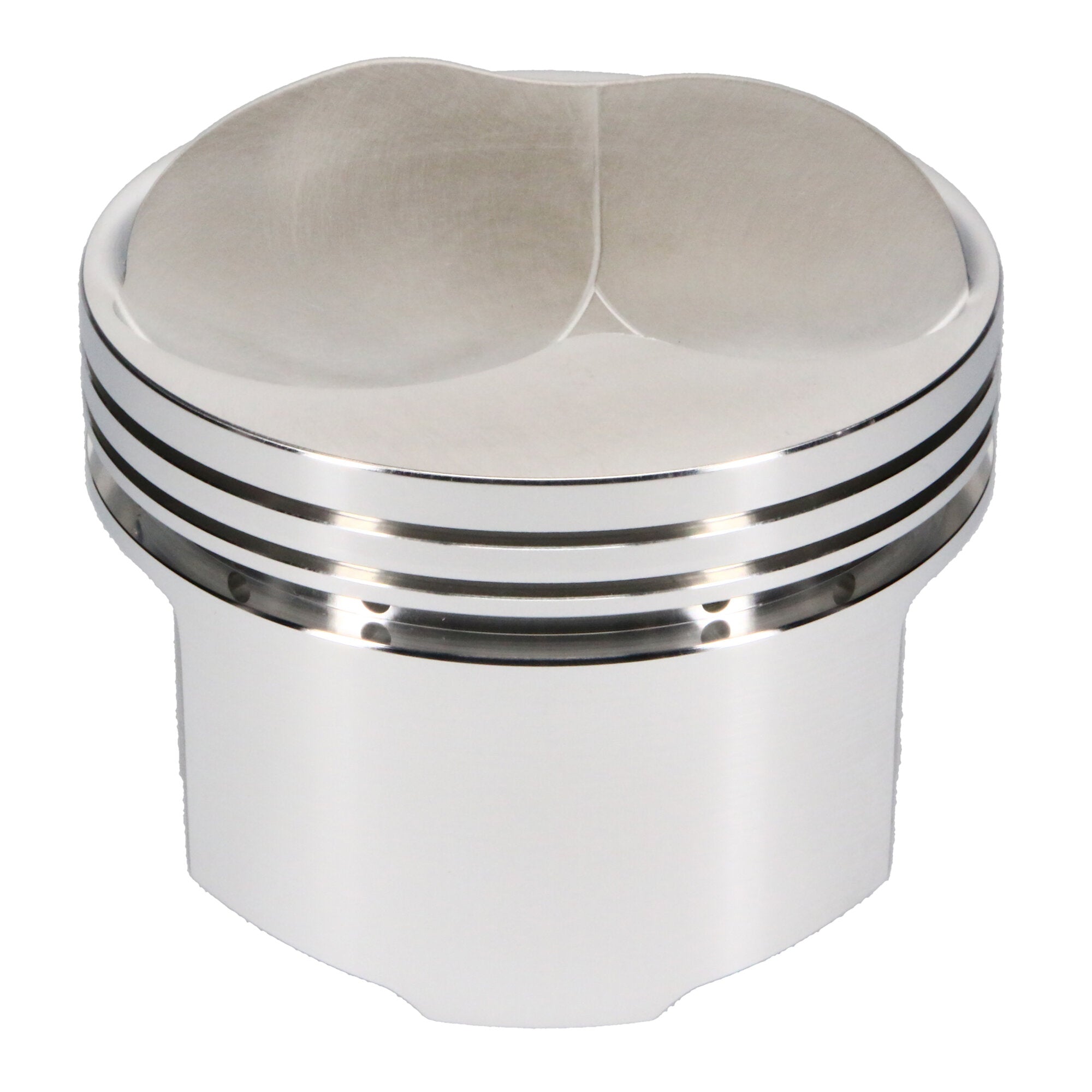

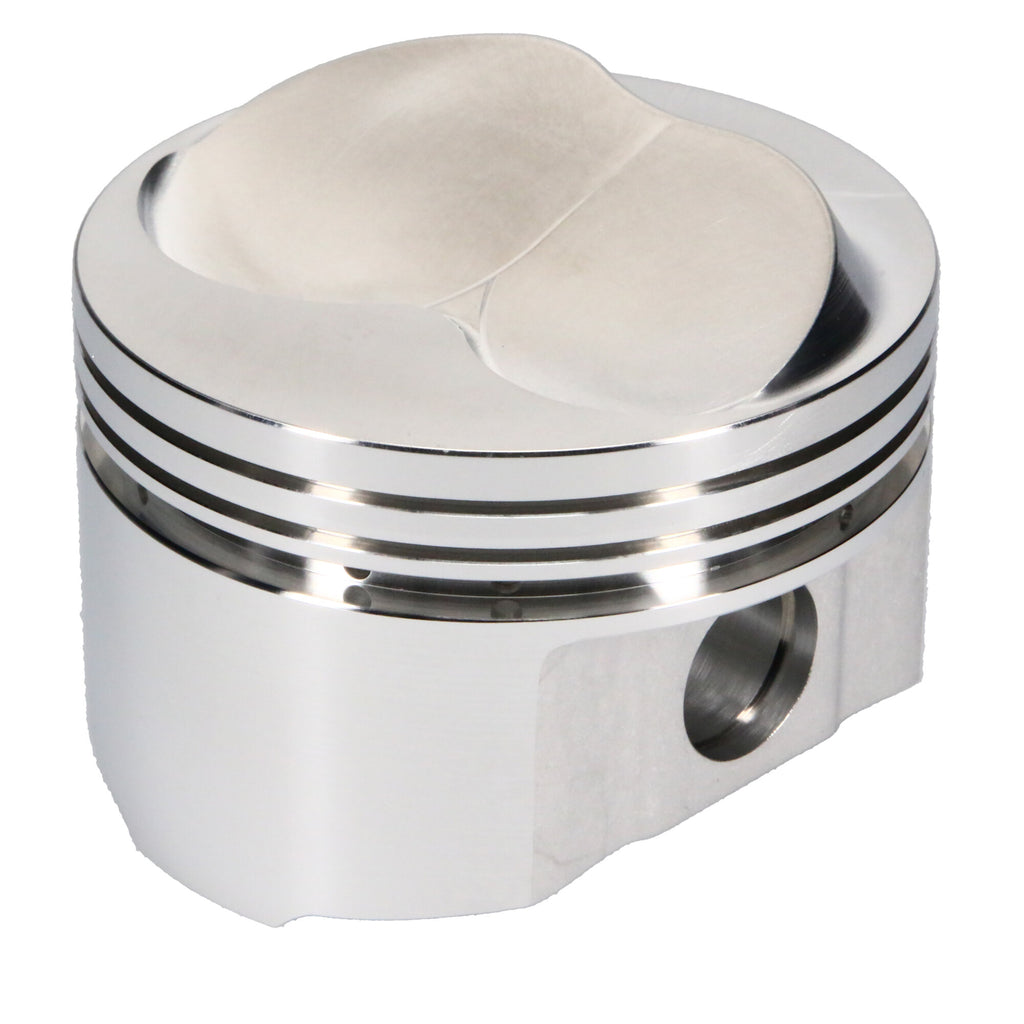

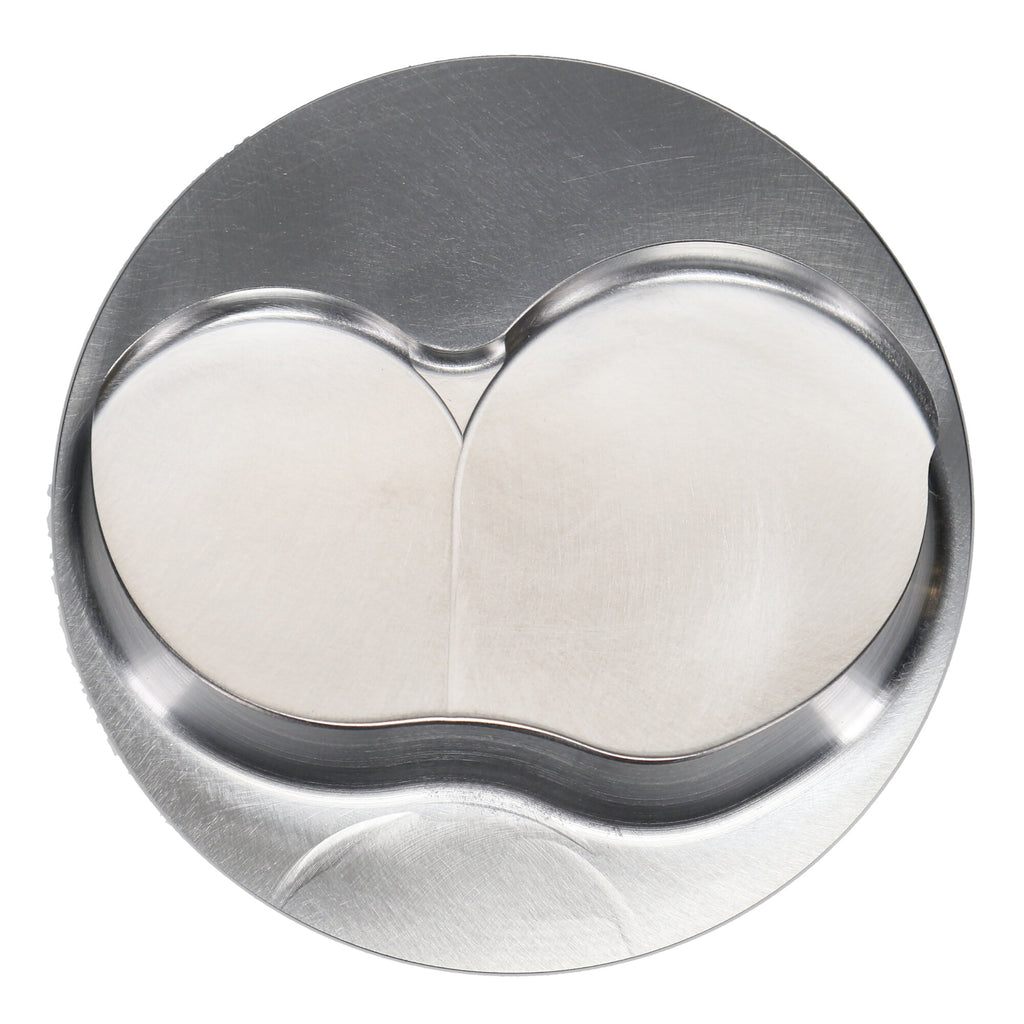

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 8. |
| Description_EXT |
SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.600 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.030 Bore, Dome, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Bore Diameter |
4.030 |
| Piston Average Weight |
530 |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.912 |
| Title |
SRP - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.140 |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.600 |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.912 |
| Engine - Web |
Small Block |
| Industry |
Automotive |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Piston Volume |
18.00 |
| Add-On |
S100S8-4030-5 |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
912-2750-14-51S |
| Wrist Pin Length |
2.750 |
| Ring Set Included |
No |
| Oil Ring Thickness |
0.188 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Engine |
Small Block |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.030 in. Bore - 1.600 in. CH, 18.00 CC |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Piston Head Type |
Dome |
| Piston Series |
SRP |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
