Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Pinto 2300 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

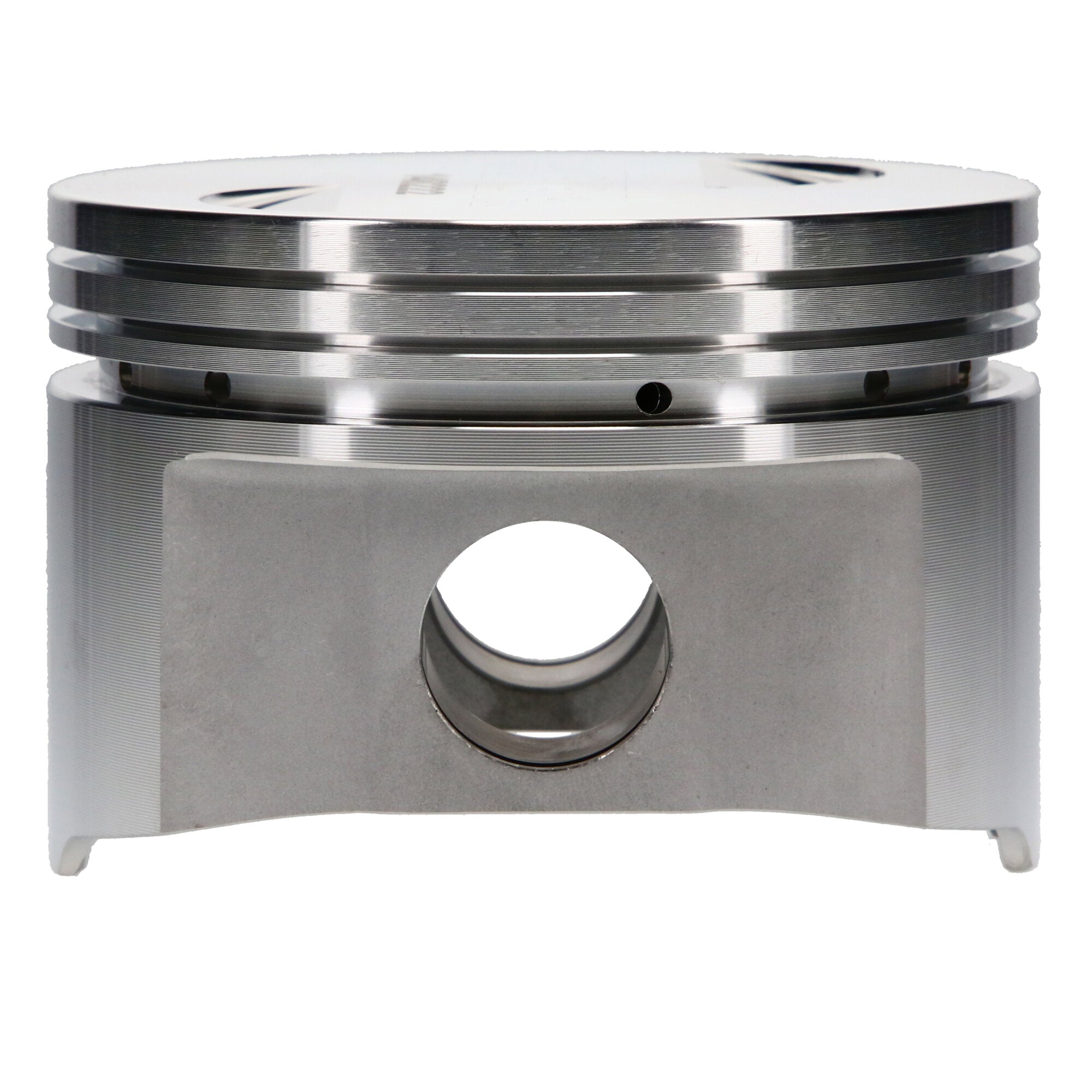

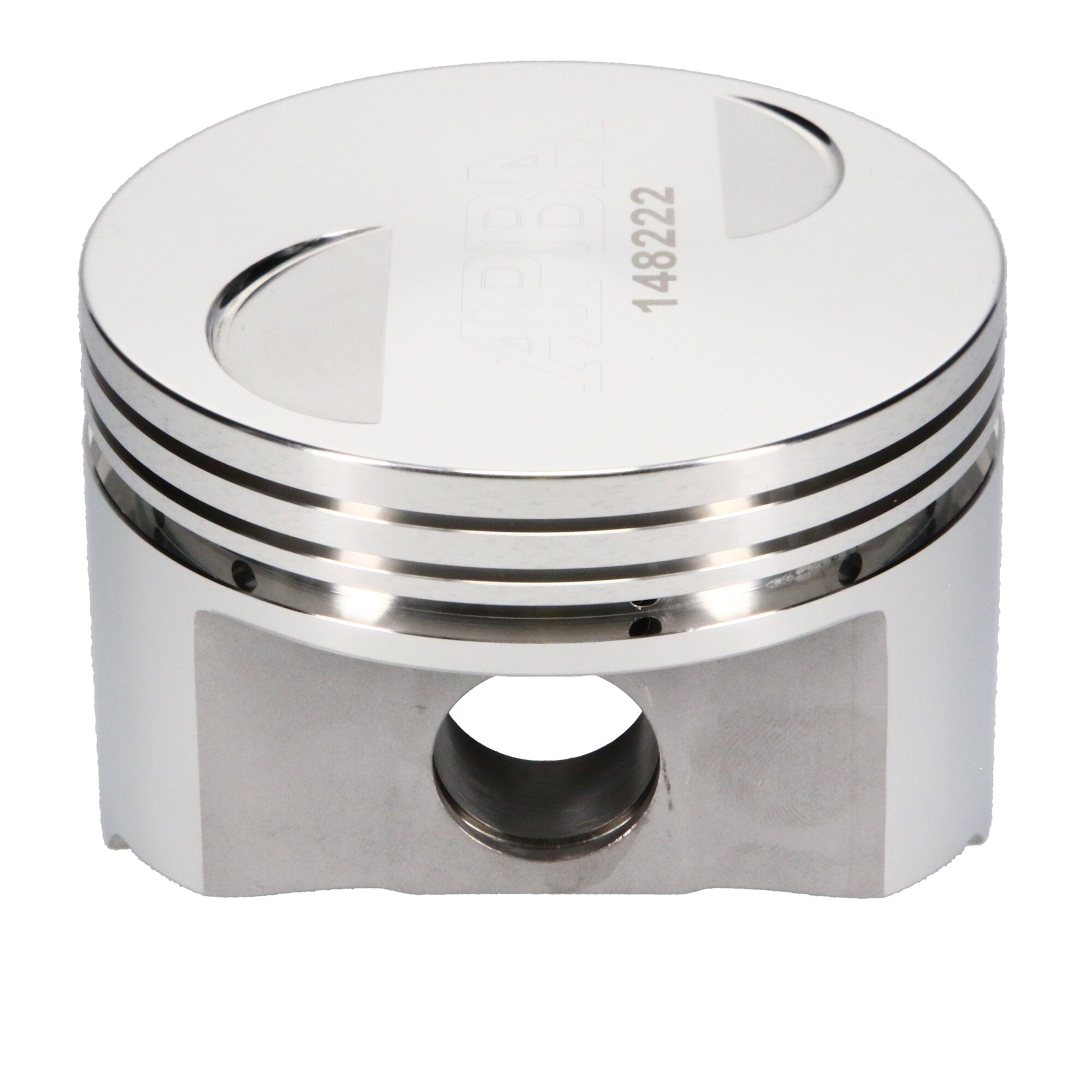

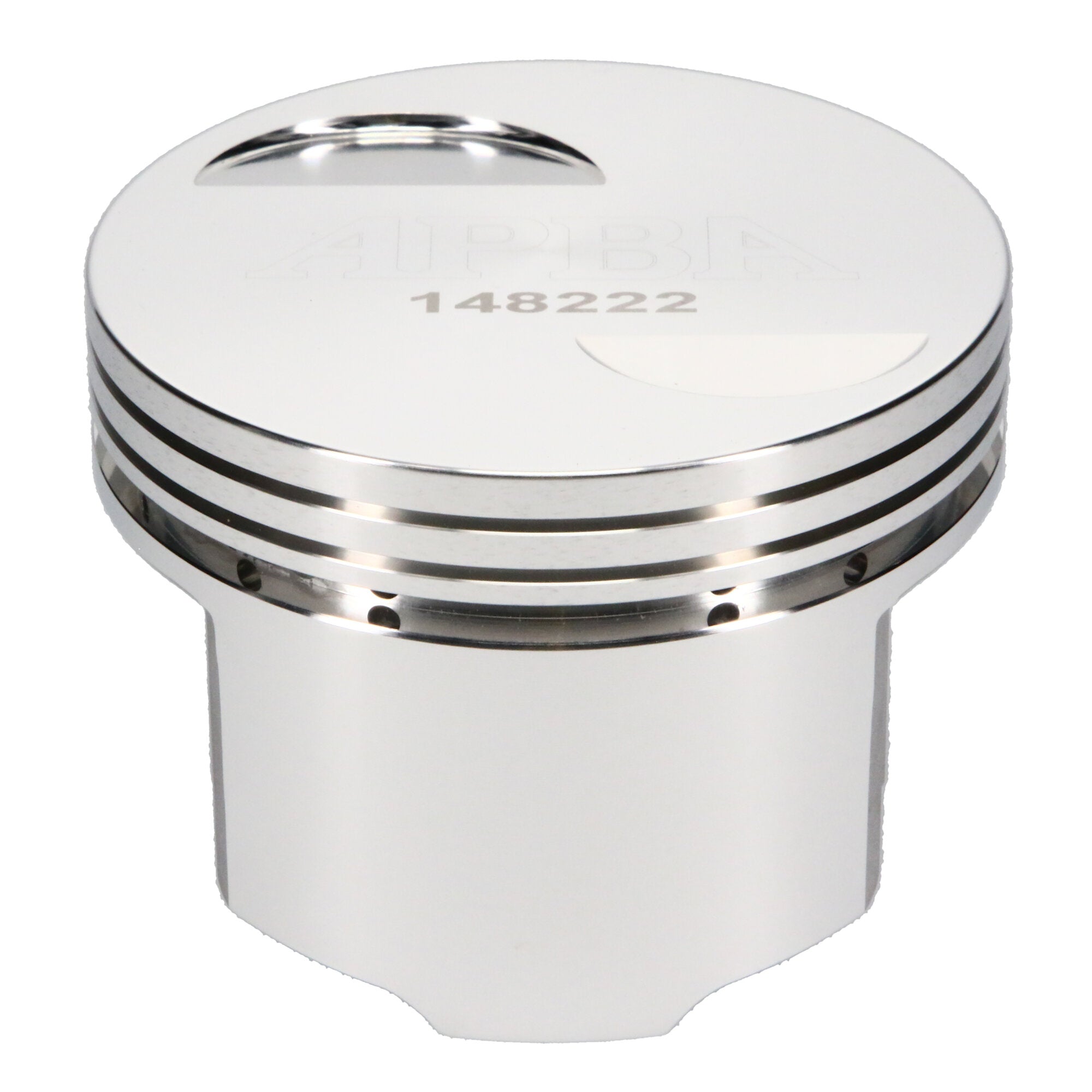

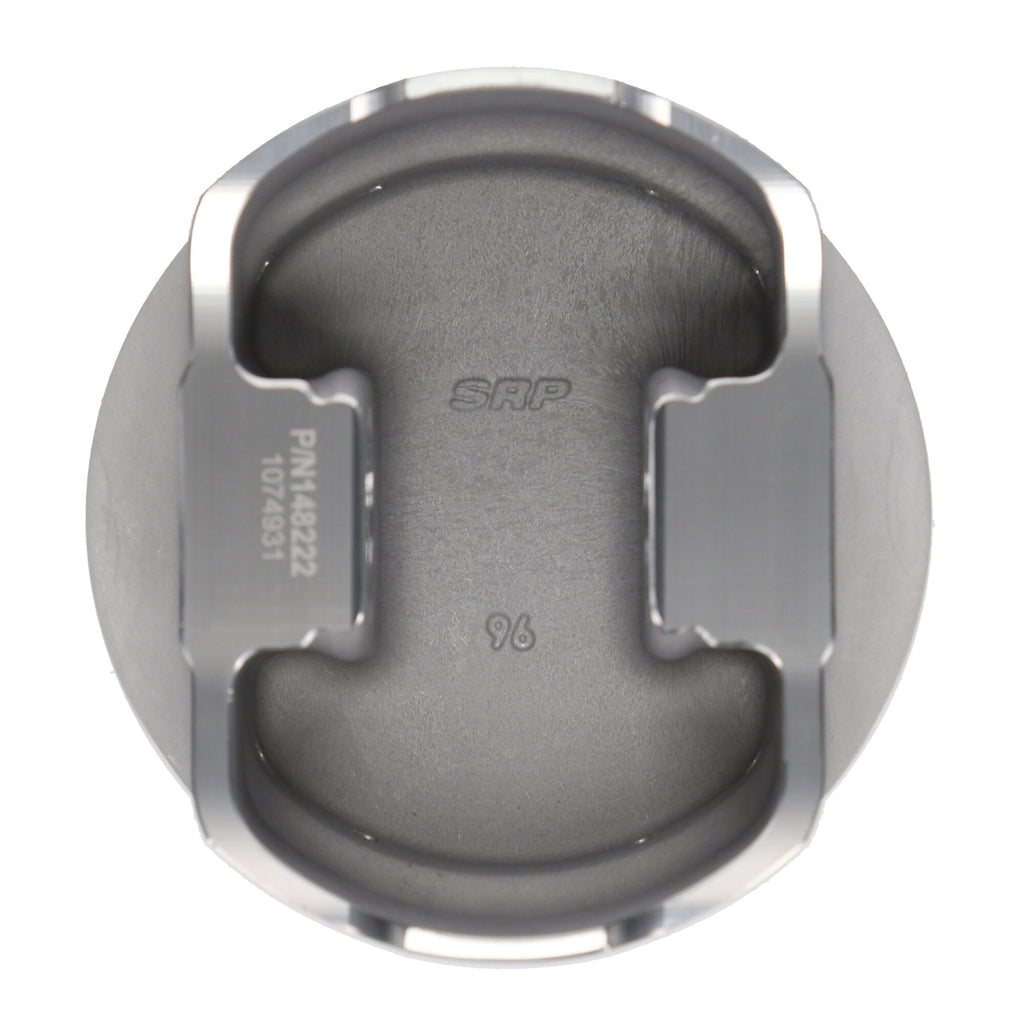

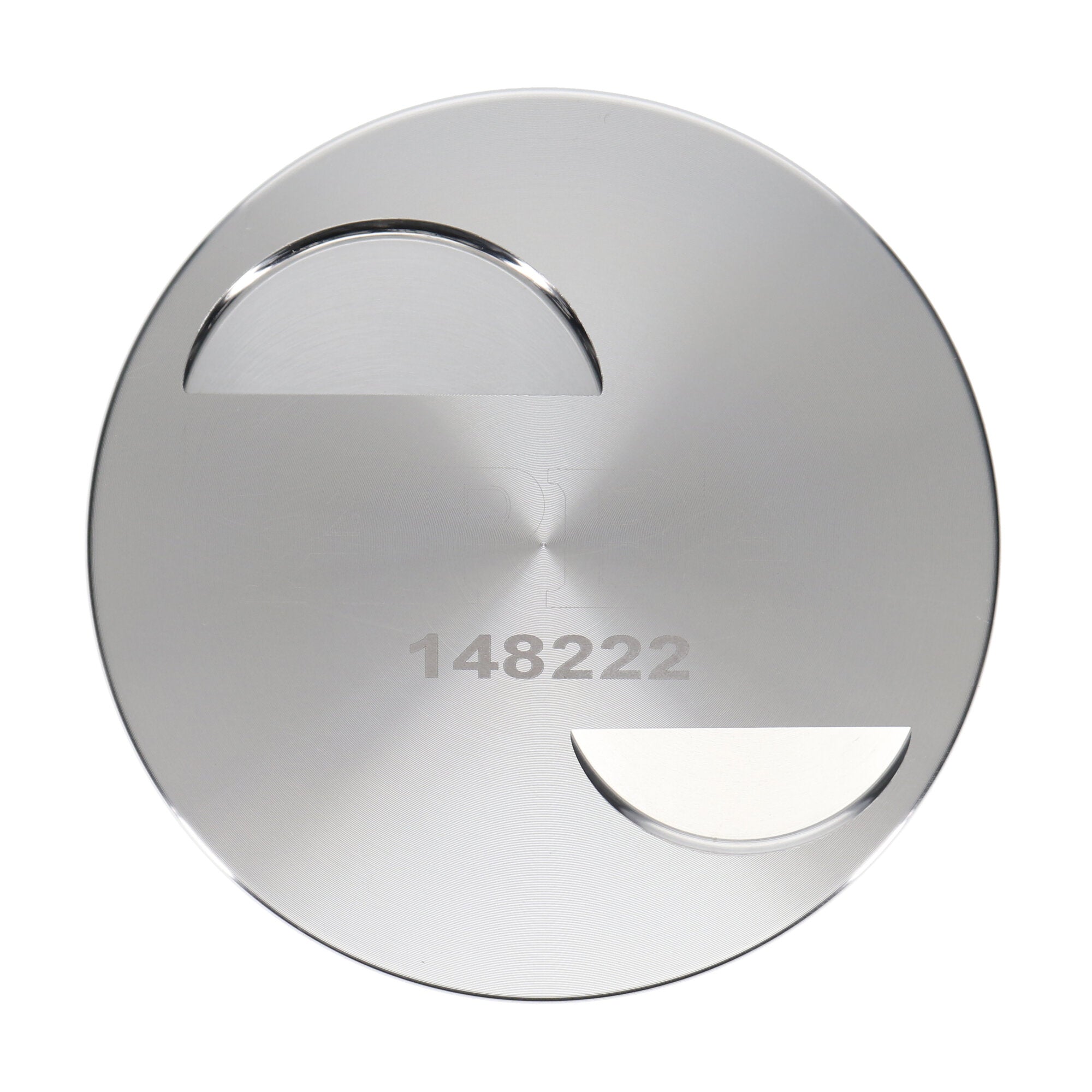

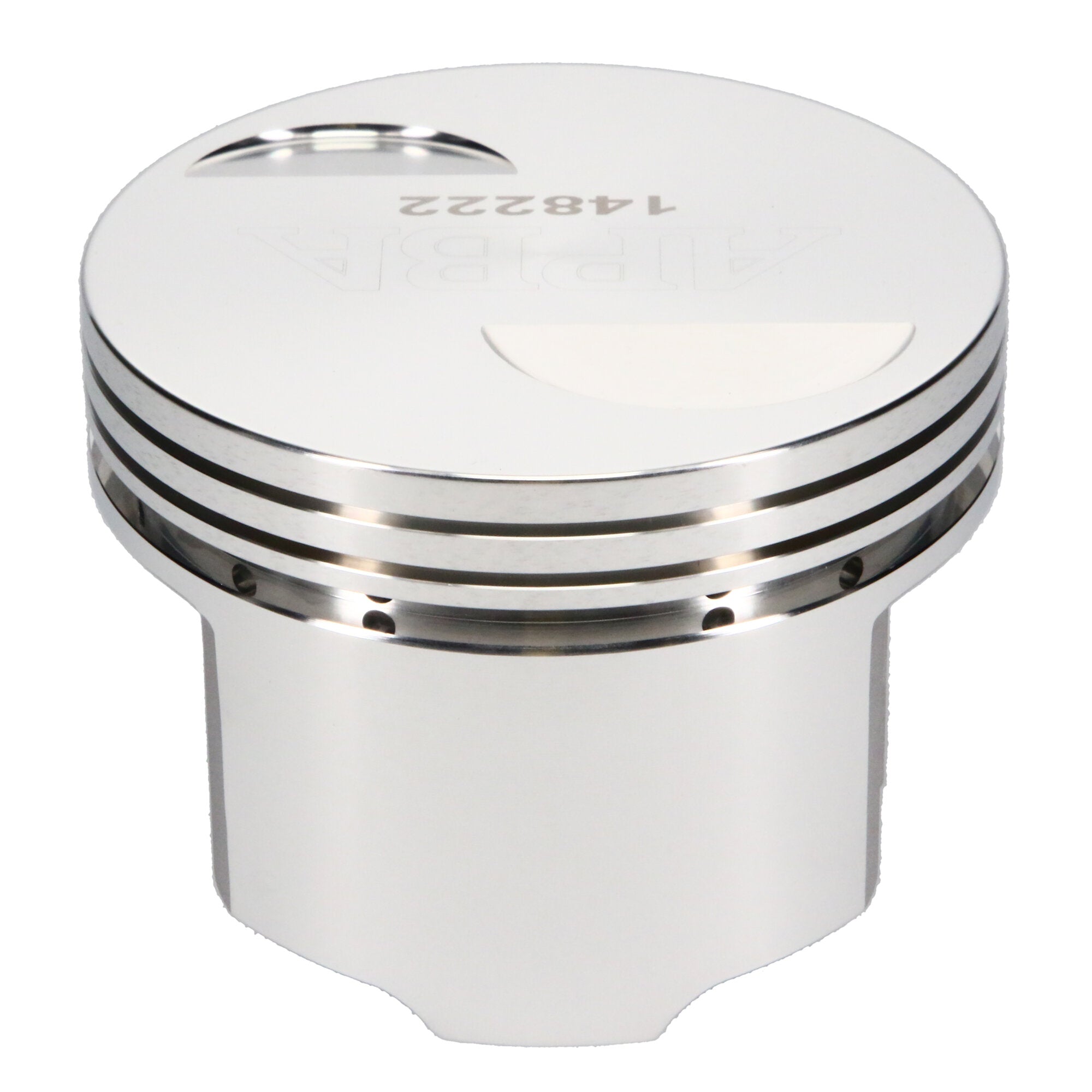

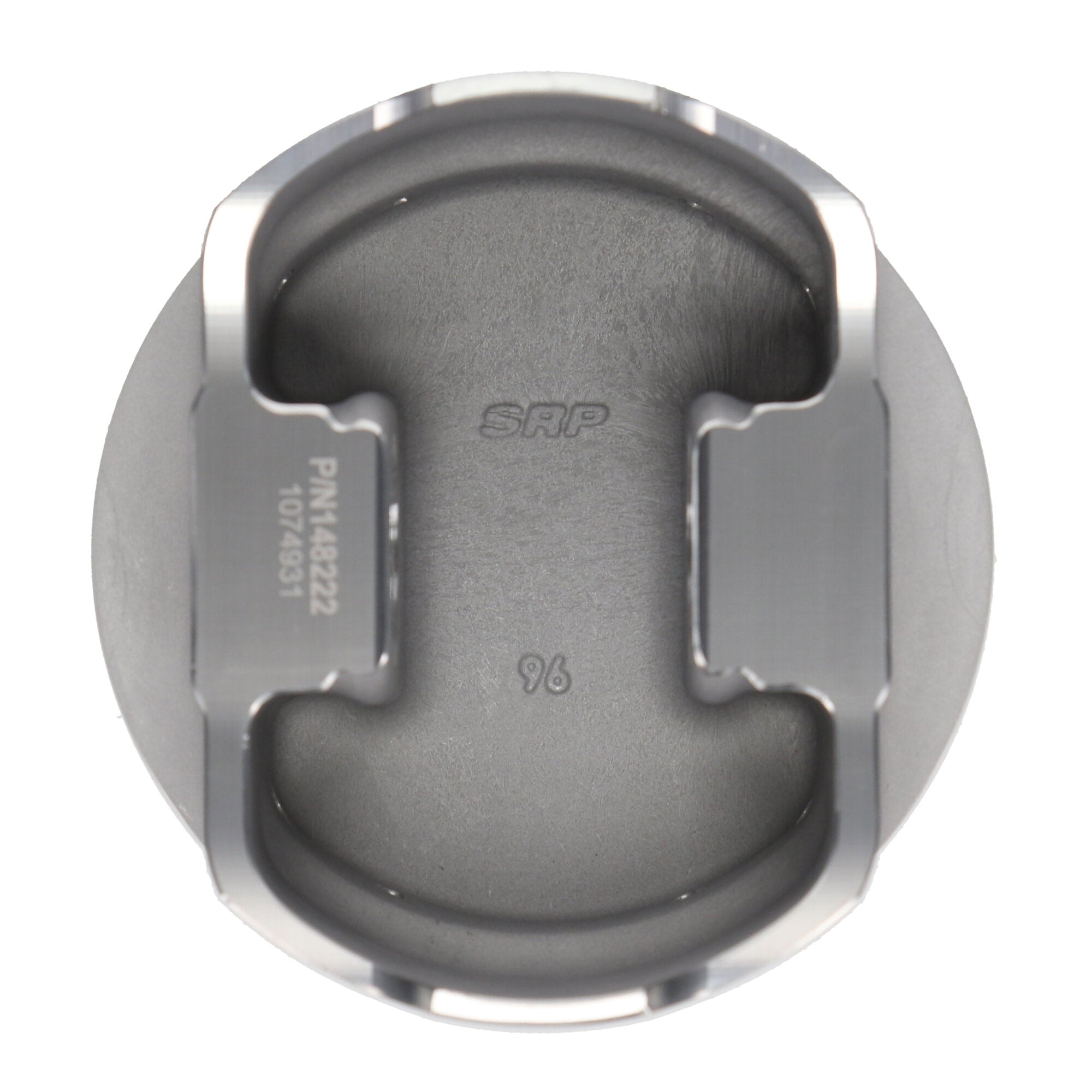

Piston Set, 4032, Flat Top, 3.820 Bore, 1.090 CD, 0.927 Pin, Set of 4. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Ford, Pinto, 3.820 in. Bore, 1.090 CD, Flat Top, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Ford 2300 4-Cyl, 3.820 Bore, Flat, Set of 4 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Compression Height |
1.090 |
| Industry |
Automotive |
| Title |
SRP - Ford, Pin.to, 3.820 in. Bore, Piston Kit |
| Cylinder Head |
PINTO |
| Engine - Web |
Pinto |
| Piston Material |
4032 |
| Piston Average Weight |
342 |
| Bore Diameter |
3.820 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Product Market |
Domestic |
| Prop 65 (C, R or CR) |
CR |
| Top Compression Ring Thickness |
0.0600 |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 Yes/No |
Yes |
| Add-On |
927-2500-13-51S |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-1.00 |
| Add-On |
J640F4-3820 |
| Title - Web |
SRP Ford Pin.to Piston Kit - 3.820 in. Bore - 1.090 in. CH, -1.00 CC |
| Out of Stock Message |
Call for Availability |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.500 |
| Piston Head Type |
Flat |
| Make |
FORD |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.188 |
| Engine Type |
ICE |
| Piston Pin Length |
2.500 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Engine |
PINTO |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.130 |
| Make - Web |
Ford |
| Piston Series |
SRP |
| Piston Pin Wall Thickness |
0.130 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
