Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

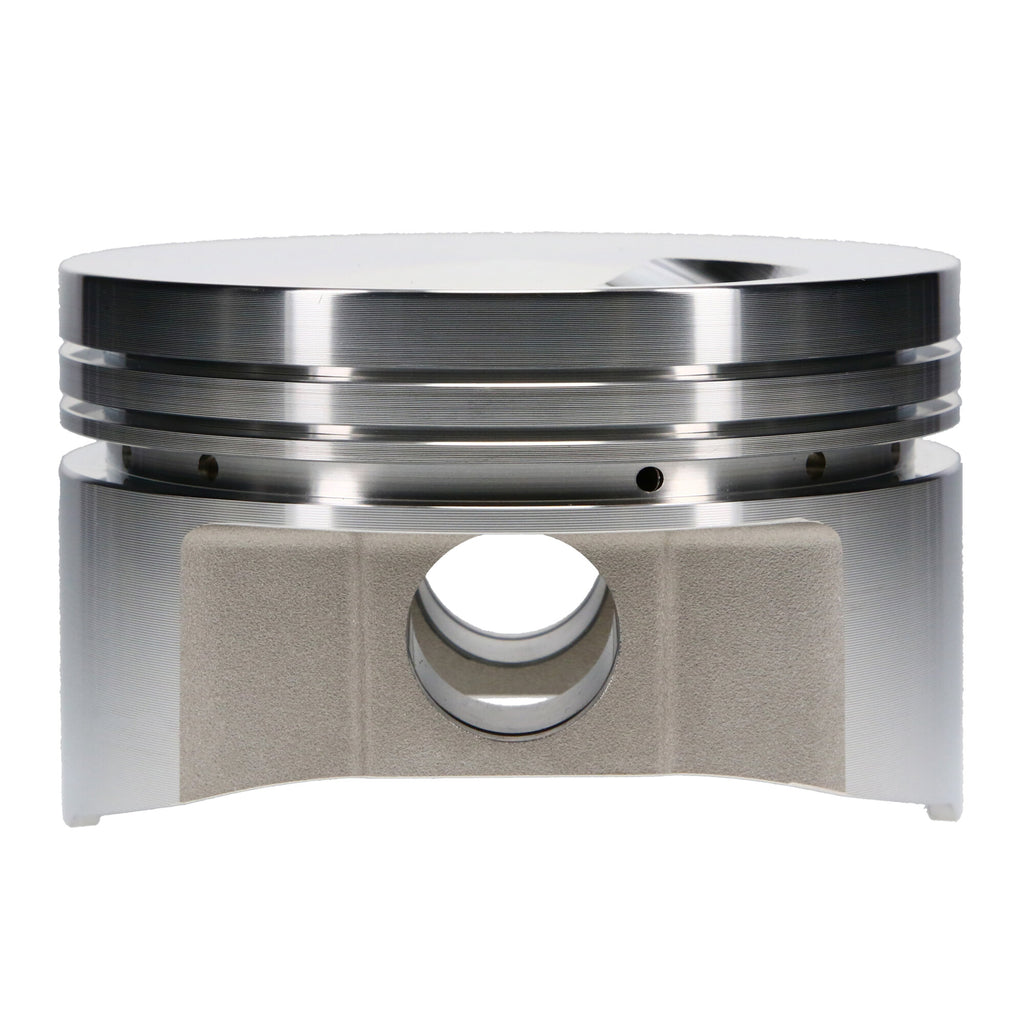

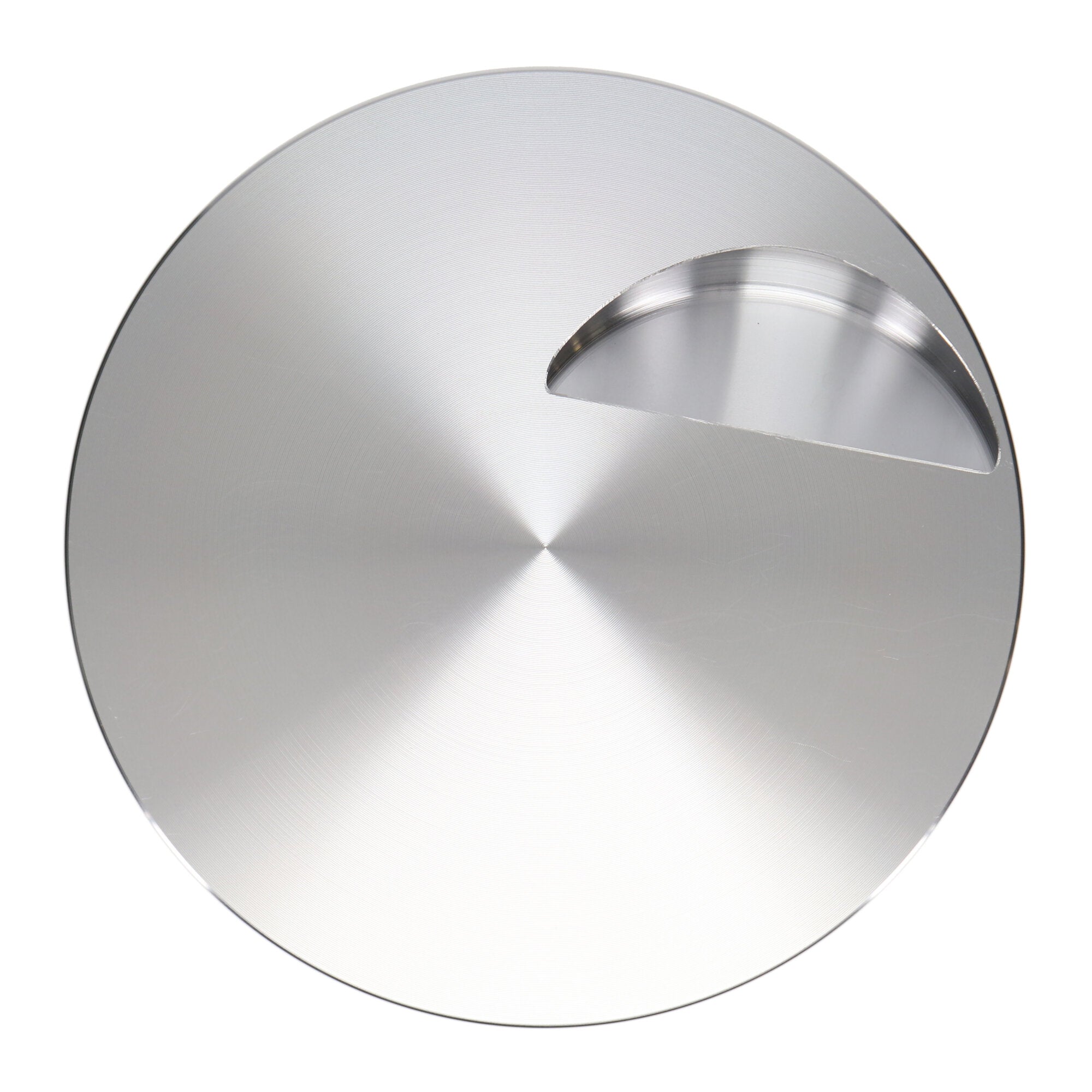

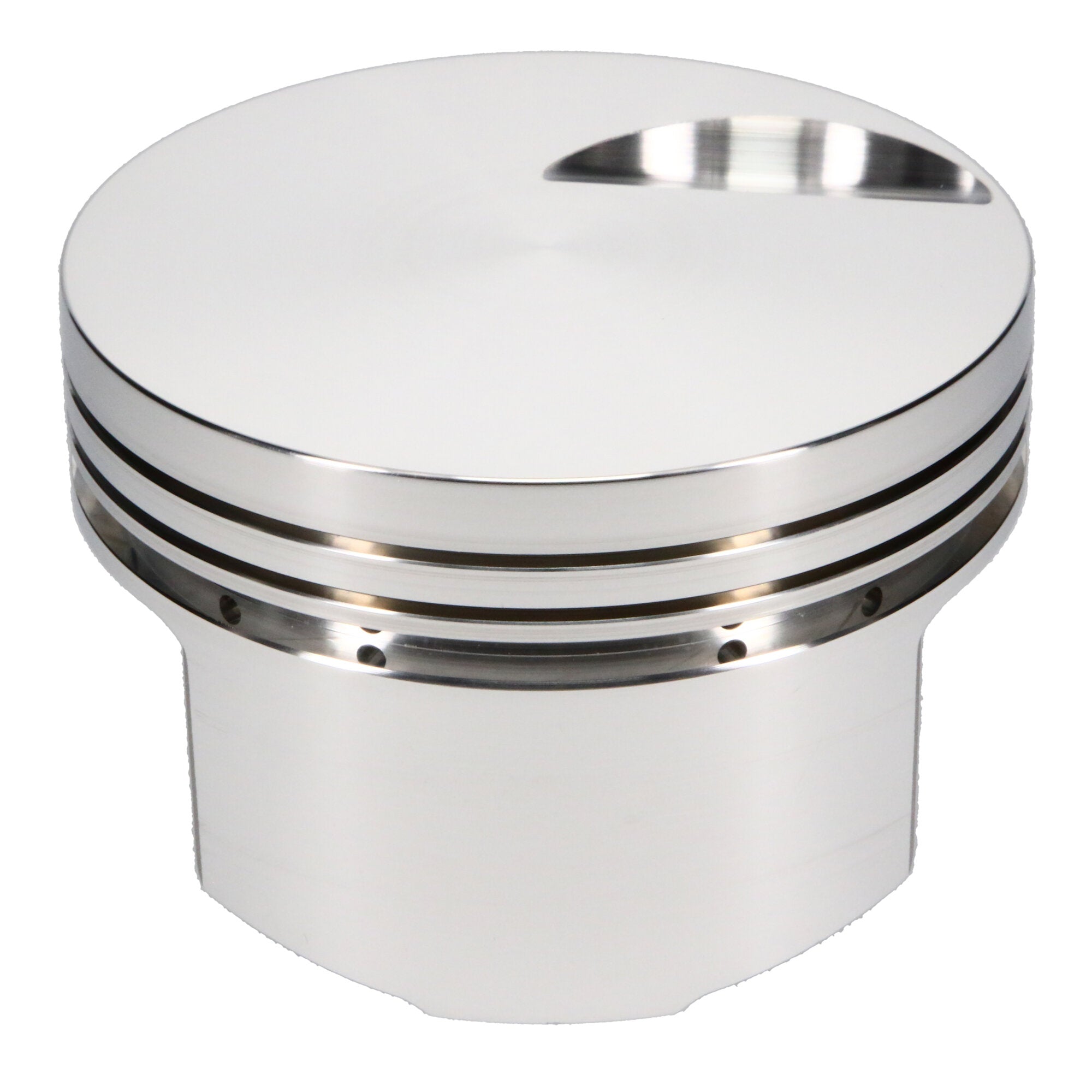

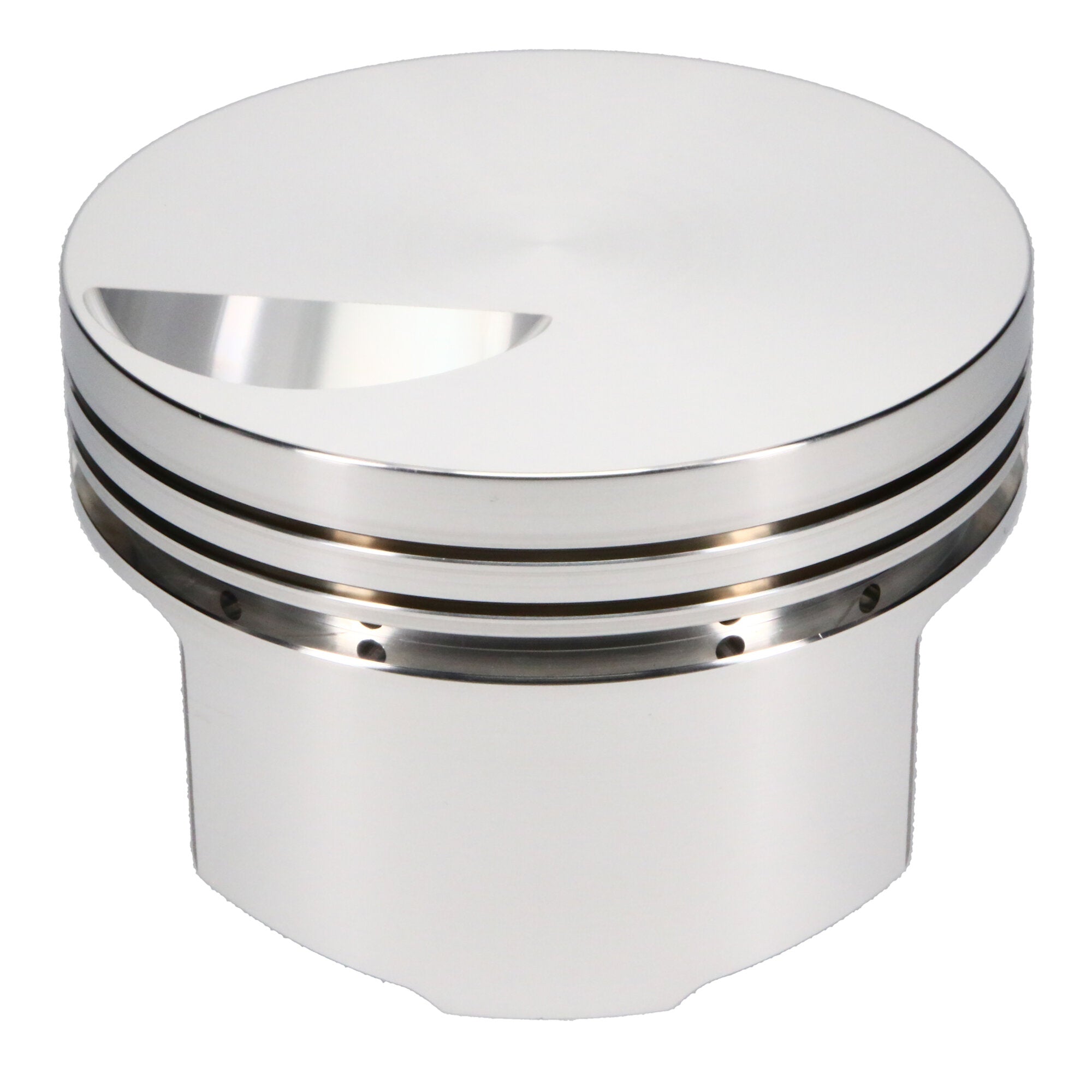

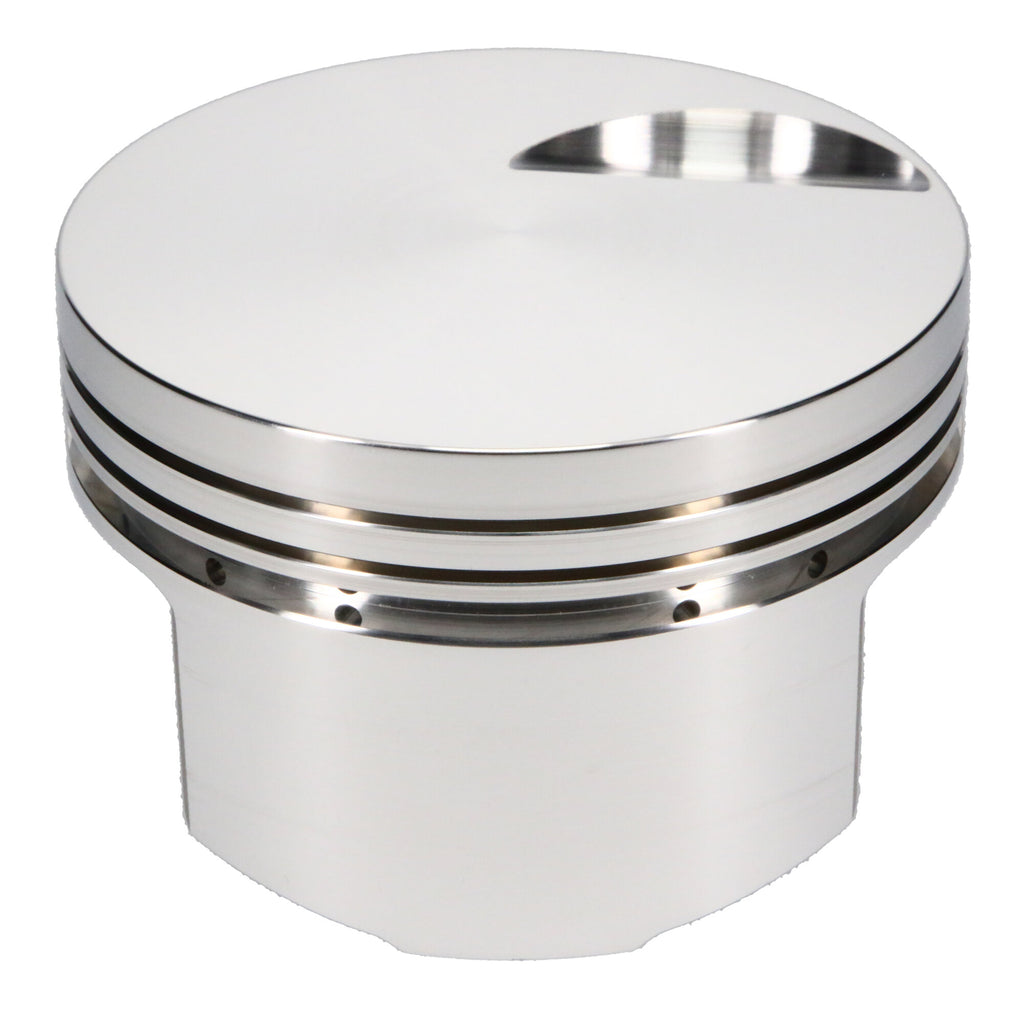

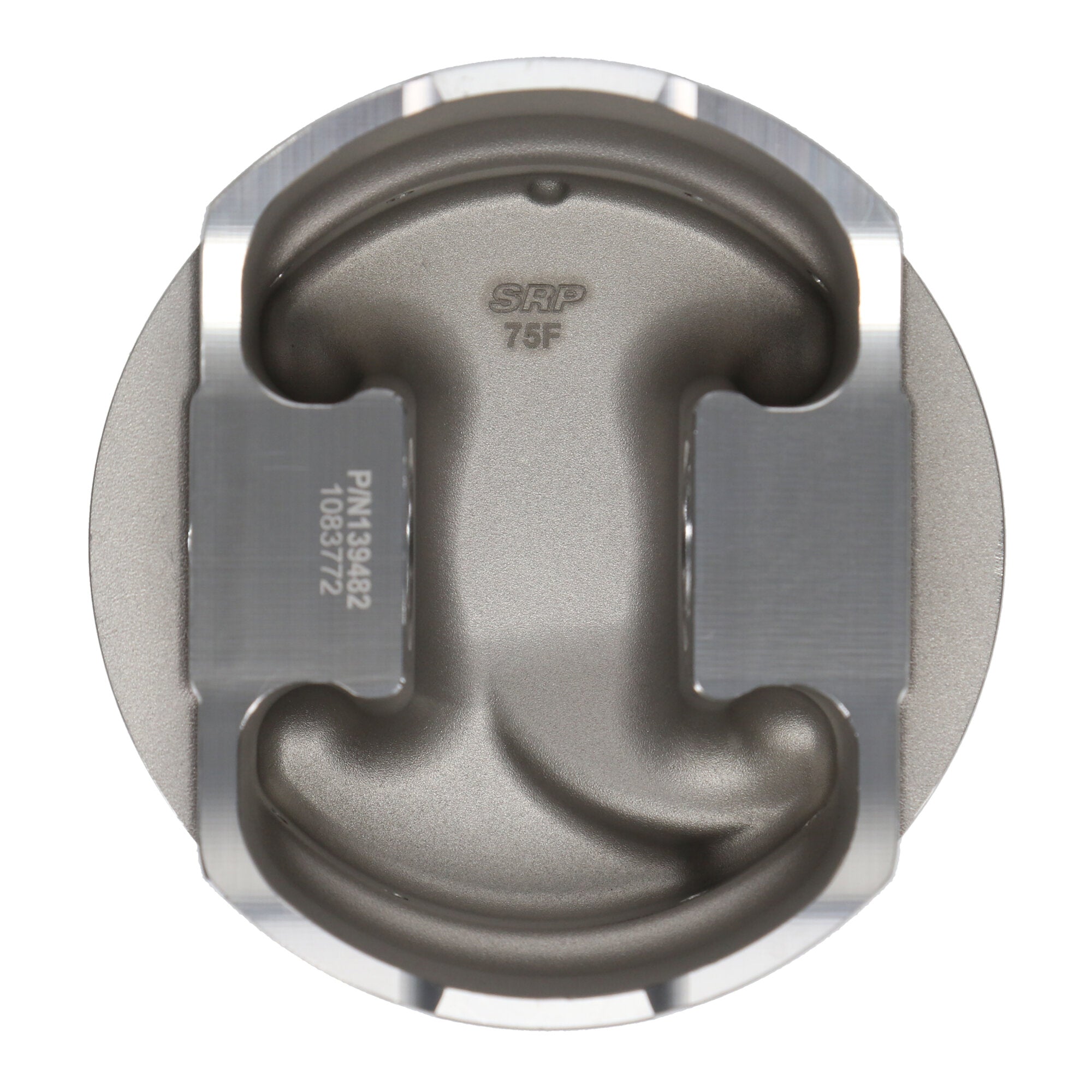

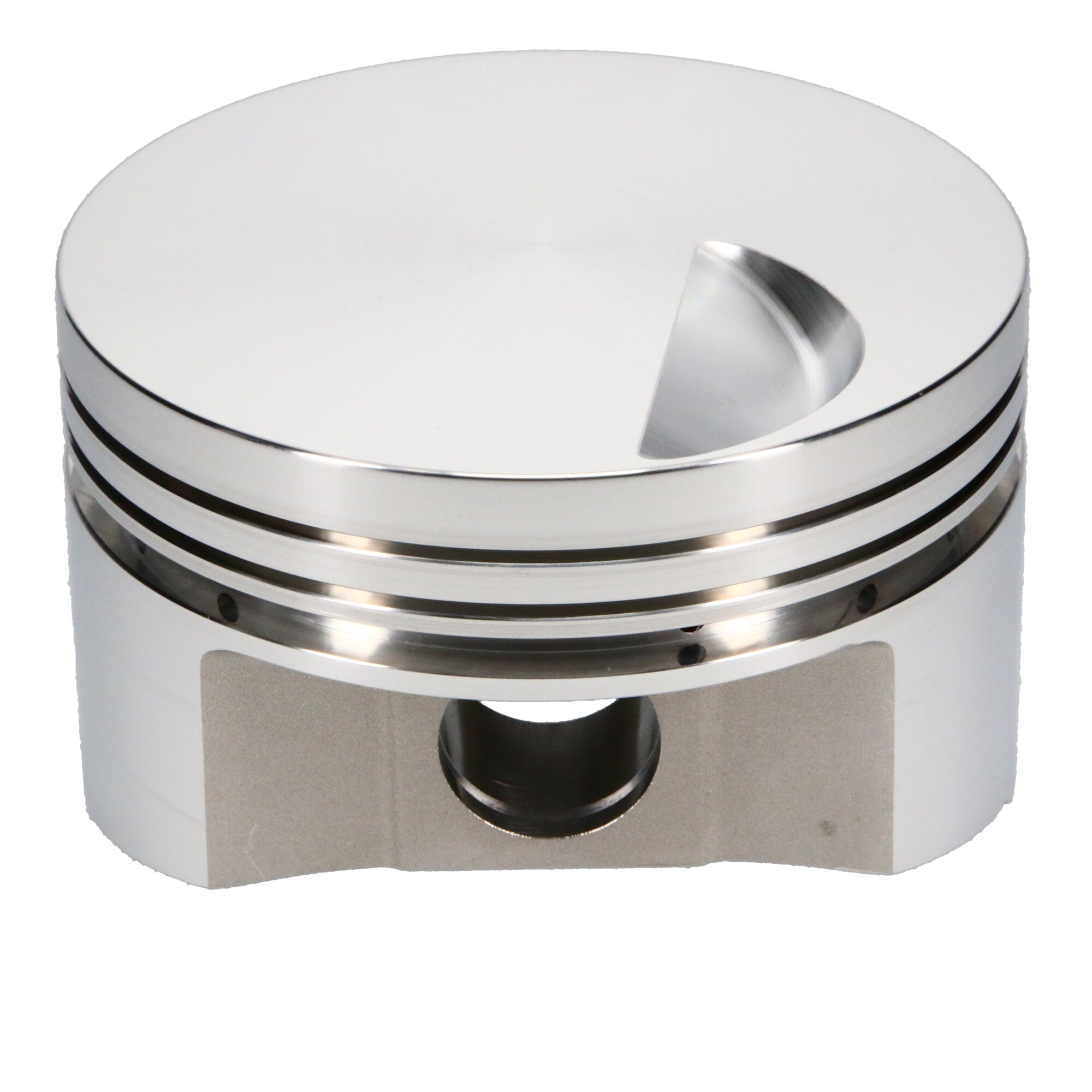

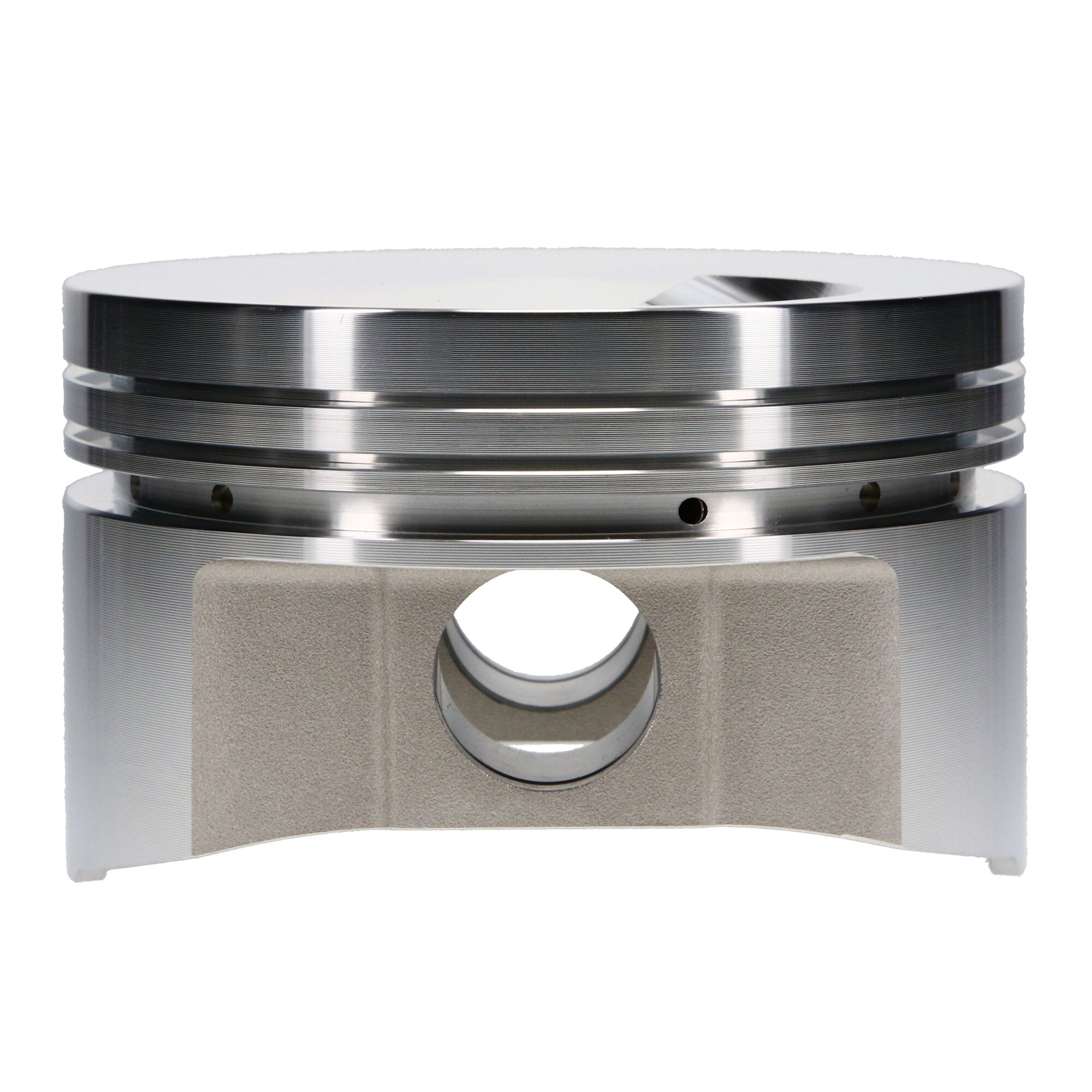

Piston Set, 4032, Flat Top, 4.350 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.350 in. Bore, 1.270 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.350 Bore, Flat, Set of 8 |
| Add-On |
990-042-CS |
| Add-On |
S100S8-4350-5 |
| Add-On |
990-2930-15-51S |
| Industry |
Automotive |
| Cylinder Head |
OPEN CHAMBER |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Flat |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.350 in. Bore - 1.270 in. CH, -3.00 CC |
| Piston Material |
4032 |
| Piston Pin Length |
2.930 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Engine |
Big Block |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Product Market |
Domestic |
| Piston Series |
SRP |
| Compression Height |
1.270 |
| Title |
SRP - Chevrolet, Big Block, 4.350 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.990 |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.218 |
| Piston Average Weight |
560 |
| Piston Volume |
-3.00 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.350 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Ring Set Included |
No |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
