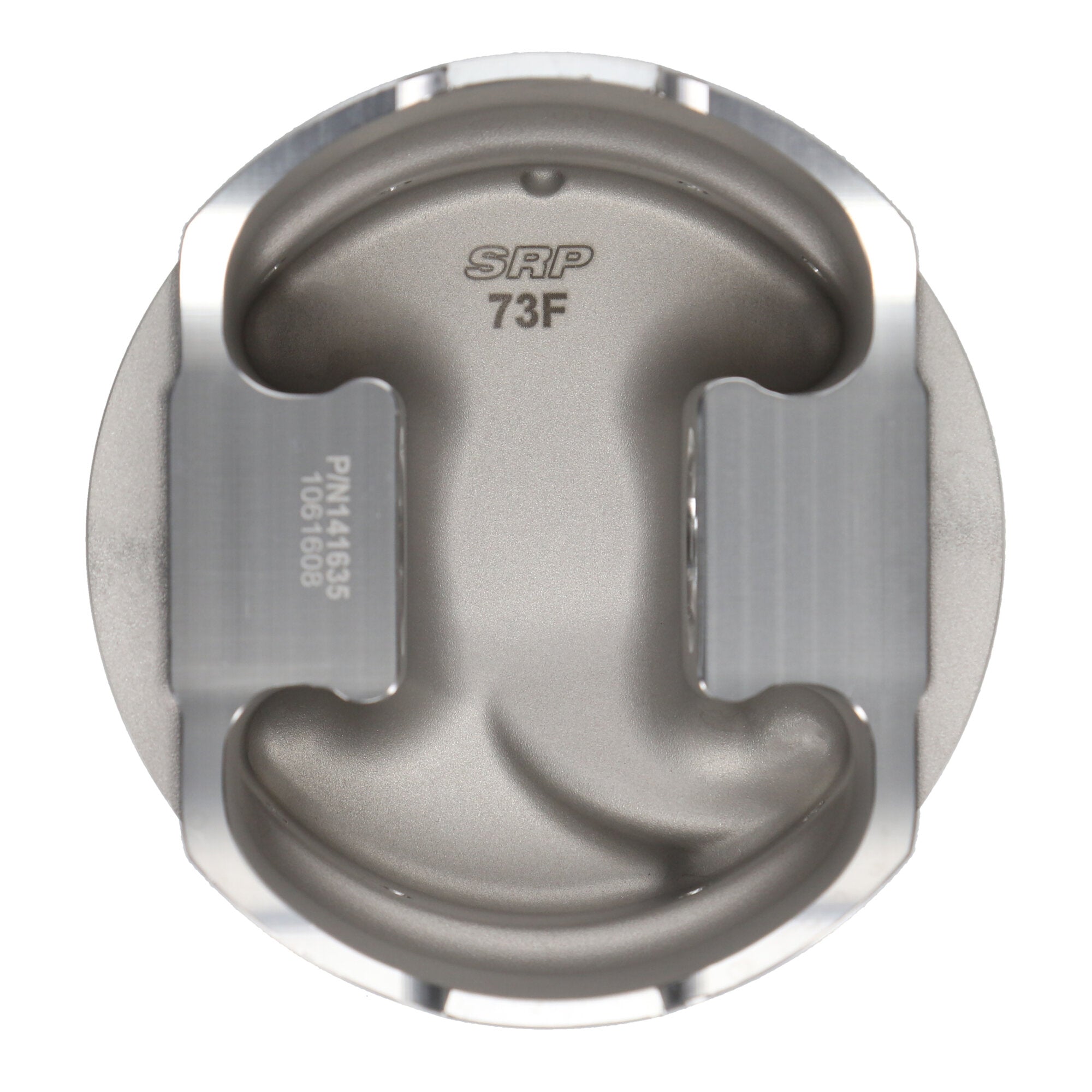

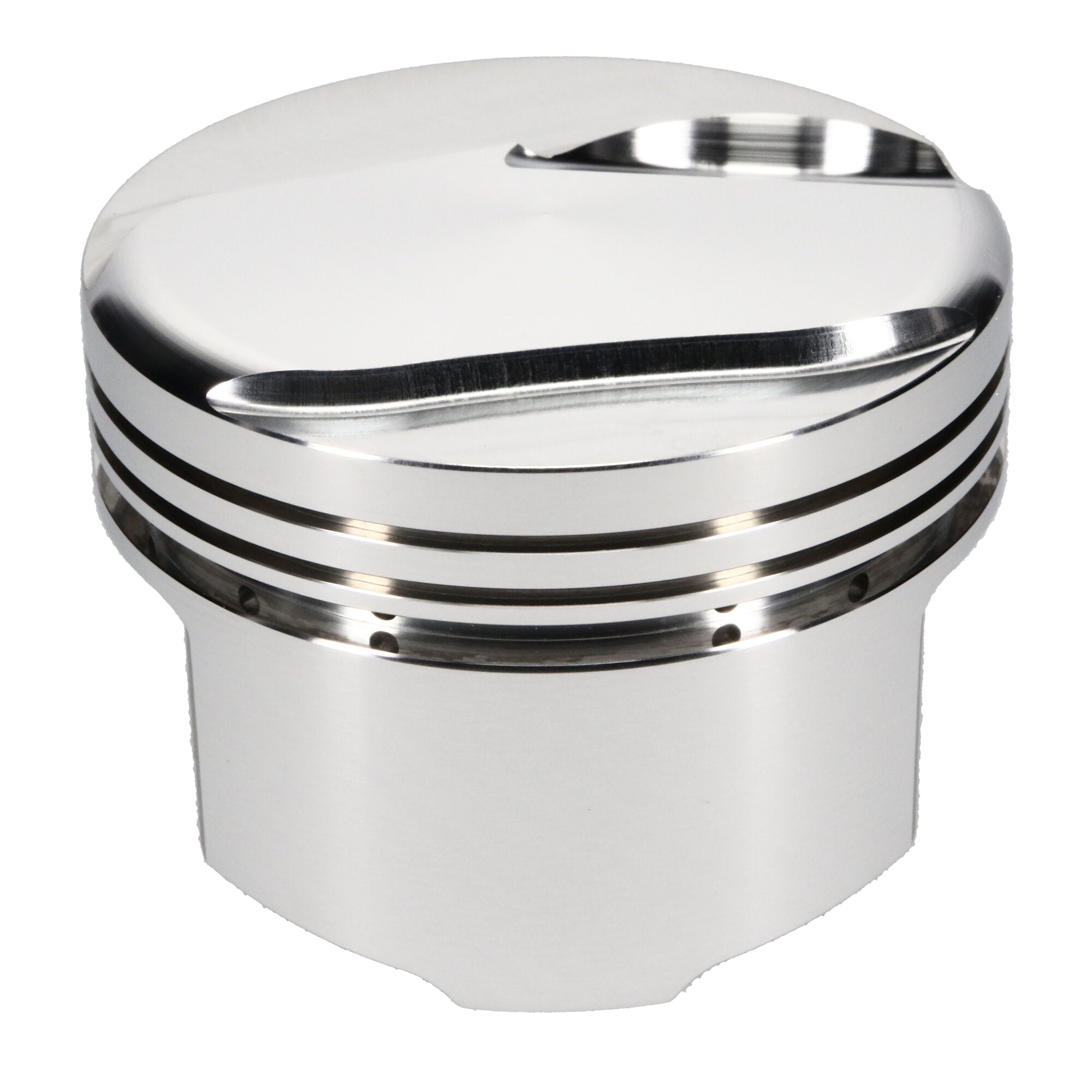

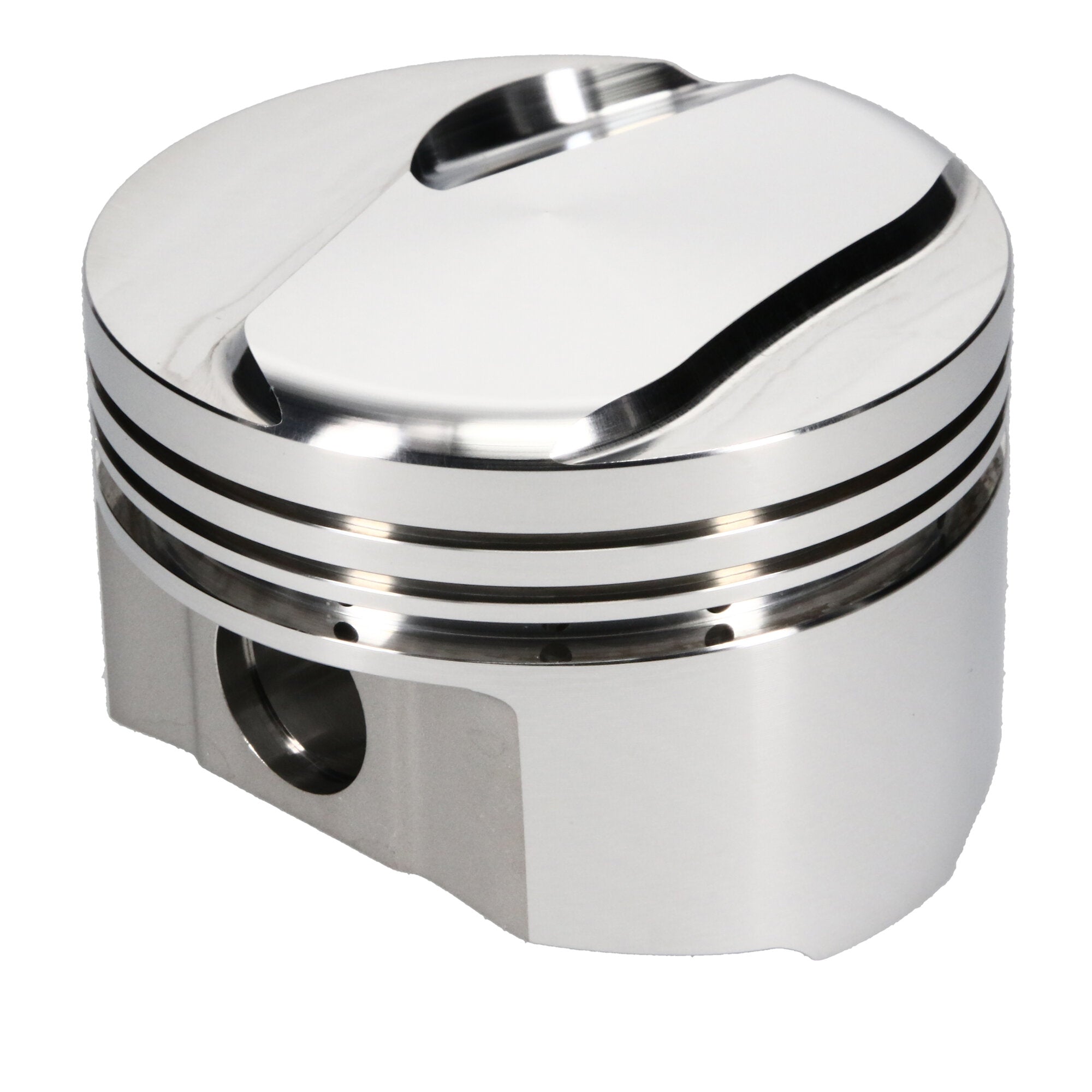

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DES |

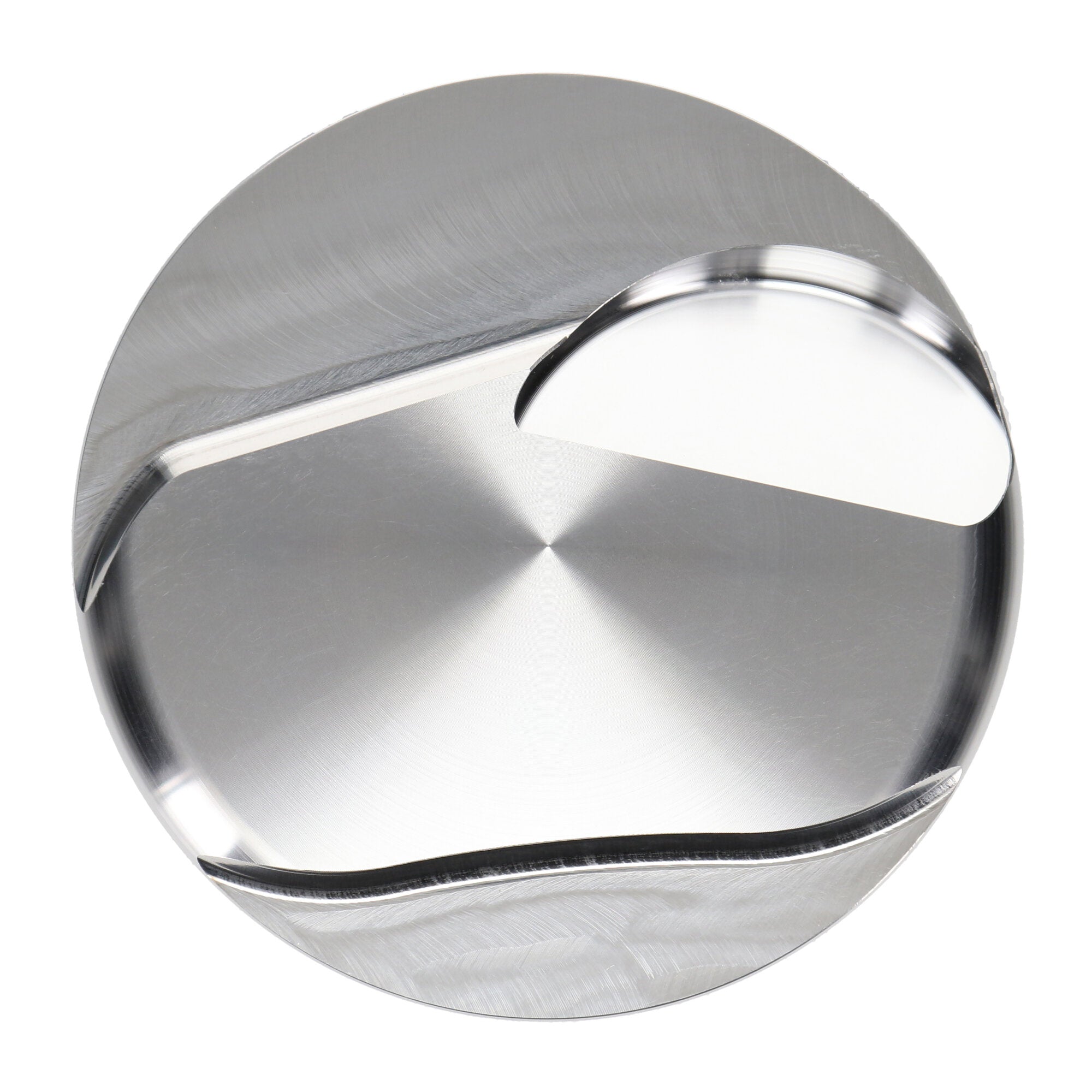

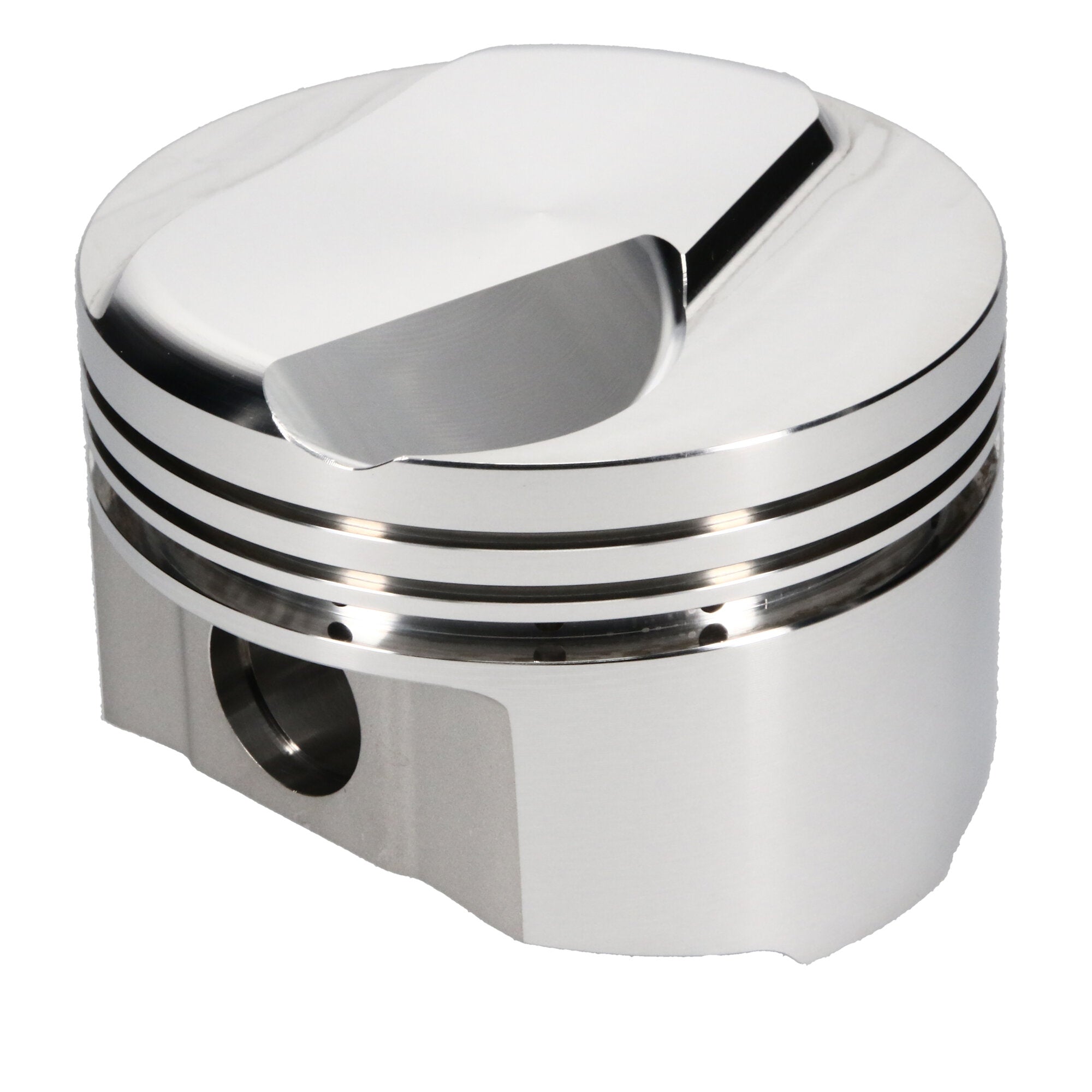

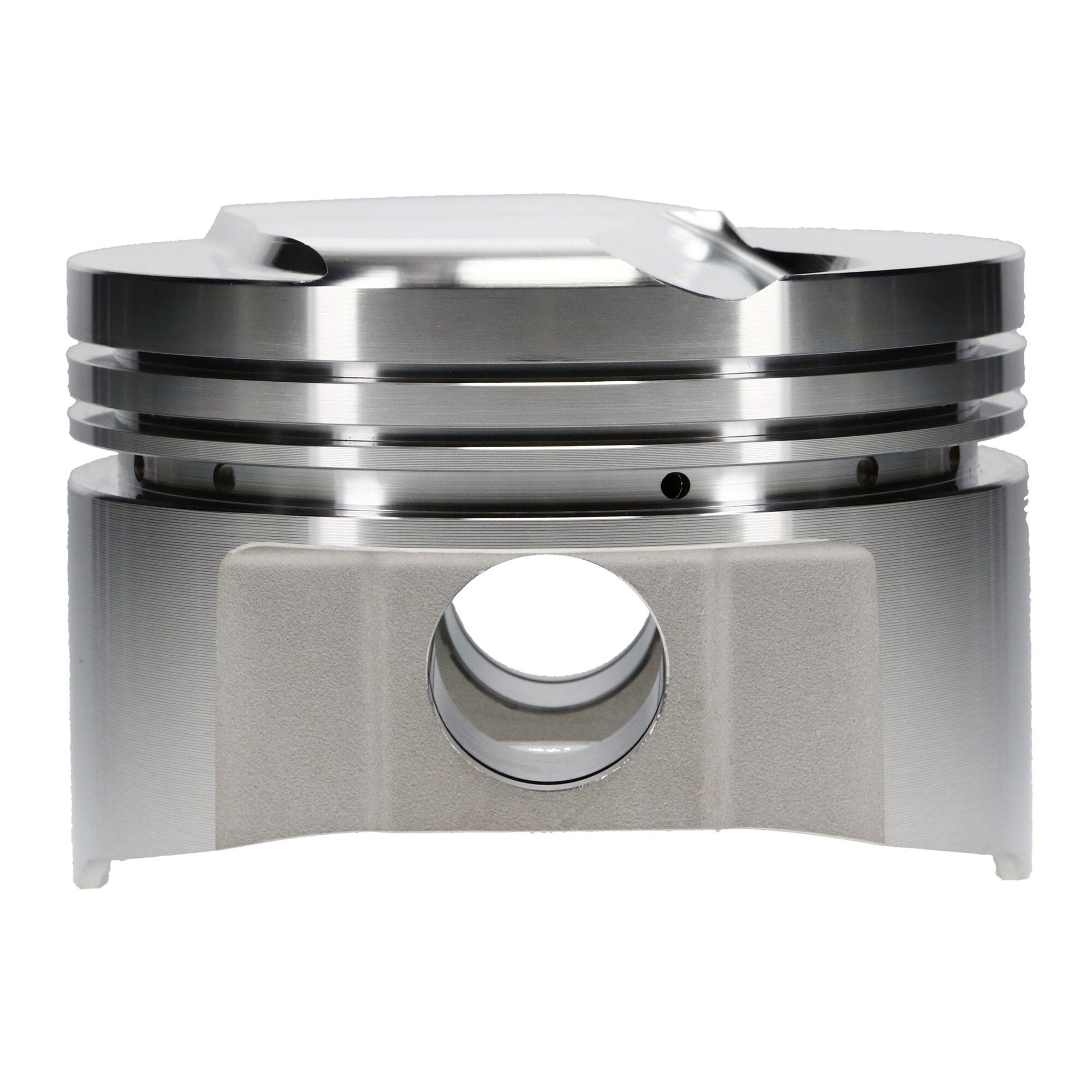

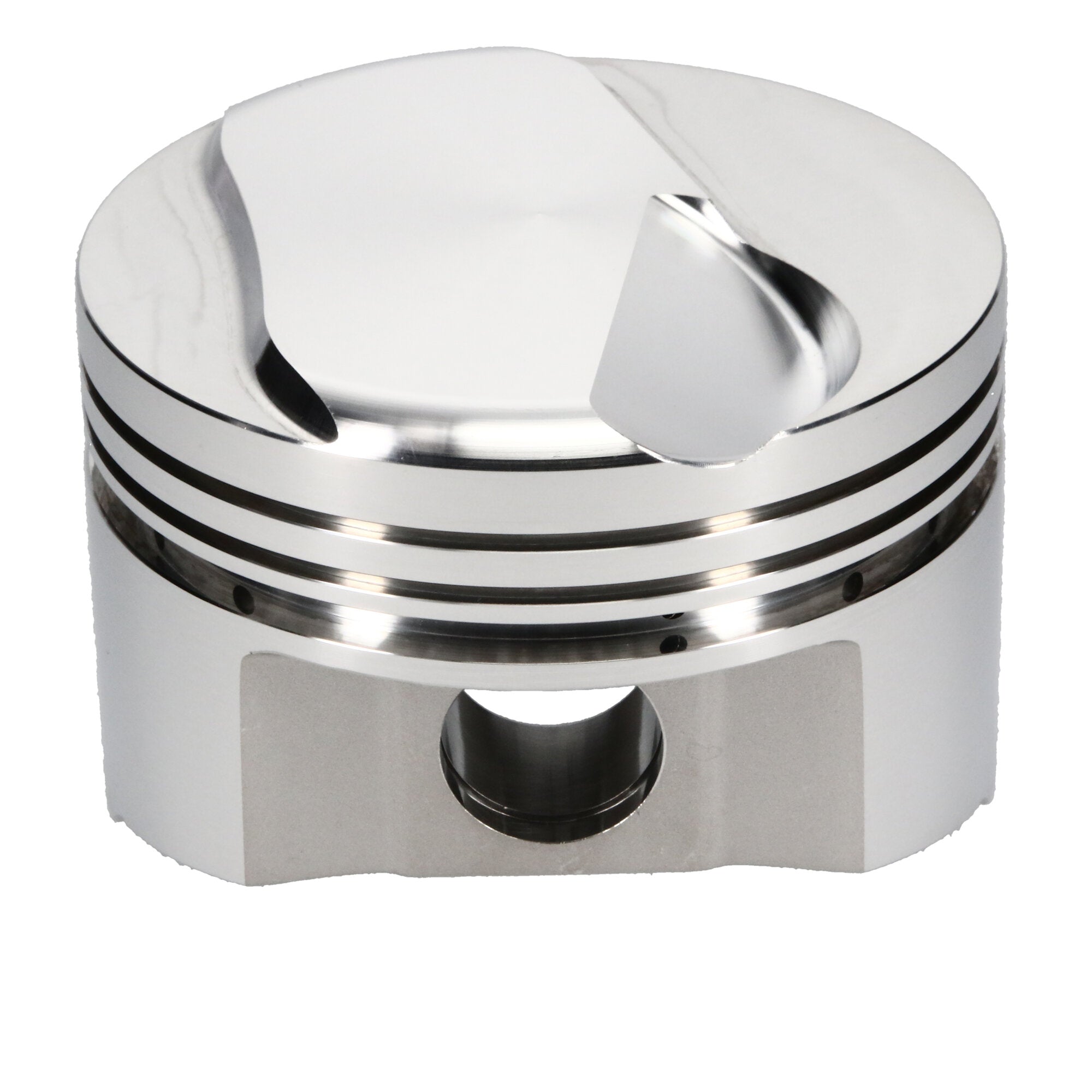

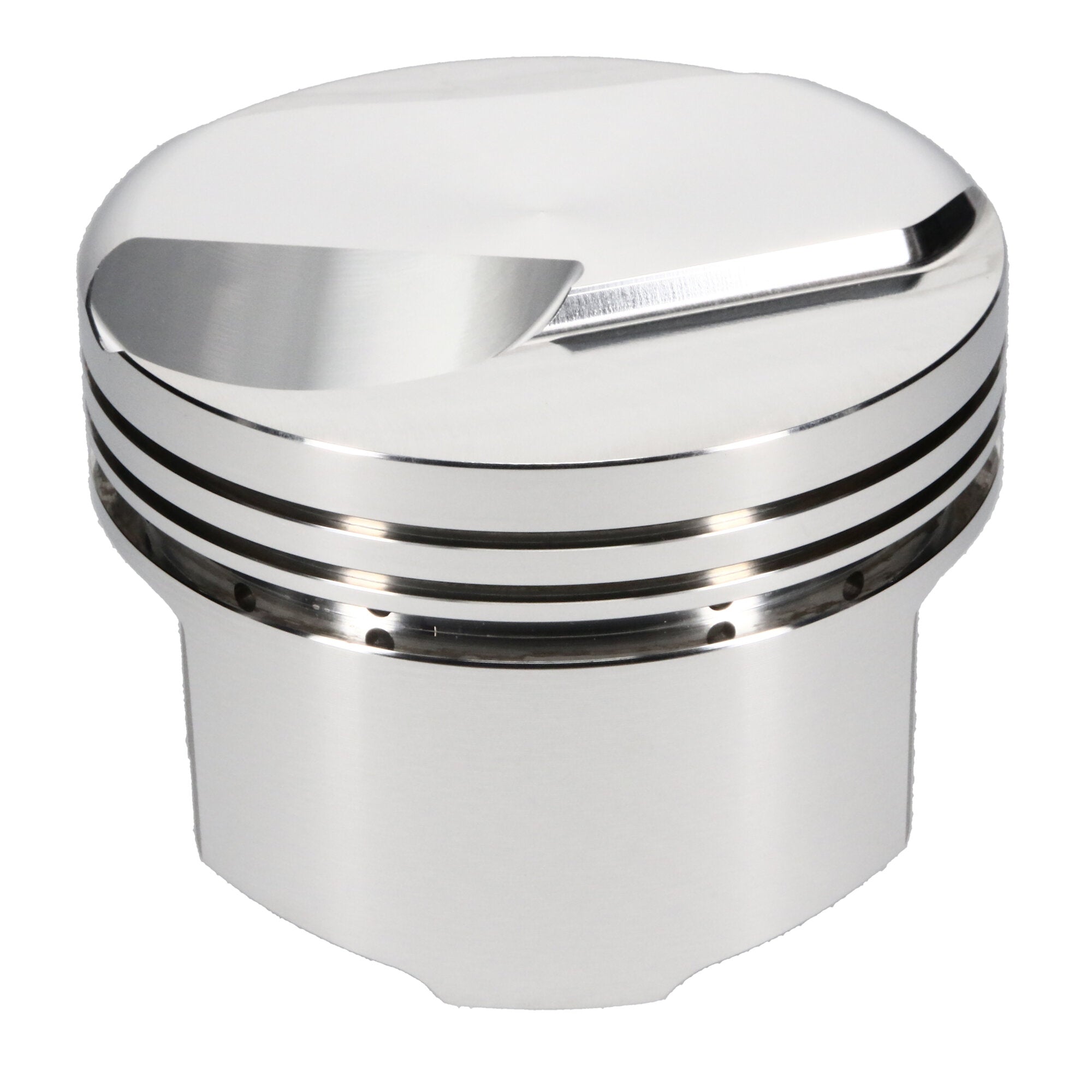

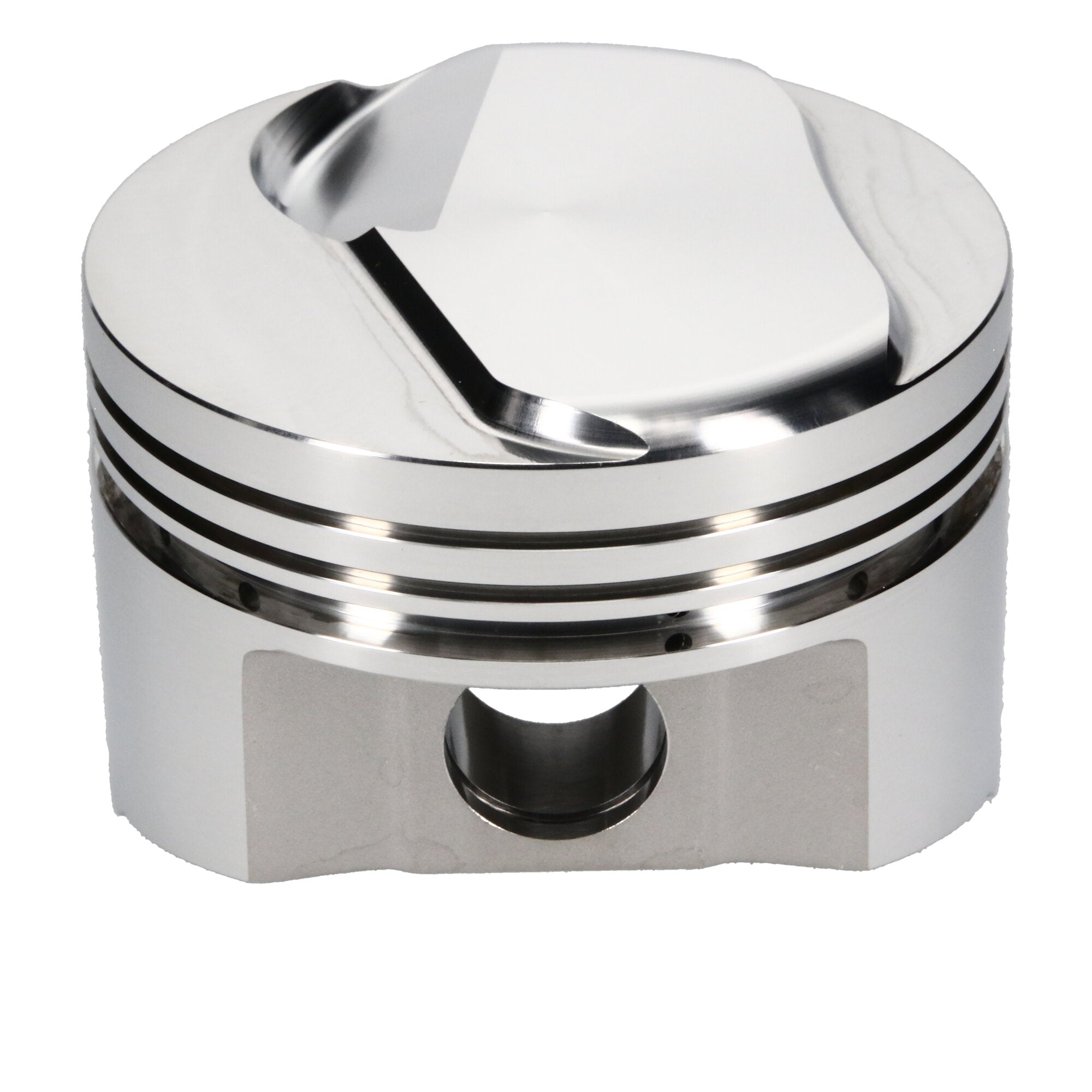

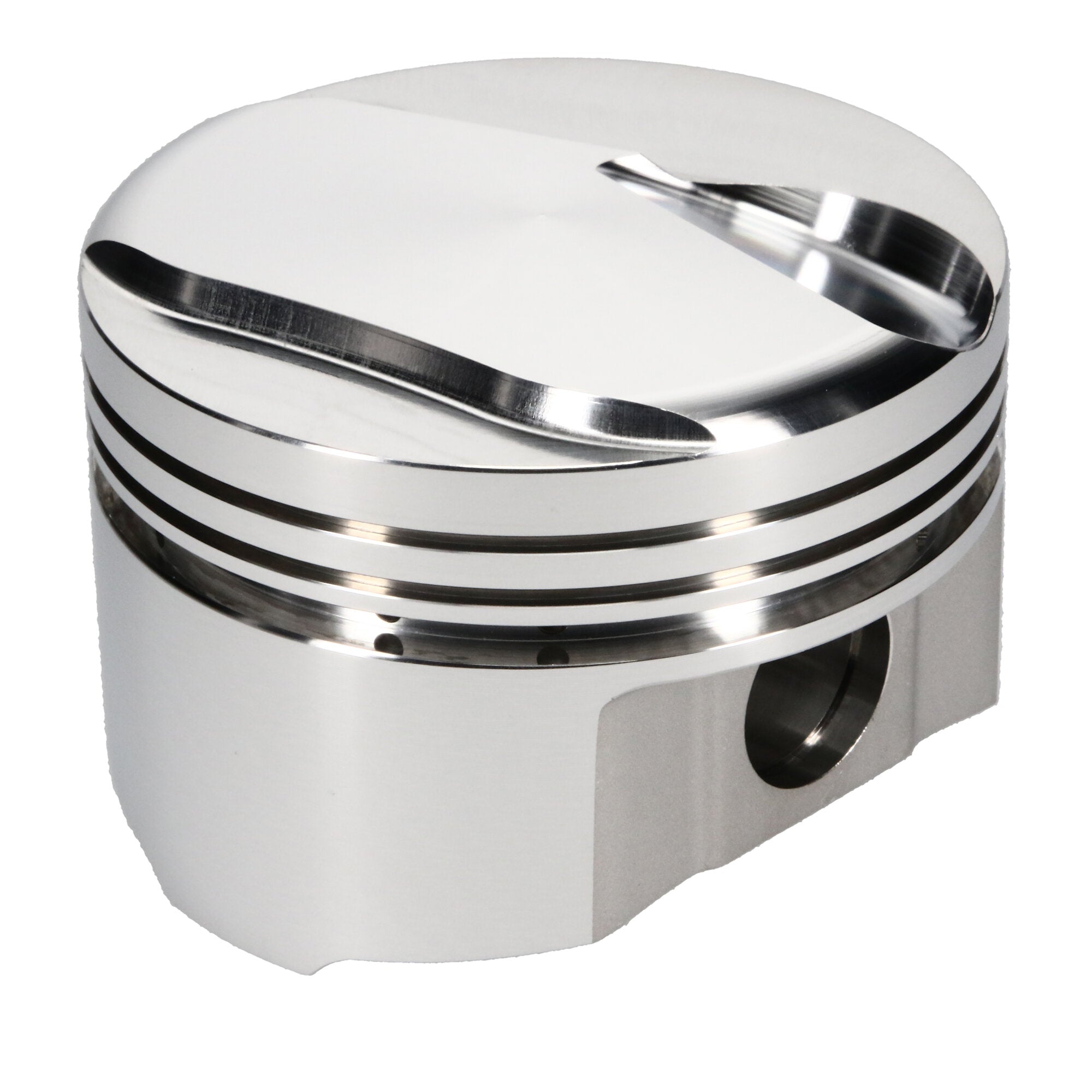

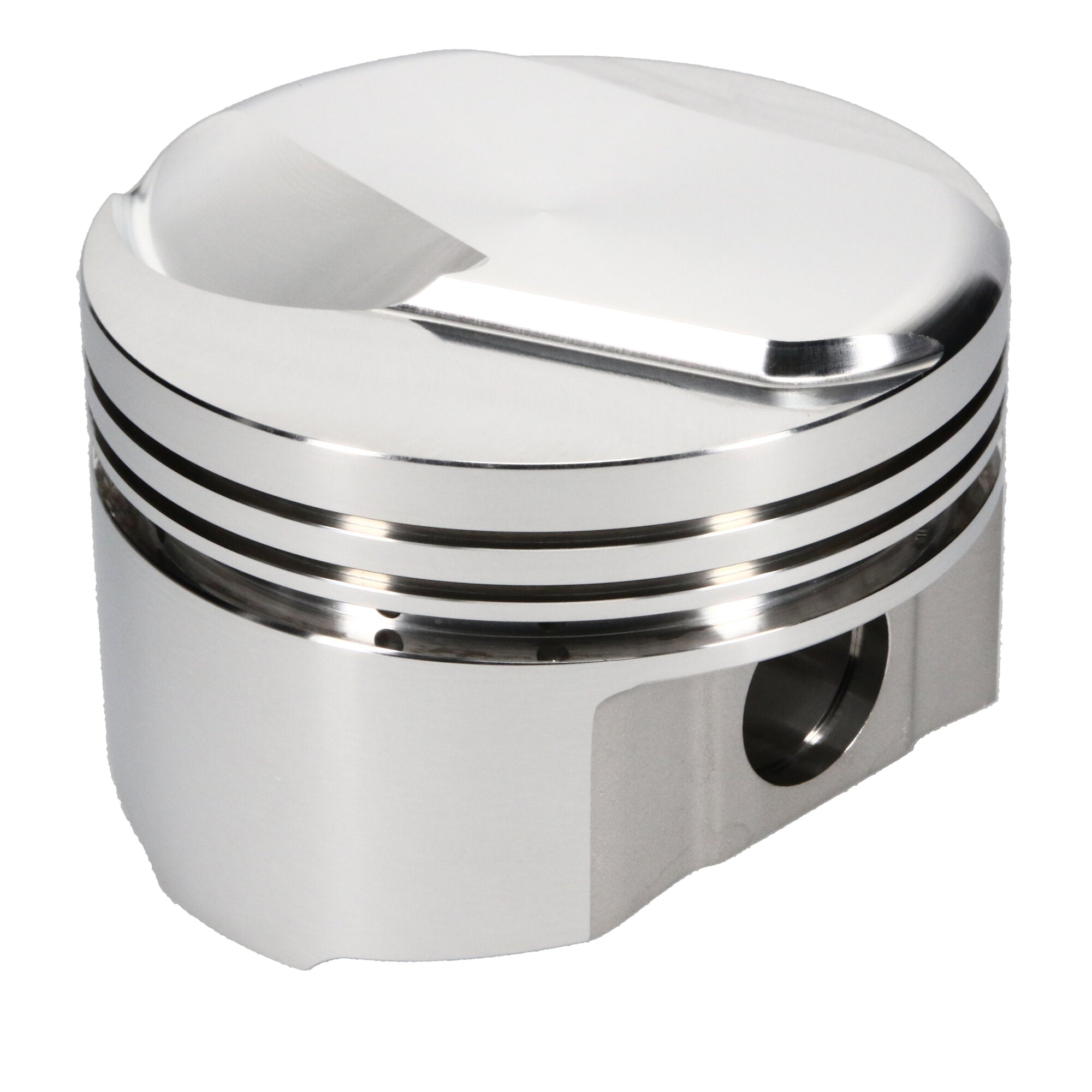

Piston Set, 4032, Dome, 4.280 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.280 Bore, Dome, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Make |
CHEVROLET |
| Compression Height |
1.645 |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Title |
SRP - Chevrolet, Big Block, 4.280 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.990 |
| Bore Diameter |
4.280 |
| Piston Average Weight |
643 |
| Piston Volume |
14.00 |
| Piston Pin Material |
5115 |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0800 |
| Piston Pin Outside Diameter |
0.990 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Series |
SRP |
| Ring Set Included |
No |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Piston Head Type |
Dome |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Material |
4032 |
| Add-On |
990-2930-15-51S |
| Engine |
Big Block |
| Piston Pin Length |
2.930 |
| Cylinder Head |
CLOSED CHMBR |
| Ringset Included |
No |
| Add-On |
JE00F8-4280-0 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.280 in. Bore - 1.645 in. CH, 14.00 CC |
| Second Compression Ring Thickness |
0.0800 |
| Industry |
Automotive |
| Add-On |
990-042-CS |
| Out of Stock Message |
Call for Availability |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
