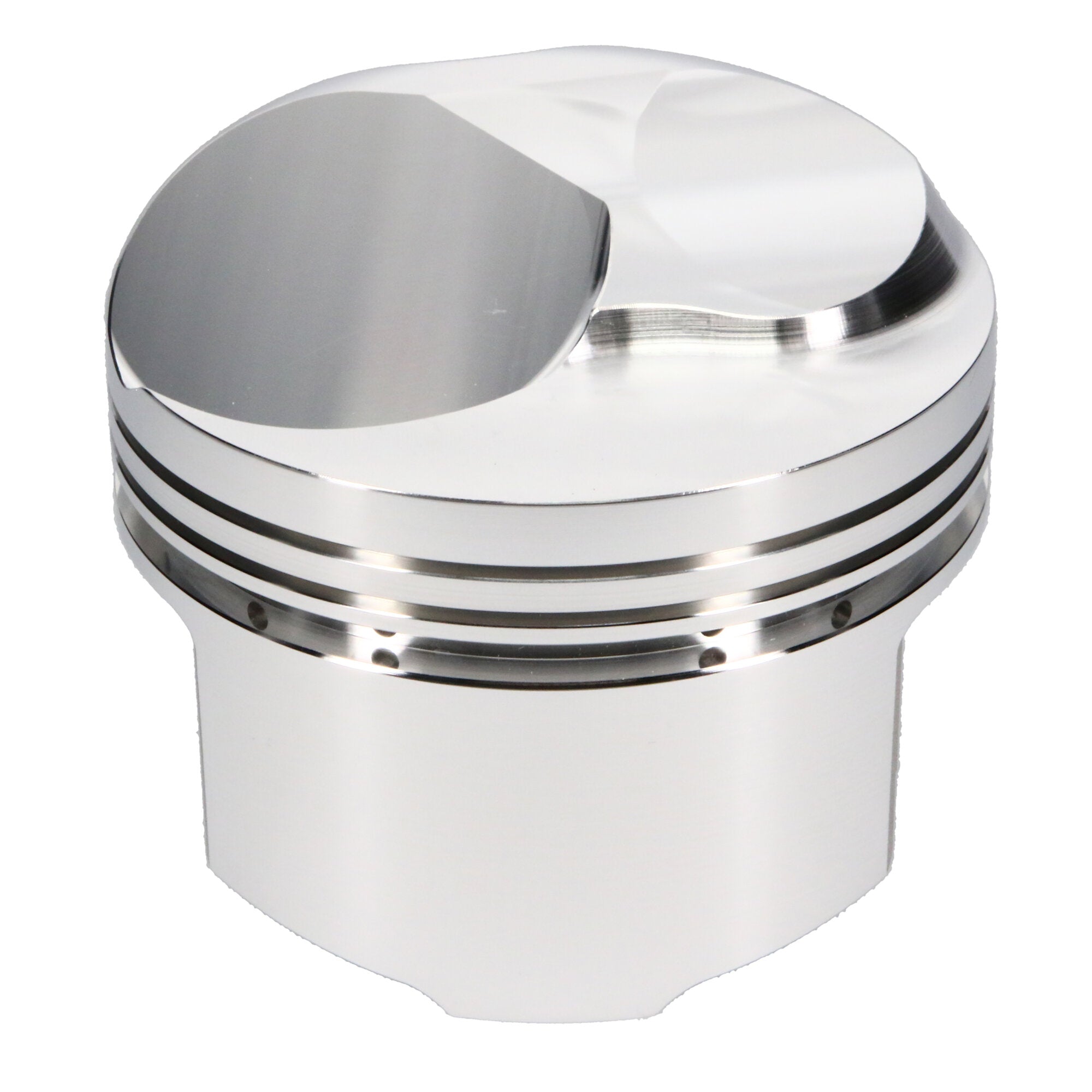

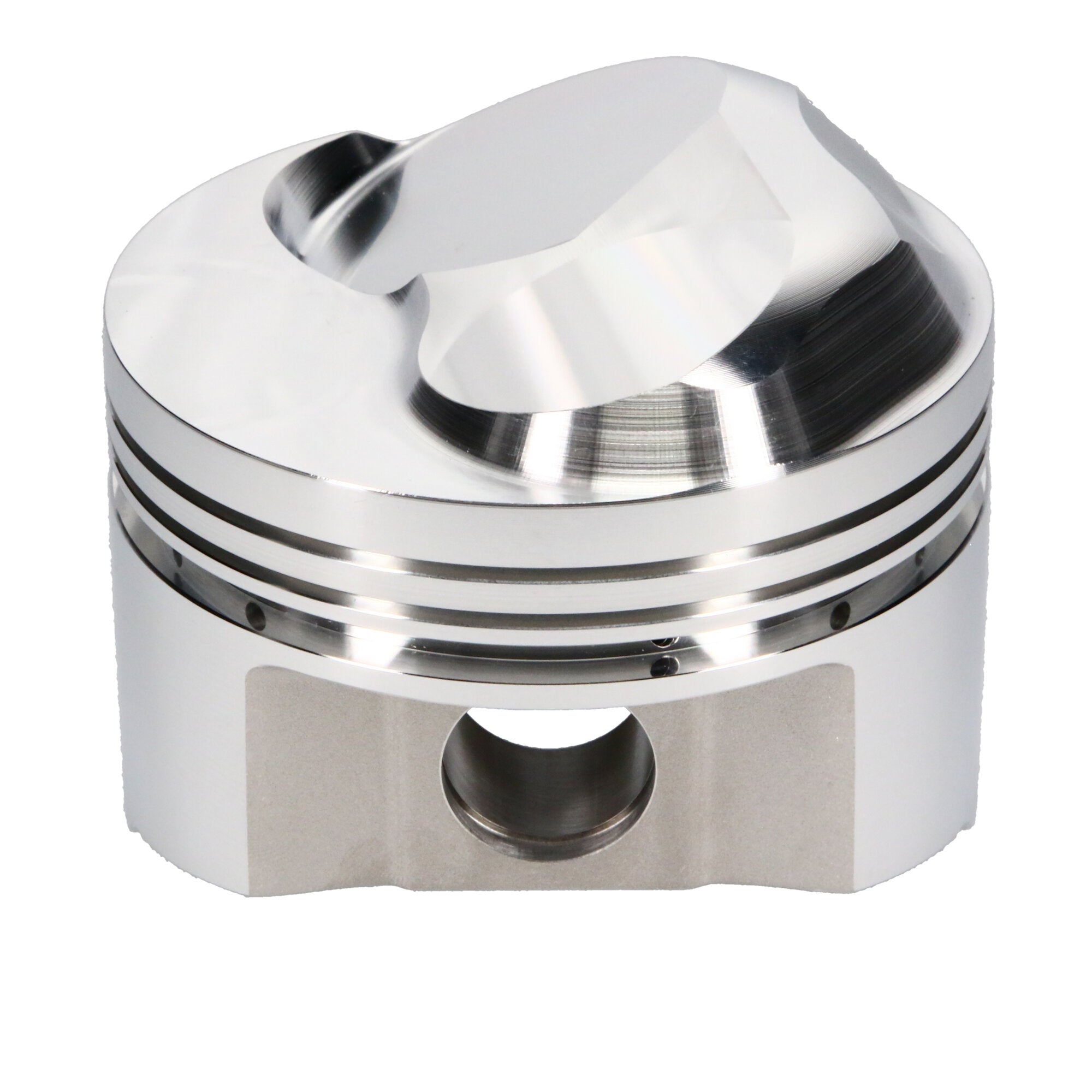

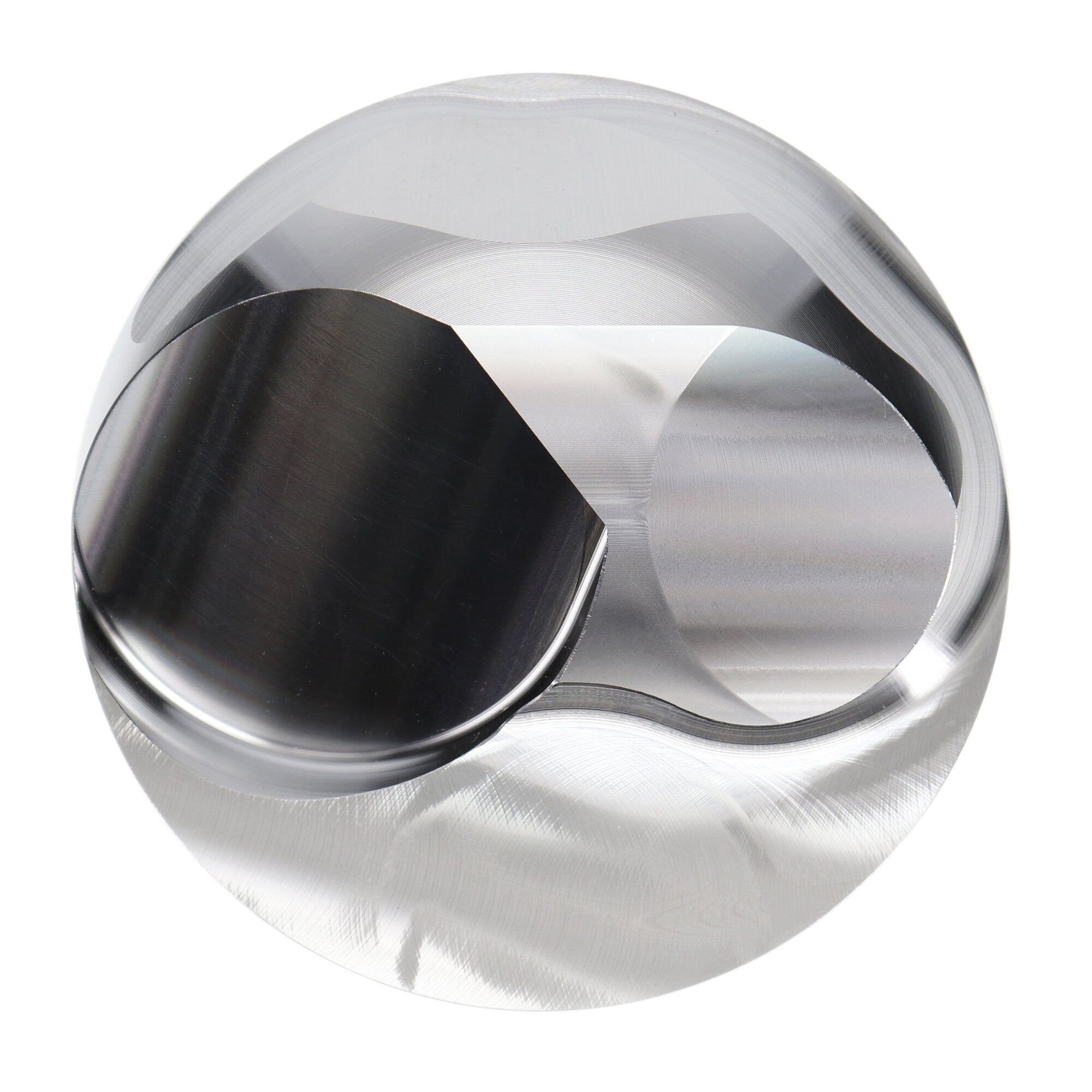

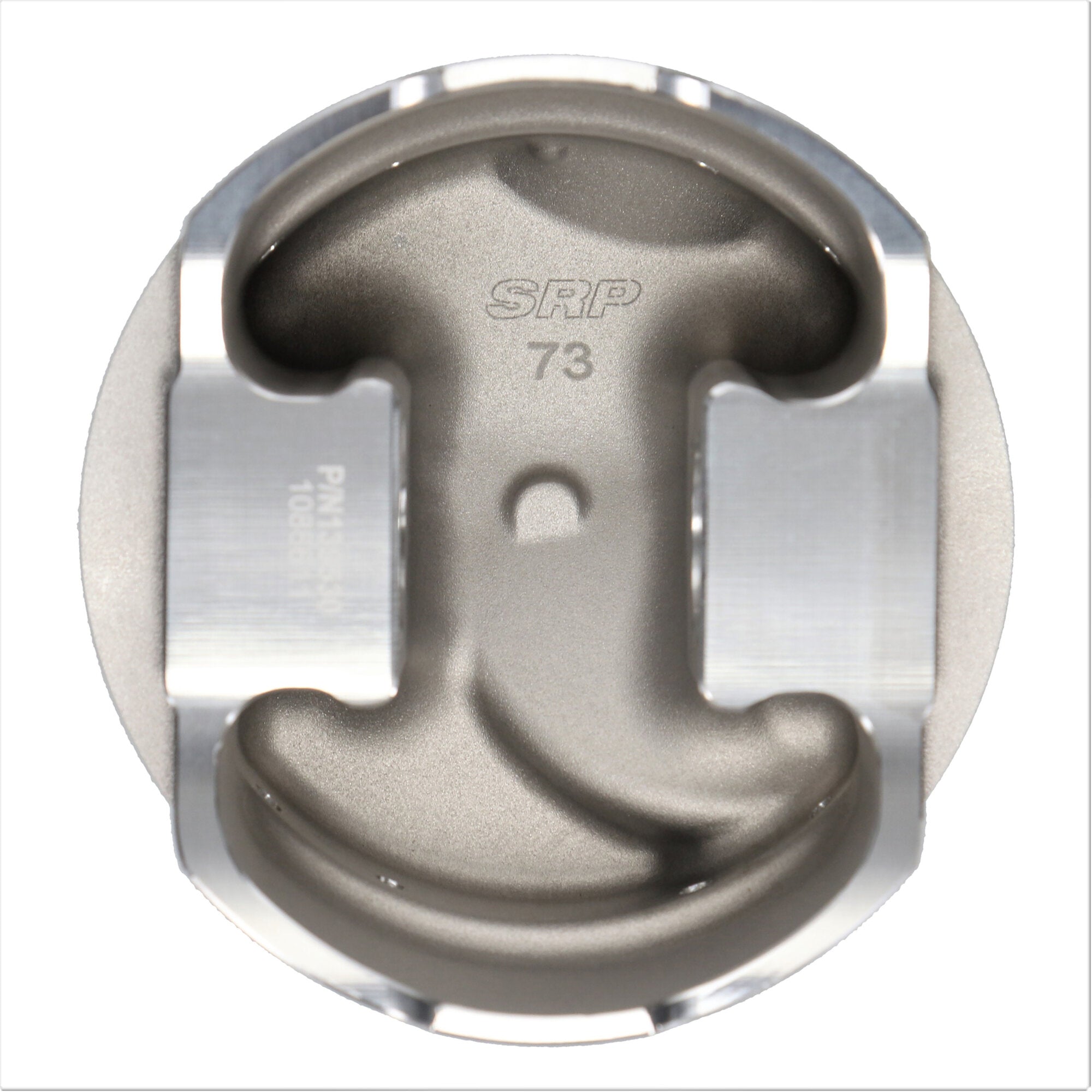

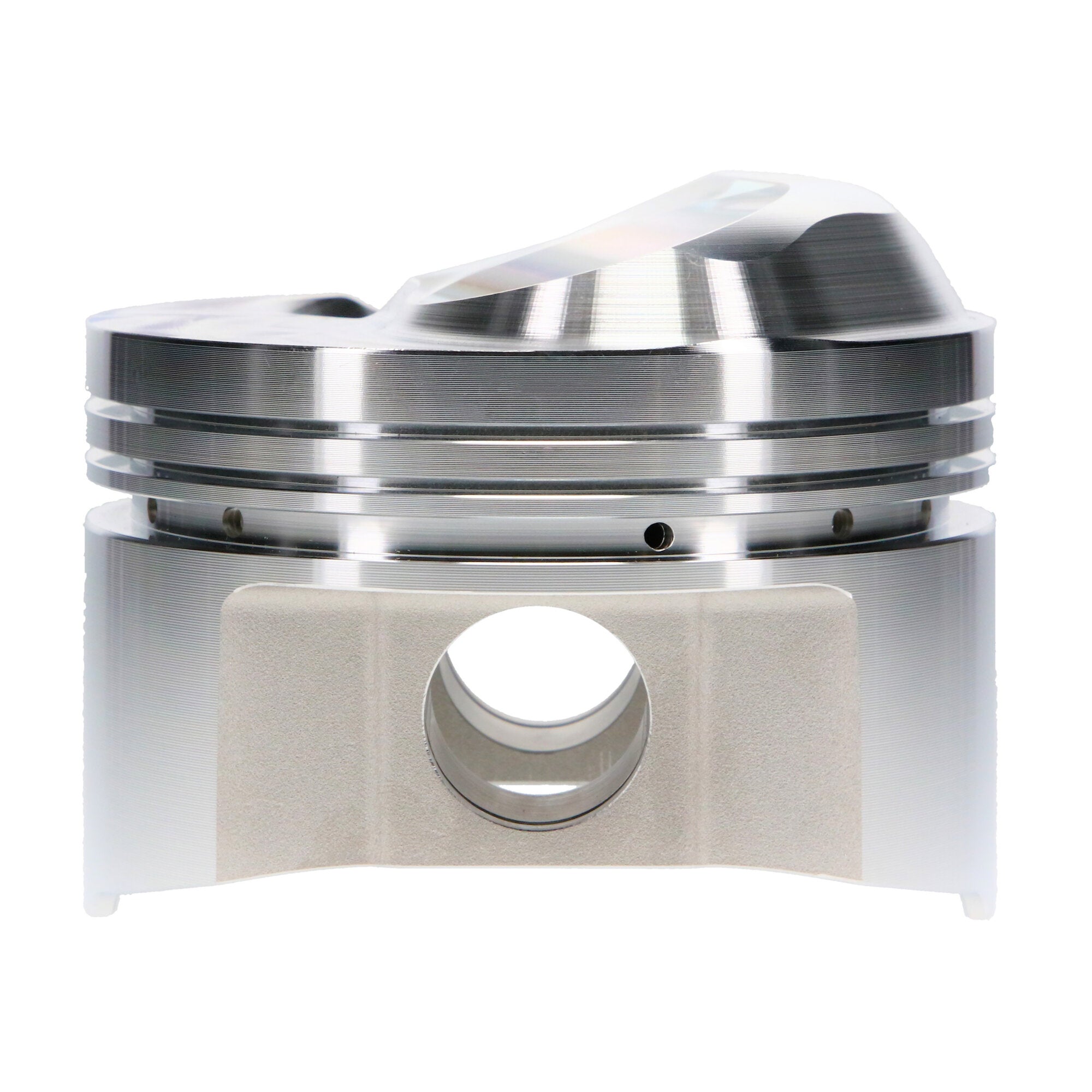

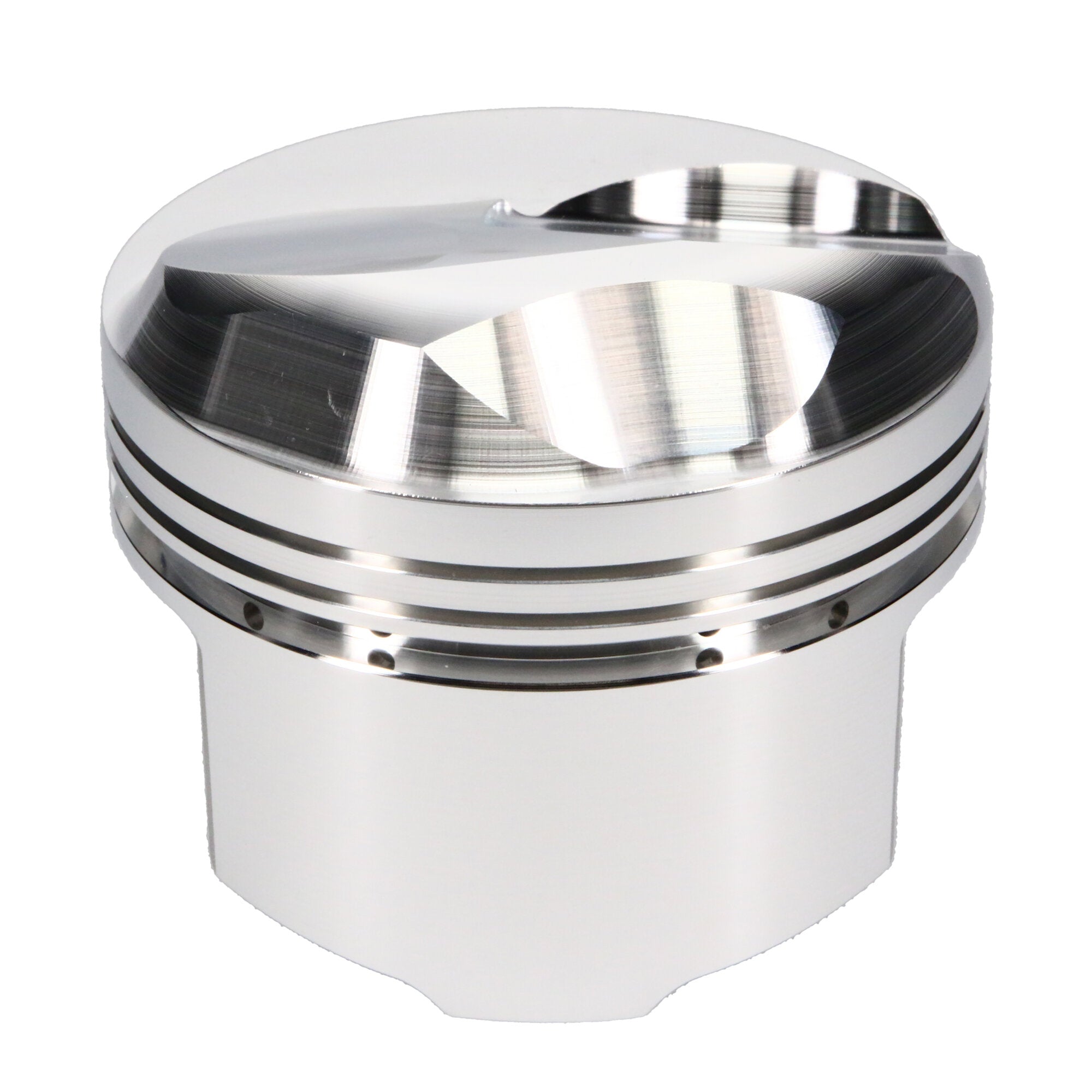

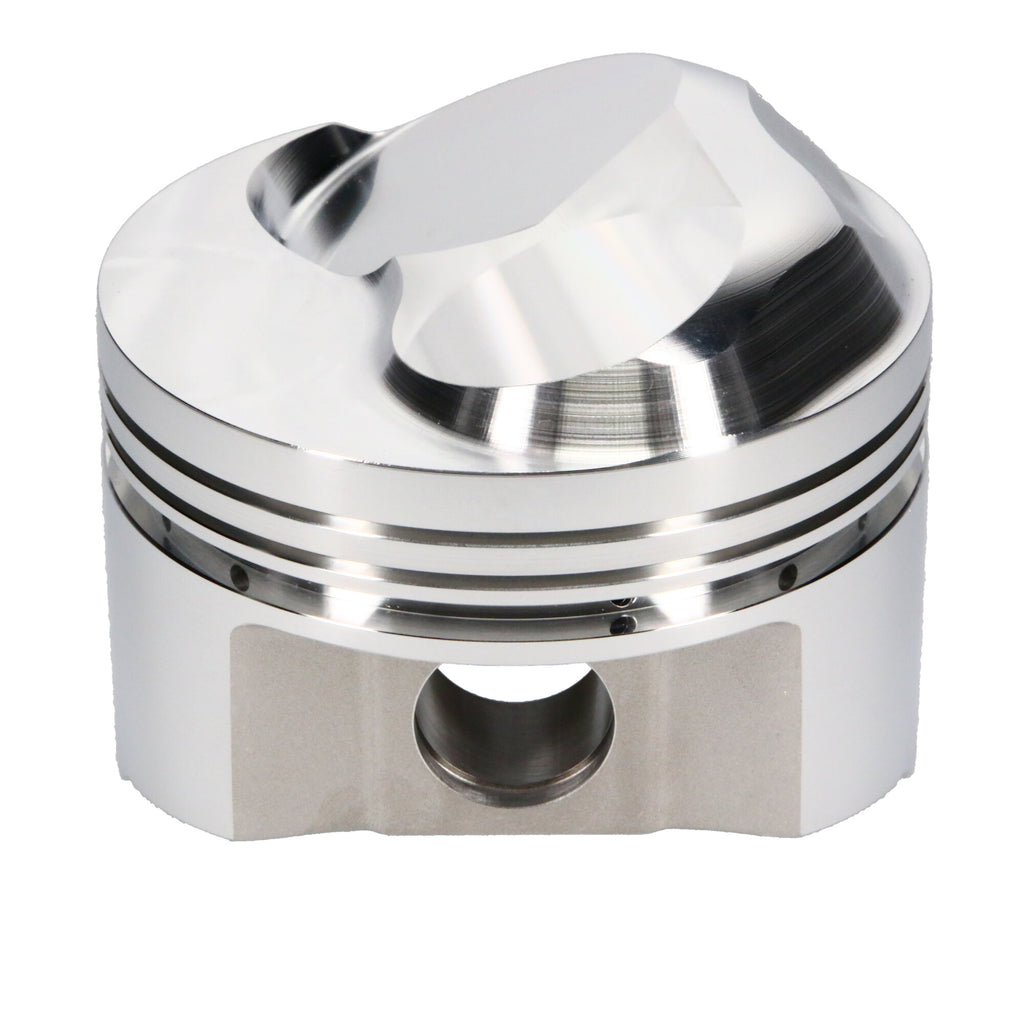

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.530 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_TLE |
Chevrolet 454, 4.530 Bore, Dome, Set of 8 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Dome |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
SRP |
| Ringset Included |
No |
| Piston Pin Material |
5115 |
| Engine - Web |
Big Block |
| Compression Height |
1.120 |
| Piston Volume |
36.00 |
| Bore Diameter |
4.530 |
| Engine Type |
ICE |
| Title |
SRP - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.218 |
| Make |
CHEVROLET |
| Piston Average Weight |
597 |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Outside Diameter |
0.990 |
| Forging Type |
FSR |
| Cylinder Head |
OPEN CHAMBER |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Product Type |
Engine Piston Kit |
| Add-On |
990-2930-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Big Block |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.930 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.120 in. CH, 36.00 CC |
| Add-On |
S100S8-4530-5 |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-042-CS |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
