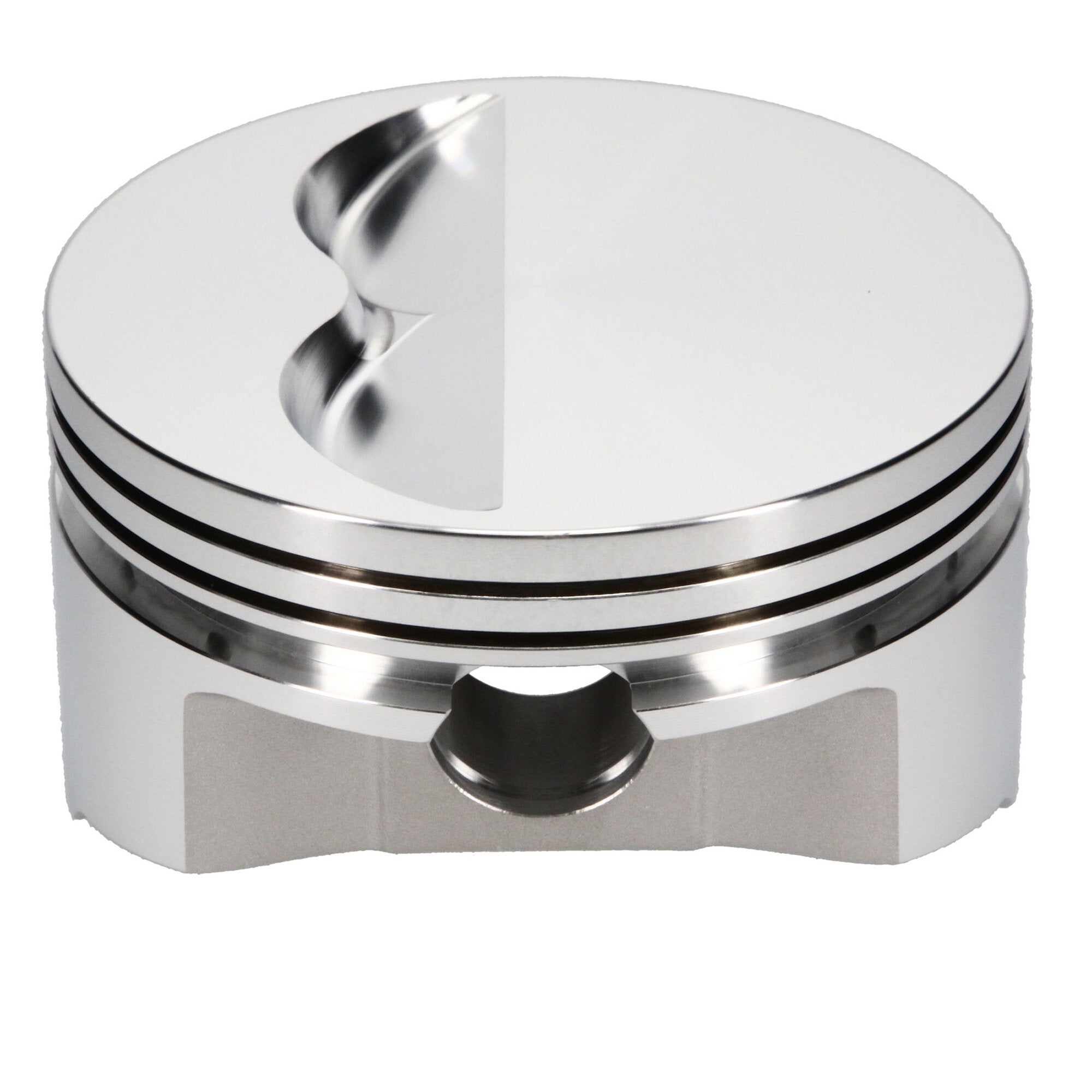

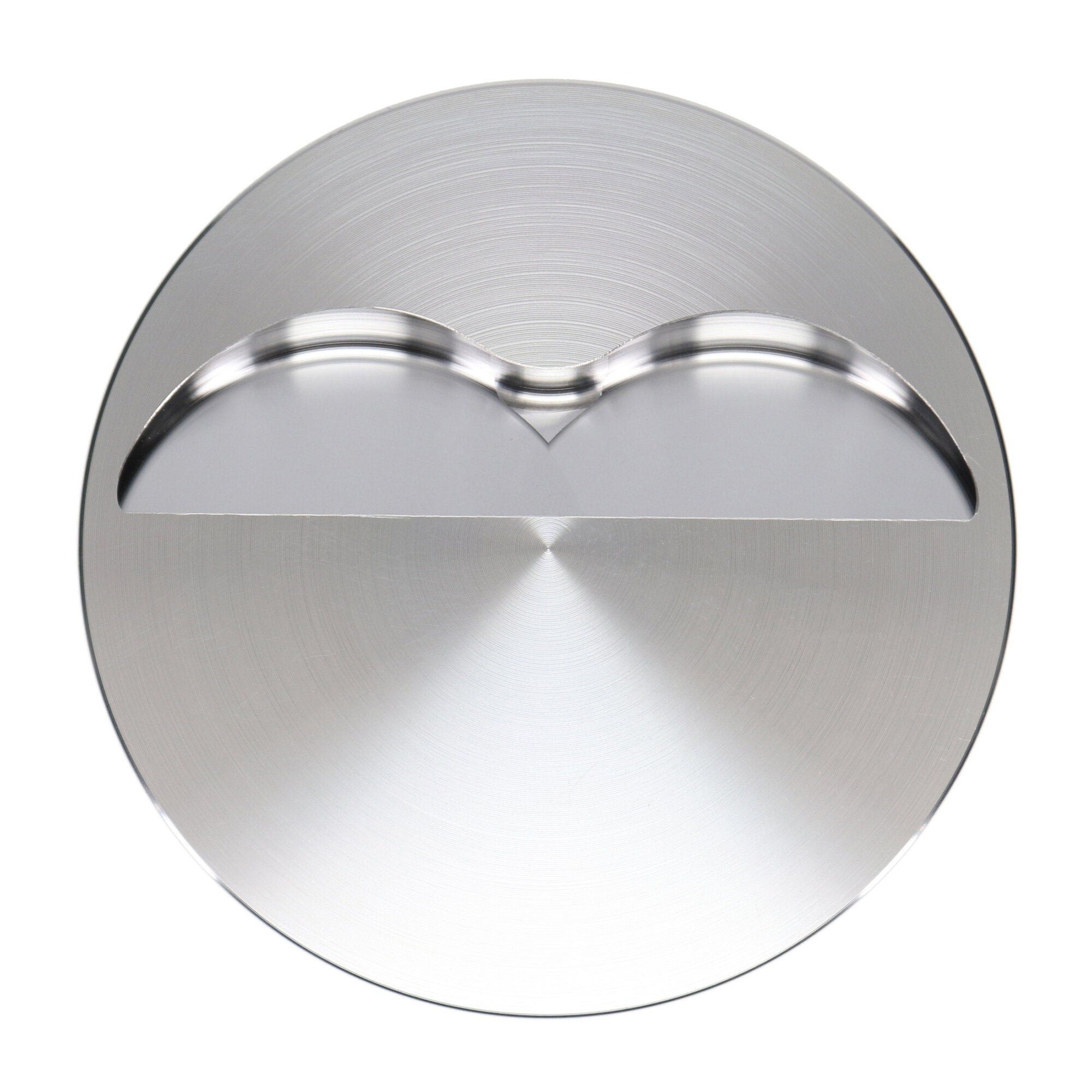

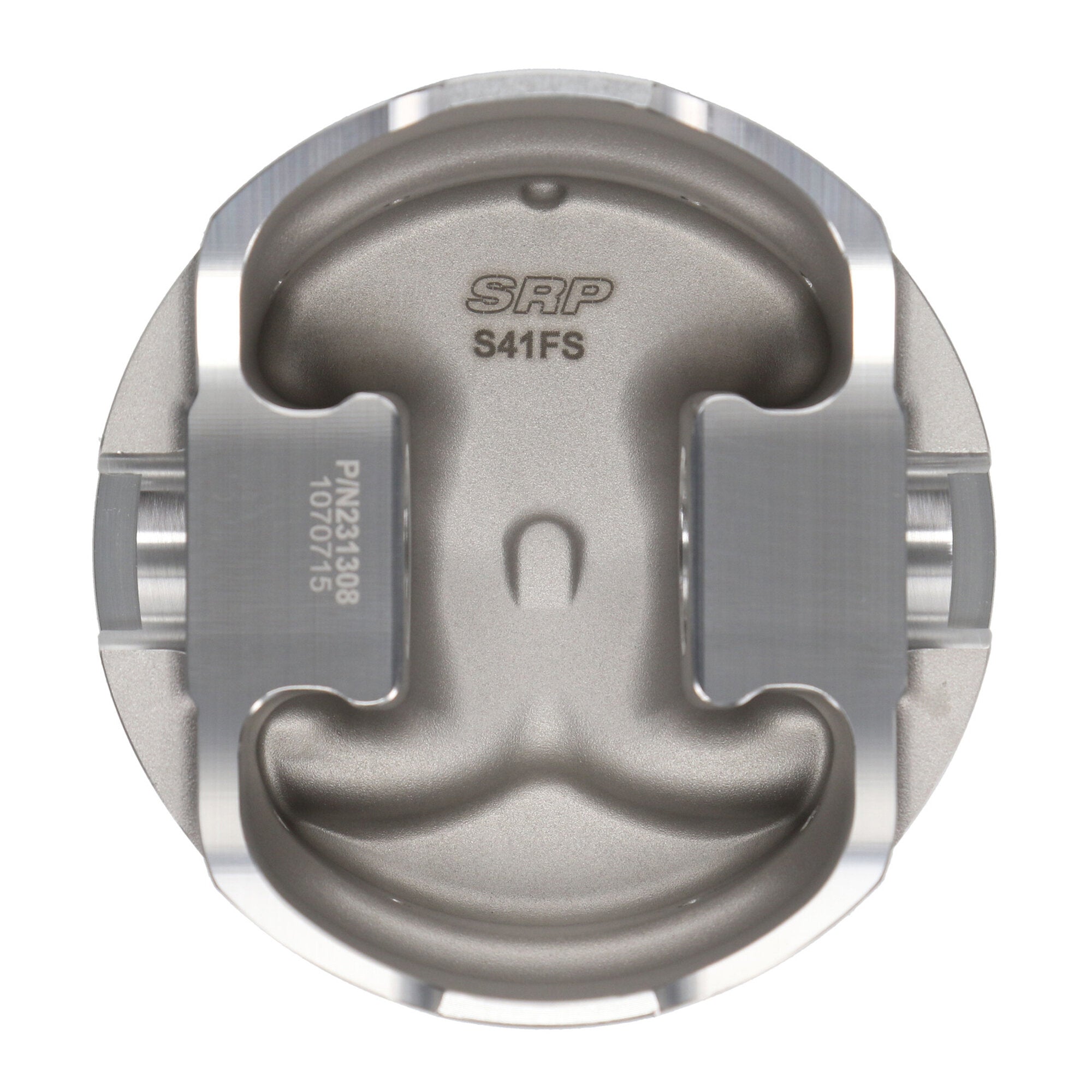

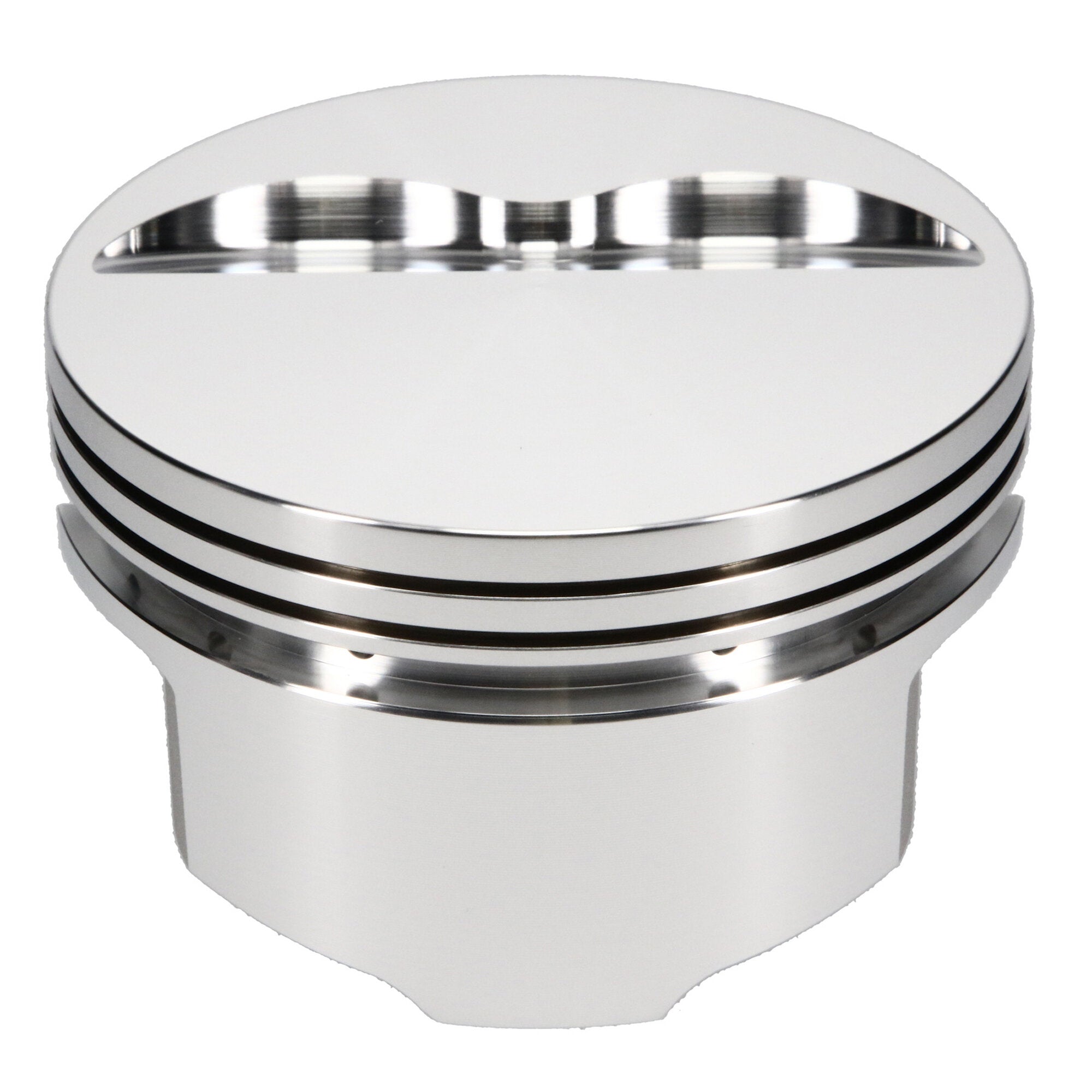

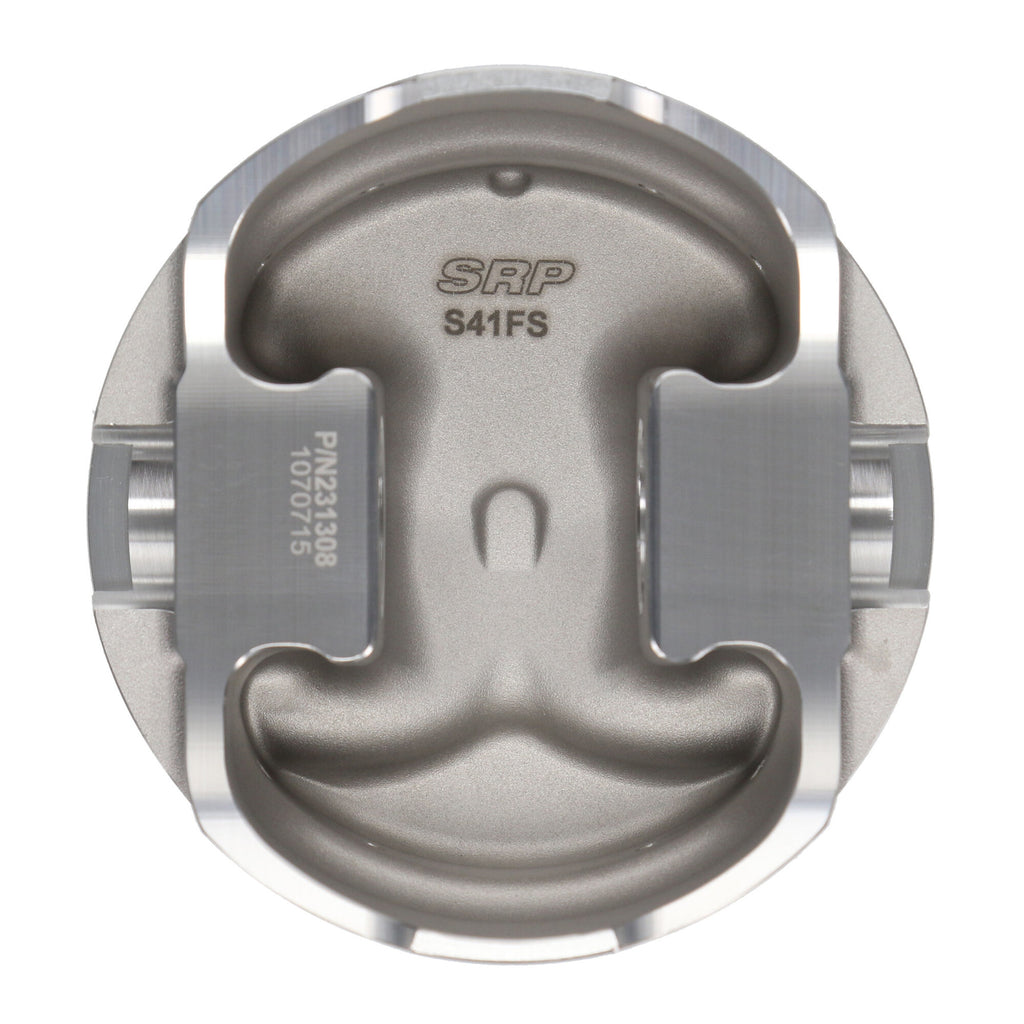

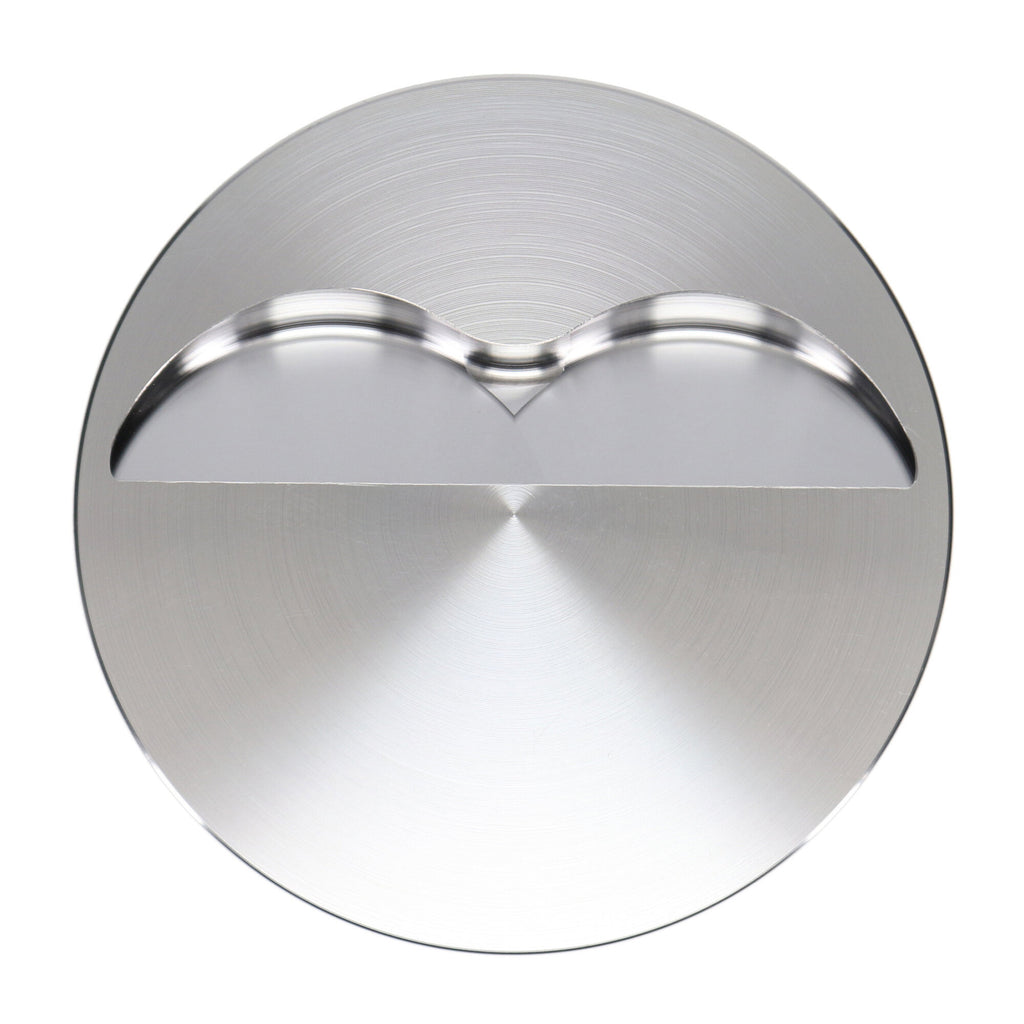

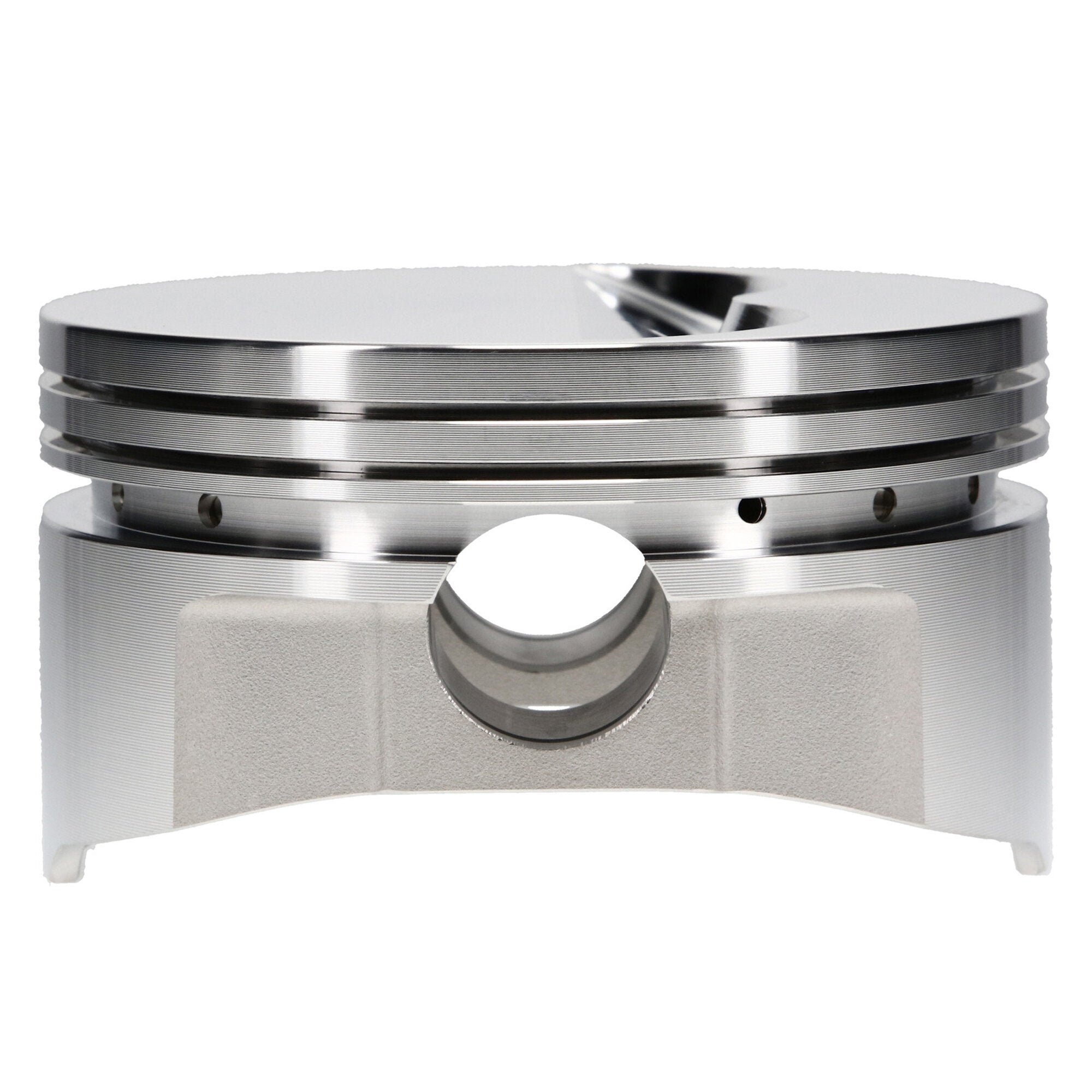

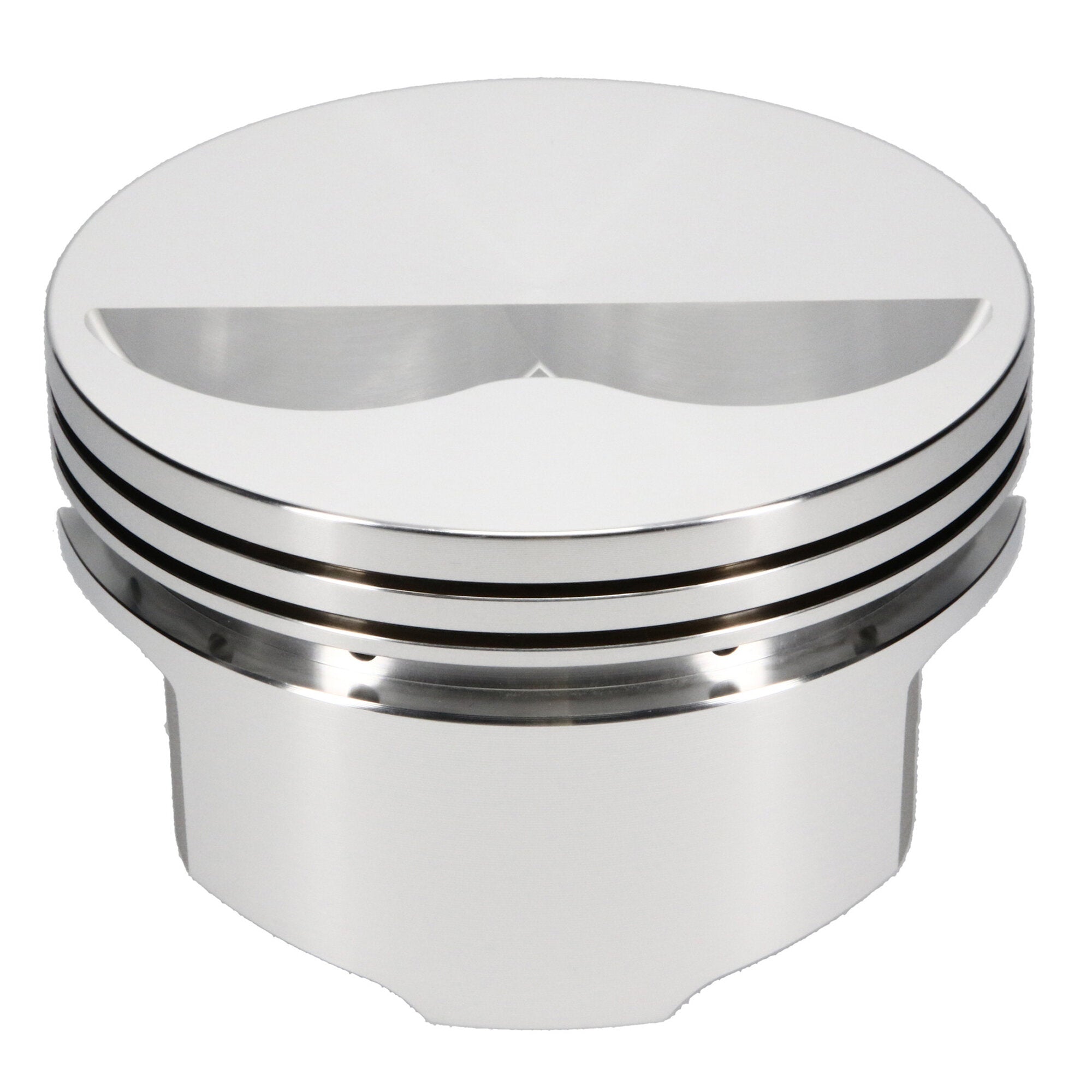

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DES |
Piston Set, 4032, Flat Top, 4.060 Bore, 1.519 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.519 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 350, 4.060 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Volume |
-5.00 |
| Product Type |
Engine Piston Kit |
| Piston Material |
4032 |
| Add-On |
S100S8-4060-5 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Add-On |
927-2750-15-51S |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chevrolet |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.519 in. CH, -5.00 CC |
| Piston Pin Length |
2.750 |
| Engine |
Small Block |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Flat |
| Bore Diameter |
4.060 |
| Piston Pin Material |
5115 |
| Compression Height |
1.519 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Series |
SRP |
| Make |
CHEVROLET |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.188 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
507 |
| Ringset Included |
No |
| Title |
SRP - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
