Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston |
| Description_DES |

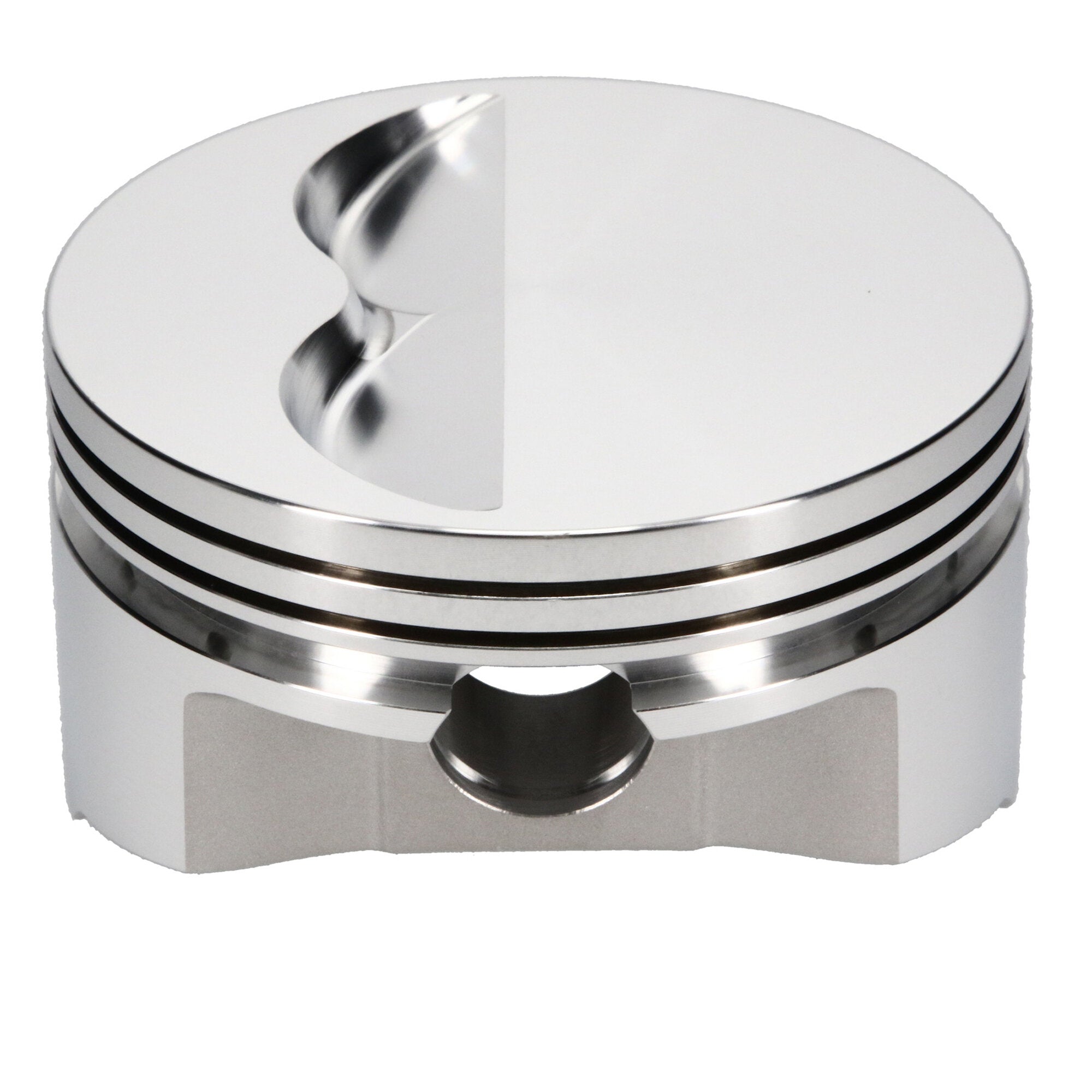

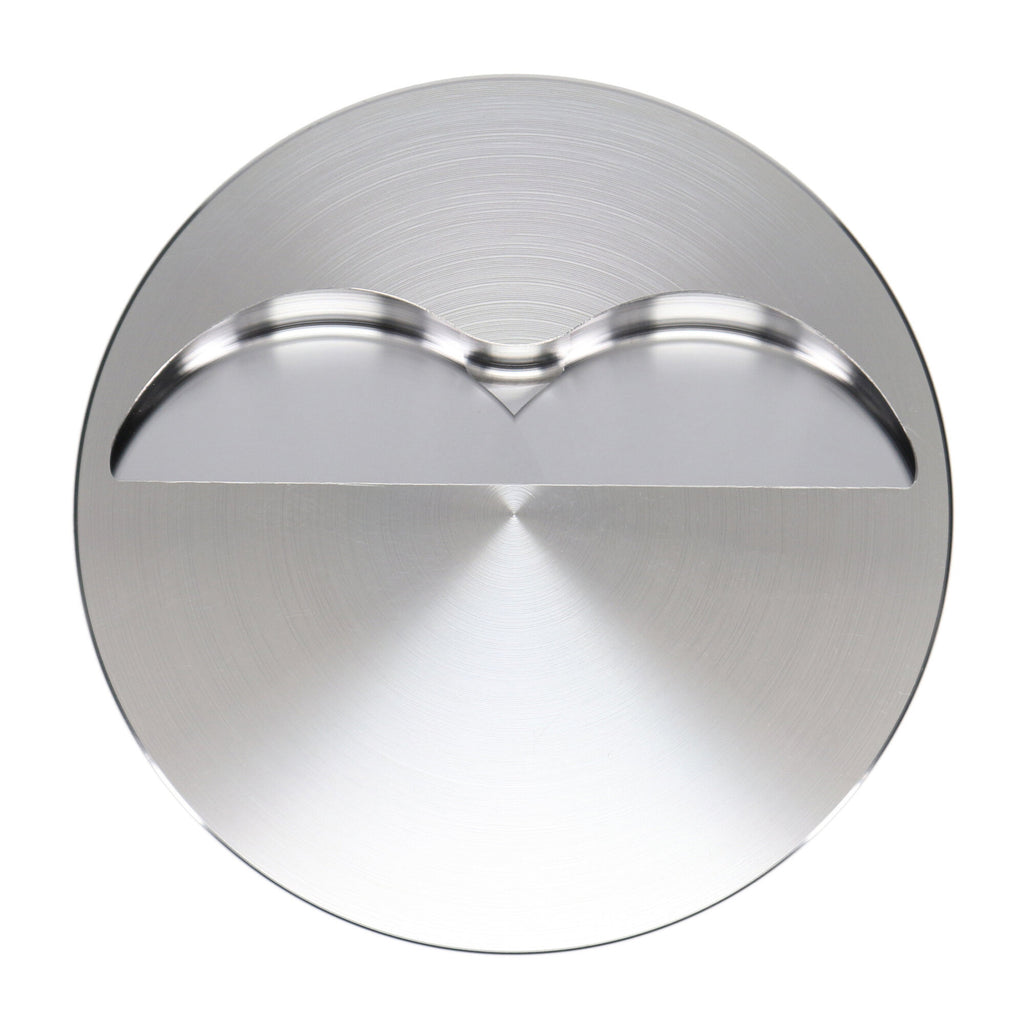

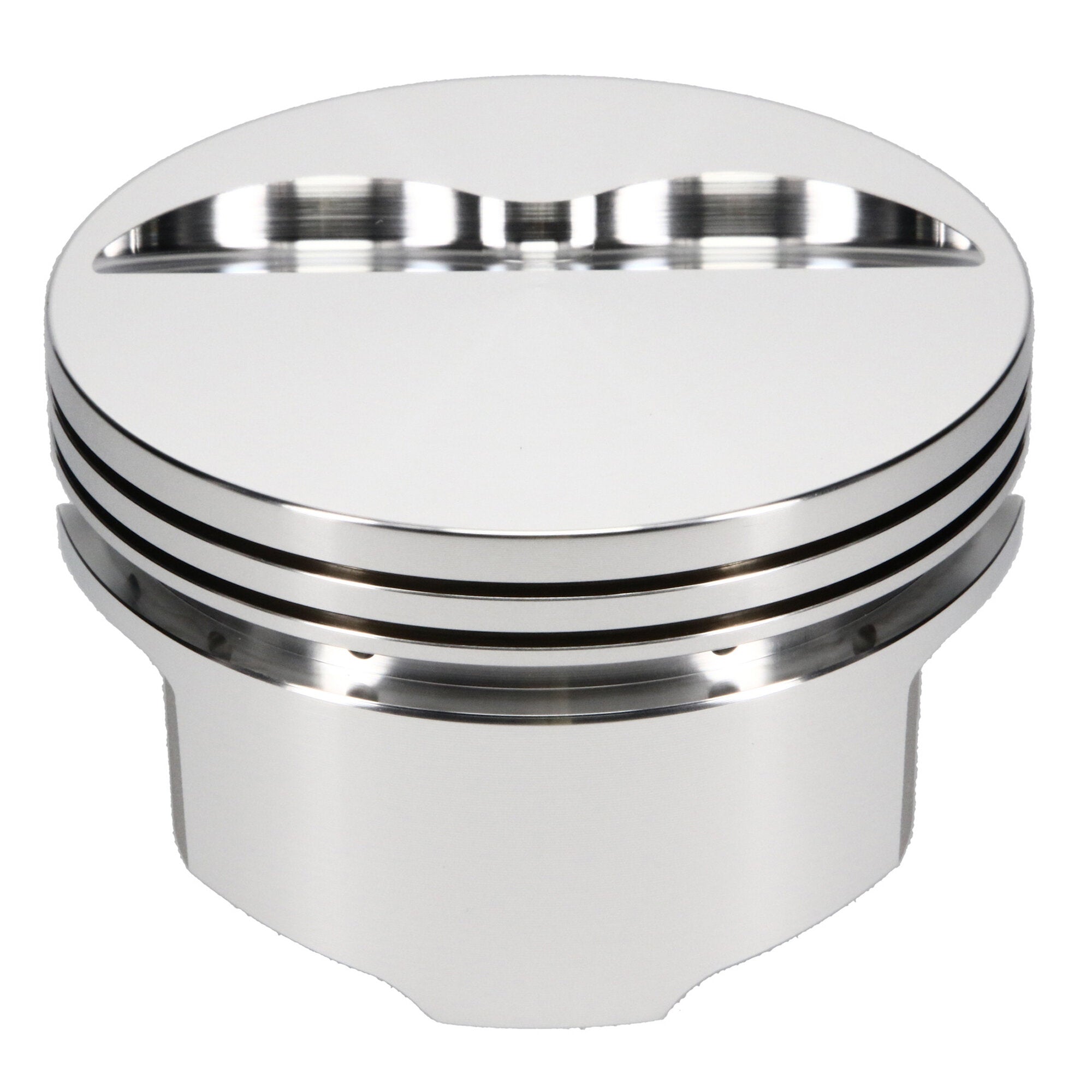

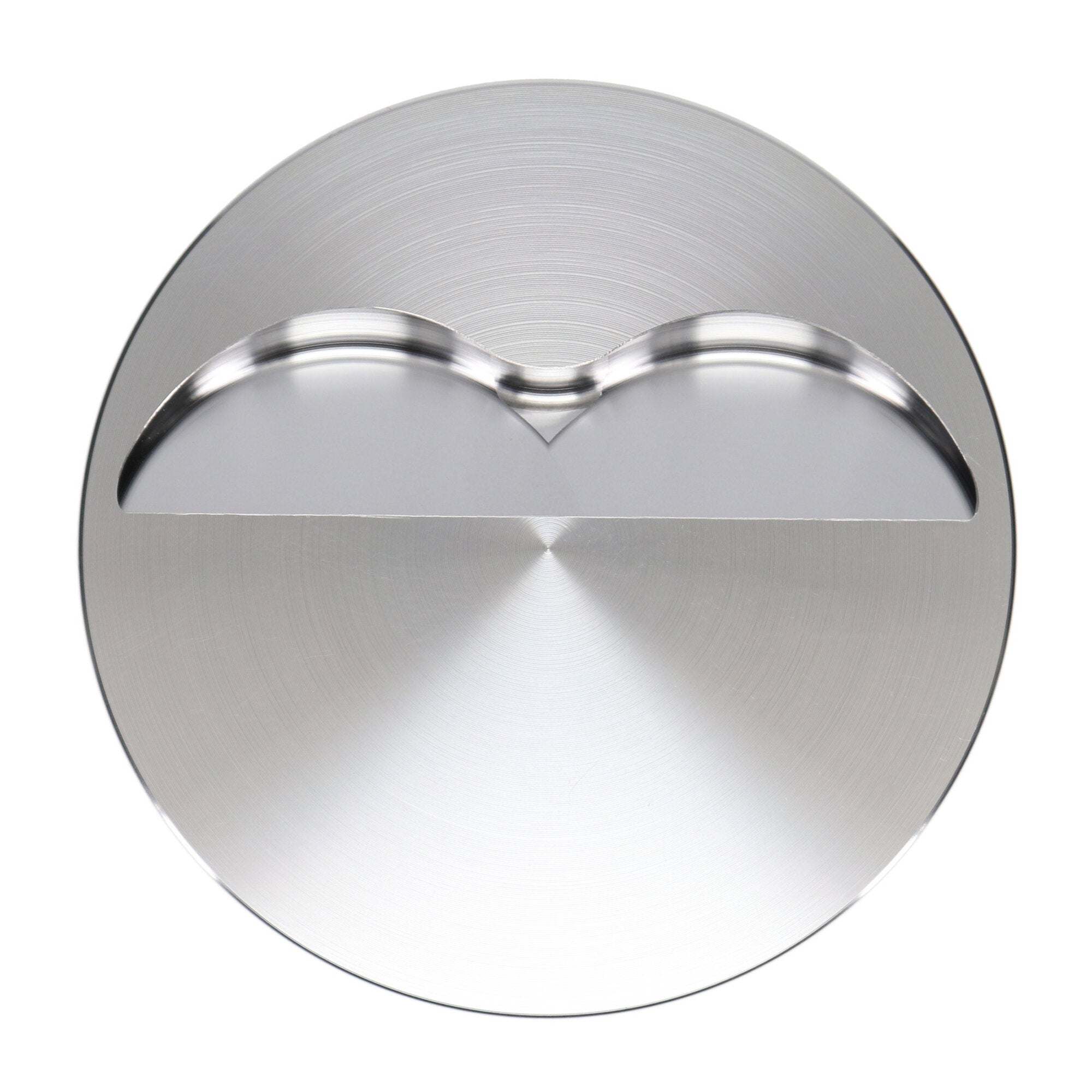

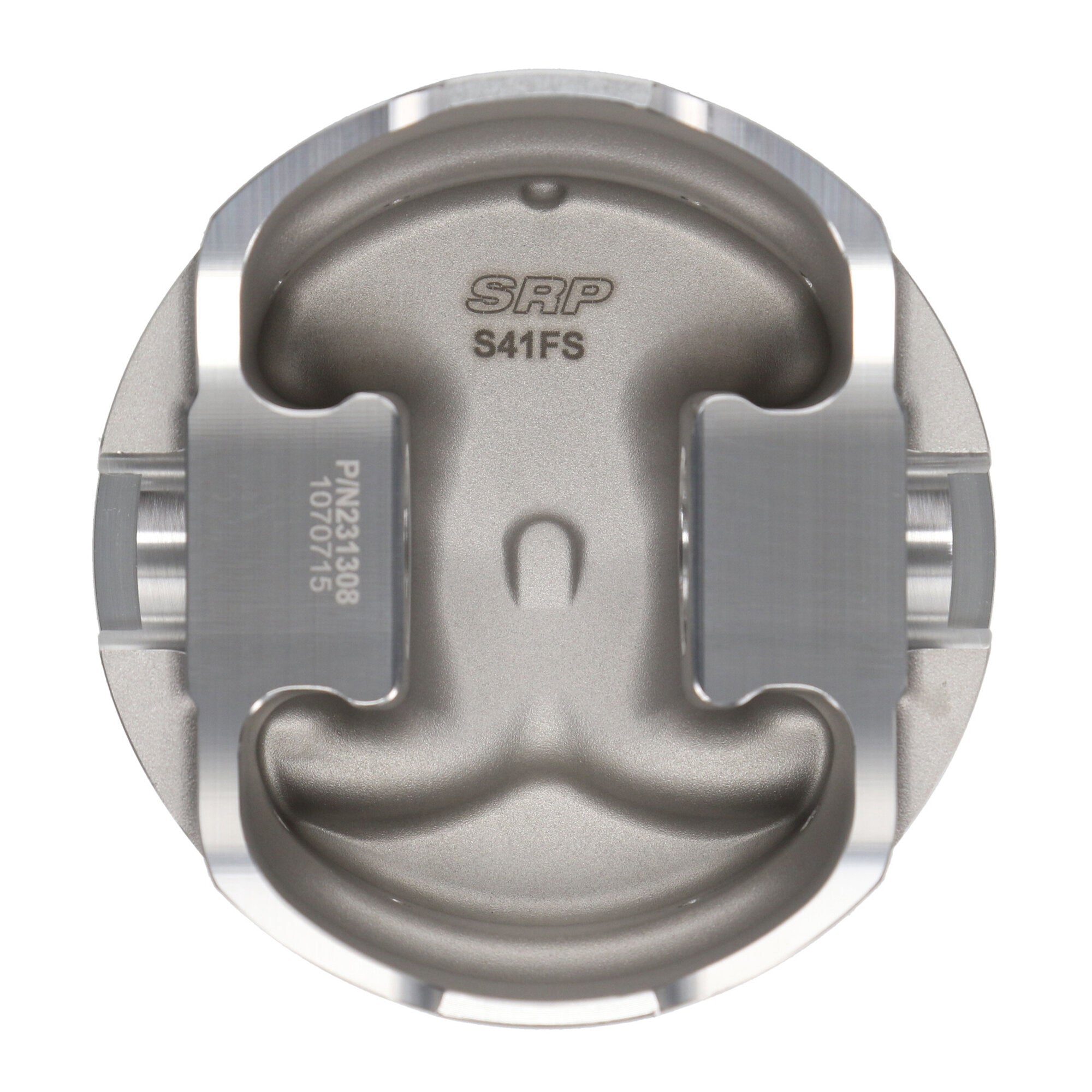

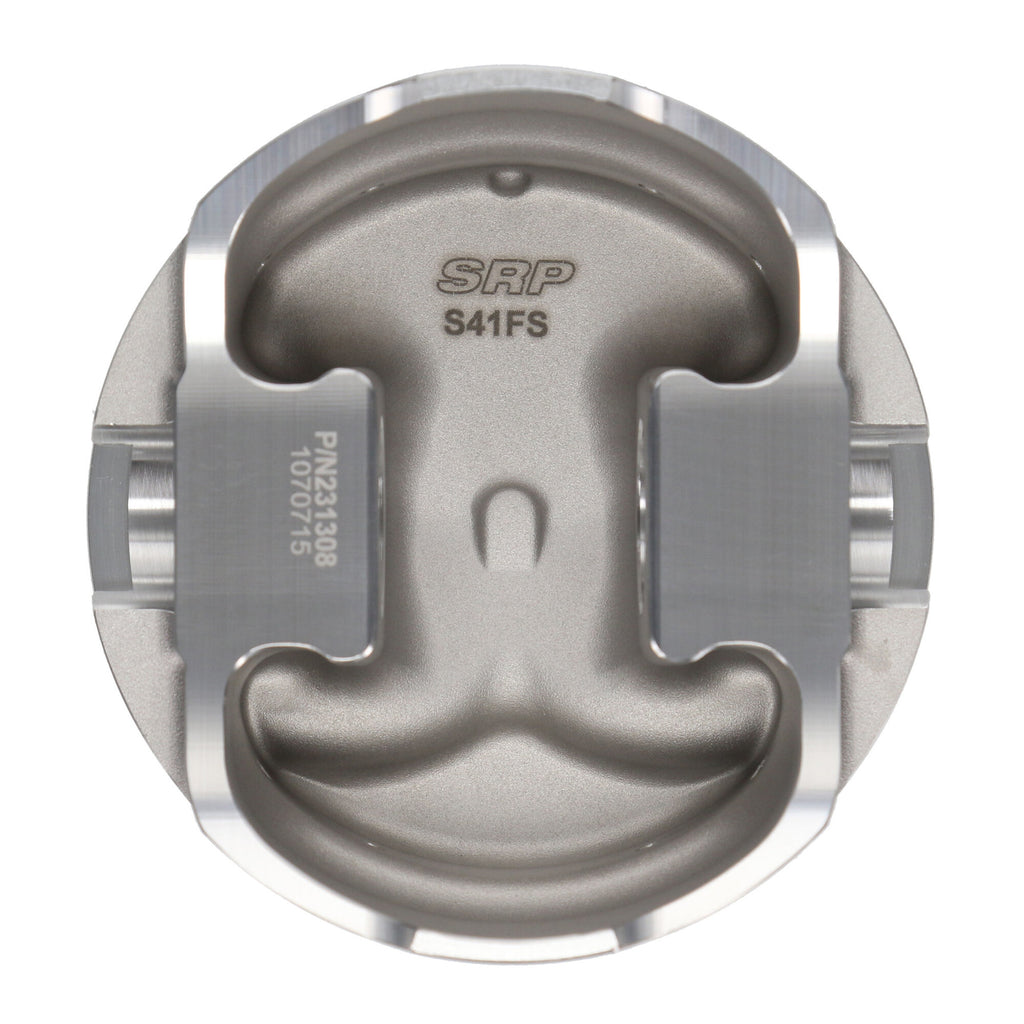

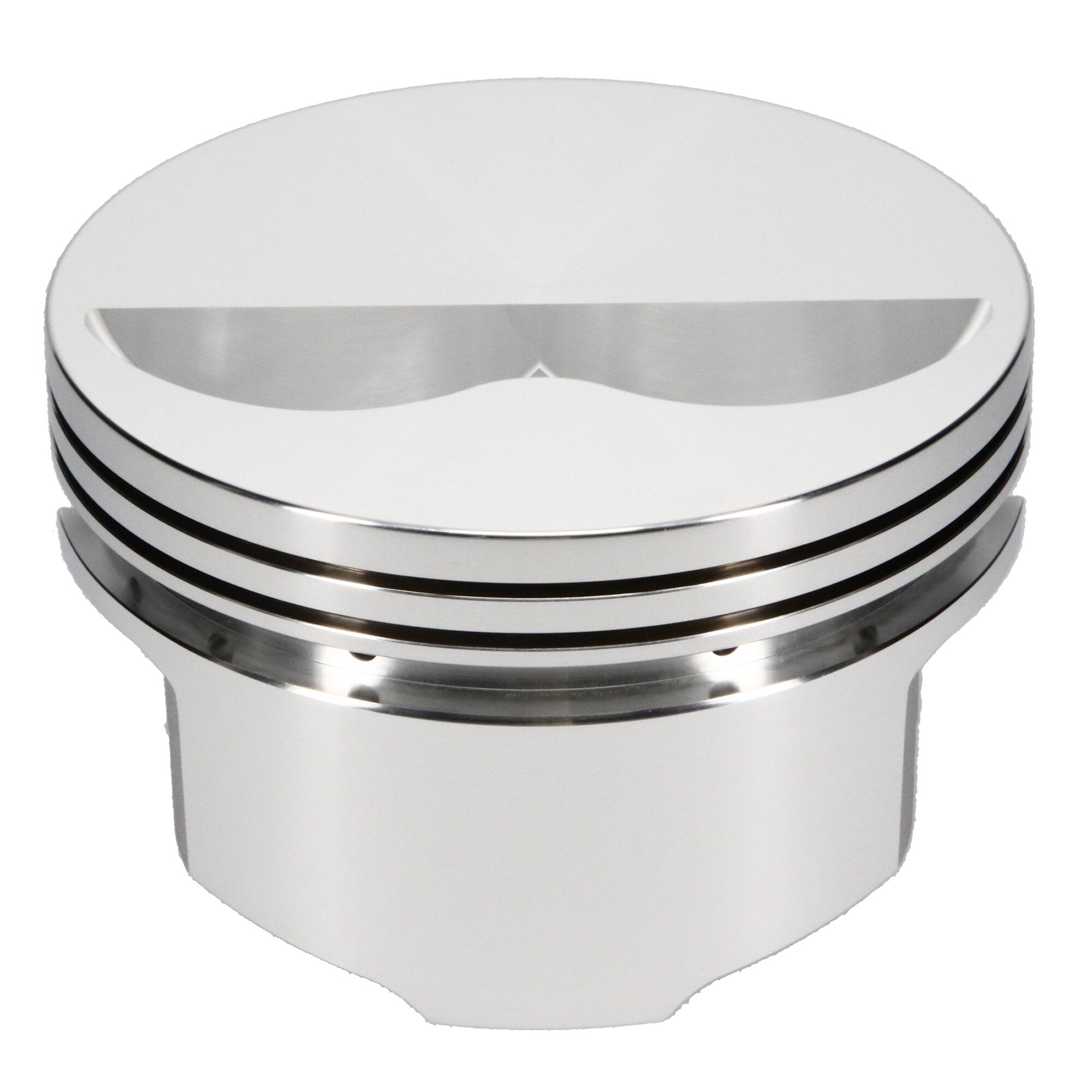

Piston Single, 4032, Flat Top, 4.040 Bore, 1.519 CD, 0.927 Pin, Set of 1. |
| Description_INV |
SRP, Piston |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.519 CD, Flat Top, Single Piston |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 350, 4.040 Bore, Flat, Set of 1 |
| Description_SHO |
Piston |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Compression Height |
1.519 |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.188 |
| Title |
SRP - Chevrolet, Small Block, 4.040 in. Bore, Piston |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.040 |
| Top Compression Ring Thickness |
0.0640 |
| Engine - Web |
Small Block |
| Piston Average Weight |
495 |
| Product Type |
Engine Piston |
| Industry |
Automotive |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Single Replacement Pistons |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-5.00 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Engine Type |
ICE |
| Piston Series |
SRP |
| Add-On |
927-2750-15-51S |
| Title - Web |
SRP Chevrolet Small Block Piston - 4.040 in. Bore - 1.519 in. CH, -5.00 CC |
| Add-On |
J100F8-4040-5 |
| Add-On |
927-042-CS |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Flat |
| Piston Material |
4032 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
Small Block |
| Ringset Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
