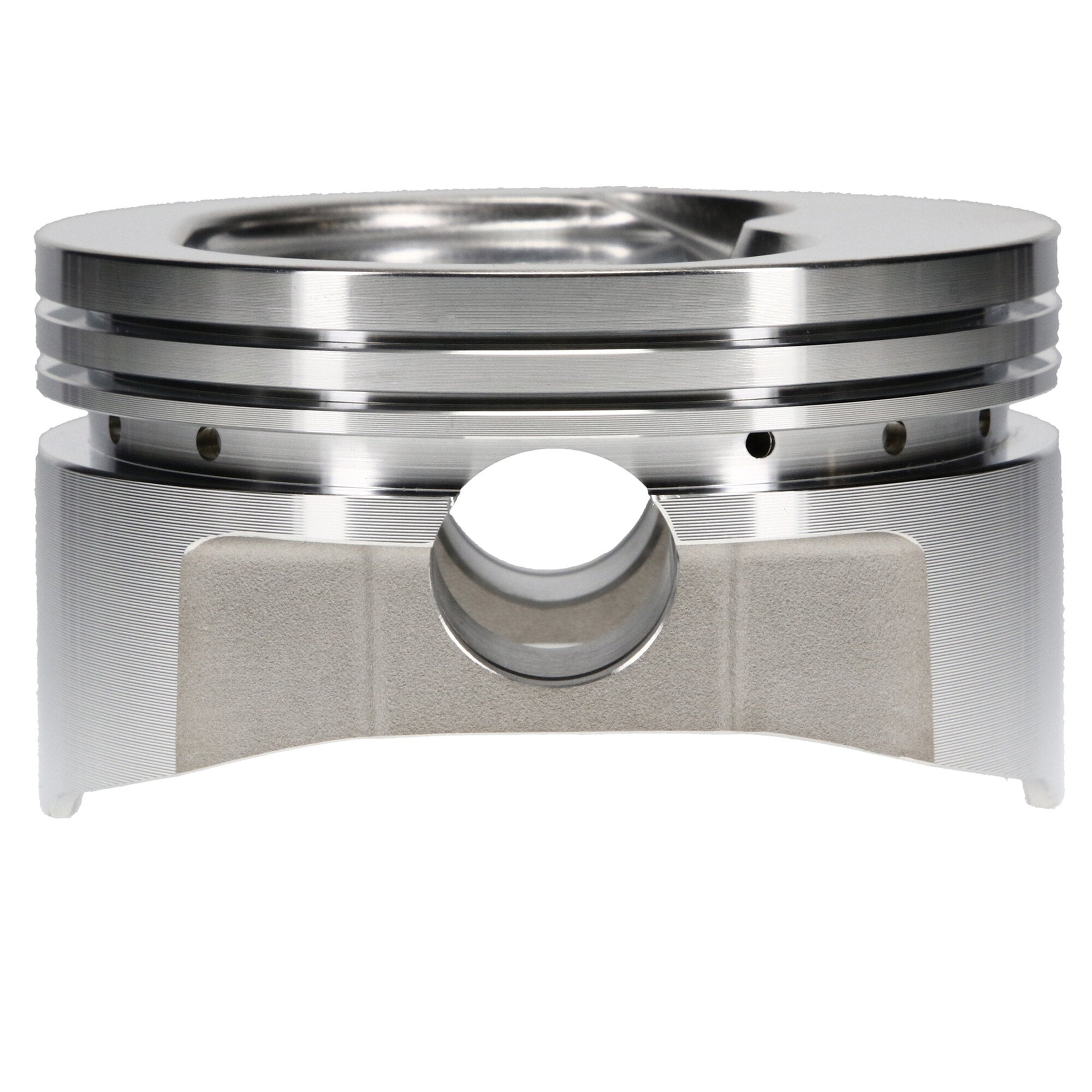

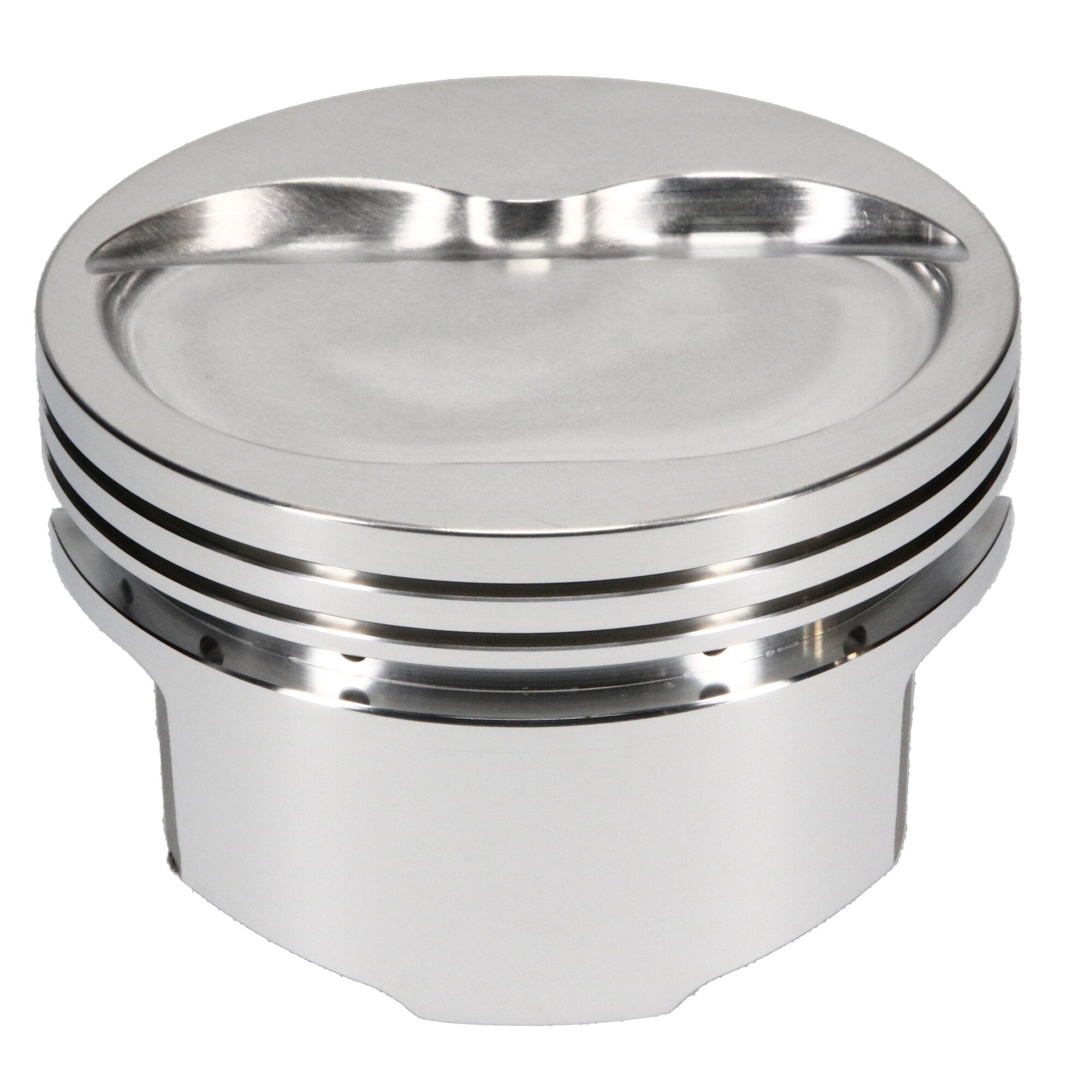

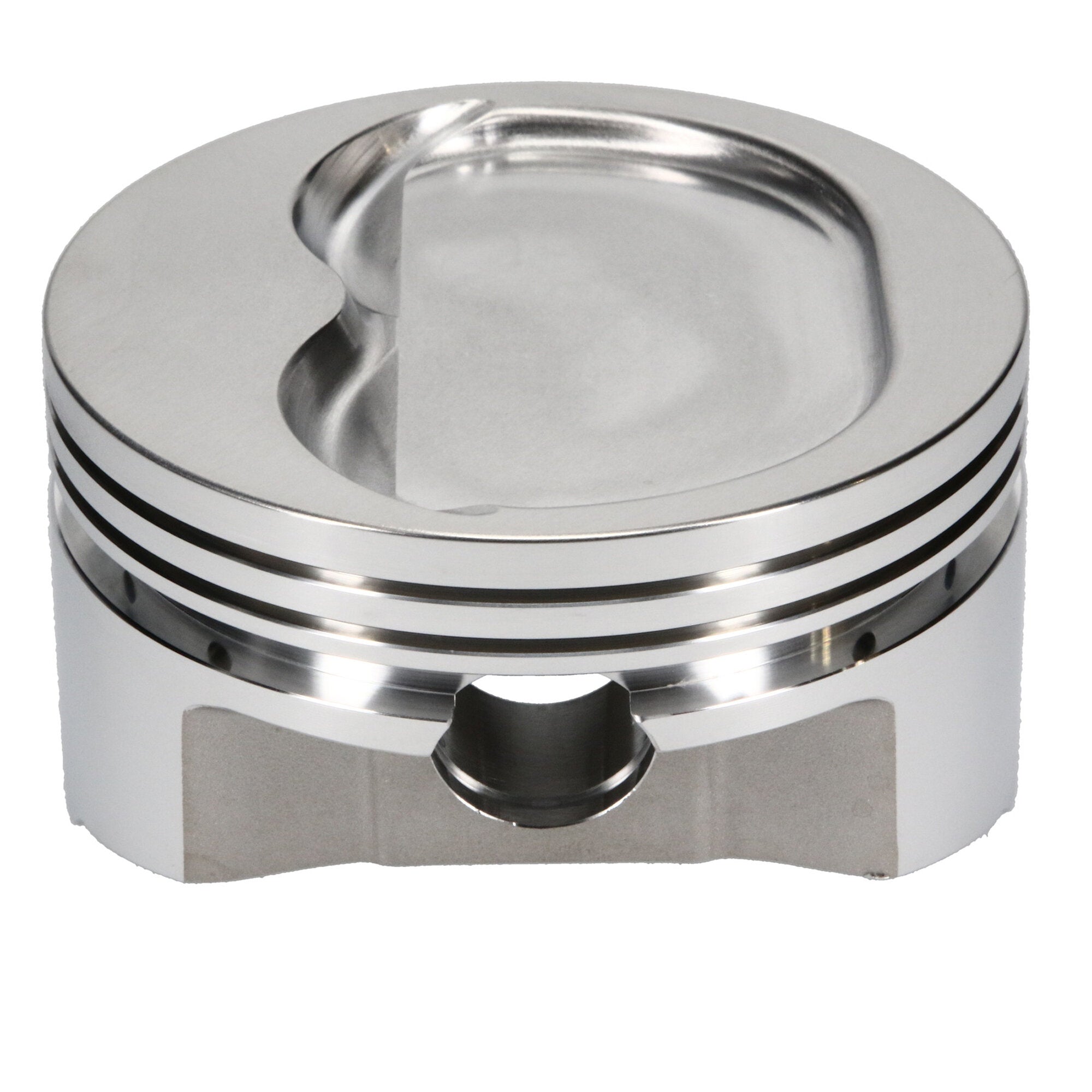

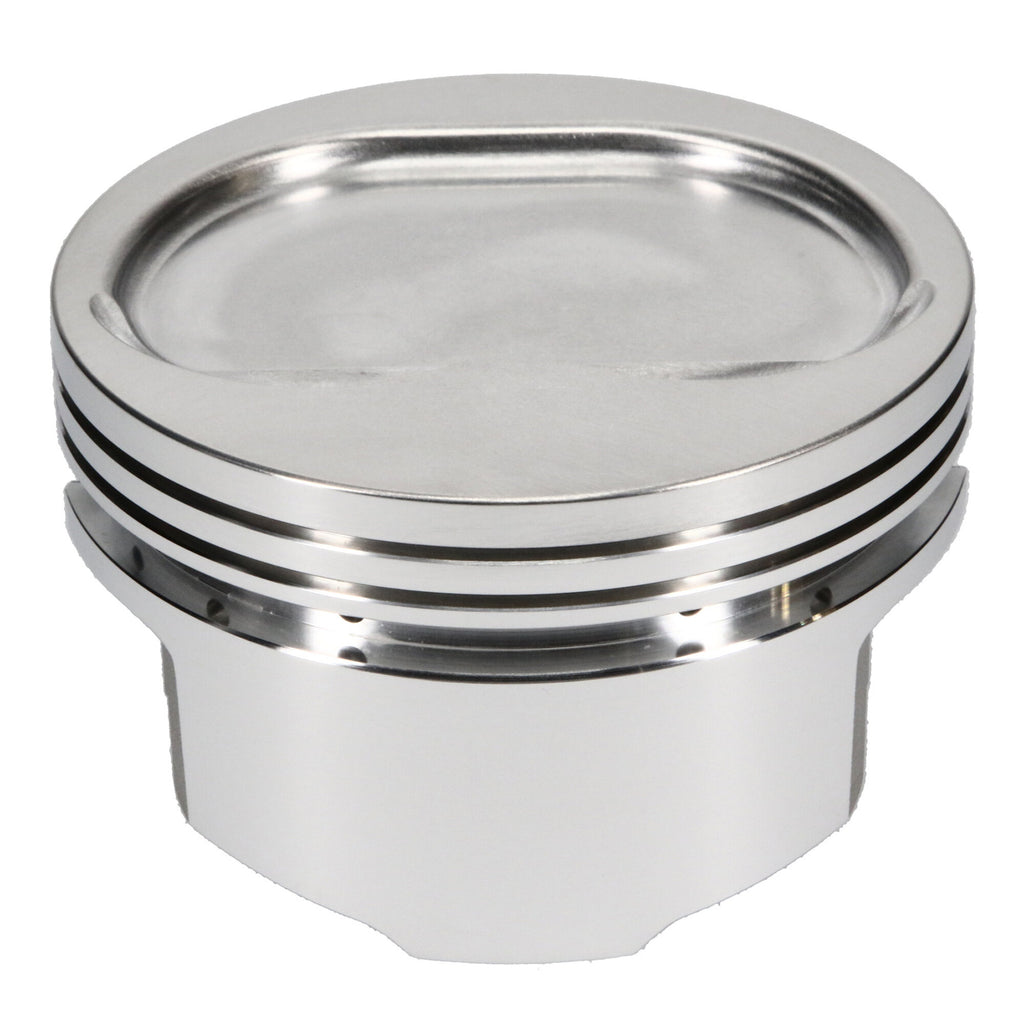

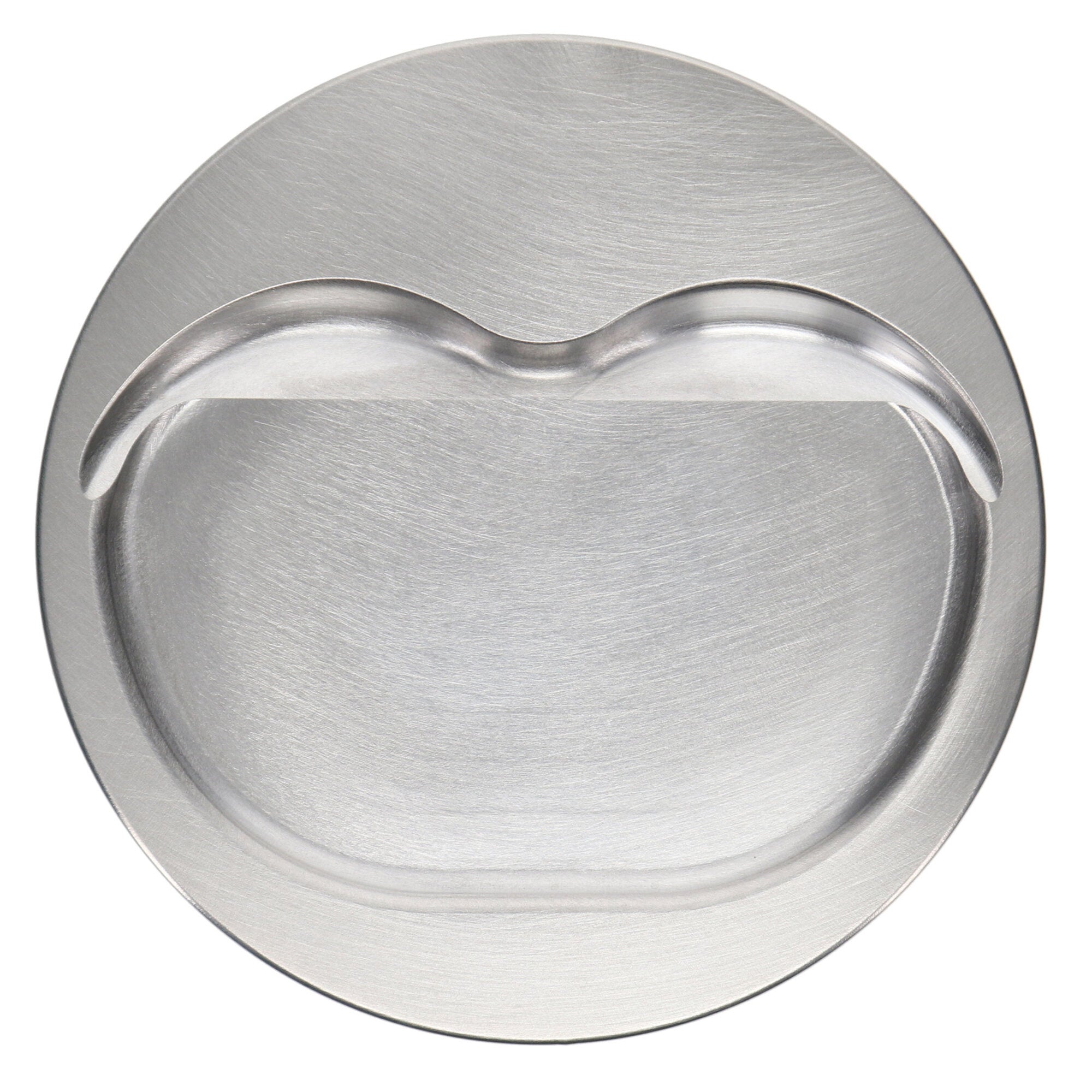

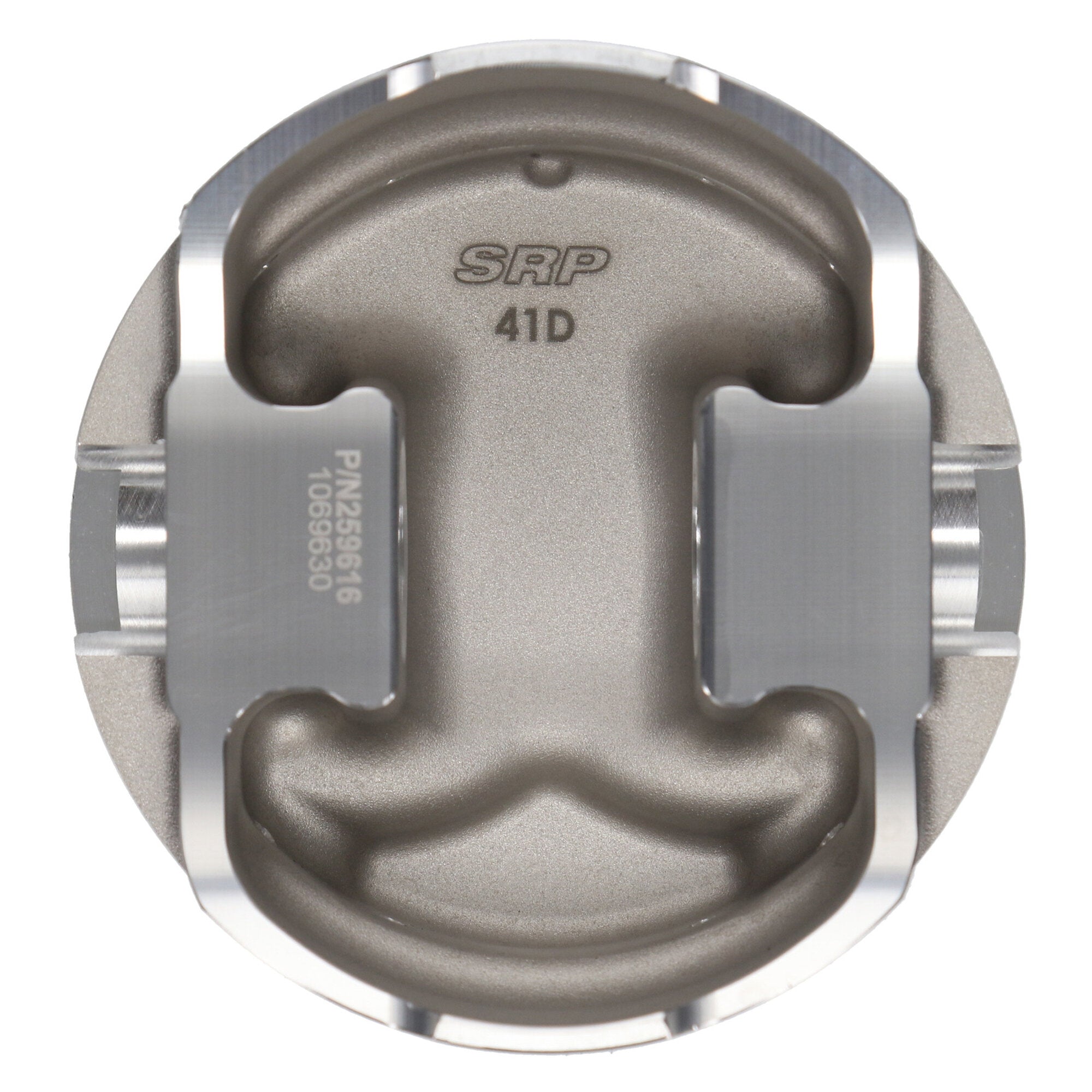

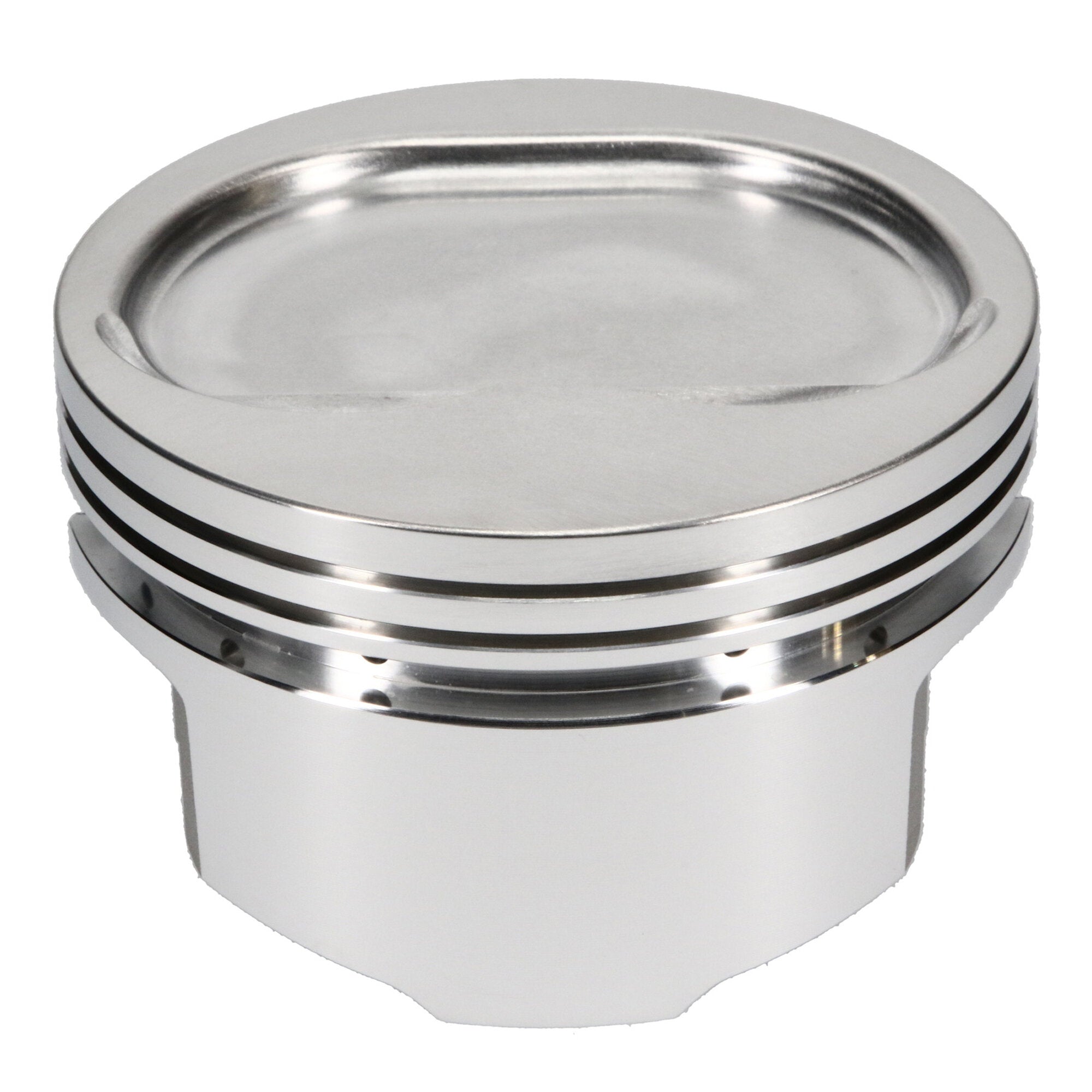

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.020 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.560 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 350, 4.020 Bore, Dish, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Ringset Included |
No |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.560 in. CH, -24.00 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.188 |
| Engine |
Small Block |
| Title |
SRP - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Industry |
Automotive |
| Compression Height |
1.560 |
| Piston Average Weight |
497 |
| Add-On |
927-042-CS |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.927 |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
S100S8-4020-5 |
| Add-On |
927-2750-15-51S |
| Bore Diameter |
4.020 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
4032 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Make |
CHEVROLET |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Volume |
-24.00 |
| Product Market |
Domestic |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
