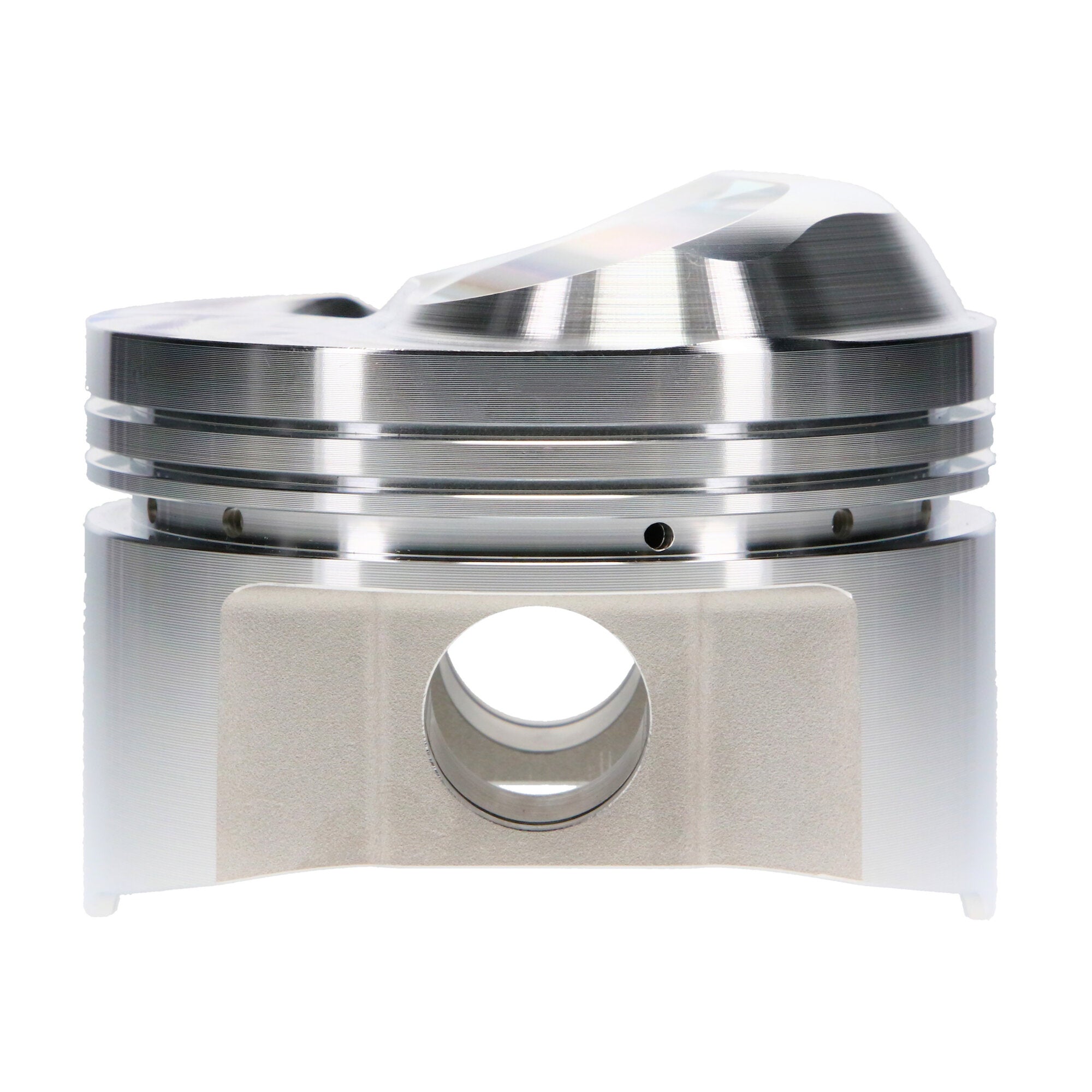

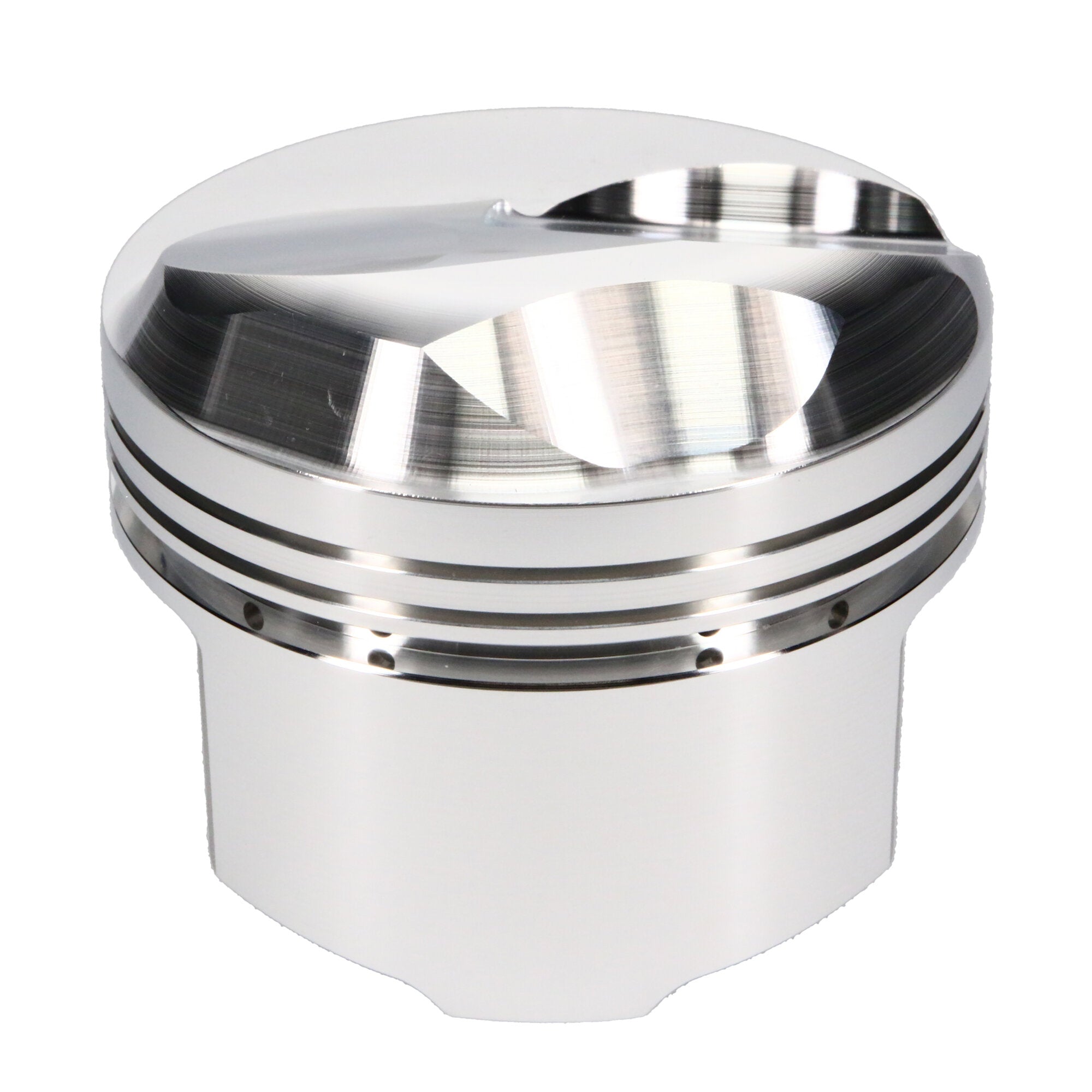

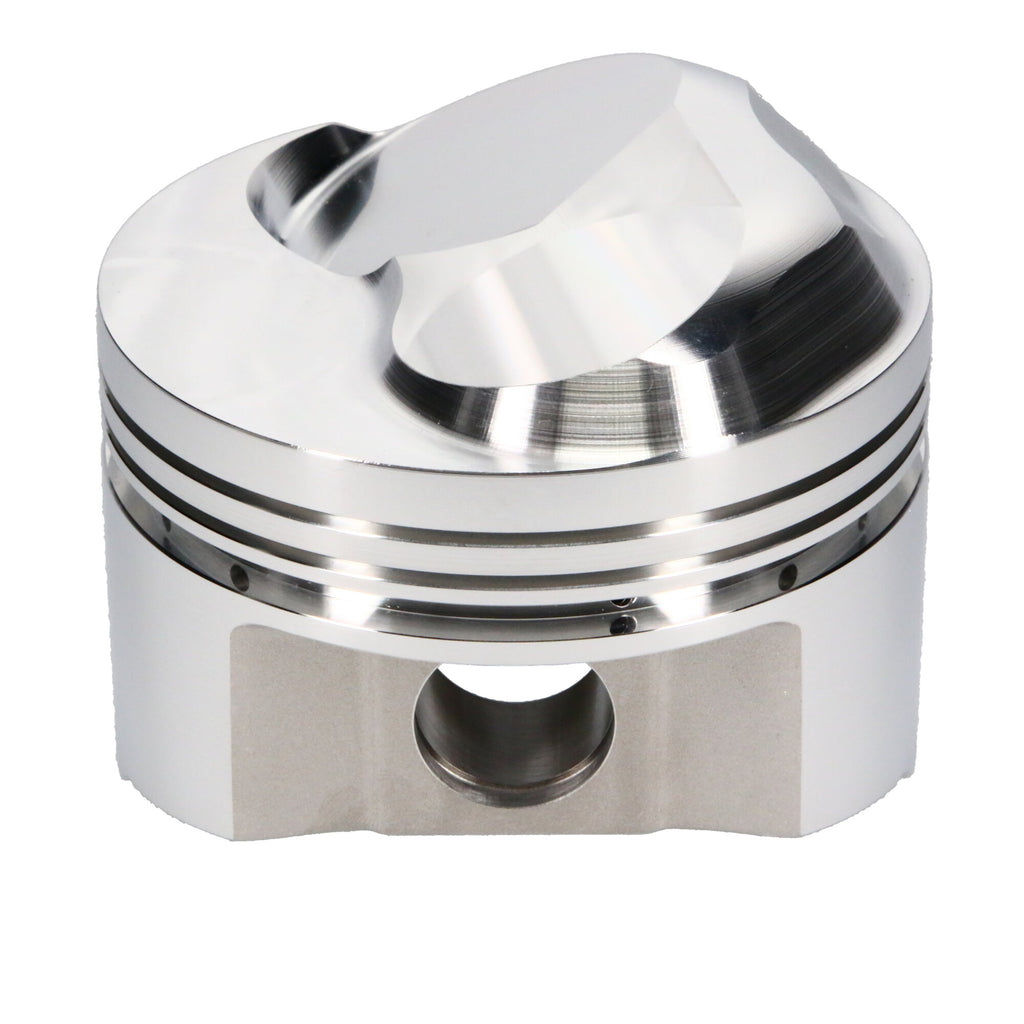

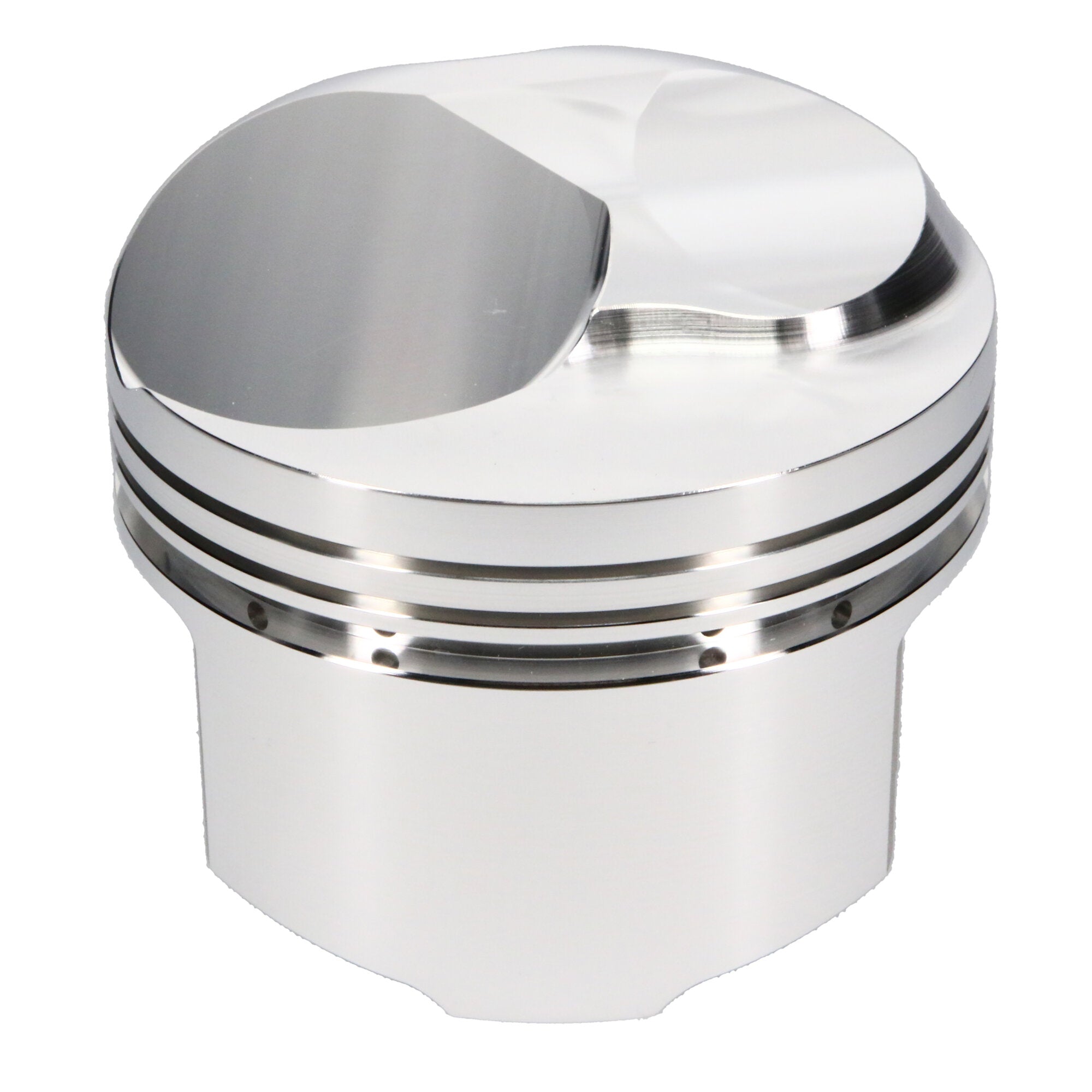

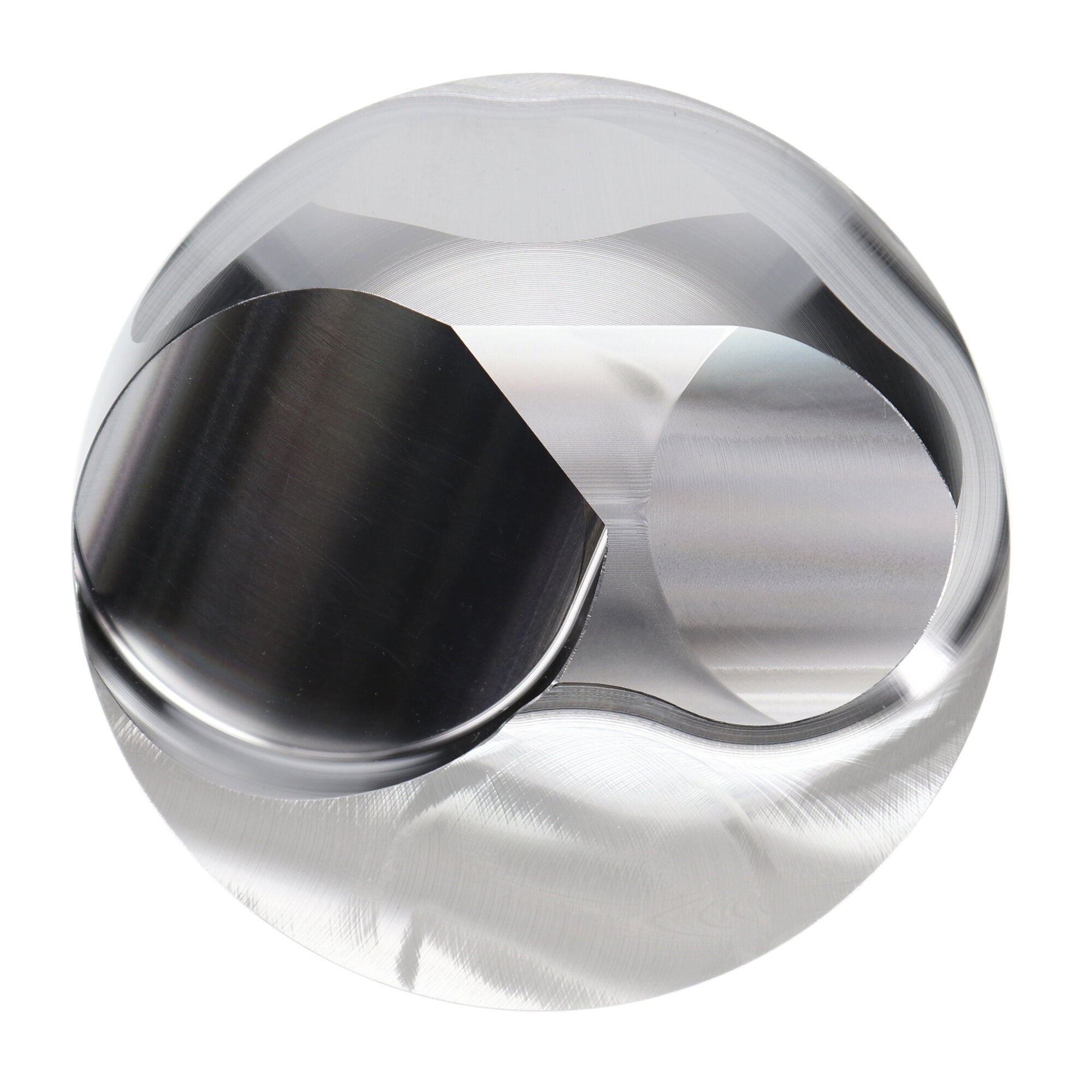

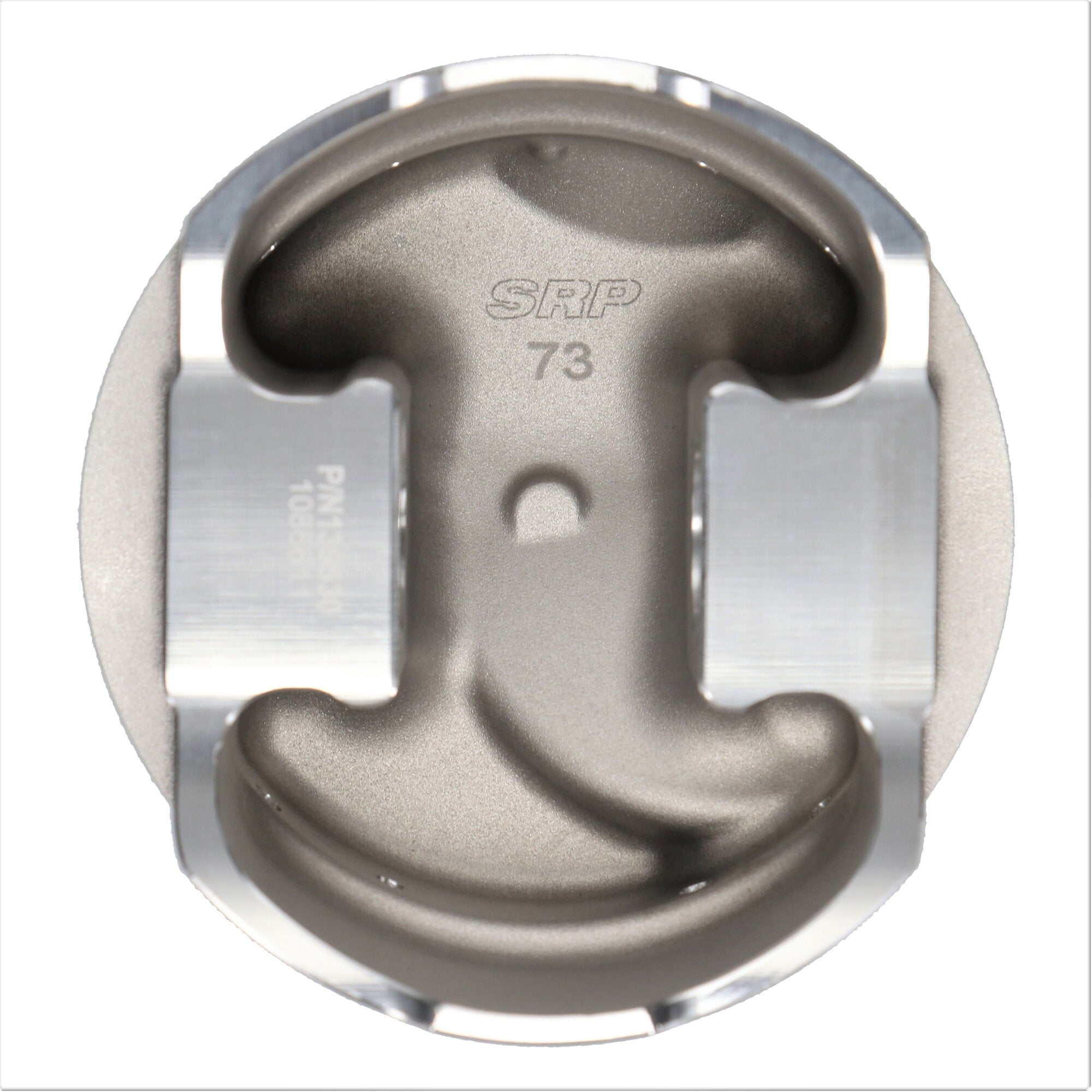

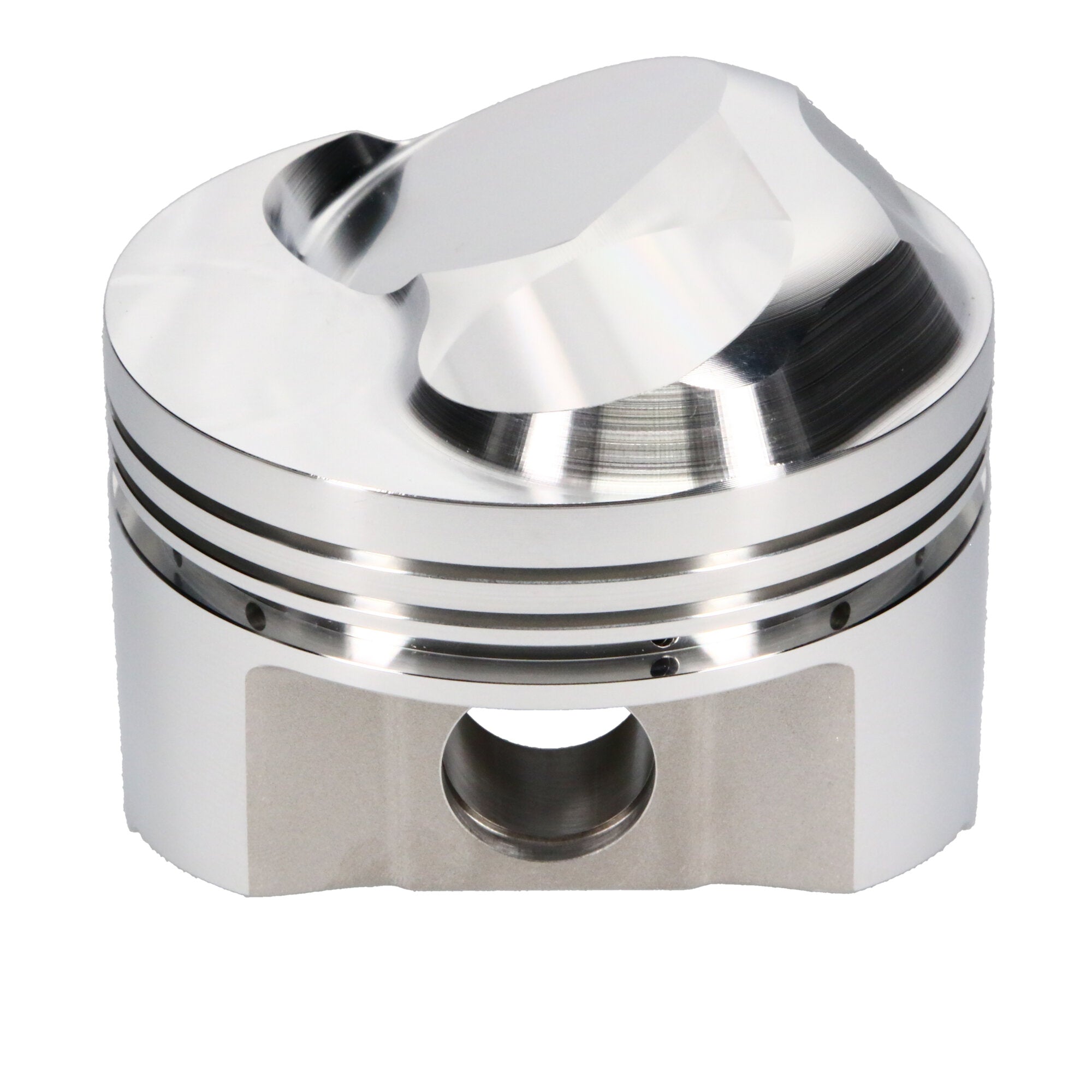

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.470 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.470 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.470 Bore, Dome, Set of 8 |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Head Type |
Dome |
| Compression Height |
1.645 |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Engine Type |
ICE |
| Engine |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Cylinder Head |
OPEN CHAMBER |
| Oil Ring Thickness |
0.188 |
| Piston Average Weight |
710 |
| Piston Material |
2618 |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
S100S8-4470-5 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.470 |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Title |
SRP - Chevrolet, Big Block, 4.470 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
990-2930-15-51S |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Forging Type |
FSR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Big Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Out of Stock Message |
Call for Availability |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.470 in. Bore - 1.645 in. CH, 41.00 CC |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.990 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Volume |
41.00 |
| Prop 65 (C, R or CR) |
CR |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
