Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

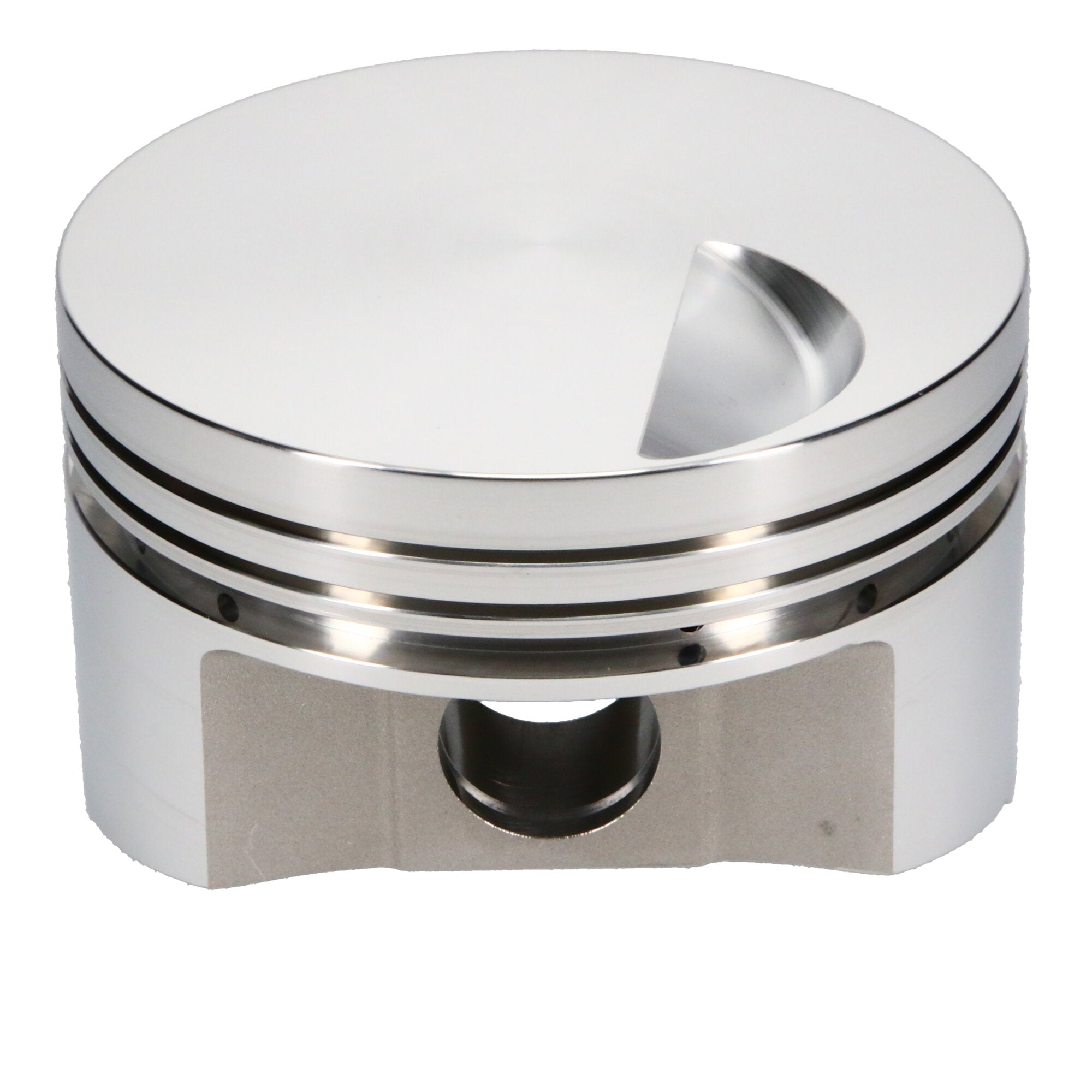

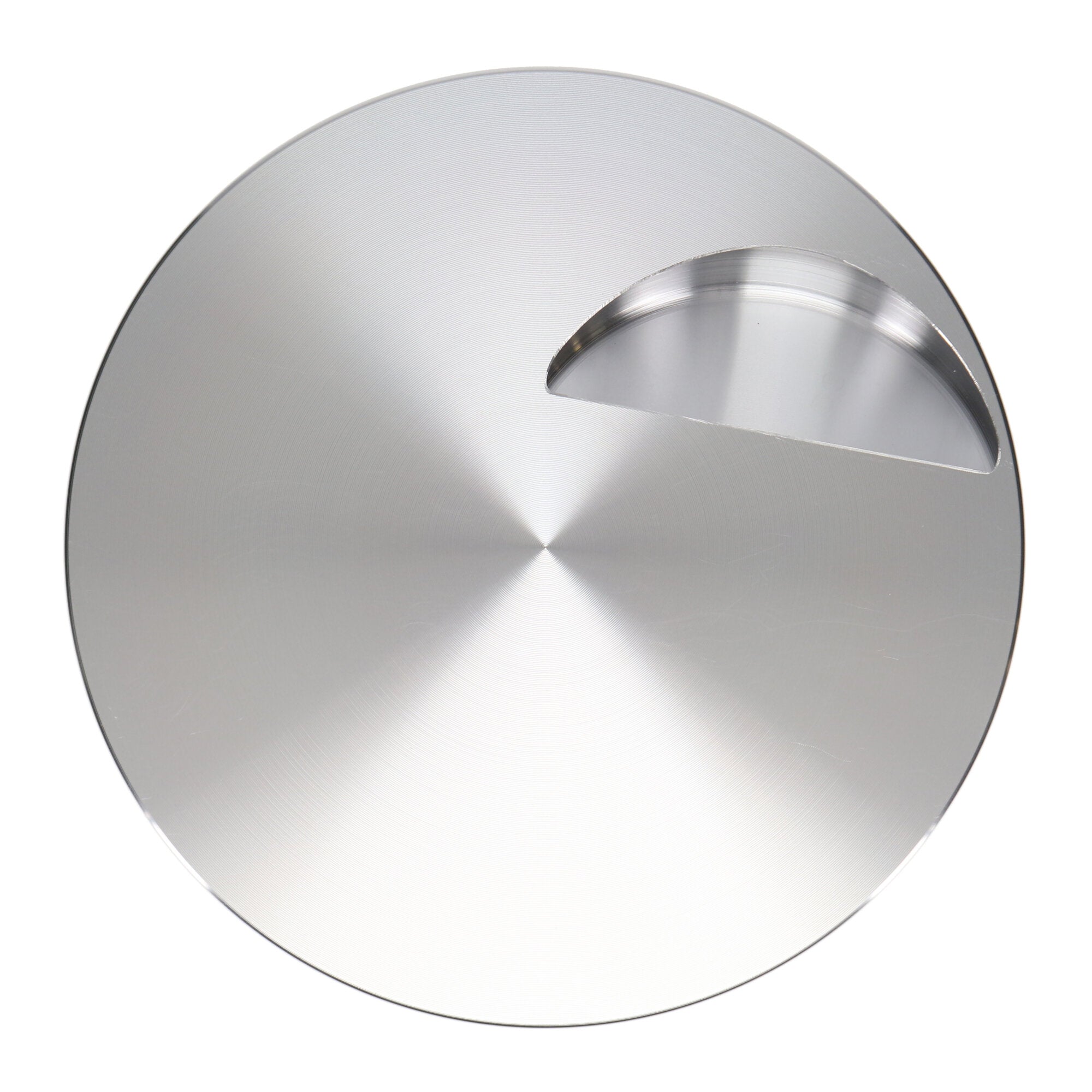

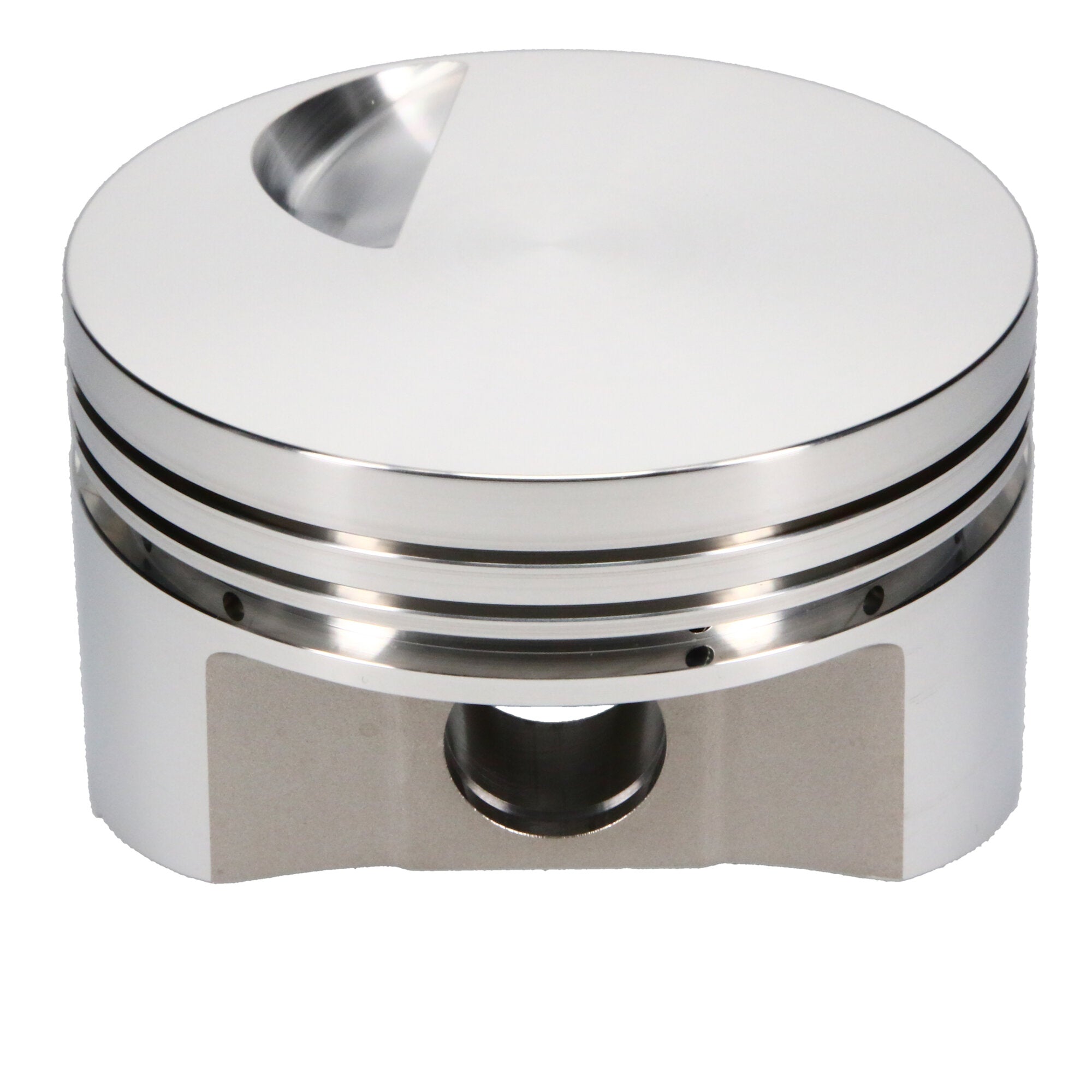

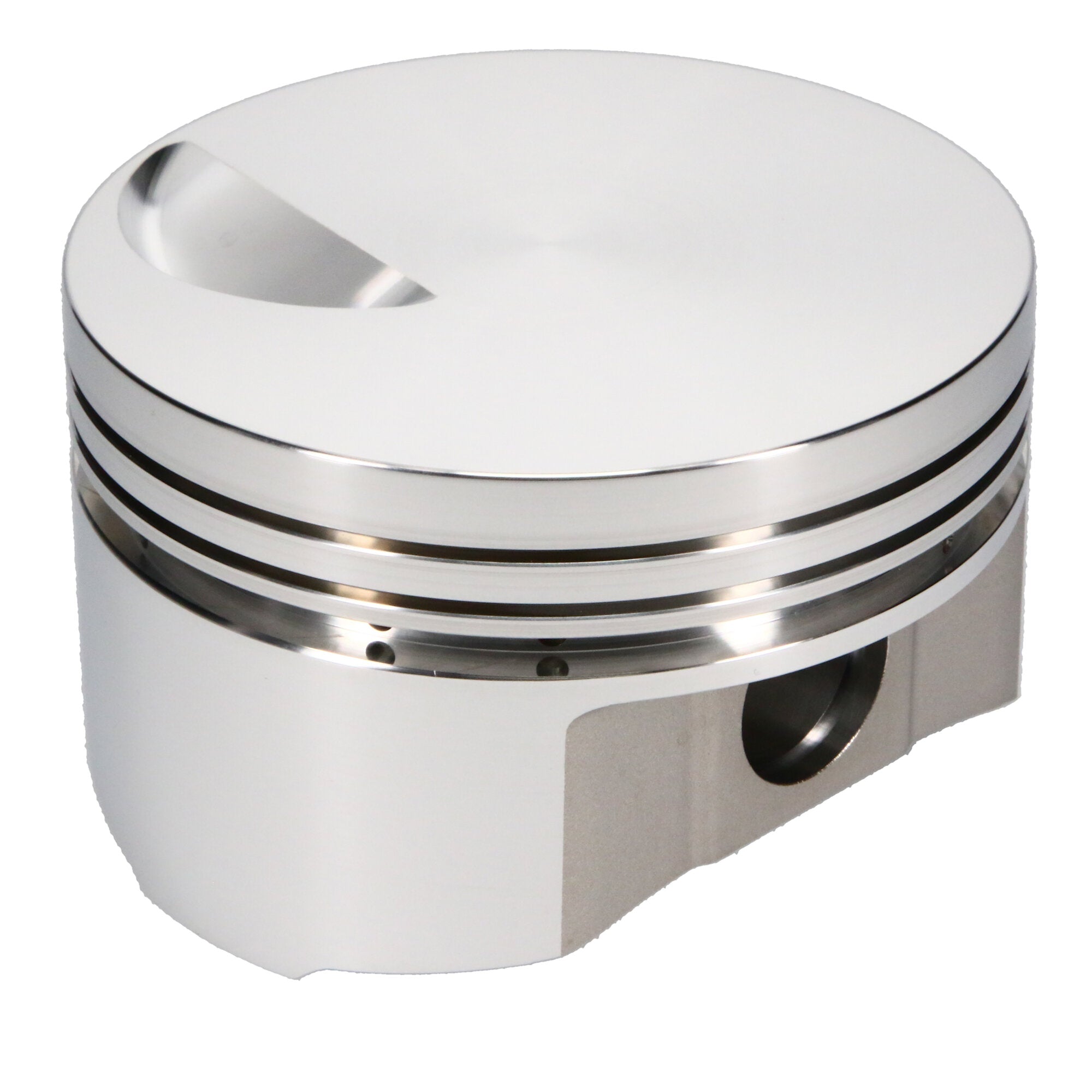

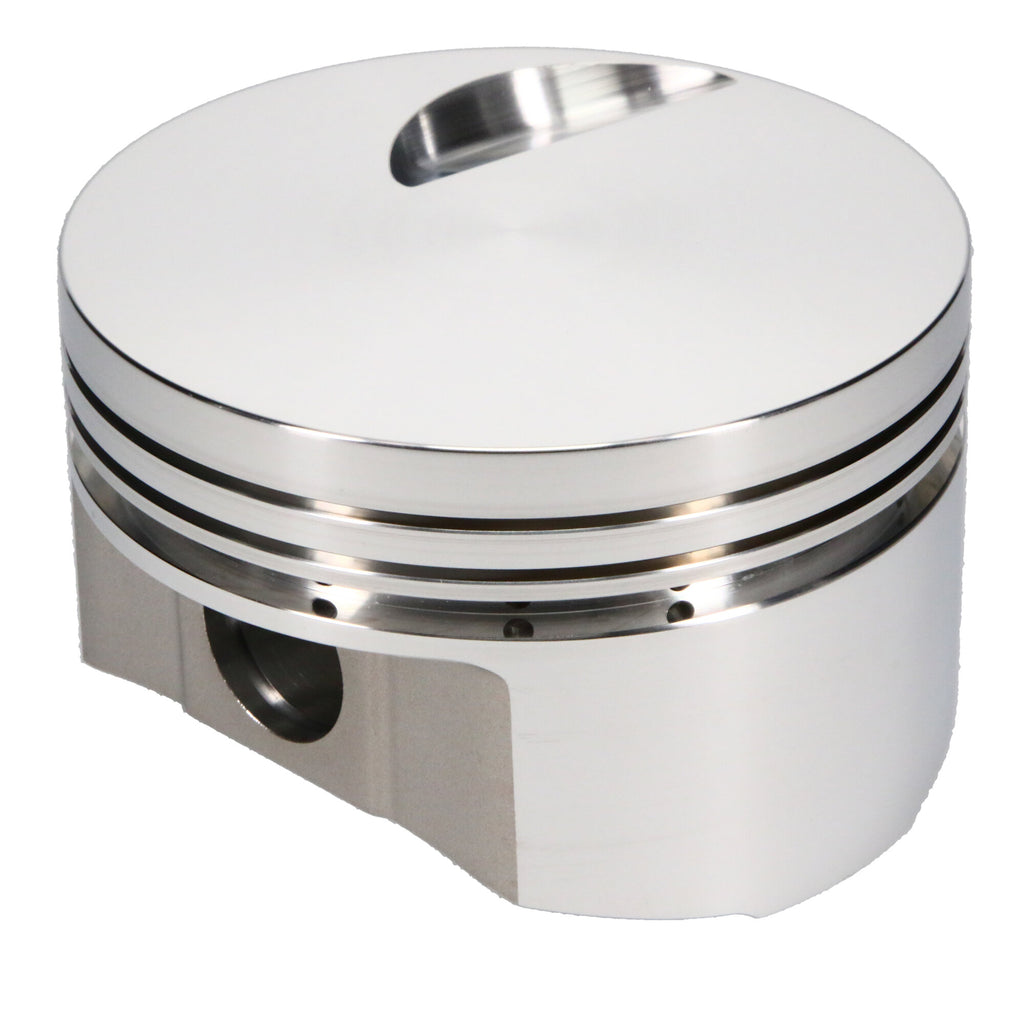

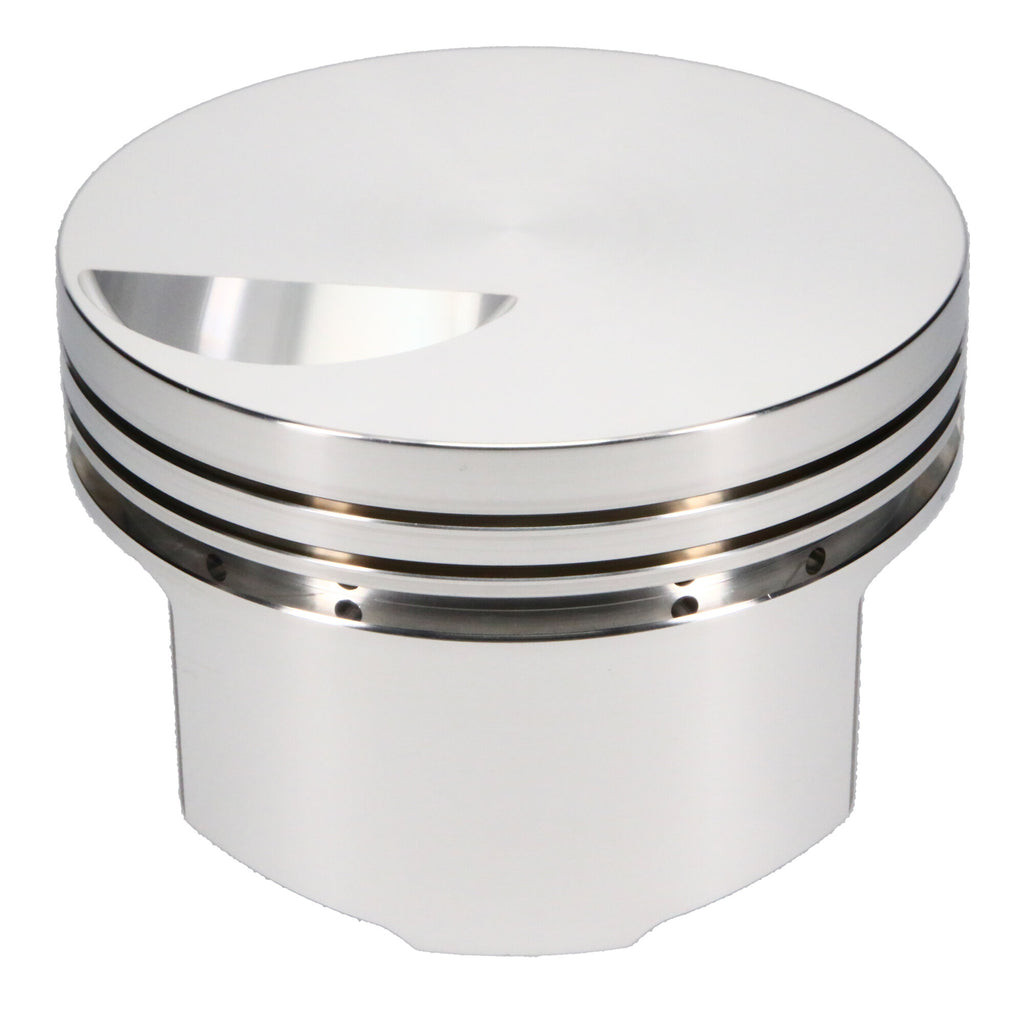

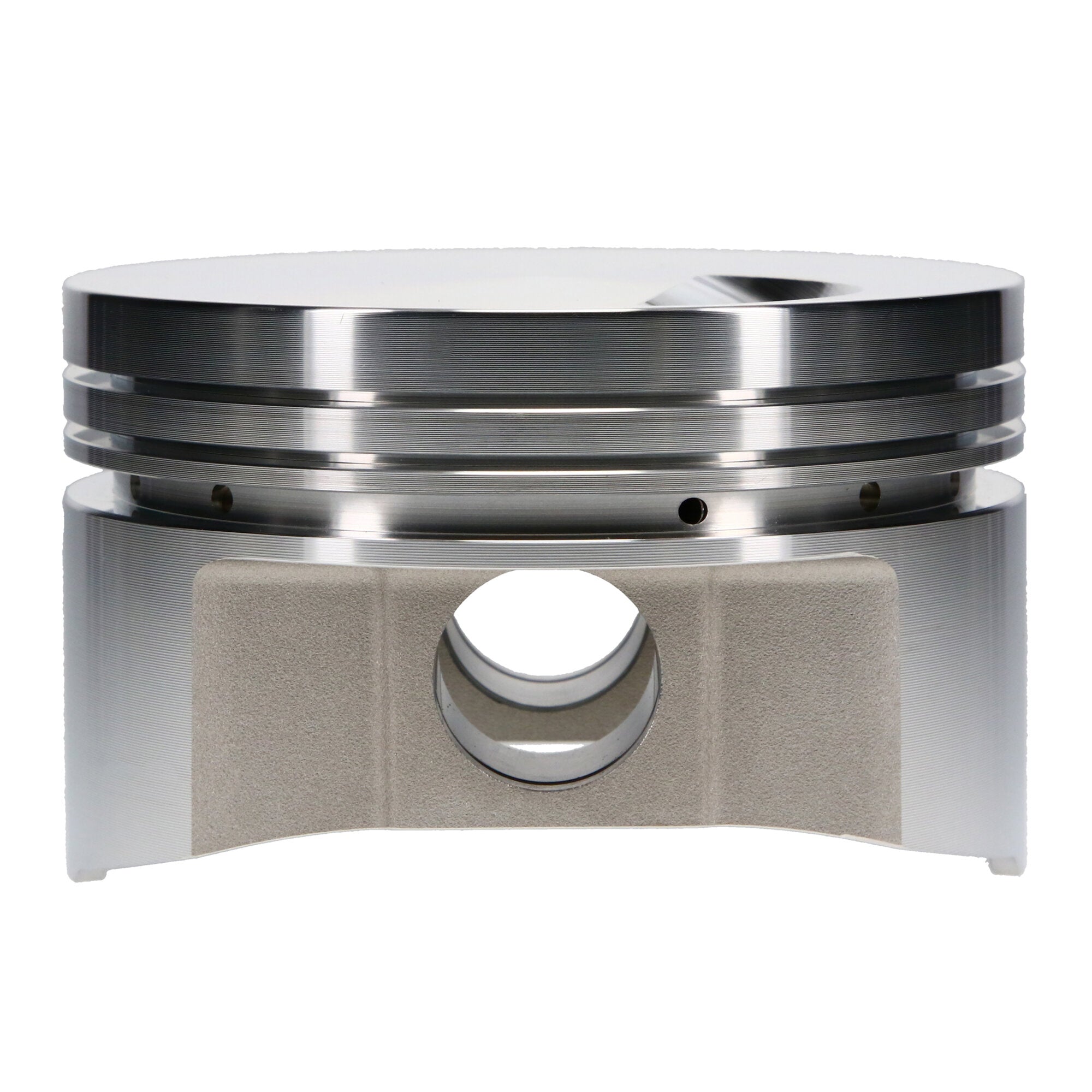

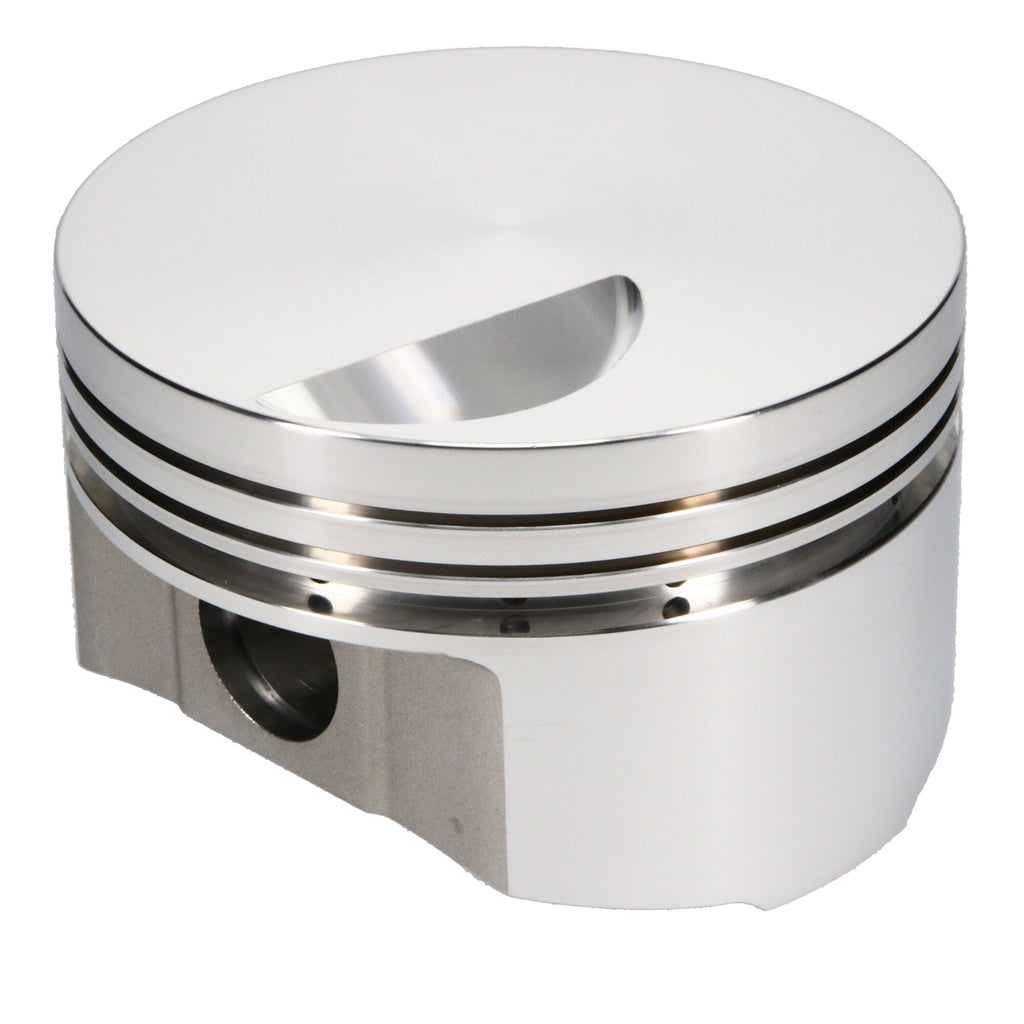

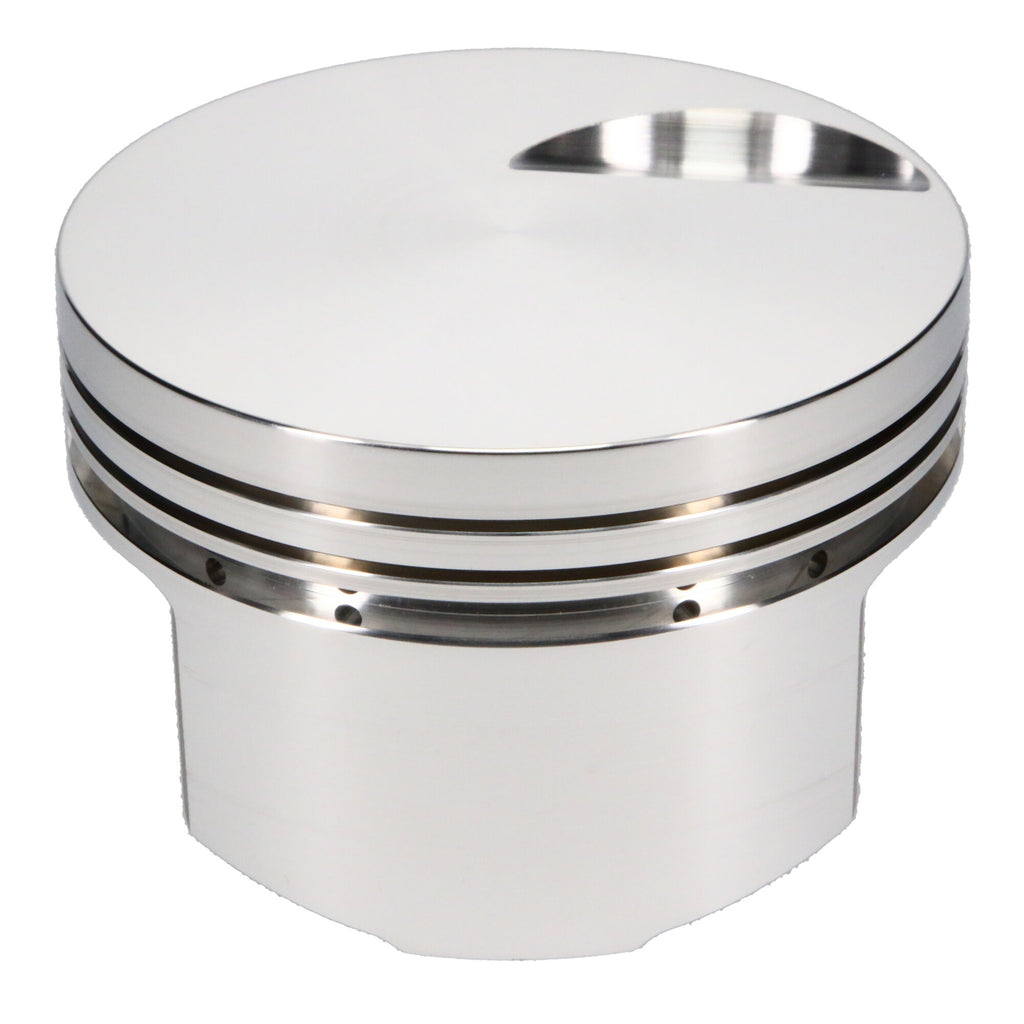

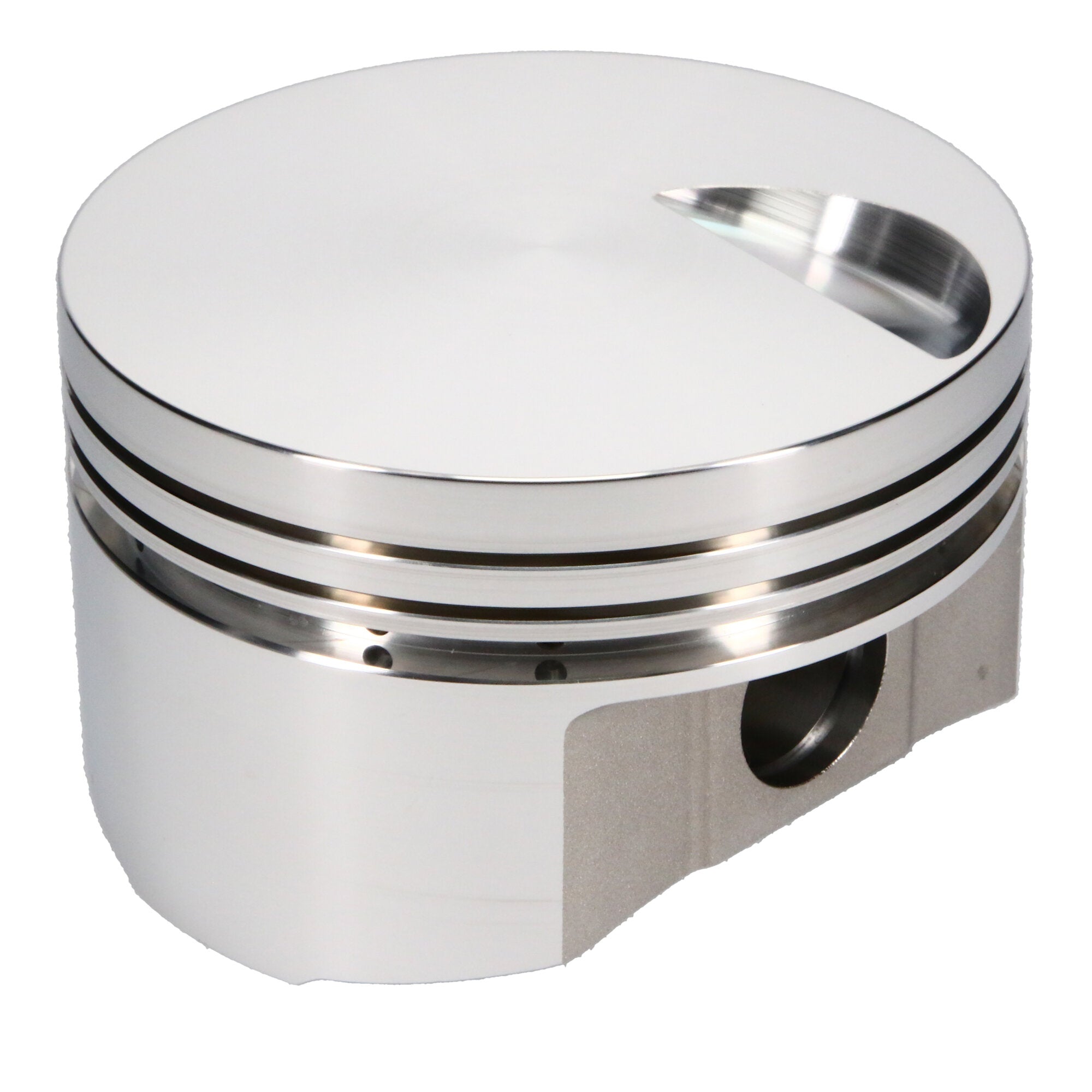

Piston Set, 4032, Flat Top, 4.500 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.645 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.500 Bore, Flat, Set of 8 |
| Piston Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
S100S8-4500-5 |
| Add-On |
990-042-CS |
| Add-On |
990-2930-15-51S |
| Piston Material |
4032 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.500 in. Bore - 1.645 in. CH, -3.00 CC |
| Make - Web |
Chevrolet |
| Engine |
Big Block |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Cylinder Head |
OPEN CHAMBER |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Piston Average Weight |
676 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Title |
SRP - Chevrolet, Big Block, 4.500 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Make |
CHEVROLET |
| Bore Diameter |
4.500 |
| Compression Height |
1.645 |
| Oil Ring Thickness |
0.188 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
-3.00 |
| Piston Pin Material |
5115 |
| Piston Series |
SRP |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
