Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 289/302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.060 Bore, 1.600 CD, 0.912 Pin, Set of 8. |
| Description_EXT |
SRP, Ford, Small Block Ford, 4.060 in. Bore, 1.600 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Ford 289/302, 4.060 Bore, Flat, Set of 8 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.912 |
| Compression Height |
1.600 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.140 |
| Product Market |
Domestic |
| Bore Diameter |
4.060 |
| Piston Series |
SRP |
| Piston Volume |
-5.00 |
| Product Type |
Engine Piston Kit |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Make |
FORD |
| Oil Ring Thickness |
0.188 |
| Piston Average Weight |
524 |
| Top Compression Ring Thickness |
0.0640 |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Piston Head Type |

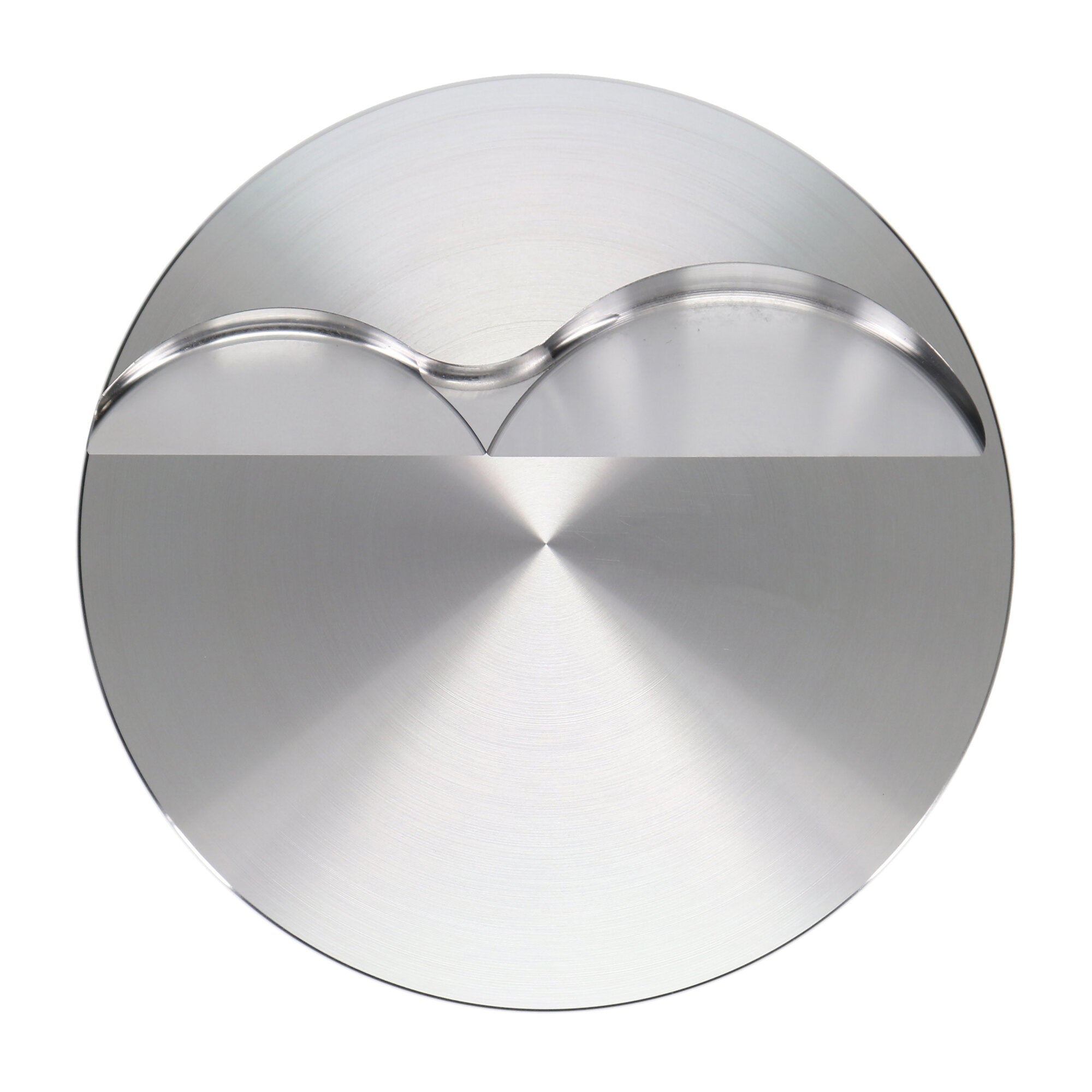

Flat |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.060 in. Bore - 1.600 in. CH, -5.00 CC |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.912 |
| Add-On |
S100S8-4060-5 |
| Add-On |
927-042-CS |
| Add-On |
912-2750-14-51S |
| Piston Material |
4032 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Title |
SRP - Ford, Small Block, 4.060 in. Bore, Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.750 |
| Piston Pin Length |
2.750 |
| Engine |
Small Block |
| Ringset Included |
No |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
