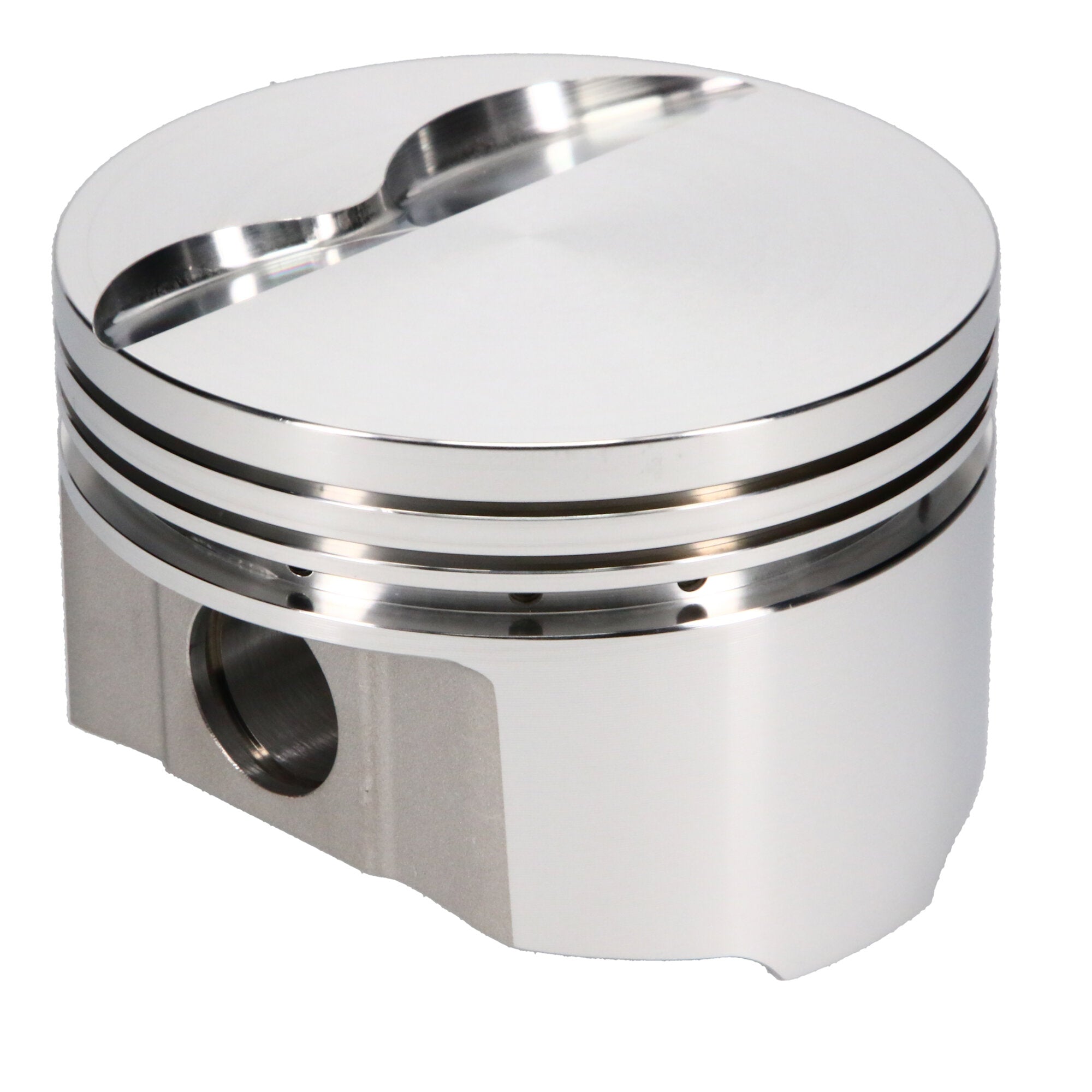

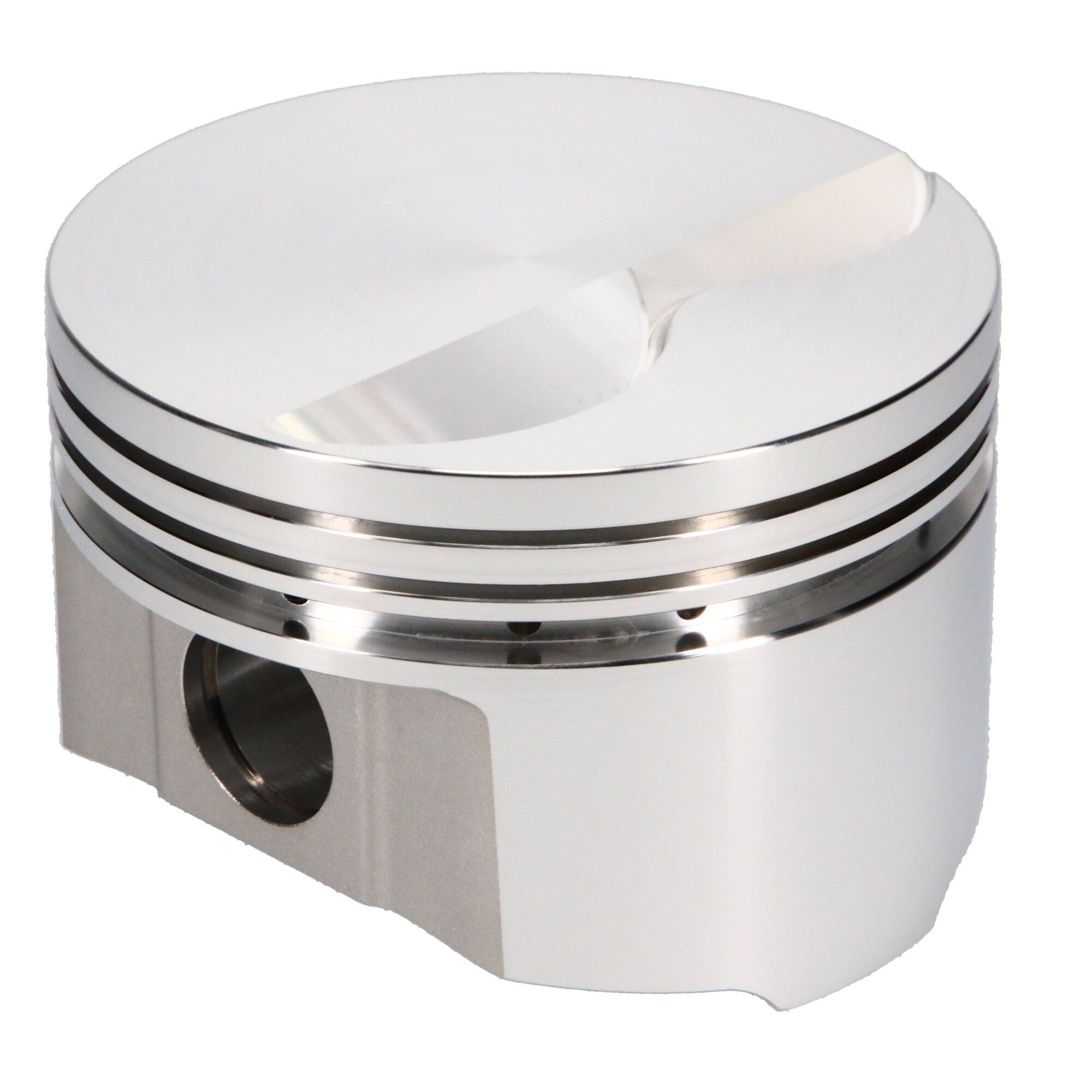

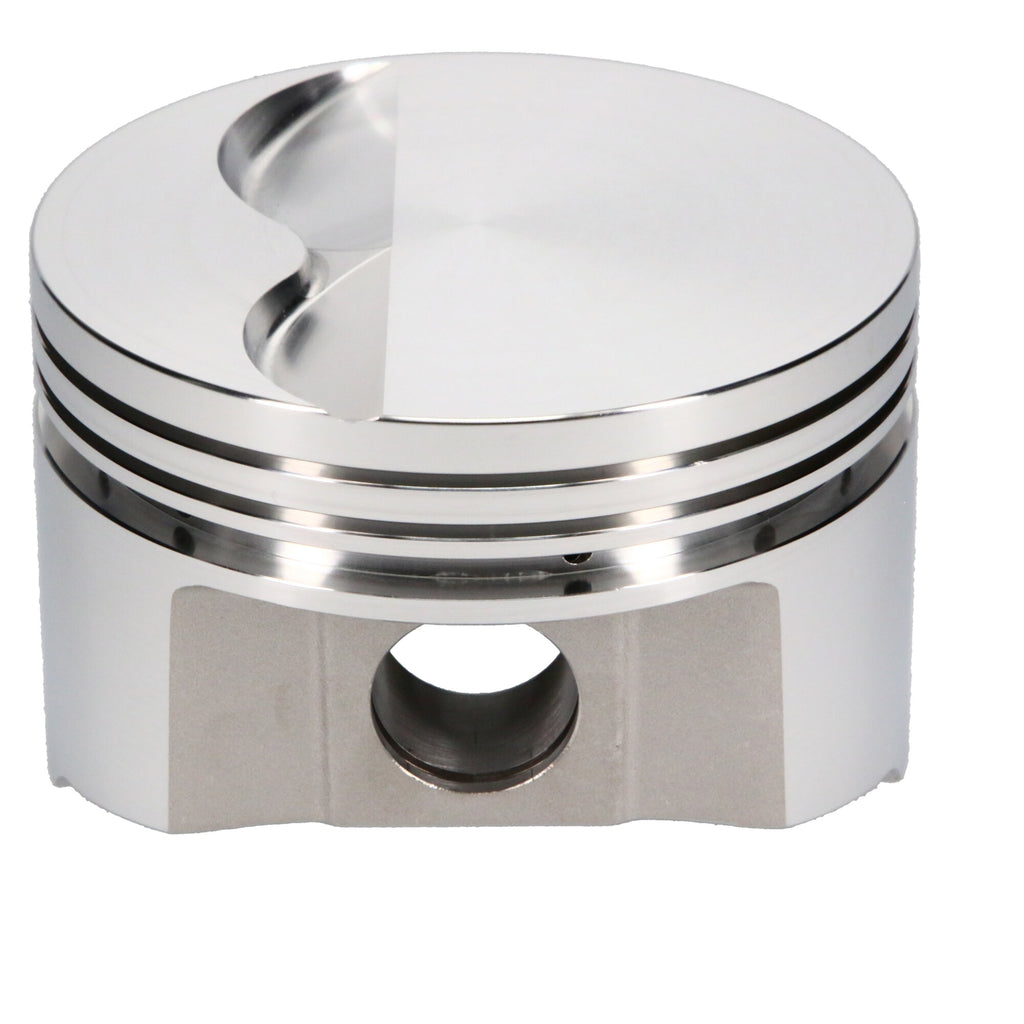

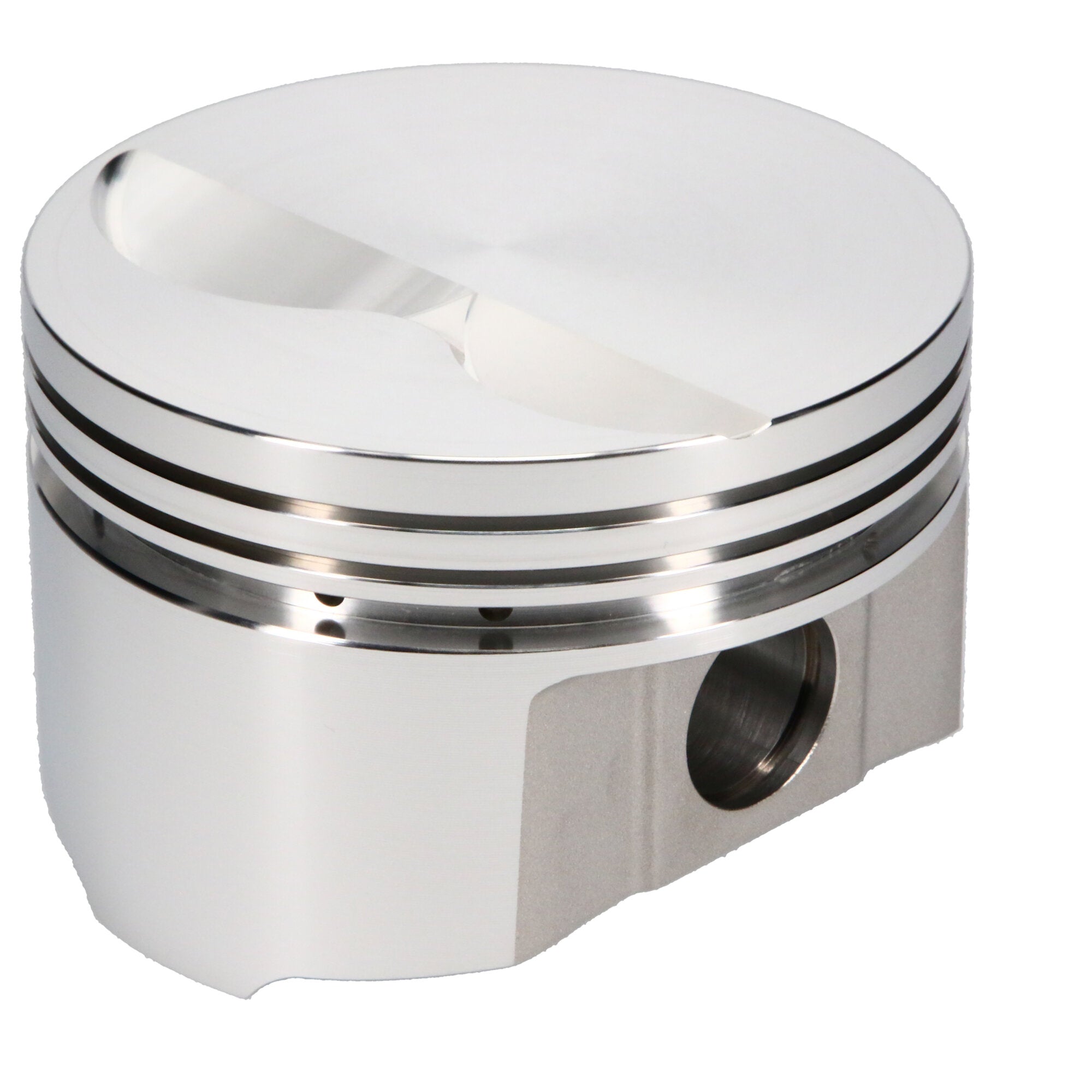

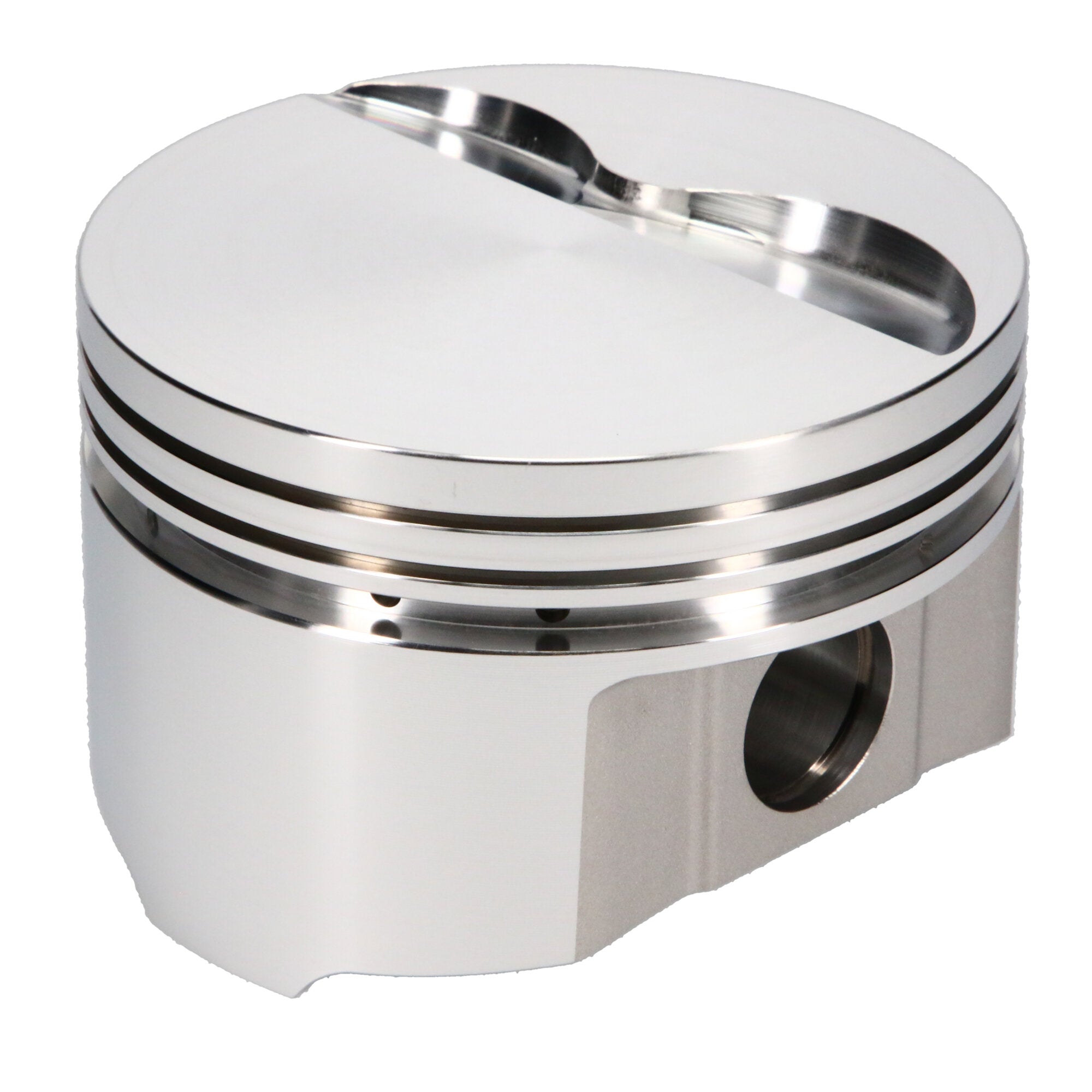

JE Pistons 138734S Piston Single, 4032, Flat Top, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_138734S
Engine Piston
$308.32
customers are viewing this product
JE Pistons 138085S Piston Single, 4032, Flat Top, 4.030 Bore, 1.260 CD, 0.927 Pin, Set of 1.
JE Pistons 138085S Piston Single, 4032, Flat Top, 4.030 Bore, 1.260 CD, 0.927 Pin, Set of 1.
$216.42
JE Pistons 138094S Piston Single, 4032, Flat Top, 4.040 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 138094S Piston Single, 4032, Flat Top, 4.040 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$308.32
JE Pistons 138734S Piston Single, 4032, Flat Top, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 1.
Details

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Specifications:

Description_ASM Ford Small Block 289/302
Description_DEF Engine Piston
Description_DES Piston Single, 4032, Flat Top, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Description_EXT SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.600 CD, Flat Top, Single Piston
Description_INV SRP, Piston
Description_TLE Ford 289/302, 4.030 Bore, Flat, Set of 1
Description_MKT Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Description_SHO Piston
Product Type Engine Piston
Top Compression Ring Thickness 0.0640
Wrist Pin Length 2.750
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Piston Pin Outside Diameter 0.912
Product Market Domestic
Category Hierarchy Auto>SRP Pistons>SRP>Single Replacement Pistons
Bore Diameter 4.030
Compression Height 1.600
Engine - Web Small Block
Title SRP - Ford, Small Block, 4.030 in. Bore, Piston
Piston Volume -5.00
Piston Average Weight 509
Ring Set Included No
Add-On 927-042-CS
Prop 65 Yes/No Yes
Second Compression Ring Thickness 0.0640
Out of Stock Message Call for Availability
Prop 65 (C, R or CR) CR
Industry Automotive
Add-On S100S8-4030-5
Piston Material 4032
Add-On 912-2750-14-51S
Ringset Included No
Forging Type FSR
Piston Head Type Flat
Piston Series SRP
Piston Pin Material 5115
Engine Type ICE
Title - Web SRP Ford Small Block Piston - 4.030 in. Bore - 1.600 in. CH, -5.00 CC
Piston Pin Length 2.750
Make FORD
Engine Small Block
Cylinder Head SMALL BLOCK FORD 20 DEG
Piston Pin Wall Thickness 0.140
Oil Ring Thickness 0.188
Make - Web Ford
Wrist Pin Wall Thickness 0.140
Wrist Pin Outer Diameter 0.912
Prop 65 - Short Label Prop 65 Warning Label.JPG
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
