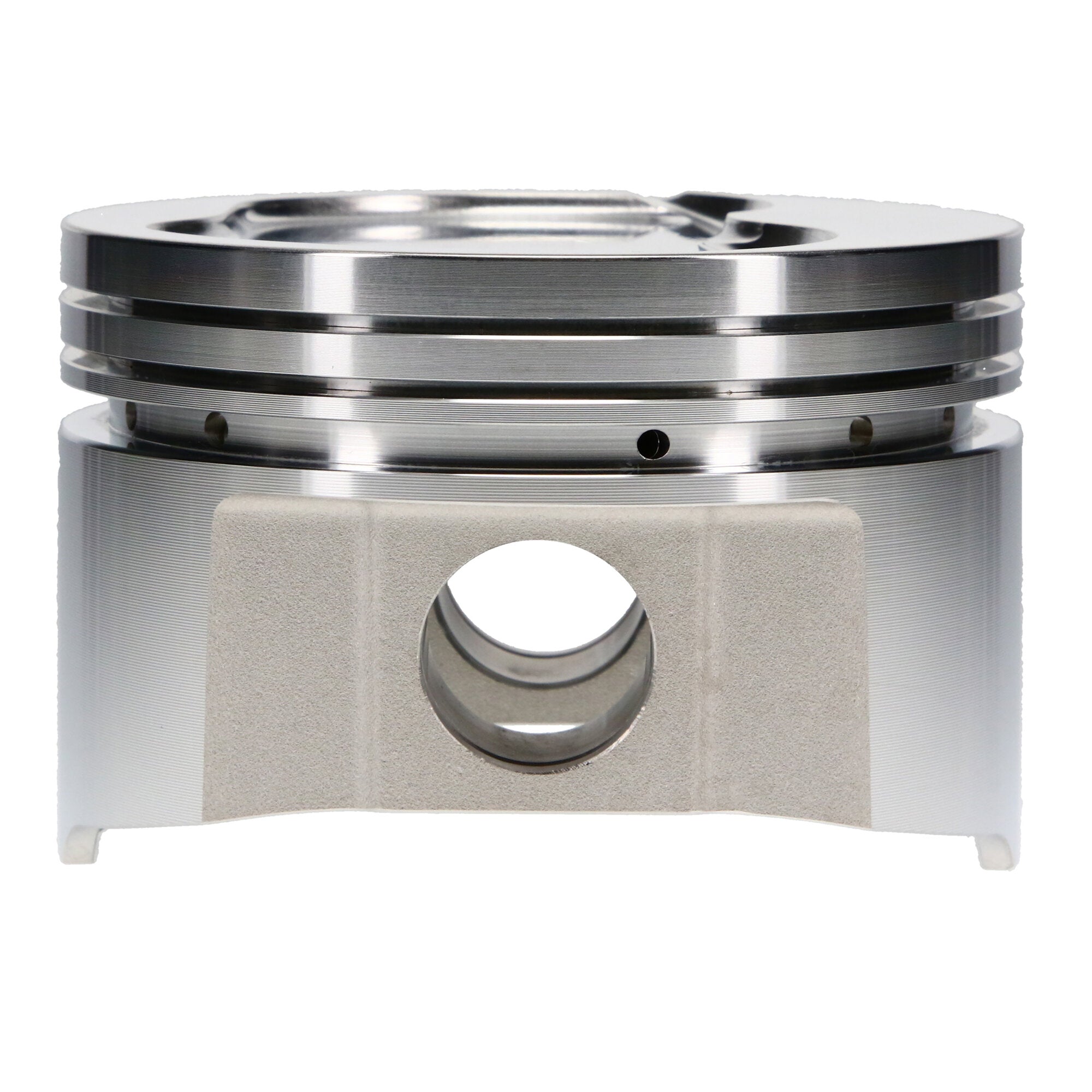

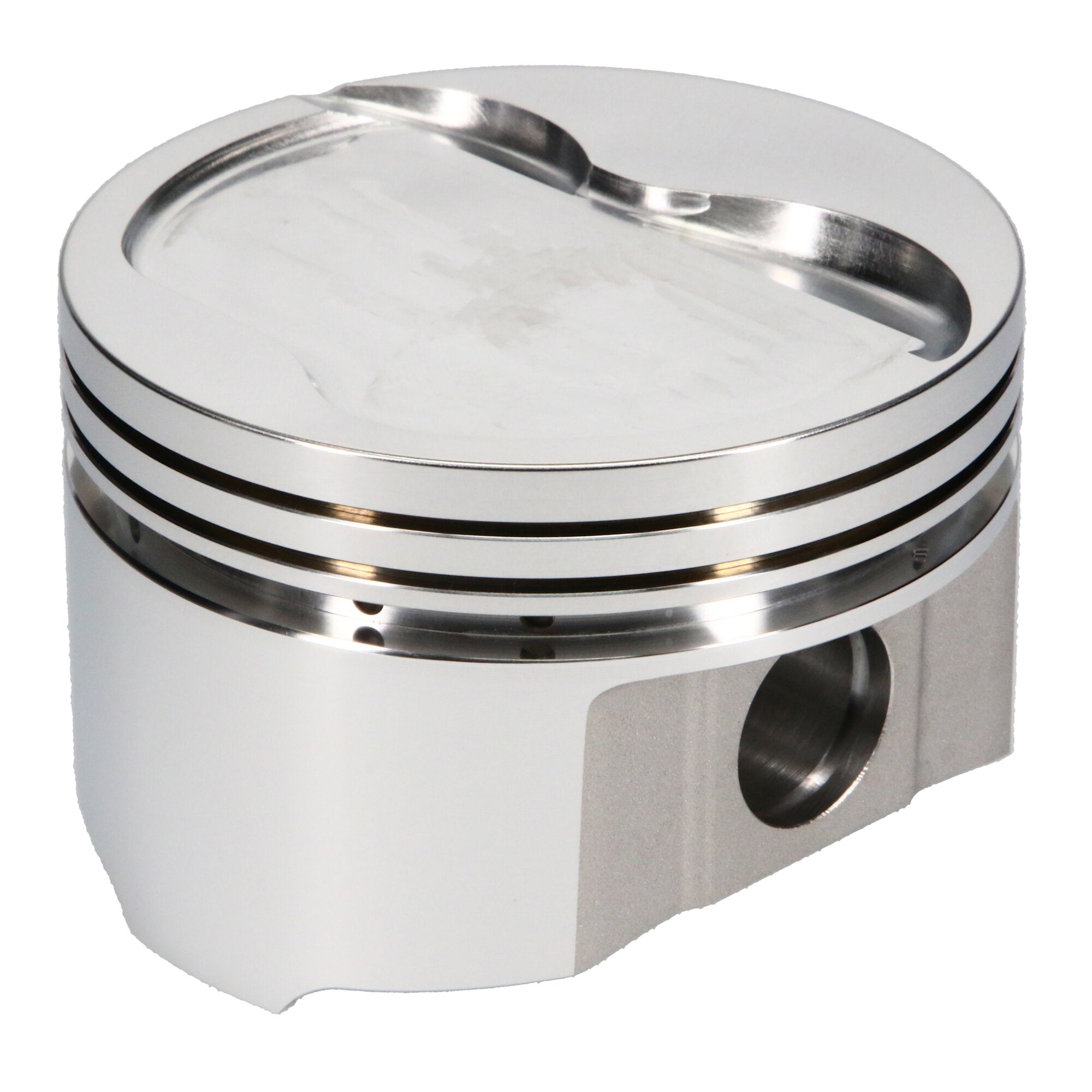

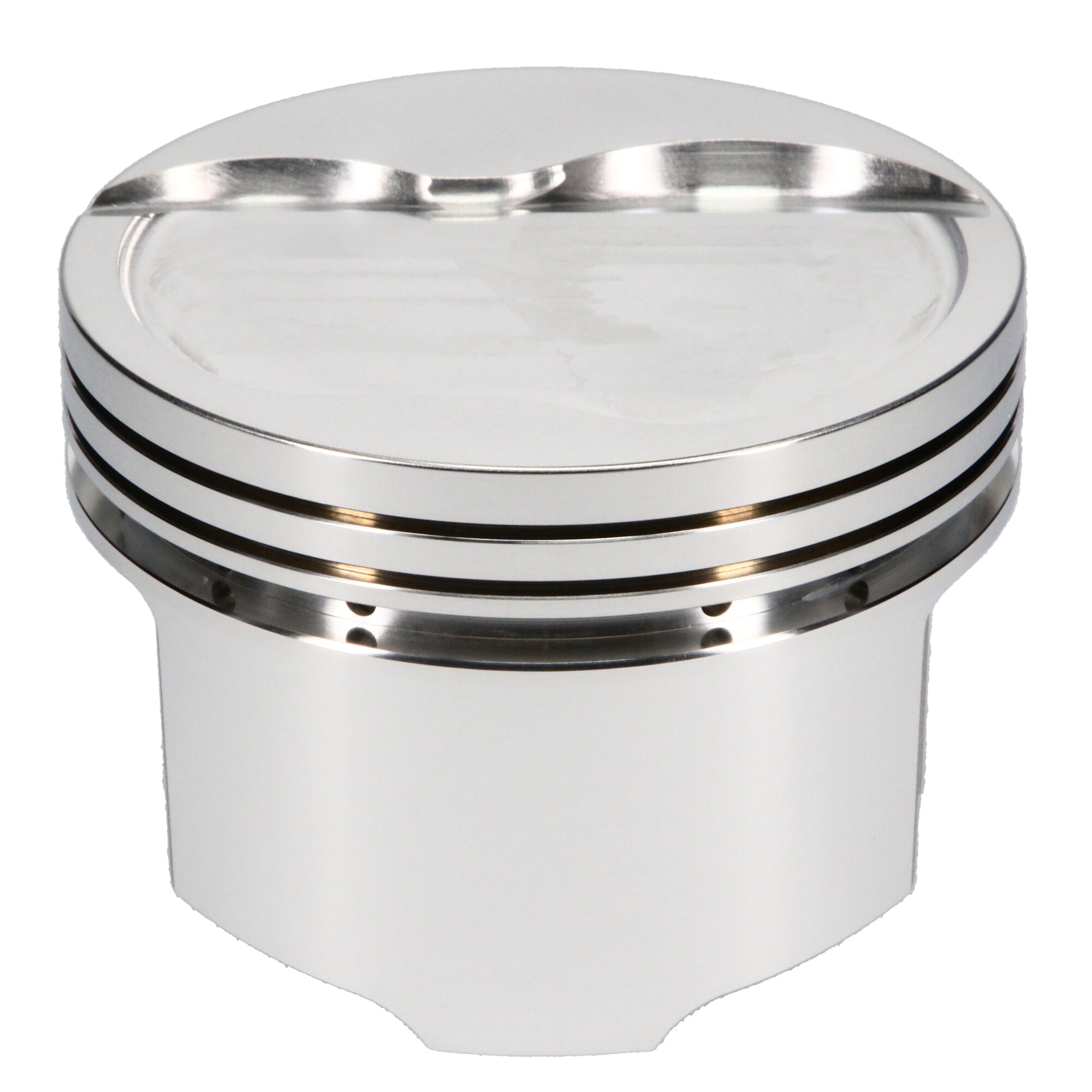

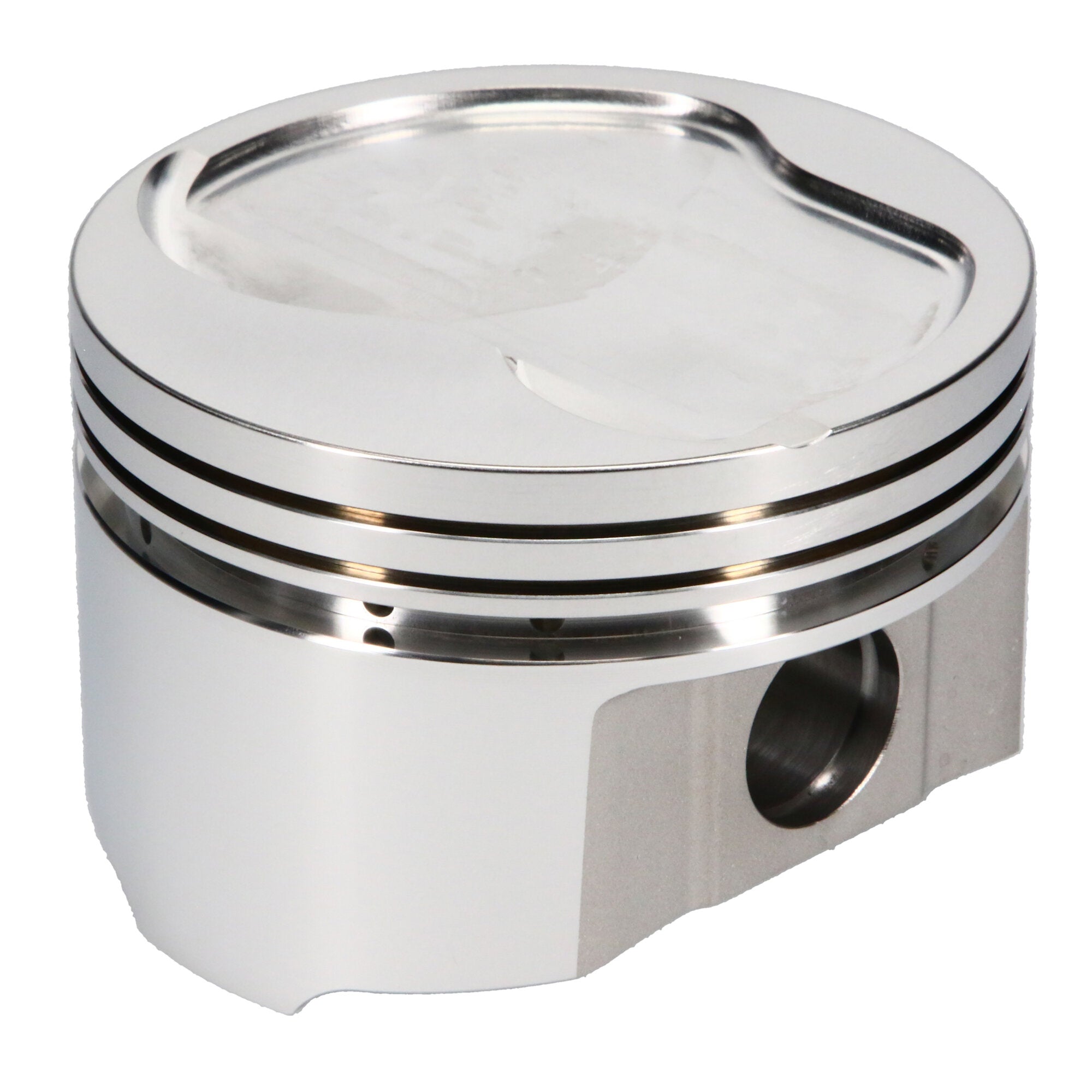

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 289/302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

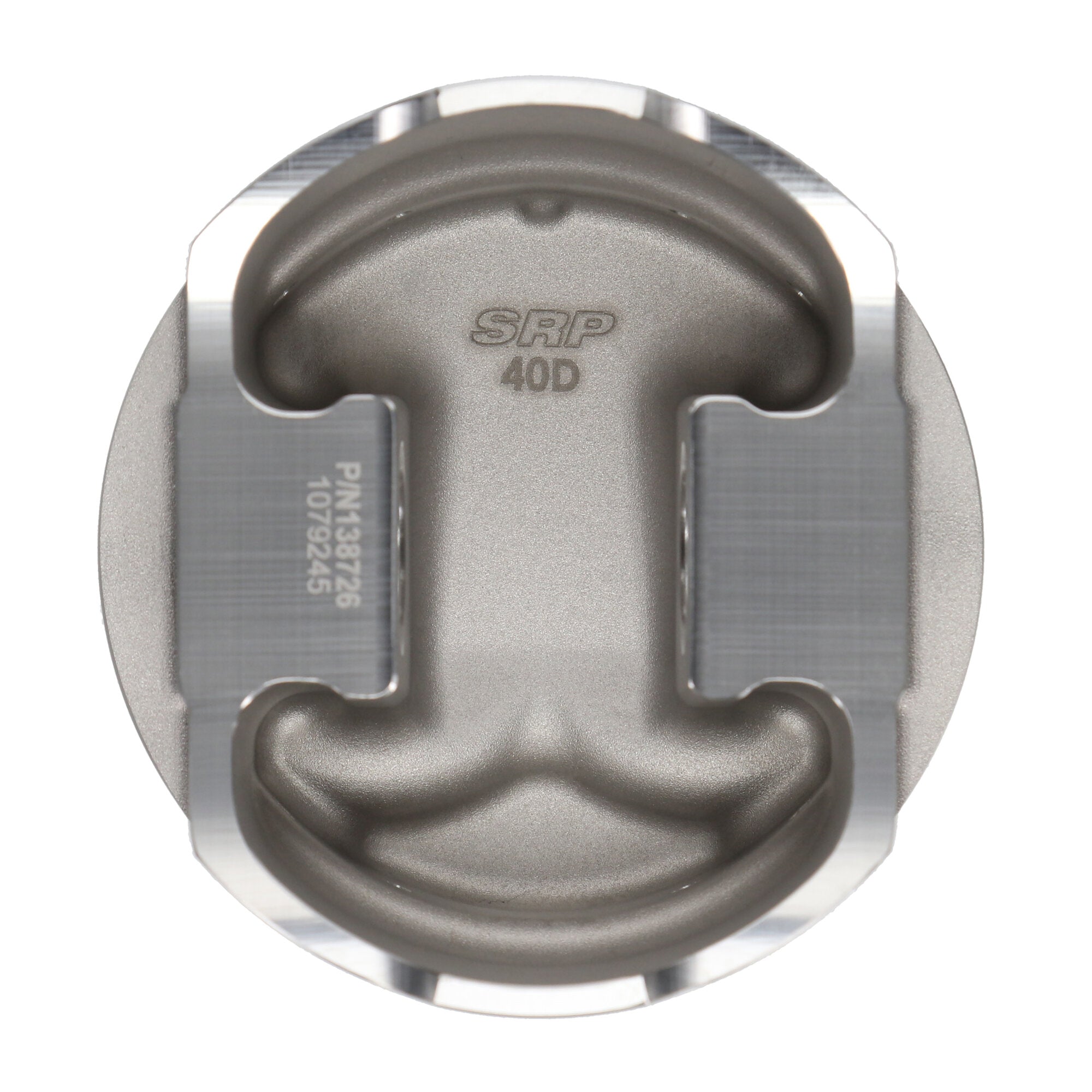

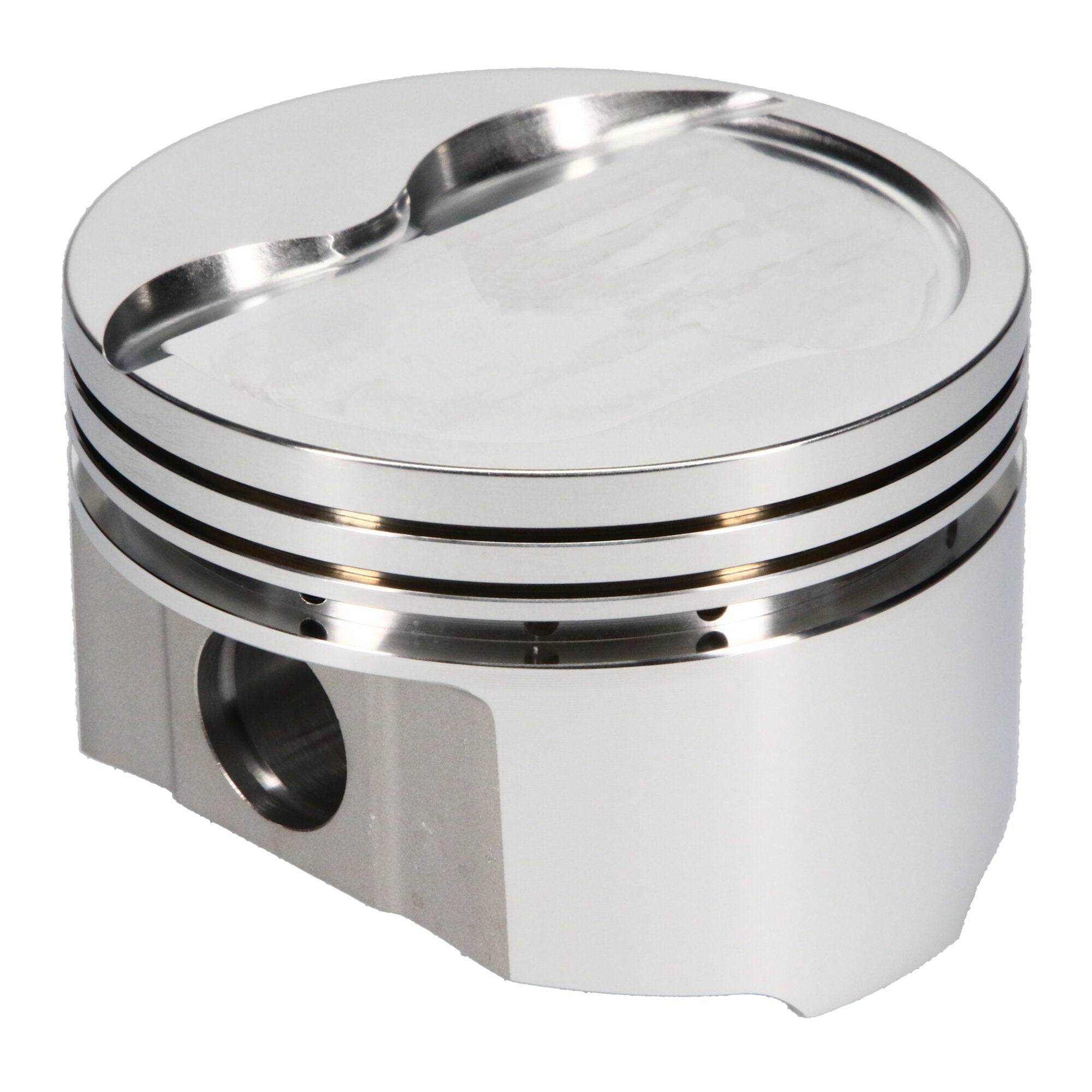

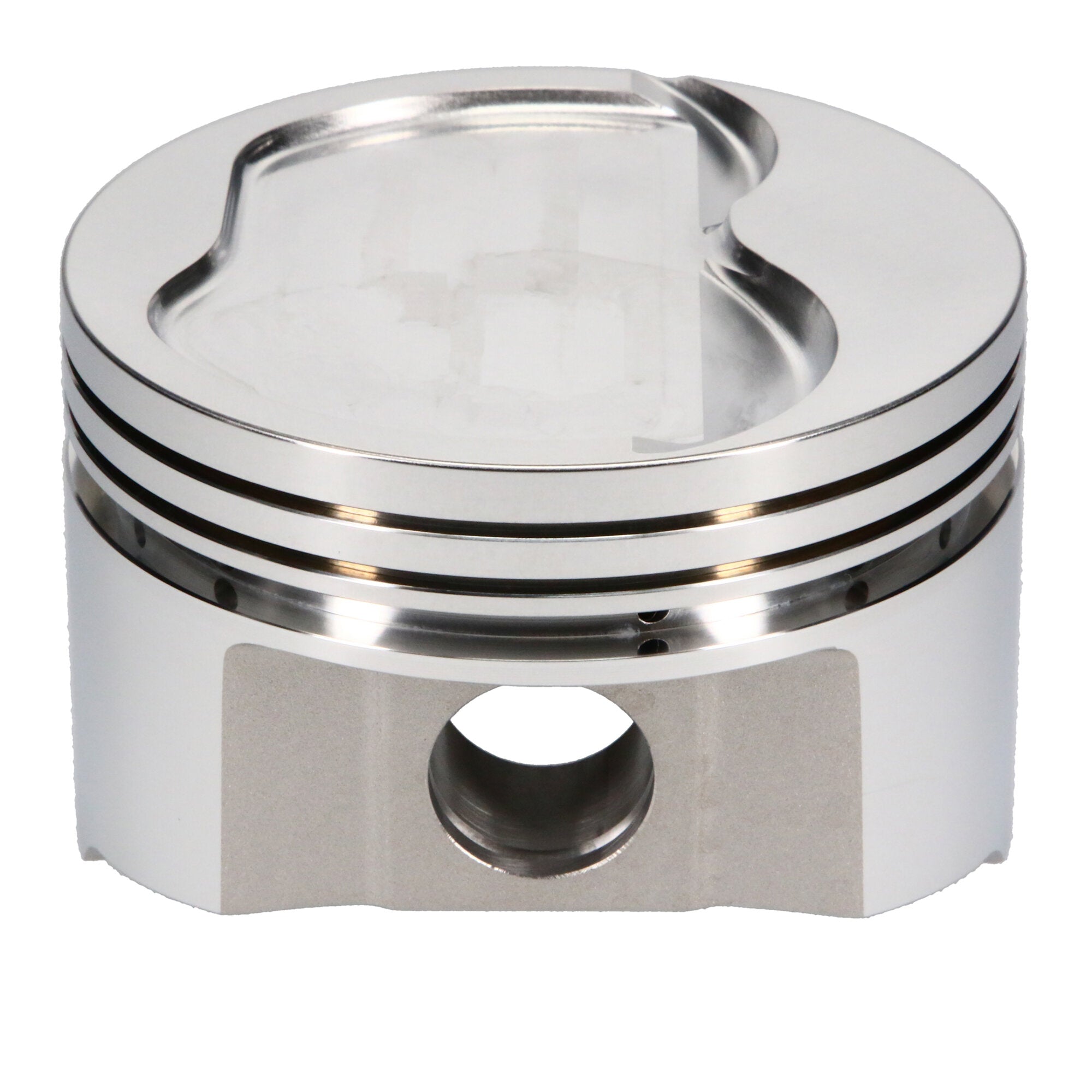

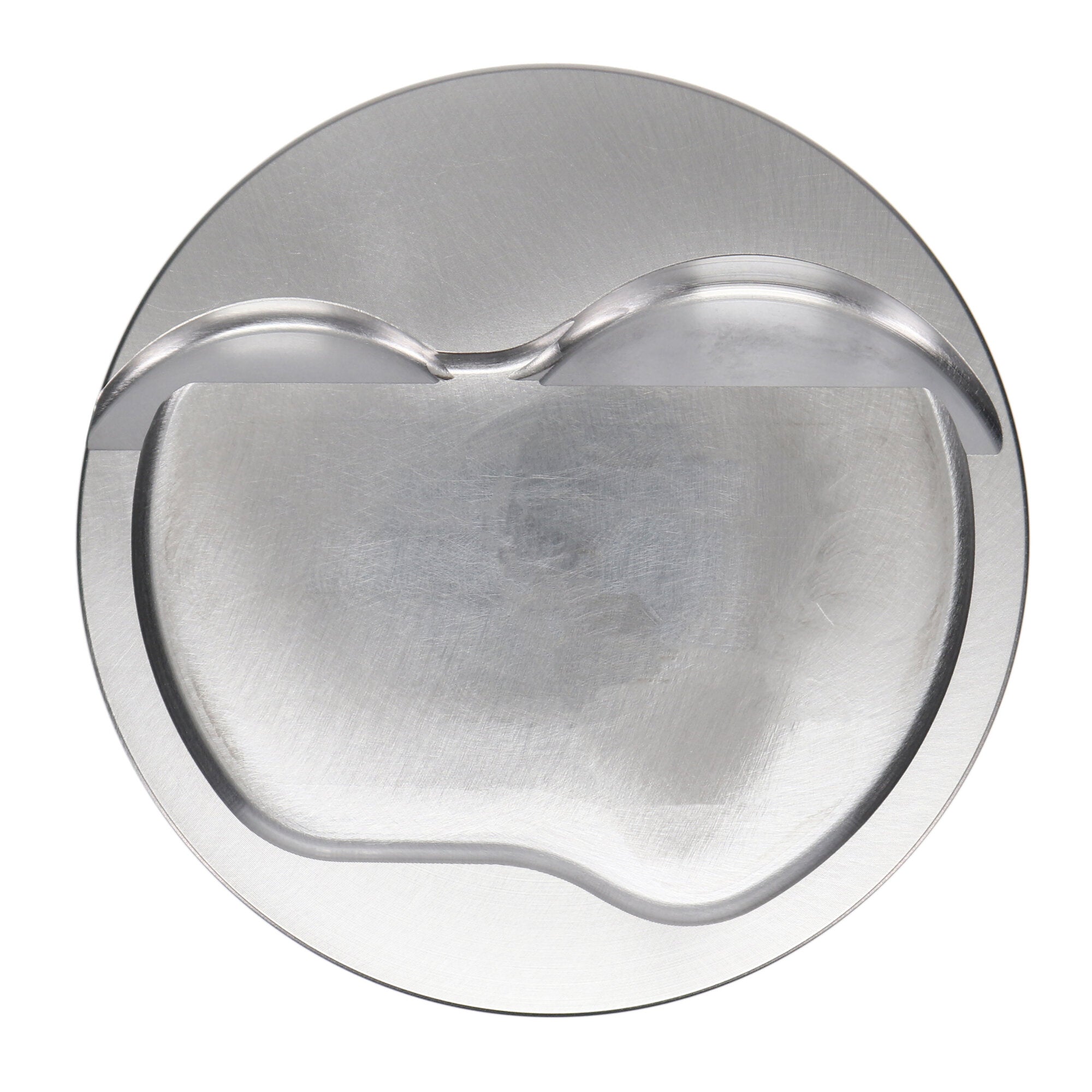

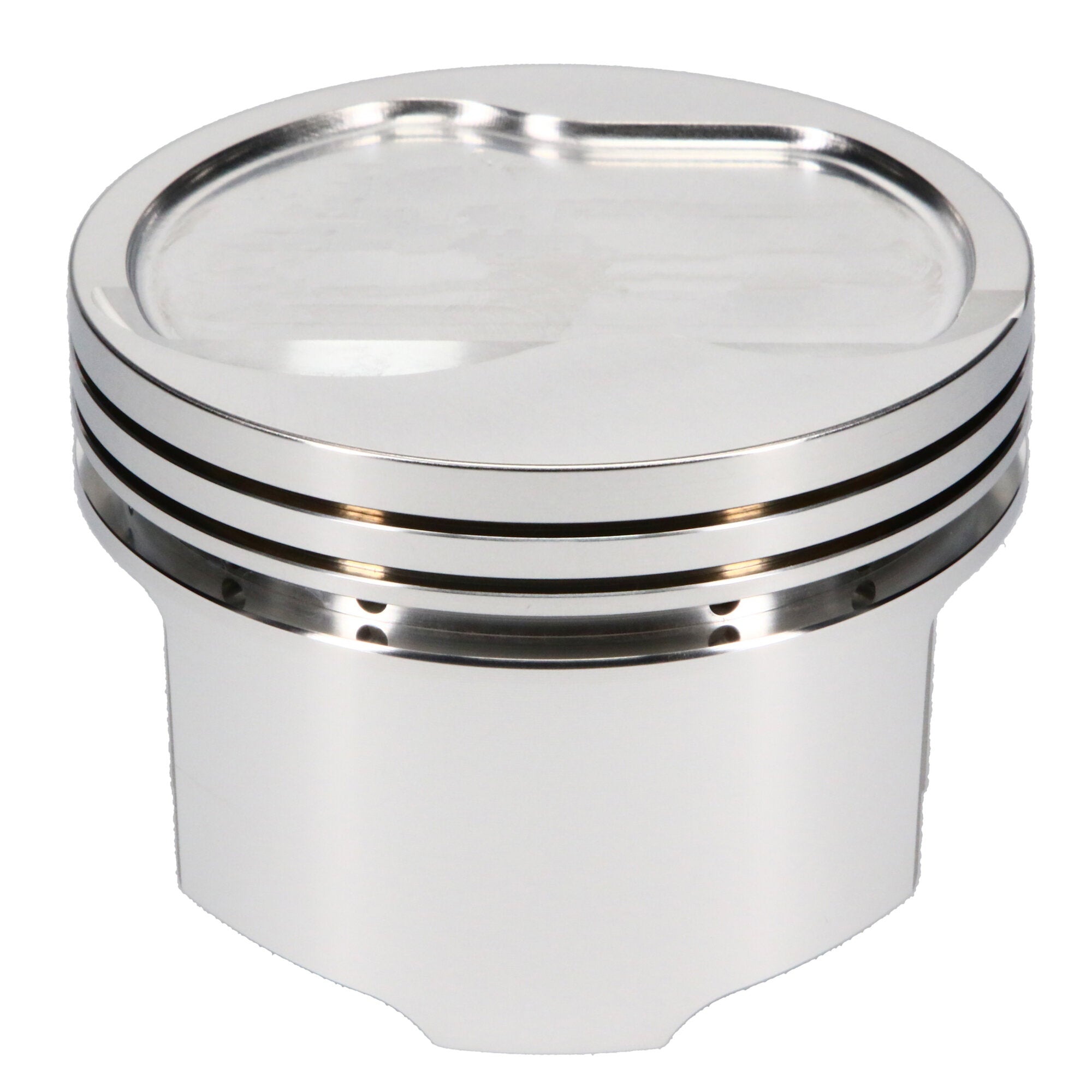

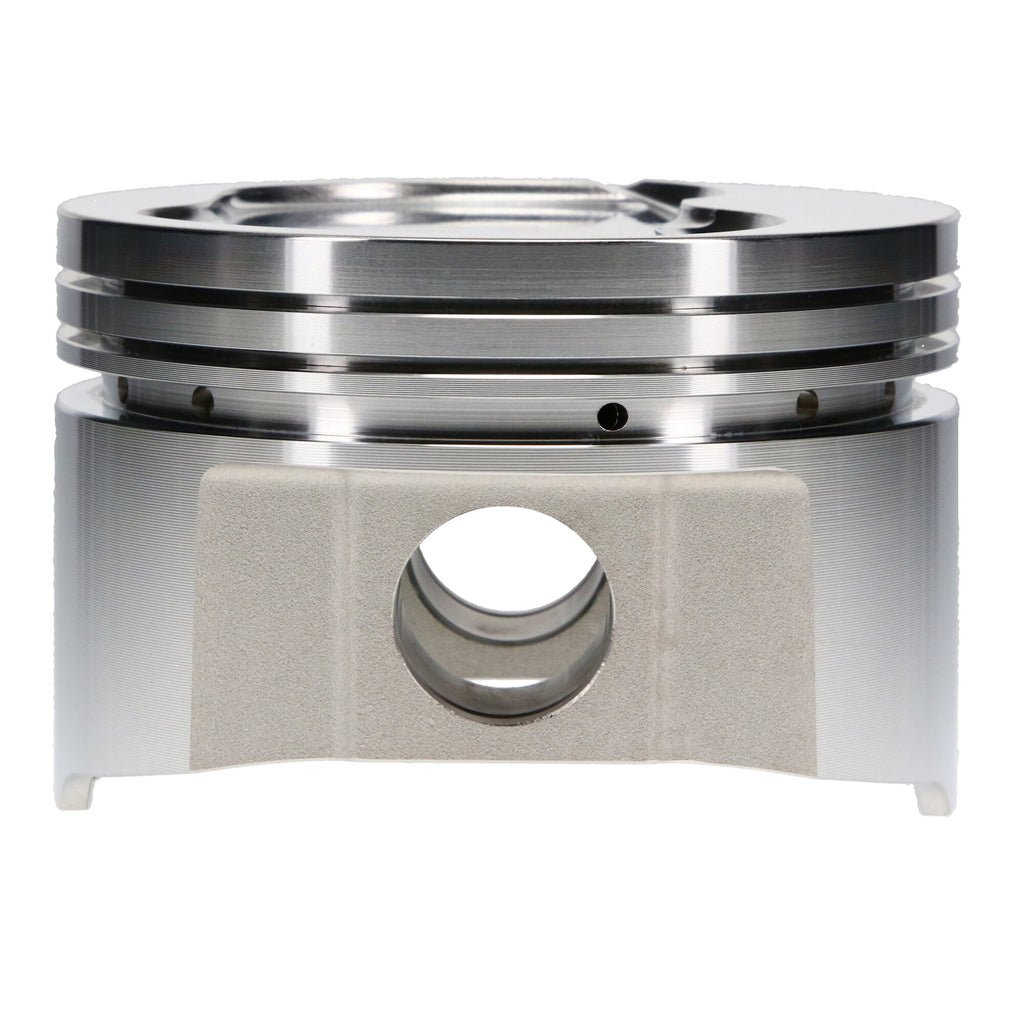

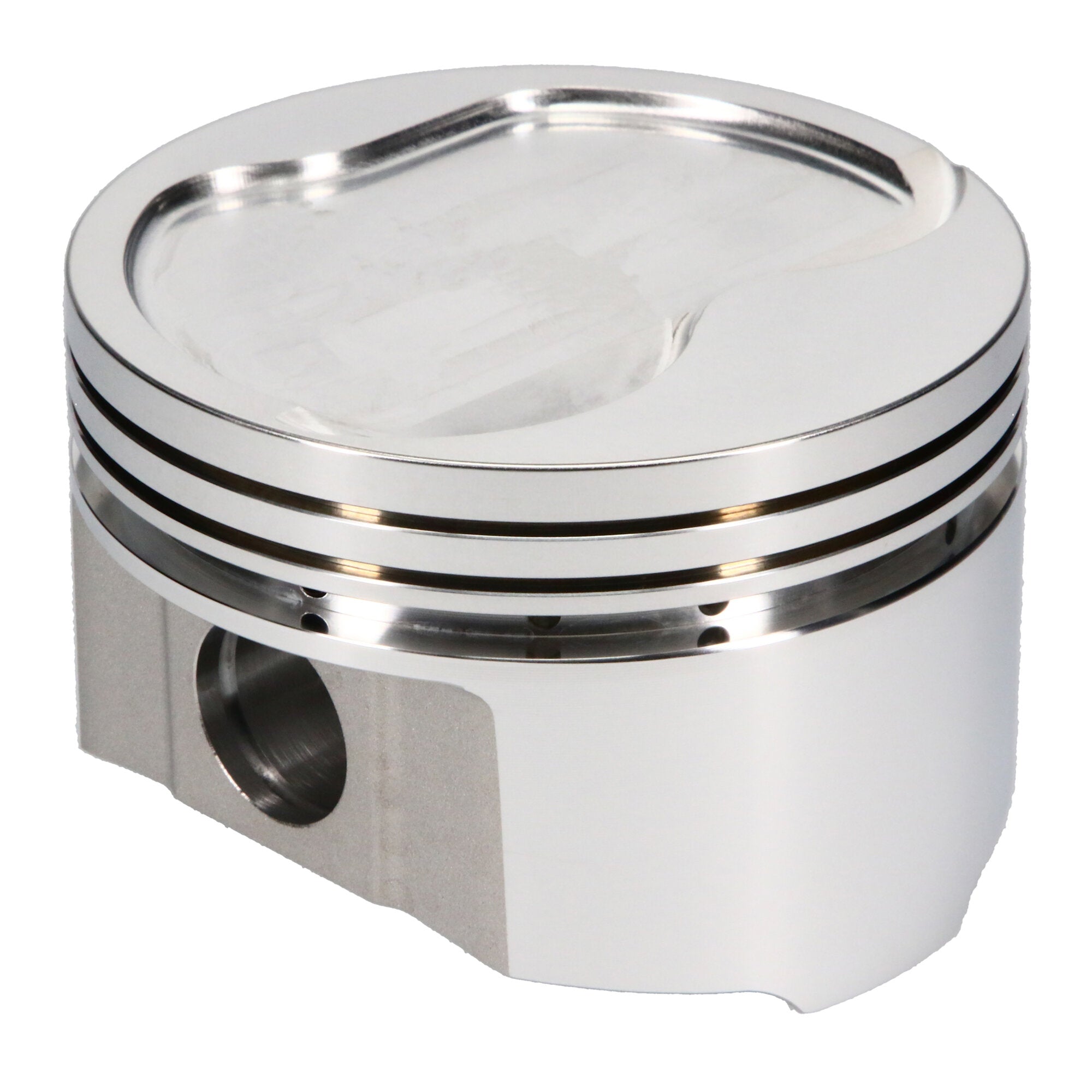

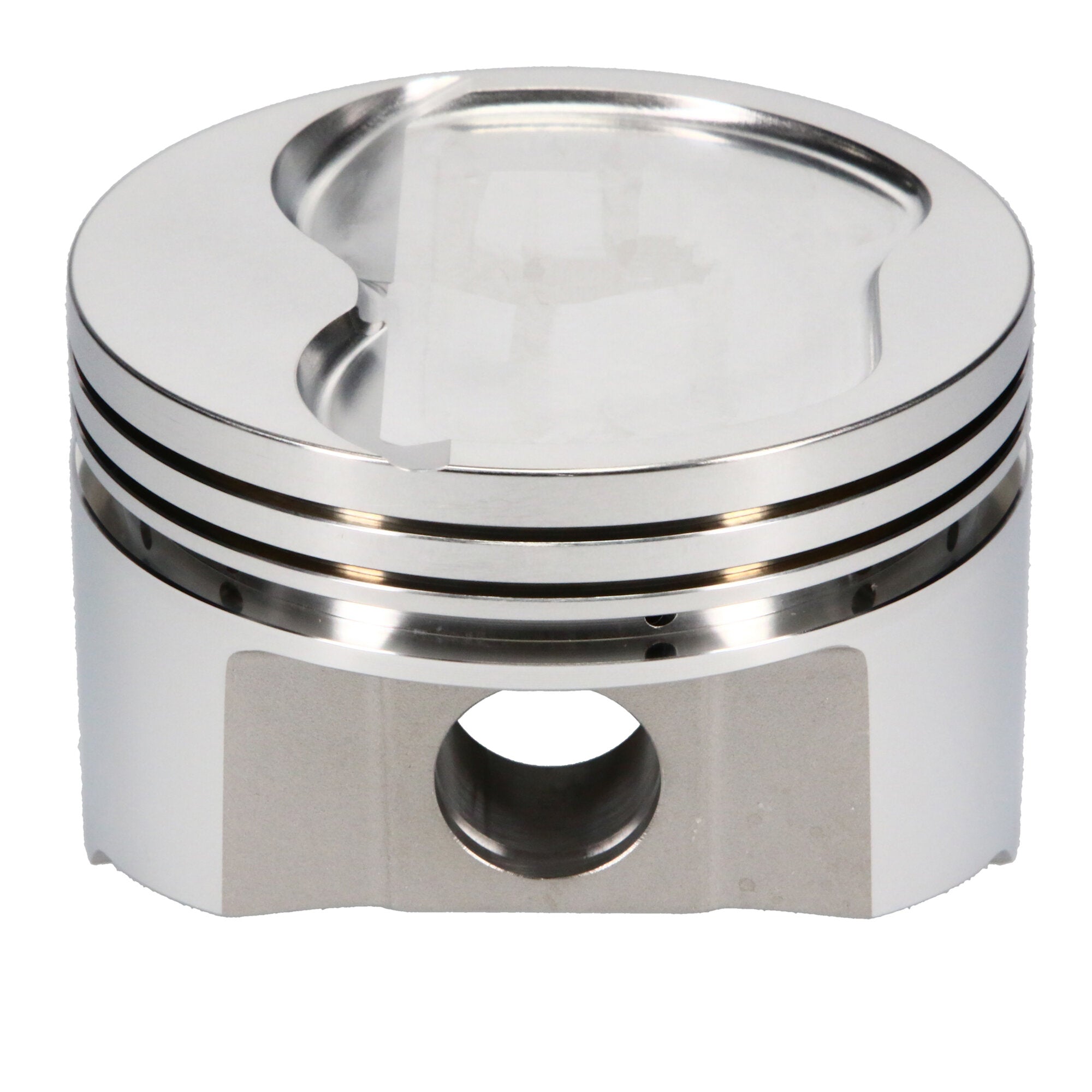

Piston Set, 4032, Inv Dome/Dish, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 8. |
| Description_EXT |
SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.600 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Ford 289/302, 4.030 Bore, Dish, Set of 8 |
| Piston Series |
SRP |
| Make - Web |
Ford |
| Make |
FORD |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.912 |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.750 |
| Oil Ring Thickness |
0.188 |
| Ringset Included |
No |
| Engine |
Small Block |
| Piston Pin Wall Thickness |
0.140 |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.140 |
| Compression Height |
1.600 |
| Bore Diameter |
4.030 |
| Piston Volume |
-14.50 |
| Second Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
912-2750-14-51S |
| Prop 65 (C, R or CR) |
CR |
| Title |
SRP - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
499 |
| Forging Type |
FSR |
| Piston Pin Outside Diameter |
0.912 |
| Piston Material |
4032 |
| Top Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Title - Web |
SRP Ford Small Block Piston Kit - 4.030 in. Bore - 1.600 in. CH, -14.50 CC |
| Product Market |
Domestic |
| Add-On |
S100S8-4030-5 |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
