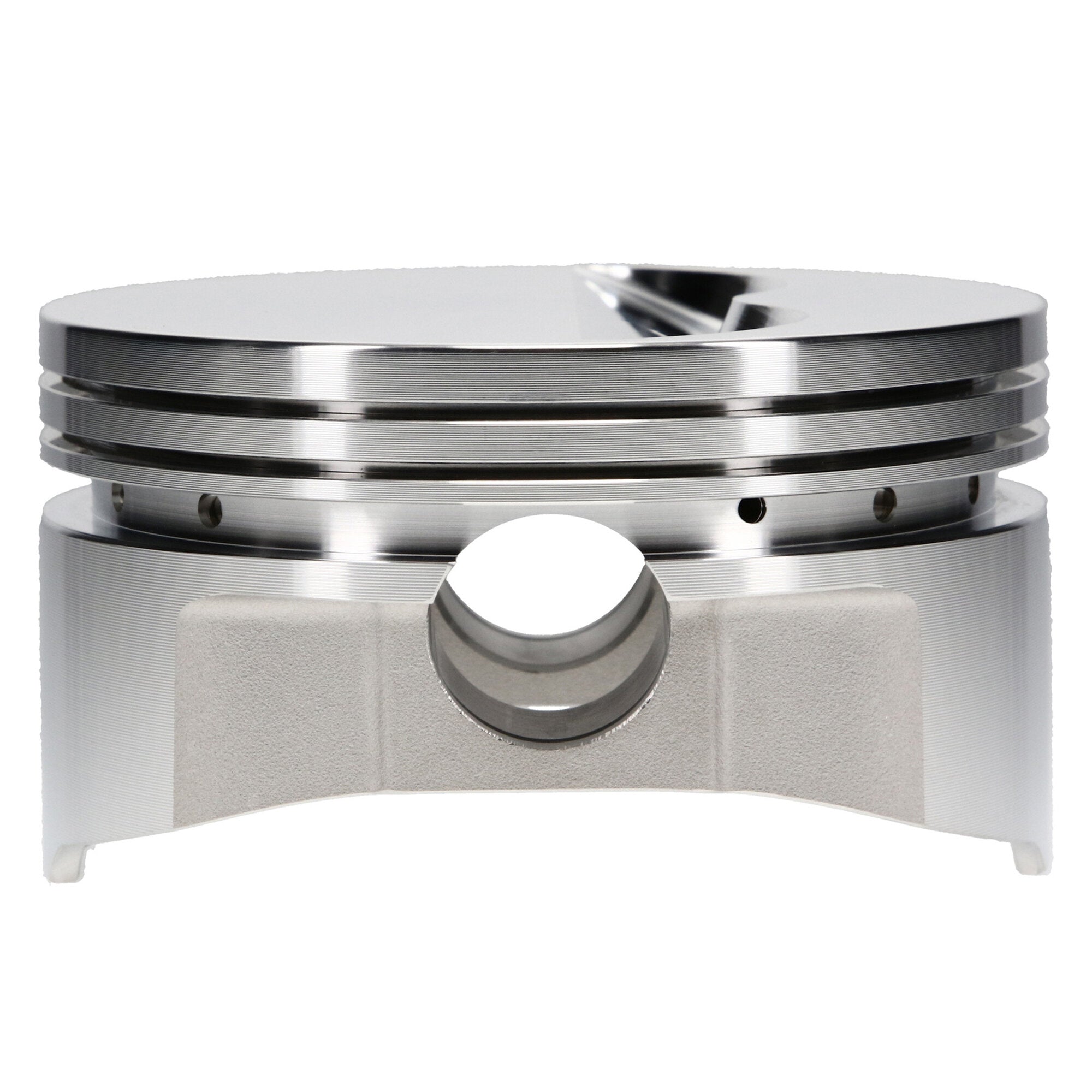

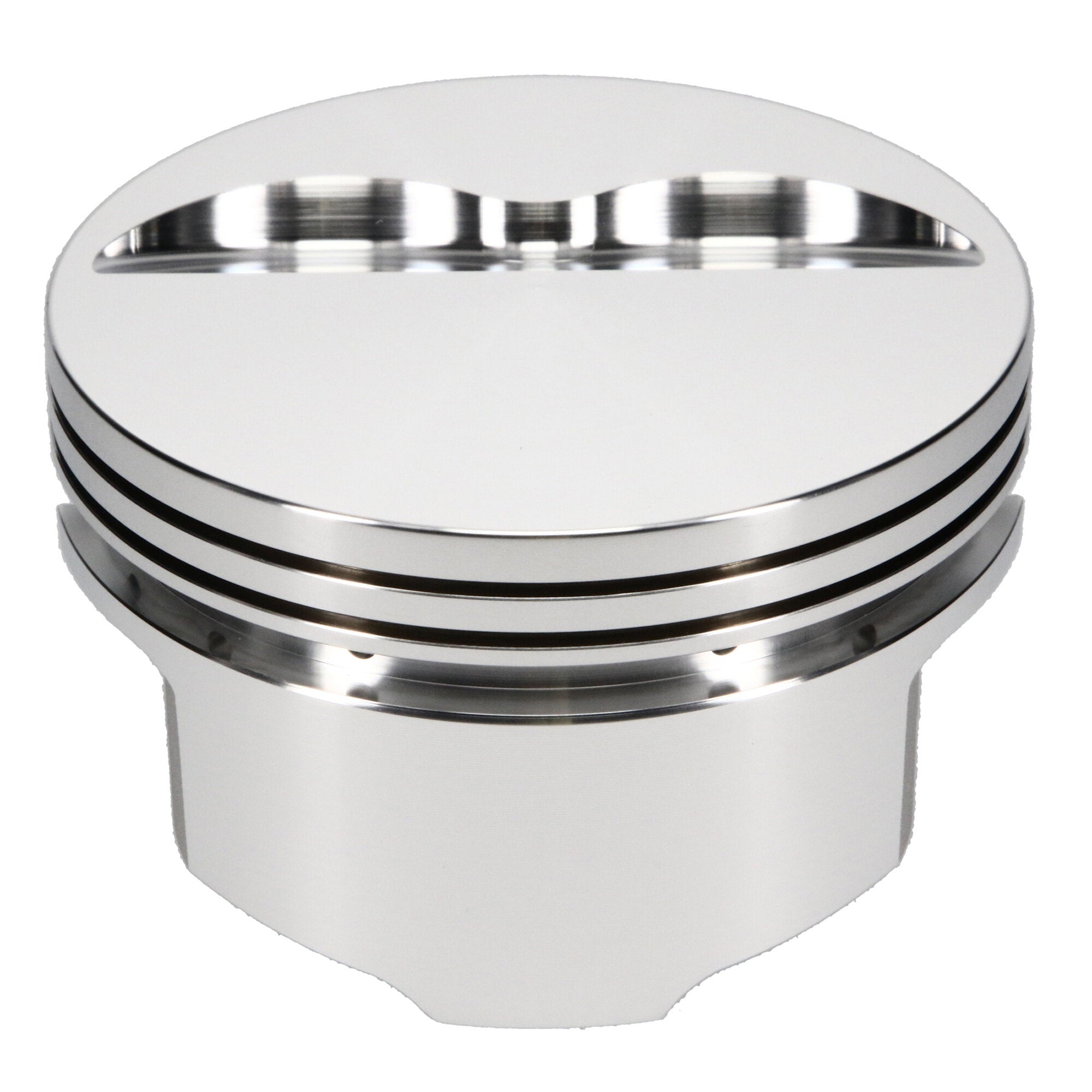

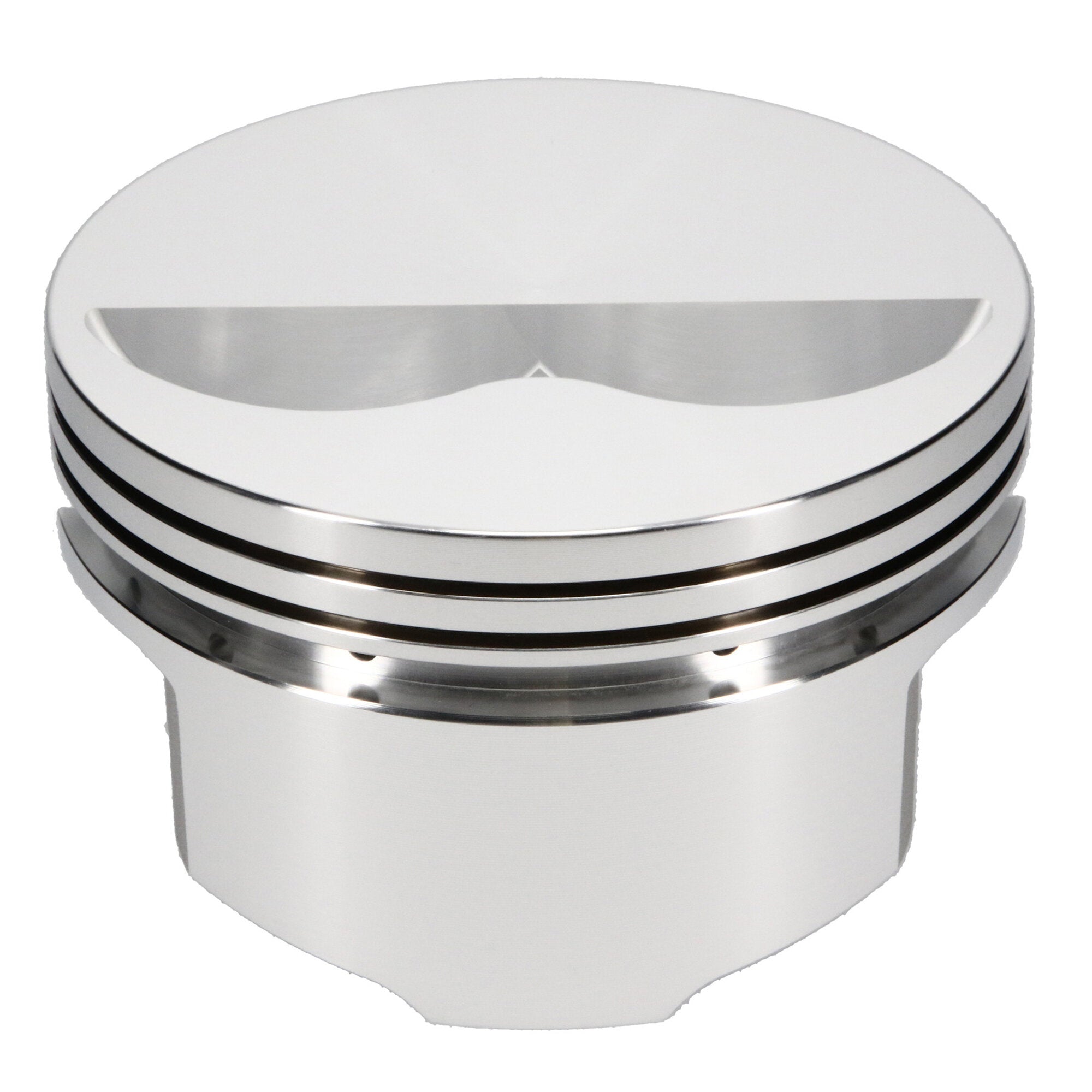

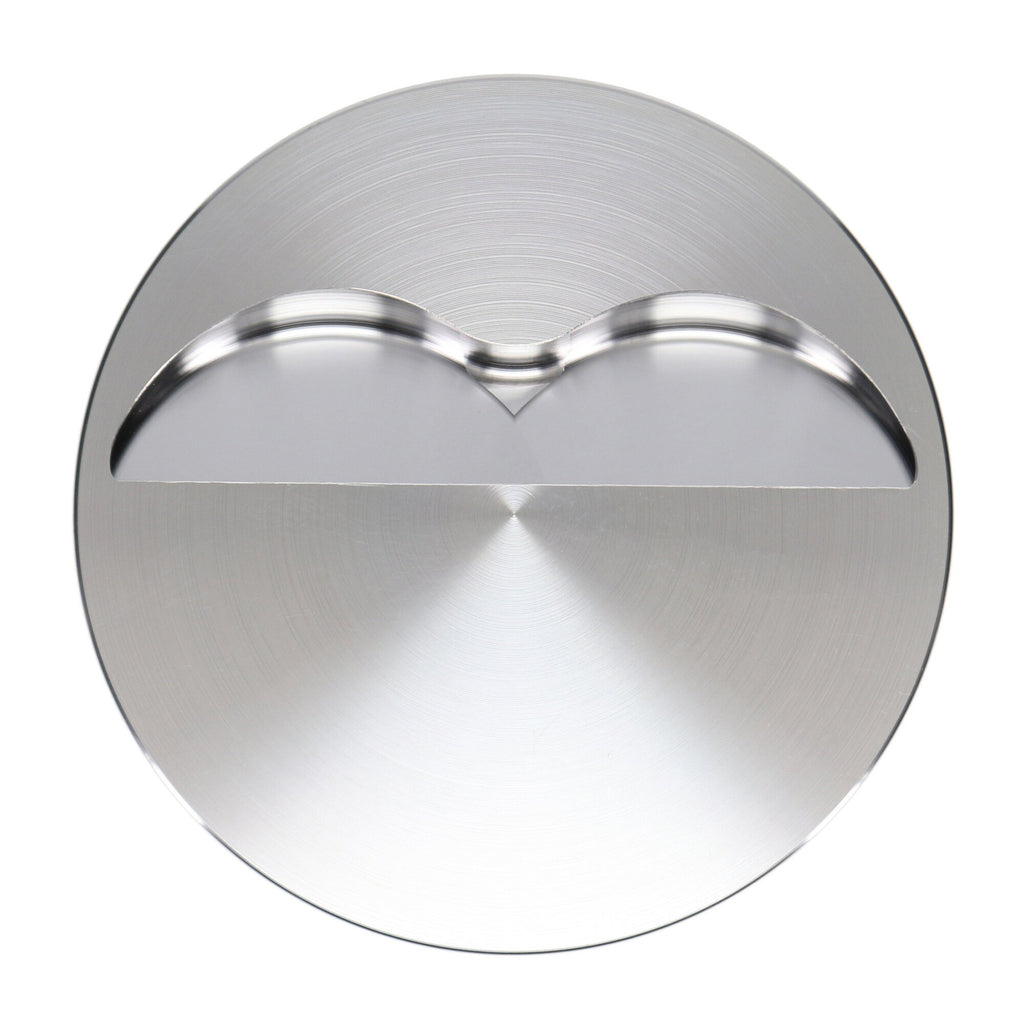

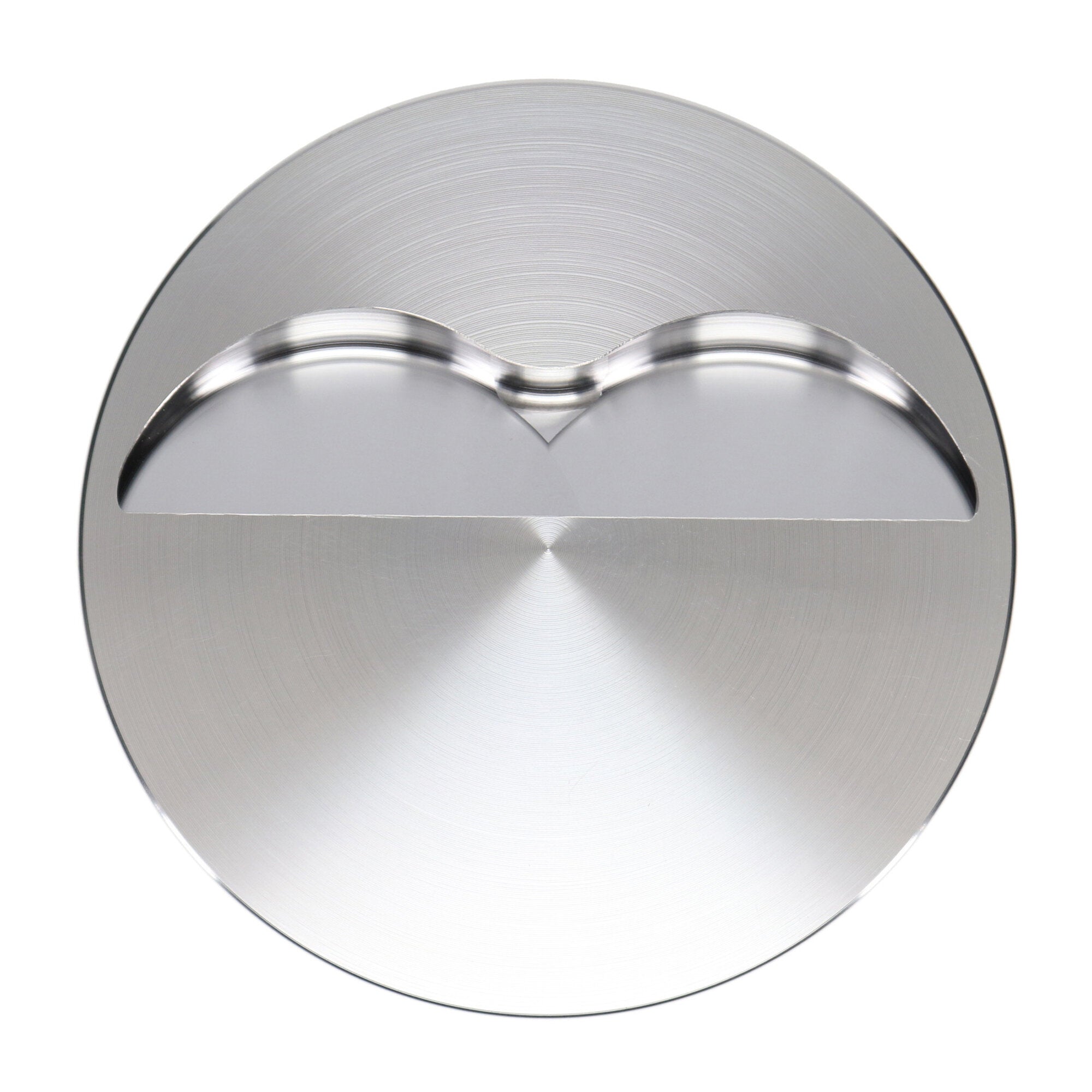

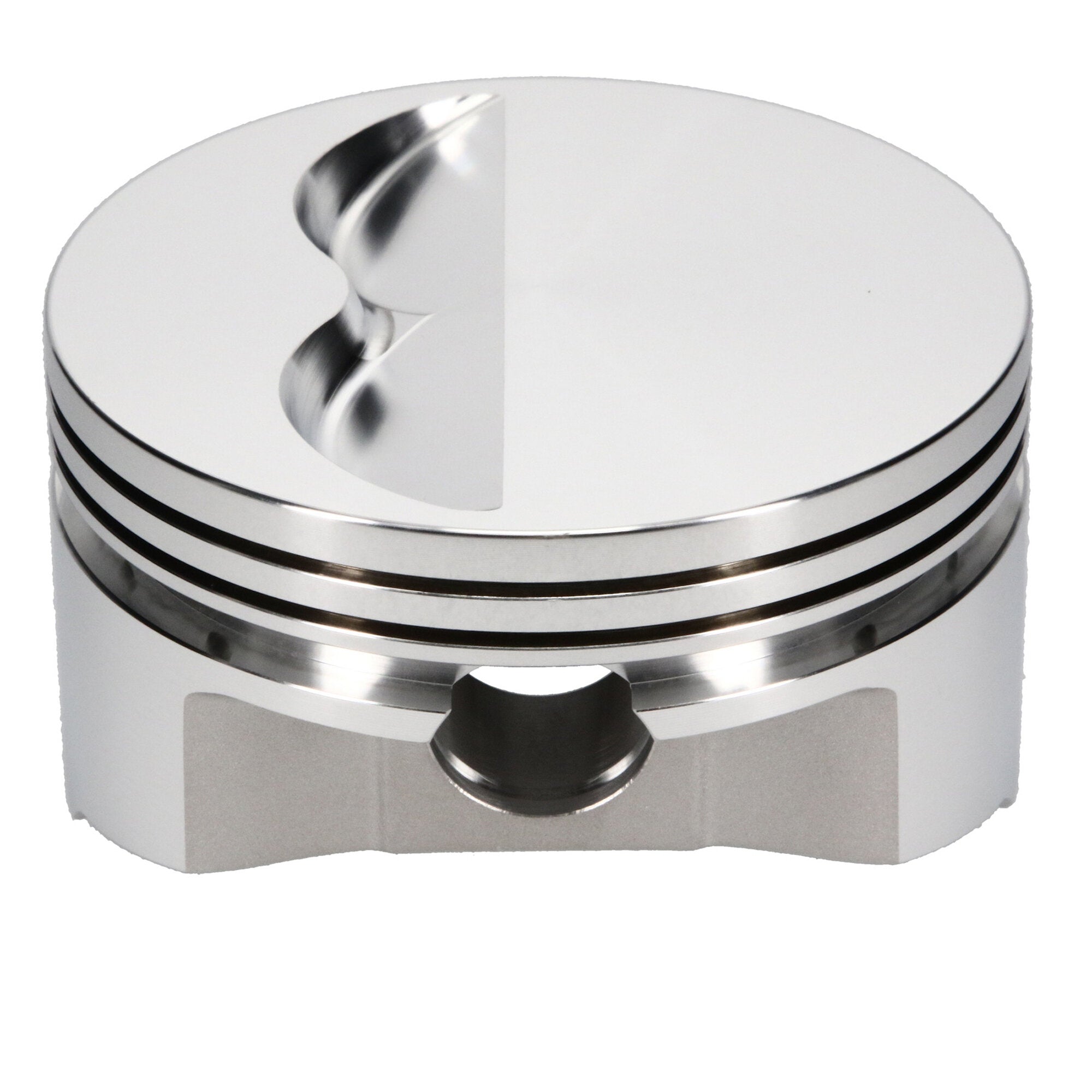

JE Pistons 138096S Piston Single, 4032, Flat Top, 4.020 Bore, 1.125 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_138096S
Engine Piston
$308.32
customers are viewing this product
JE Pistons 139532S Piston Single, 2618, Dome, 4.320 Bore, 1.645 CD, 0.990 Pin, Set of 1.
JE Pistons 139532S Piston Single, 2618, Dome, 4.320 Bore, 1.645 CD, 0.990 Pin, Set of 1.
$245.35
JE Pistons 138102S Piston Single, 4032, Flat Top, 4.145 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 138102S Piston Single, 4032, Flat Top, 4.145 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$308.32
JE Pistons 138096S Piston Single, 4032, Flat Top, 4.020 Bore, 1.125 CD, 0.927 Pin, Set of 1.
Details

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 4032, Flat Top, 4.020 Bore, 1.125 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Description_EXT SRP, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.125 CD, Flat Top, Single Piston
Description_INV SRP, Piston
Description_TLE Chevrolet 350, 4.020 Bore, Flat, Set of 1
Description_MKT Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Description_SHO Piston
Piston Head Type Flat
Engine Type ICE
Wrist Pin Outer Diameter 0.927
Piston Pin Outside Diameter 0.927
Make CHEVROLET
Forging Type FSR
Ringset Included No
Title SRP - Chevrolet, Small Block, 4.020 in. Bore, Piston
Bore Diameter 4.020
Product Market Domestic
Compression Height 1.125
Oil Ring Thickness 0.218
Piston Average Weight 408
Engine Small Block
Piston Pin Wall Thickness 0.150
Top Compression Ring Thickness 0.0640
Engine - Web Small Block
Wrist Pin Wall Thickness 0.150
Category Hierarchy Auto>SRP Pistons>SRP>Single Replacement Pistons
Prop 65 (C, R or CR) CR
Add-On S100S8-4020-5
Add-On 927-2750-15-51S
Title - Web SRP Chevrolet Small Block Piston - 4.020 in. Bore - 1.125 in. CH, -5.00 CC
Product Type Engine Piston
Industry Automotive
Piston Pin Length 2.750
Second Compression Ring Thickness 0.0640
Piston Series SRP
Prop 65 Yes/No Yes
Add-On 927-042-CS
Piston Volume -5.00
Piston Pin Material 5115
Wrist Pin Length 2.750
Ring Set Included No
Out of Stock Message Call for Availability
Cylinder Head CHEVROLET 23 DEG 20/30
Piston Material 4032
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Make - Web Chevrolet
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
