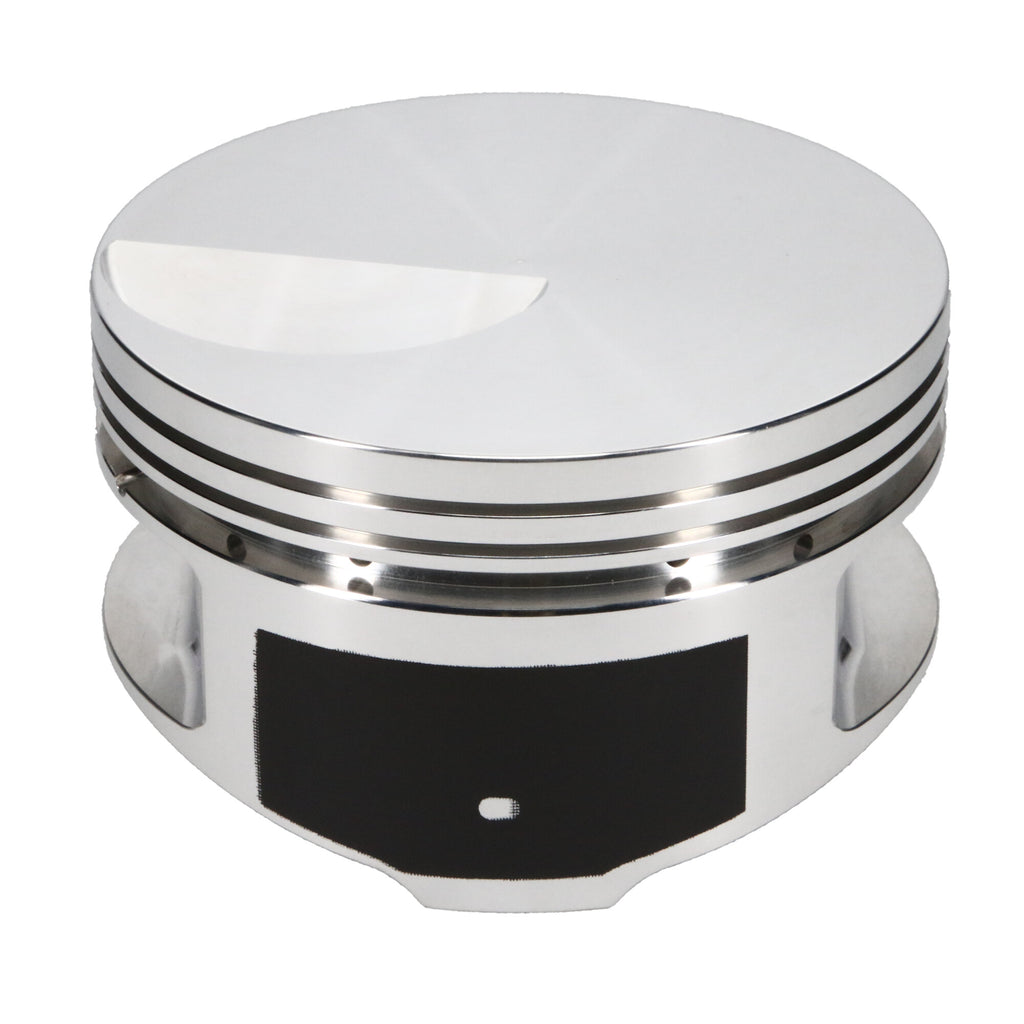

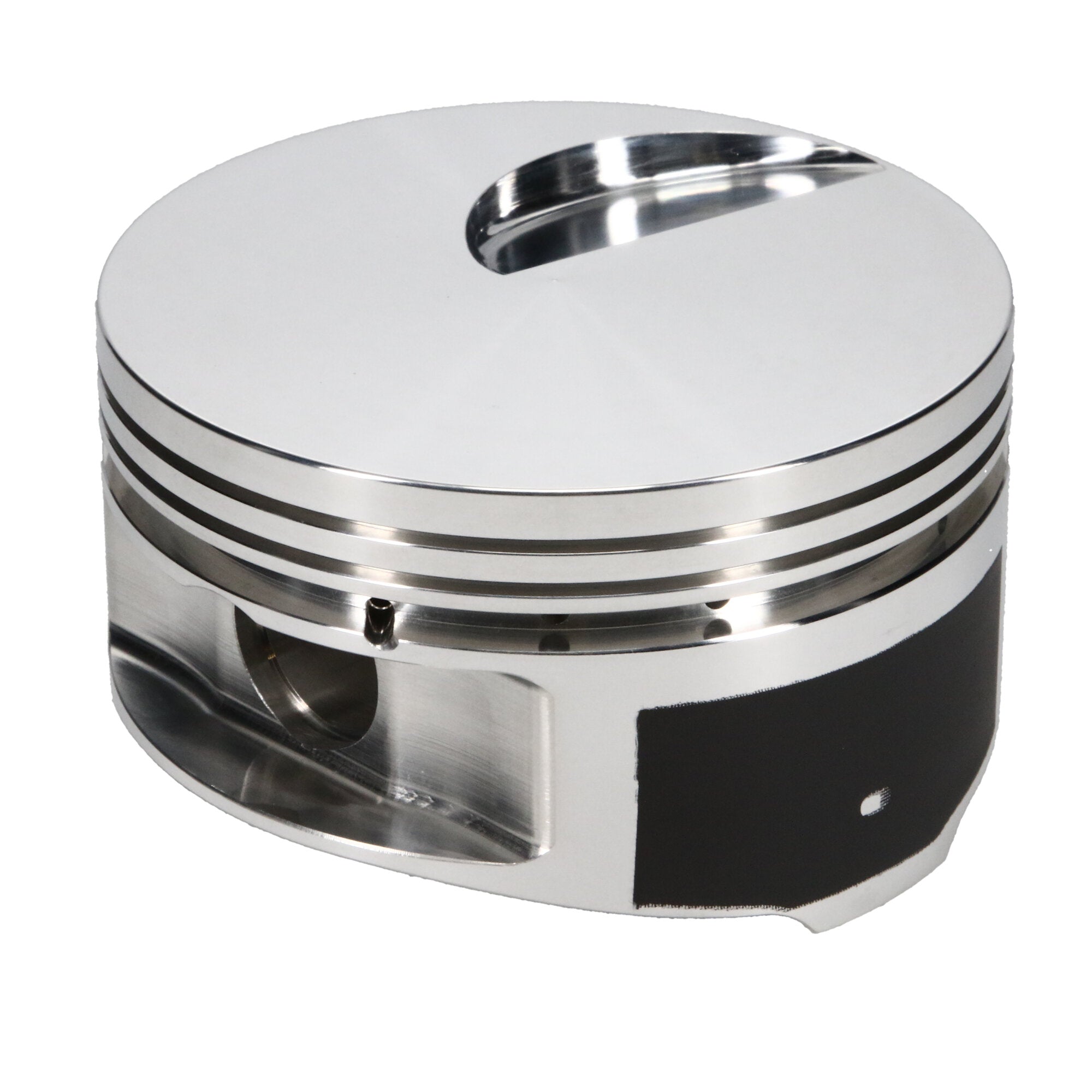

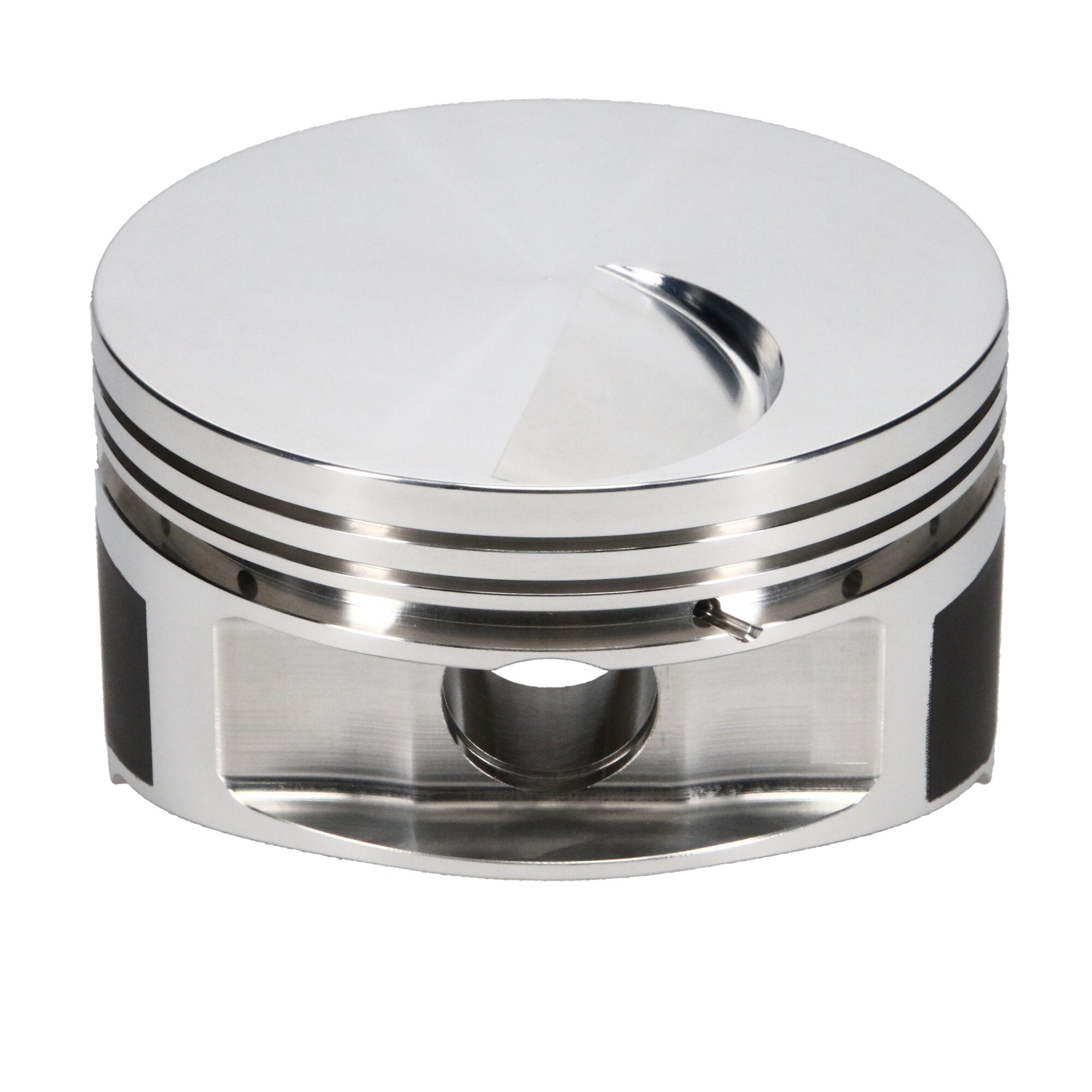

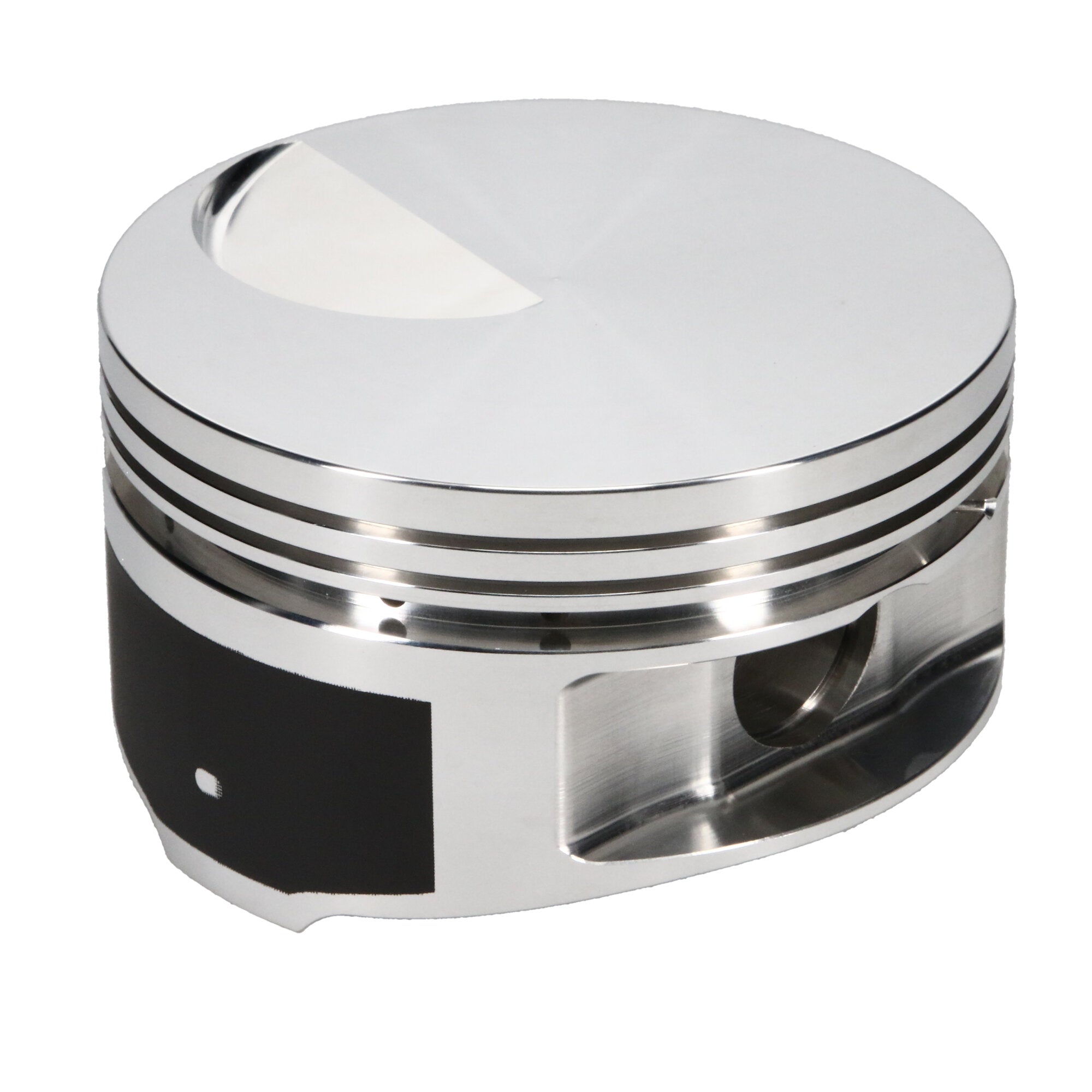

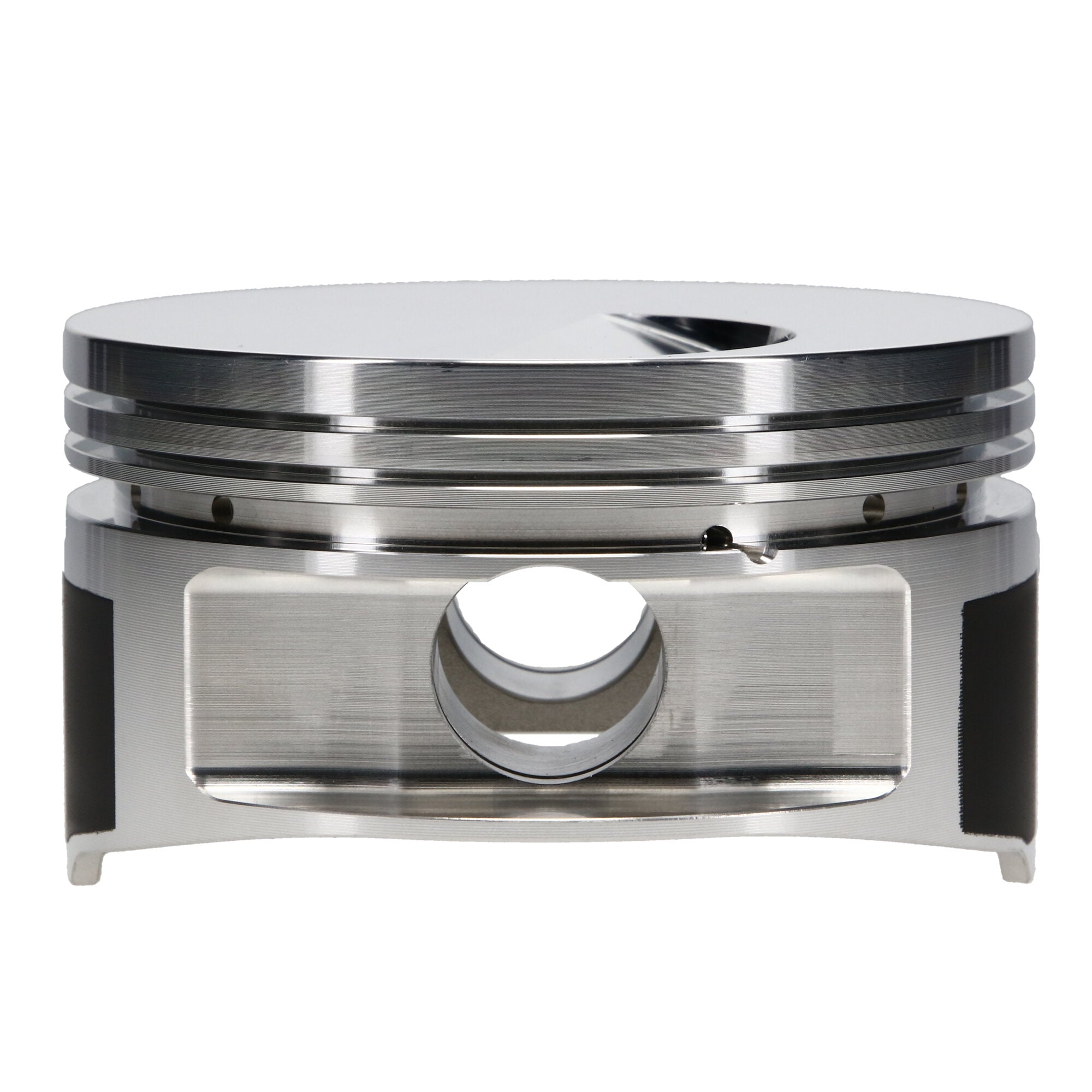

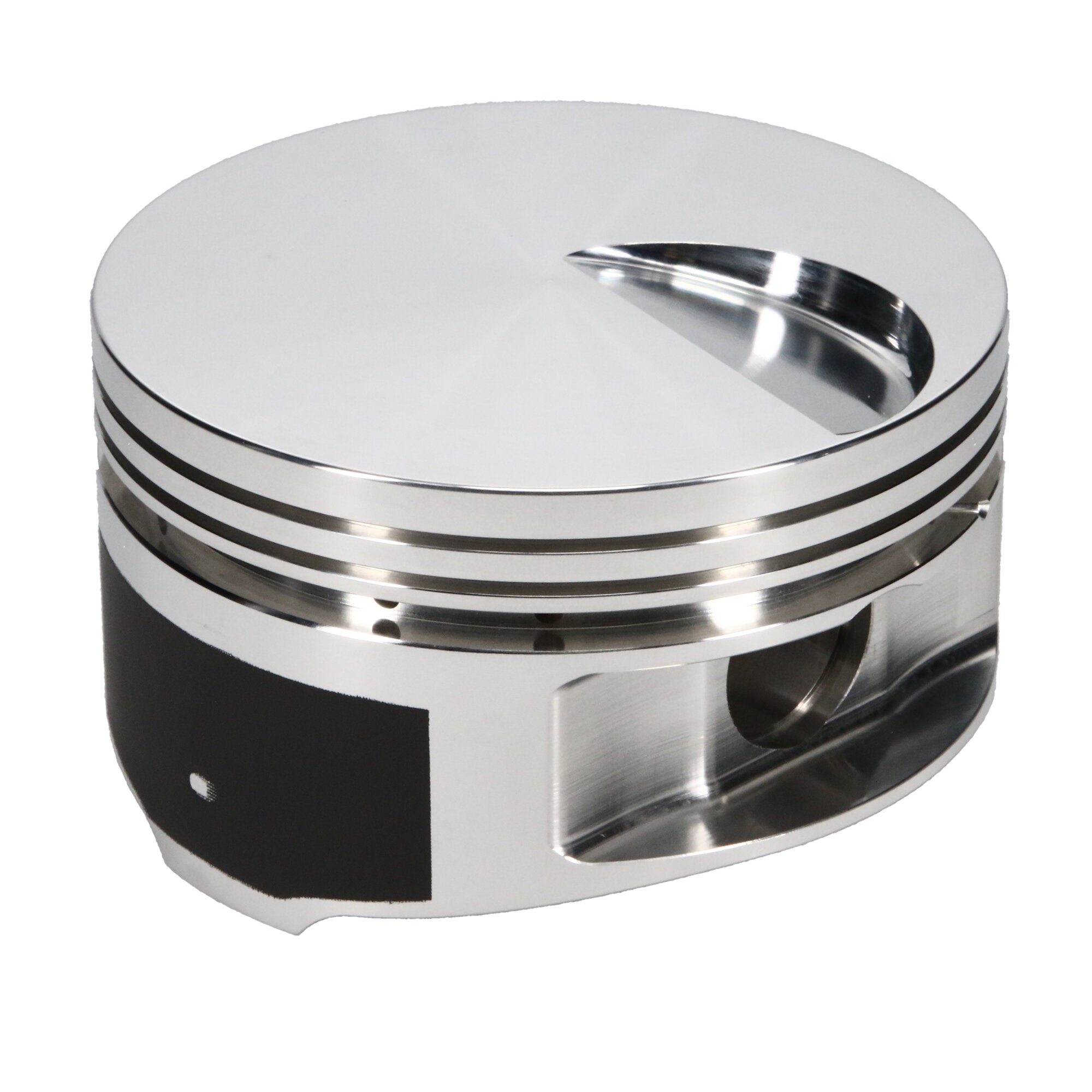

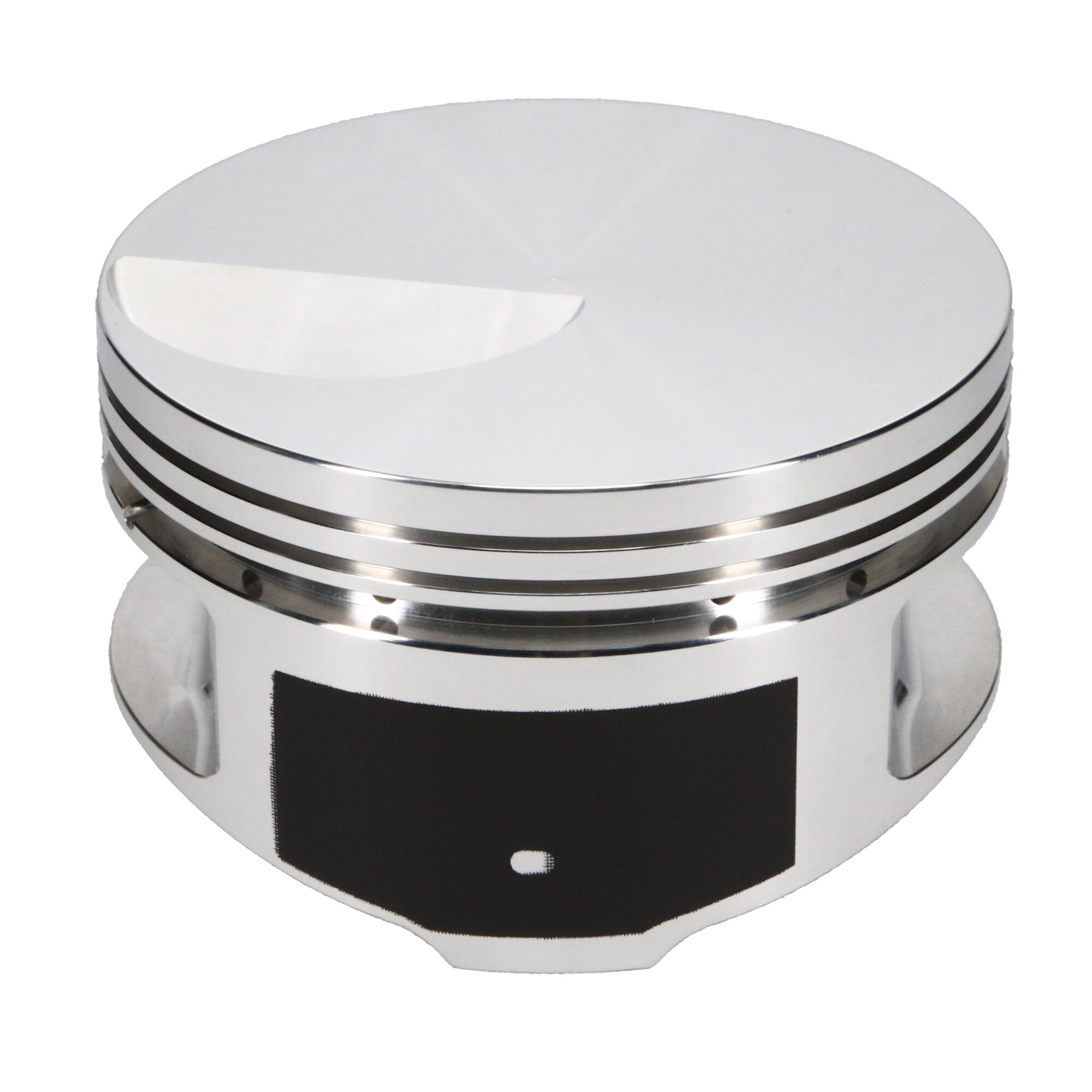

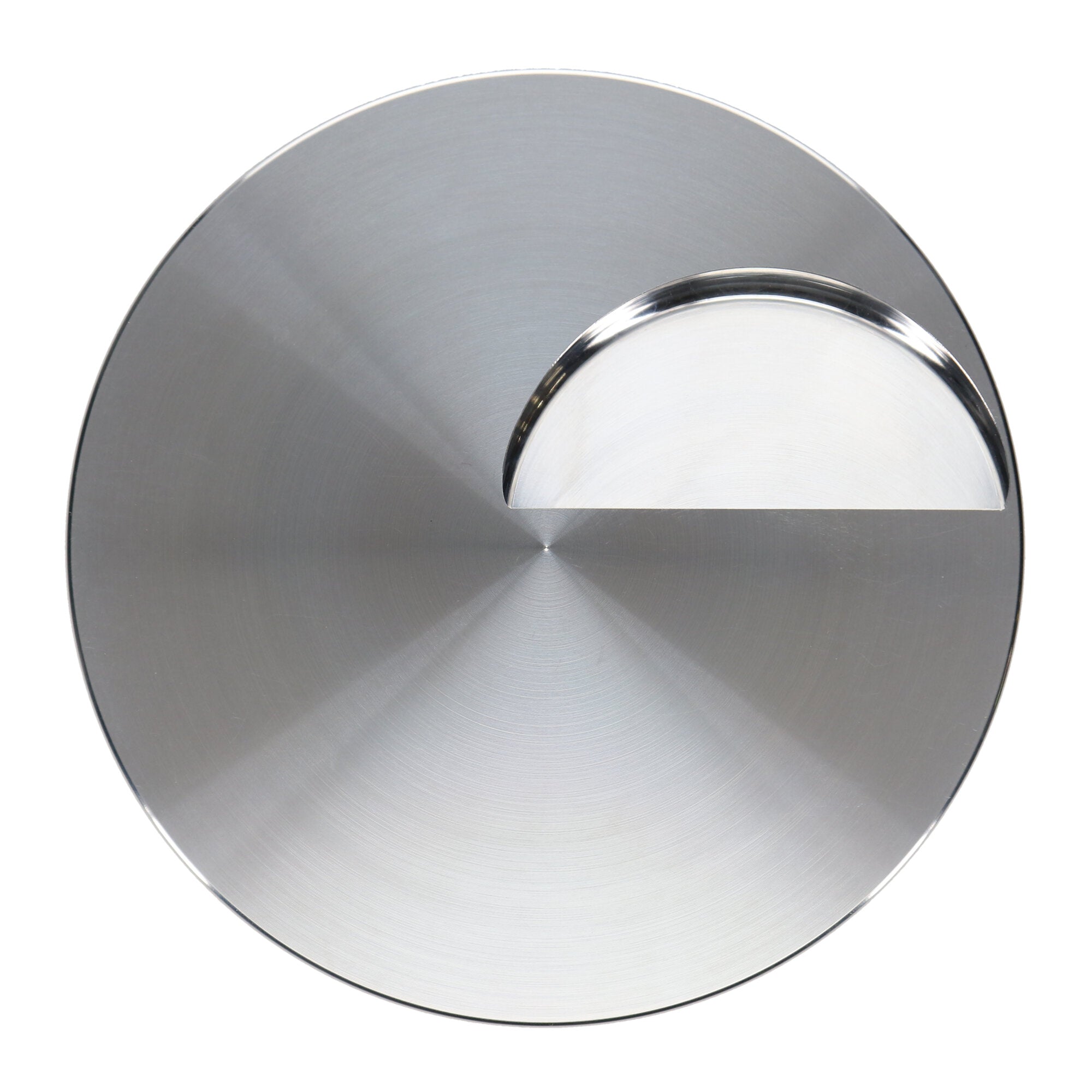

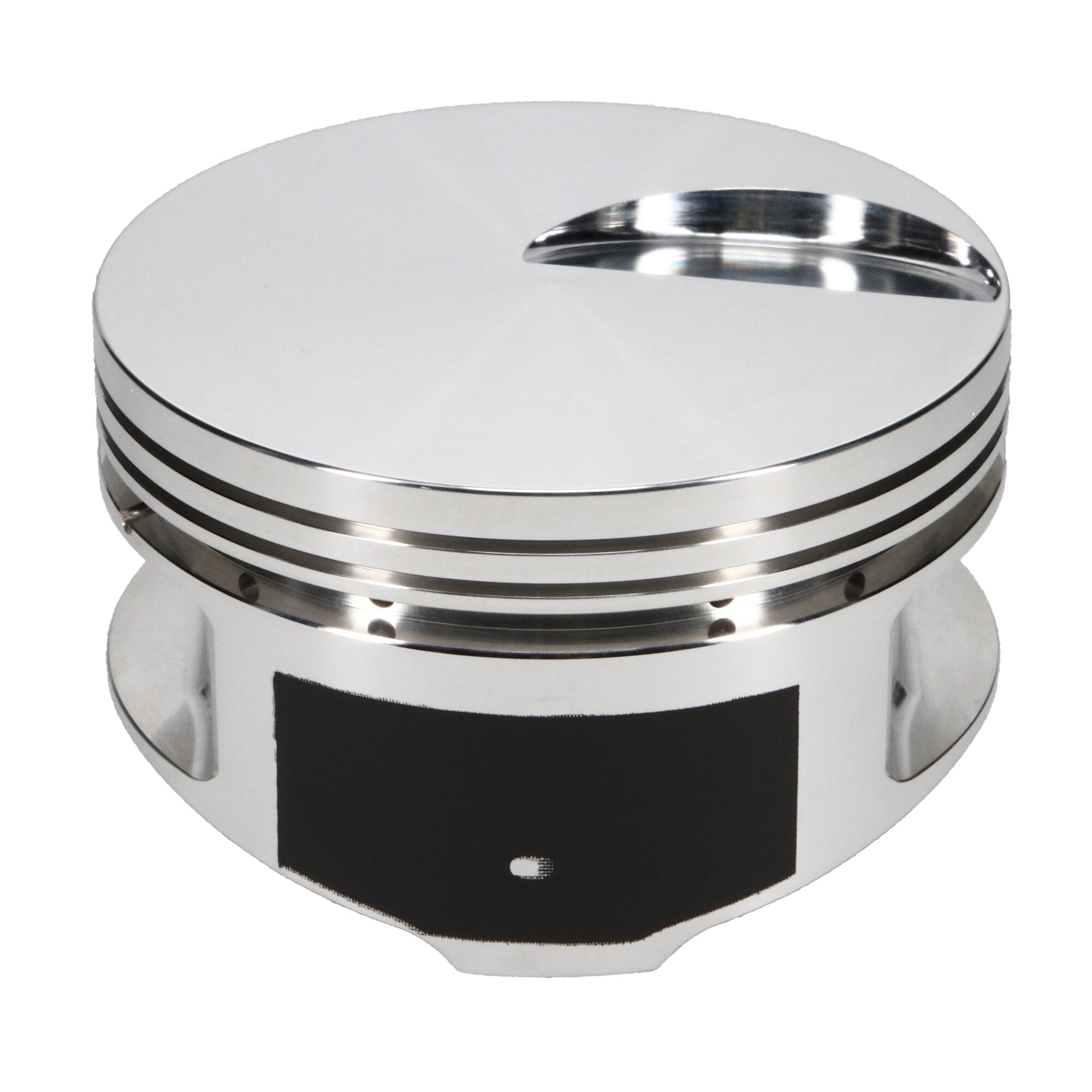

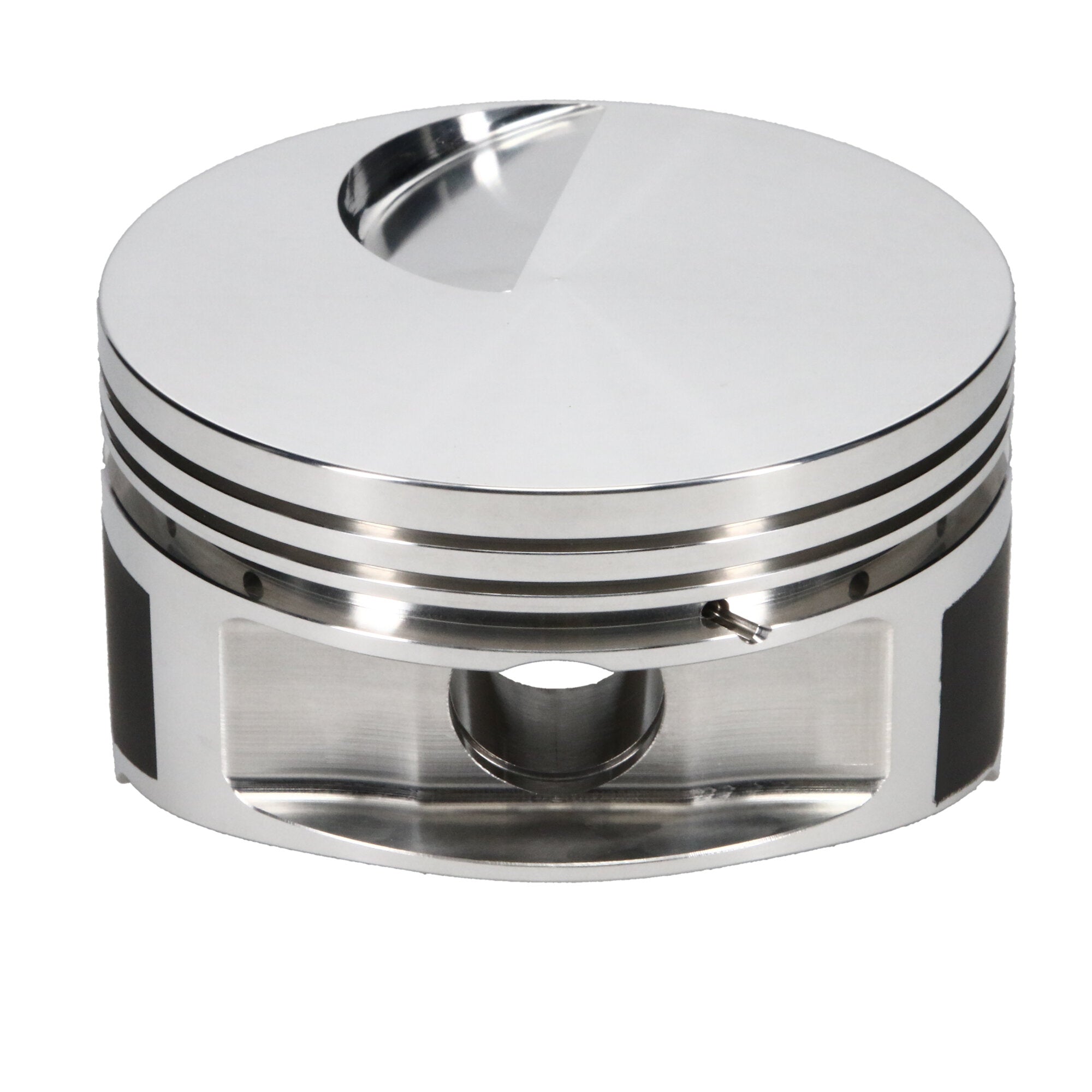

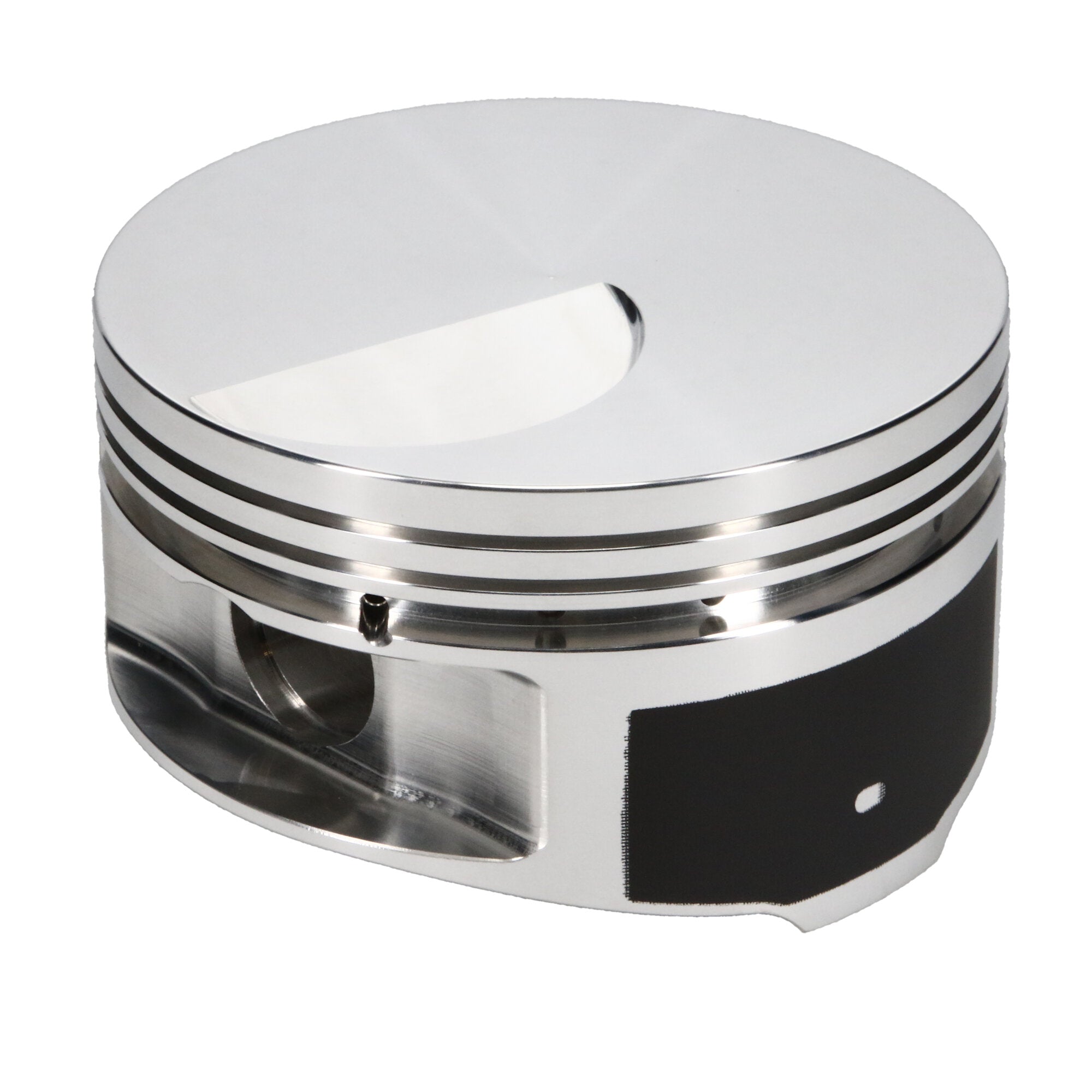

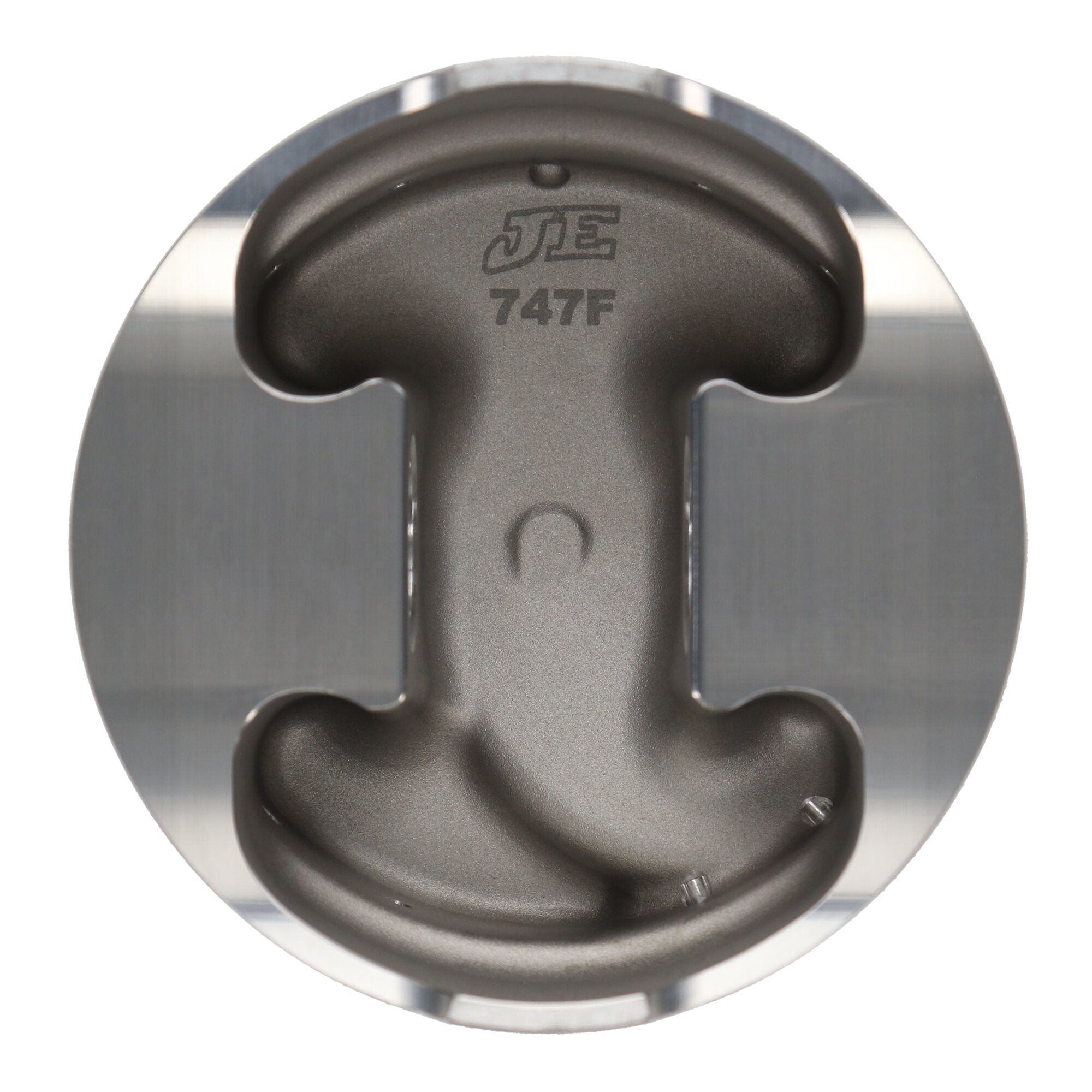

JE Pistons 131685S Piston Single, 2618, Flat Top, 4.390 Bore, 1.770 CD, 1.040 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_131685S
Engine Piston
$399.69
customers are viewing this product
JE Pistons 279949S Piston Single, 2618, Flat Top, 3.307 Bore, 1.592 CD, 0.787 Pin, Set of 1.
JE Pistons 279949S Piston Single, 2618, Flat Top, 3.307 Bore, 1.592 CD, 0.787 Pin, Set of 1.
$451.87
JE Pistons 271061S Piston Single, 4032, Inv Dome/Dish, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 271061S Piston Single, 4032, Inv Dome/Dish, 4.030 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$283.50
JE Pistons 131685S Piston Single, 2618, Flat Top, 4.390 Bore, 1.770 CD, 1.040 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Ford Big Block 460
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.390 Bore, 1.770 CD, 1.040 Pin, Set of 1.
Description_EXT JE, Ford, Big Block Ford, 4.390 in. Bore, 1.770 CD, Flat Top, Single Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Ford 460, 4.390 Bore, Flat, Set of 1
Description_SHO Piston
Make FORD
Piston Quantity 1
Prop 65 (C, R or CR) CR
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Pin Wall Thickness 0.180
Piston Pin Outside Diameter 1.040
Compression Height 1.770
Wrist Pin Outer Diameter 1.040
Engine - Web Big Block
Piston Average Weight 659
Piston Pin Material 5115
Add-On J10008-4390-5
Product Market Domestic
Piston Volume -3.00
Cylinder Head 460
Add-On 031-042-CS
Bore Diameter 4.390
Top Compression Ring Thickness 0.0640
Piston Material 2618
Add-On 040-2930-18-51S
Product Type Engine Piston
Industry Automotive
Title JE Pistons - Ford, Big Block, 4.390 in. Bore, Piston
Wrist Pin Length 2.930
Wrist Pin Wall Thickness 0.180
Ring Set Included No
Out of Stock Message Call for Availability
Forging Type Round
Piston Pin Length 2.930
Ringset Included No
Piston Head Type Flat
Title - Web JE Pistons Ford Big Block Piston - 4.390 in. Bore - 1.770 in. CH, -3.00 CC
Piston Series JE Pistons
Second Compression Ring Thickness 0.0640
Engine Big Block
Prop 65 Yes/No Yes
Engine Type ICE
Oil Ring Thickness 0.188
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Make - Web Ford
Prop 65 - Short Label Prop 65 Warning Label.JPG
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
