As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Buick Regal Grand National United States 3.8L V6 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

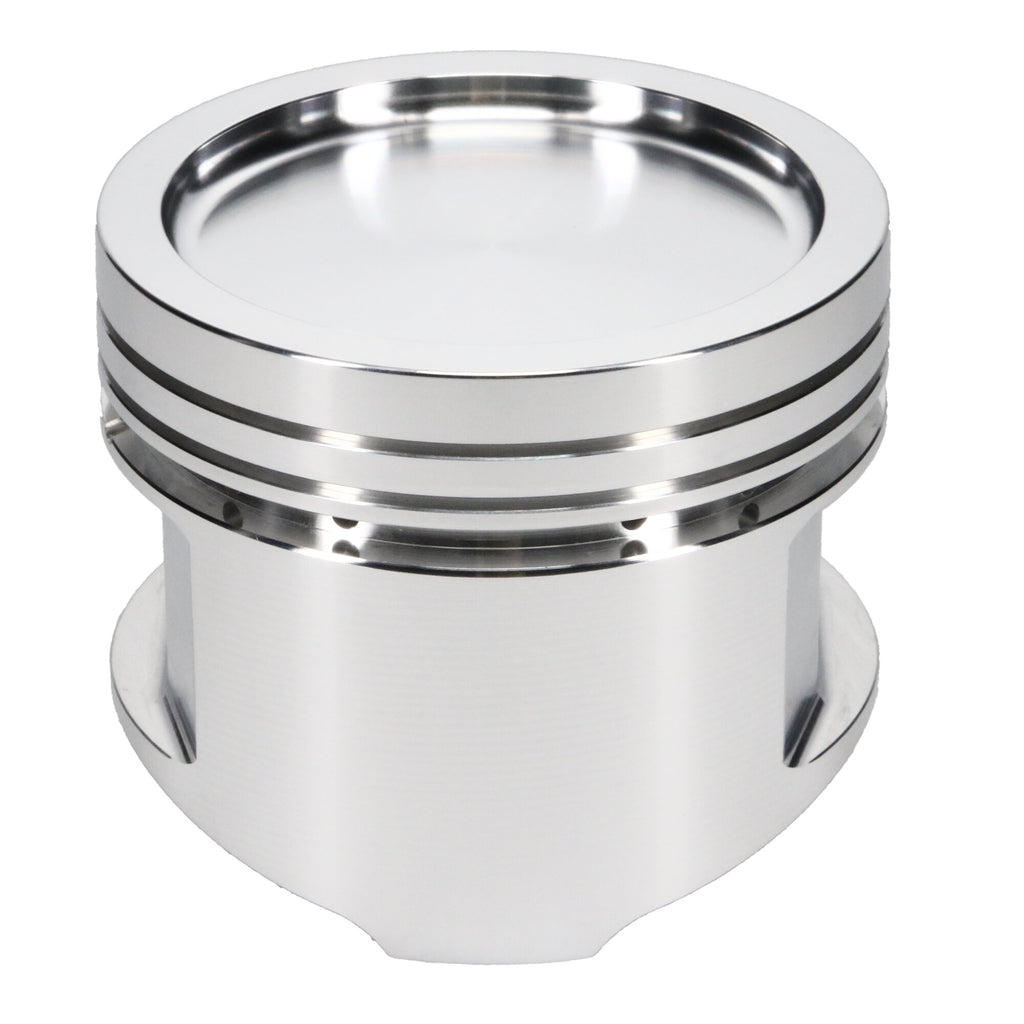

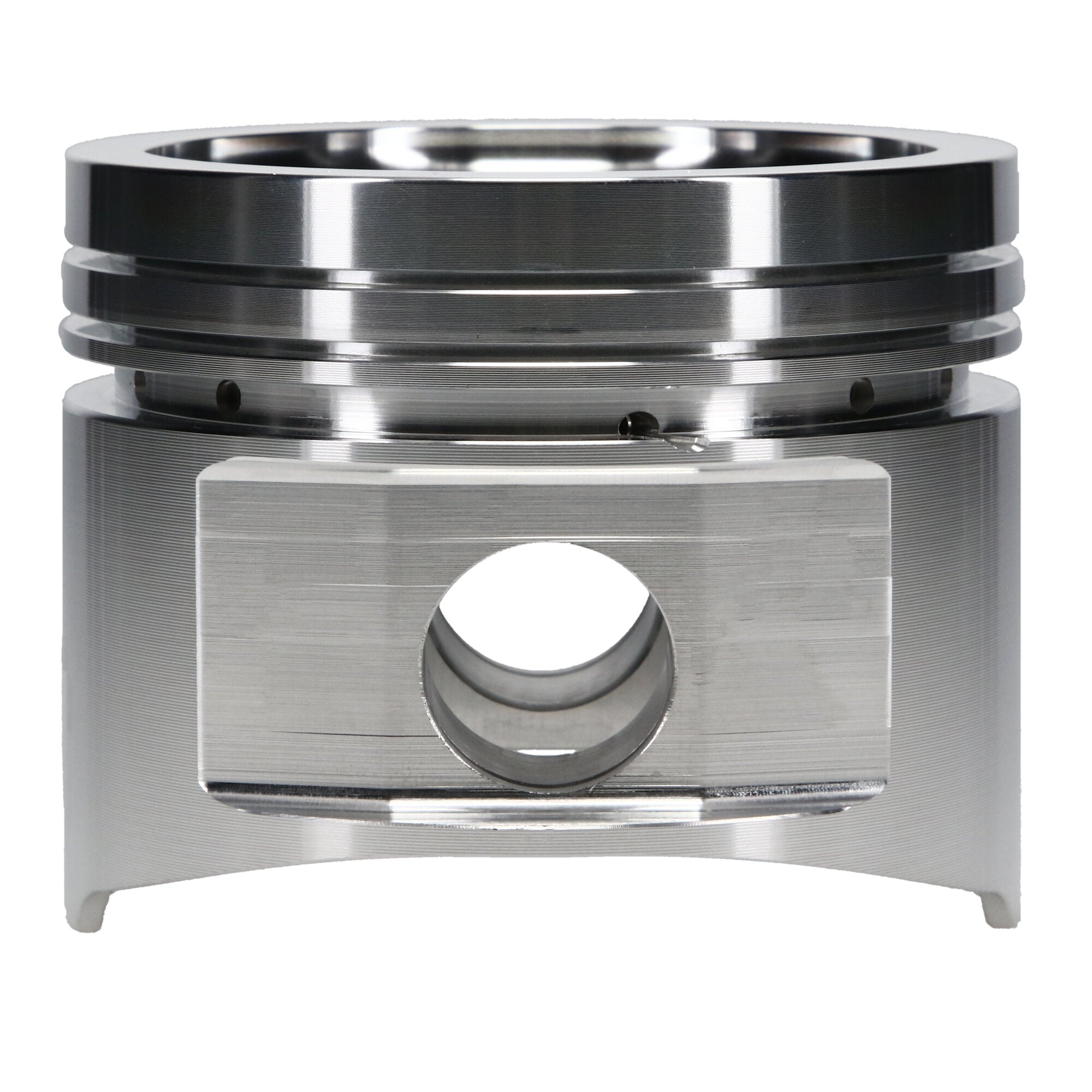

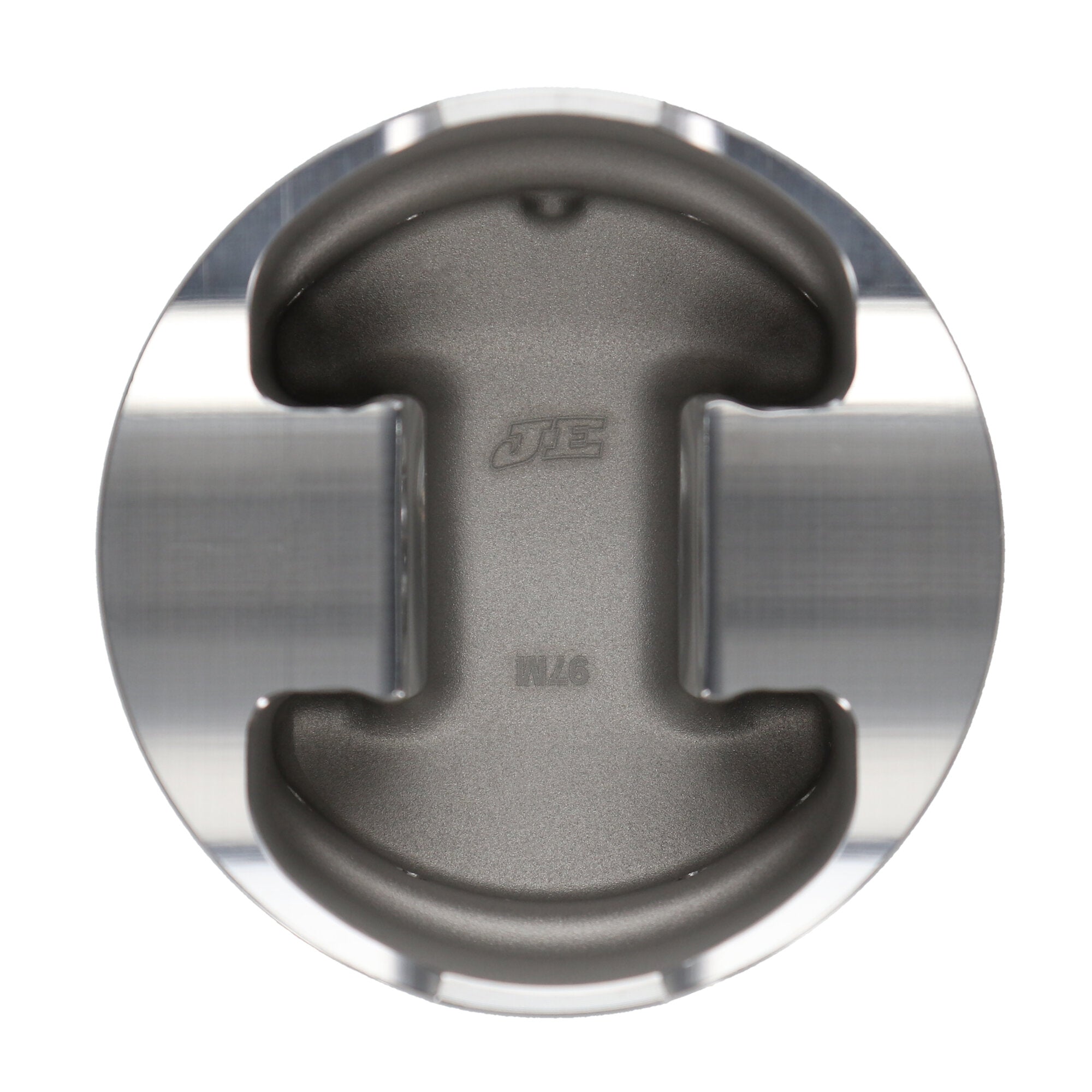

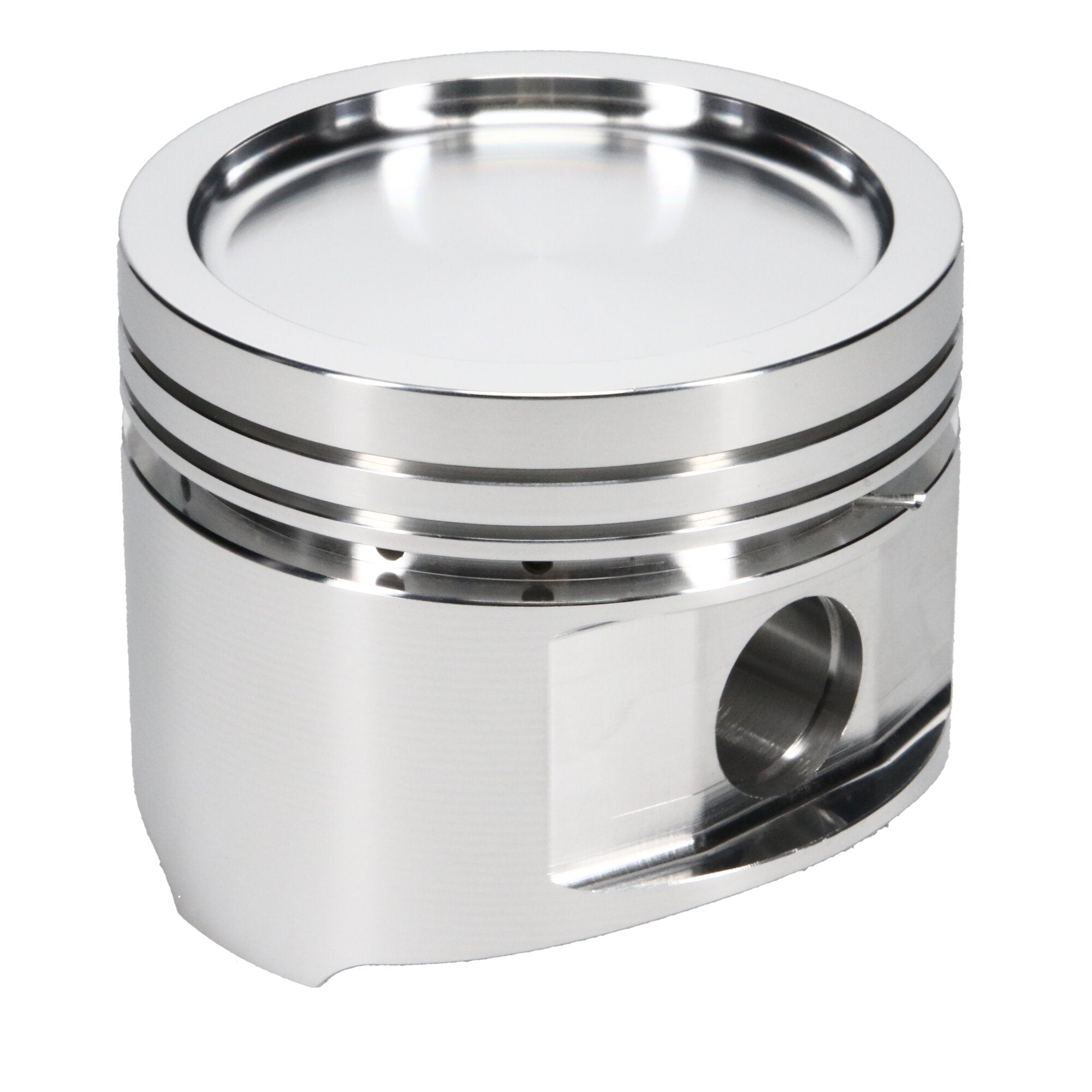

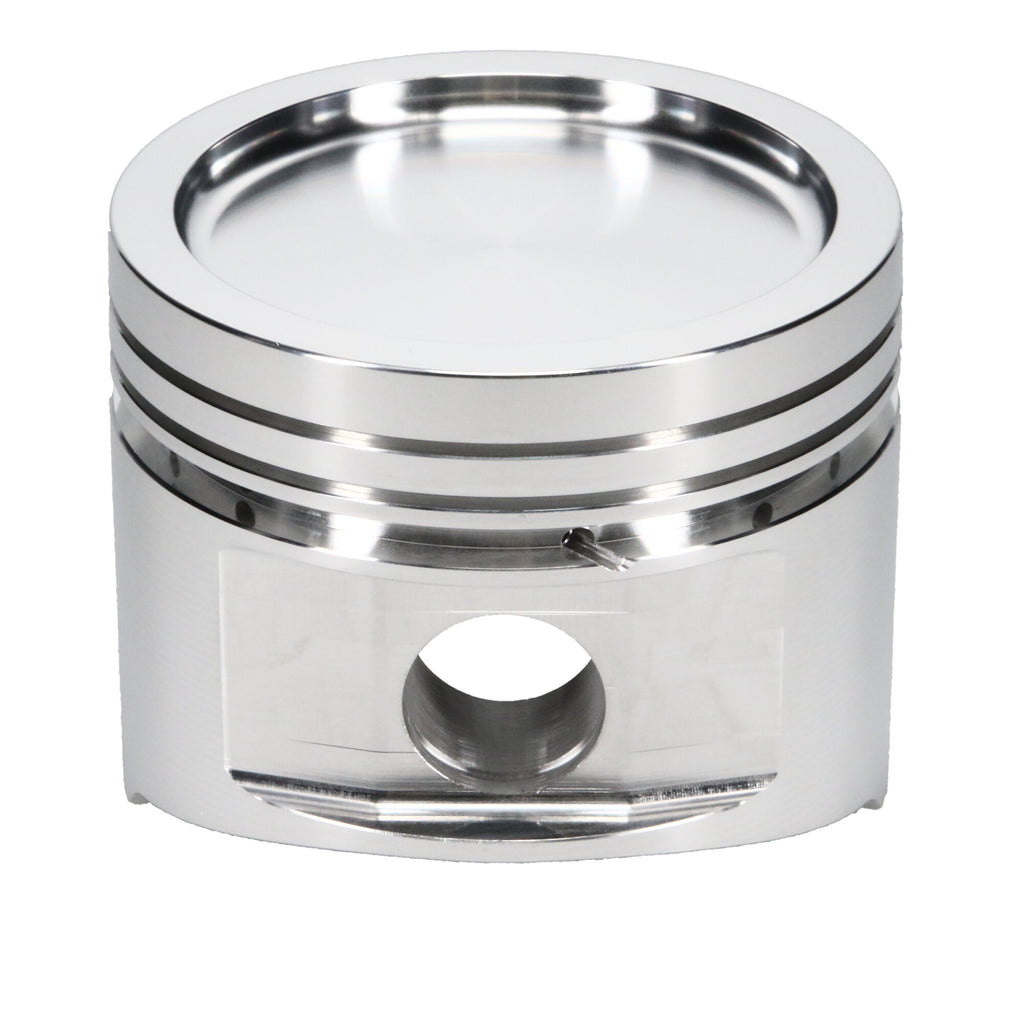

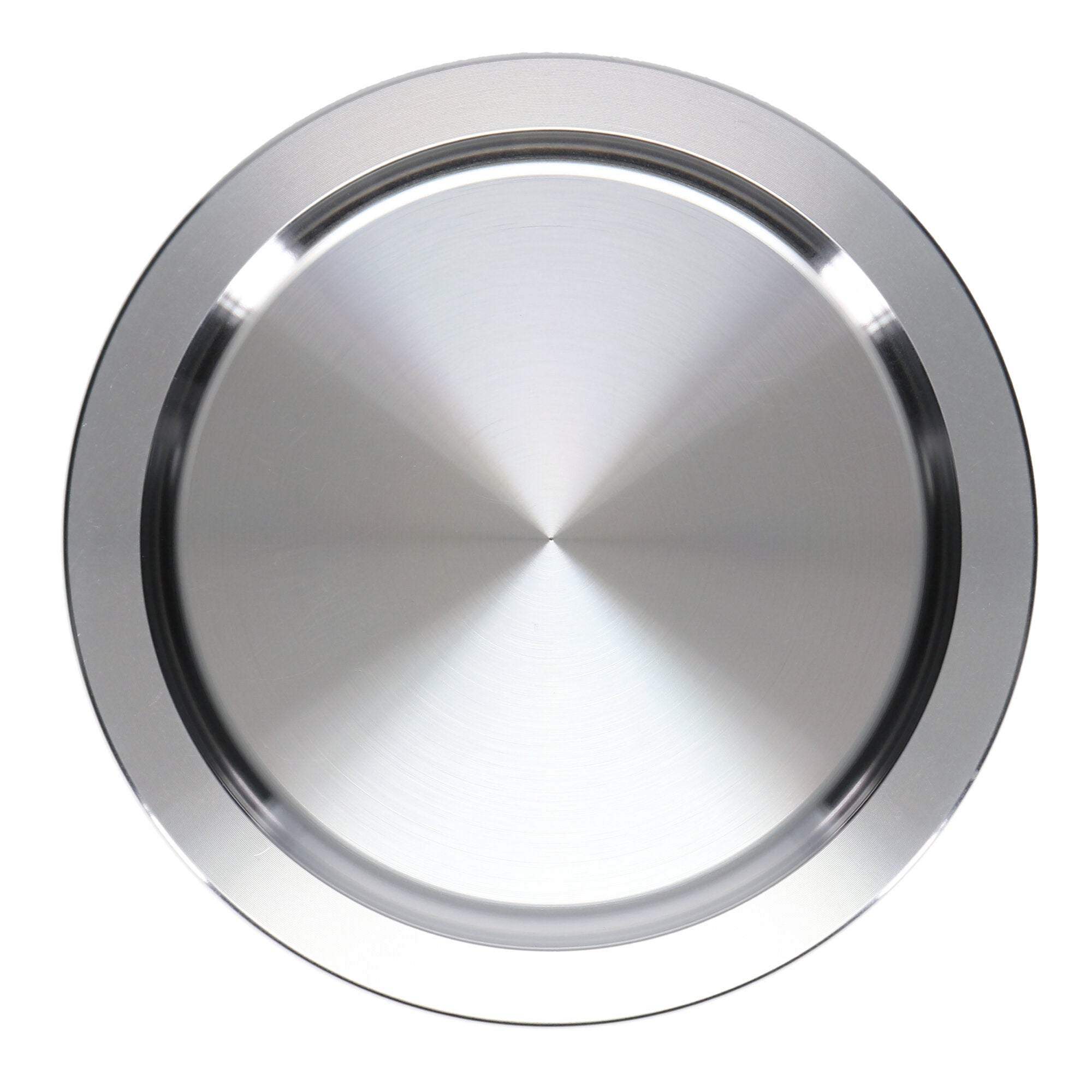

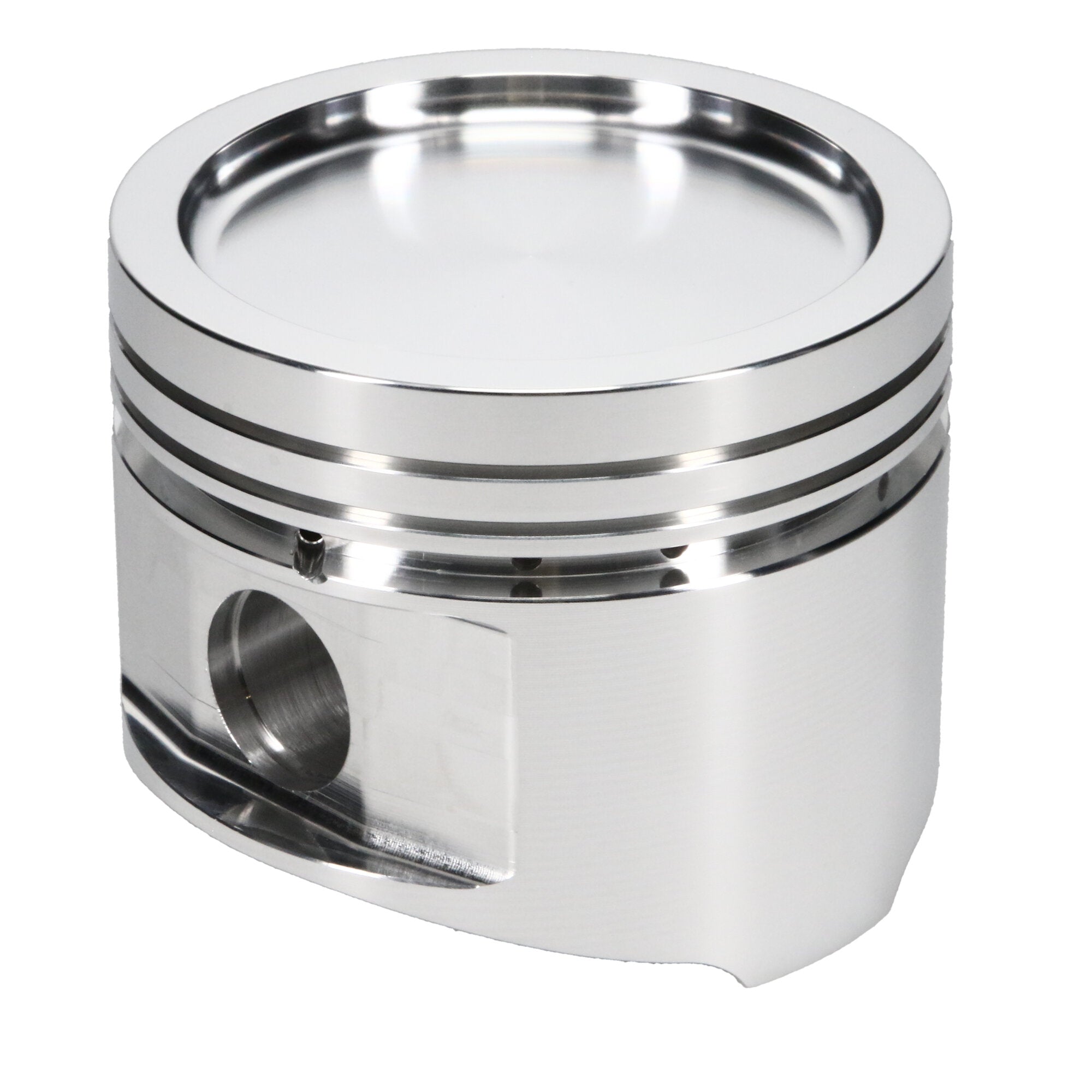

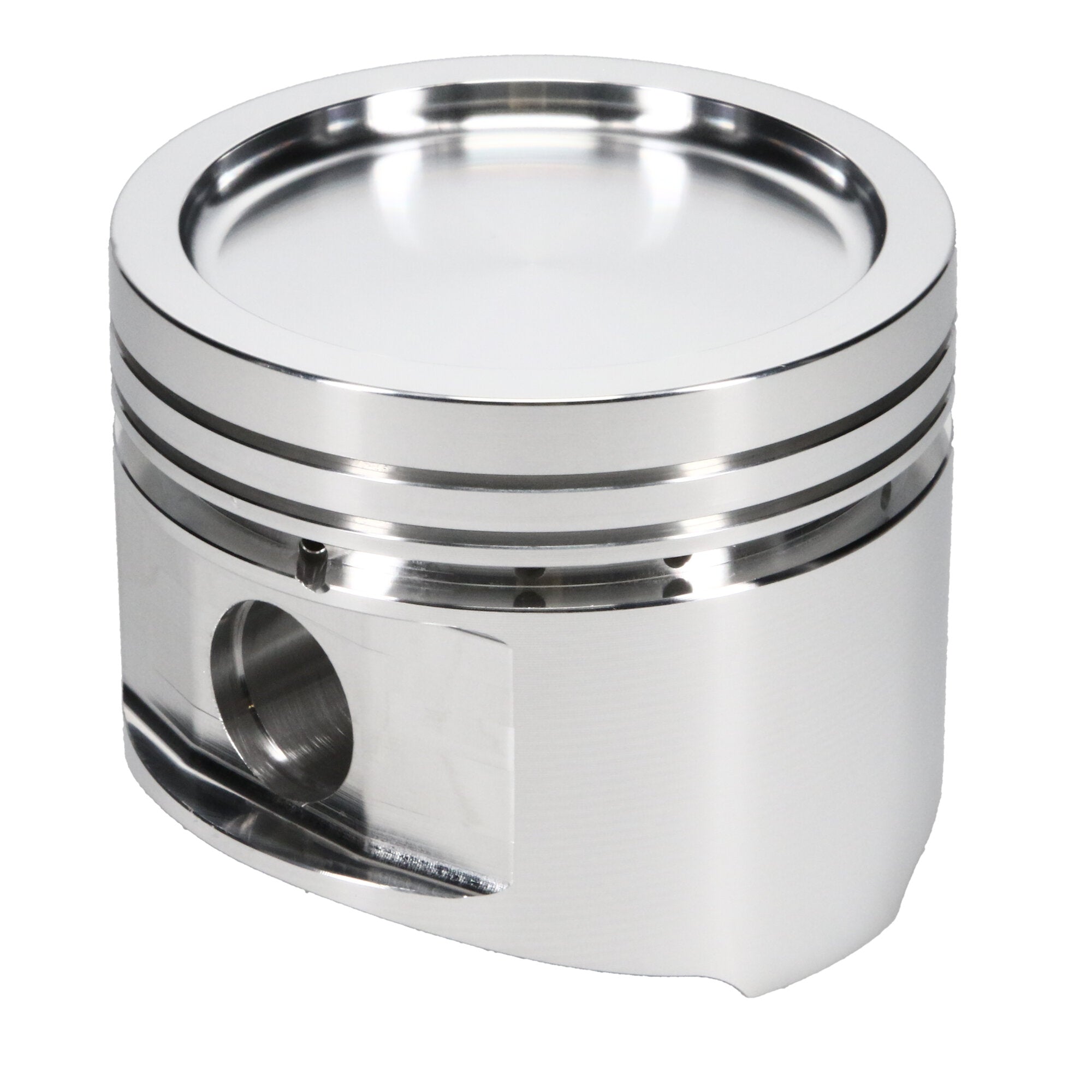

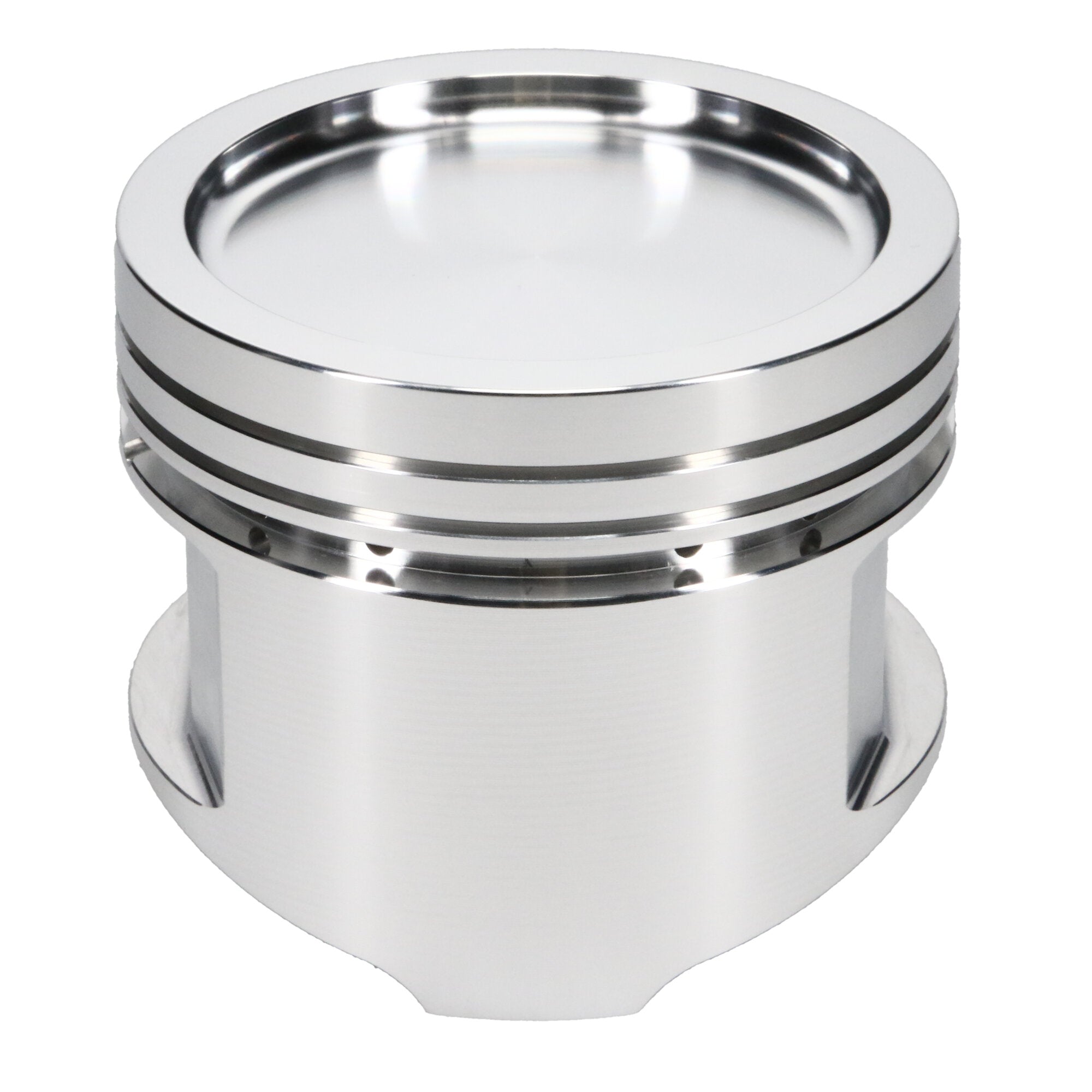

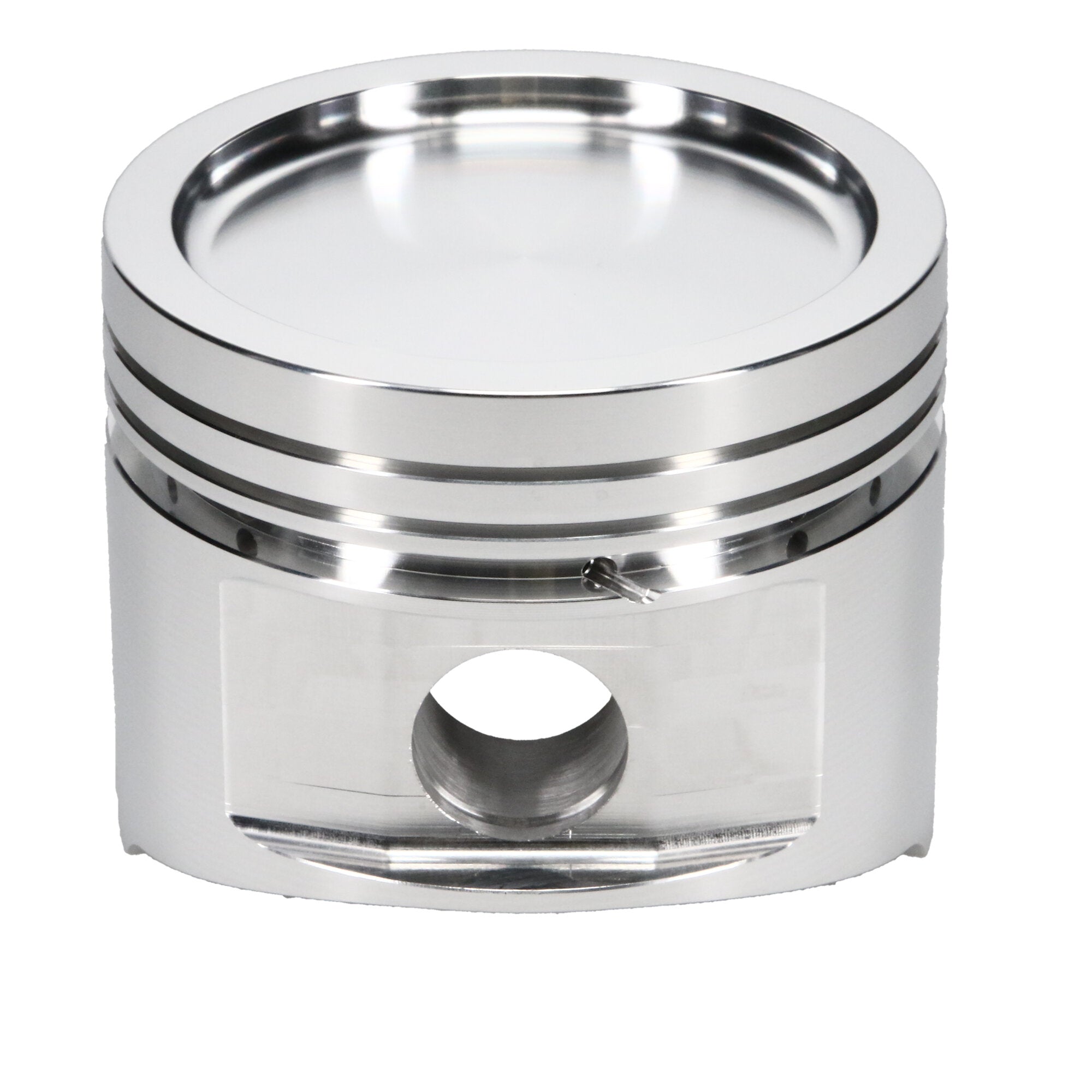

Piston Set, 2618, Inv Dome/Dish, 3.820 Bore, 1.850 CD, 0.940 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Buick, Grand National, 3.820 in. Bore, 1.850 CD, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Buick V6, 3.820 Bore, Dish, Set of 6 |
| Piston Pin Wall Thickness |
0.160 |
| Bore Diameter |
3.820 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
541 |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Wrist Pin Outer Diameter |
0.940 |
| Oil Ring Thickness |
0.188 |
| Forging Type |
Round |
| Make |
BUICK |
| Title |
JE Pistons - Buick, Grand National, 3.820 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Engine Type |
ICE |
| Piston Volume |
-29.50 |
| Piston Quantity |
6 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.940 |
| Engine - Web |
Grand National |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.160 |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
GRAND NATIONAL |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Buick Grand National Piston Kit - 3.820 in. Bore - 1.850 in. CH, -29.50 CC |
| Piston Head Type |
Dish |
| Compression Height |
1.850 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Add-On |
J100F6-3820-5 |
| Engine |
Grand National |
| Add-On |
940-2750-16-51S |
| Wrist Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ringset Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.750 |
| Make - Web |
Buick |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
15.0000 |
