As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler 426 Hemi |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

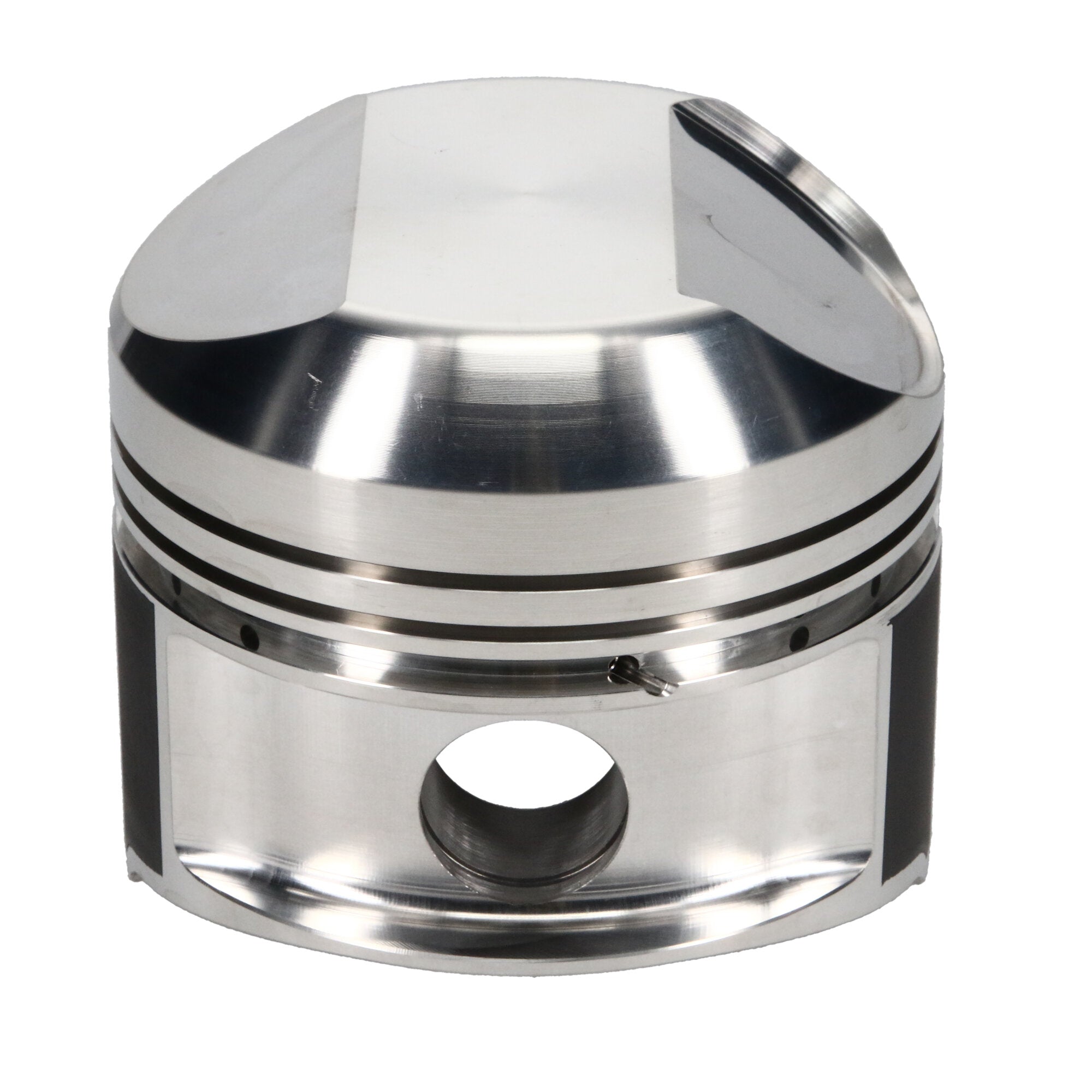

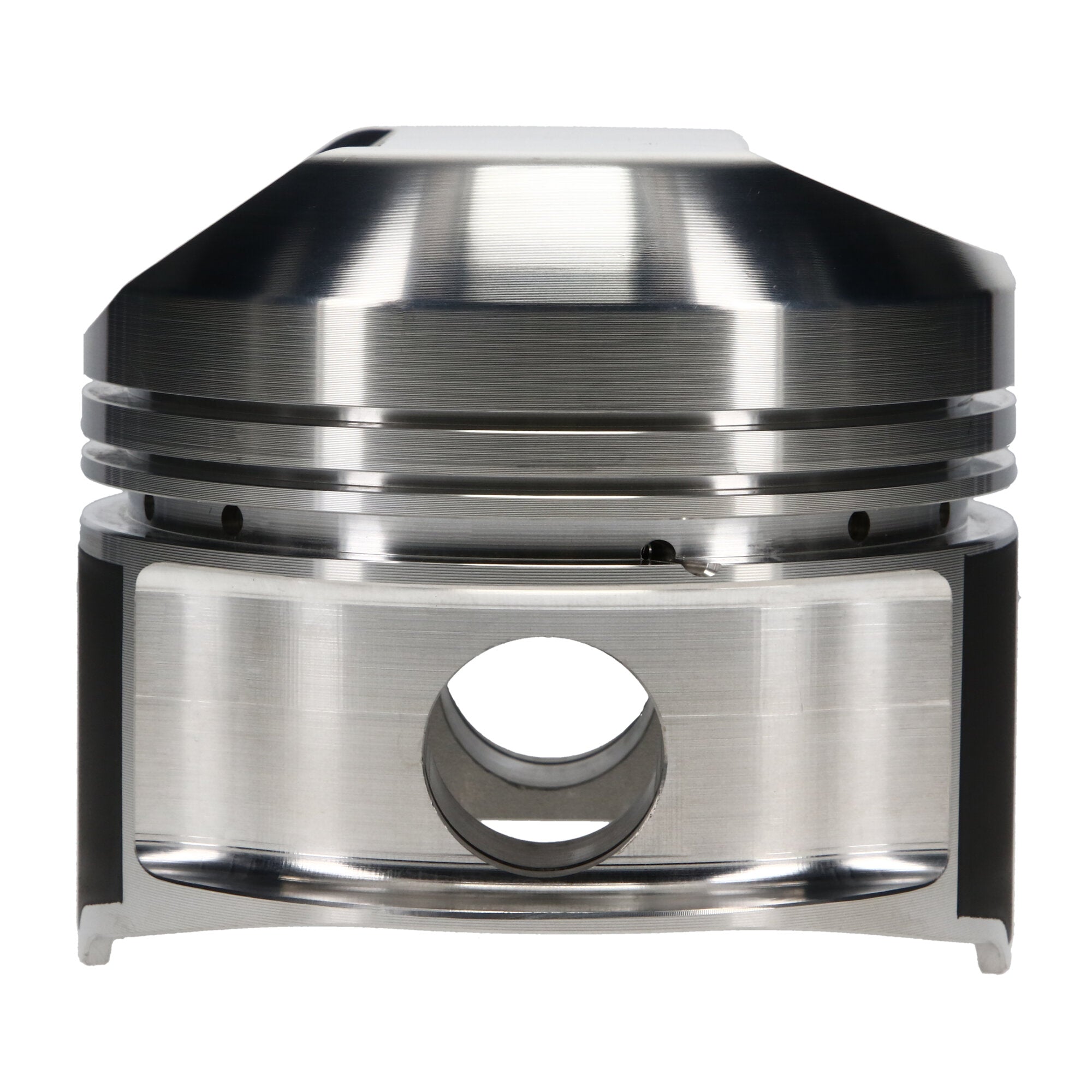

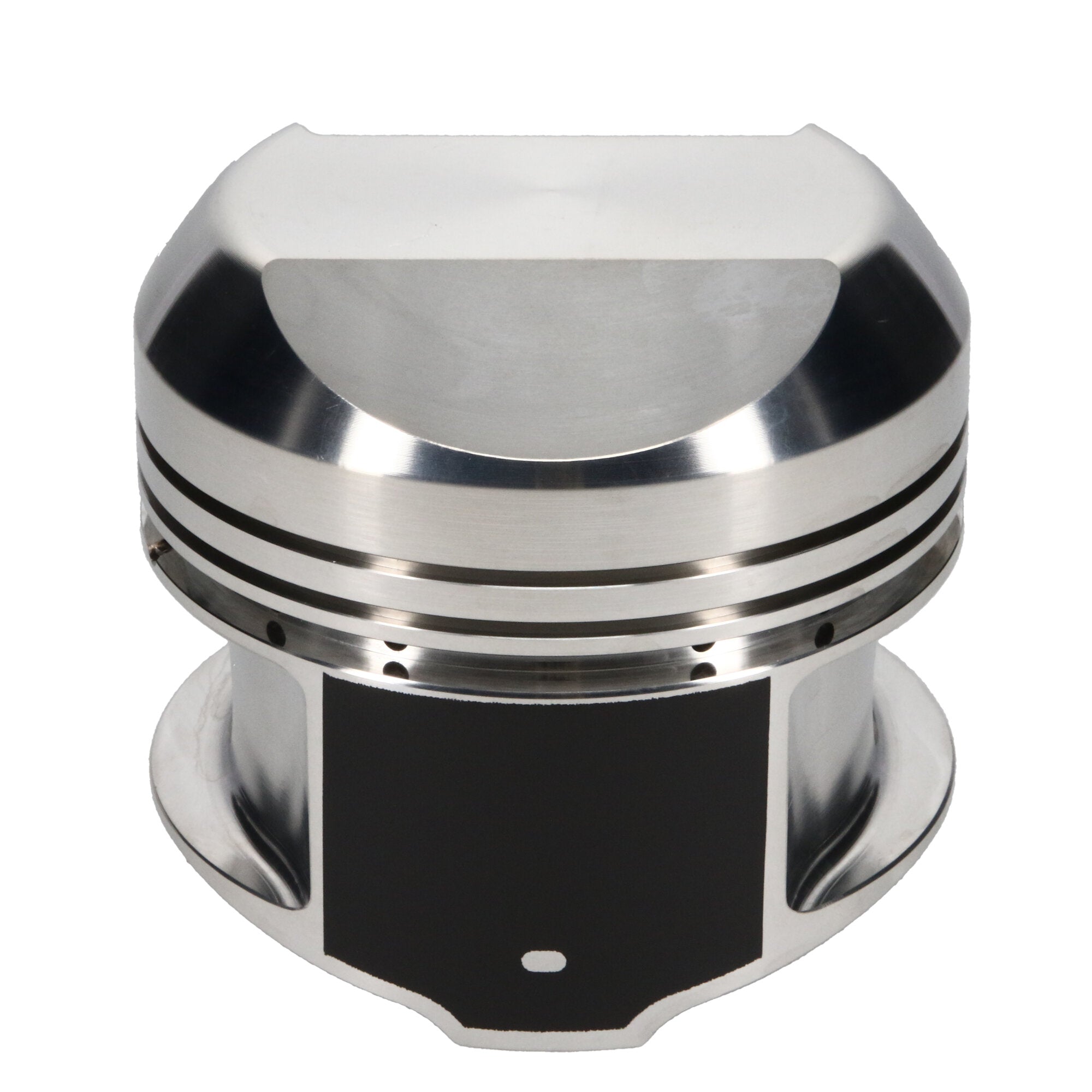

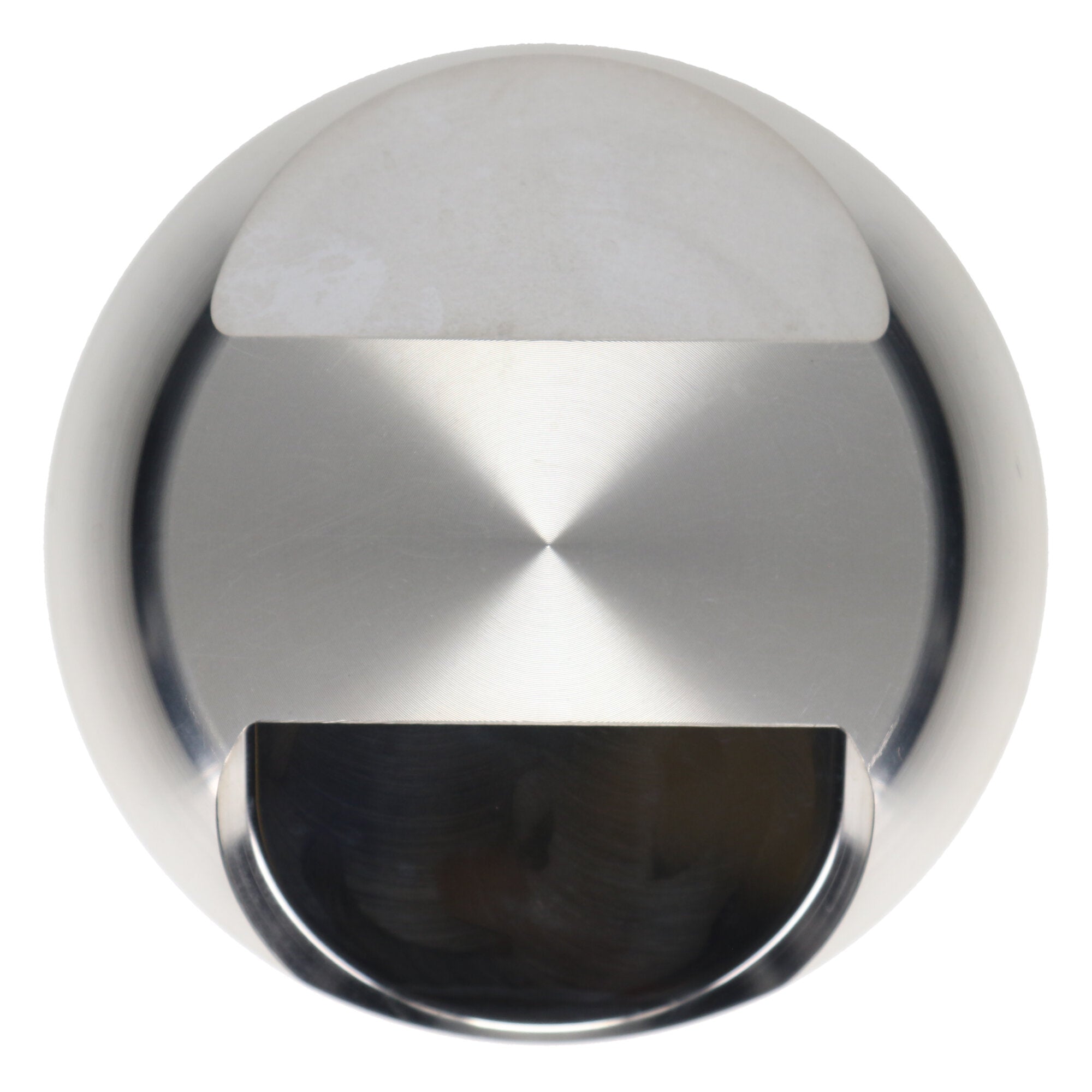

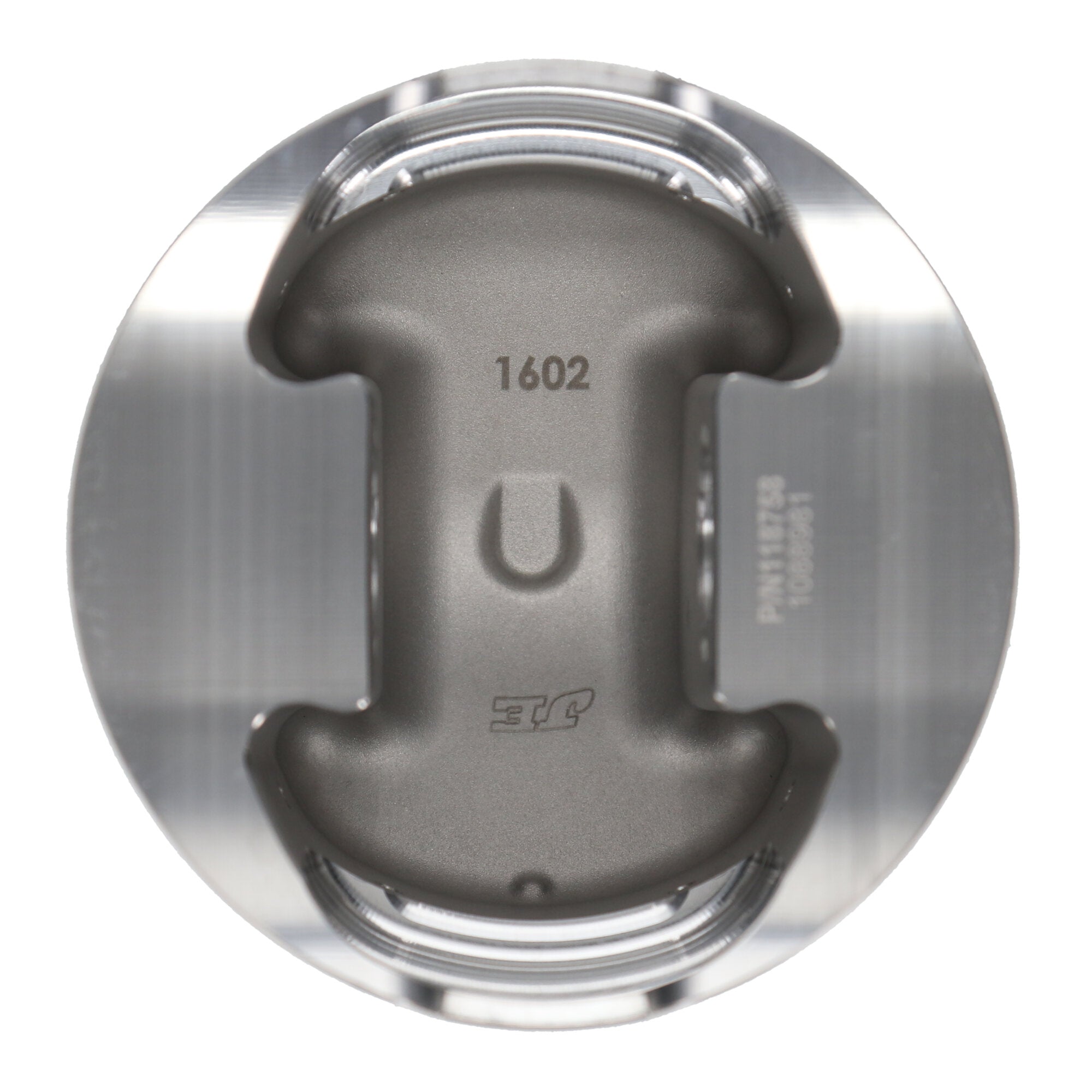

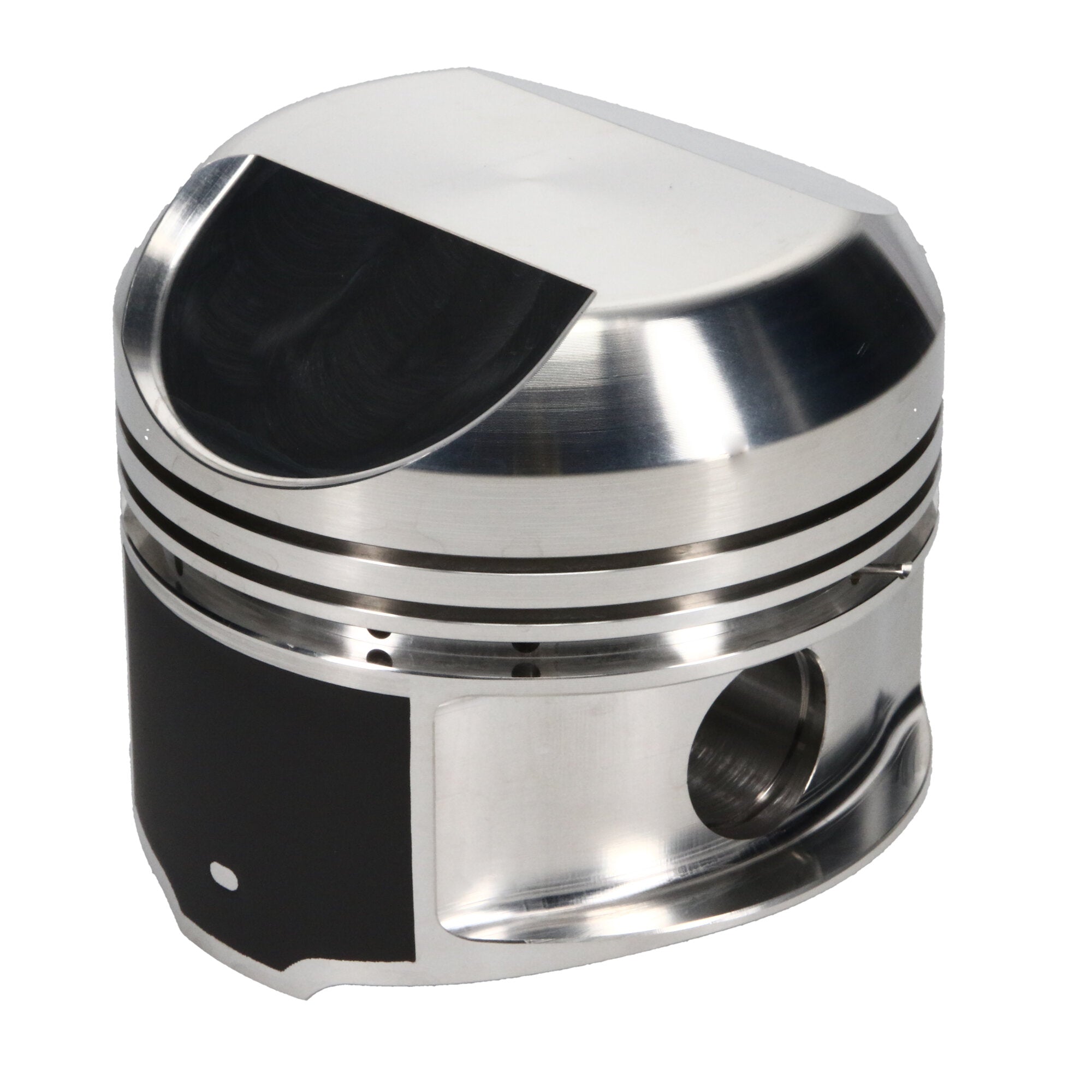

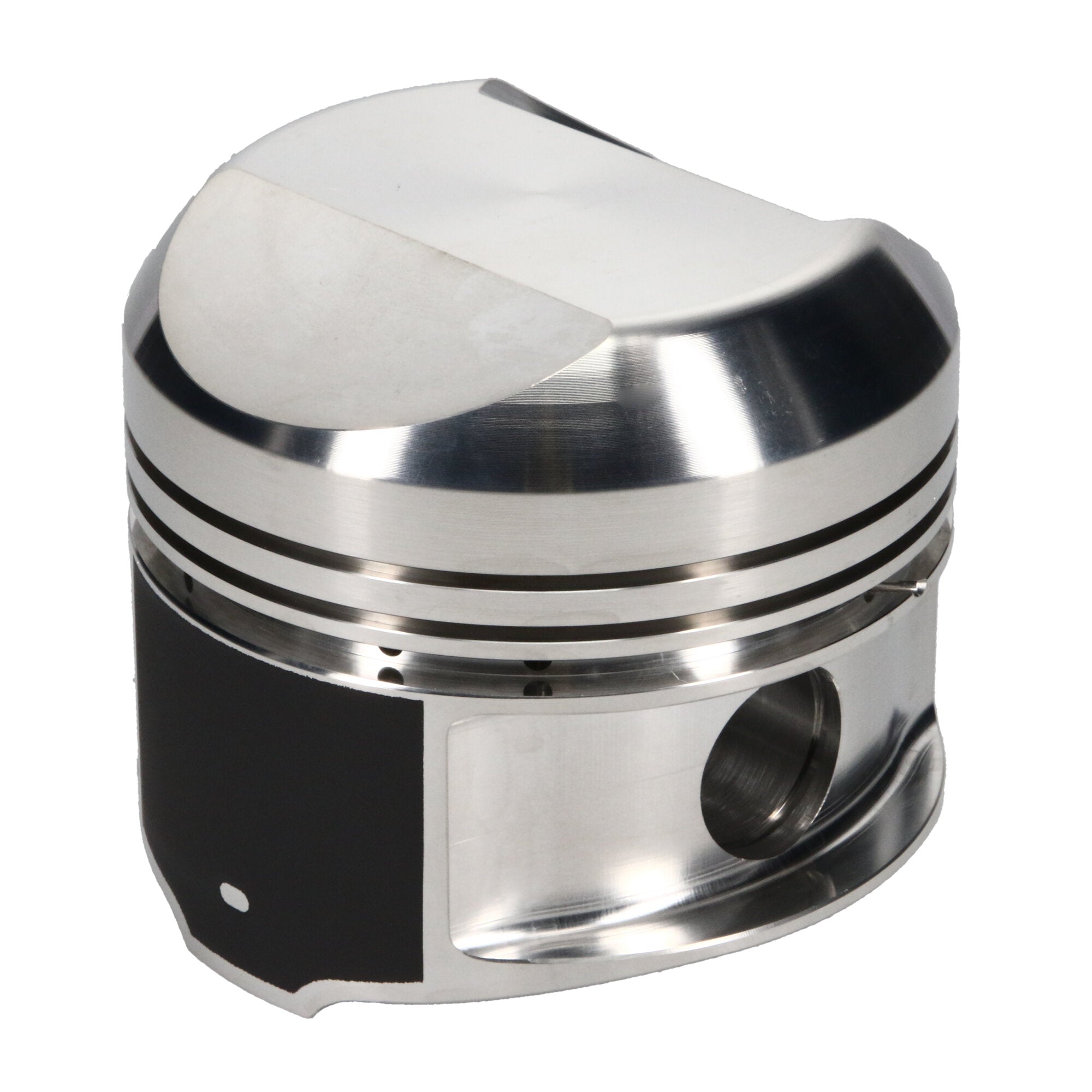

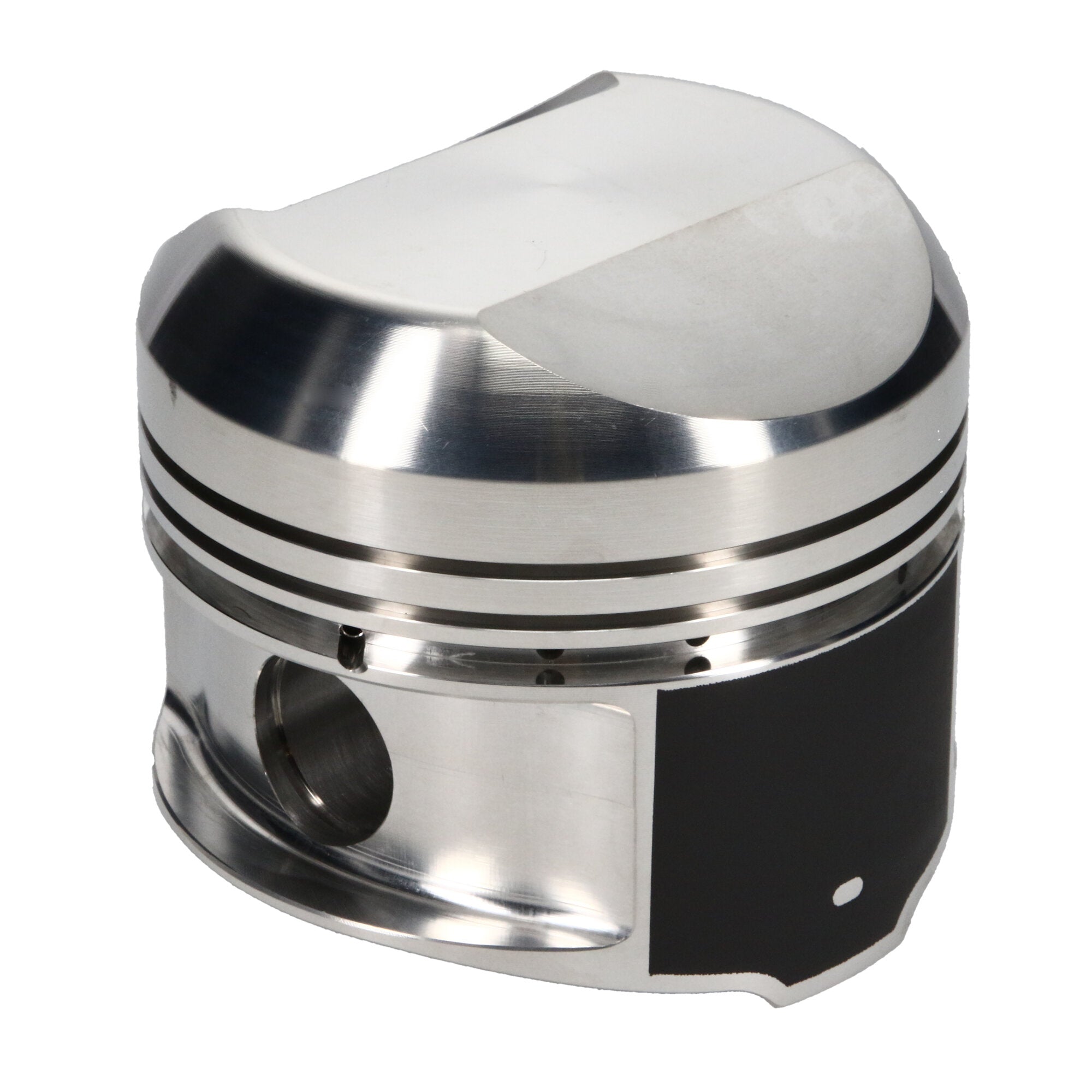

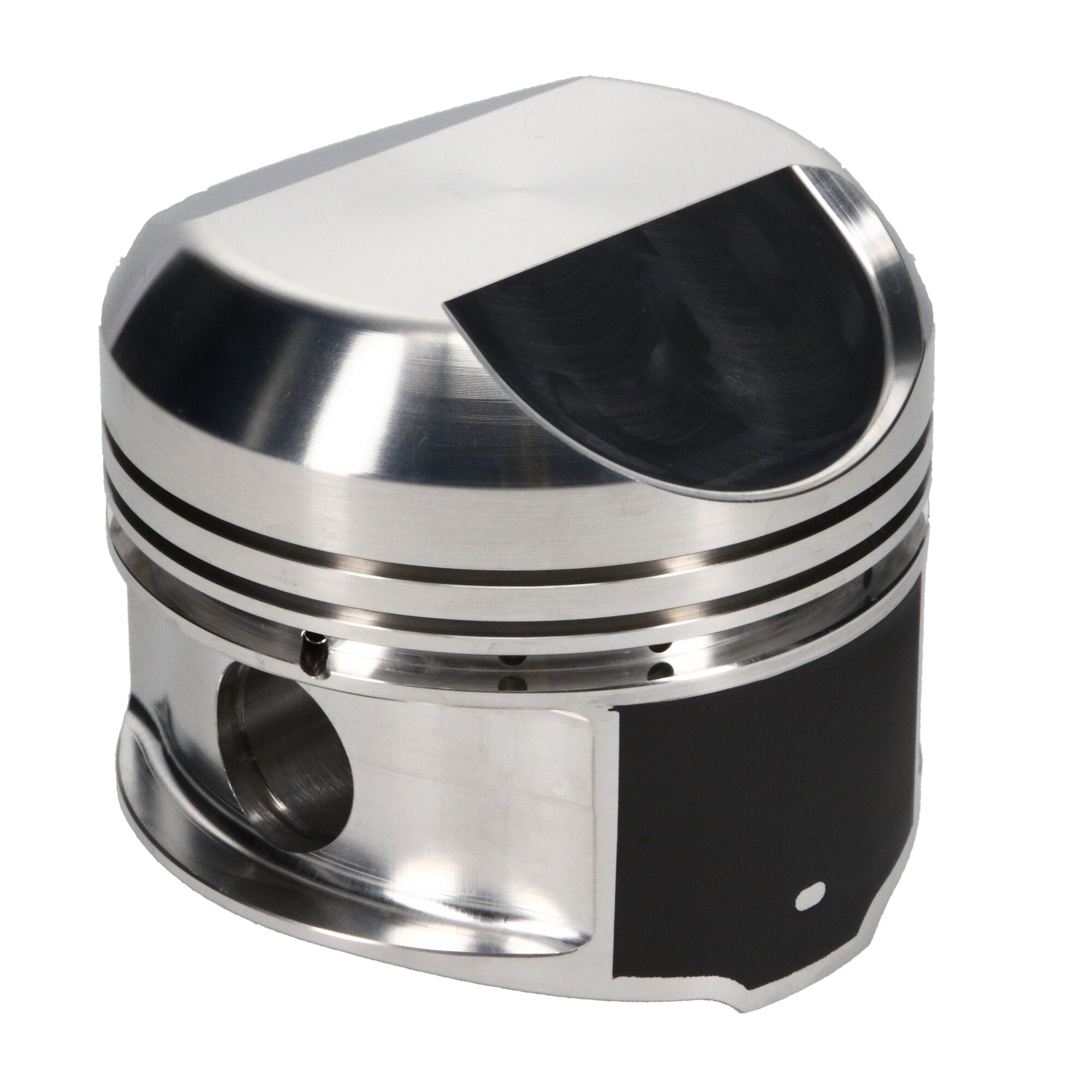

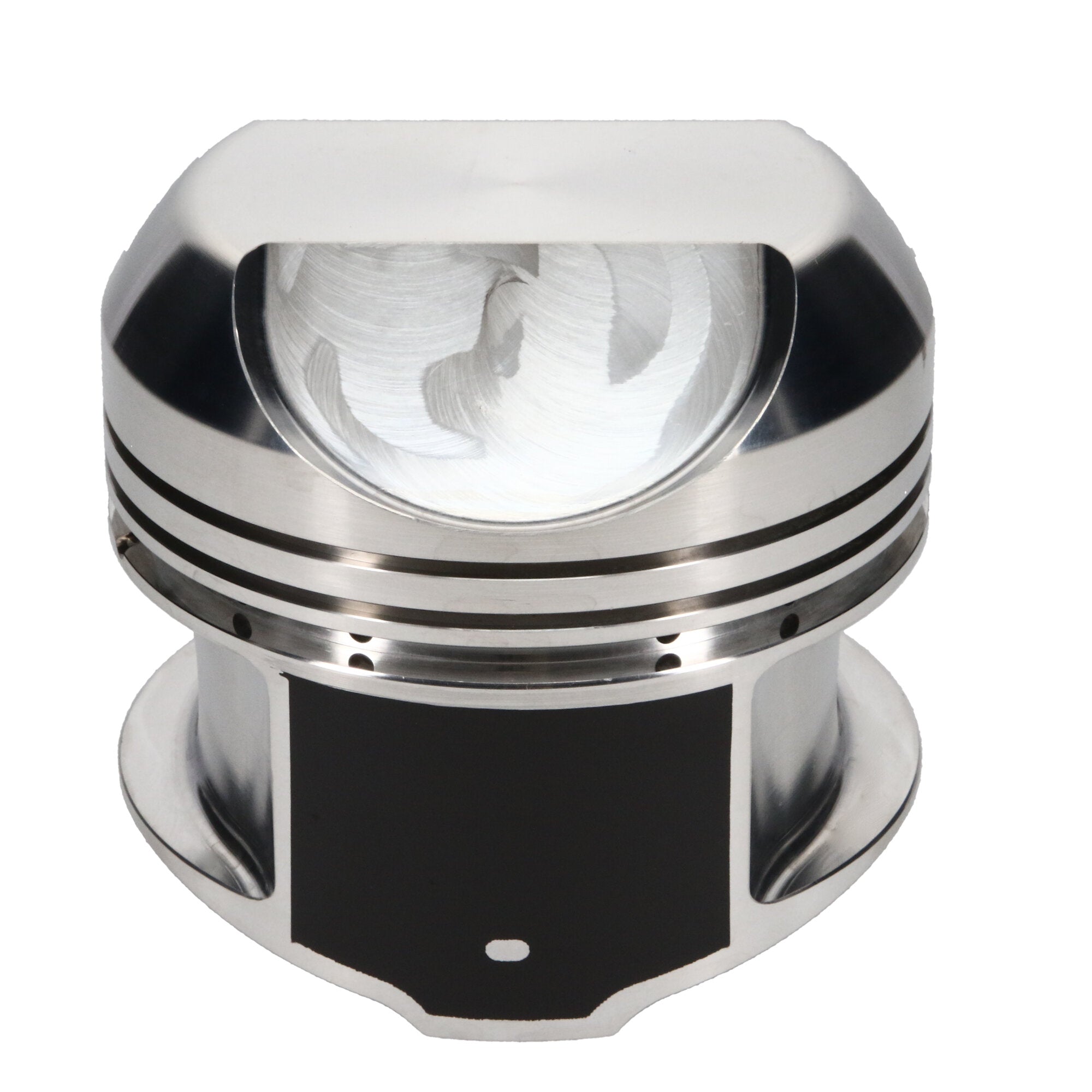

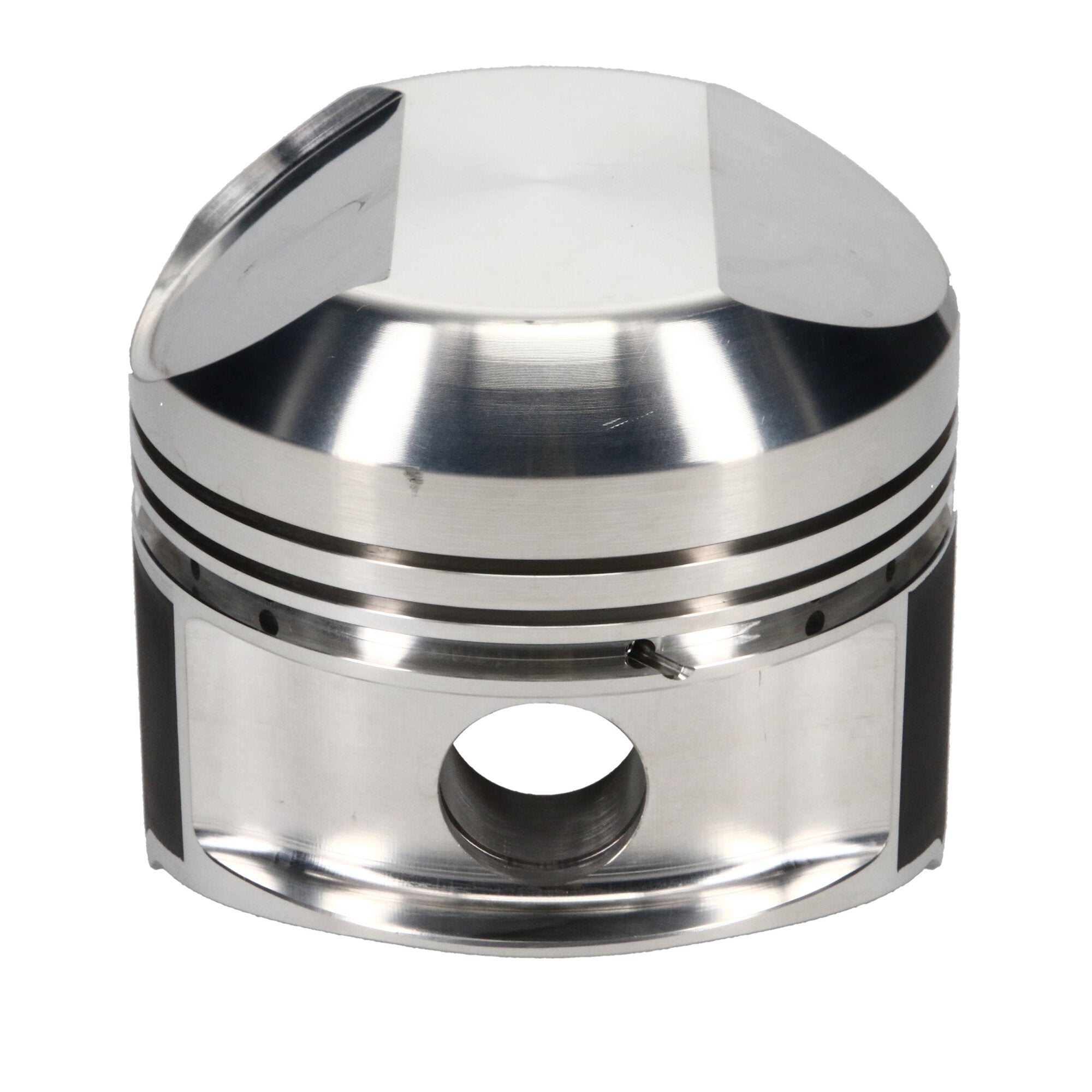

Piston Set, 4032, Dome, 4.280 Bore, 1.955 CD, 1.031 Pin, Set of 8. |
| Description_EXT |
JE, Chrysler, 426 Hemi, 4.280 in. Bore, 1.955 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 426 Hemi, 4.280 Bore, Dome, Set of 8 |
| Second Compression Ring Thickness |
0.0800 |
| Cylinder Head |
426 HEMI |
| Add-On |
031-042-CS |
| Industry |
Automotive |
| Add-On |
031-2930-17-51S |
| Add-On |
JP00F8-4280-5 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Chrysler 426 Hemi Piston Kit - 4.280 in. Bore - 1.955 in. CH, 88.00 CC |
| Ringset Included |
No |
| Piston Material |
4032 |
| Out of Stock Message |
Call for Availability |
| Engine |
426 HEMI |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chrysler |
| Piston Pin Wall Thickness |
0.170 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Piston Pin Length |
2.930 |
| Piston Average Weight |
830 |
| Piston Volume |
88.00 |
| Title |
JE Pistons - Chrysler, 426 Hemi, 4.280 in. Bore, Piston Kit |
| Piston Head Type |
Dome |
| Compression Height |
1.955 |
| Oil Ring Thickness |
0.188 |
| Forging Type |
Round |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0800 |
| Make |
CHRYSLER |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Bore Diameter |
4.280 |
| Piston Quantity |
8 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.170 |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
1.031 |
| Piston Pin Outside Diameter |
1.031 |
| Piston Series |
JE Pistons |
| Engine - Web |
426 Hemi |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
