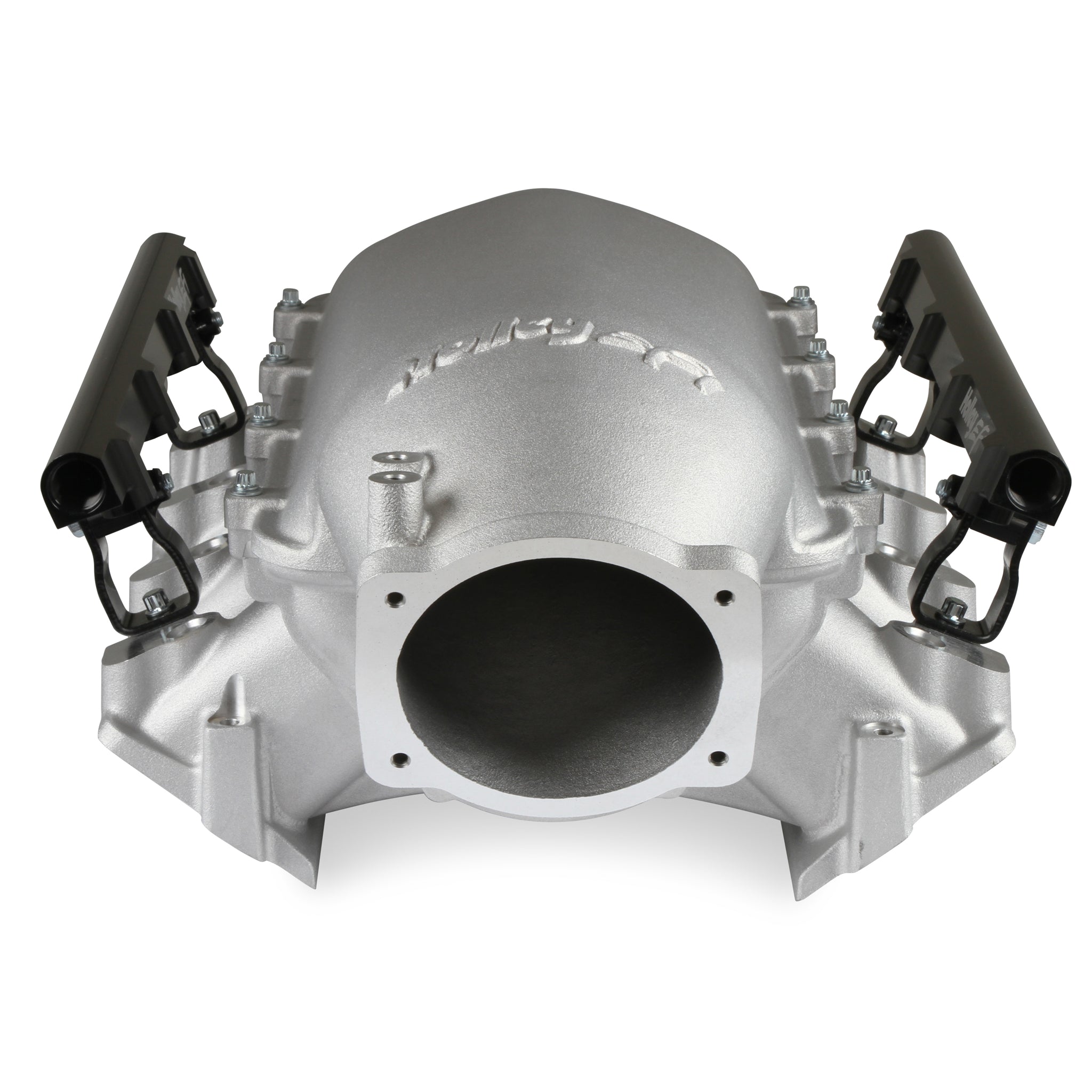

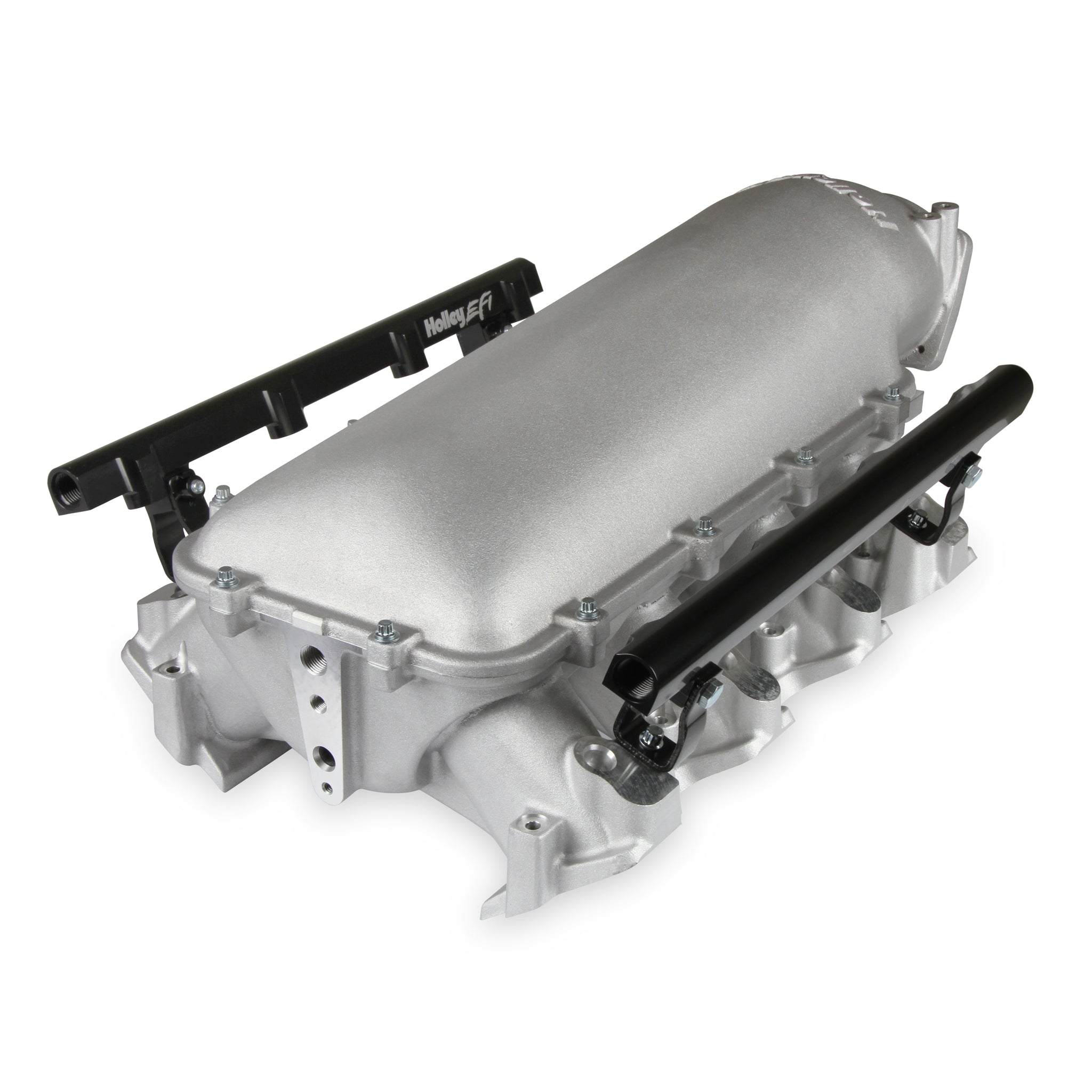

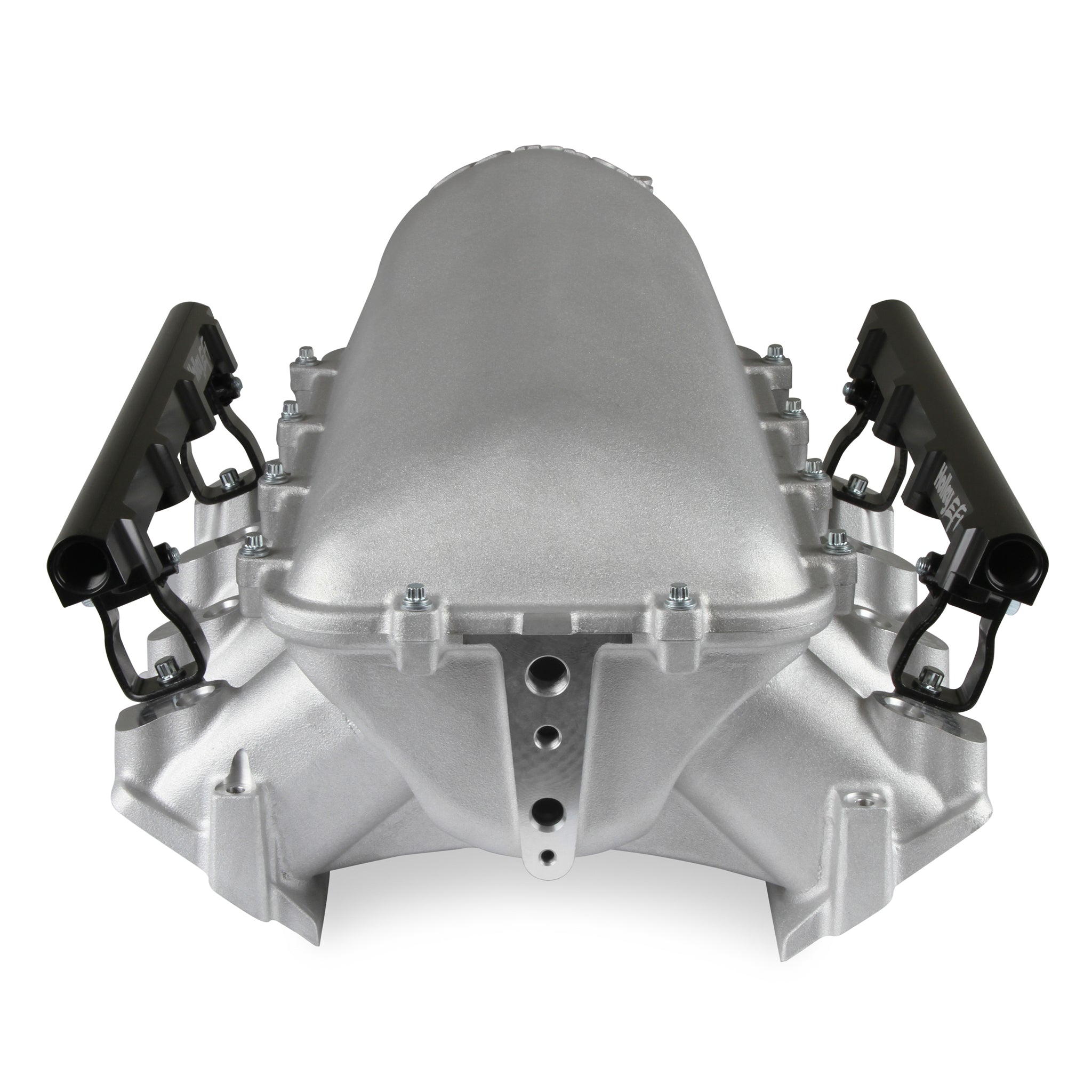

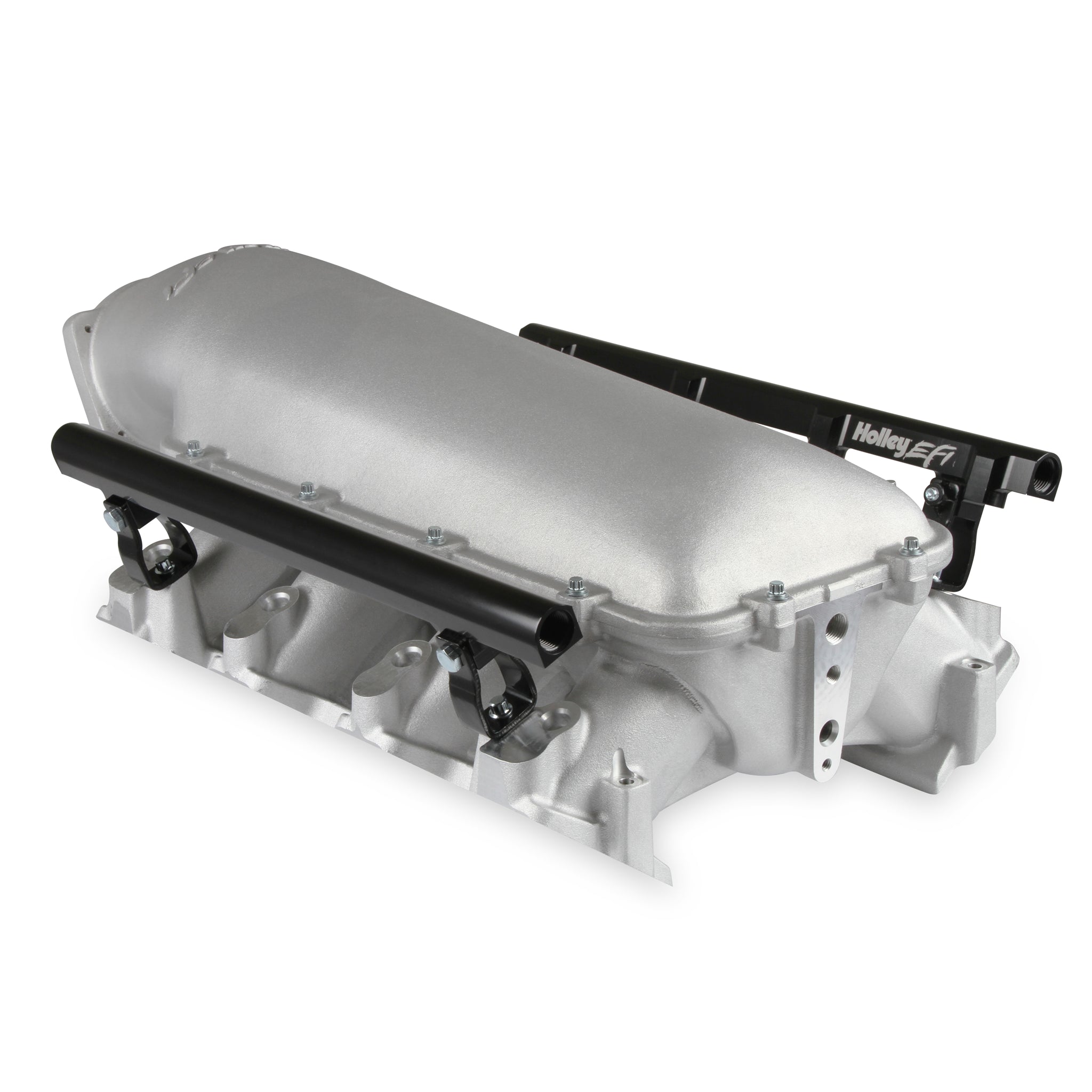

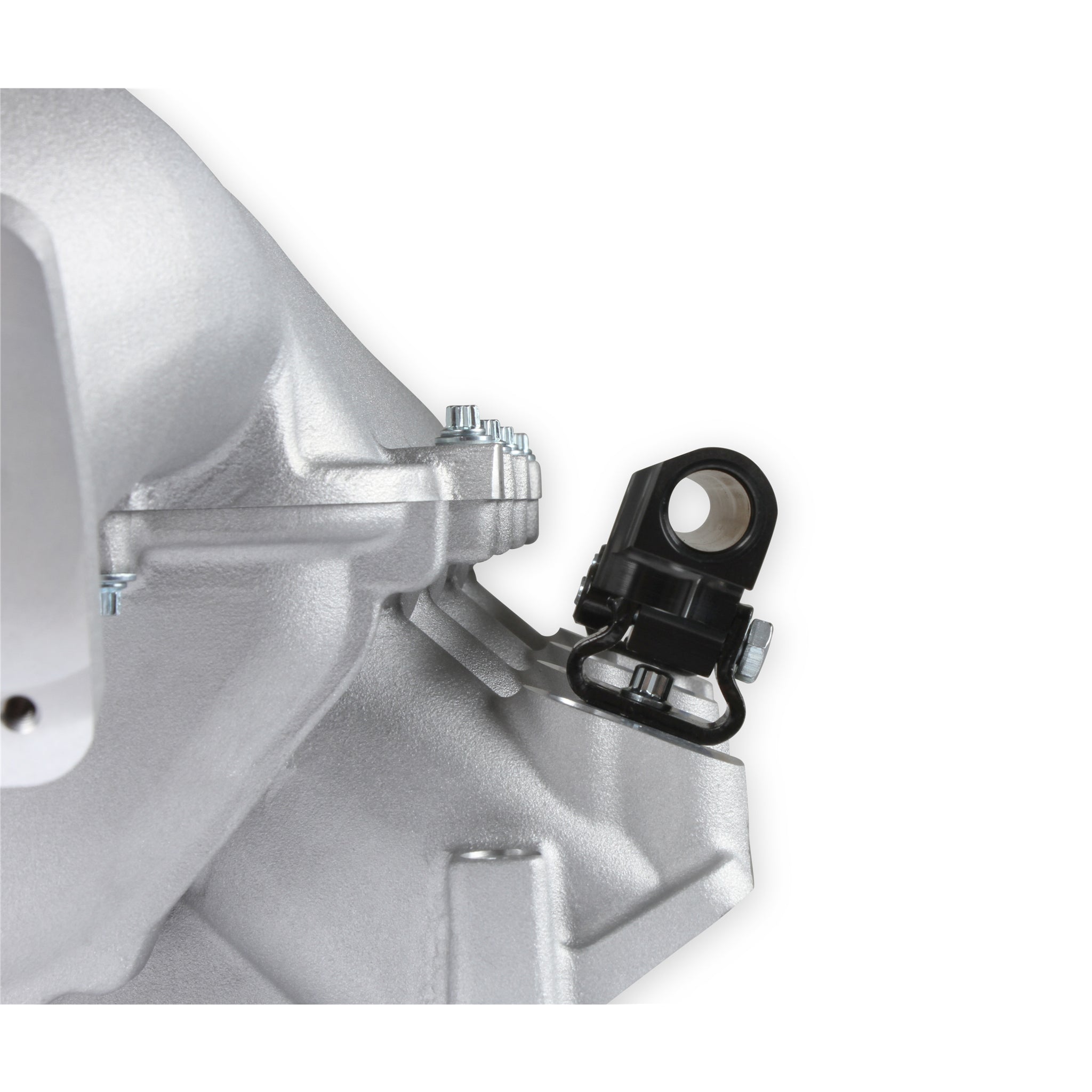

Holley 300-679 Lo-Ram Manifold Kit Single Injector- Satin - Gm Ls3/L92

2 sold in last 8 days
Holley
ds_BBVL_300-679
Engine Intake Manifold
$1,504.33
$1,504.33
customers are viewing this product
Holley 300-66 Strip Dominator Intake - Chevy Small Block V8
Holley 300-66 Strip Dominator Intake - Chevy Small Block V8
$709.23 $557.75
Holley 300-564 Efi Intake - Chevy Big Block V8 Efi
Holley 300-564 Efi Intake - Chevy Big Block V8 Efi
$917.13 $817.65
Holley 300-679 Lo-Ram Manifold Kit Single Injector- Satin - Gm Ls3/L92
Details

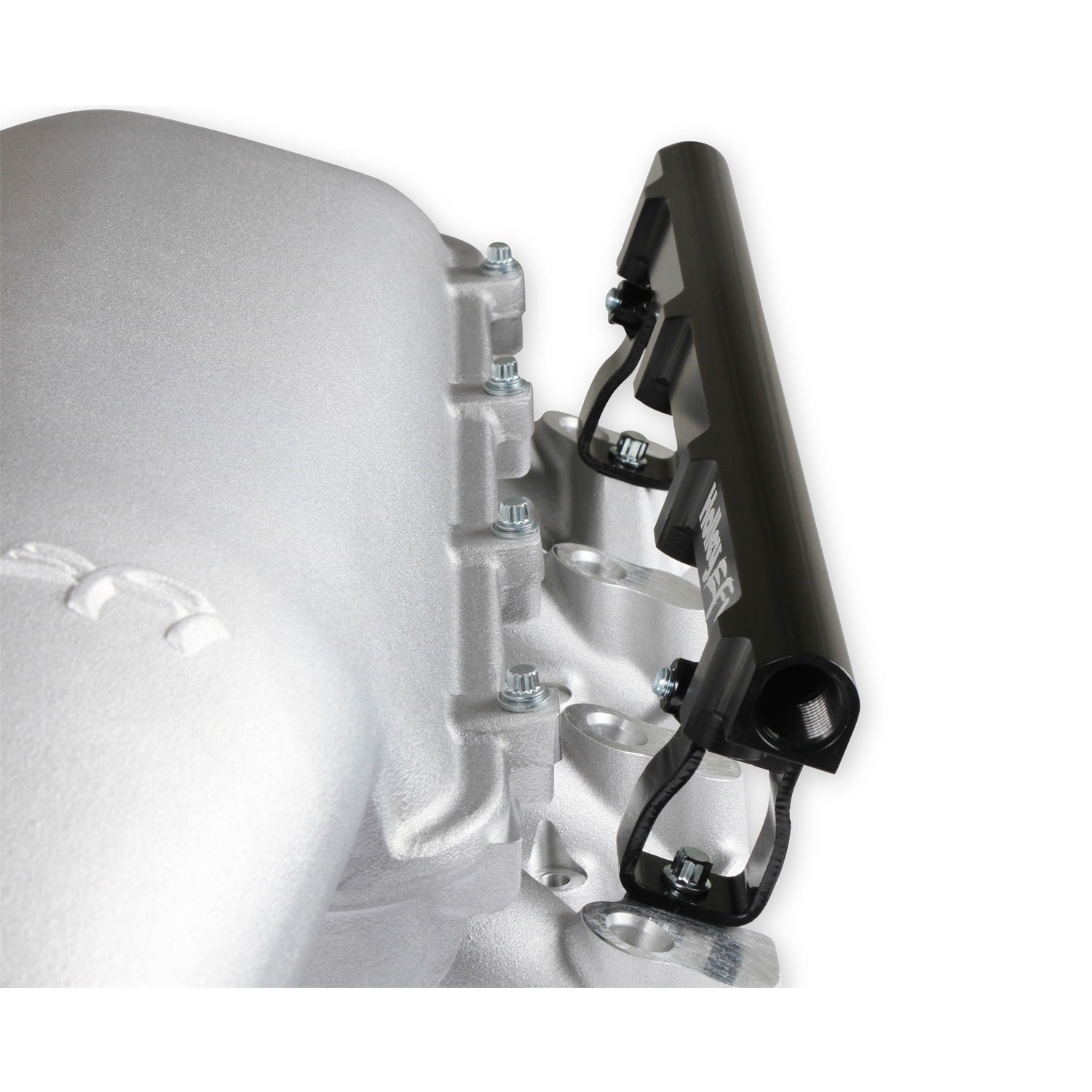

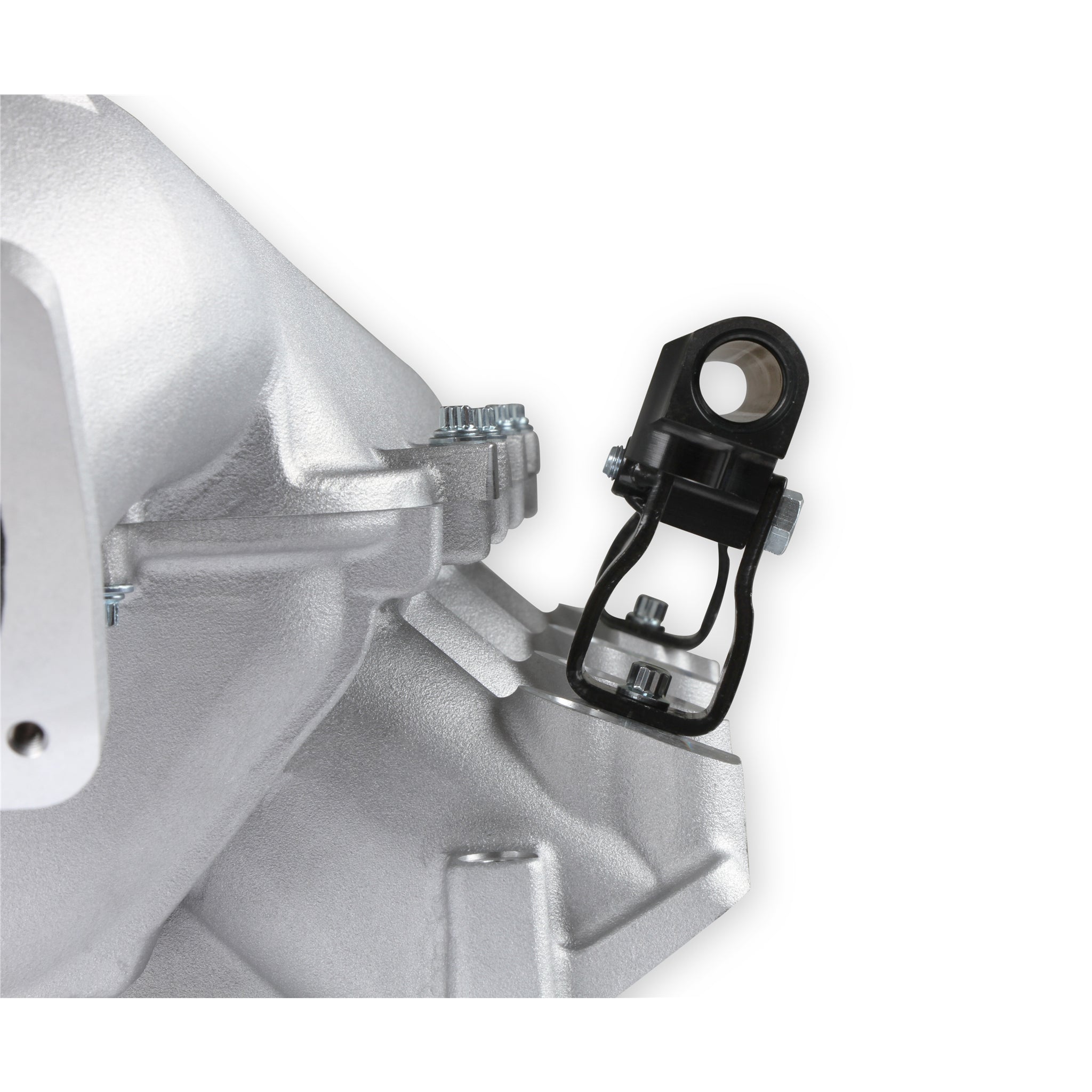

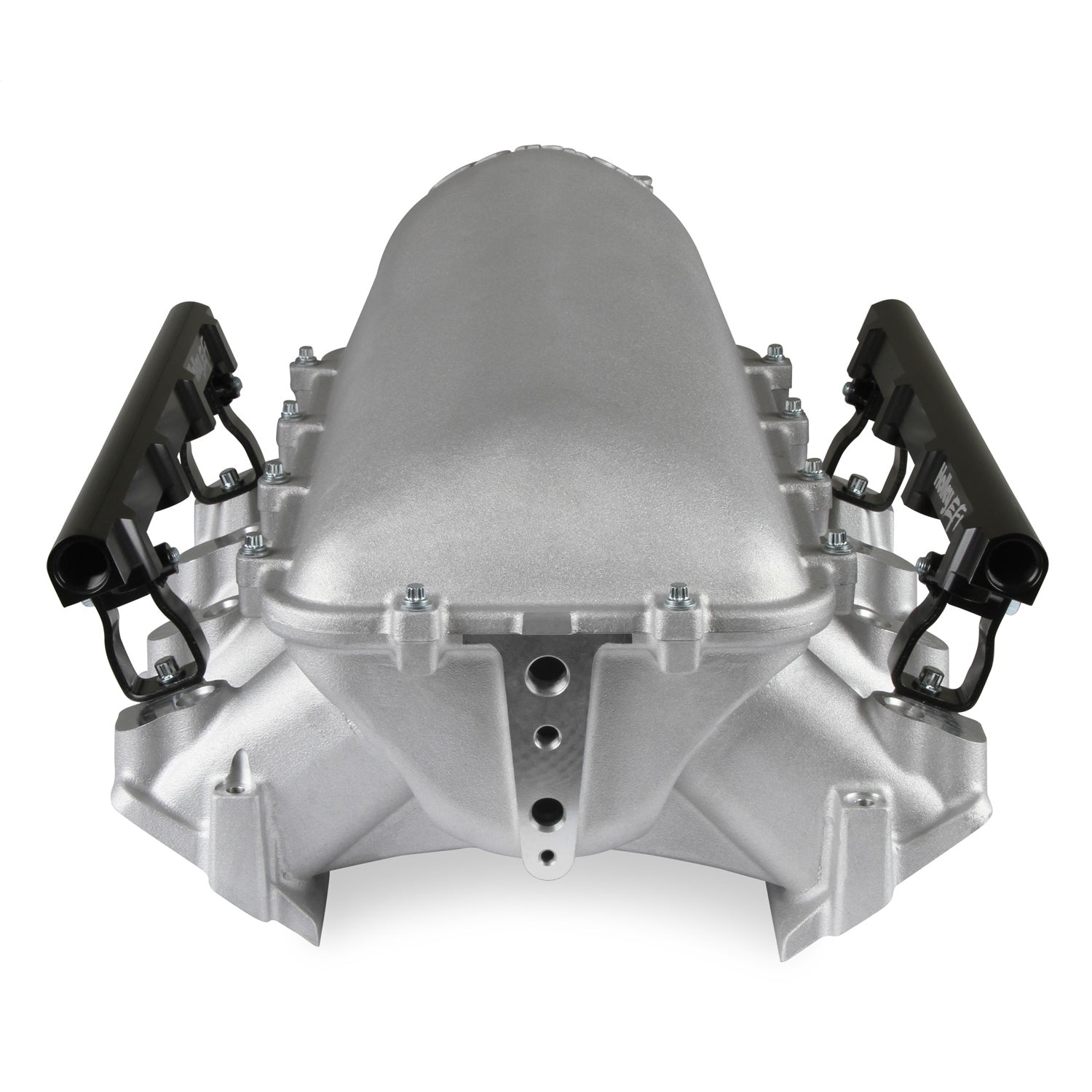

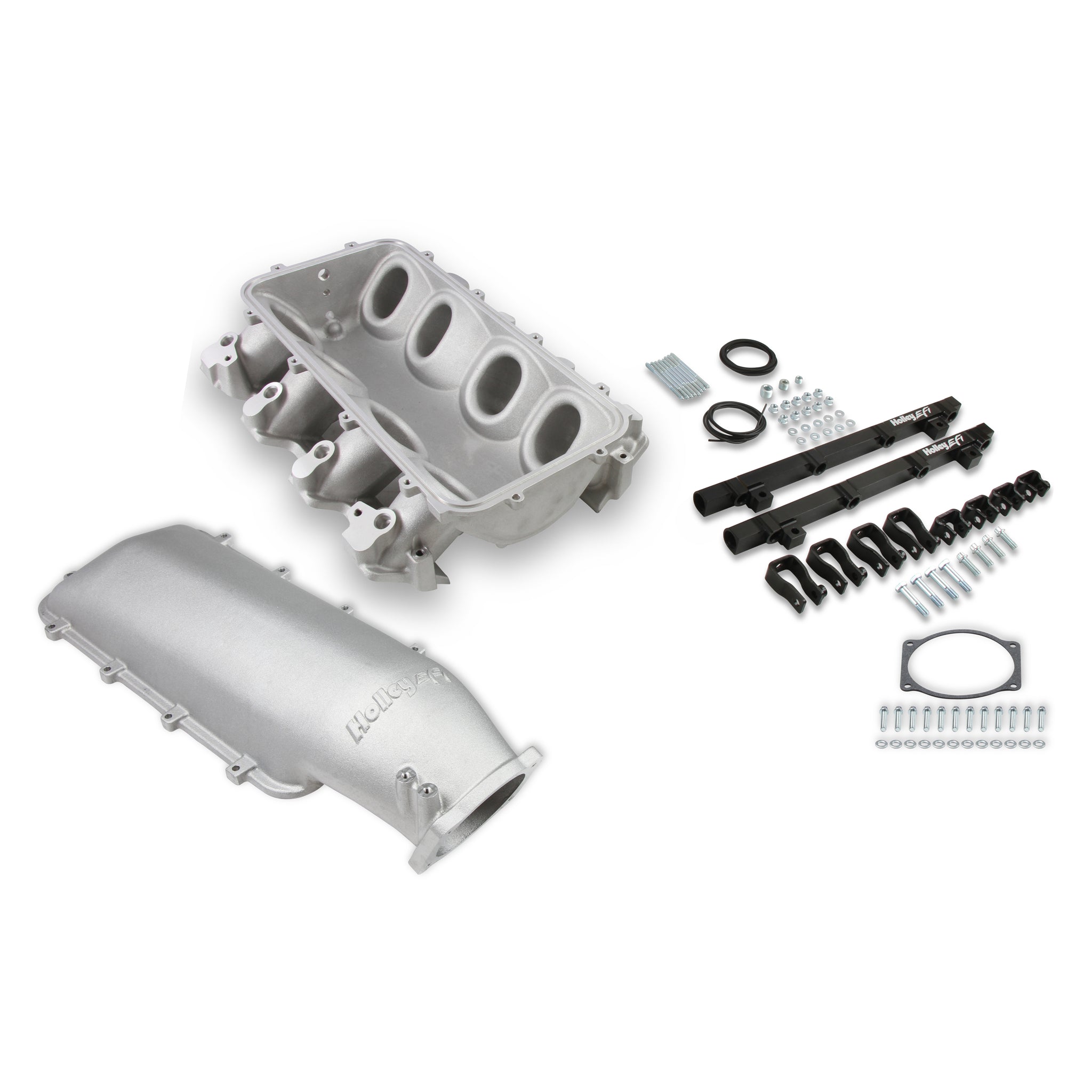

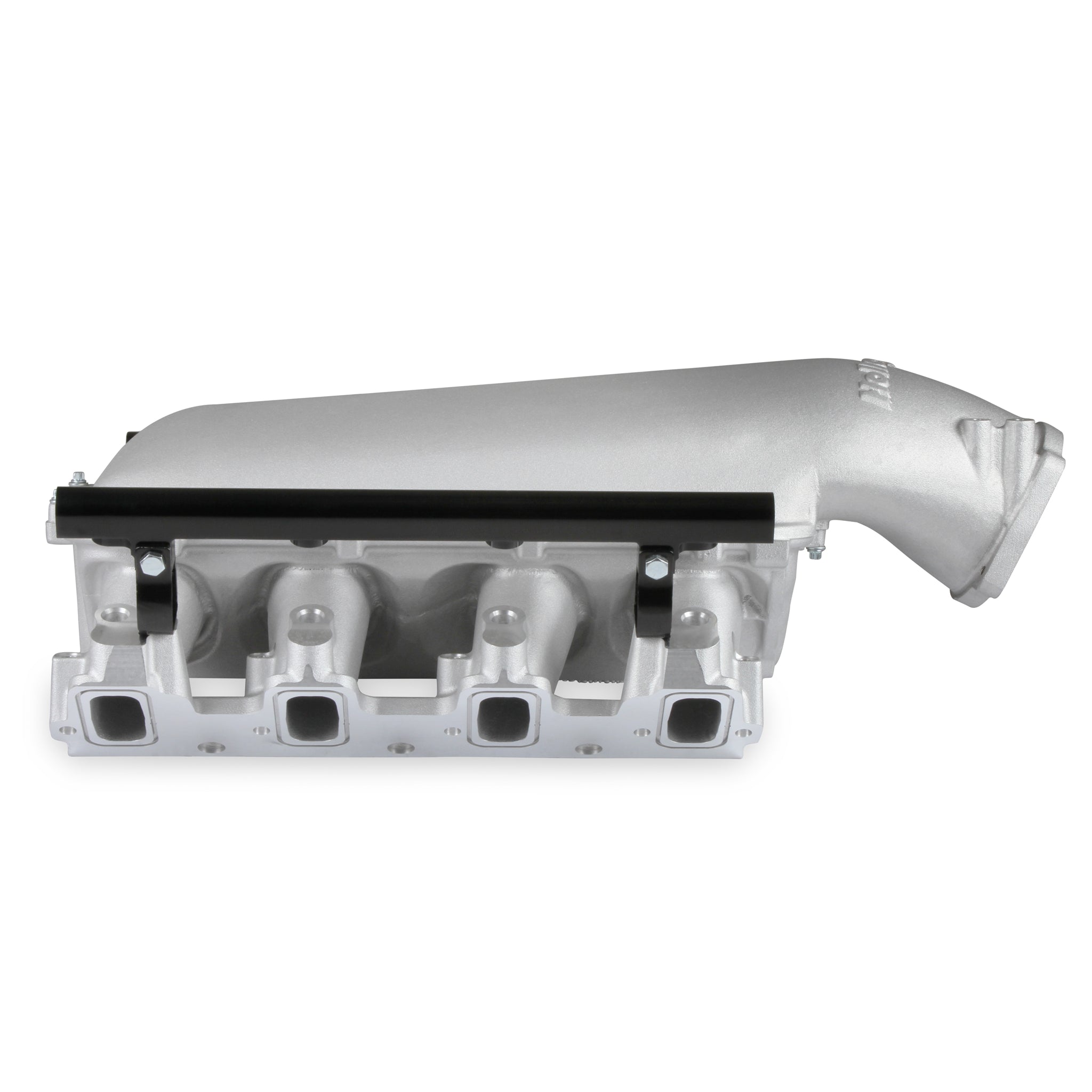

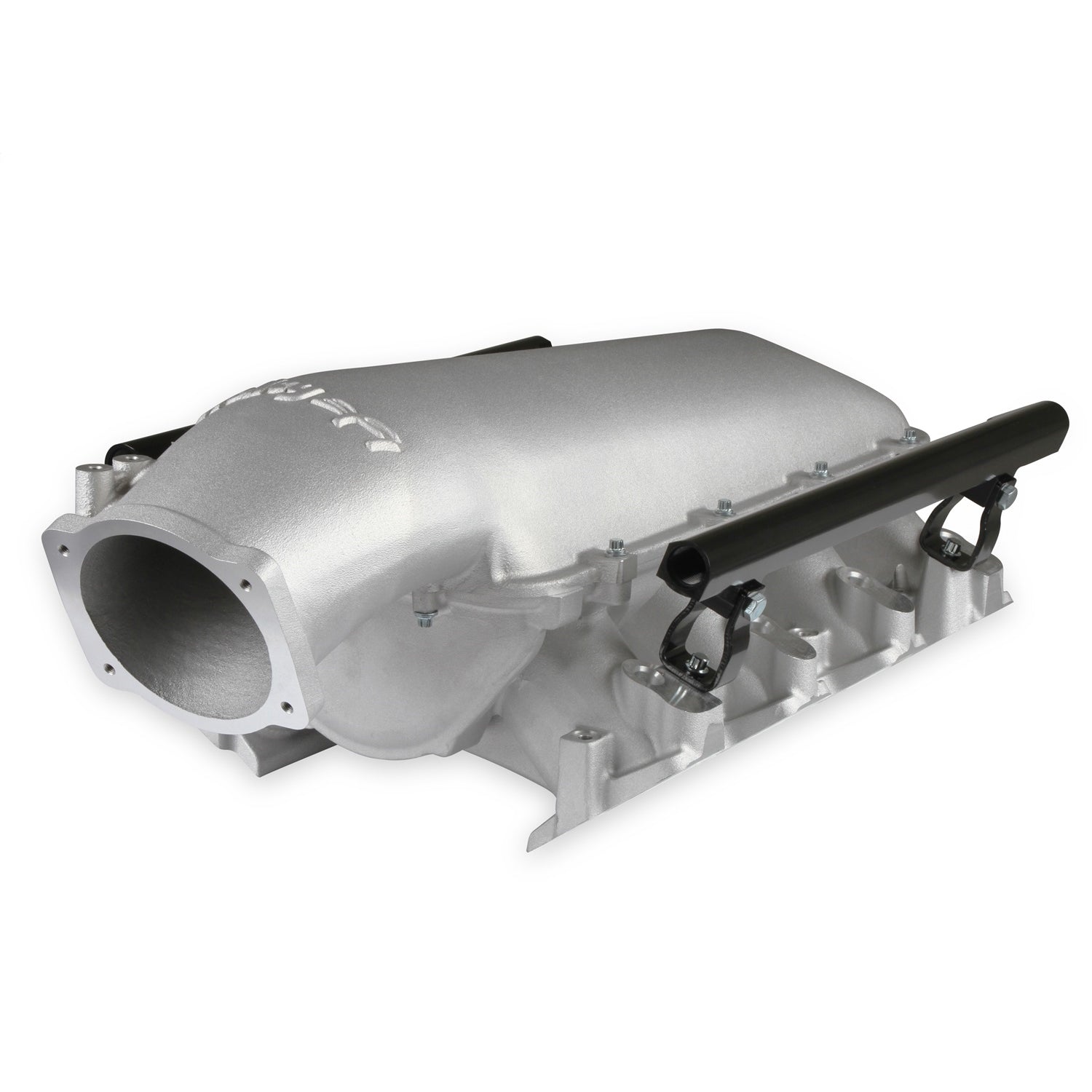

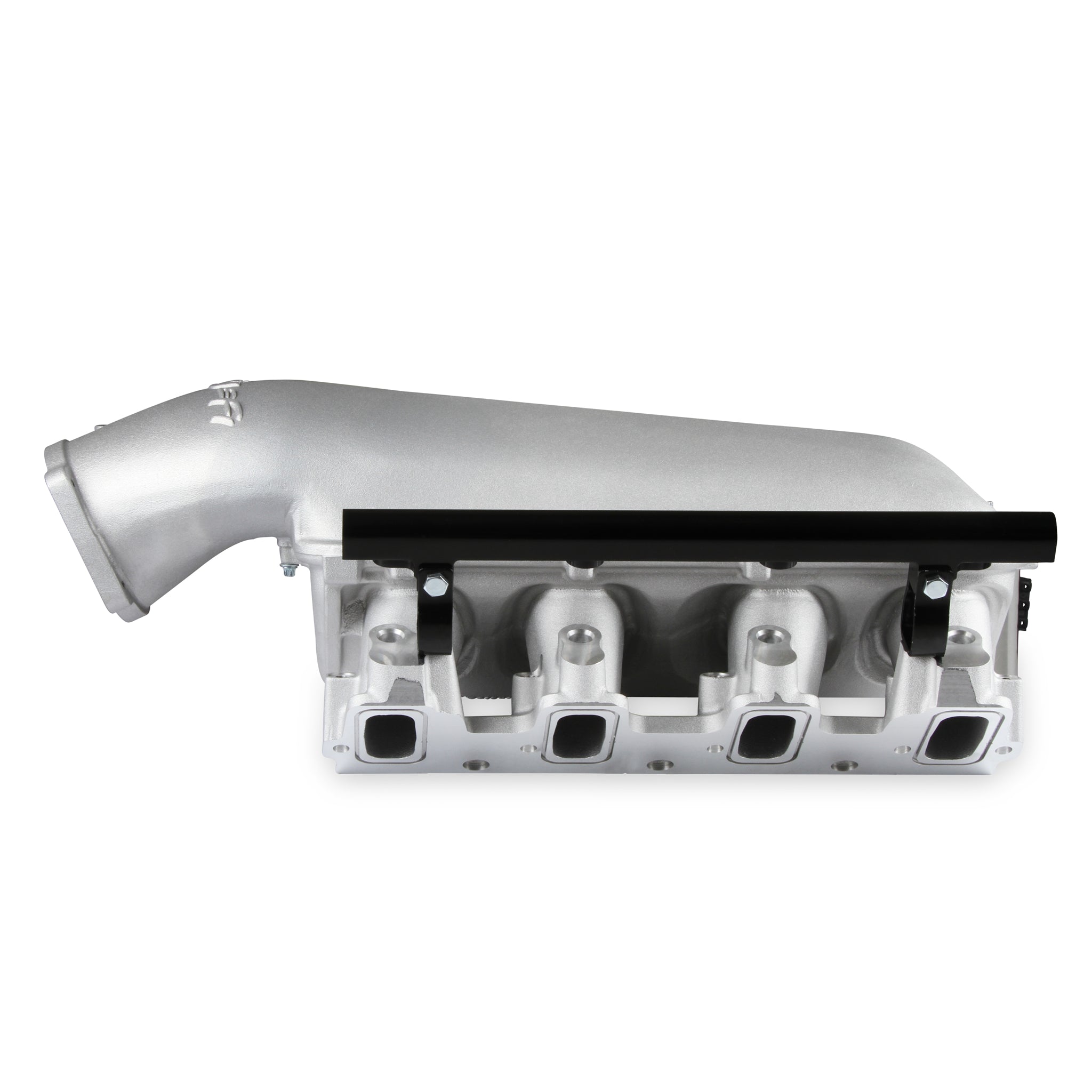

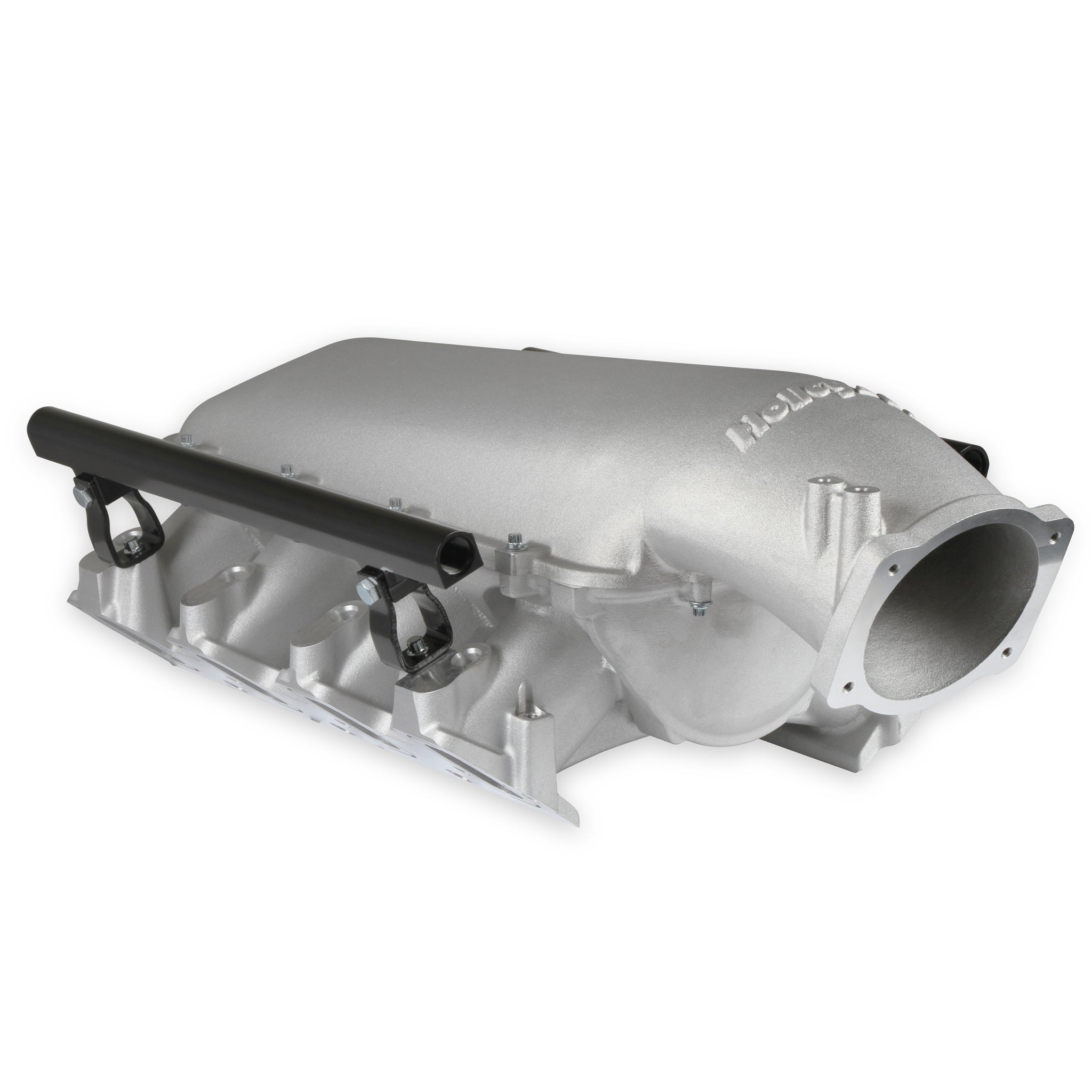

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)

Specifications:

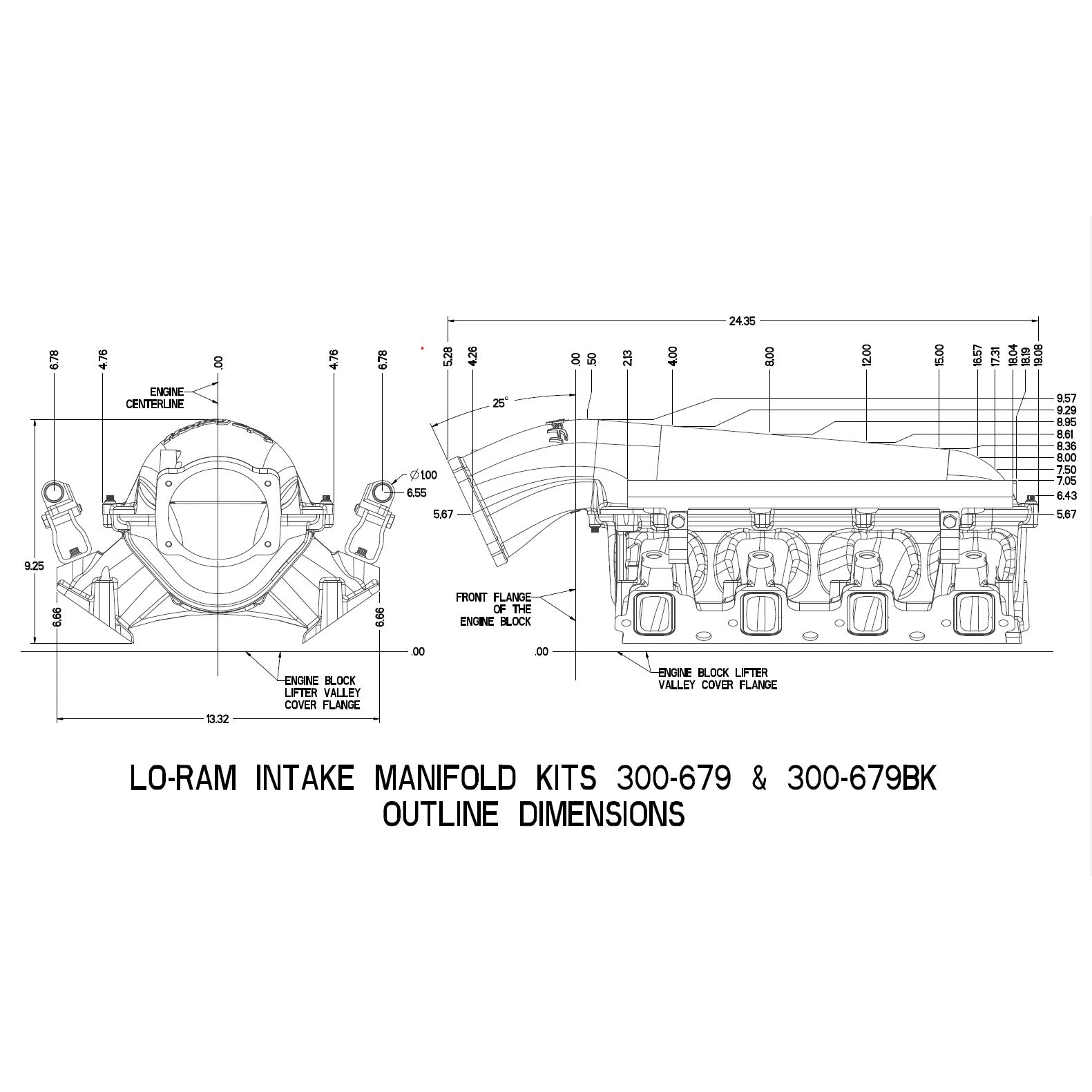

Description_ASC Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
Description_DEF Engine Intake Manifold
Description_EXT Holley EFI Lo-Ram Intake Manifold Kit; Upper; LS3; Single Injector Top Feed; Silver Cast Satin Finish; 9.25 in. W/O Intercooler;
Description_DES Holley Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92
Description_FAB Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
Description_FAB Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm
Description_FAB Modular design allowing the use of the included plenum entry
Description_FAB Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

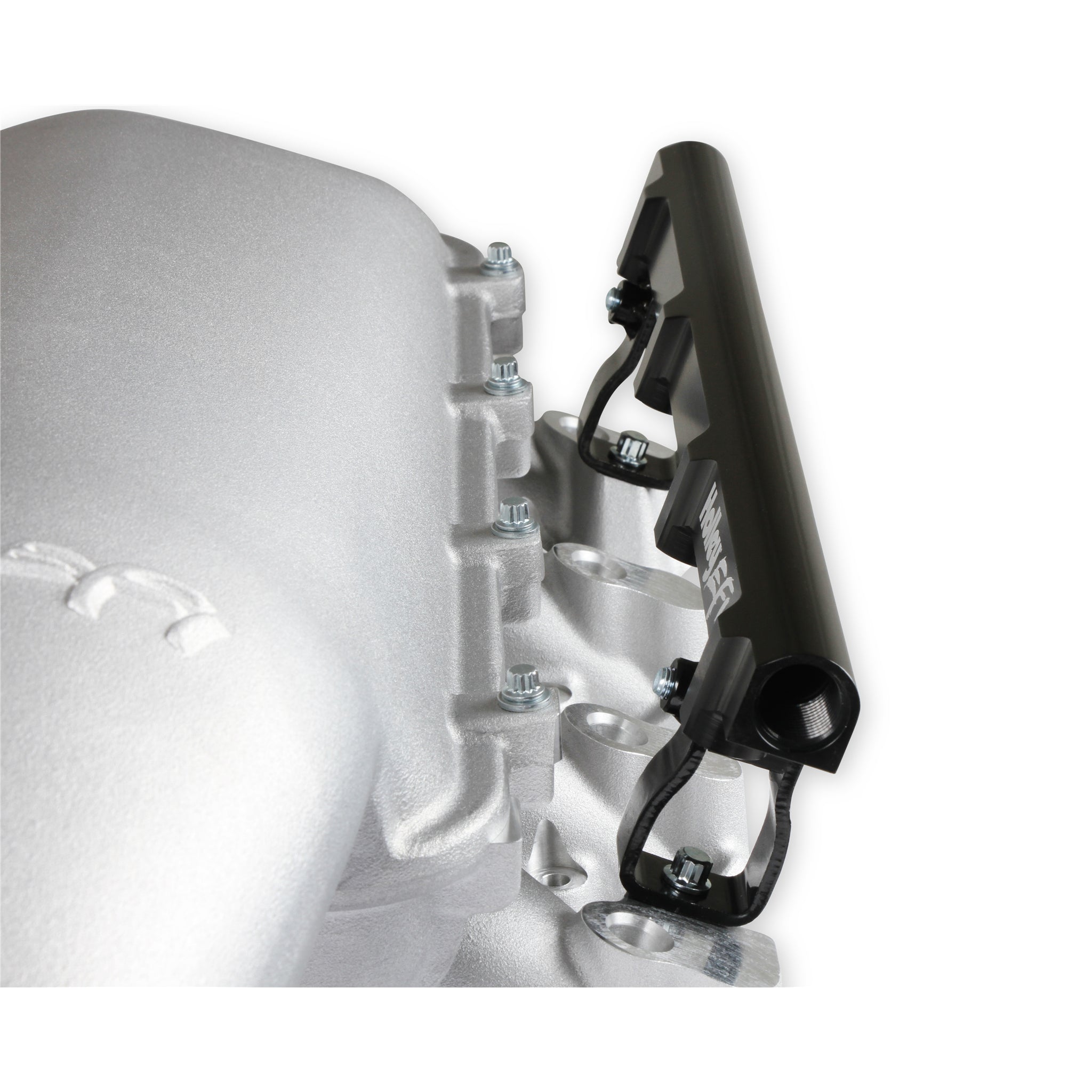

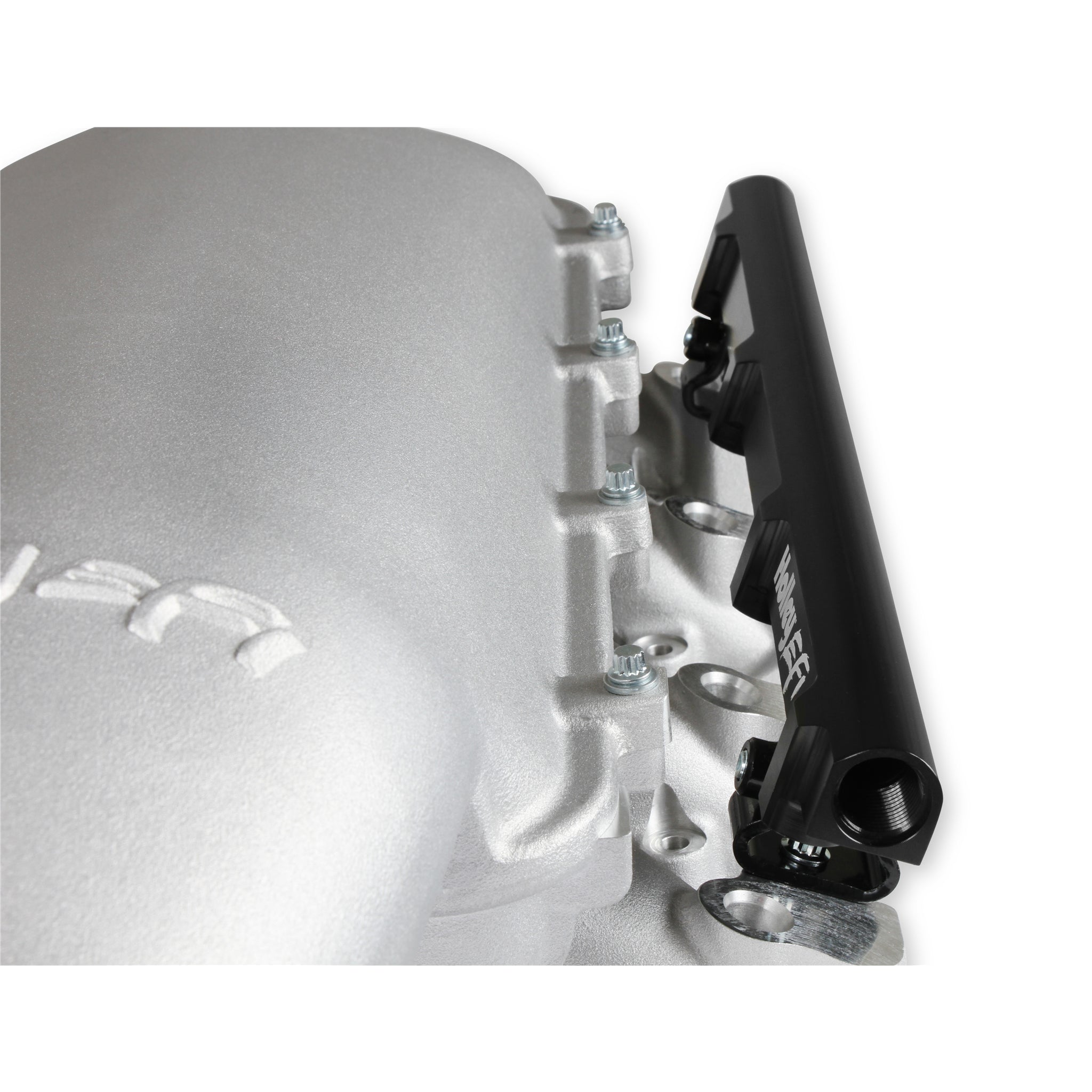

Description_FAB High volume fuel rails for eight and sixteen injector configurations.
Description_FAB Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
Description_INV LS3 LO-RAM MANIFOLD KIT, SINGLE INJECTOR
Description_SHO Intake Manifold
Description_MKT The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
Fuel System Type EFI
Sale Category Air and Fuel Delivery
Flange Style EFI
Injector Quantity Single
RPM Power Band 3500-8000 RPM
Engine Make/Size Chevy LS3
Construction Cast
RPM Range 7000-8000
Manifold Type Lo-Ram
Recommended Use Forced Induction
Color Silver
Number of Carbs None; For Fuel Injection
WARNING CA Proposition 65 No
Front Height 9.25" without Intercooler
Product Type Intake Manifold
Warranty Limited 90 Day
Usage Street/Strip
Cylinder Head Type LS3/L92
Position Upper
Emission N/A
Brand Holley EFI
Emission Code 3
Engine GM LS3/L92
Finish Silver
Inlet Location Top
Length 16.0000
Width 16.0000
Height 25.0000
Weight 28.0000
