Holley 300-621 Modular Ultra Lo-Ram Efi Manifold Ls1/2/6

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_300-621

Stock:

Product Code: Engine Intake Manifold

$1,603.75

Quantity

Subtotal: $1,603.75

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 300-621 Modular Ultra Lo-Ram Efi Manifold Ls1/2/6

Details
Reviews

Details

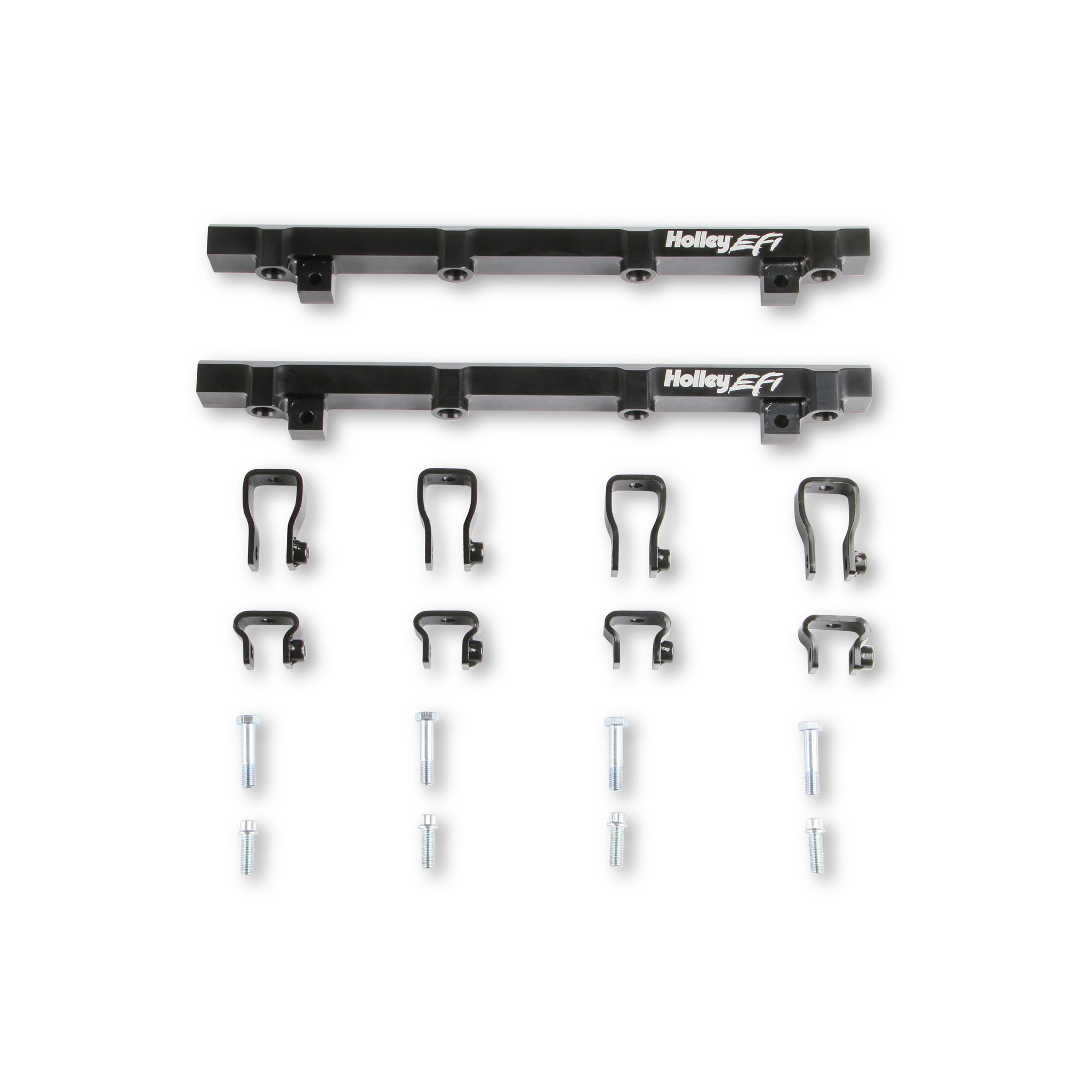

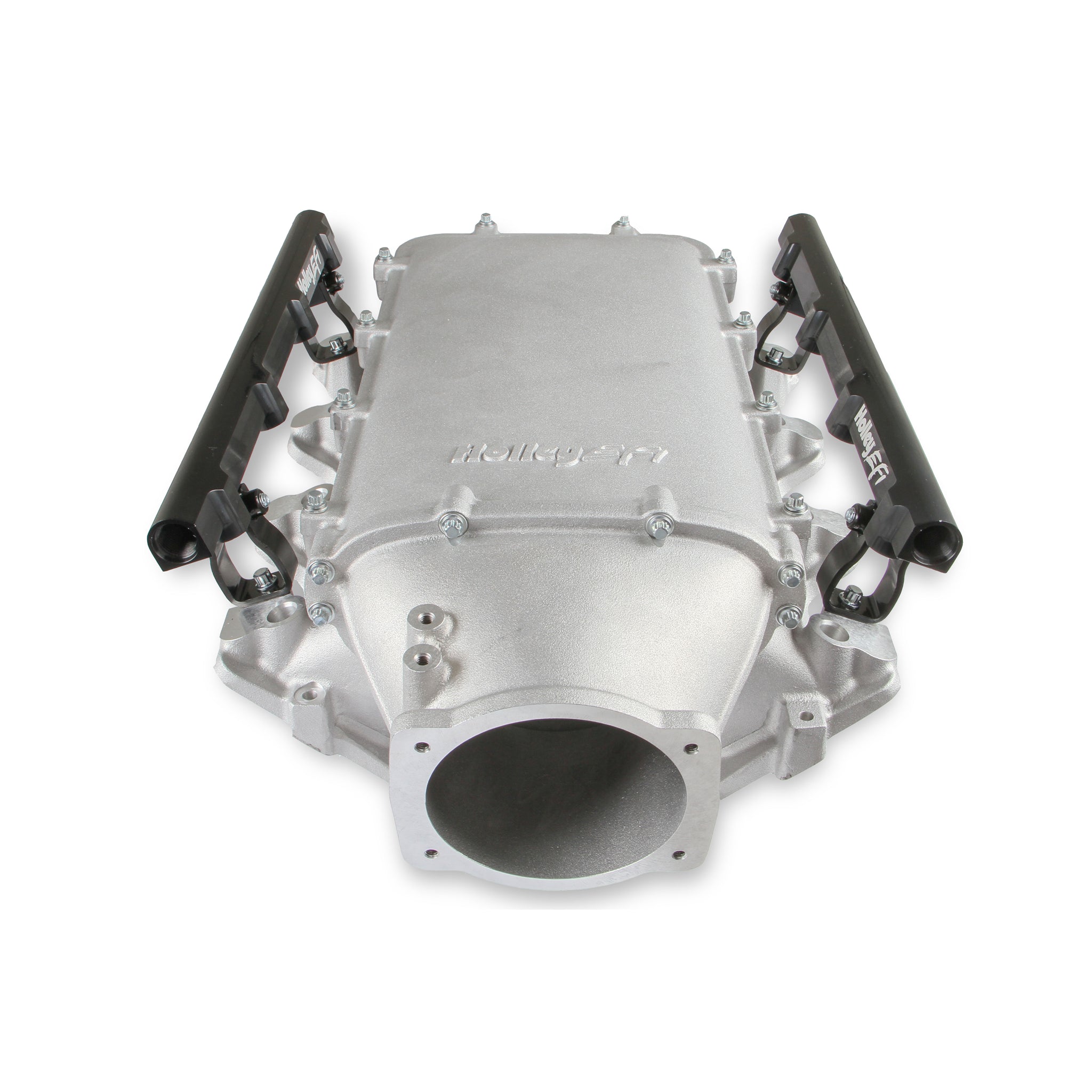

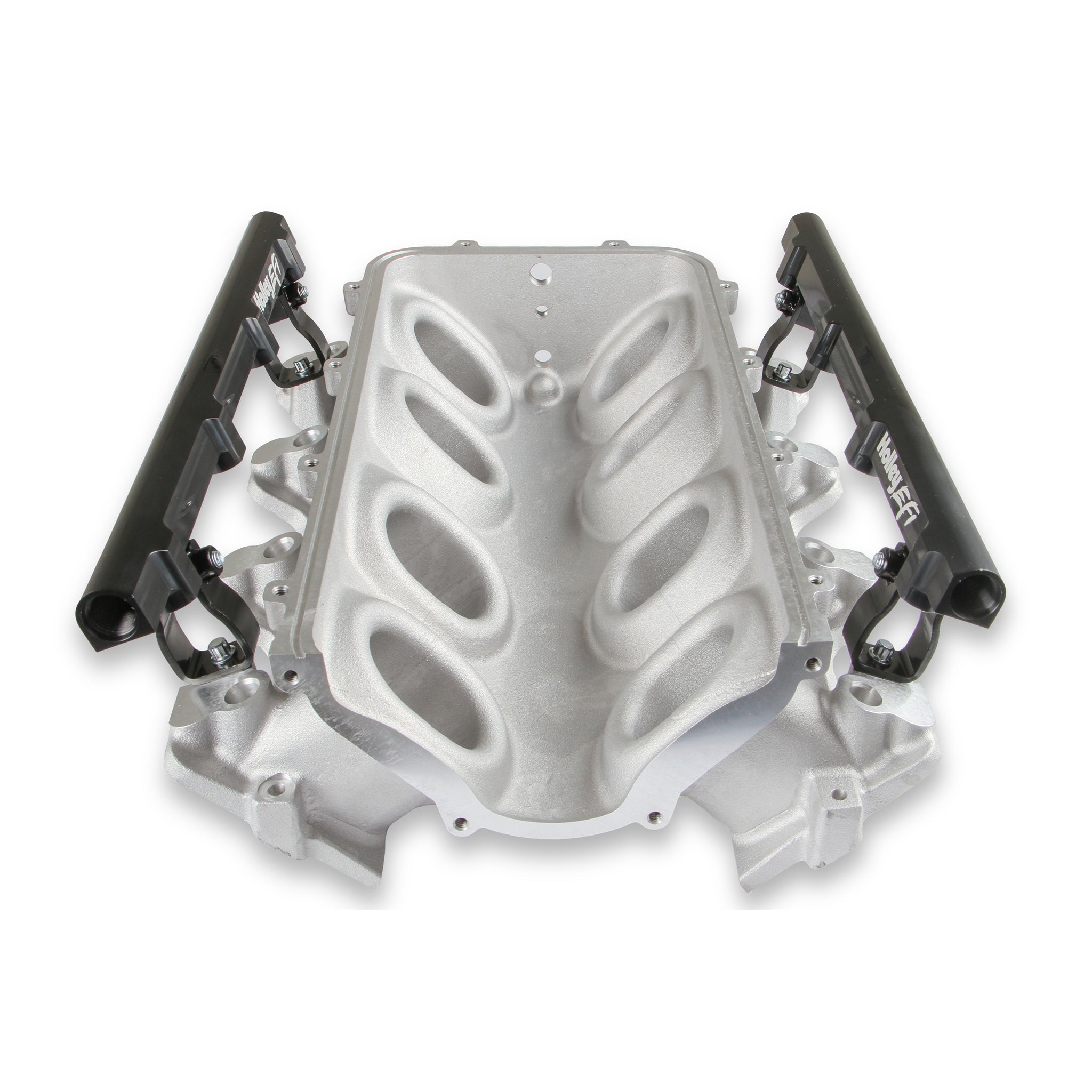

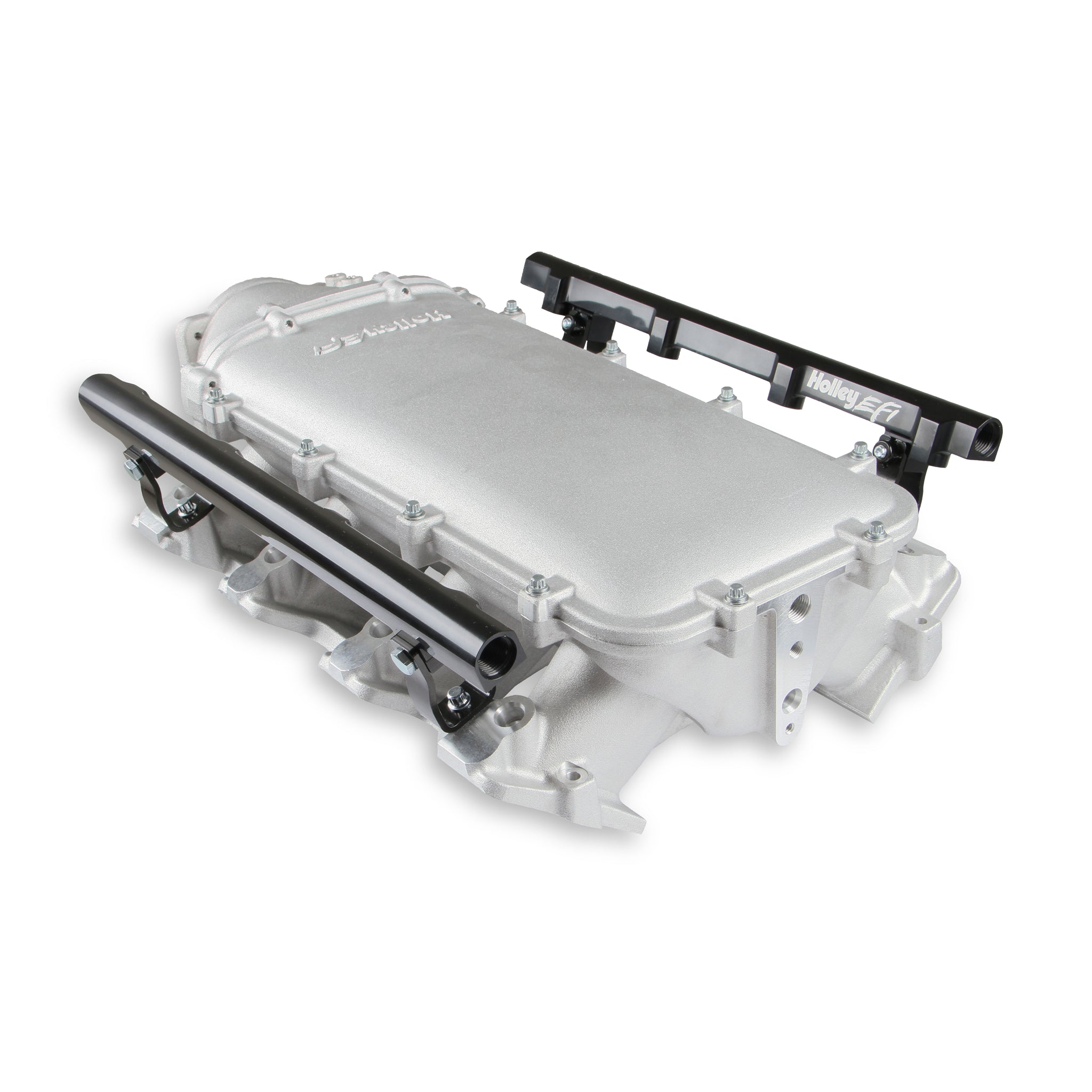

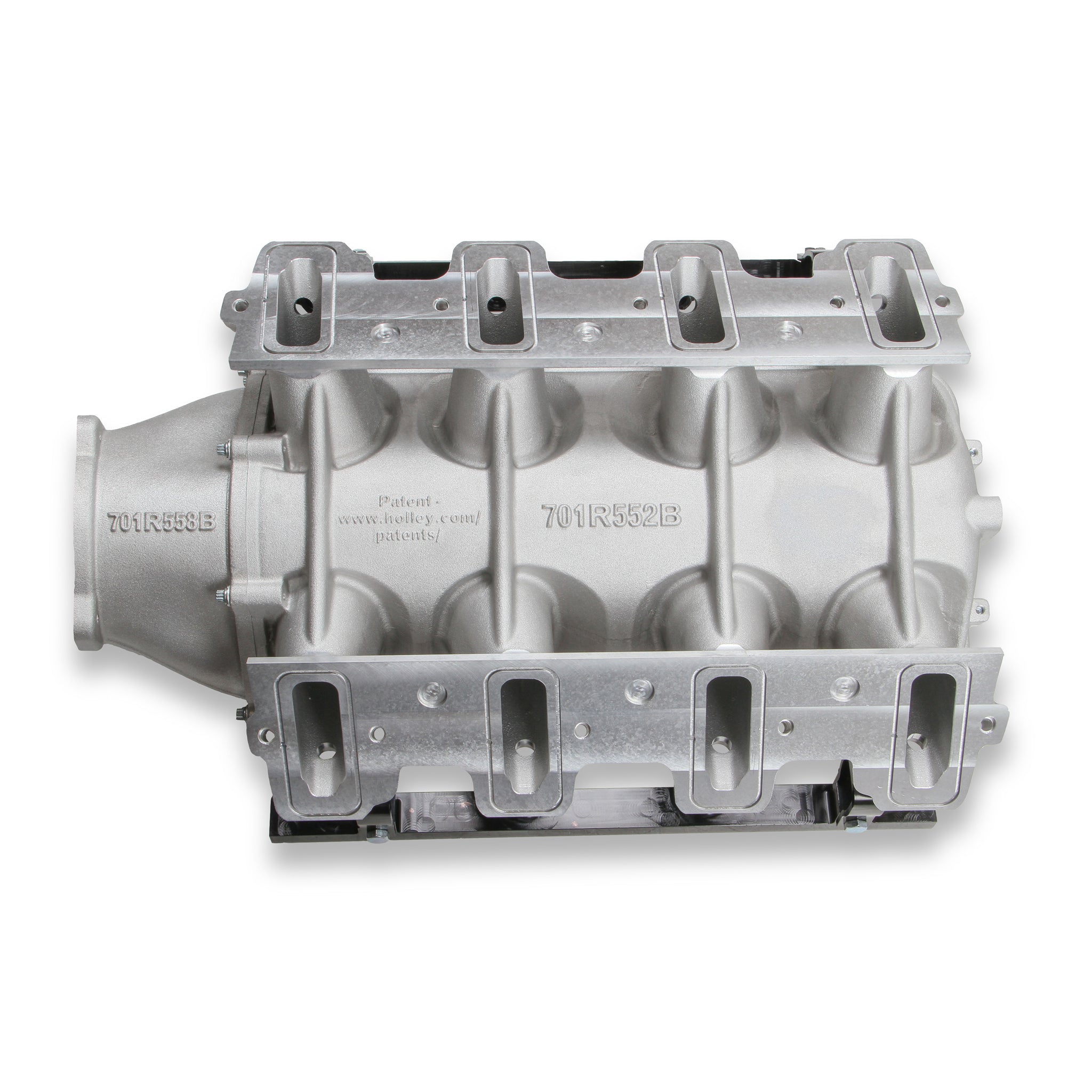

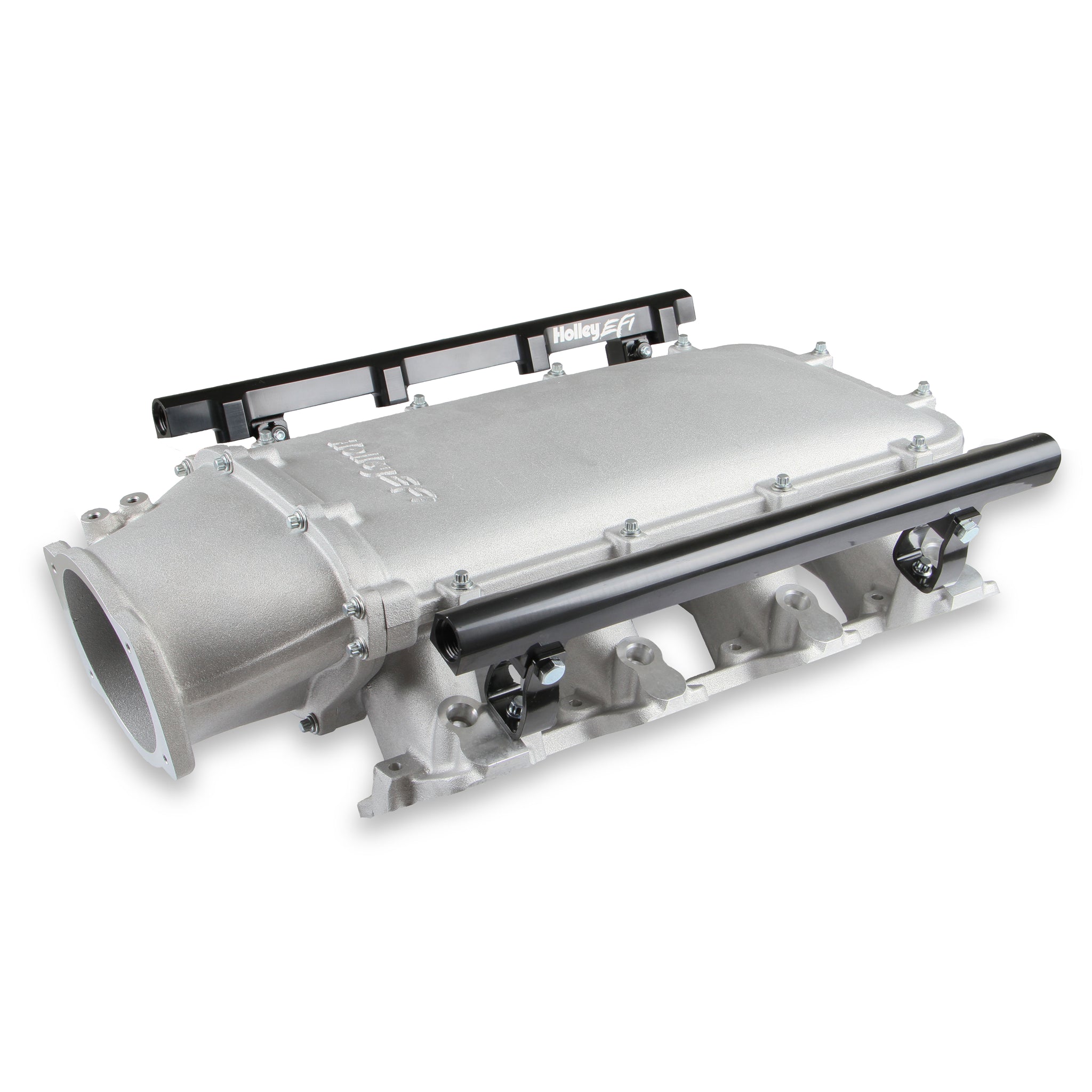

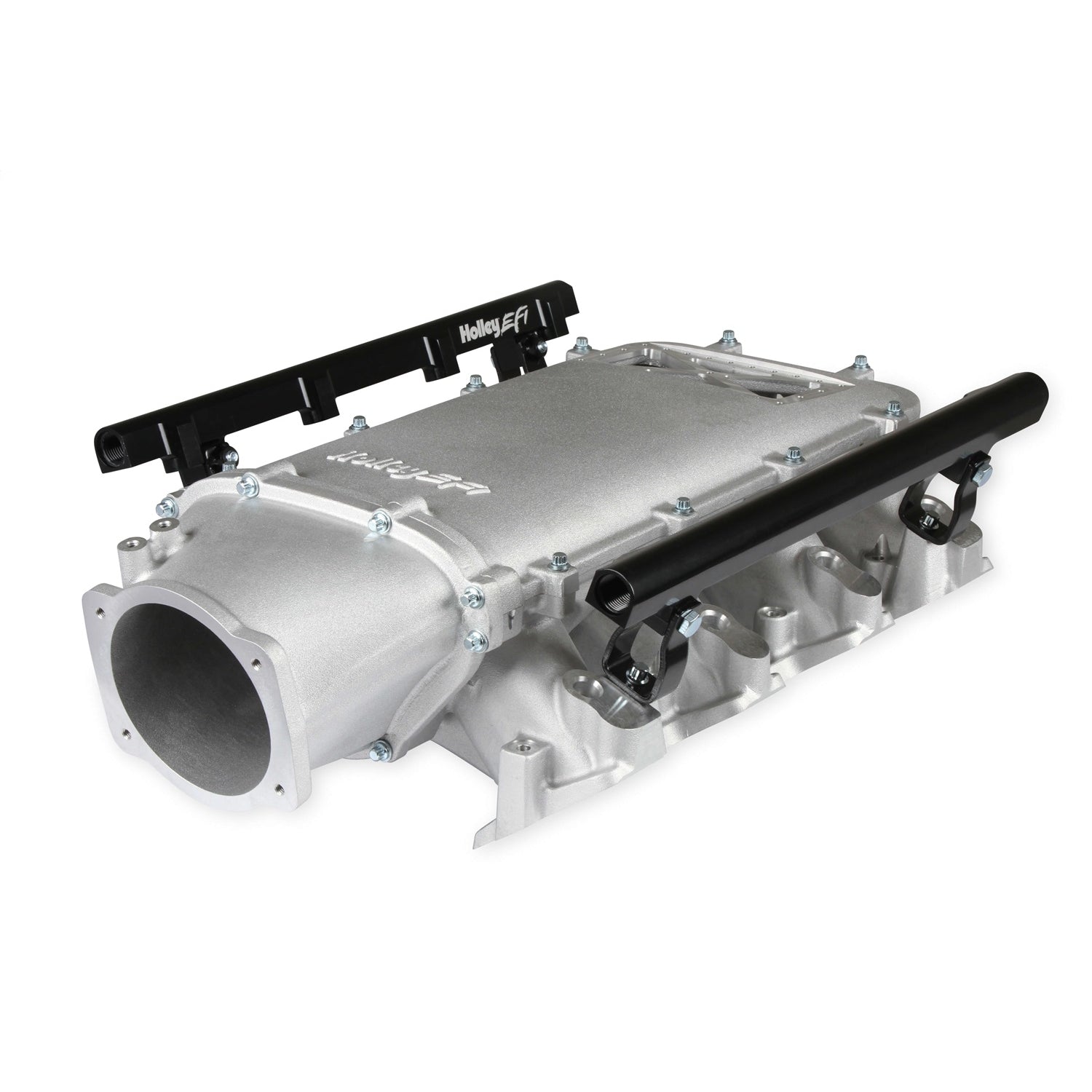

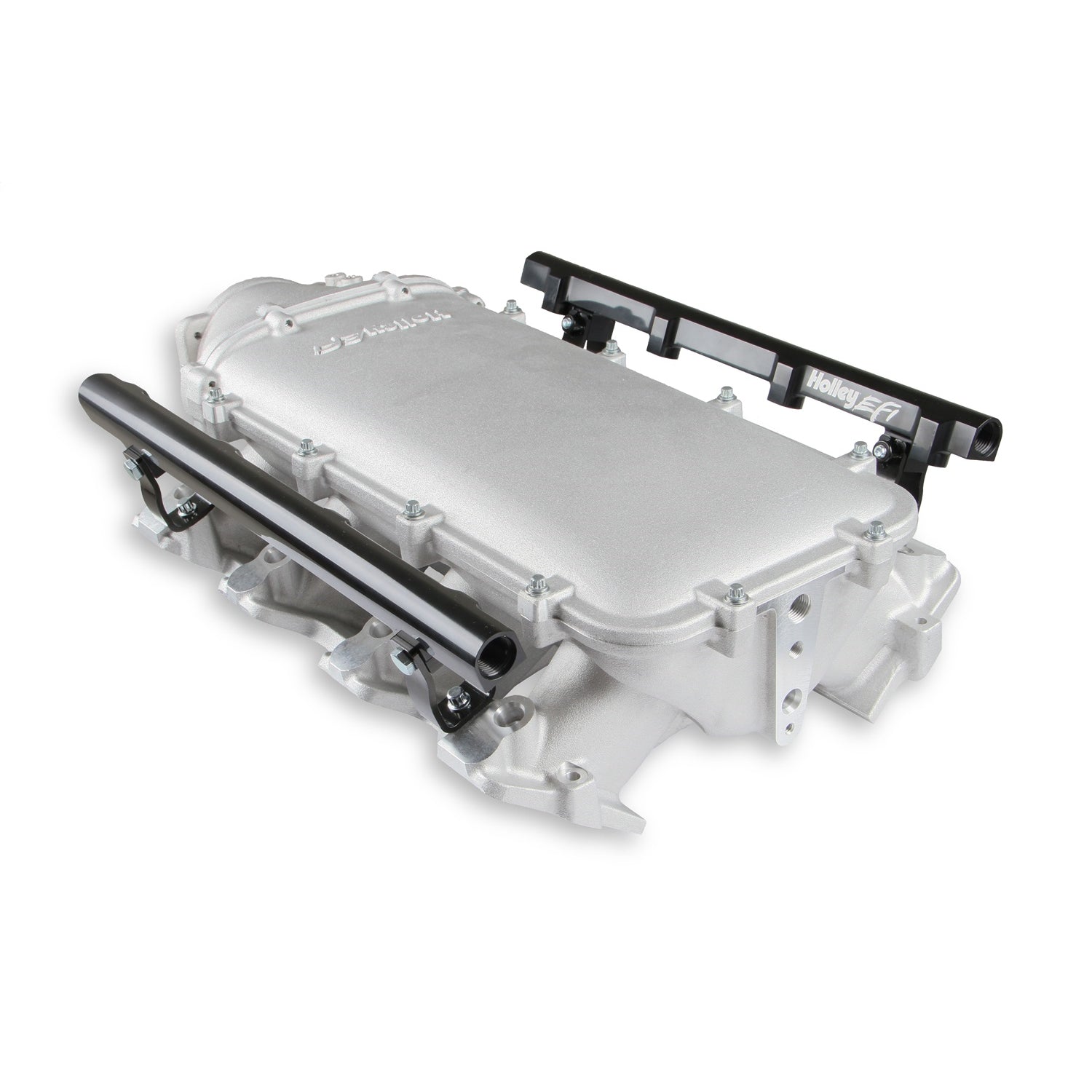

The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The 300-621 Lo-Ram plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

Specifications:

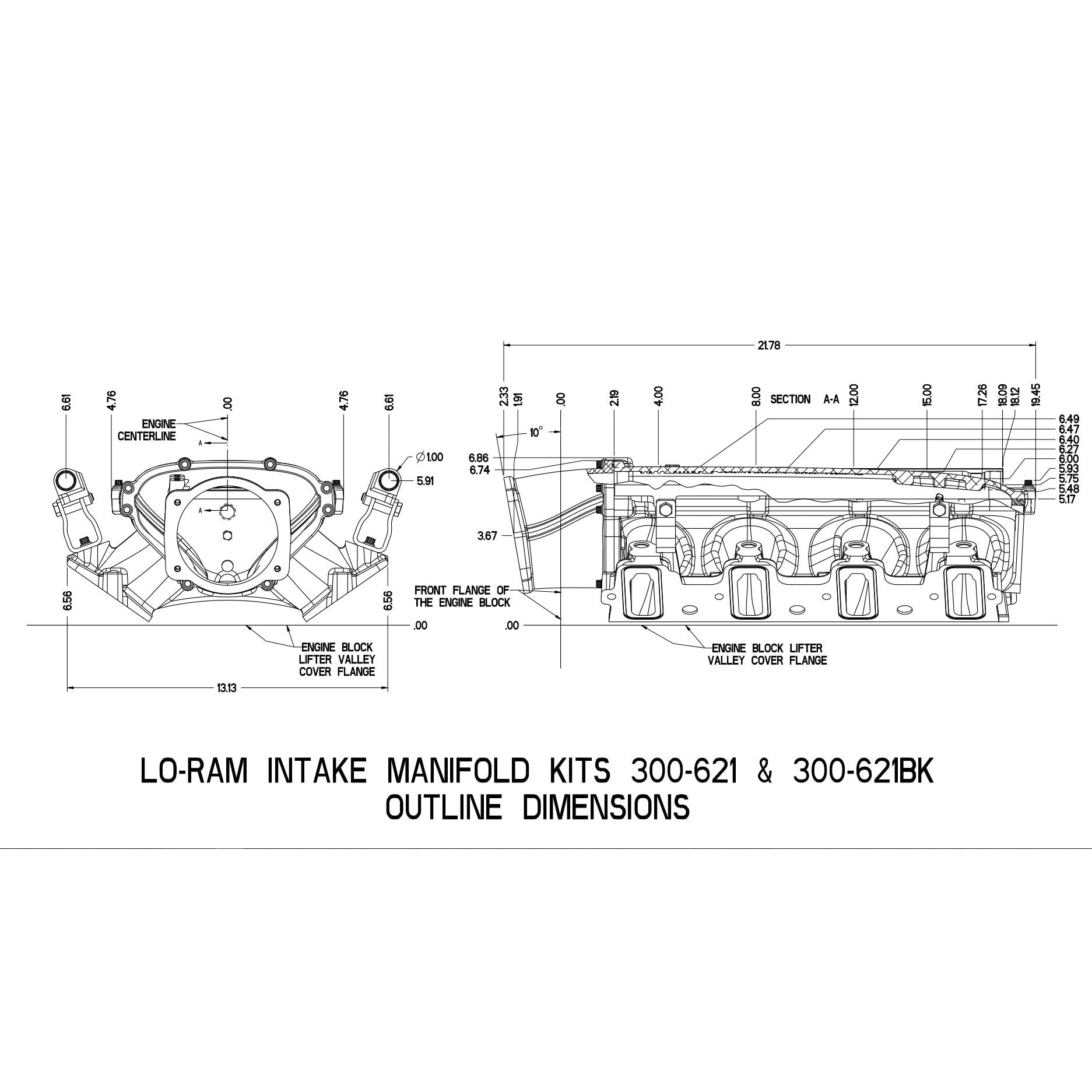

Description_ASC	Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.17" Front Feed Plenum Configuration w/105mm Throttle Body Adapter - 6.86"
Description_DEF	Engine Intake Manifold
Description_DES	Holley Modular Ultra Lo-Ram EFI Manifold LS1/2/6
Description_INV	KIT, INT. MANIFOLD, LS1 LO-RAM, SATIN
Description_EXT	Holley EFI Lo-Ram Intake Manifold; Upper; Fits GM Engines w/LS1/2/6 Cathedral Ports Cylinder Heads; Front-Feed Plenum w/105 mm.; Satin Finish;
Description_FAB	Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
Description_FAB	Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
Description_FAB	With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used

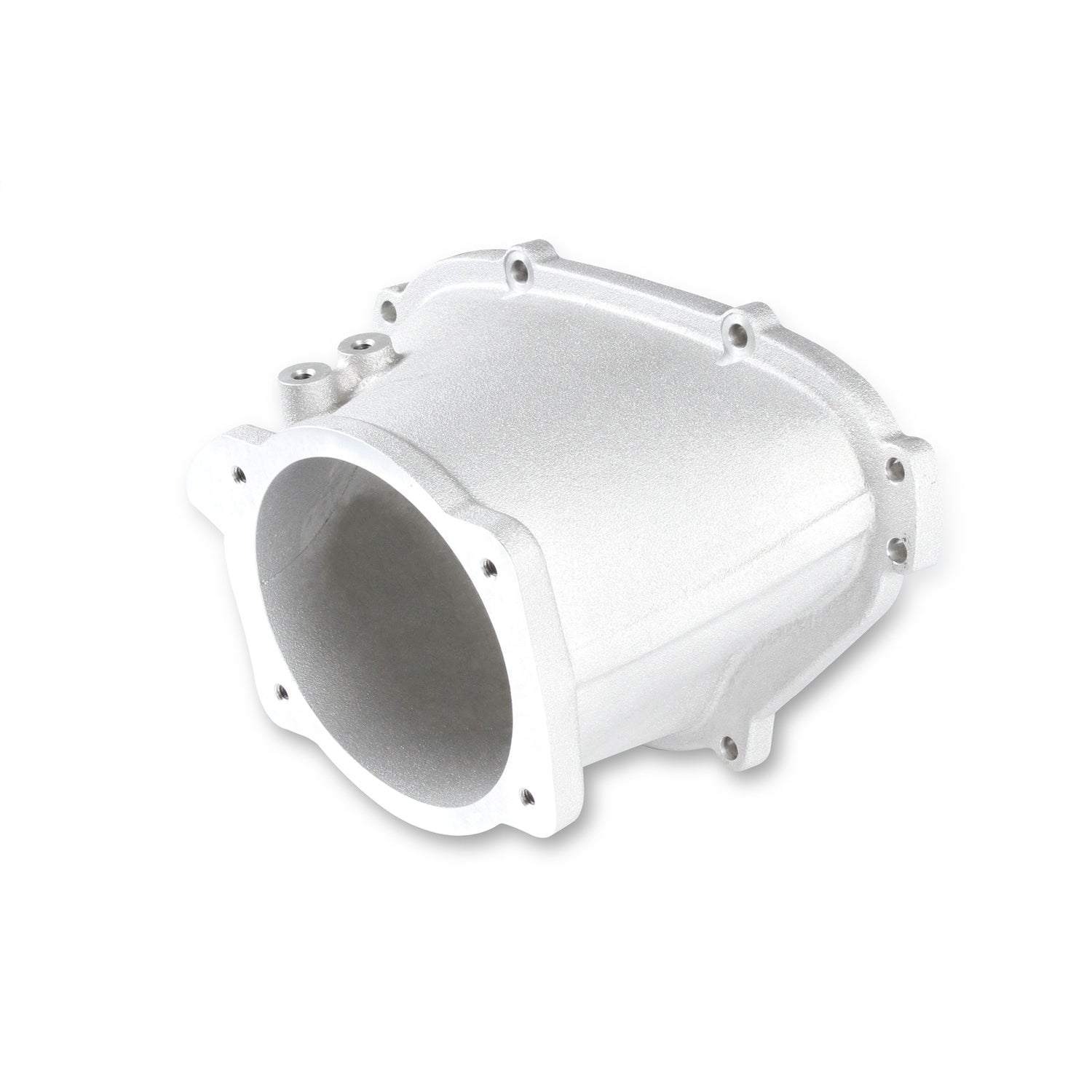

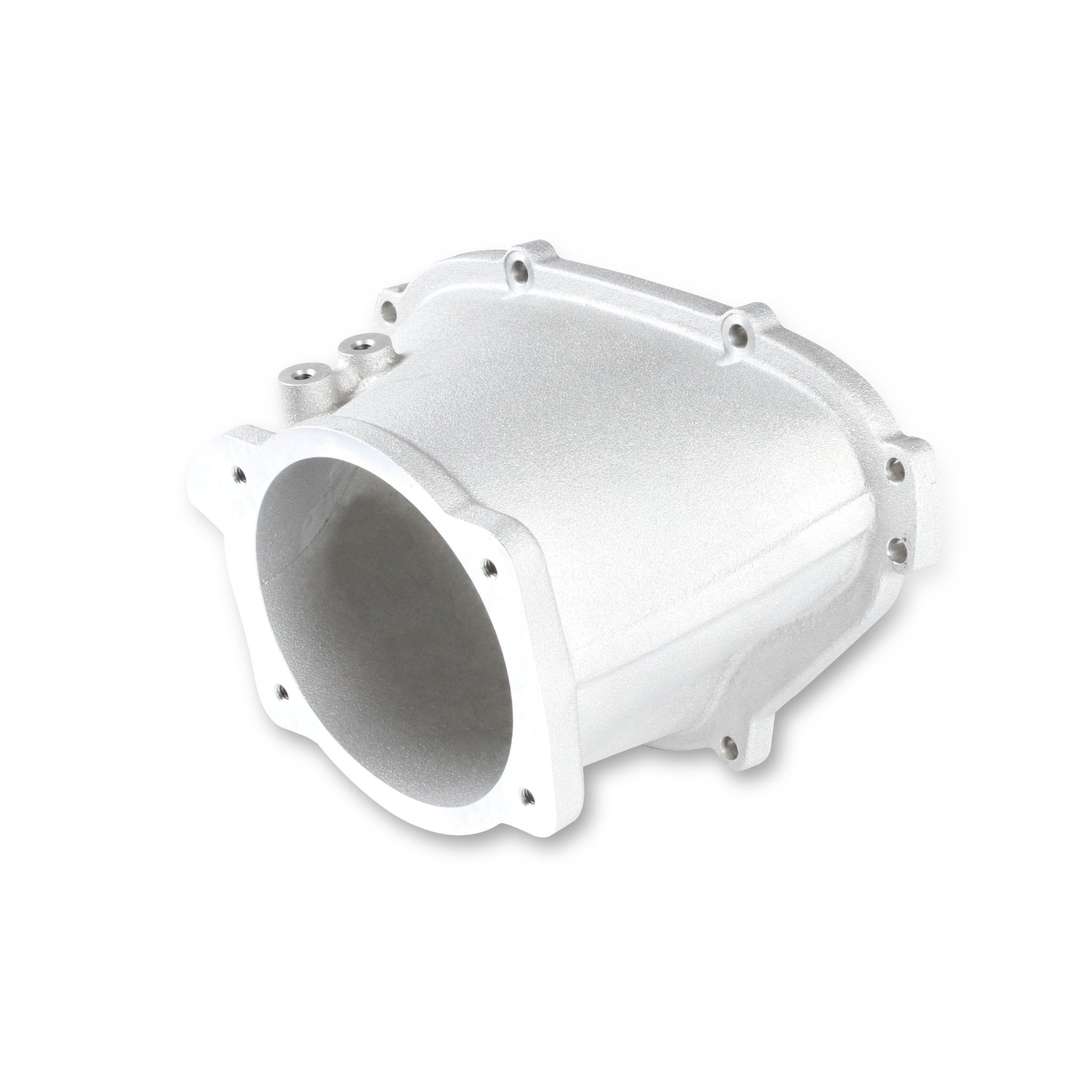

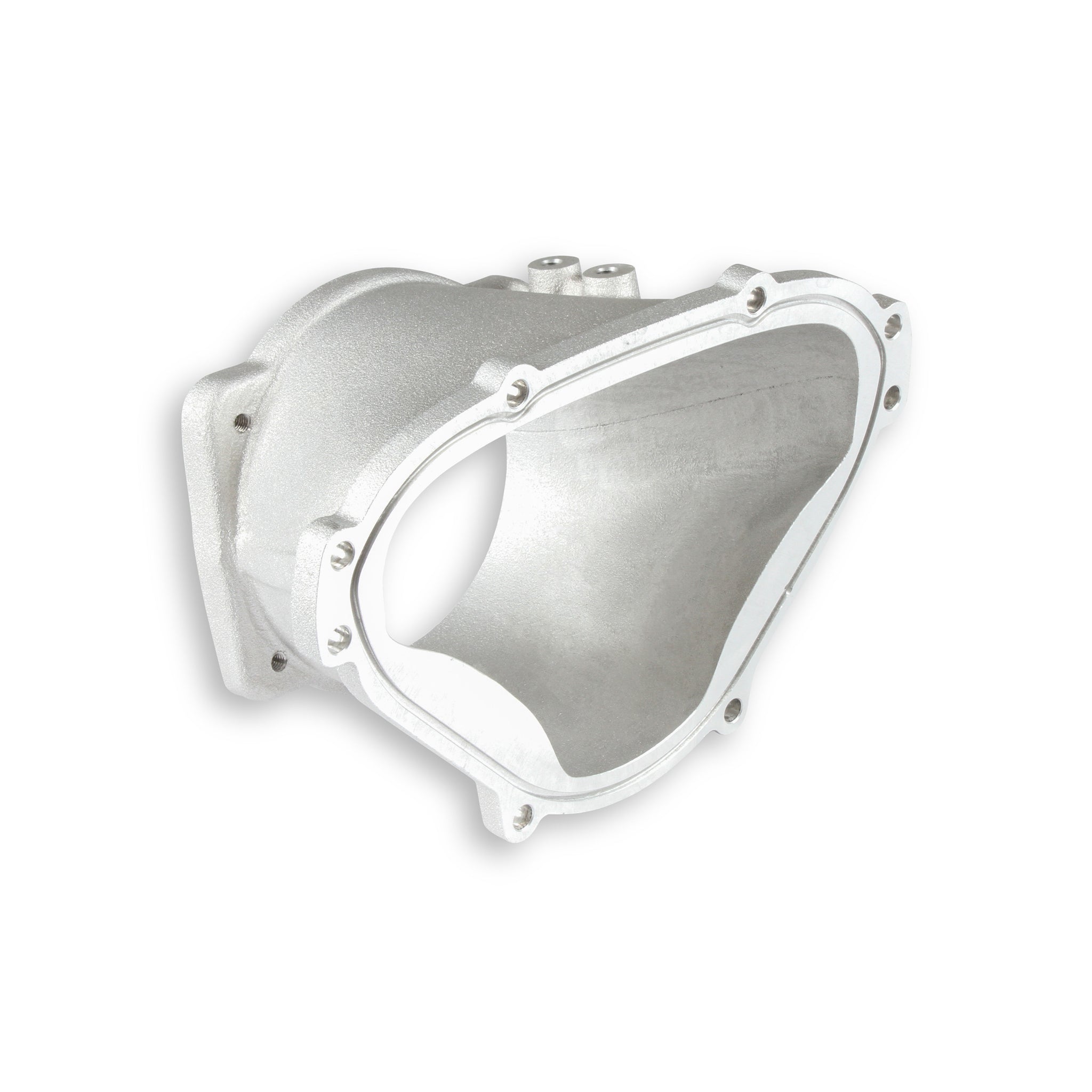

Description_FAB	Modular design allowing the use of front-feed plenum entry
Description_FAB	Intake design facilitates custom inlet duct and throttle body placement
Description_FAB	Low height to fit under a stock or mildly modified hood in the front configuration

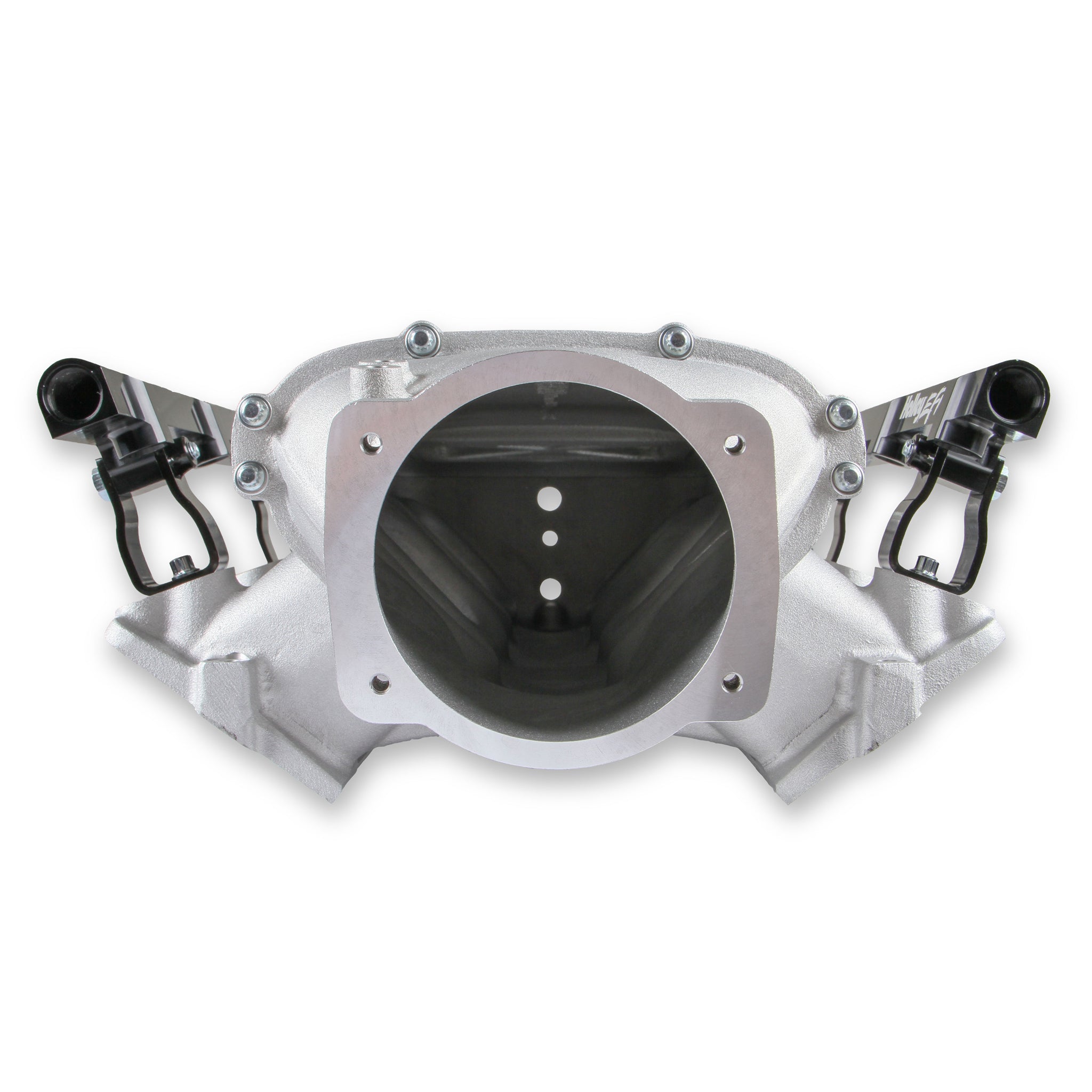

Description_FAB	Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
Description_FAB	Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification

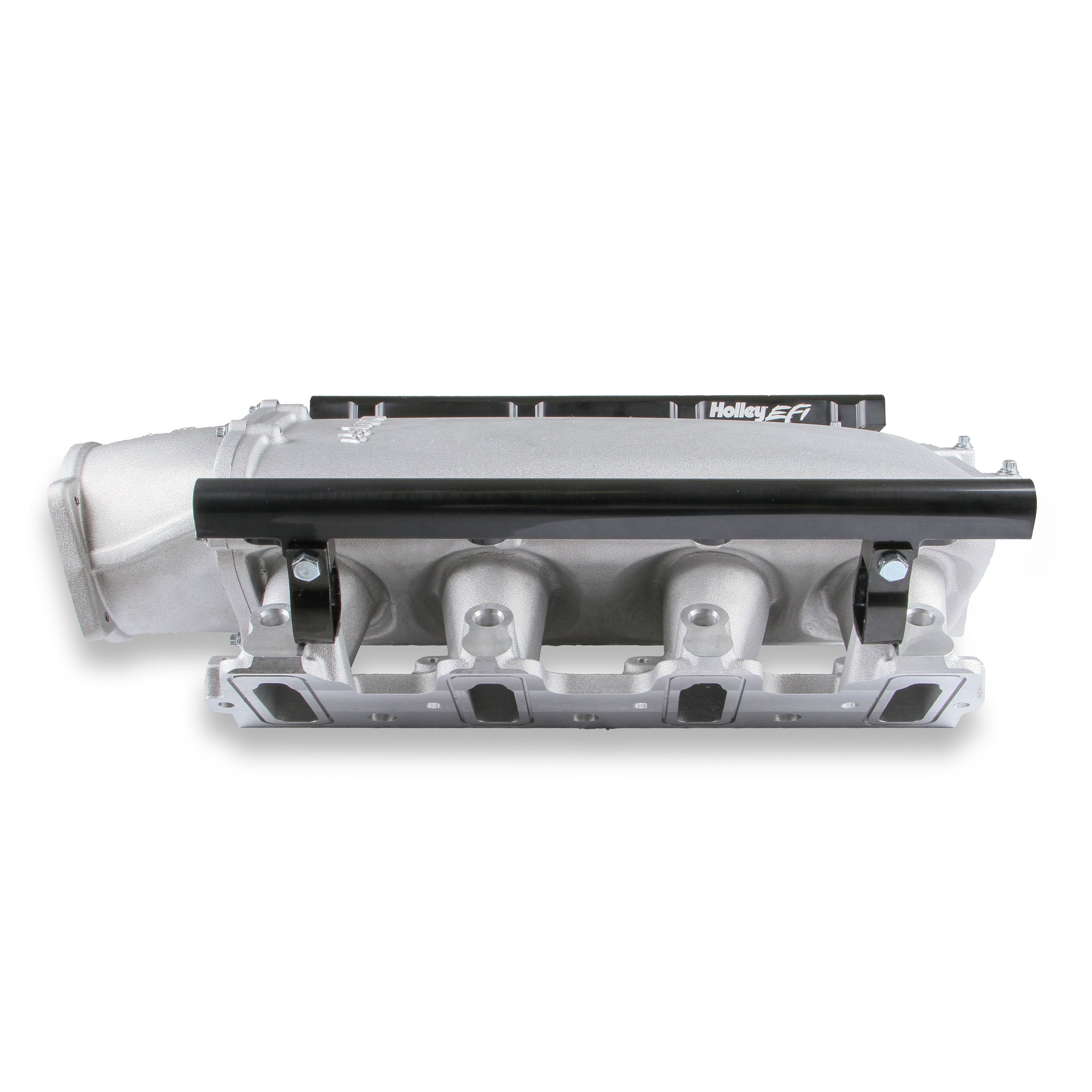

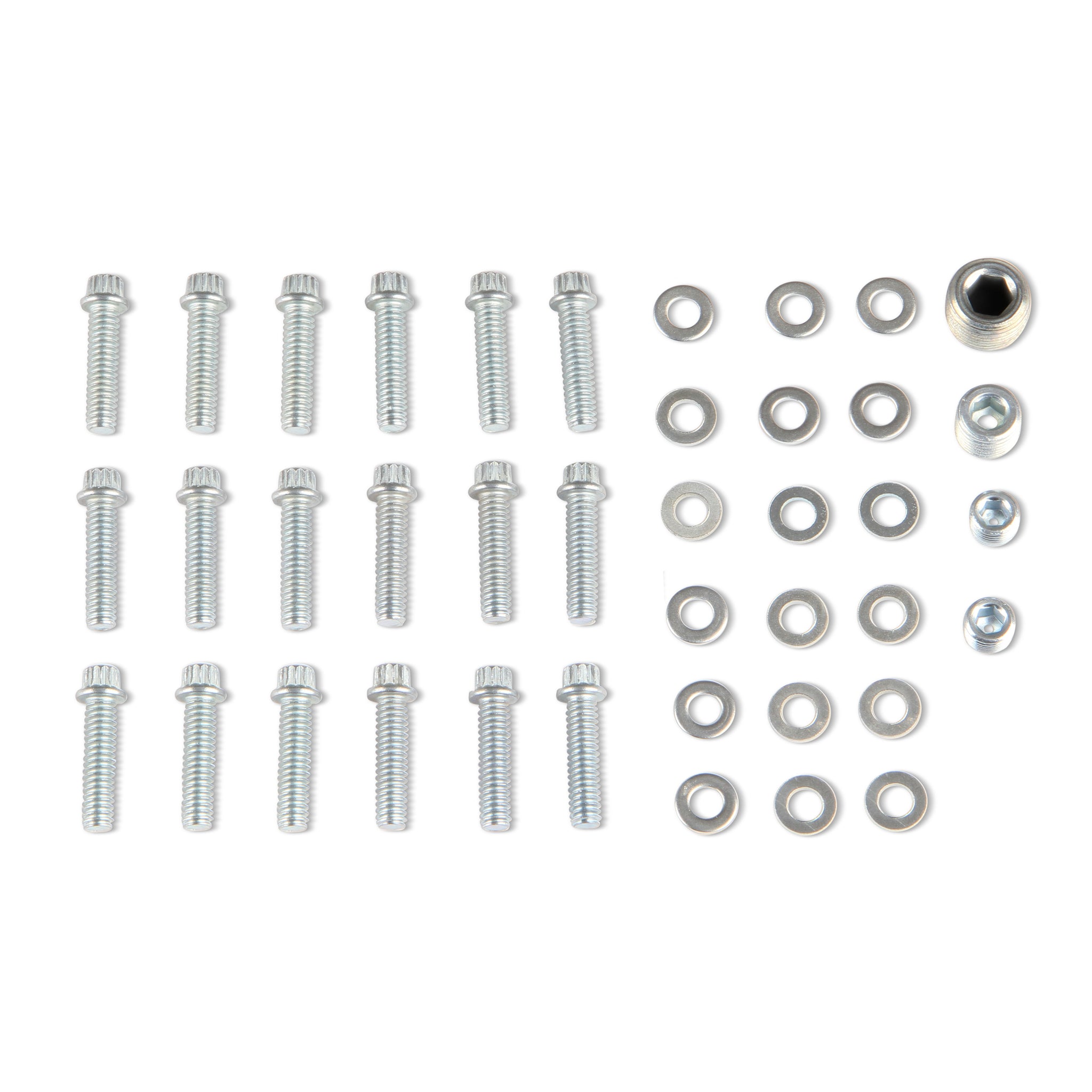

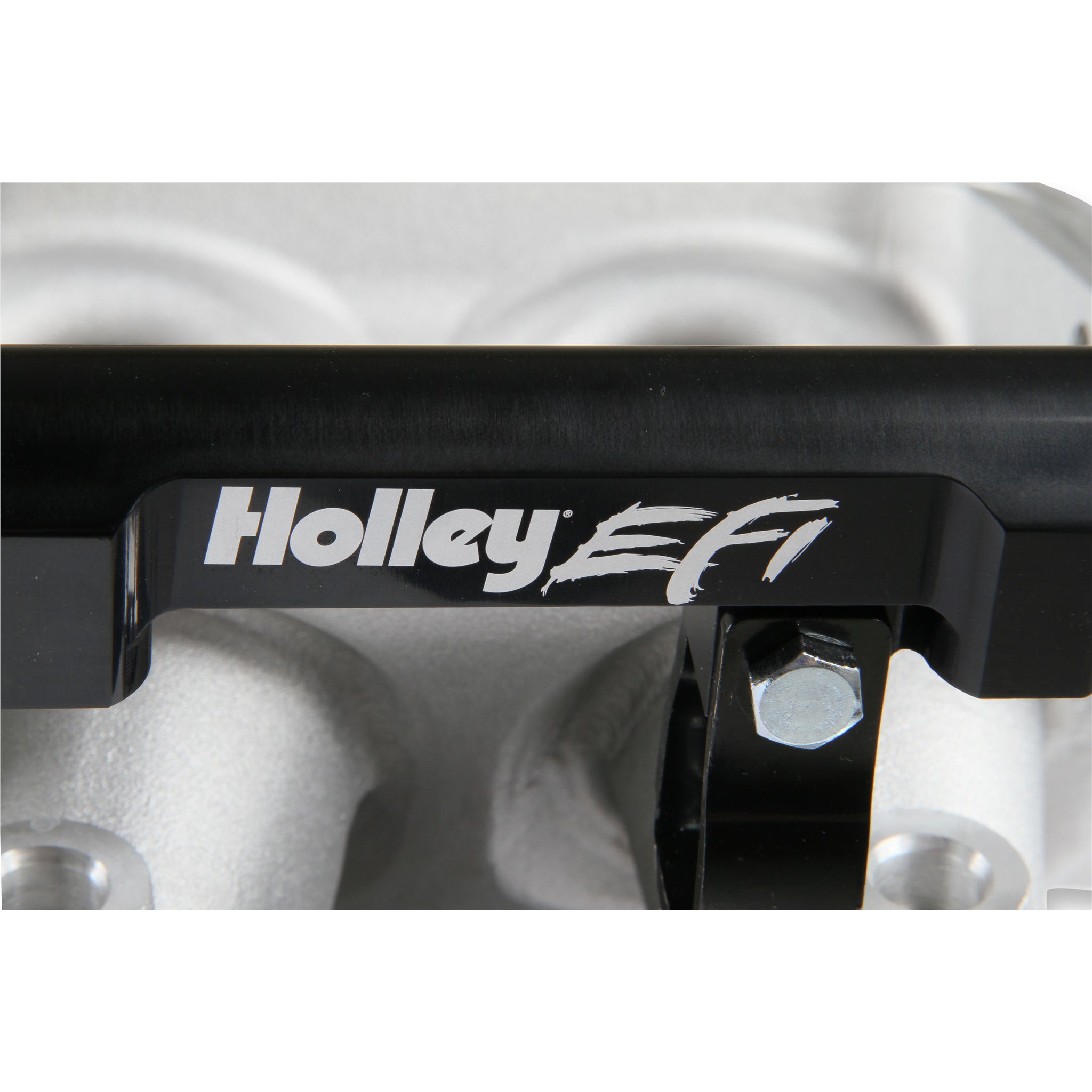

Description_FAB	High volume fuel rails and mounting hardware included with ┬╛"-16 o-ring ports (8 AN)
Description_MKT	The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The 300-621 Lo-Ram plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Description_SHO	Intake Manifold
Inlet Location	Front
Cylinder Head Type	Cathedral Port
Usage	Racing
Emission Code	3
Engine	GM LS1/LS2/LS6
WARNING CA Proposition 65	No
Position	Upper
RPM Range	7000-8000
Brand	Holley EFI
Construction	Cast
Finish	Silver
Flange Style	EFI
Front Height	6.86" height with throttle body adapter
Fuel System Type	EFI
Injector Quantity	Single
Manifold Type	Ultra Lo-Ram
Product Type	Intake Manifold
Recommended Use	Forced Induction
RPM Power Band	3500-8000 RPM
Sale Category	Air and Fuel Delivery
Number of Carbs	None; For Fuel Injection
Engine Make/Size	GM LS1/LS2/LS6
Warranty	Limited 90 Day
Color	Silver
Length	15.4000
Width	15.4000
Height	20.1000
Weight	25.0500
