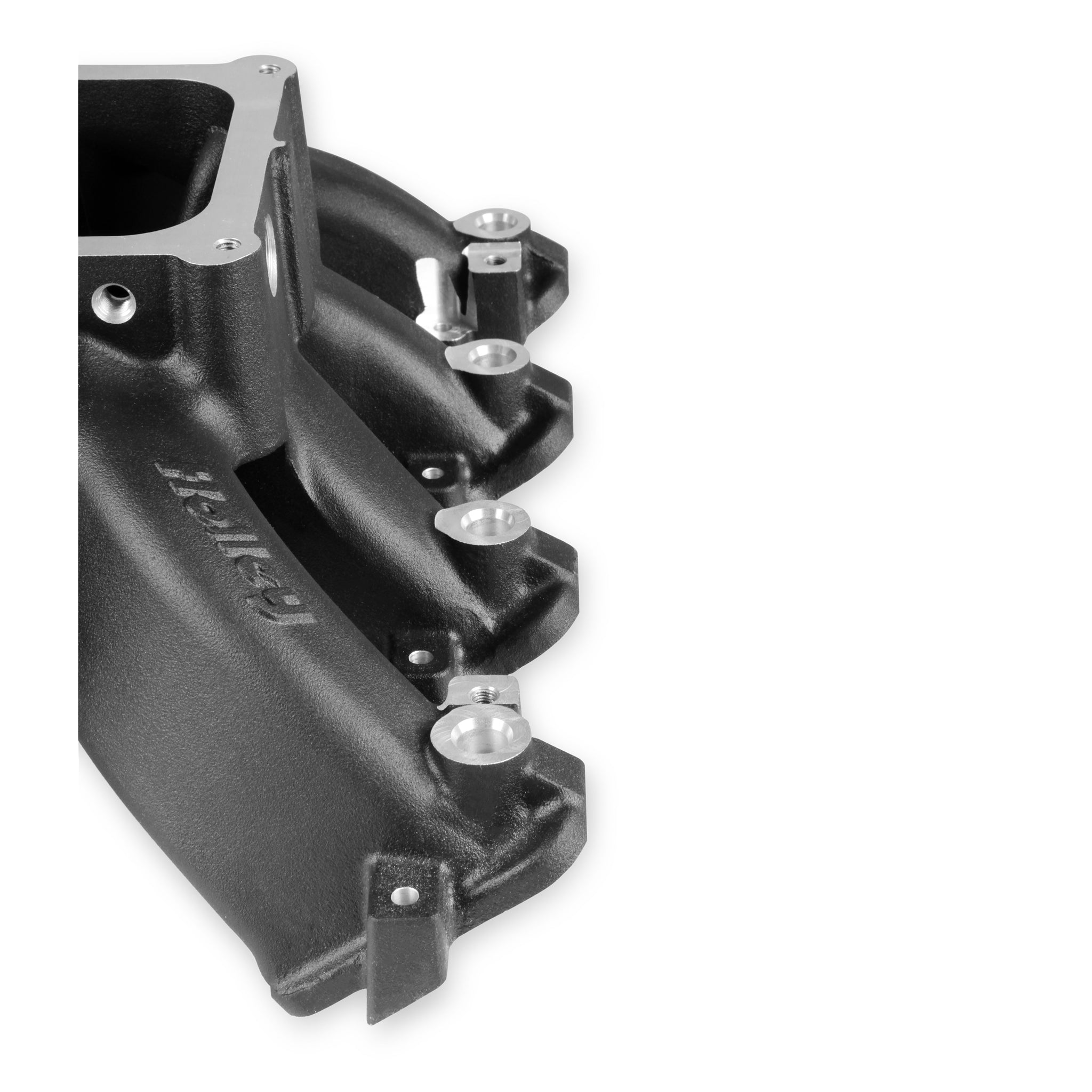

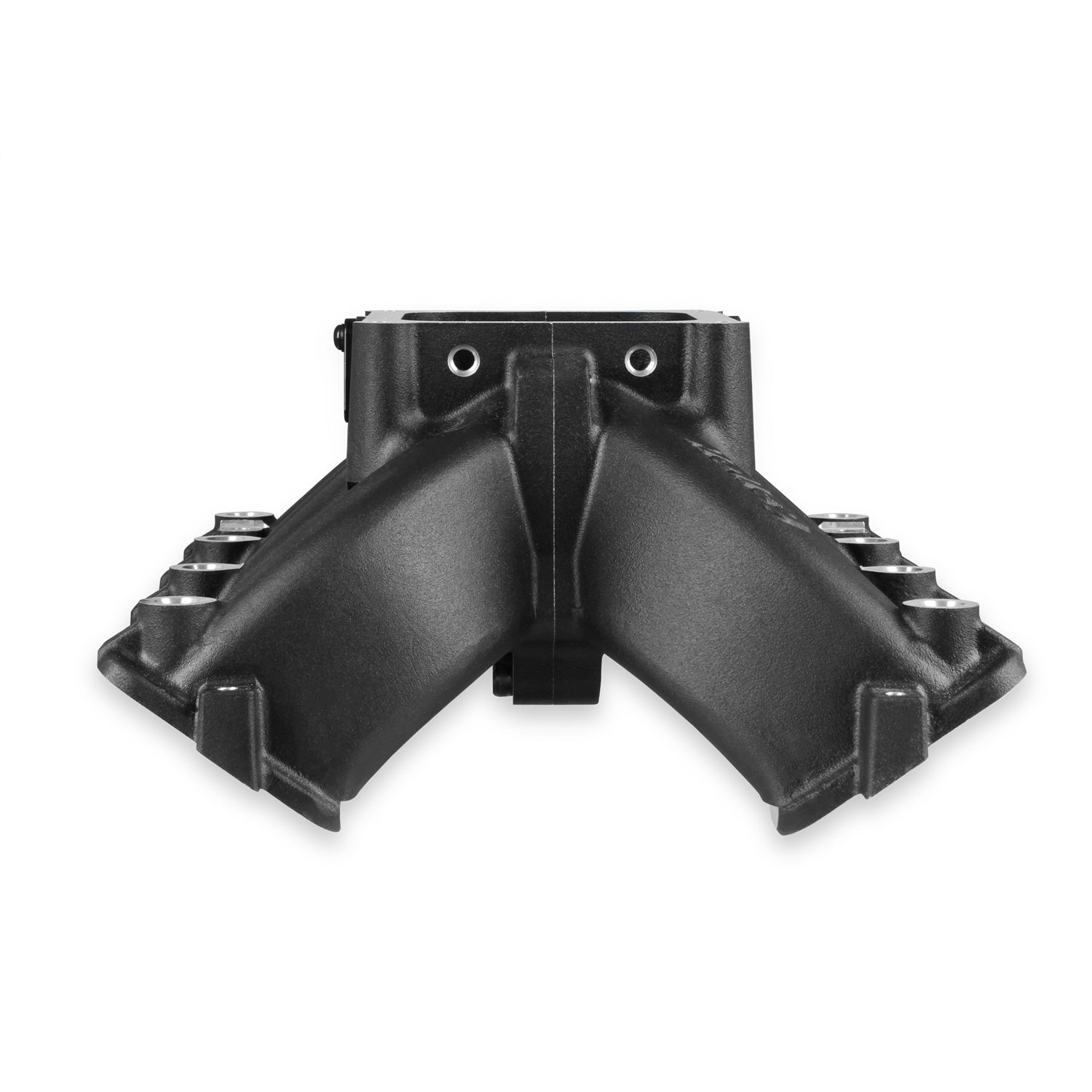

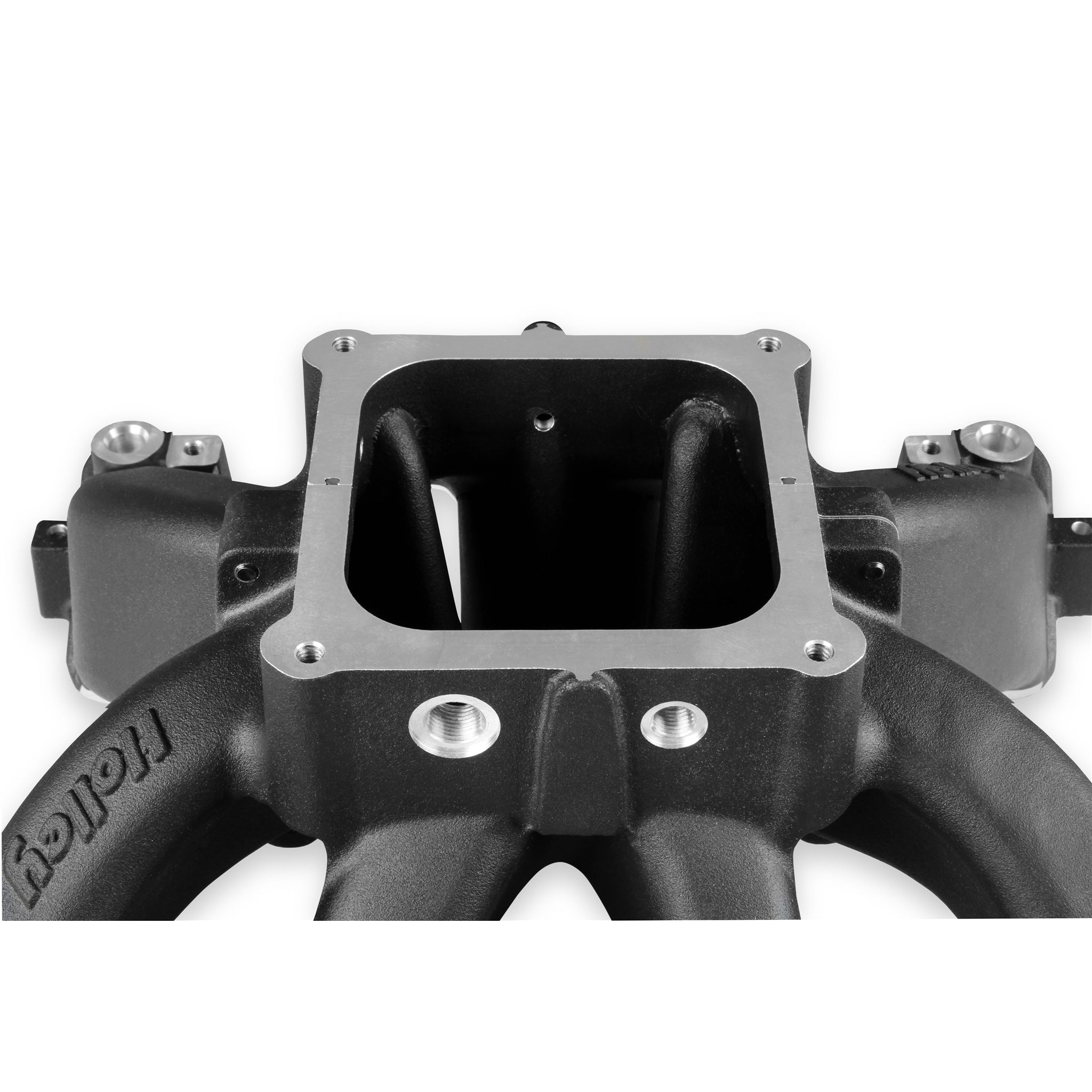

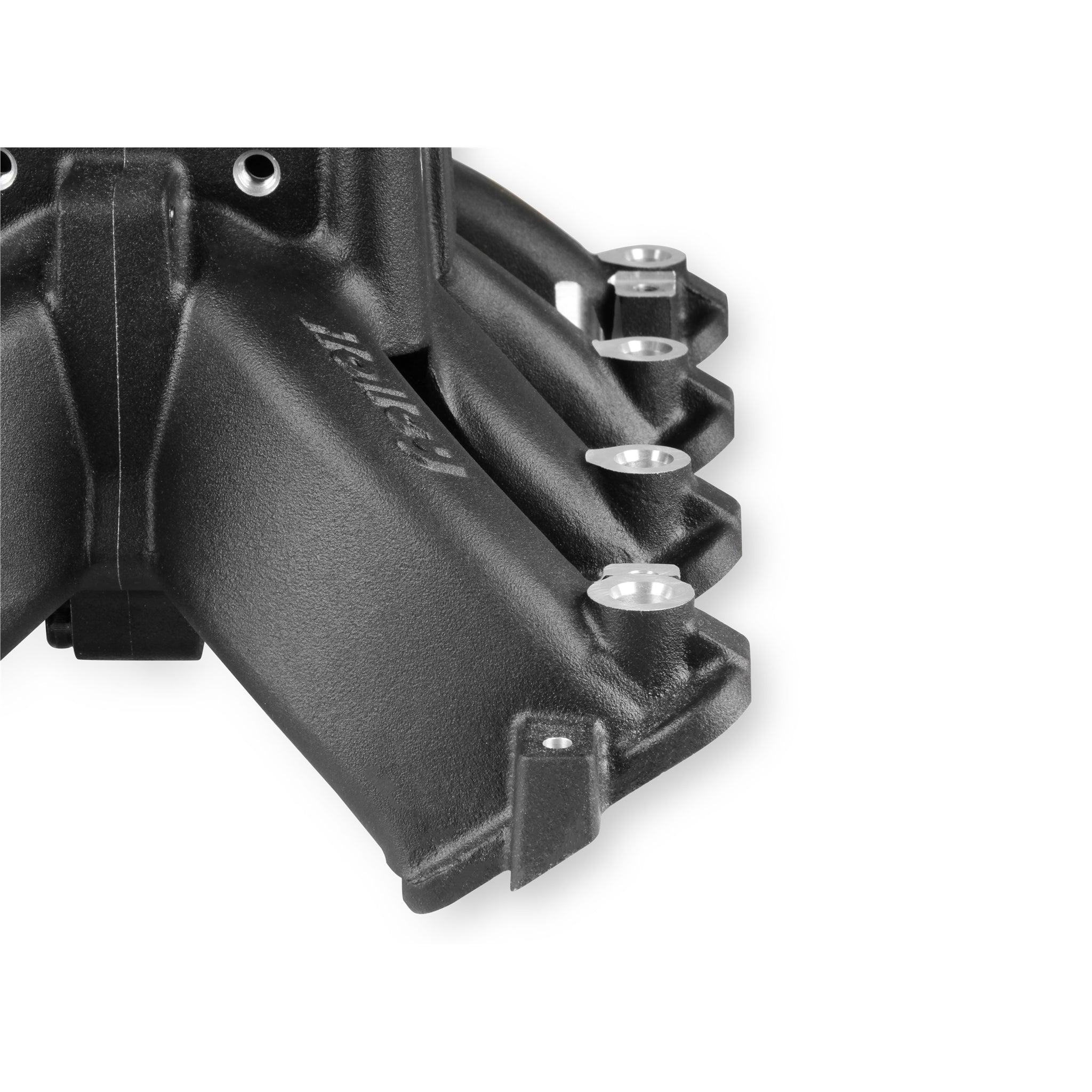

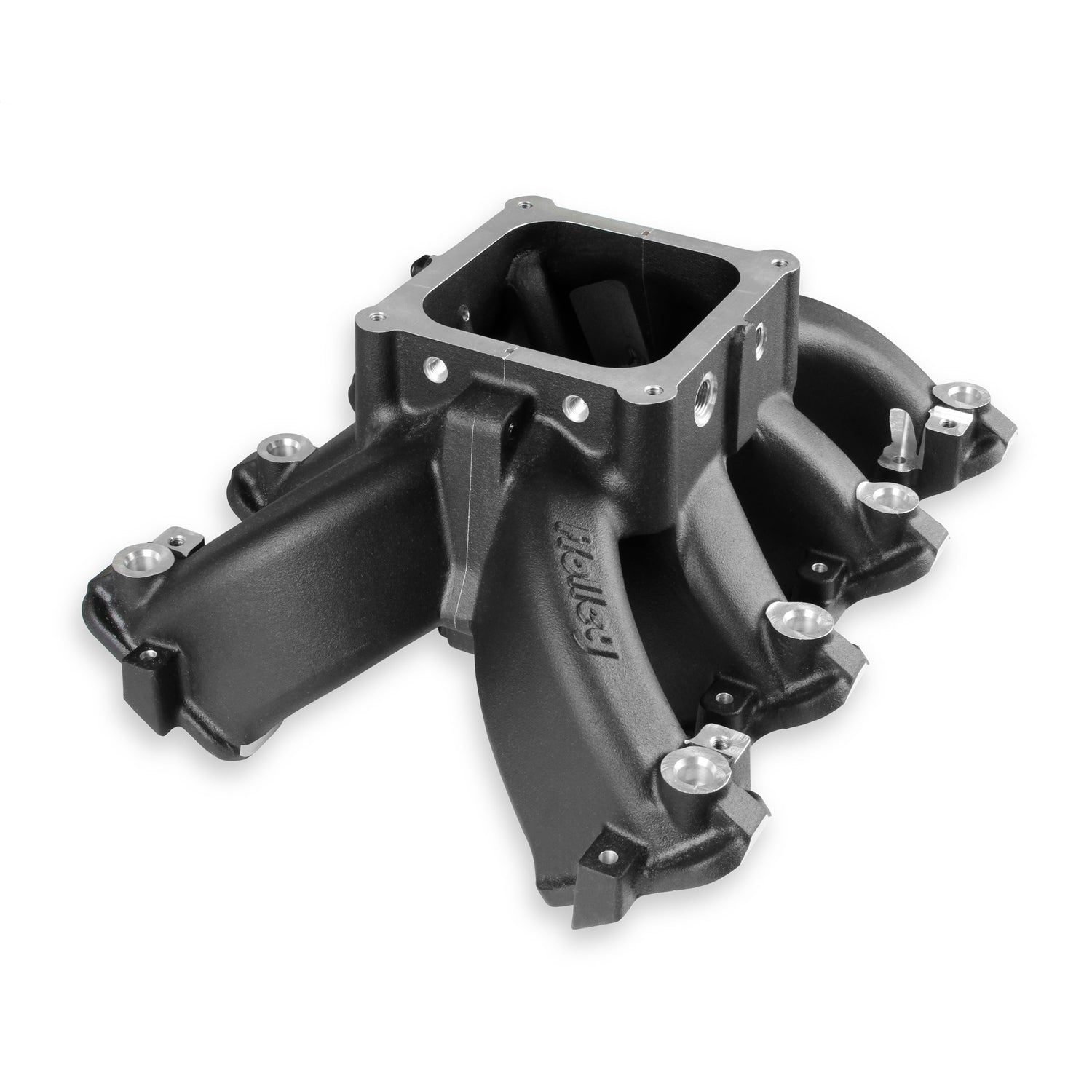

Holley 300-294BK Single Plane EFI 4500 Split-Design Race Intake Manifold- GM LS1/LS2/LS6

2 sold in last 8 days
Holley
ds_BBVL_300-294BK
Engine Intake Manifold
$1,201.24
customers are viewing this product
Holley 300-922 PLENUM LID, FORD COYOTE Hi-Ram
Holley 300-922 PLENUM LID, FORD COYOTE Hi-Ram
$436.46
Holley 300-670 Lo-Ram Manifold Base And Fuel Rails Single Fuel Injector Gm Ls3/L92
Holley 300-670 Lo-Ram Manifold Base And Fuel Rails Single Fuel Injector Gm Ls3/L92
$989.74
Holley 300-294BK Single Plane EFI 4500 Split-Design Race Intake Manifold- GM LS1/LS2/LS6
Details

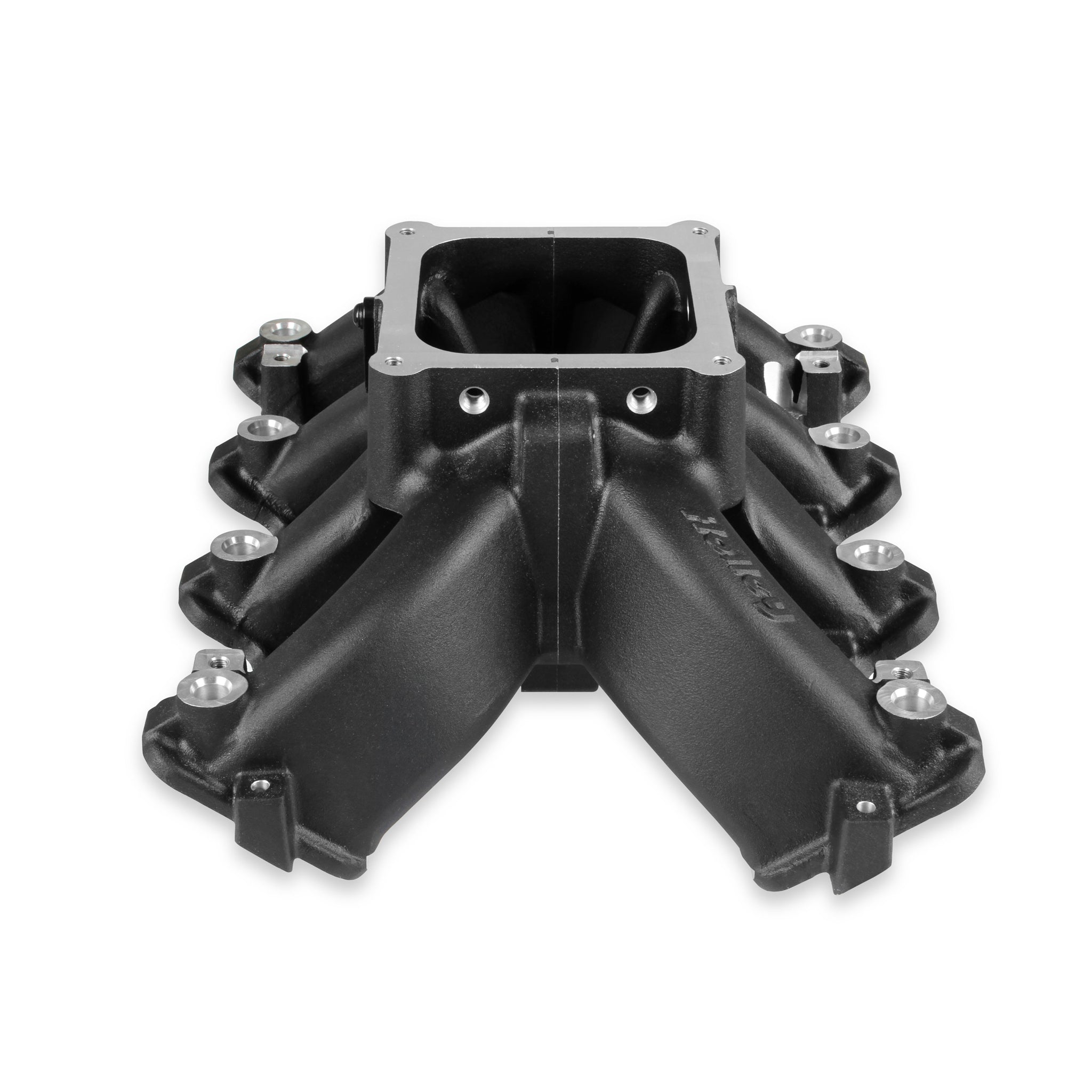

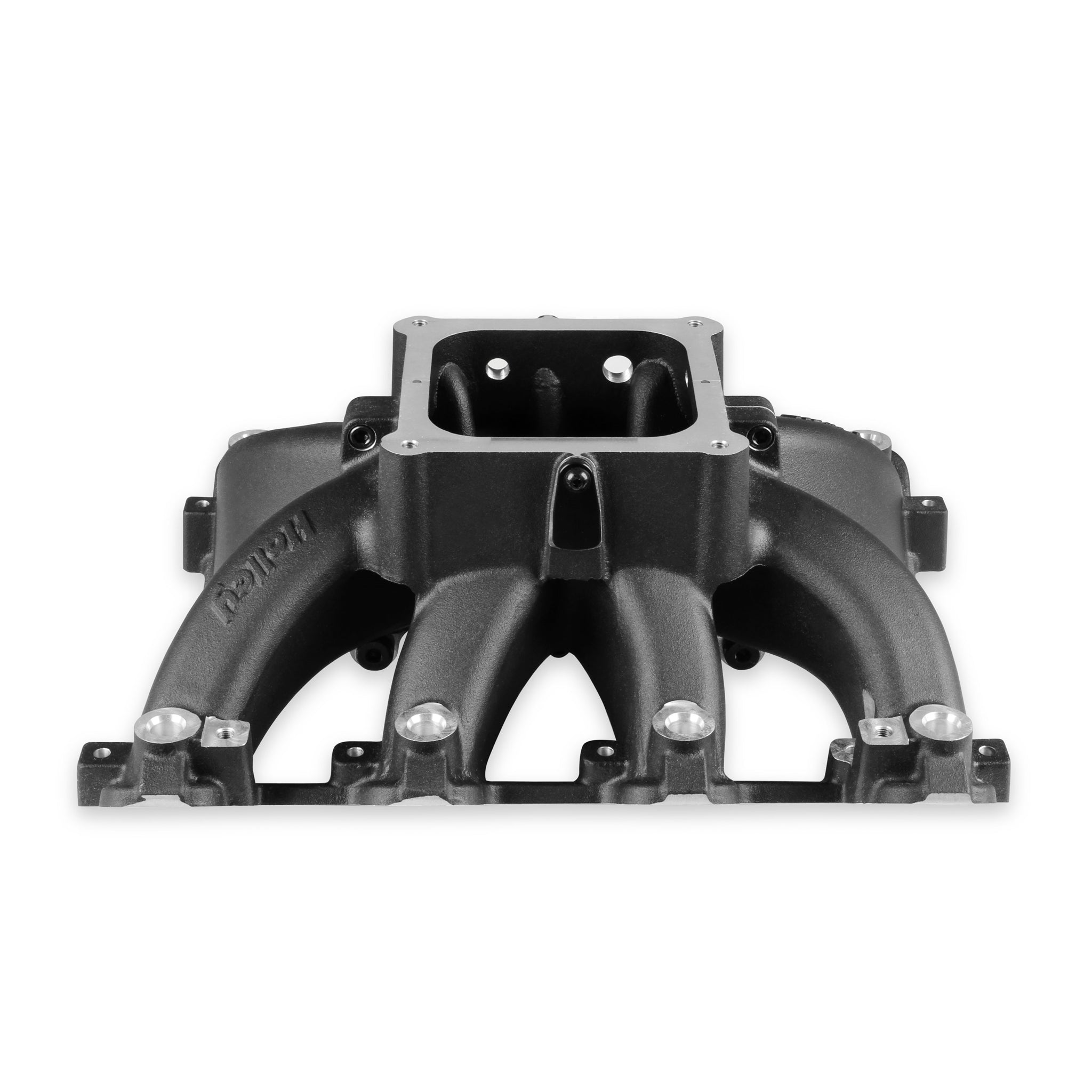

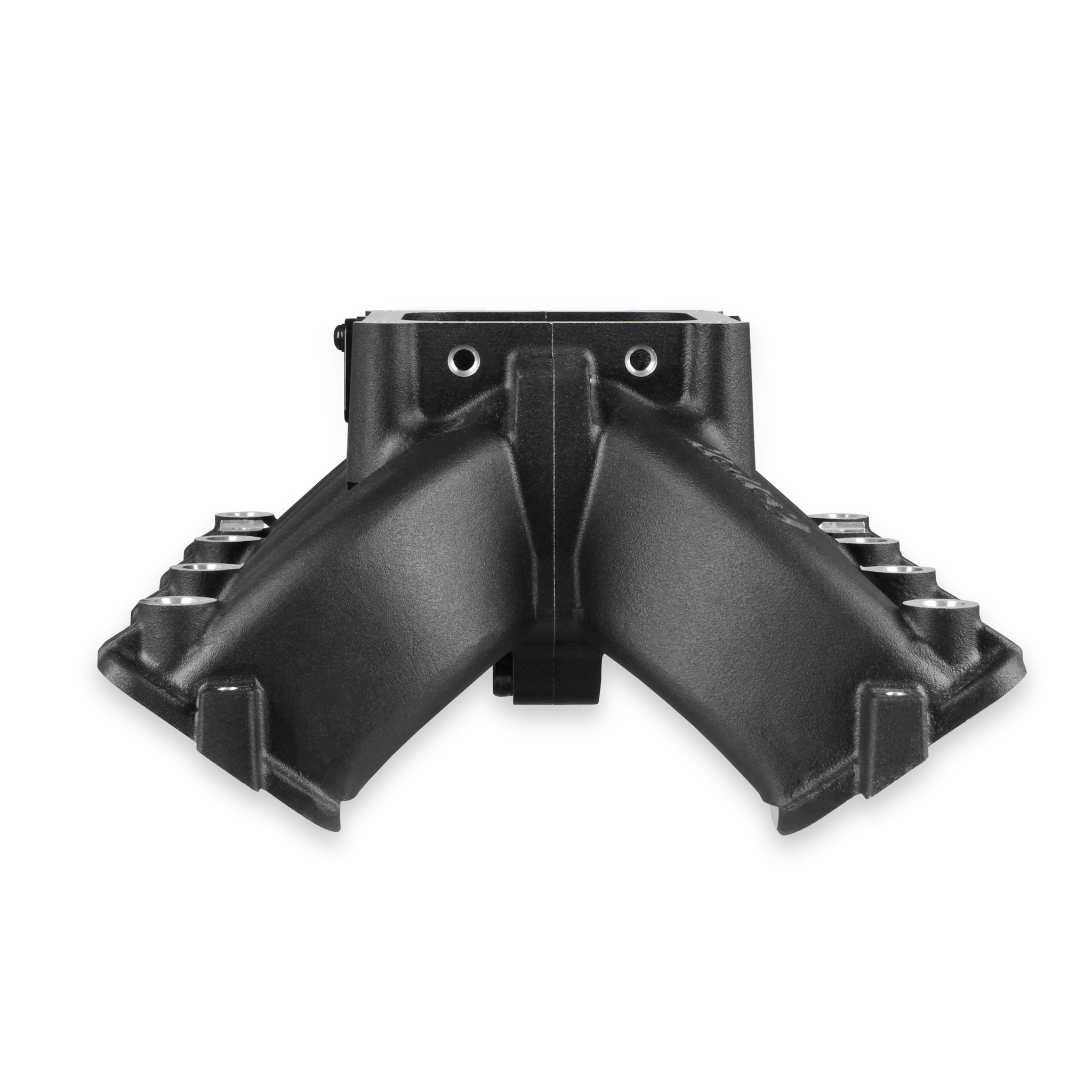

The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.

Specifications:

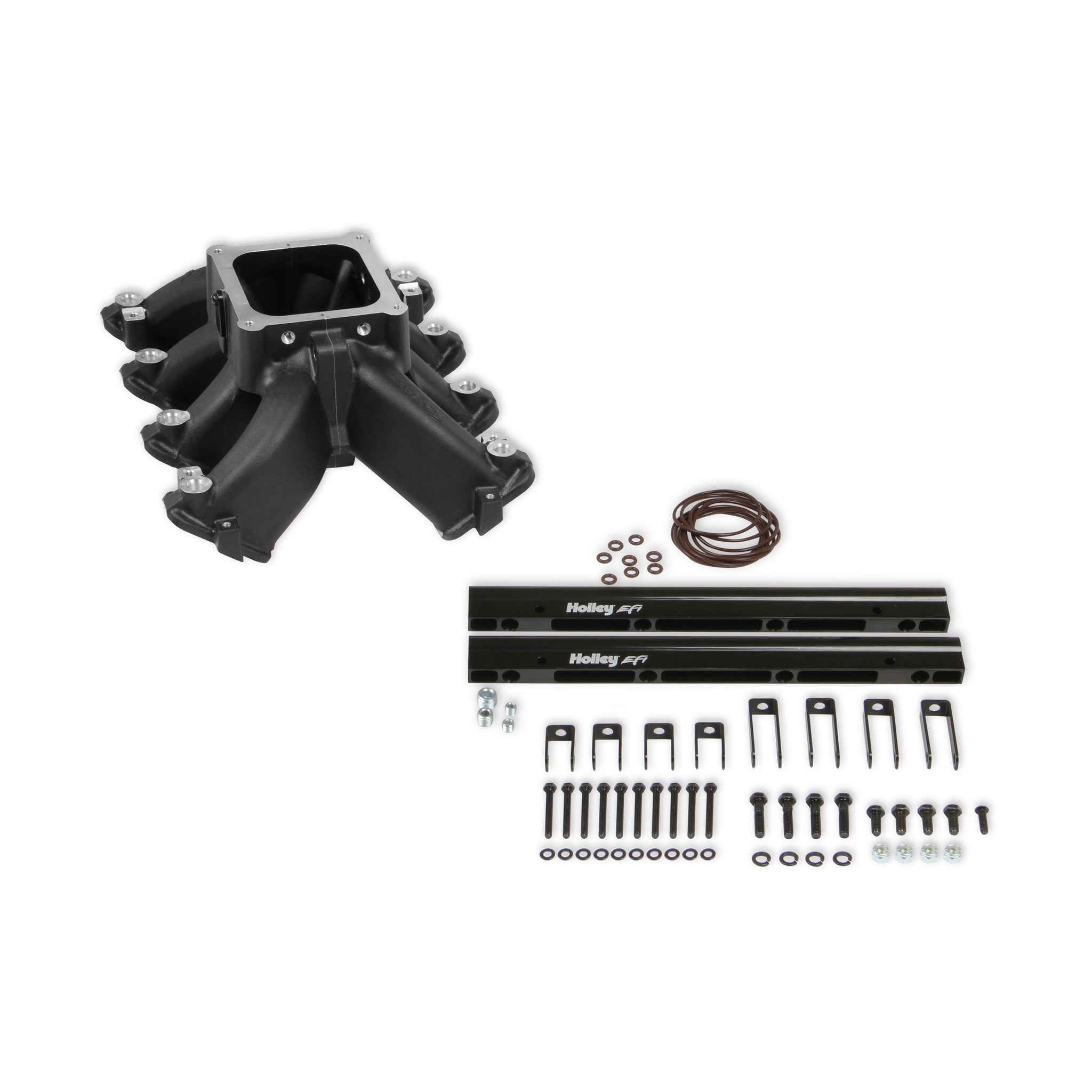

Description_ASC Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal. Kit does not work with factory fuel rails and requires the use of Holley Fuel Rail Kit P/N 534-219. NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors.
Description_DEF Engine Intake Manifold
Description_DES Single Plane EFI 4500 Split-Design Race Intake Manifold- GM LS1/LS2/LS6
Description_EXT Race Intake Manifold; EFI; Fits W/GM LS1/LS2/LS6 Engines; 4500 Dominator Flange; 7.320 in. Front H.; Split Single Plane; Black Finish; Black; w/Fuel Rails;

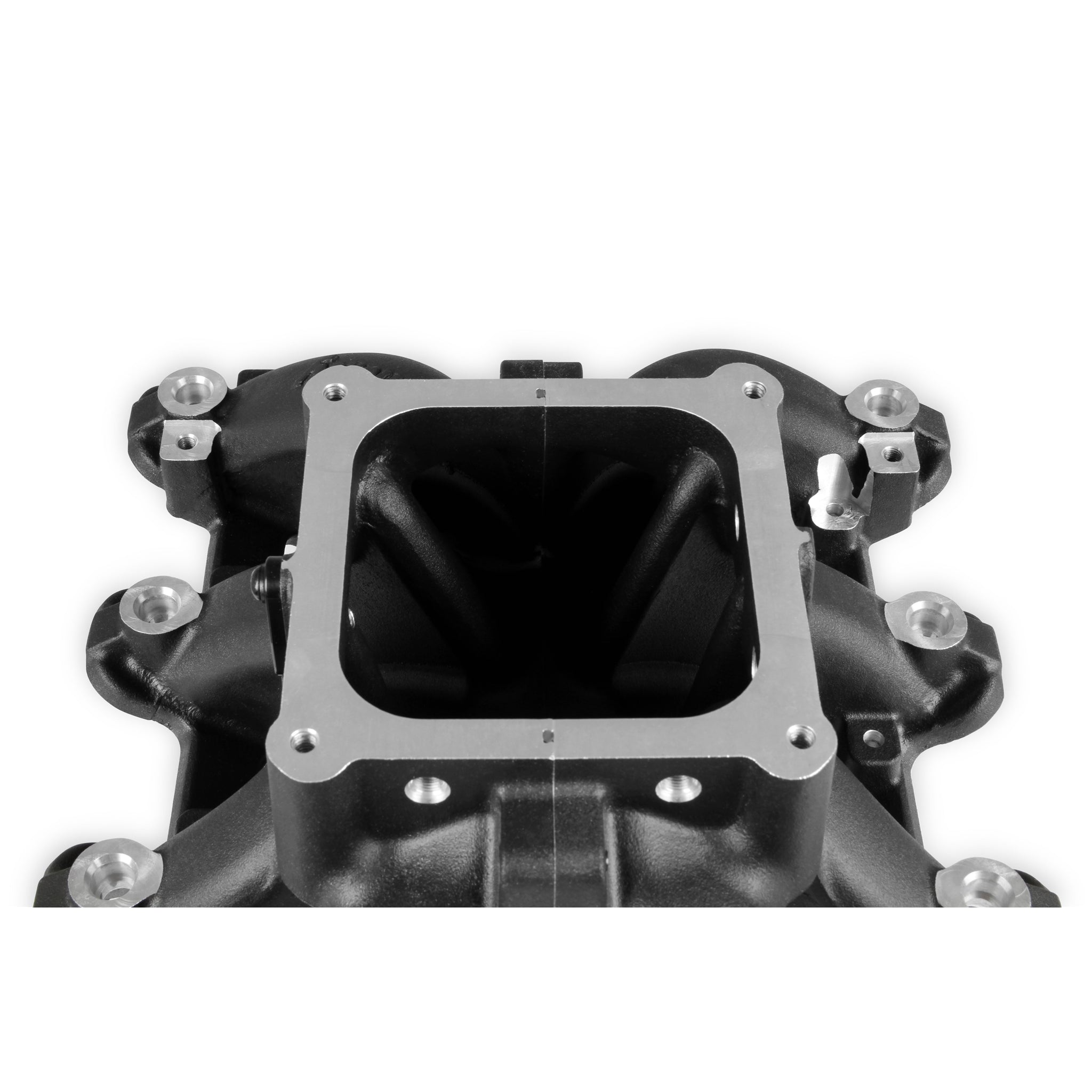

Description_FAB Maximum performance 4500 Dominator flange race design with hood clearance consideration
Description_FAB Lighter than other split race intakes
Description_FAB Split feature making porting efforts easy!
Description_FAB 33 to 50% the price of other split race intakes

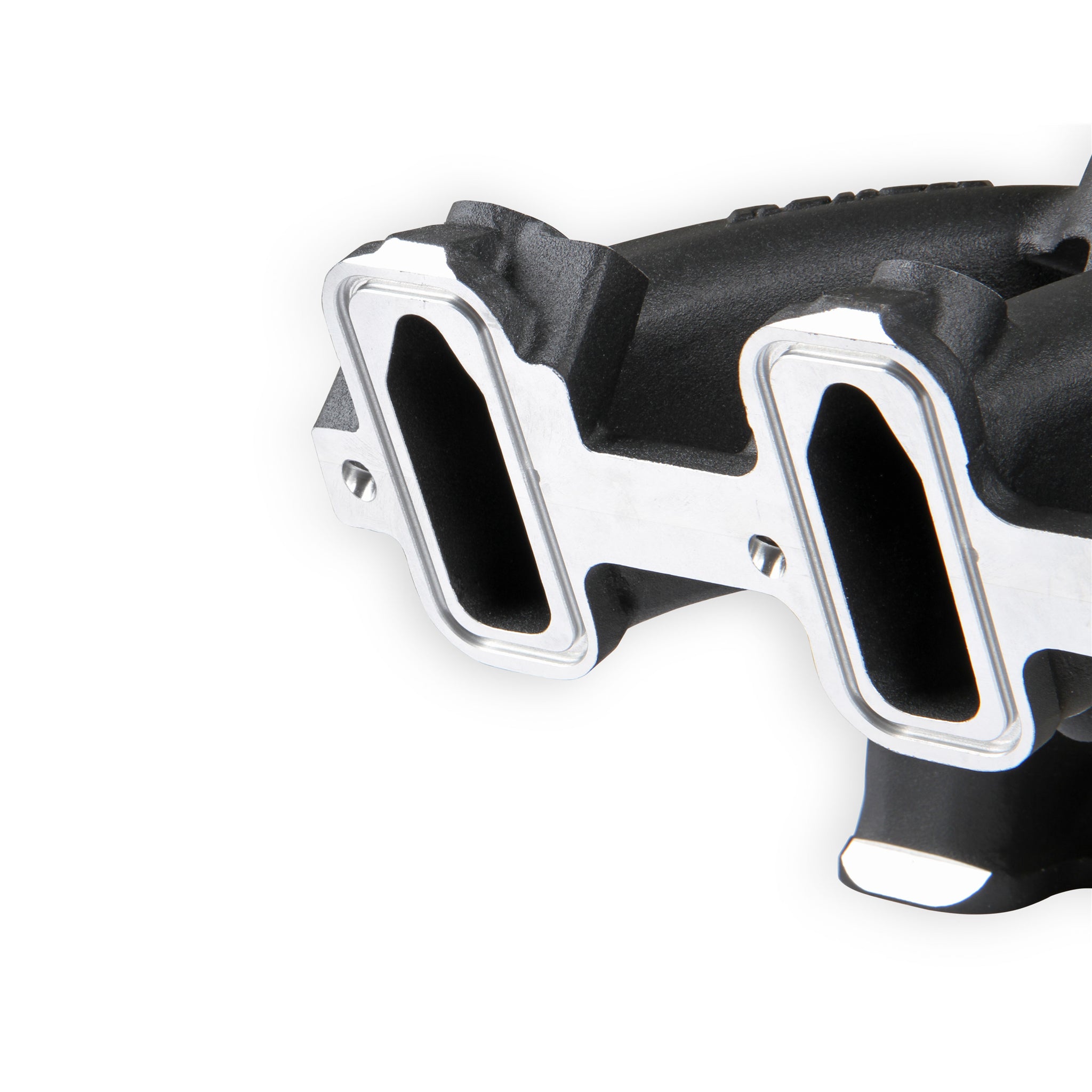

Description_FAB Captured O-ring seals at head ports and plenum split

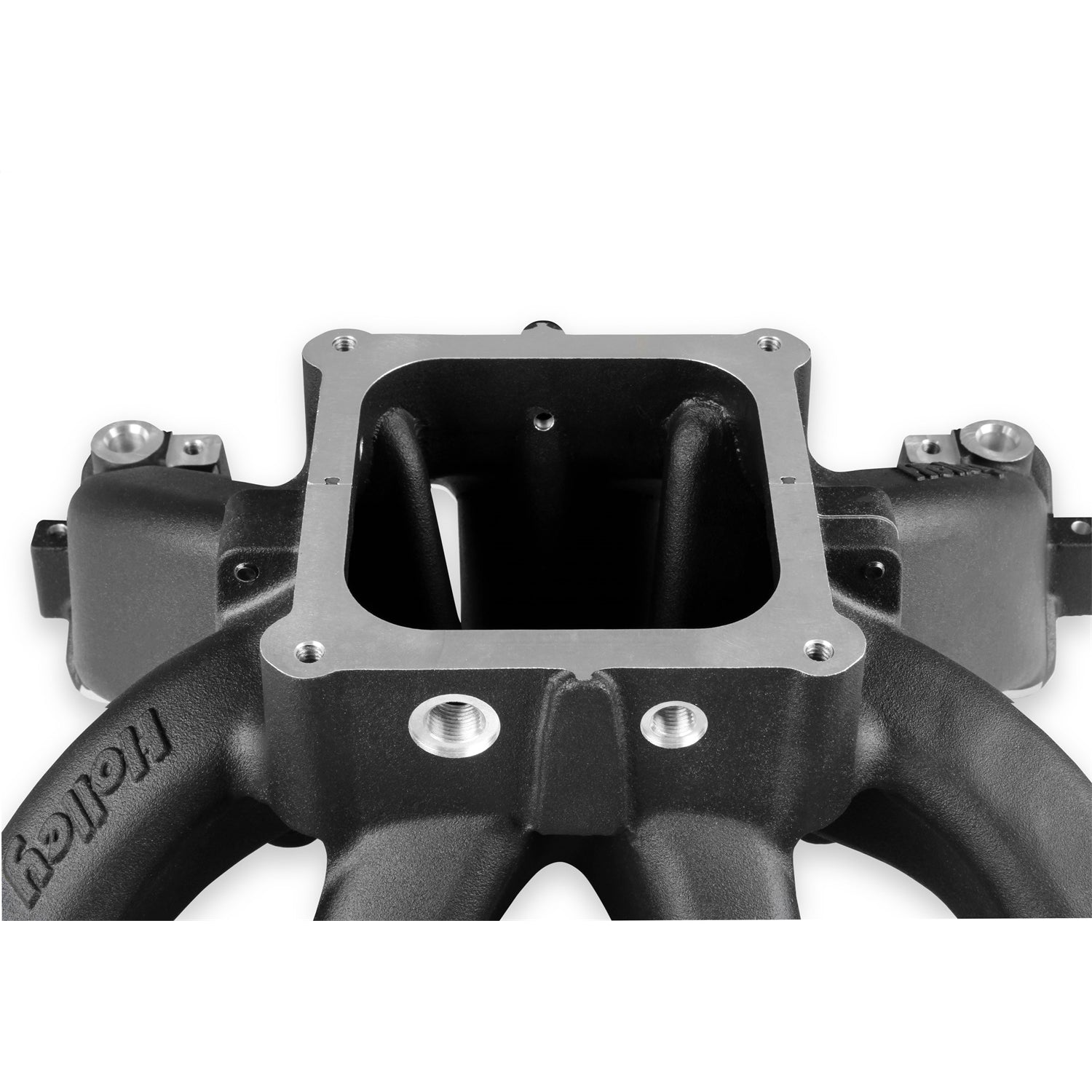

Description_FAB Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

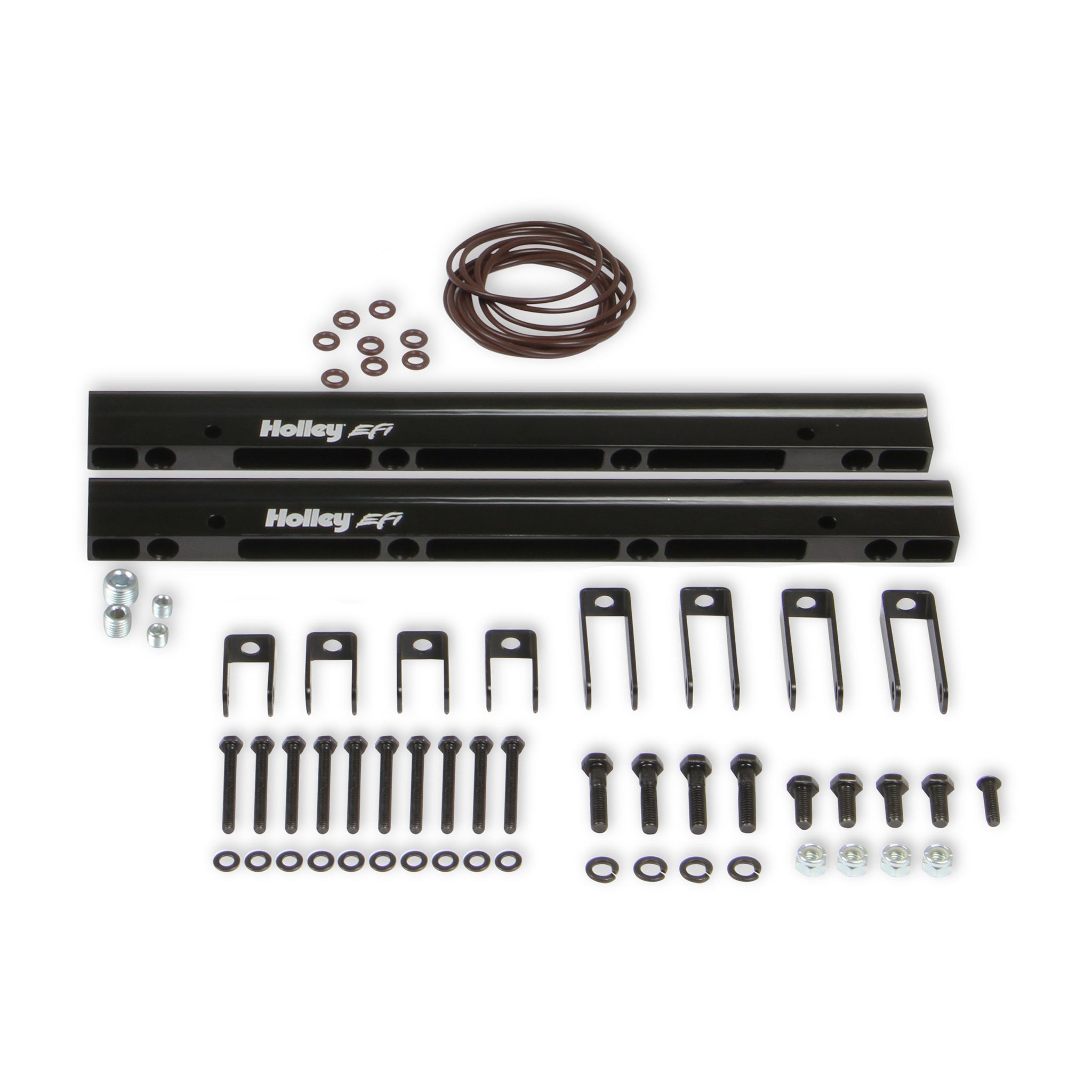

Description_FAB Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
Description_INV 4500 LS SP INT EFI LS1 PORT W/FUEL R BLK
Description_SHO Intake Manifold
Description_MKT The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.
Construction Cast
Manifold Type Split Single Plane
Rear Height 7.32"
Engine Make/Size GM LS1/LS2/LS6
WARNING CA Proposition 65 No
Flange Style 4500
Fuel System Type EFI
Product Type Intake Manifold
RPM Power Band 2500-7000
Warranty Limited 90 Day
Color Black
RPM Range 2500-7000
Brand Holley
Emission Code 3
Finish Black
Front Height 7.32"
Usage Street/Hi-Performance
Barrels 4
Engine GM LS1/LS2/LS6
Length 10.2000
Width 14.5000
Height 23.1000
Weight 21.5500
