Holley 300-290 Single Plane Efi Split-Design Race Intake Manifold- Gm Ls3/L92

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_300-290

Stock:

Product Code: Engine Intake Manifold

$978.44

Quantity

Subtotal: $978.44

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 300-290 Single Plane Efi Split-Design Race Intake Manifold- Gm Ls3/L92

Details
Reviews

Details

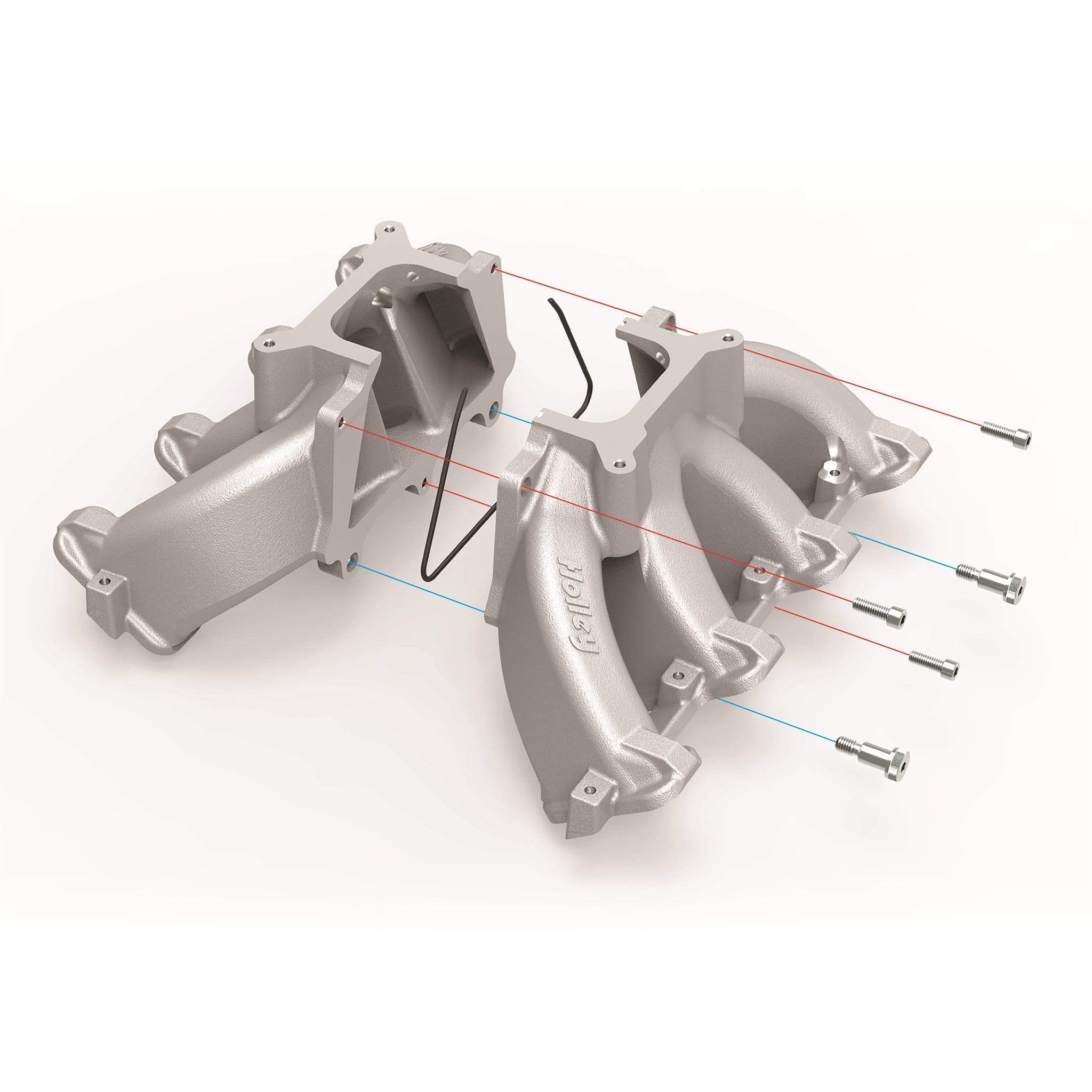

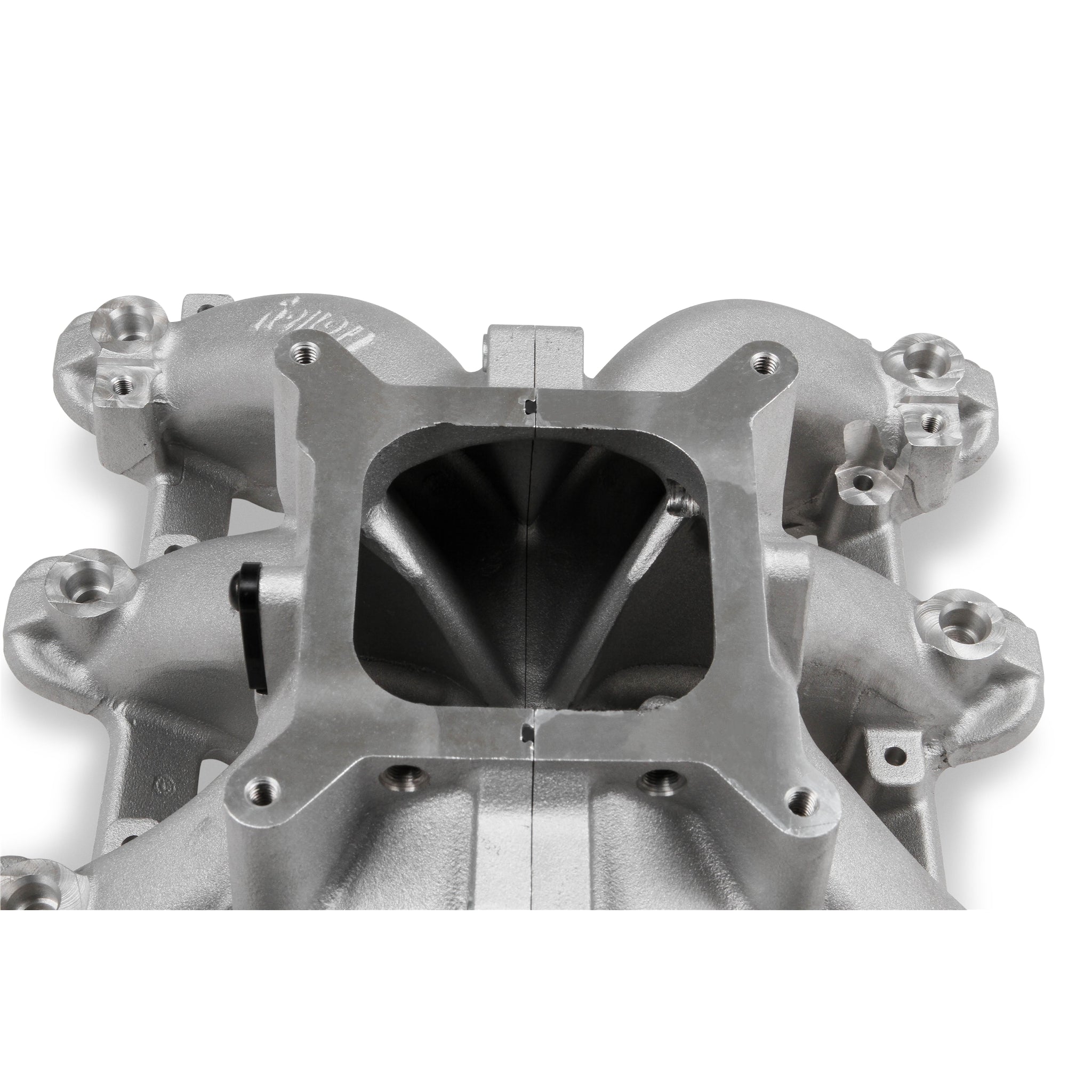

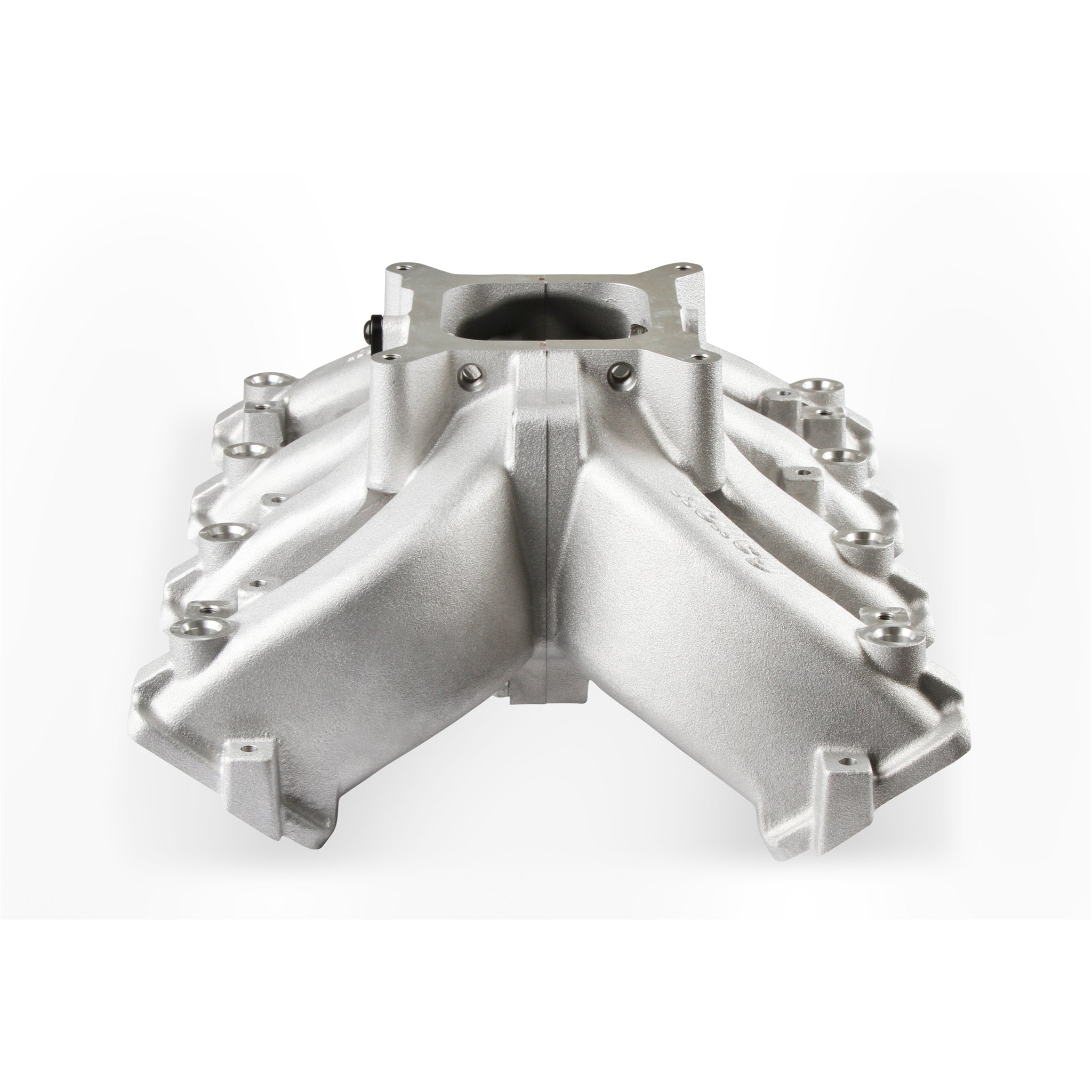

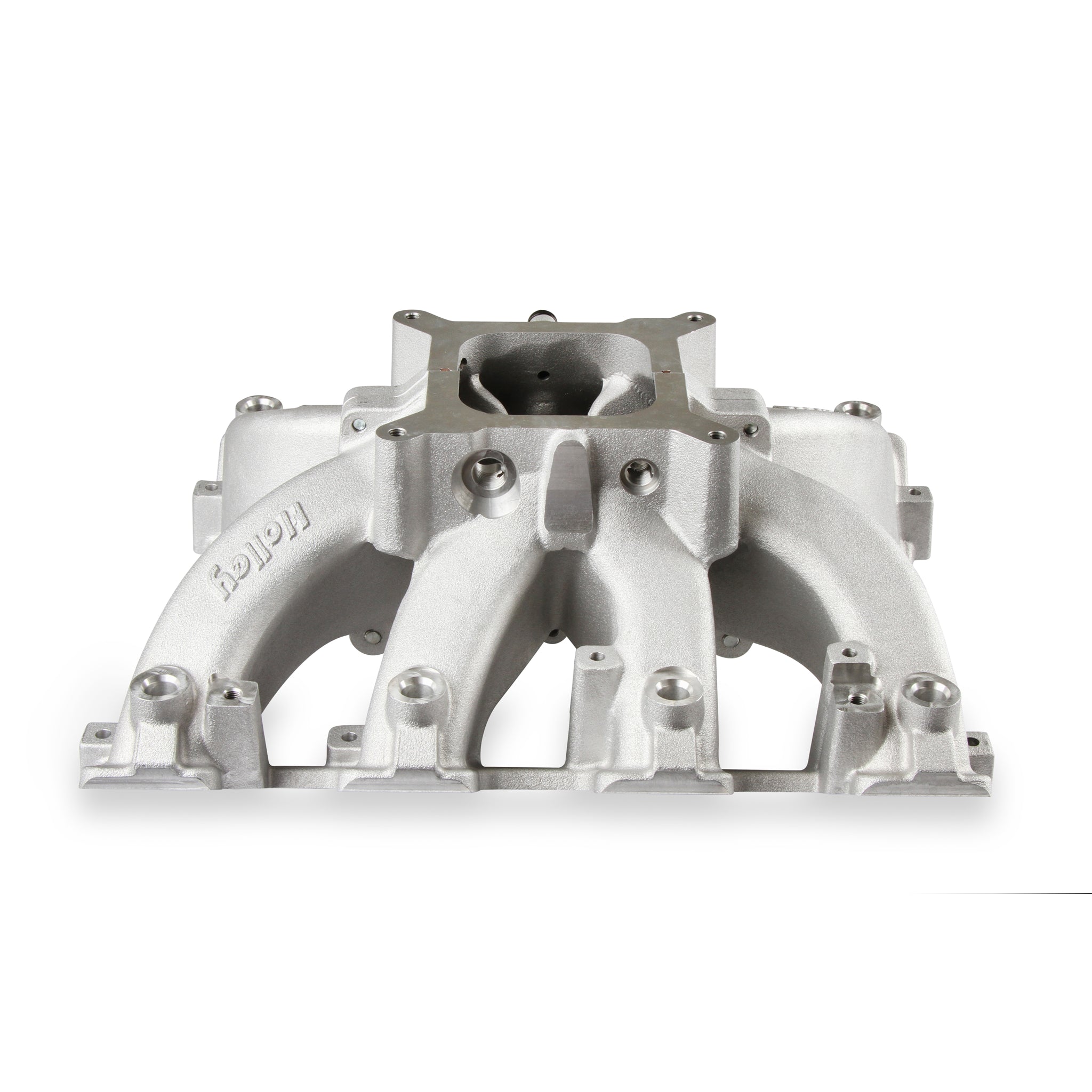

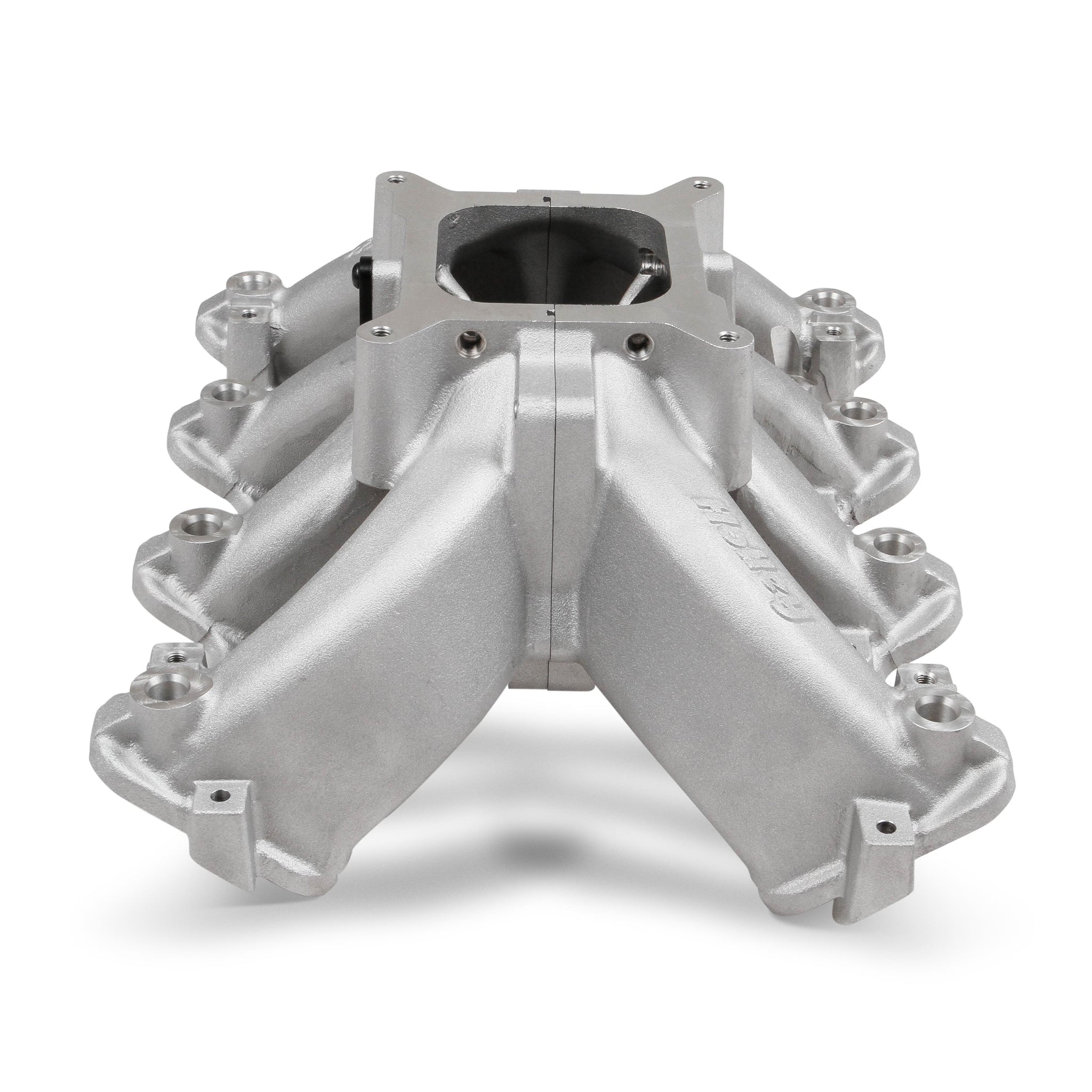

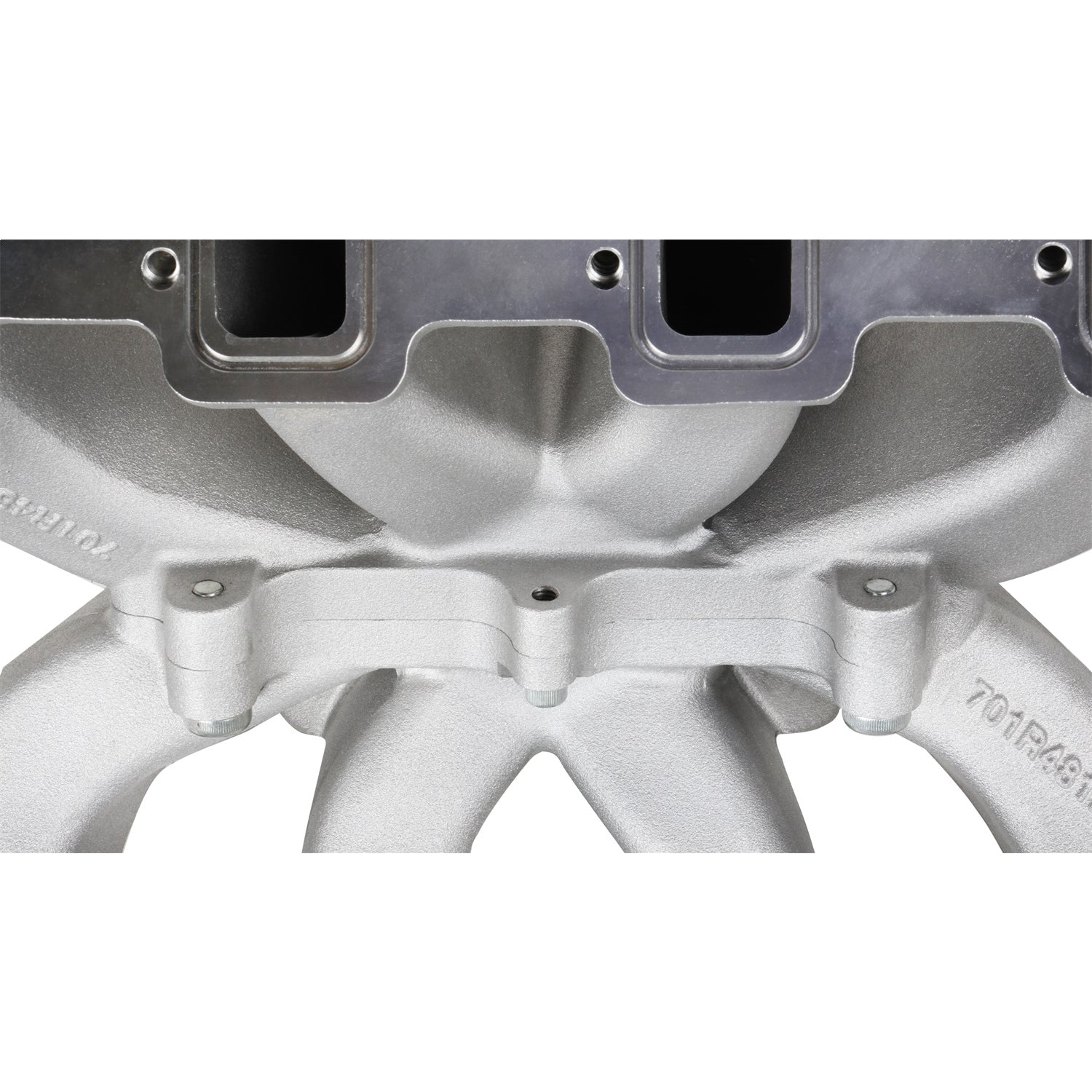

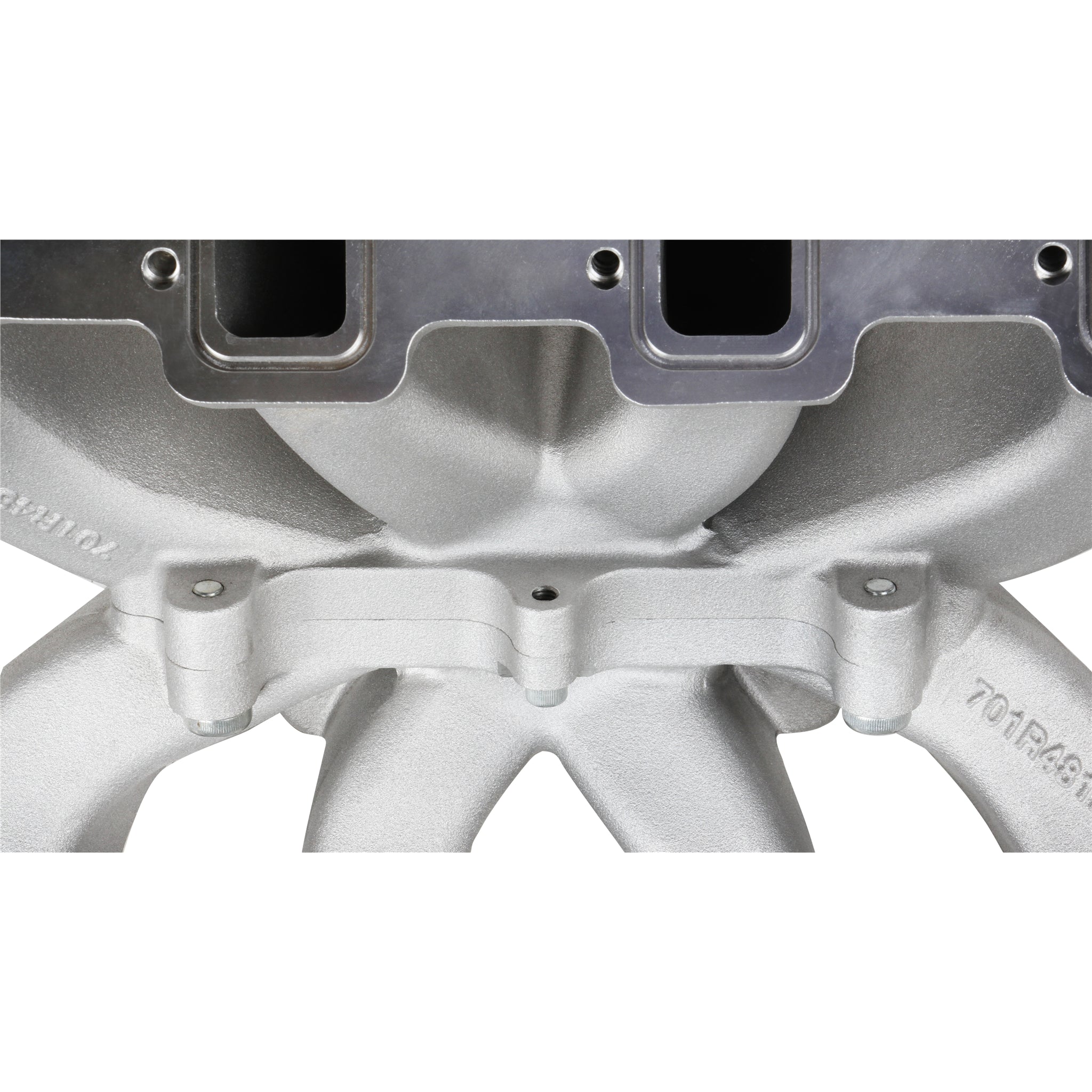

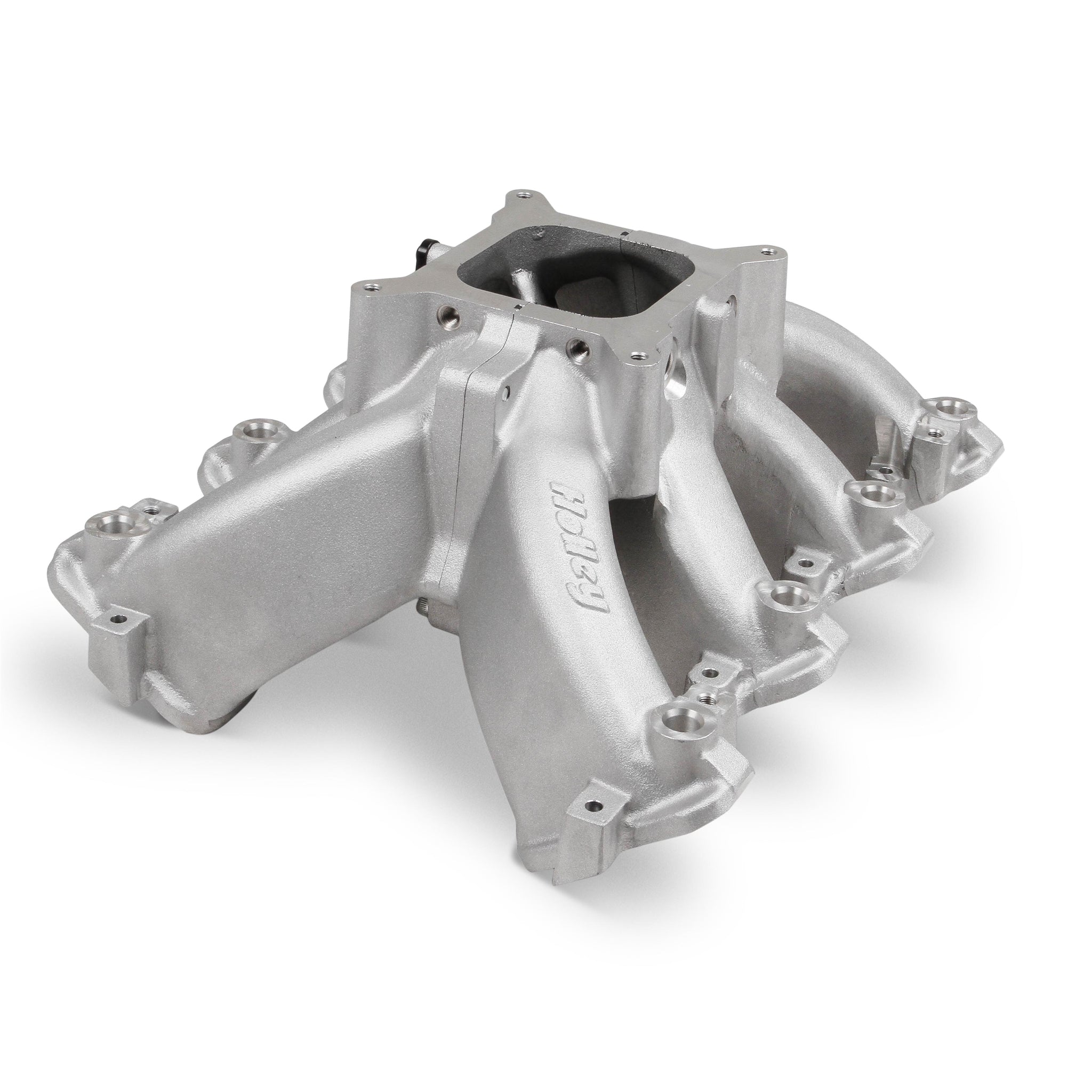

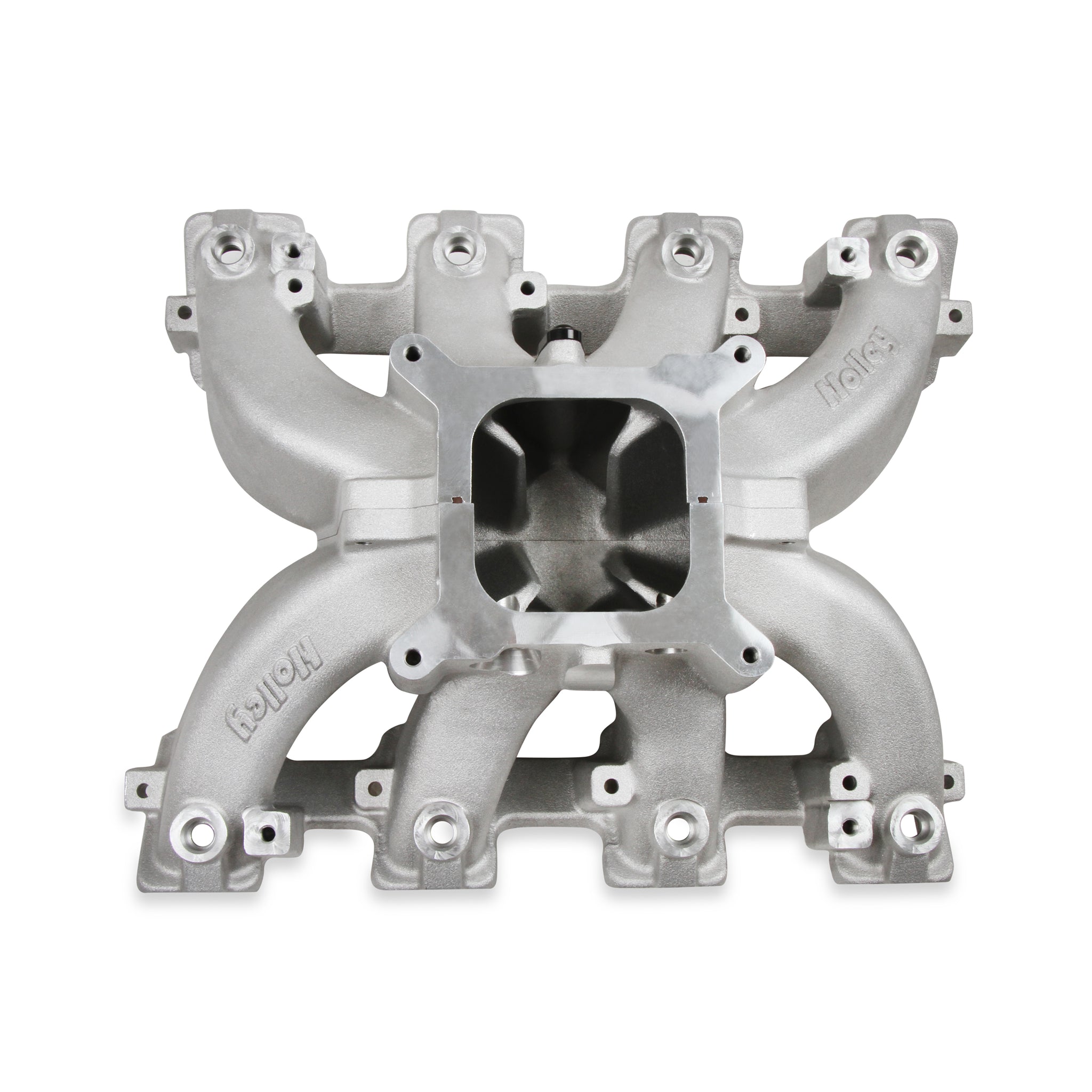

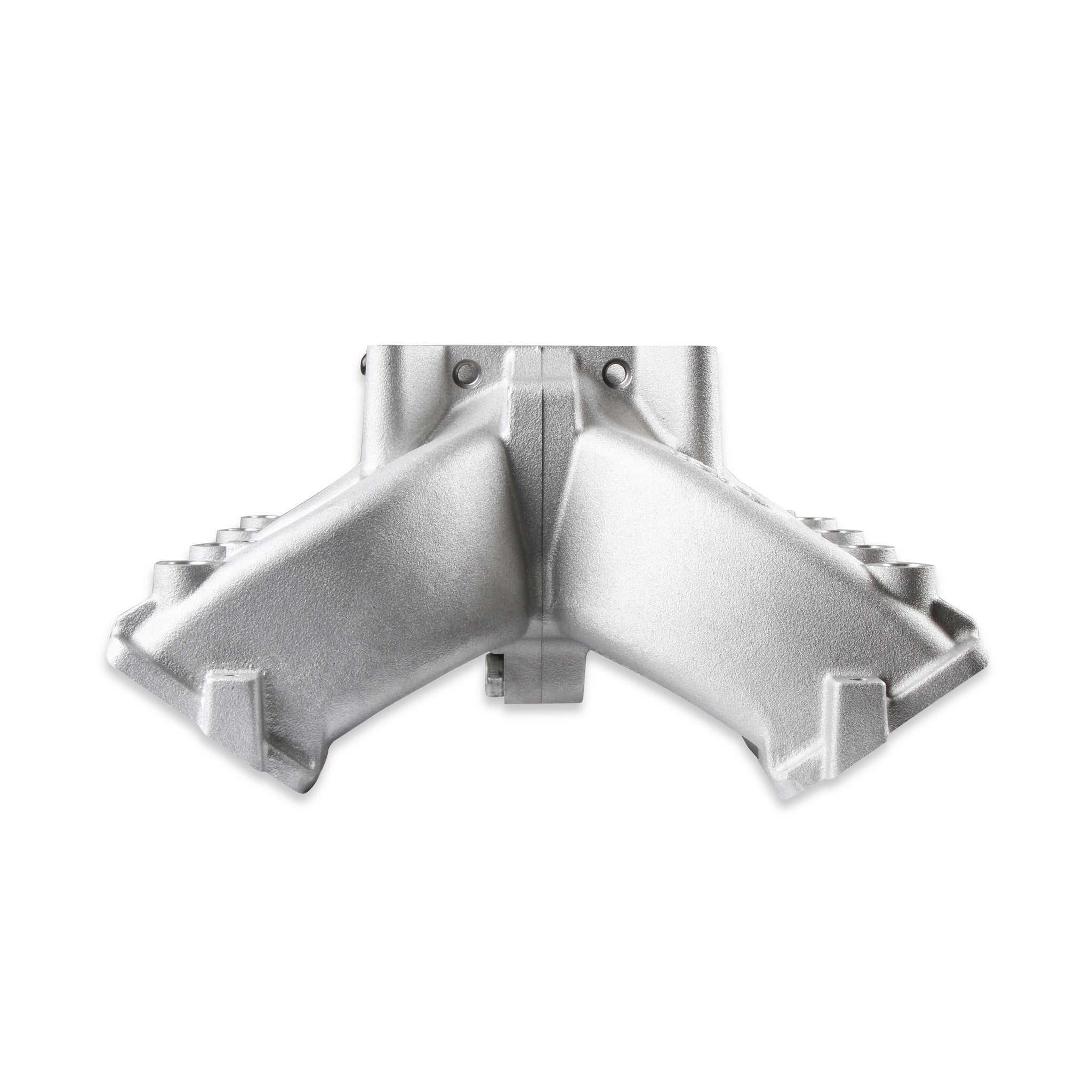

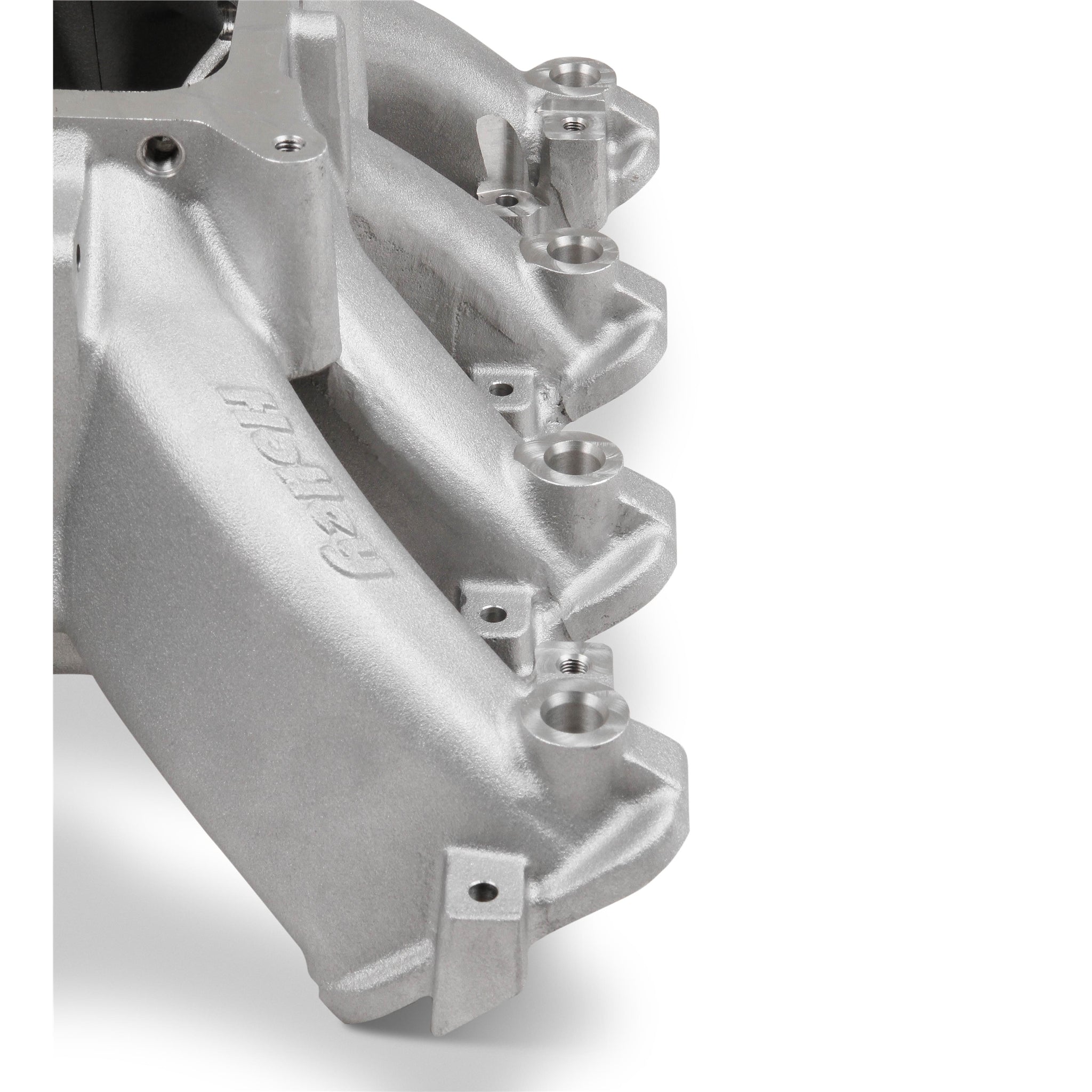

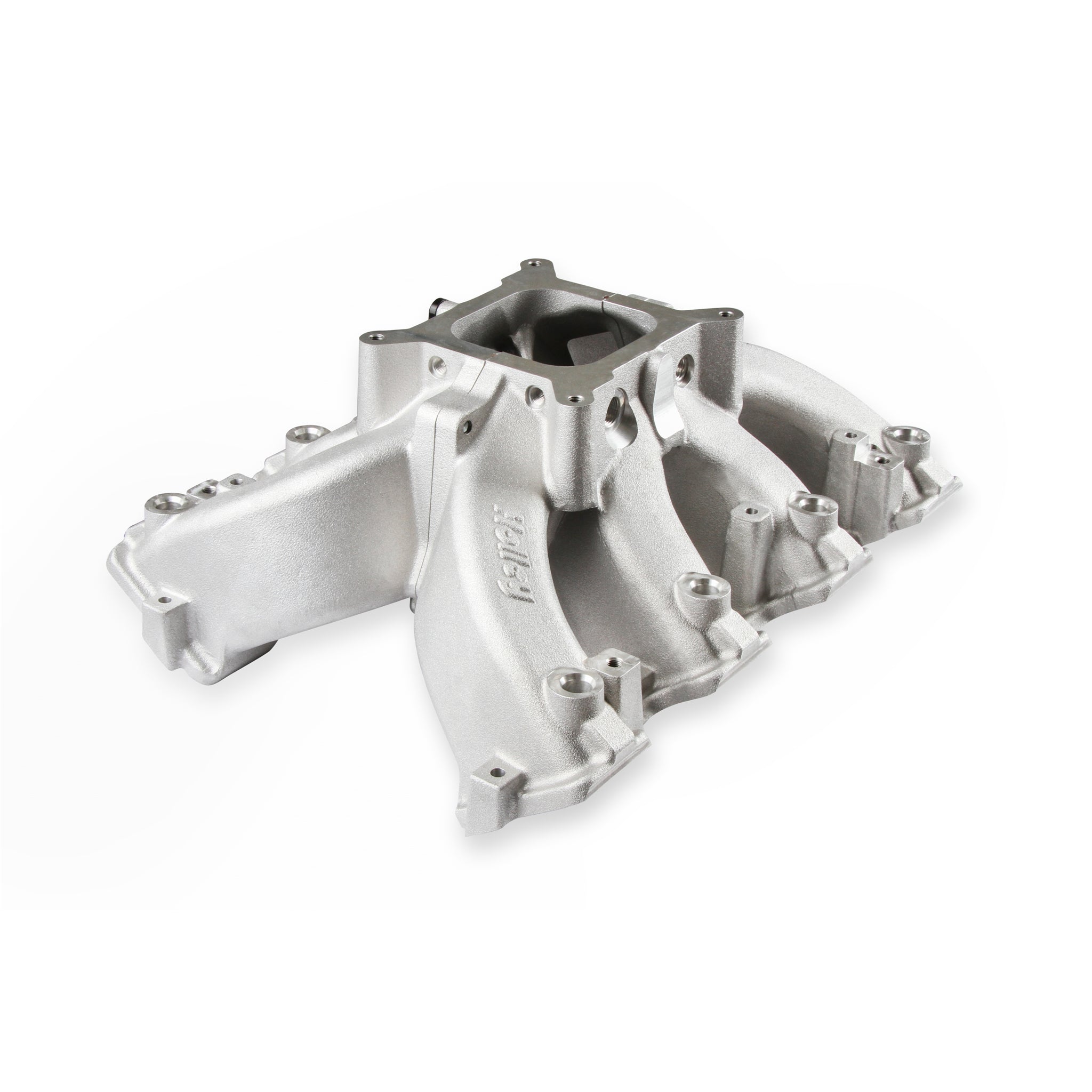

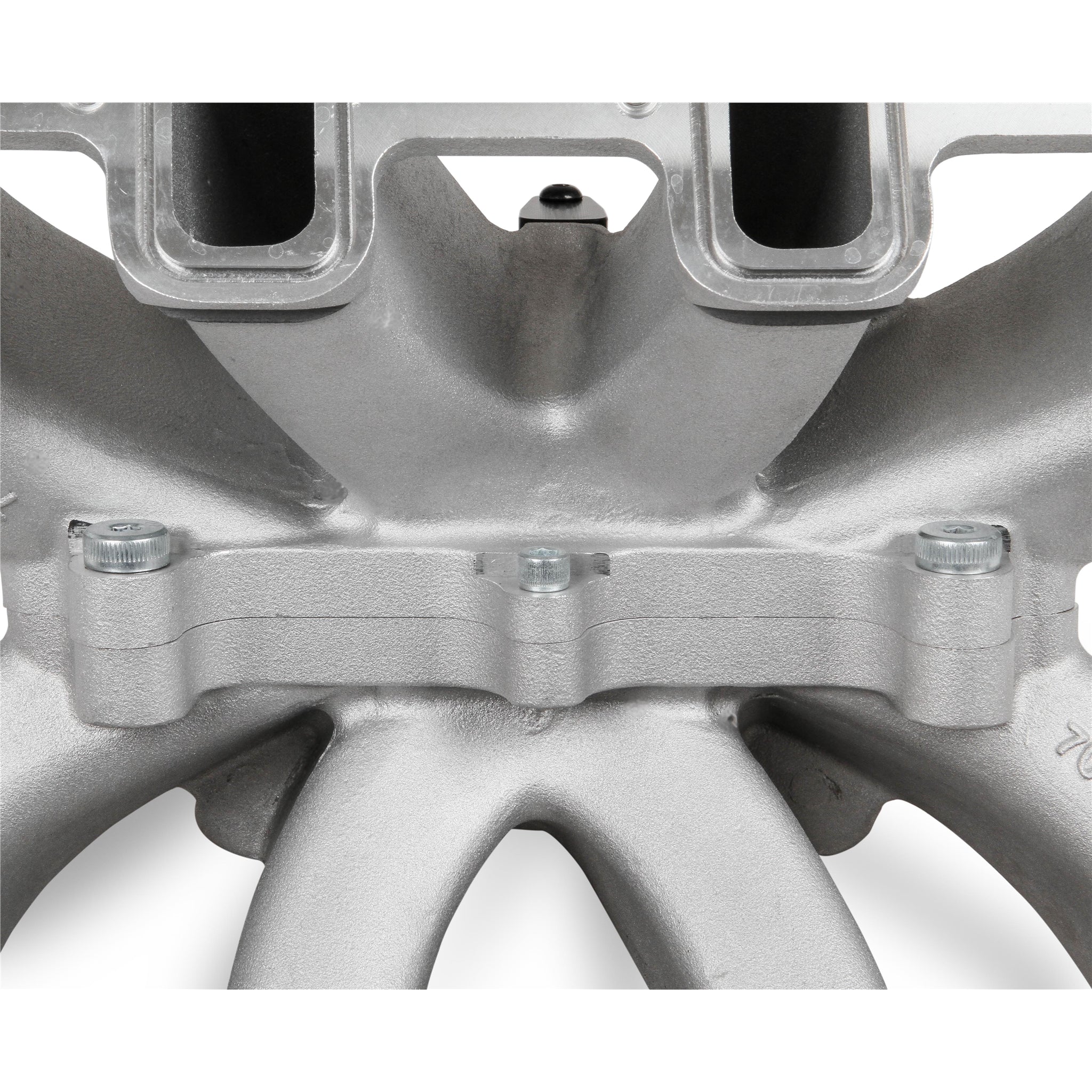

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical DataΓÇÜ┬╖ A-B Height - 7.20 in. (0° carb flange angle)iΓÇÜ┬╖ Port Size- 2.59 in. Height x 1.28 in. WideΓÇÜ┬╖ Throttle Body Flange - Standard 4150 for up to 1-3/4 in. diameter throttle boresiΓÇÜ┬╖ As-Cast Runner Cross-Sectional Area - 4.5 inA┬▓ at the runner entry tapered to 3.2 inA┬▓ at the flange exit

Specifications:

Description_ASC	Two different length fuel rail bracket sets are included; the long brackets are for mounting the fuel rails at a height for Bosch style EV1 type fuel injectors. The short brackets are for mounting the fuel rails at a height for GM OE LS7 fuel injectors. When using the OE GM LS7 injector, the O-ring on the outlet (intake manifold) end of the injector must be changed to the O-ring supplied in the short bracket pack.
Description_DEF	Engine Intake Manifold
Description_DES	Holley Single Plane EFI Split-Design Race Intake Manifold- GM LS3/L92
Description_INV	INTAKE MANIFOLD LS3 SPLIT SGL-PLANE EFI
Description_EXT	EFI Intake Manifold; Power Band 2500-7000 RPM; Square Bore; 4150 Style Flange; Split Single Plane Design; Silver; Satin Finish;
Description_FAB	Maximum performance race design with hood clearance consideration
Description_FAB	Lighter than other split race intakes
Description_FAB	Split feature making porting efforts easy!
Description_FAB	33 to 50% the price of other split race intakes

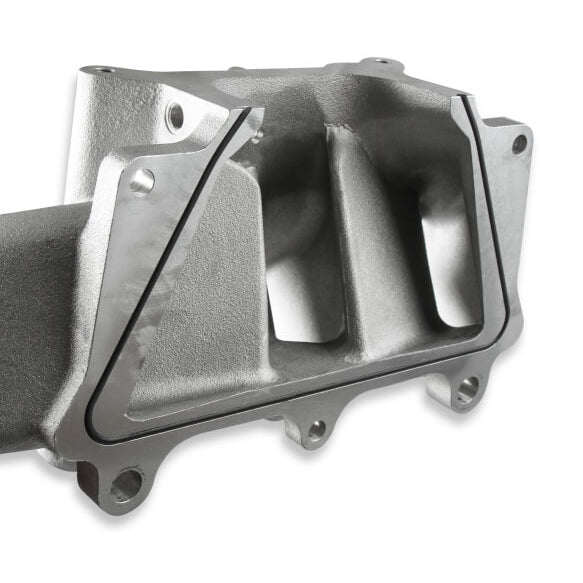

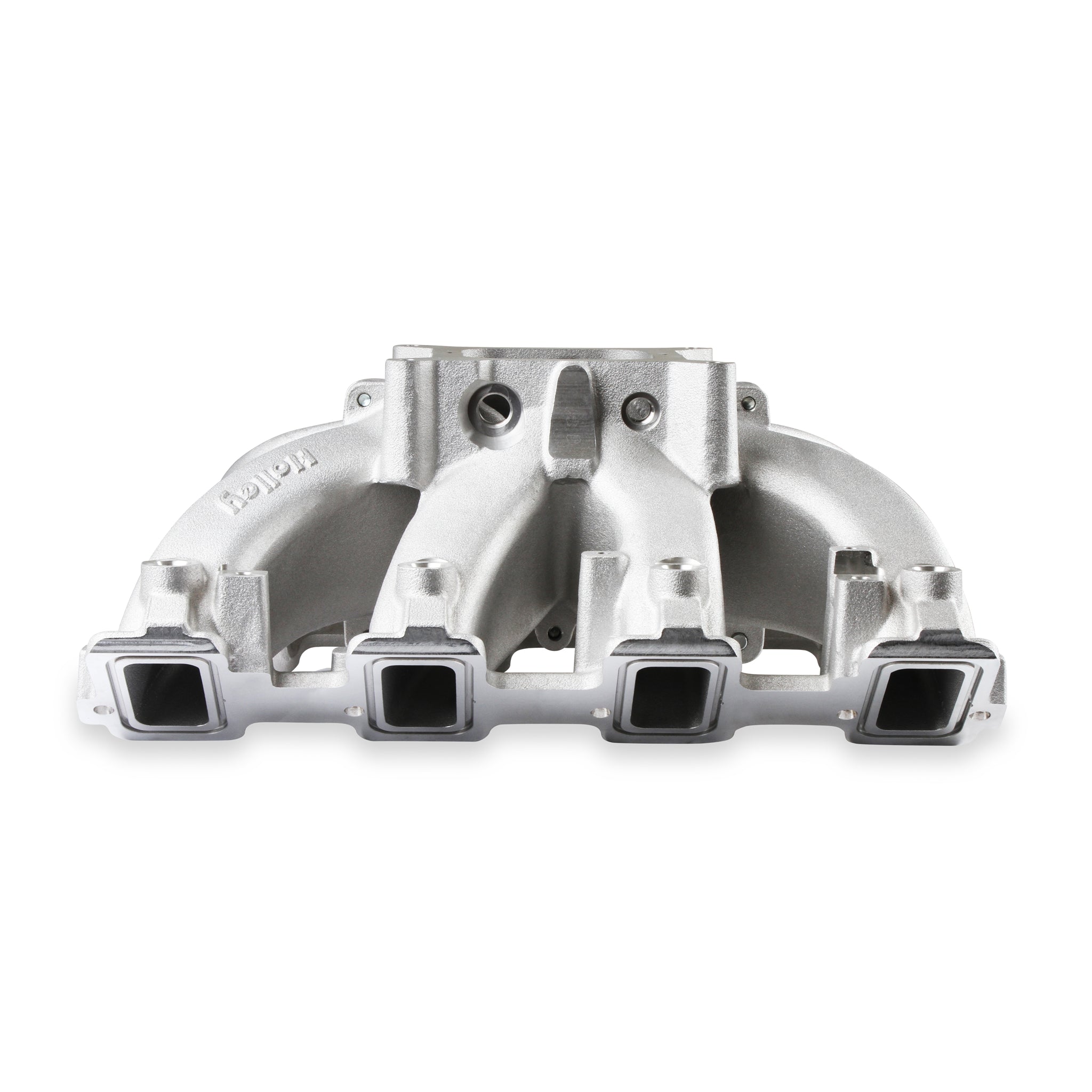

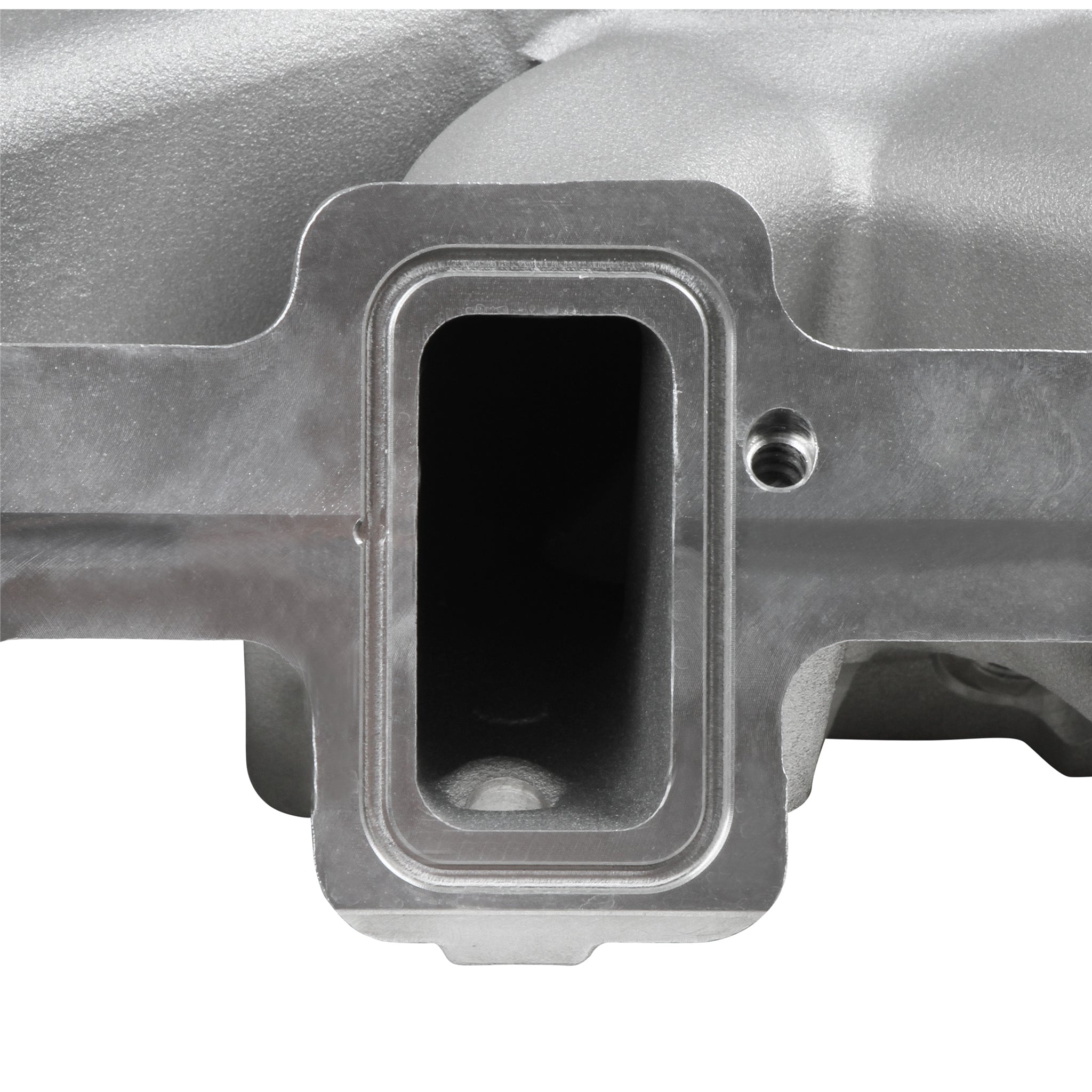

Description_FAB	Captured O-ring seals at head ports and split

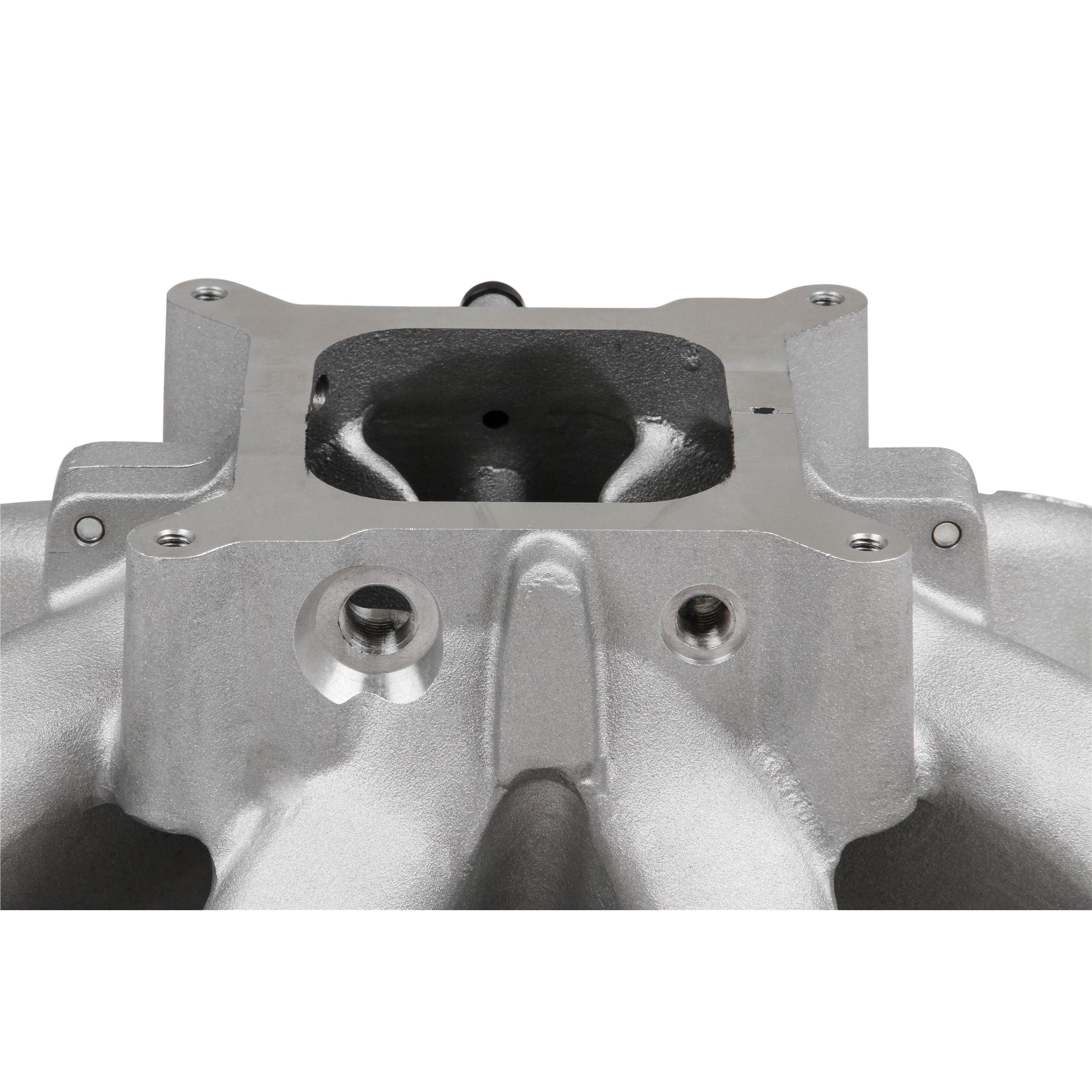

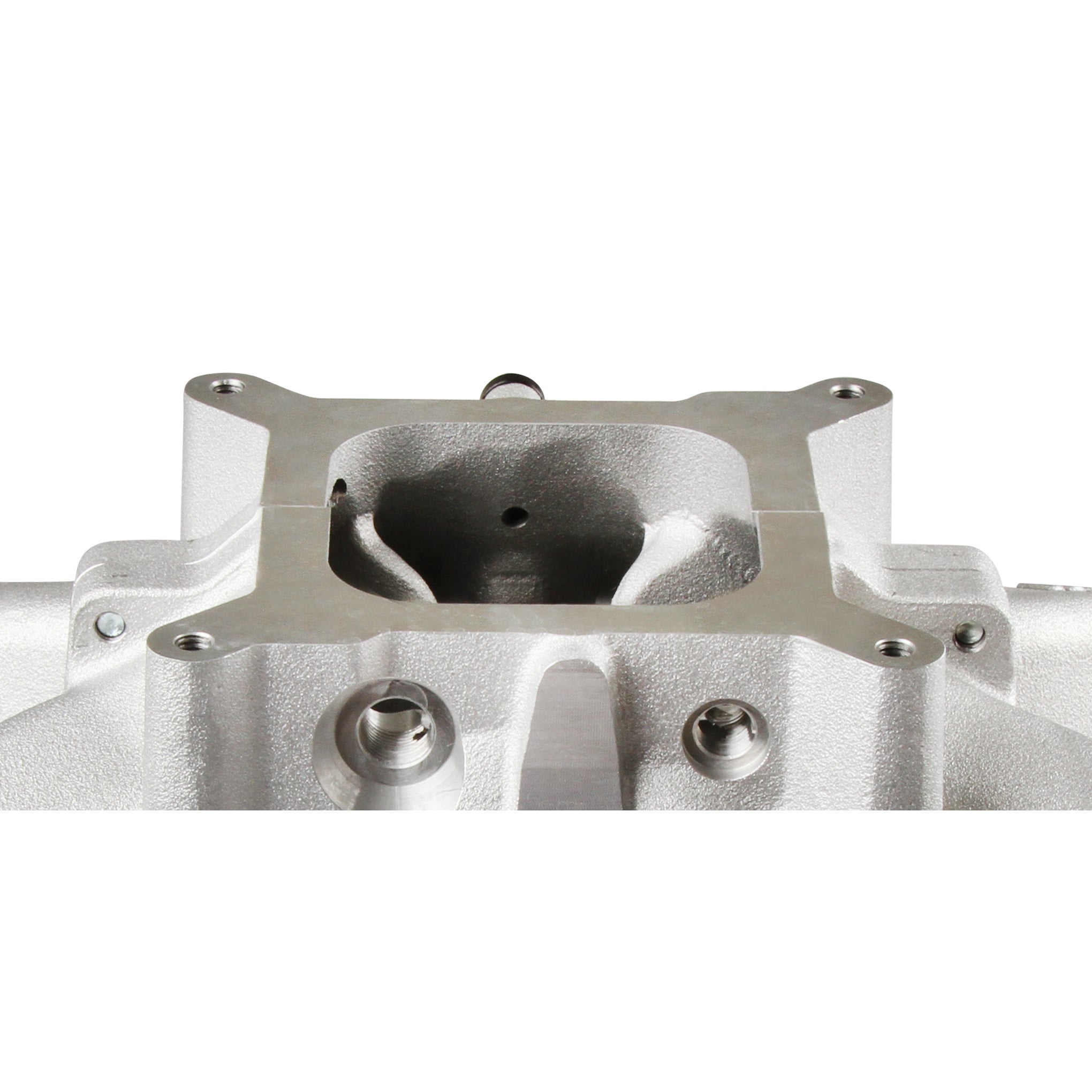

Description_FAB	Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

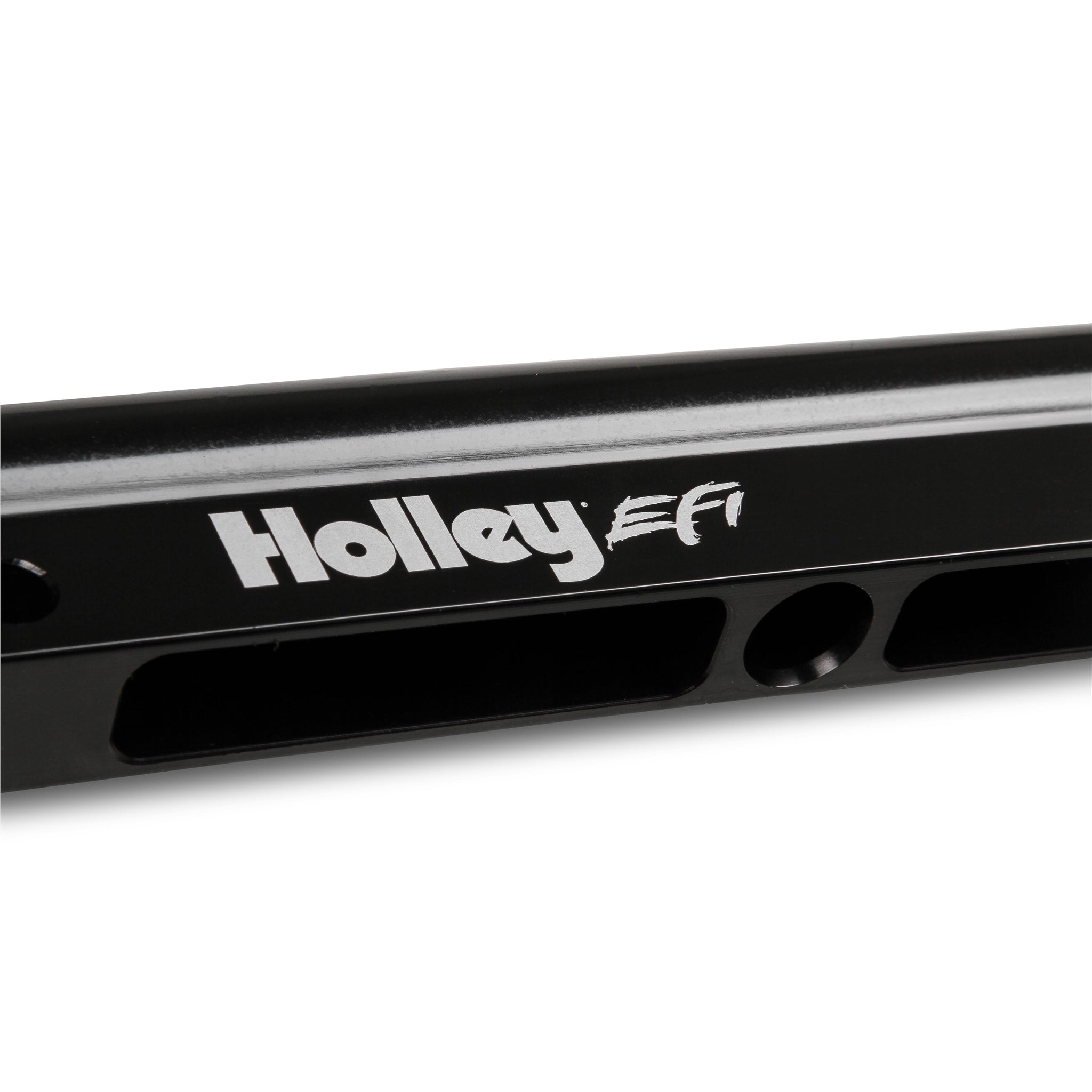

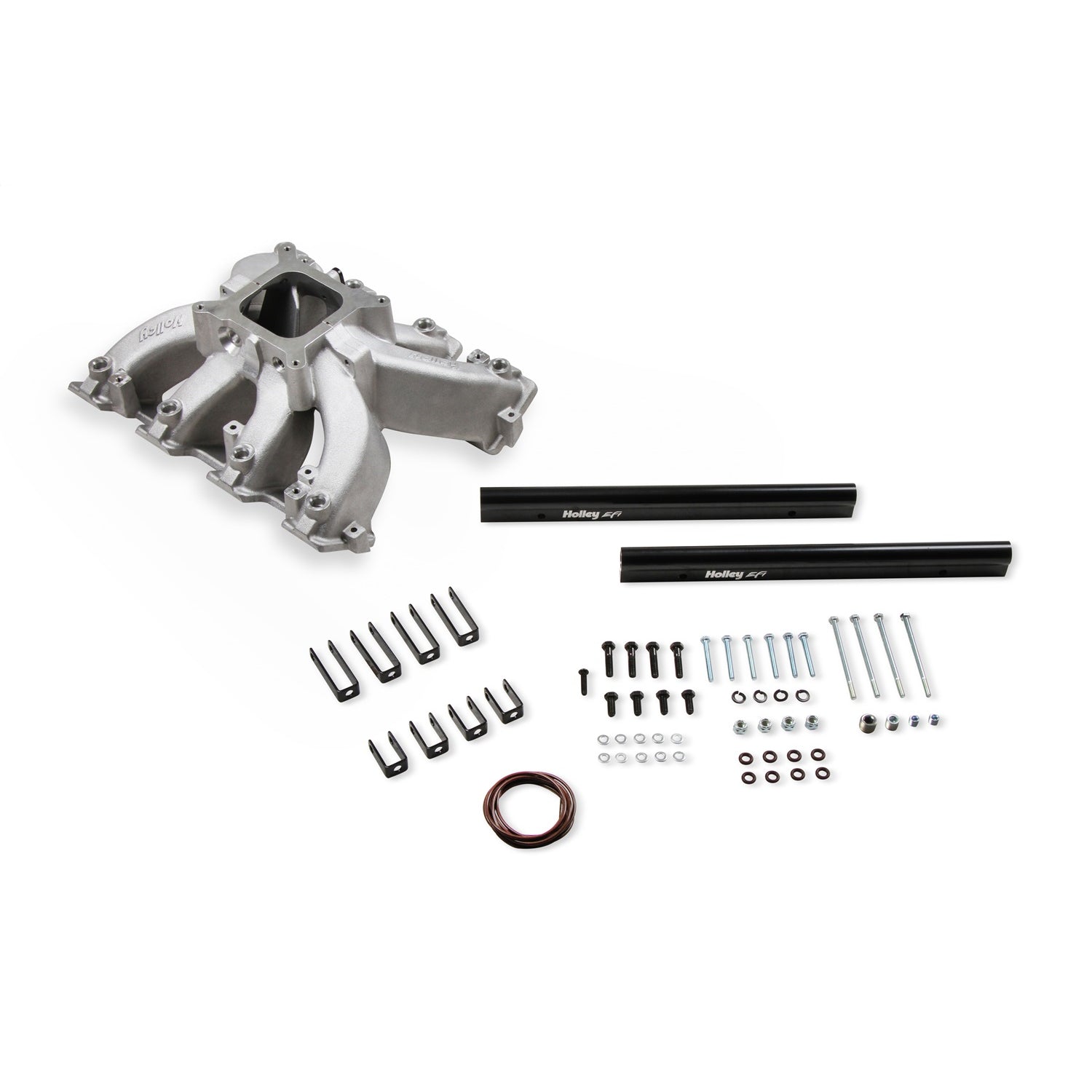

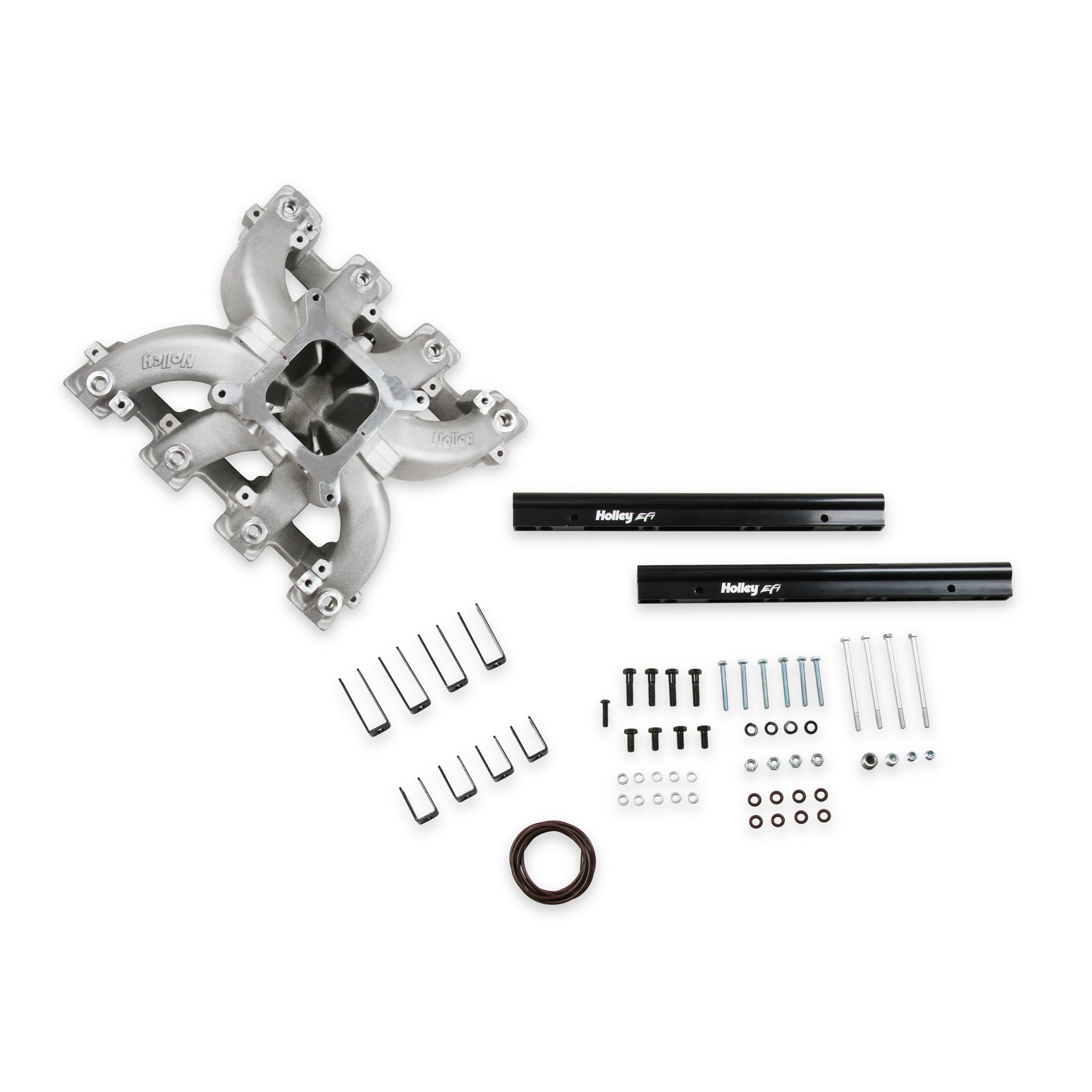

Description_FAB	Billet Fuel Rails and rail mounting hardware included.
Description_KEY	holley; manifold; holley manifold; intake manifold; edelbrock; professional products
Description_MKT	The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical DataΓÇÜ┬╖ A-B Height - 7.20 in. (0° carb flange angle)iΓÇÜ┬╖ Port Size- 2.59 in. Height x 1.28 in. WideΓÇÜ┬╖ Throttle Body Flange - Standard 4150 for up to 1-3/4 in. diameter throttle boresiΓÇÜ┬╖ As-Cast Runner Cross-Sectional Area - 4.5 inA┬▓ at the runner entry tapered to 3.2 inA┬▓ at the flange exit
Description_SHO	Intake Manifold
WARNING CA Proposition 65	No
Manifold Type	Split Single Plane
Engine Make/Size	Chevy LS3/L92
Finish	Silver
Product Type	Intake Manifold
Rear Height	7.32"
Warranty	Limited 90 Day
Flange Style	4150 Square Bore
Fuel System Type	EFI
Recommended Use	Forced Induction
RPM Power Band	3500-8000 RPM
Color	Silver
RPM Range	2500-7000
Cylinder Head Type	LS3/L92
Brand	Holley
Construction	Cast
Engine	GM LS3/L92
Front Height	7.32"
Usage	Racing
Barrels	4
Emission Code	3
Sale Category	Air and Fuel Delivery
Length	10.0000
Width	15.0000
Height	23.0000
Weight	23.0000
