Holley 300-273BK 8.2" SBF Ford Hi-Ram EFI Manifold-Black

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_300-273BK

Stock:

Product Code: Engine Intake Manifold

$1,365.54

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 300-273BK 8.2" SBF Ford Hi-Ram EFI Manifold-Black

Details
Reviews

Details

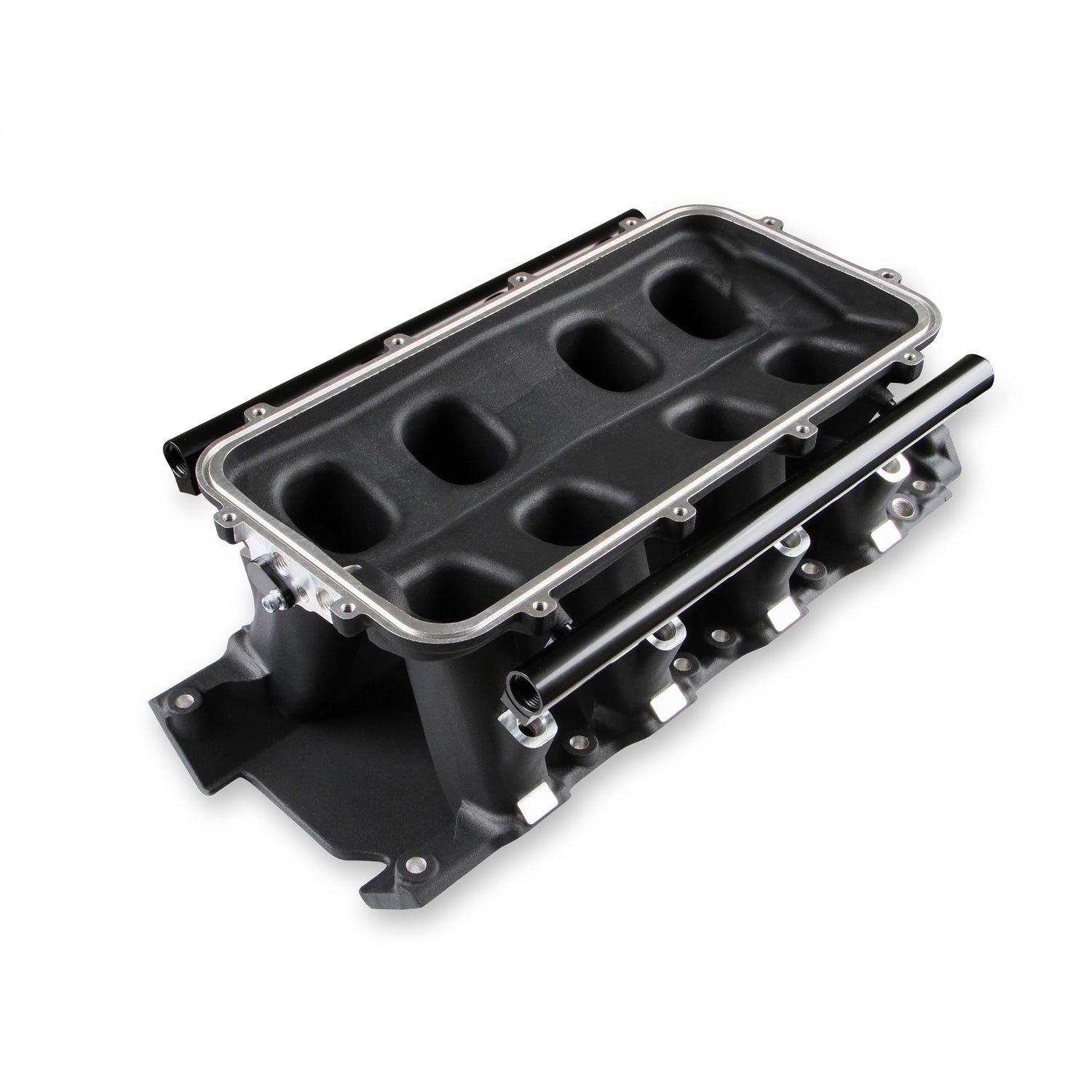

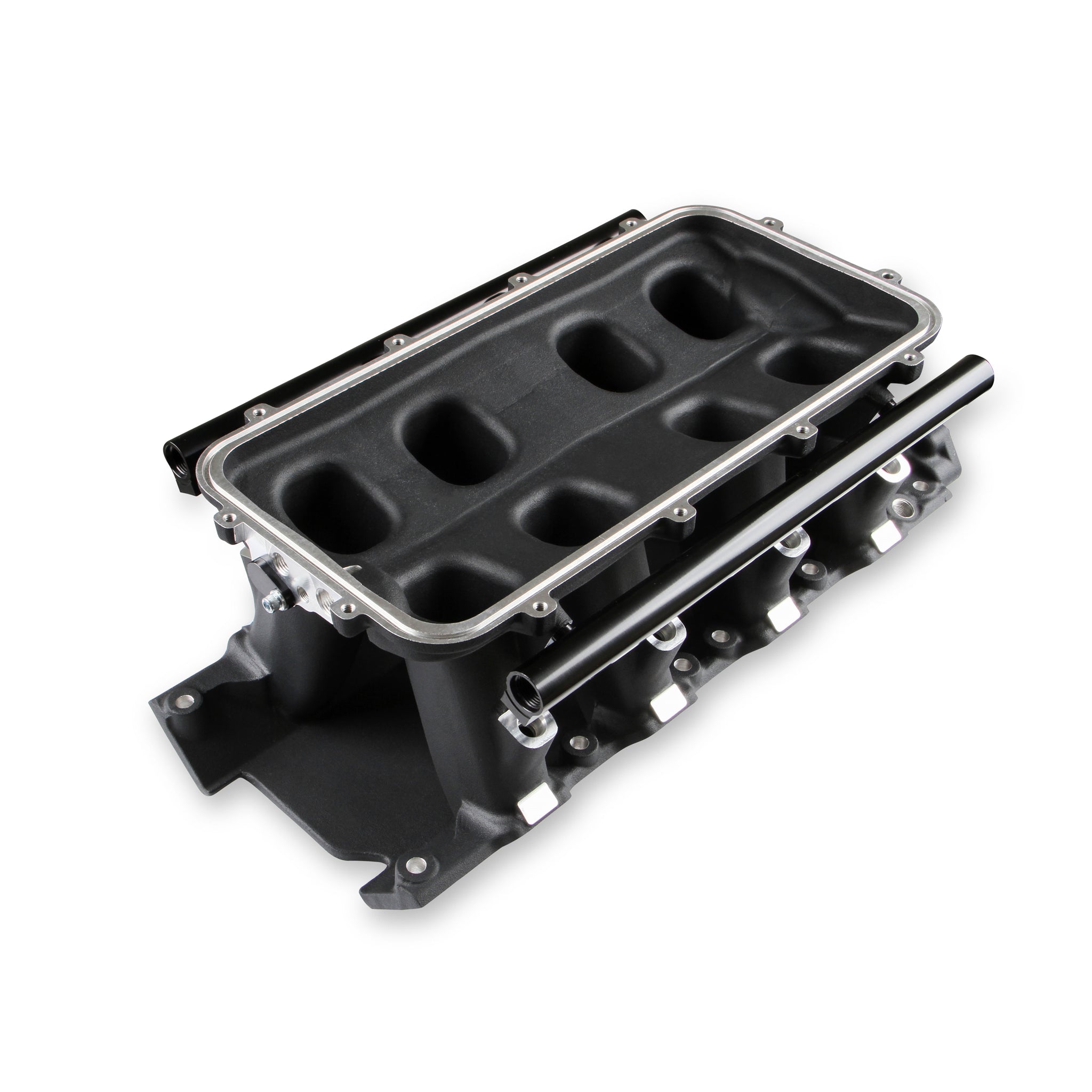

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!Manifold is designed for a 8.2" deck height.ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurationsΓÇó EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.ΓÇó Cast aluminum construction.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Specifications:

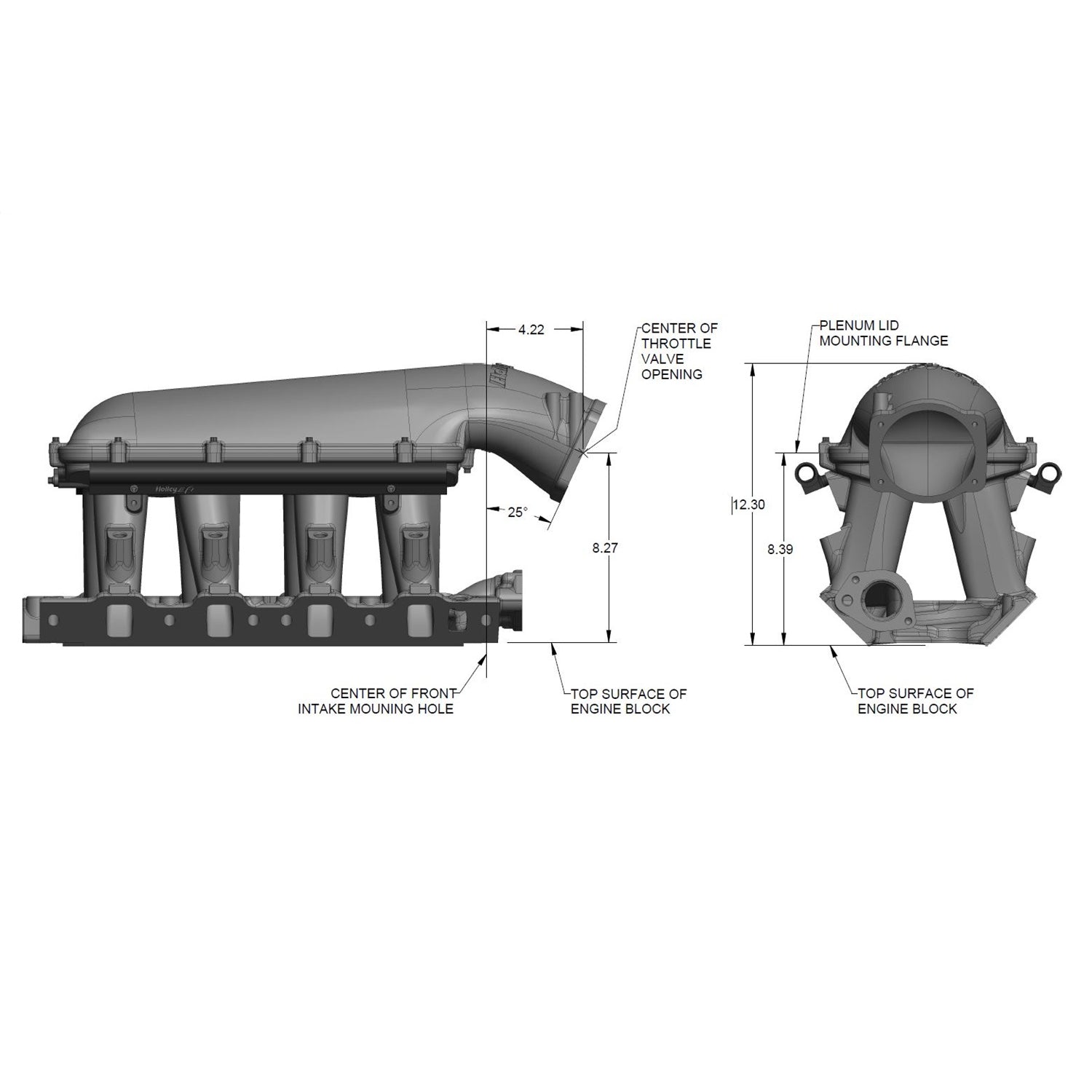

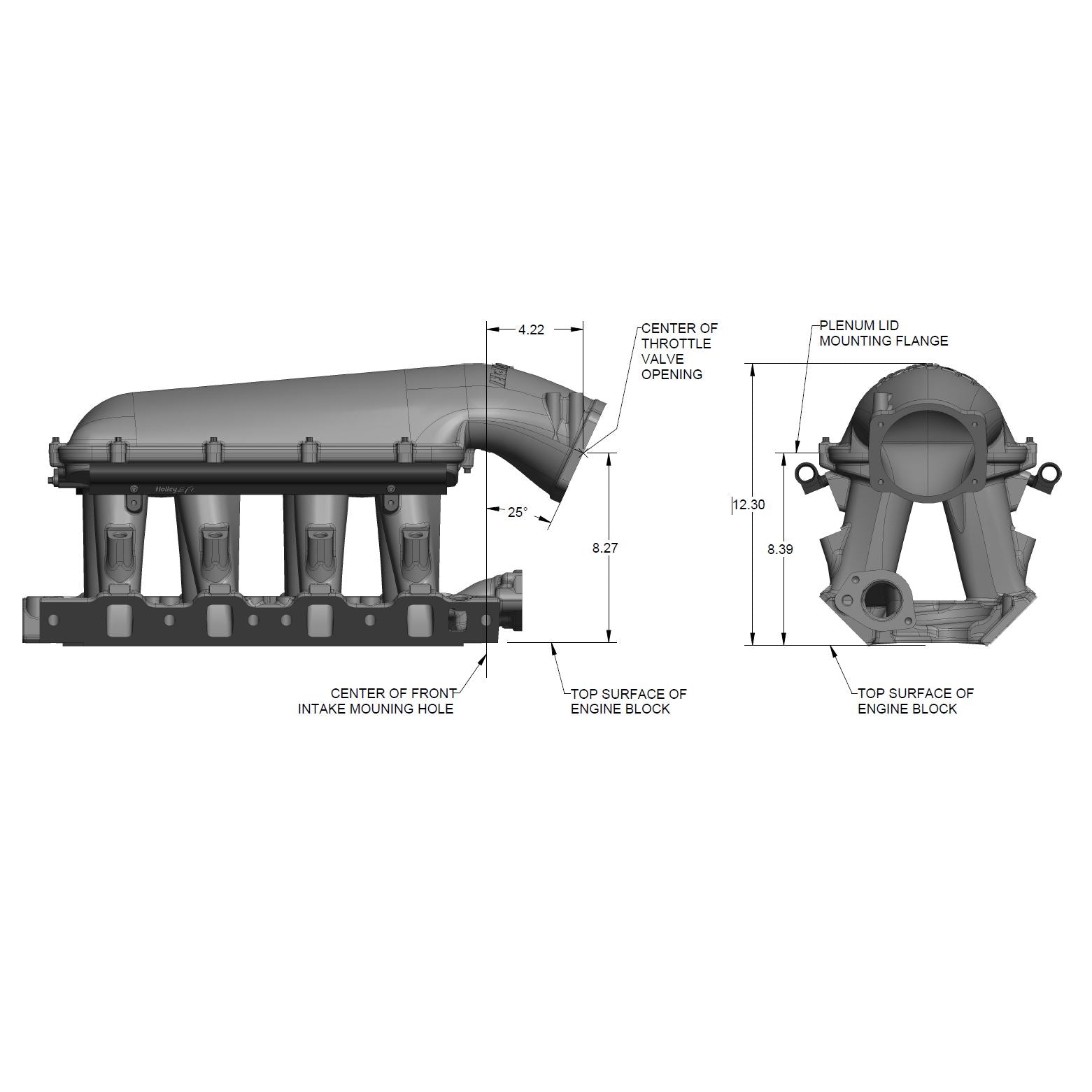

Description_ASC	* Please see the diagrams in the product images for other dimensions.* A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.Warning:Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Description_DEF	Engine Intake Manifold
Description_DES	8.2" SBF Ford Hi-Ram EFI Manifold-Black
Description_MKT	The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!Manifold is designed for a 8.2" deck height.ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurationsΓÇó EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.ΓÇó Cast aluminum construction.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Description_EXT	Holley EFI Hi-Ram Intake Manifold; Fits w/8.2 in. Deck SB Ford w/105 mm LS Throttle Body Flange Top; 1500-7000 RPM Power Band; Cast Aluminum; Satin Finish;
Description_FAB	EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Description_FAB	Plenum Top Gasket Type - 3/32" Round O-ring Cord
Description_FAB	Manifold is designed for a 8.2" SBF deck height.
Description_FAB	The 8.2 SBF manifold is available to work with 105MM throttle bodies
Description_INV	KIT, 105MM EFI SBF 302 DECK HI-RAM BLACK
Description_SHO	Intake Manifold
Construction	Cast
RPM Power Band	1500-7000
Number of Carbs	None; For Fuel Injection
Brand	Holley EFI
WARNING CA Proposition 65	No
RPM Range	1500-7000
Engine Make/Size	Ford 289-302
Flange Style	EFI
Product Type	Intake Manifold
Warranty	Limited 90 Day
Cylinder Head Type	Ford Small Block
Usage	Racing
Position	N/A
Emission Code	3
Engine	Ford Small Block V8
Finish	Black
Fuel System Type	EFI
Manifold Type	Hi-Ram

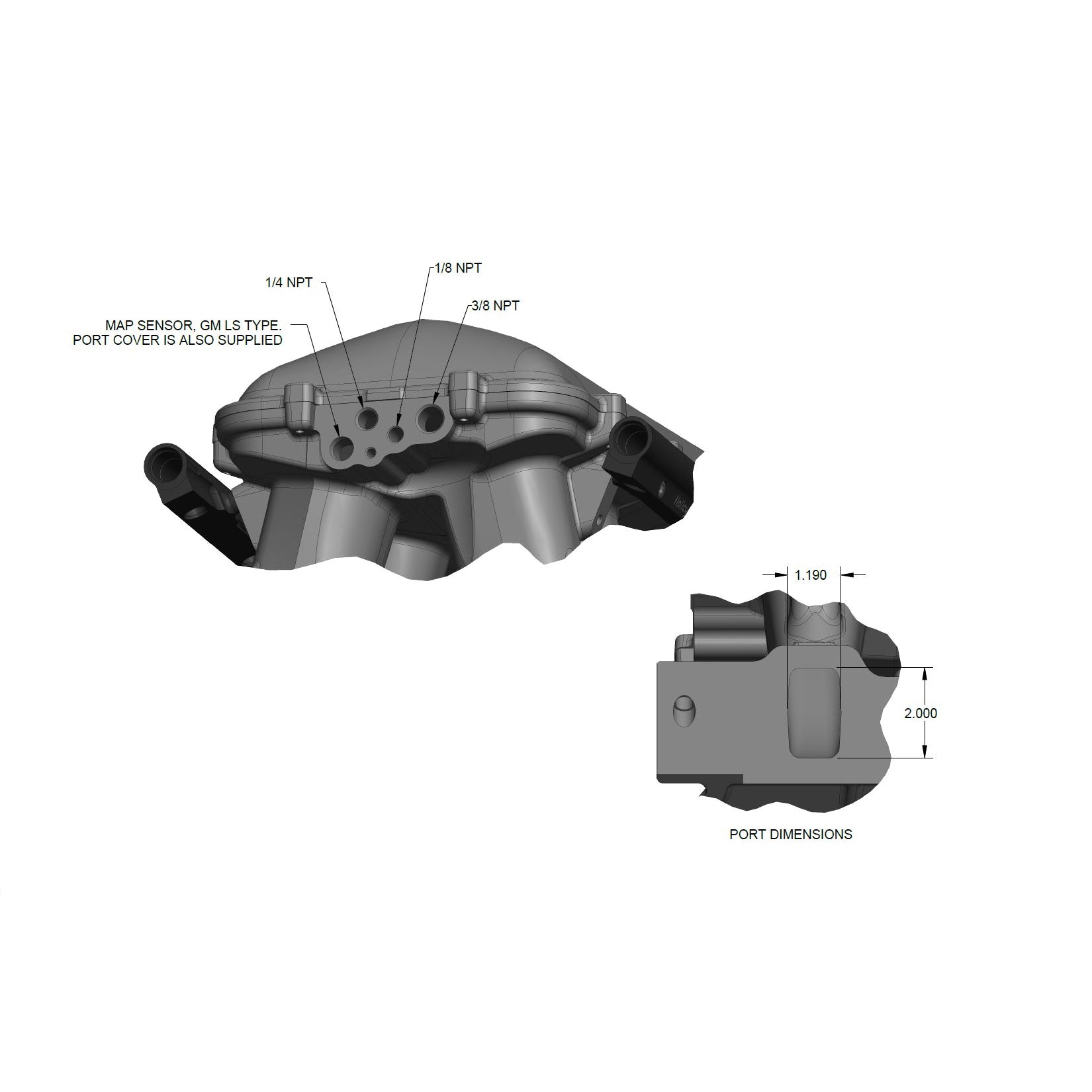

Port Size	2.00" x 1.190"
Throttle Bore	105mm
Length	18.2000
Width	15.3000
Height	24.6000
Weight	36.9800
