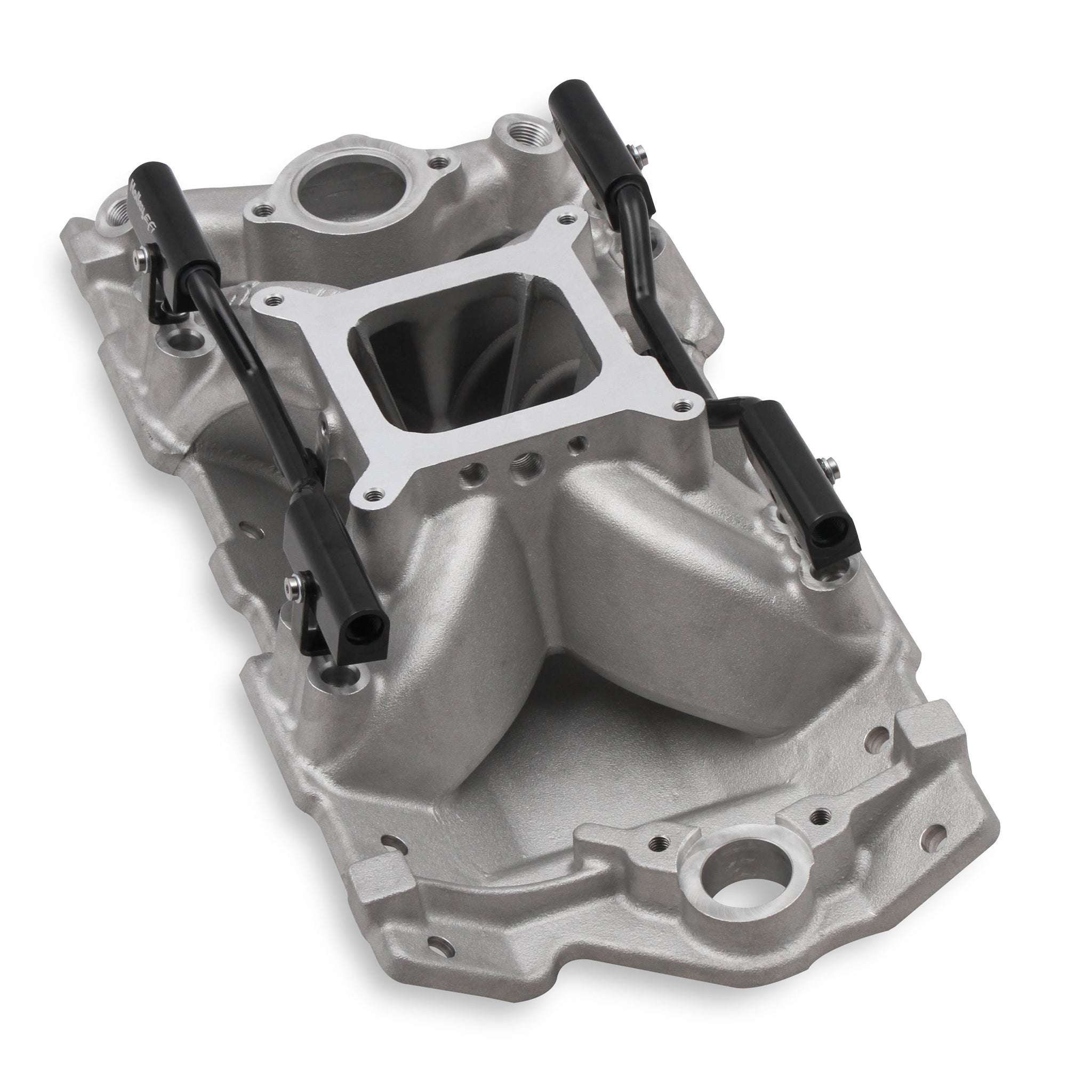

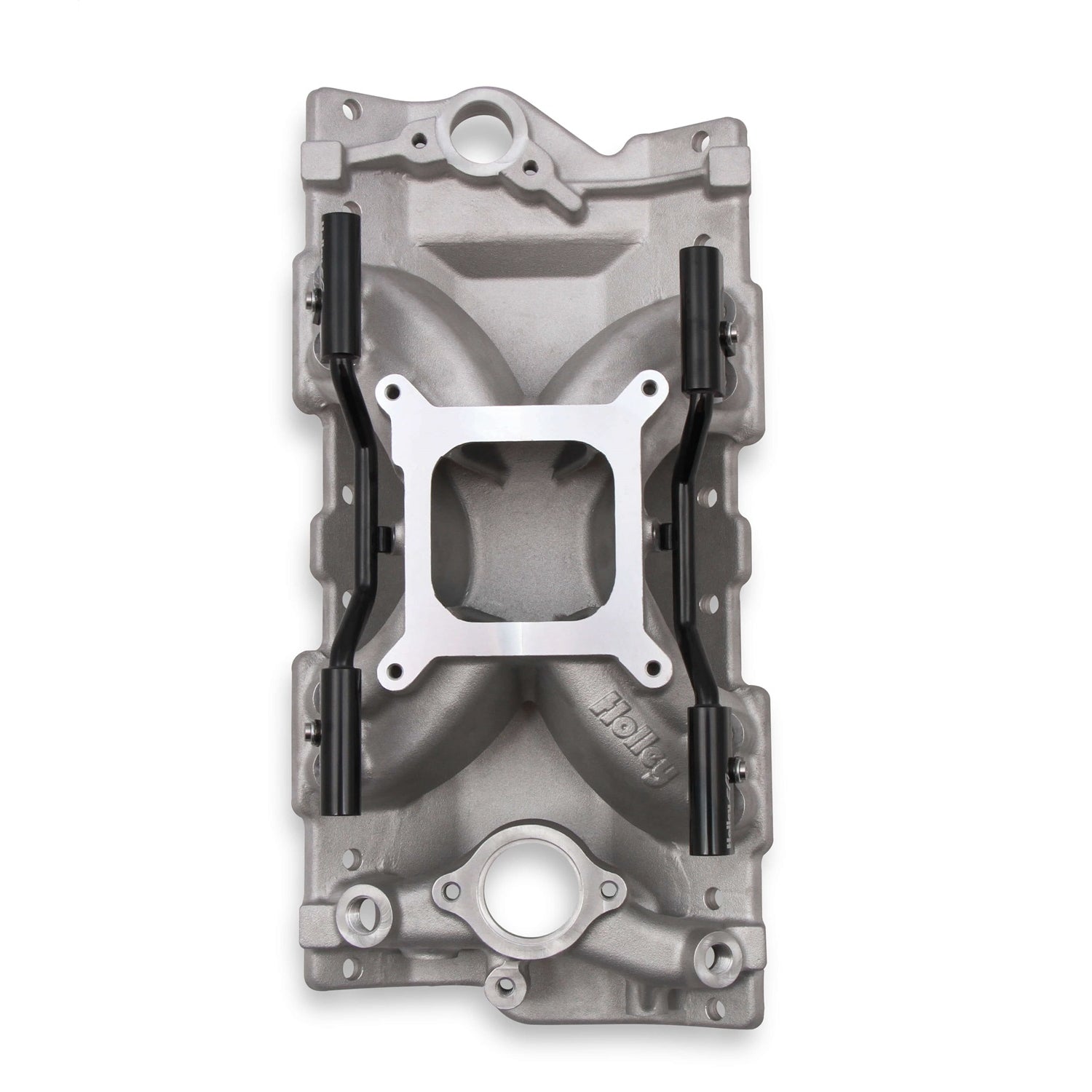

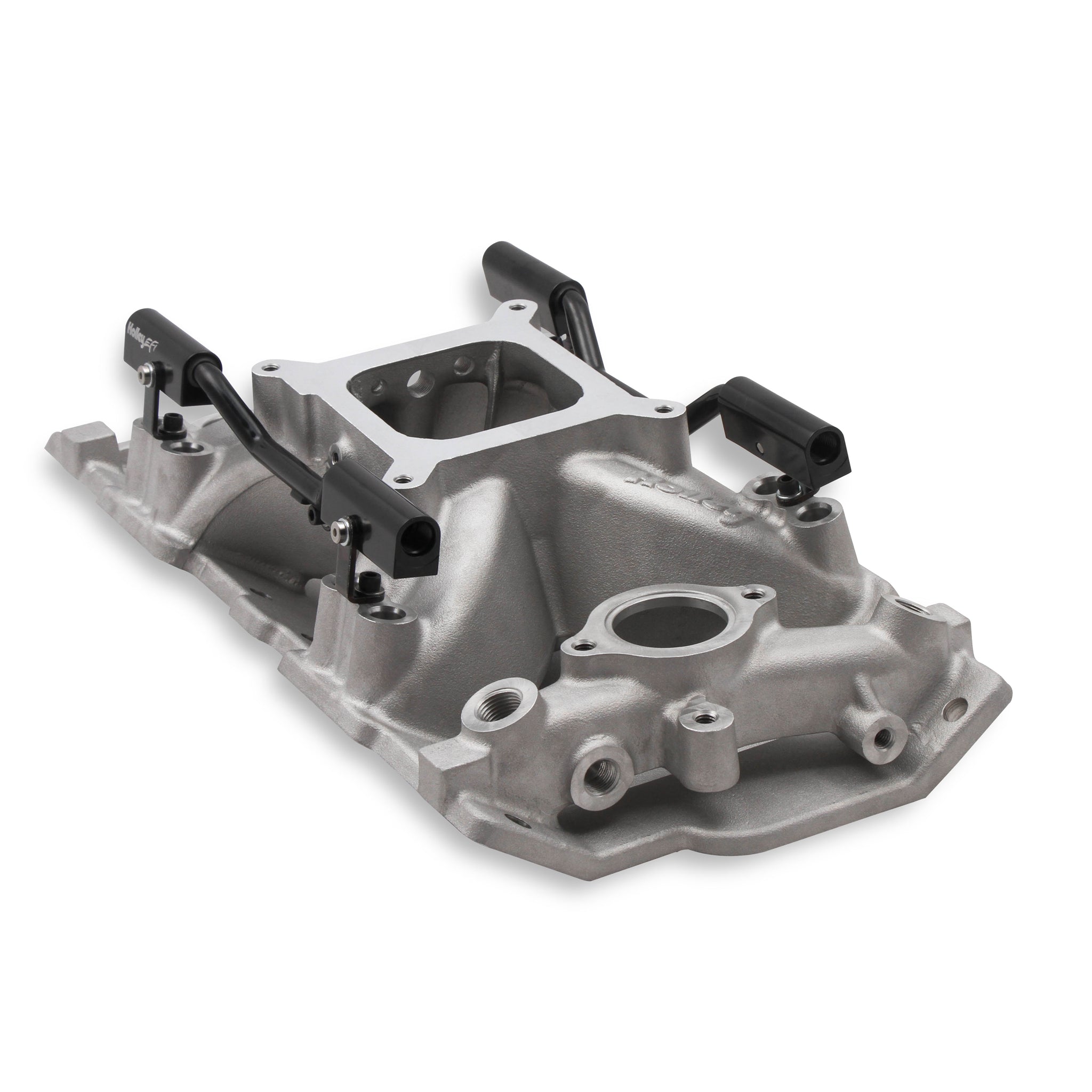

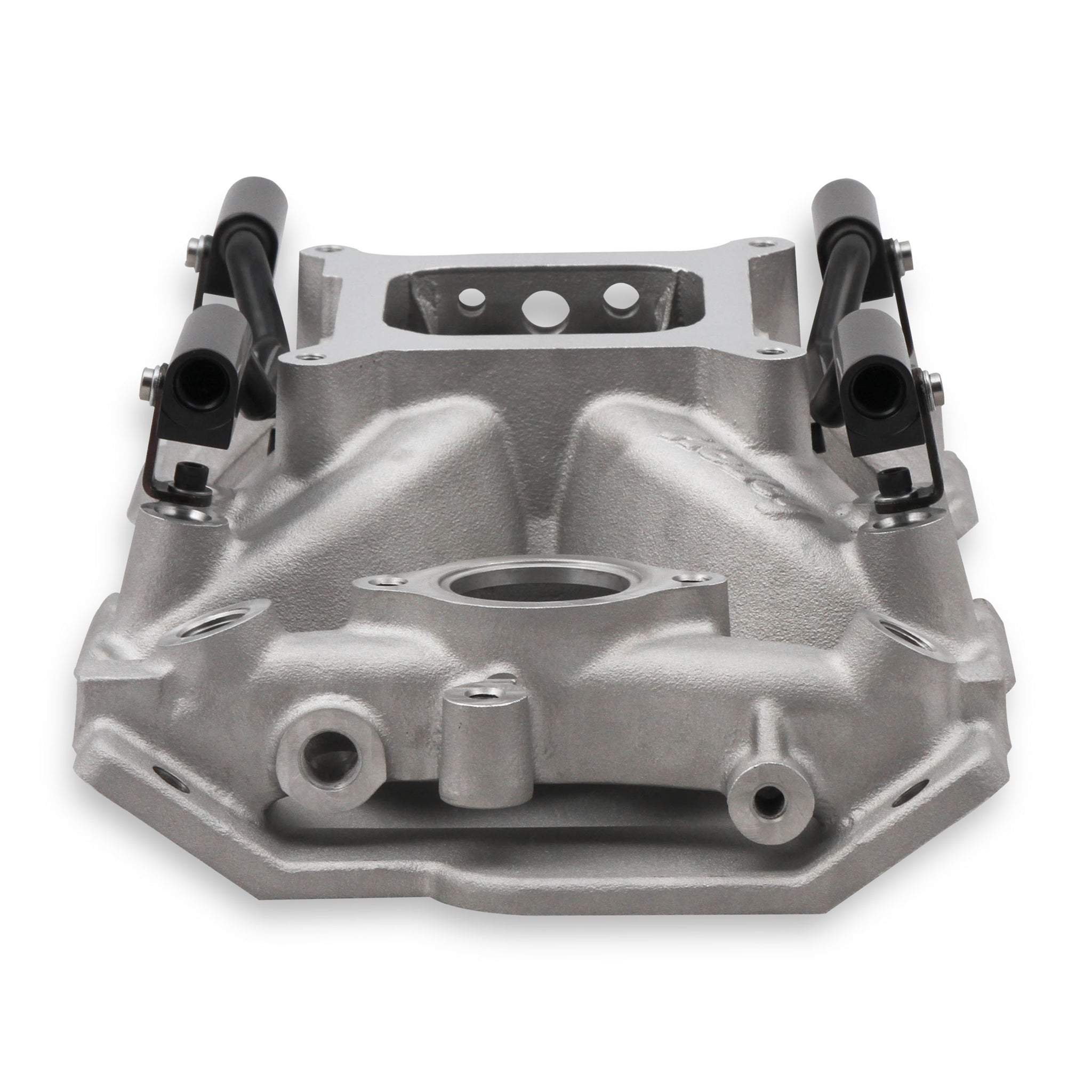

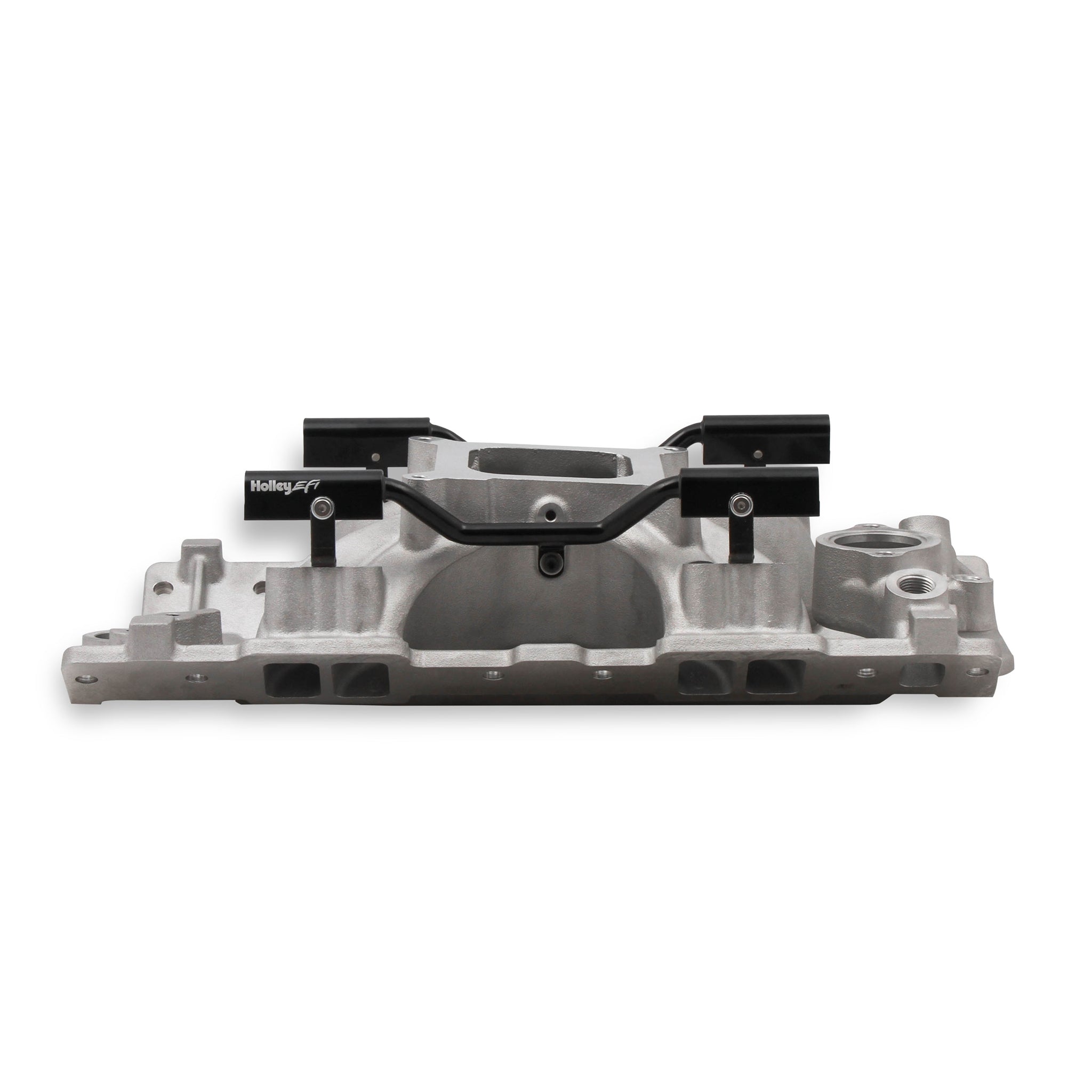

Holley 300-260 Efi Sbc 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_300-260

Stock:

Product Code: Engine Intake Manifold

$917.13 $897.63

Quantity

Subtotal: $897.63

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 300-260 Efi Sbc 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8

Details
Reviews

Details

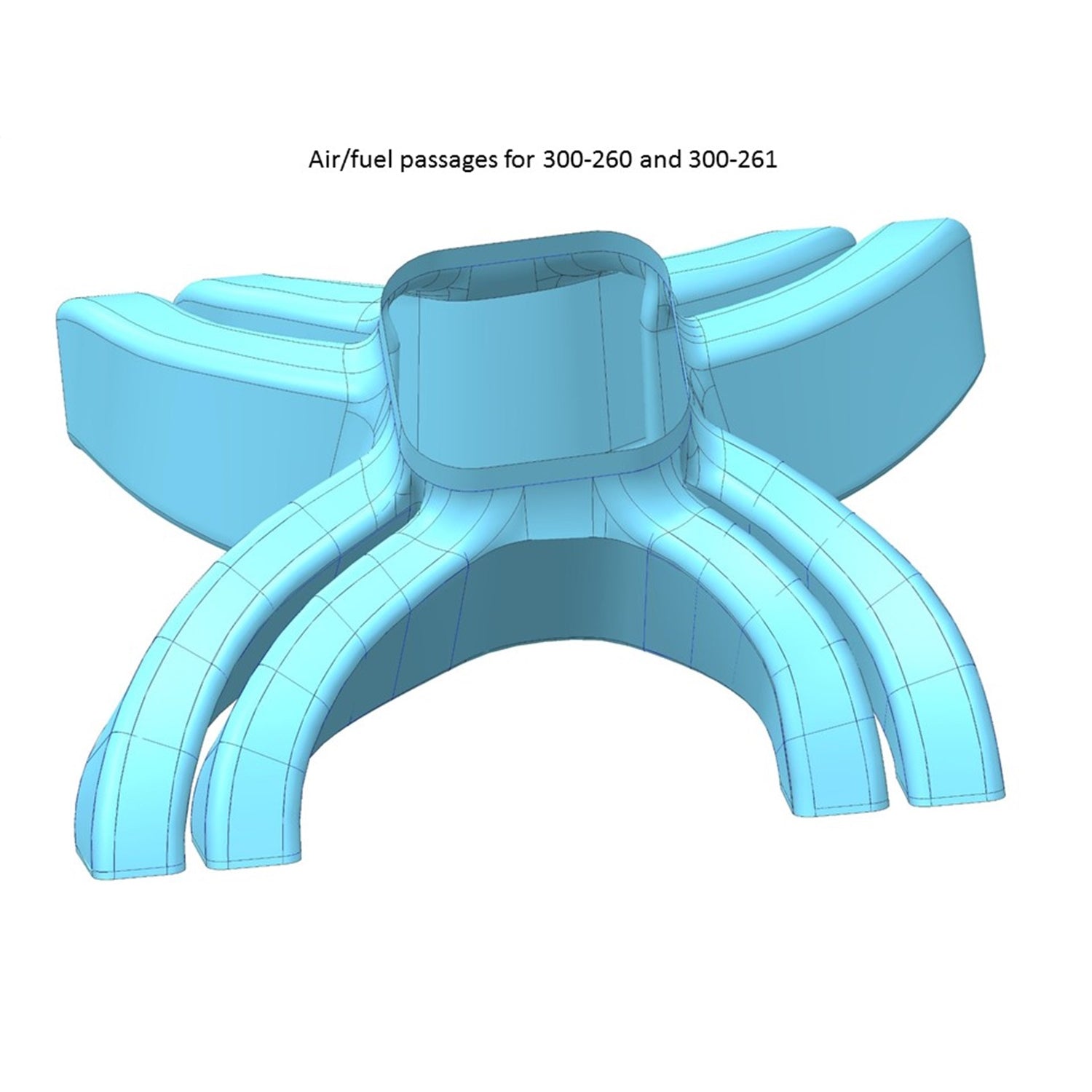

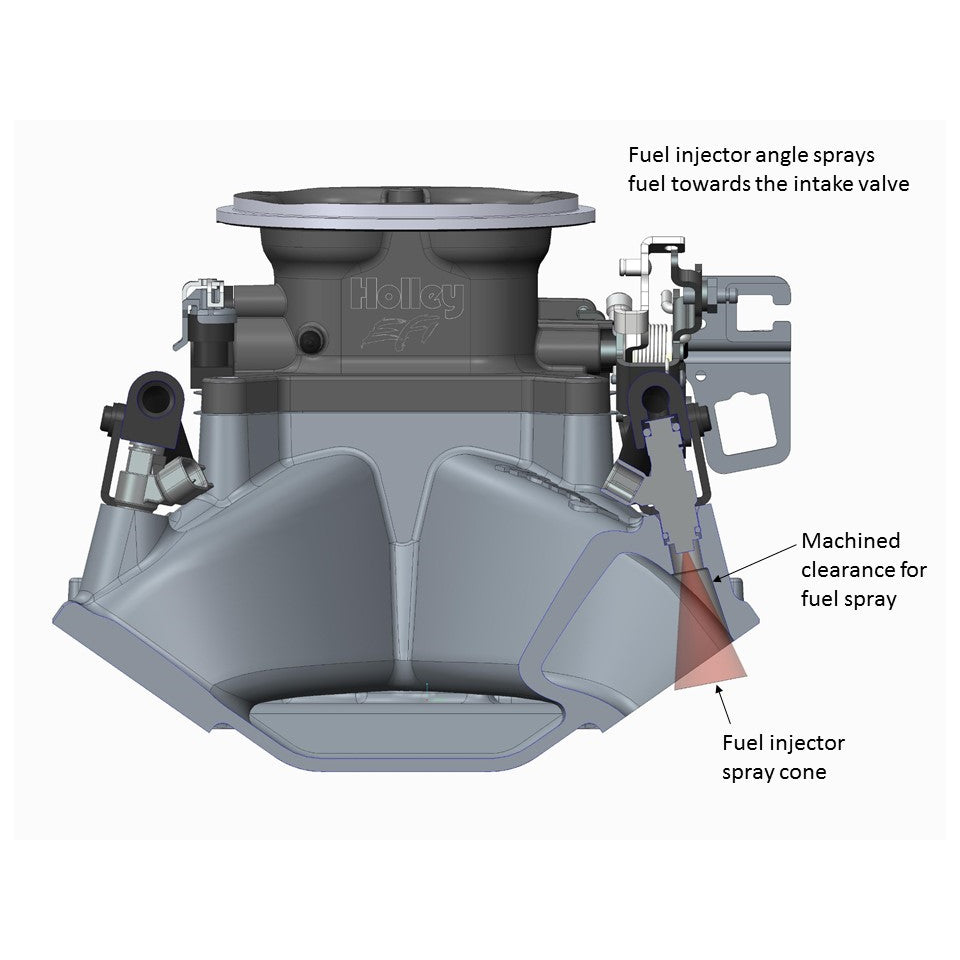

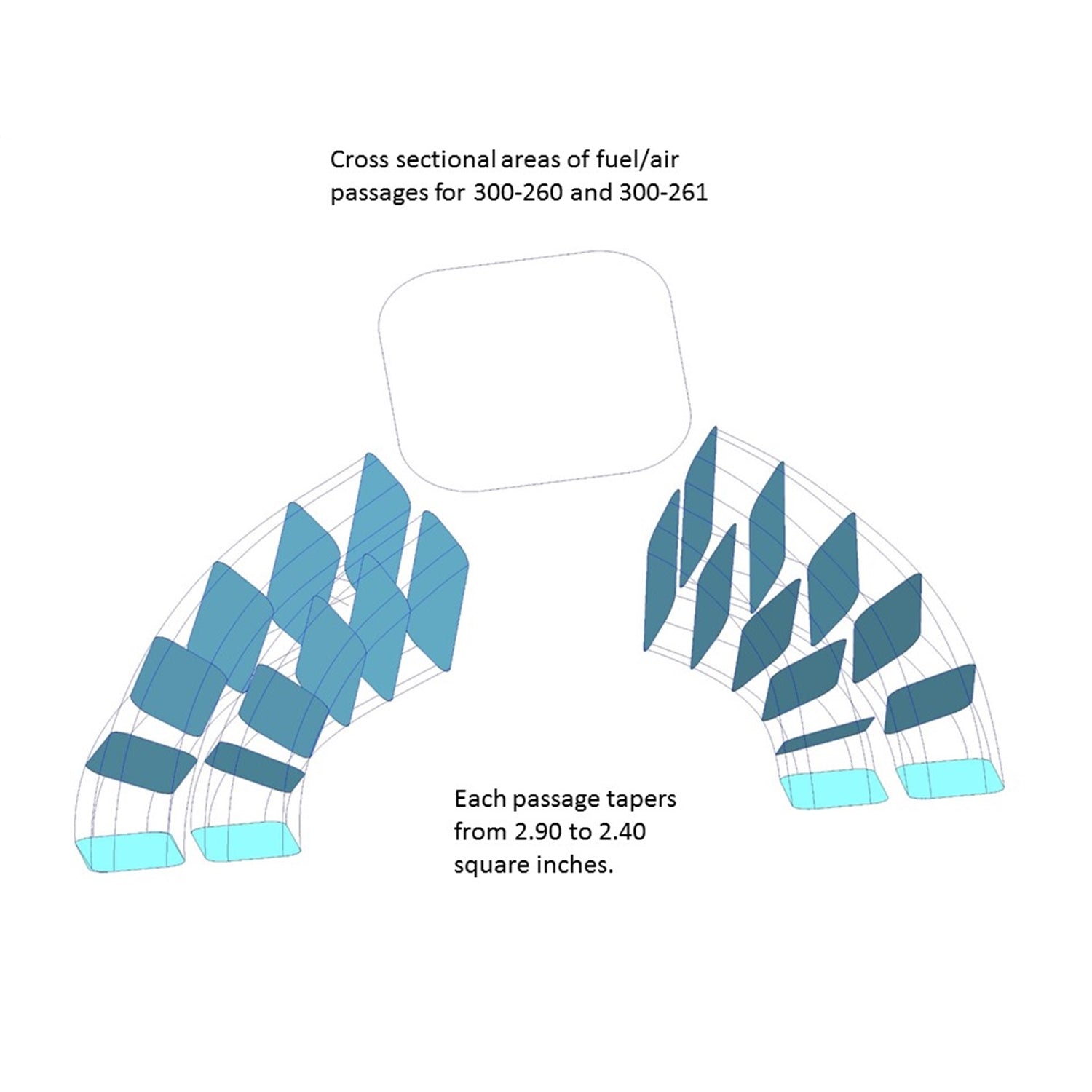

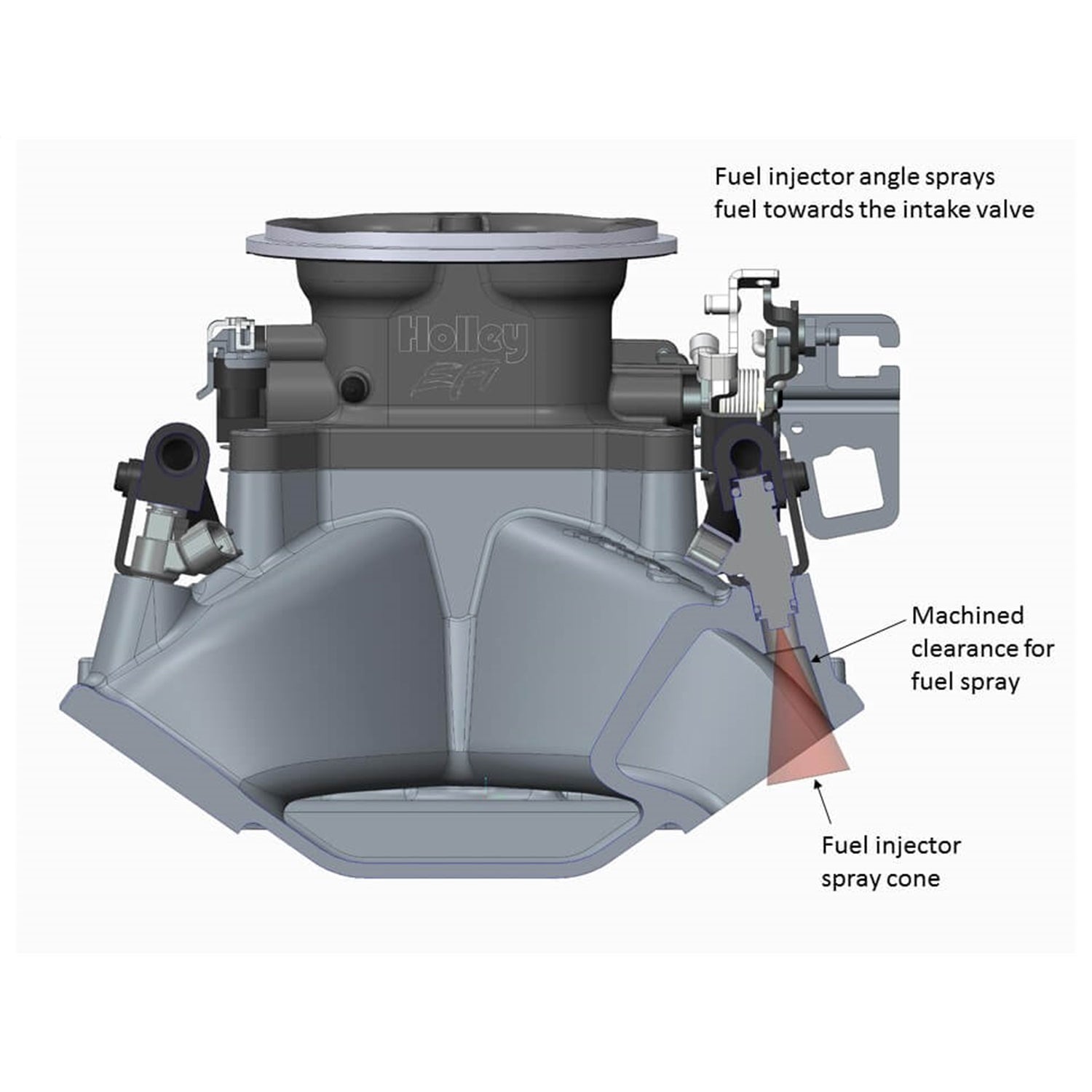

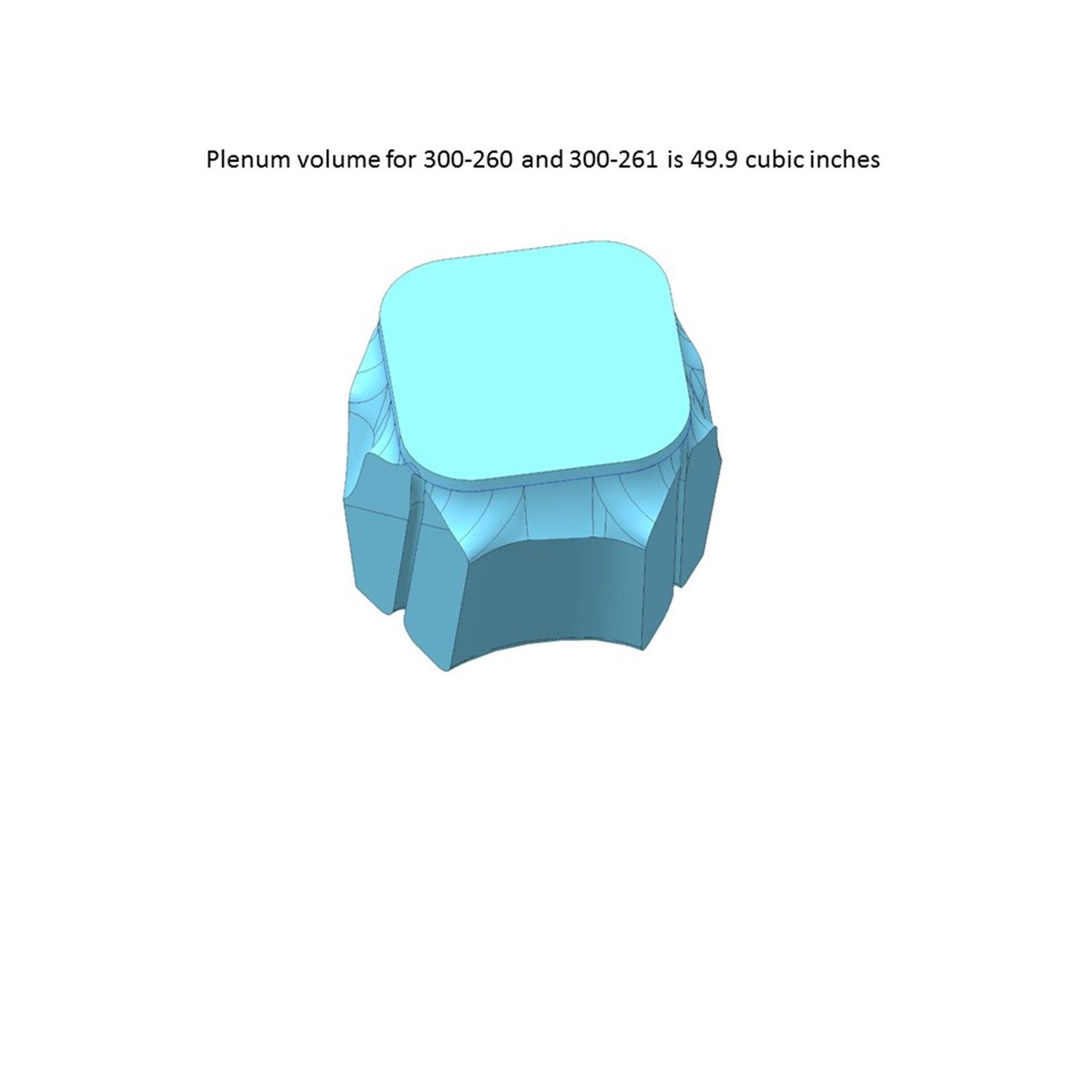

The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1 in. shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance.(Injectors are not included)The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket

Specifications:

Description_ASC	Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.
Description_DEF	Engine Intake Manifold
Description_DES	Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8
Description_INV	SBC EFI INTAKE MANIFLD AND FUEL RAIL KIT
Description_EXT	EFI Intake Manifold and Fuel Rail Kit; Upper; Single Plane; For Use w/4150 Style Throttle Body; 4.18 in. Front H/5.28 in. Rear H; 2500-7500 RPM Power Band; Satin;
Description_FAB	Single Plane Design with isolated Plenum
Description_FAB	4150 Square Bore Mounting Flange
Description_FAB	Power band: 2500-7500 RPM

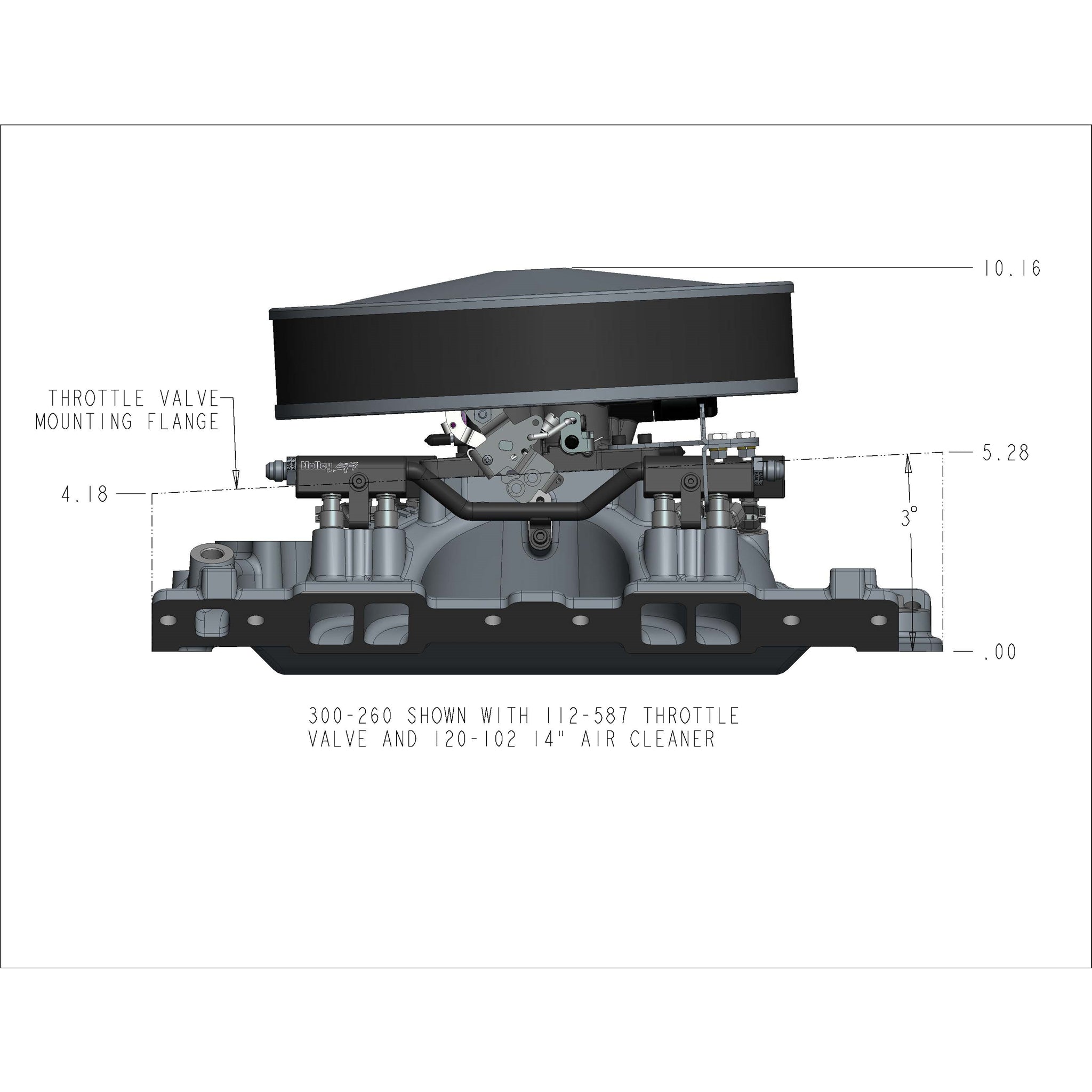

Description_FAB	Height: Front 4.18", Rear 5.28"

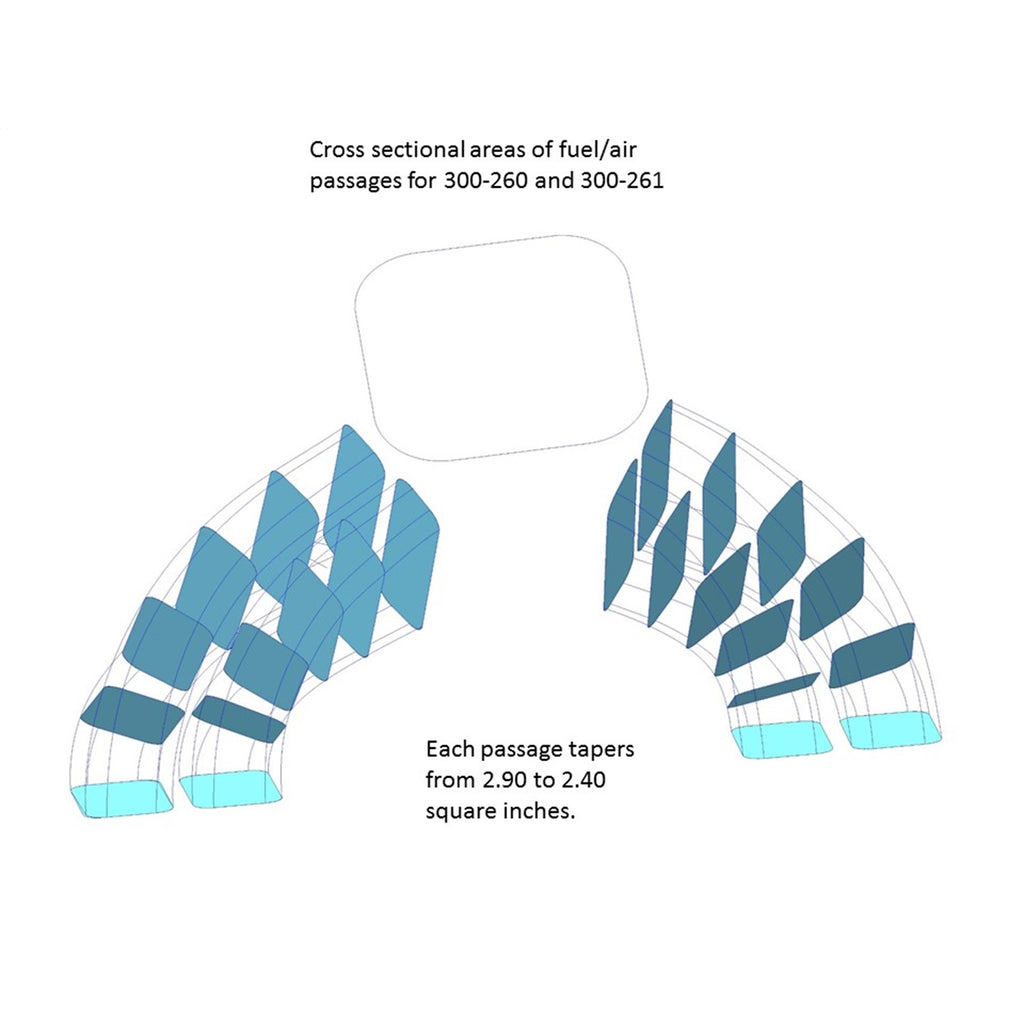

Description_FAB	Port Size: 1.92" height 1.20" width
Description_FAB	Lower Throttle Body Mounting height to help with hood clearance.

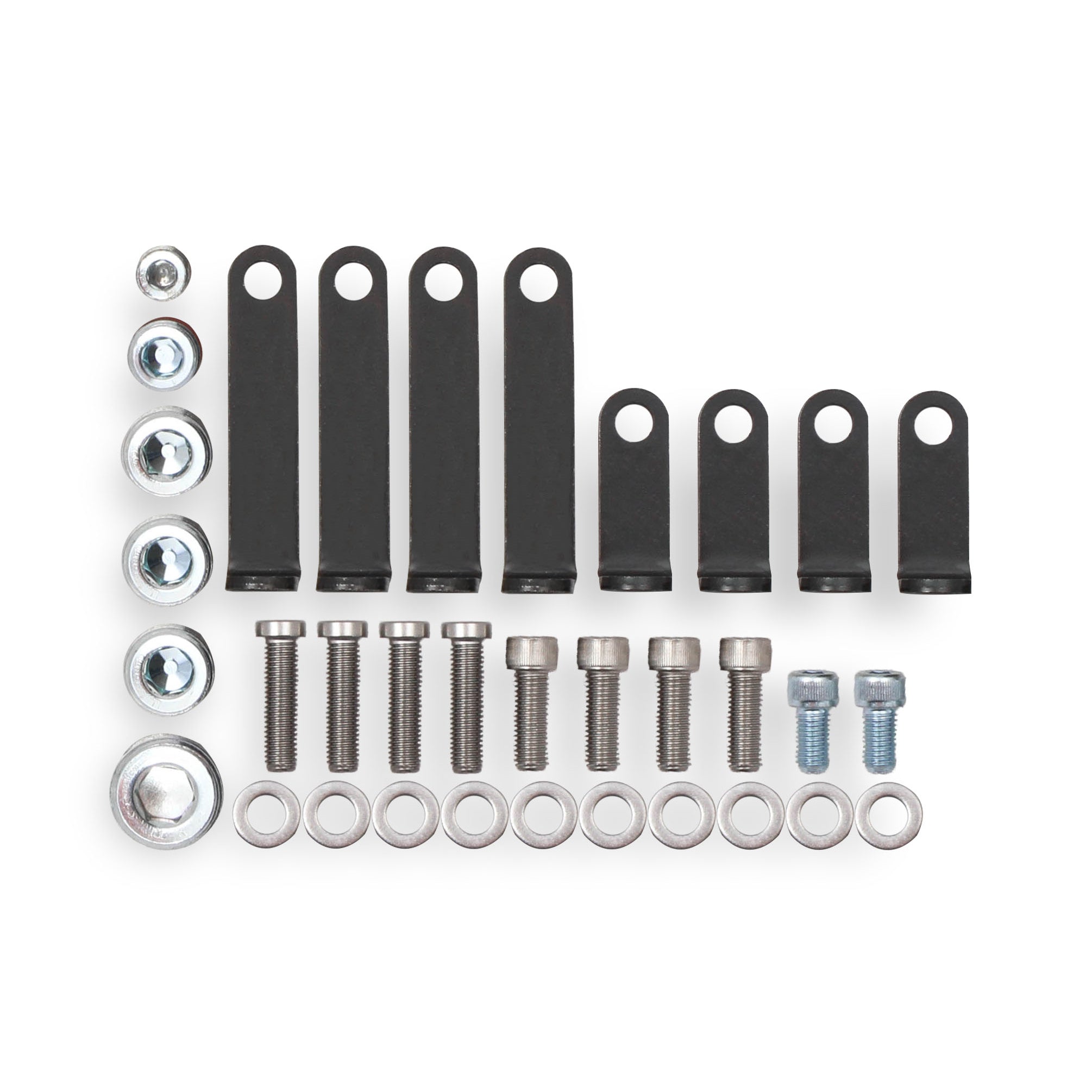

Description_FAB	Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
Description_FAB	Fuel injectors are not included
Description_FAB	Fuel rail designed for maximum throttle lever clearance.
Description_KEY	intake
Description_MKT	The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1 in. shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance.(Injectors are not included)The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket
Description_SHO	Intake Manifold
Front Height	4.180 in.
Engine	Chevrolet Small Block Gen I
Number of Carbs	One
Usage	Street/Strip
Cylinder Head Type	Standard
Emission Code	3
Sale Category	Air and Fuel Delivery
WARNING CA Proposition 65	No
Emission	N/A
Fuel System Type	EFI
Manifold Type	High Rise
Finish	Satin
Engine Make/Size	Chevy Small Block V8
Rear Height	5.280 in.
Position	Upper
Brand	Holley EFI
Product Type	EFI Intake Manifold
RPM Power Band	2500-7500
Warranty	Limited 90 Day
Construction	Cast
RPM Range	2500-7500
Fuel Inlet	9/16-18"
Length	8.0000
Width	14.0000
Height	23.0000
Weight	16.0000
