Holley 300-242BK Black 351W Ford Hi-Ram Efi Manifold

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_300-242BK

Stock:

Product Code: Engine Intake Manifold

$2,055.21

Quantity

Subtotal: $2,055.21

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 300-242BK Black 351W Ford Hi-Ram Efi Manifold

Details
Reviews

Details

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Specifications:

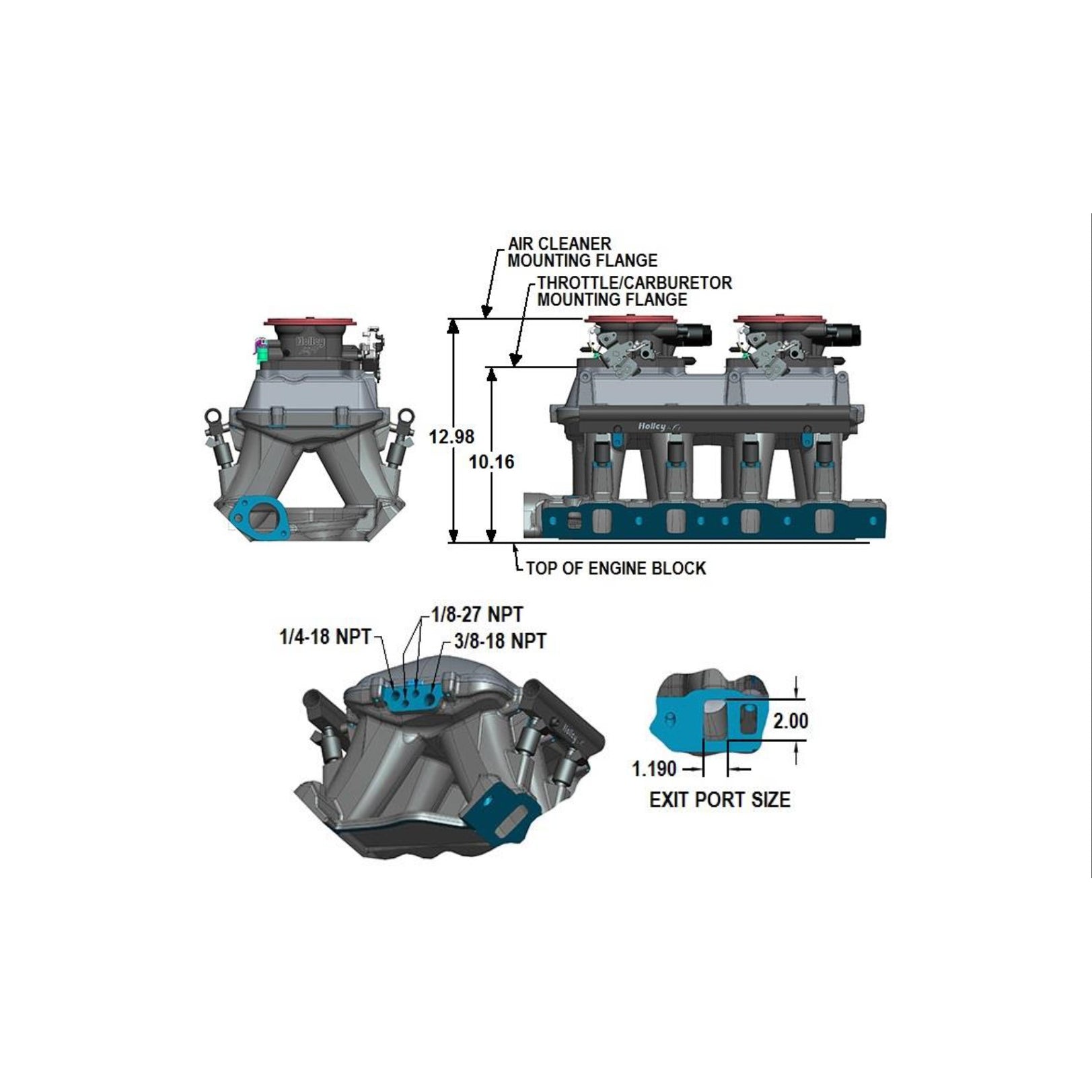

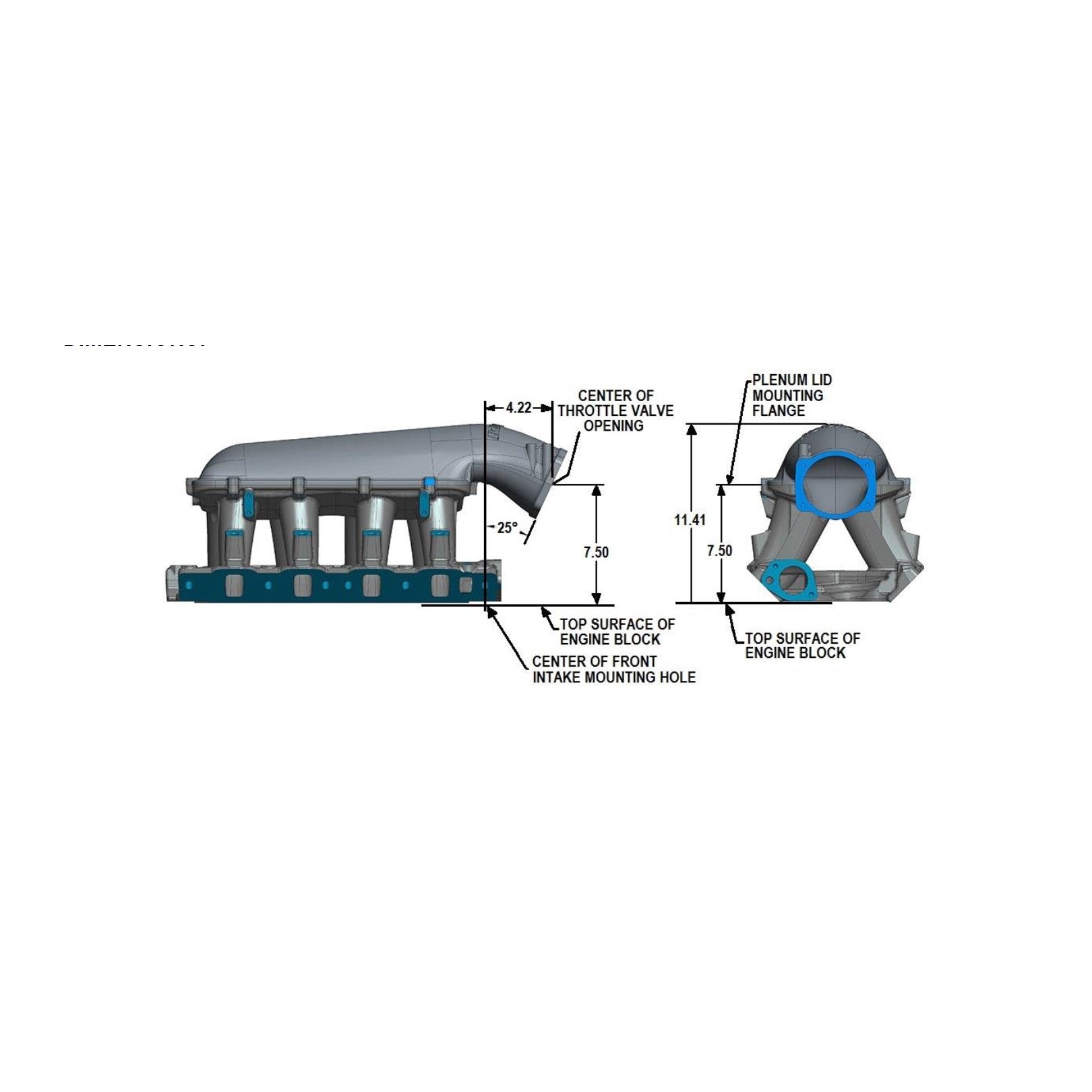

Description_ASC	*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Description_DEF	Engine Intake Manifold
Description_DES	Holley Black 351W Ford Hi-Ram EFI Manifold
Description_INV	KIT, FORD 351W HI-RAM, 105MM EFI BLACK
Description_EXT	Holley EFI Hi-Ram Intake Manifold; For Use w/[565-111]; With 105mm LS Throttle Body Flange Top; 9.5 in. Deck; 2.0x1.190 in. Port Size; 1500-7000 RPM Power Band; Black Finish;
Description_FAB	The 351W manifold is available to work with 105MM GM LS throttle bodies

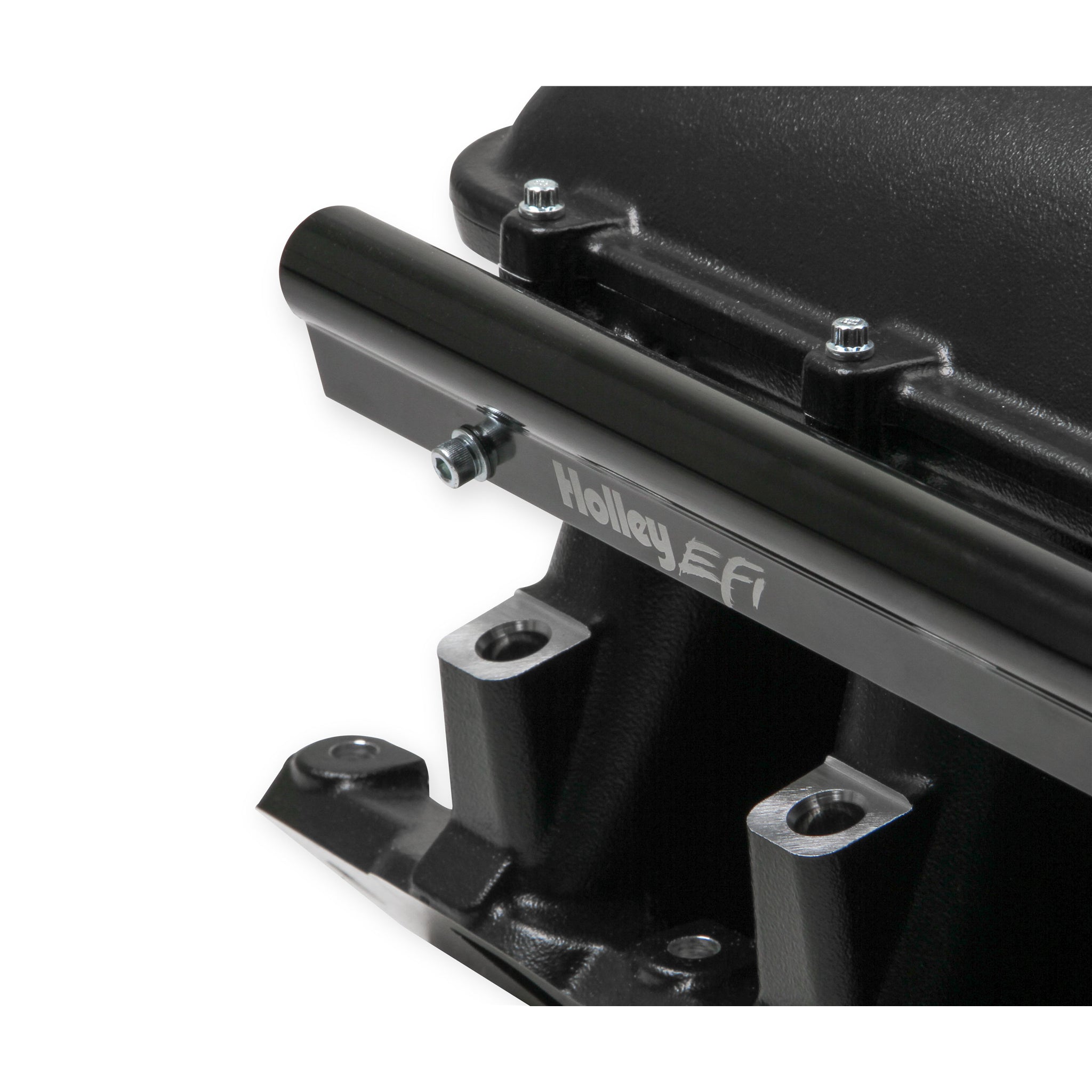

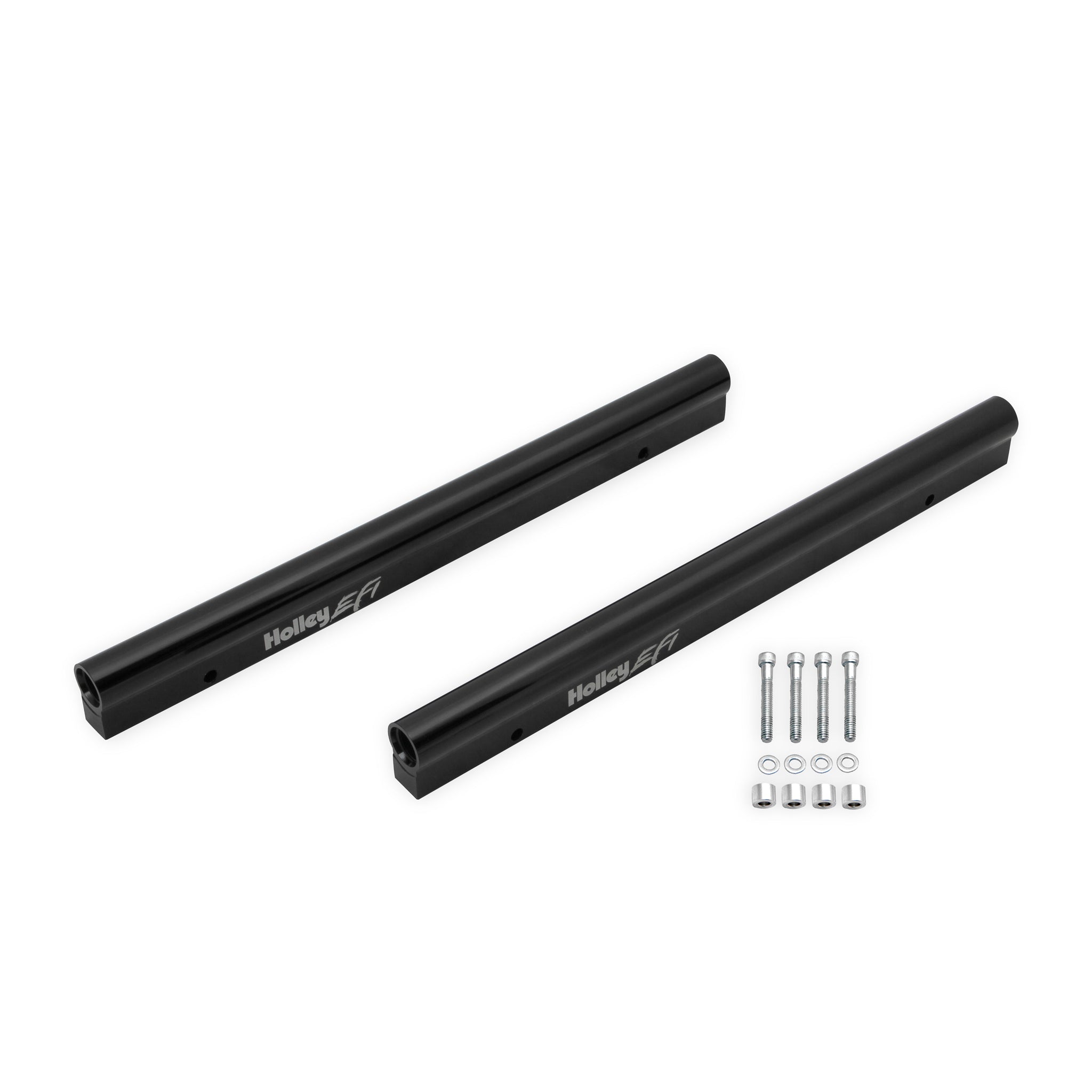

Description_FAB	EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Description_FAB	Plenum Top Gasket Type - 3/32" Round O-ring Cord
Description_FAB	Manifold is designed for a 9.5" deck height.
Description_FAB	Black Finish
Description_FAB	Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Description_MKT	The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Description_MKT	Manifold is designed for a 9.5" deck height.
Description_MKT	Manifold Width is 11.32".
Description_MKT	ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
Description_MKT	ΓÇó EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Description_MKT	ΓÇó Cast aluminum construction with black finish.
Description_SHO	Intake Manifold
Number of Carbs	None; For Fuel Injection
Brand	Holley EFI
Engine	Ford 351W
Port Size	2.000 in. x 1.190 in.
Cylinder Head Type	Standard
WARNING CA Proposition 65	No
Sale Category	Air and Fuel Delivery
Finish	Black
Emission	Without EGR
Engine Make/Size	Ford 351W
Position	N/A
Throttle Bore	105mm
Construction	Cast
Usage	Racing
Fuel System Type	EFI
Manifold Type	Hi-Ram
RPM Range	1500-7000
Flange Type	EFI
Color	Black
Emission Code	3, 4
Flange Style	EFI
Product Type	Intake Manifold
Warranty	Limited 90 Day
RPM Power Band	1500-7000
Length	16.0000
Width	15.0000
Height	26.0000
Weight	39.0000
