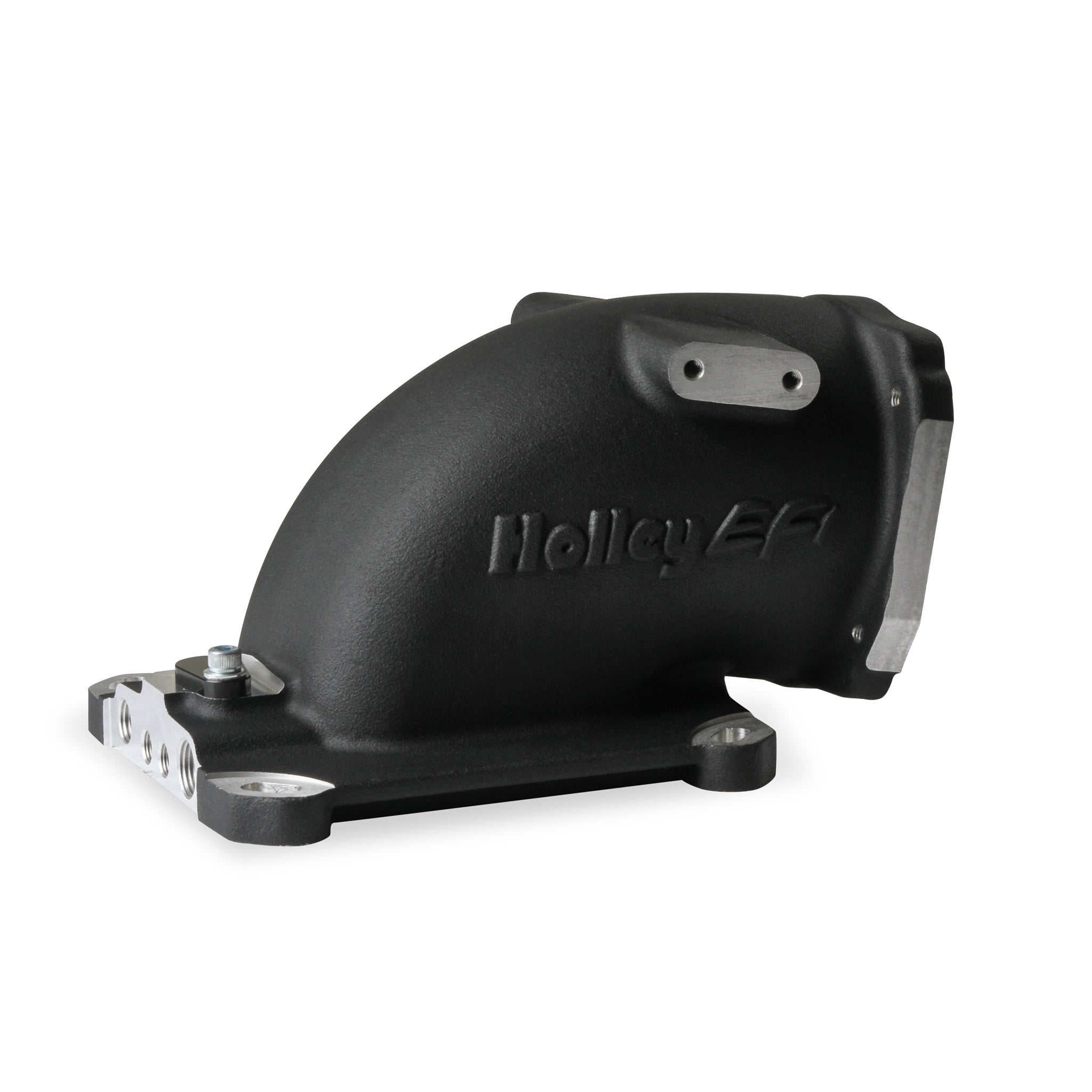

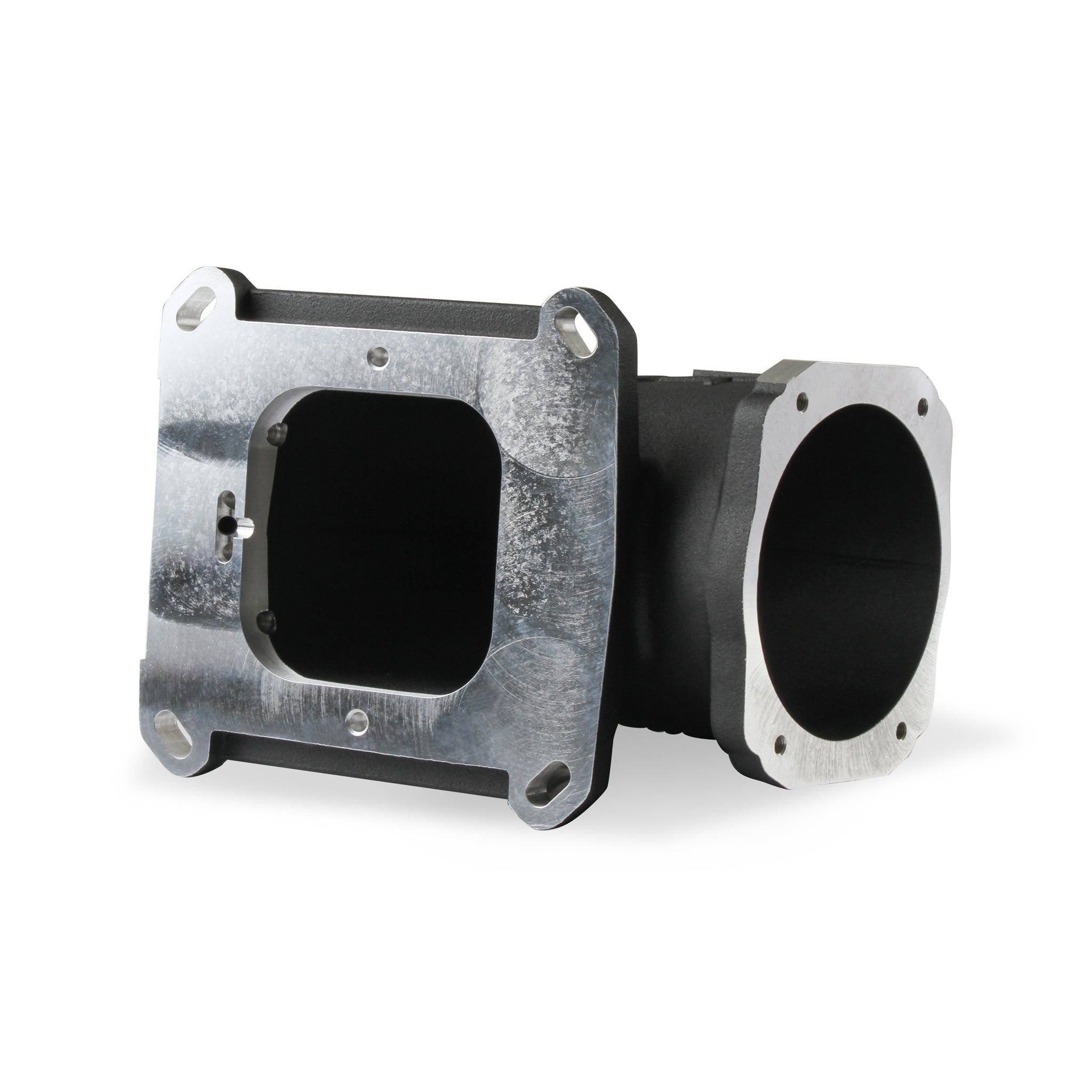

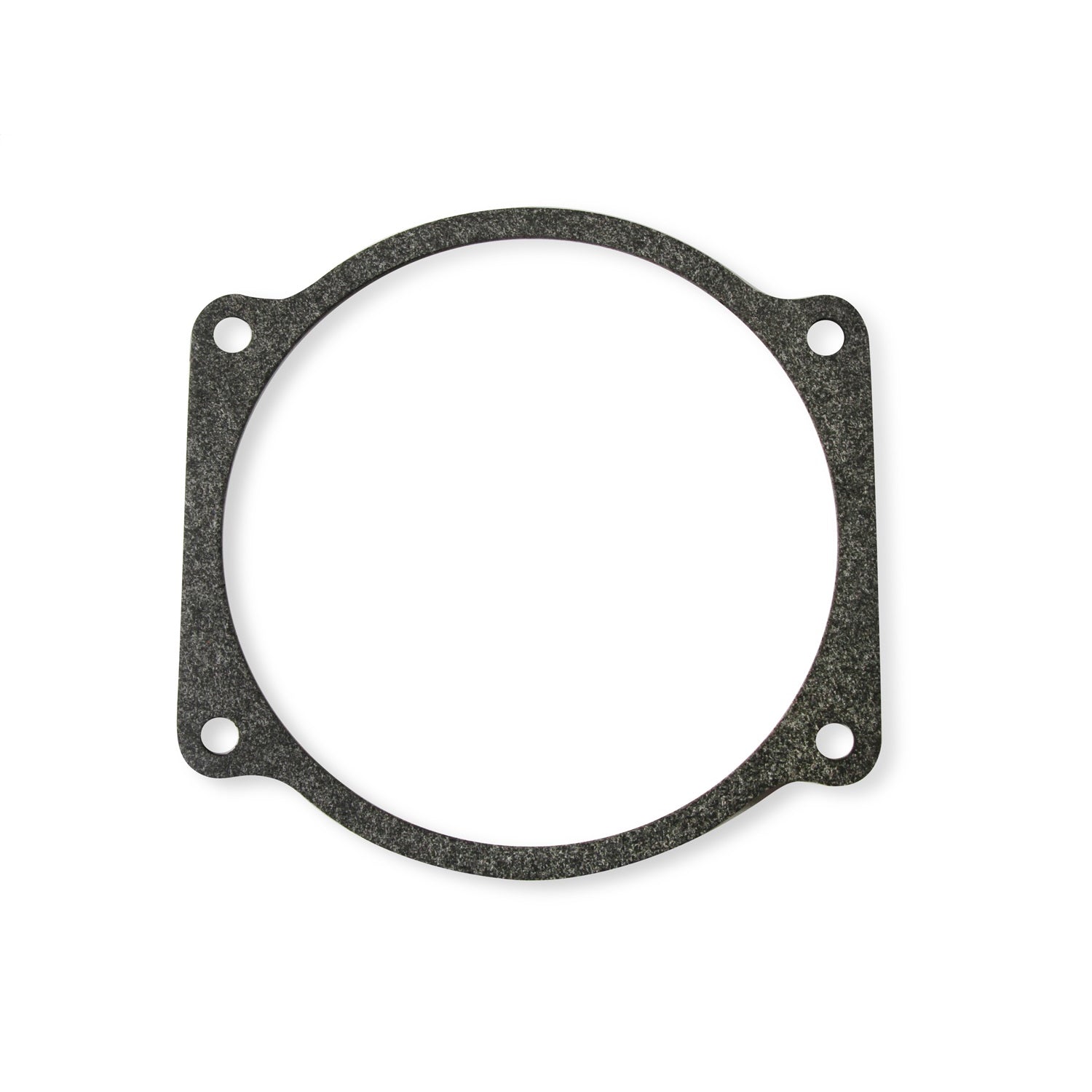

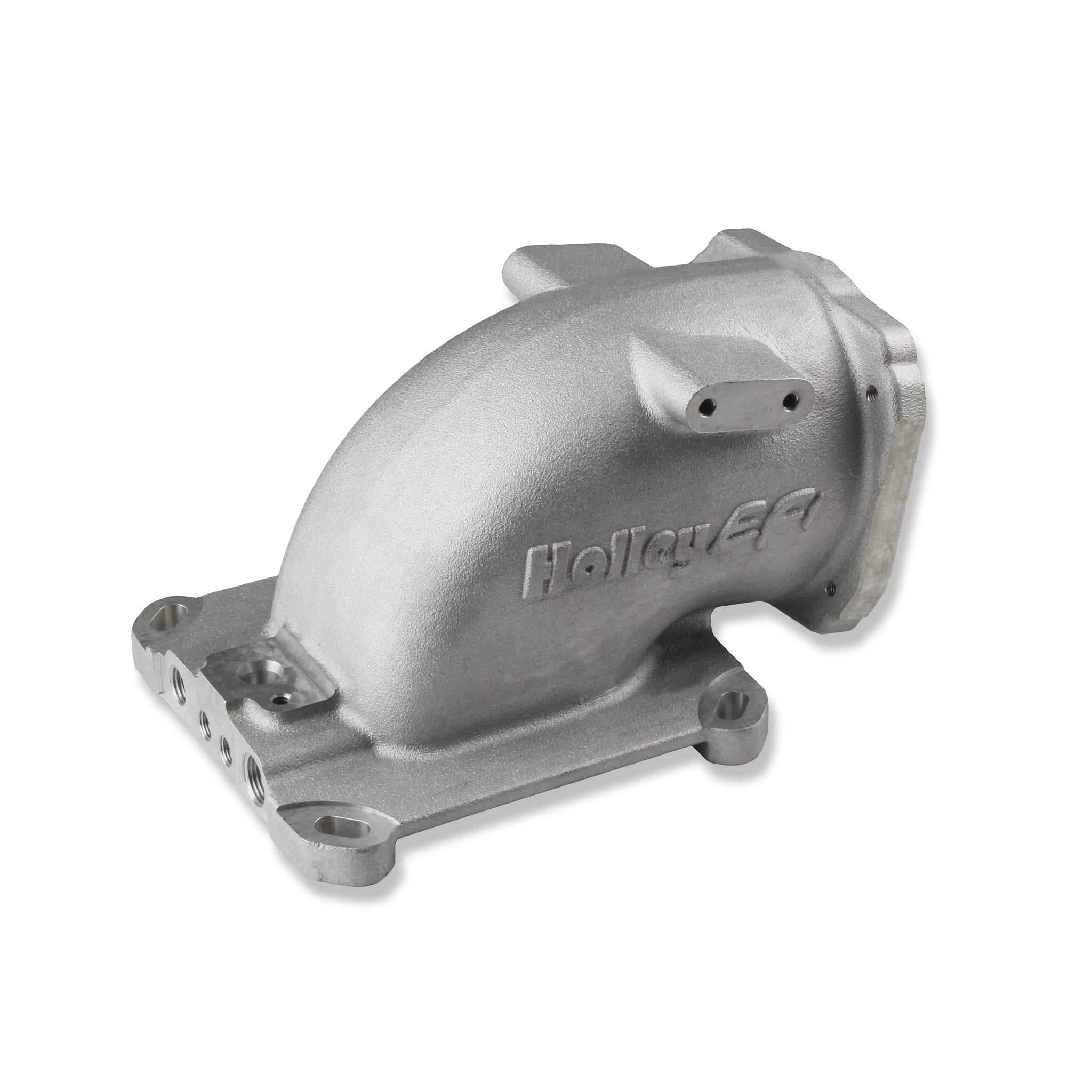

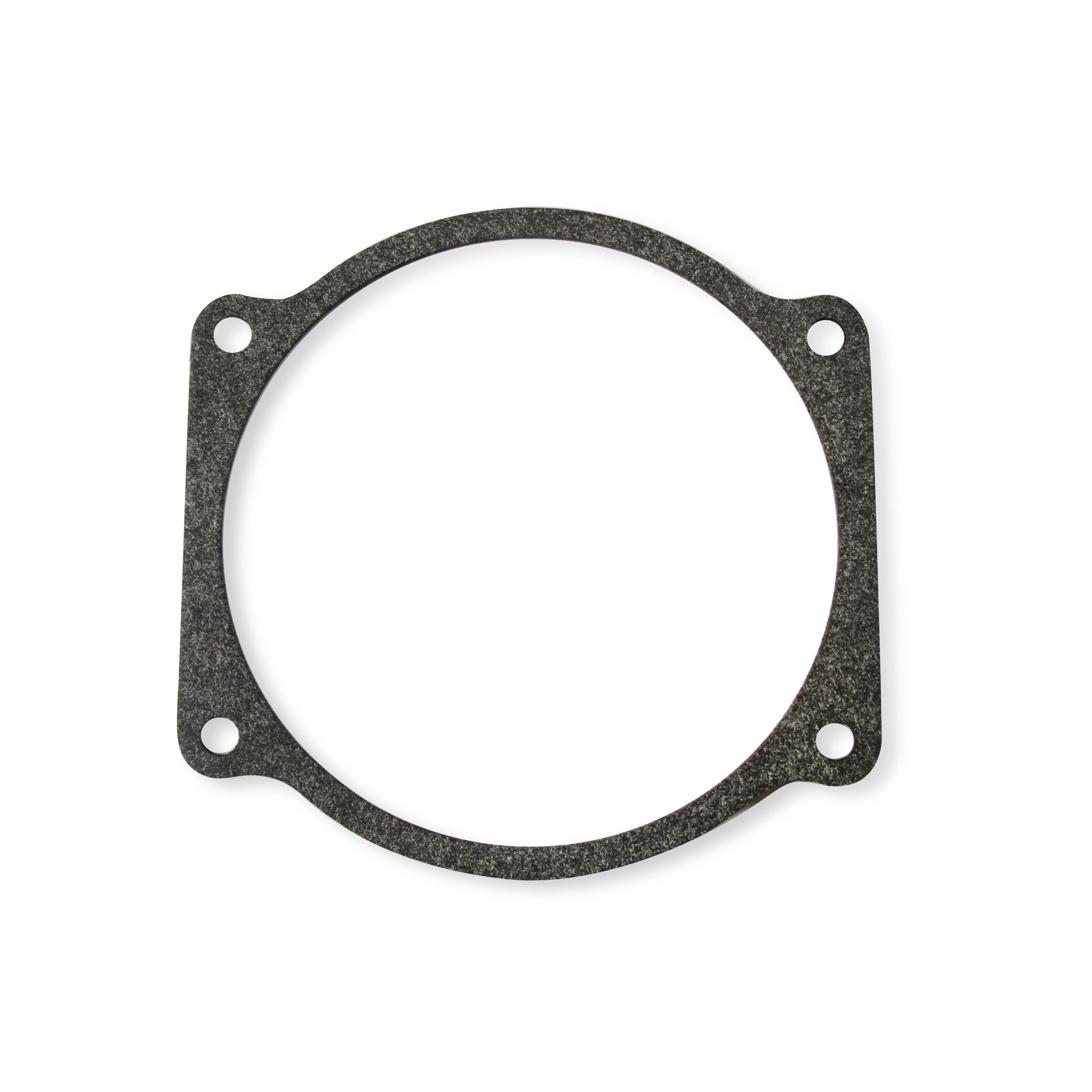

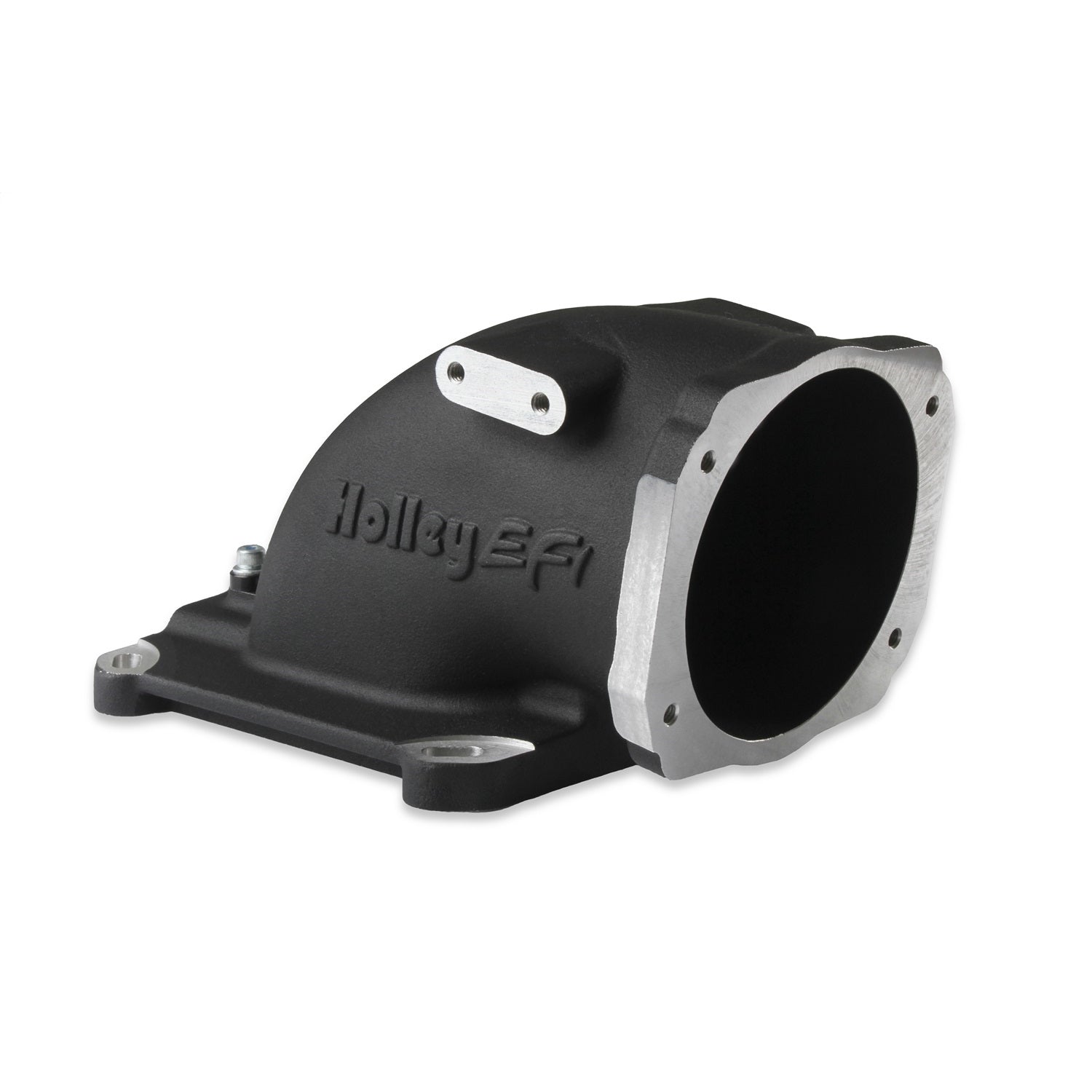

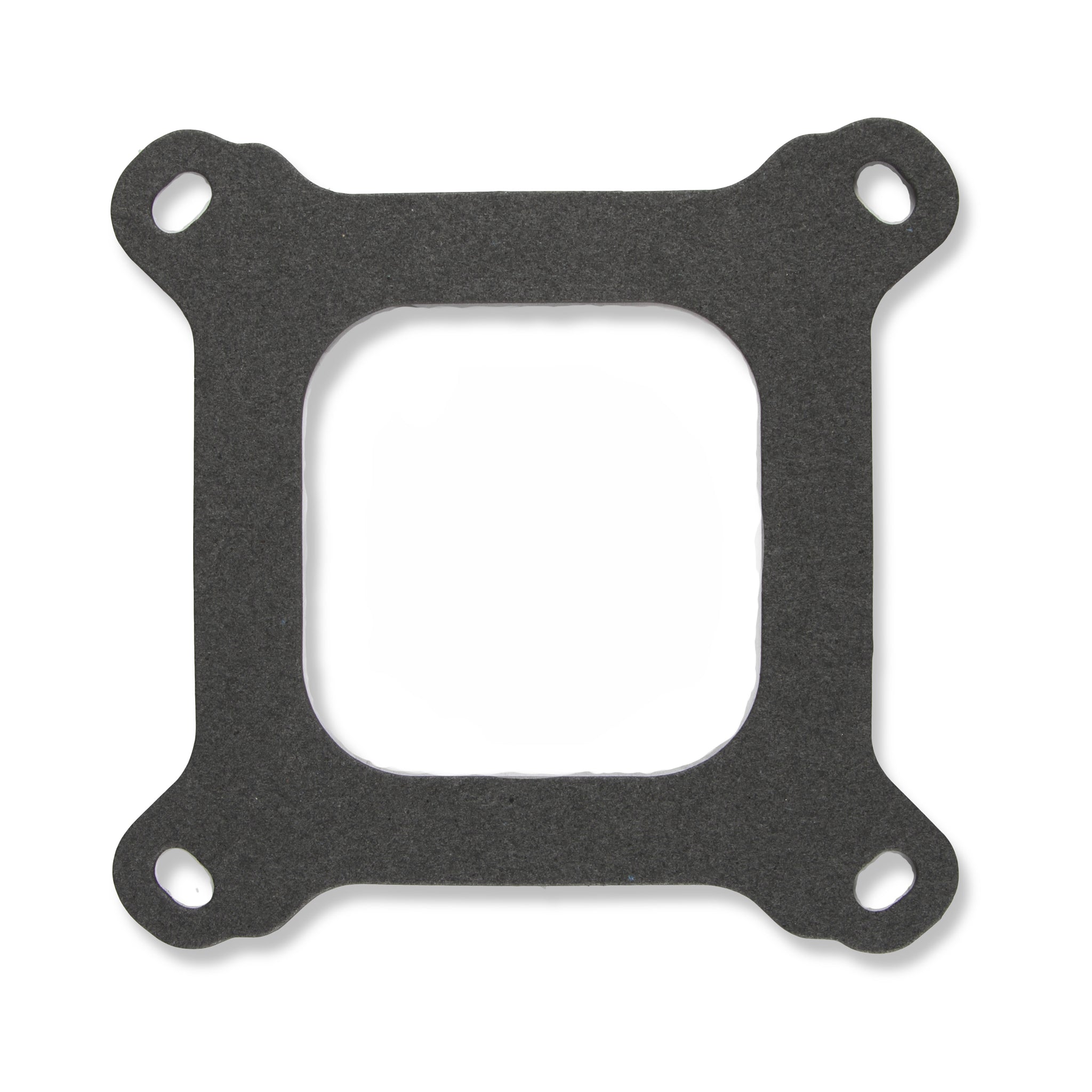

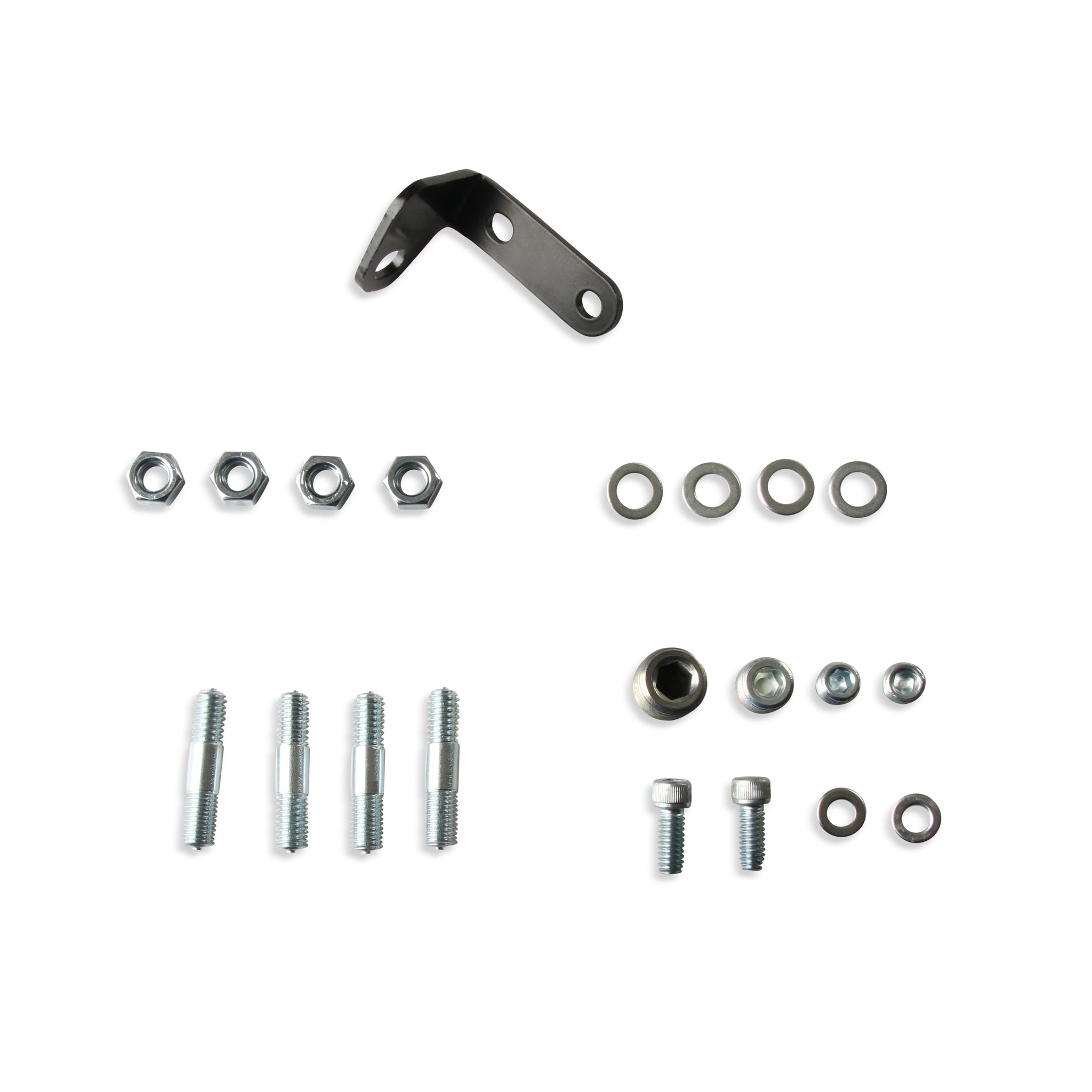

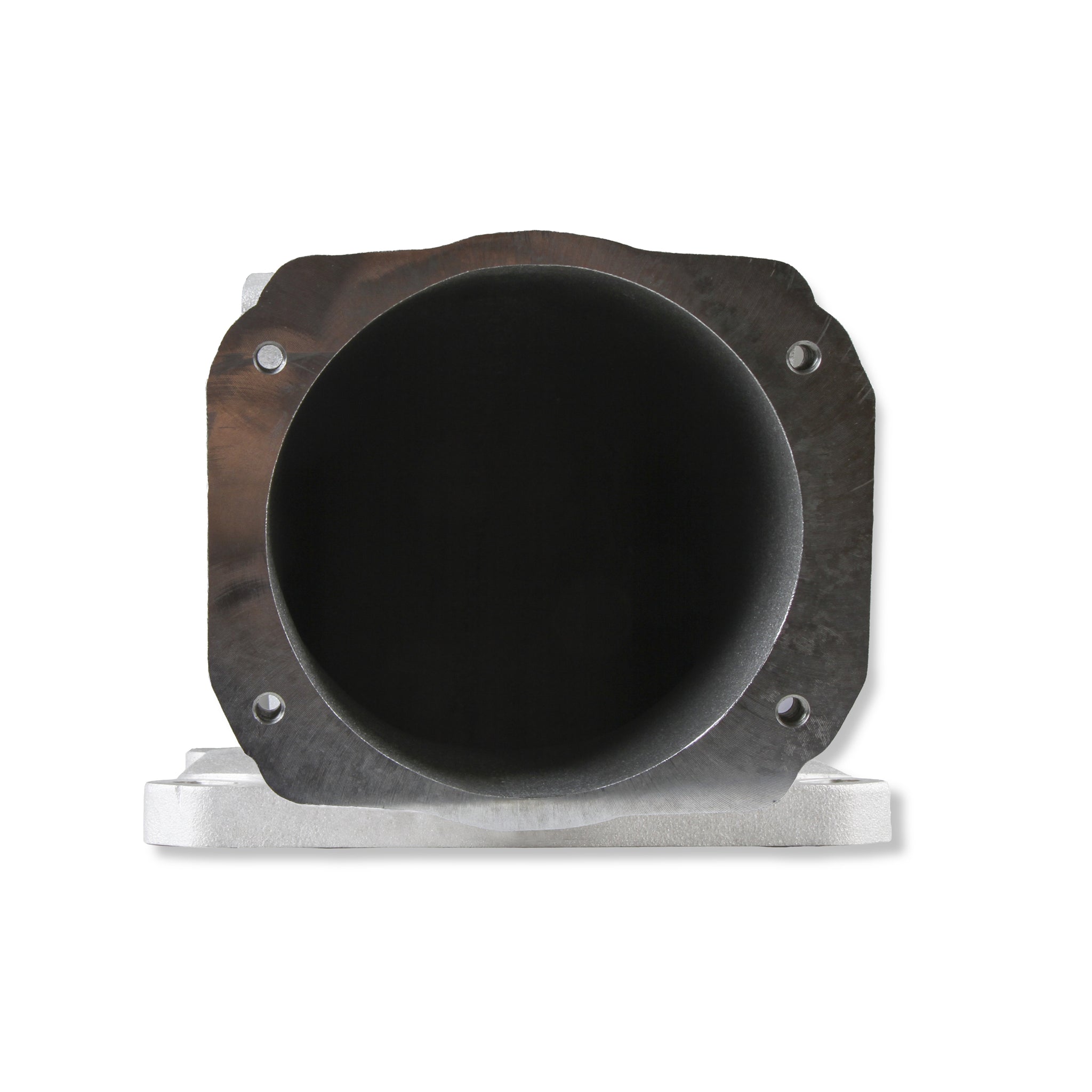

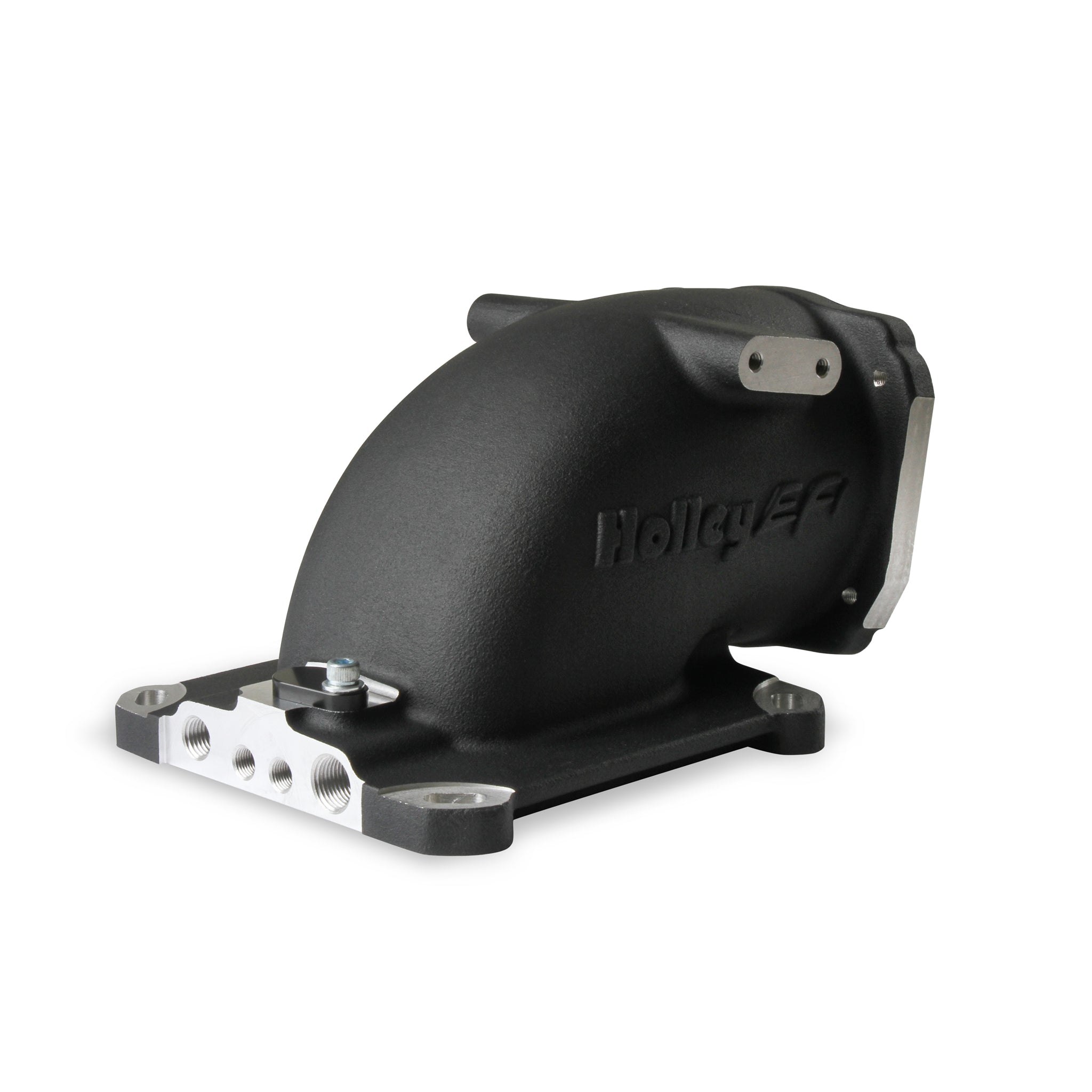

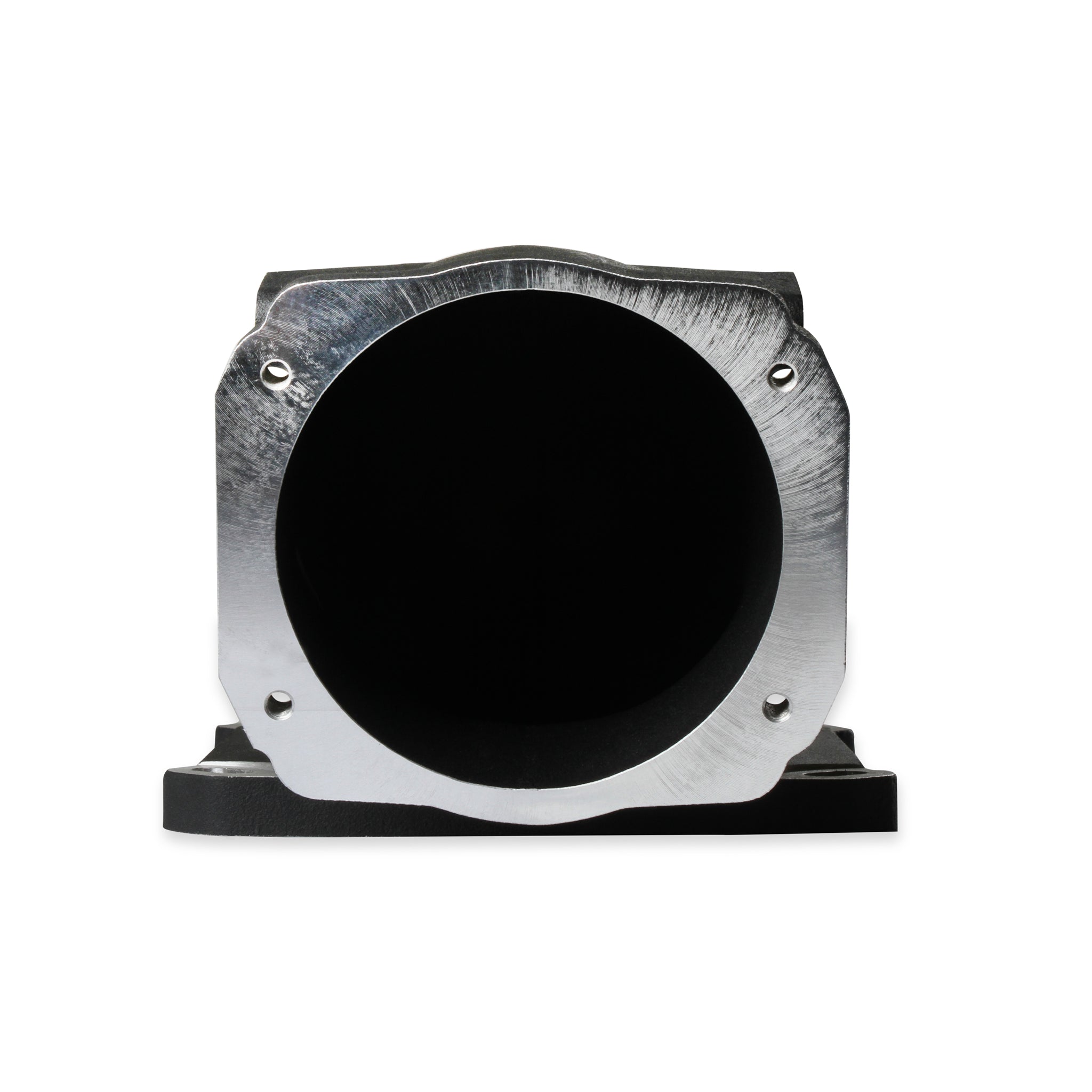

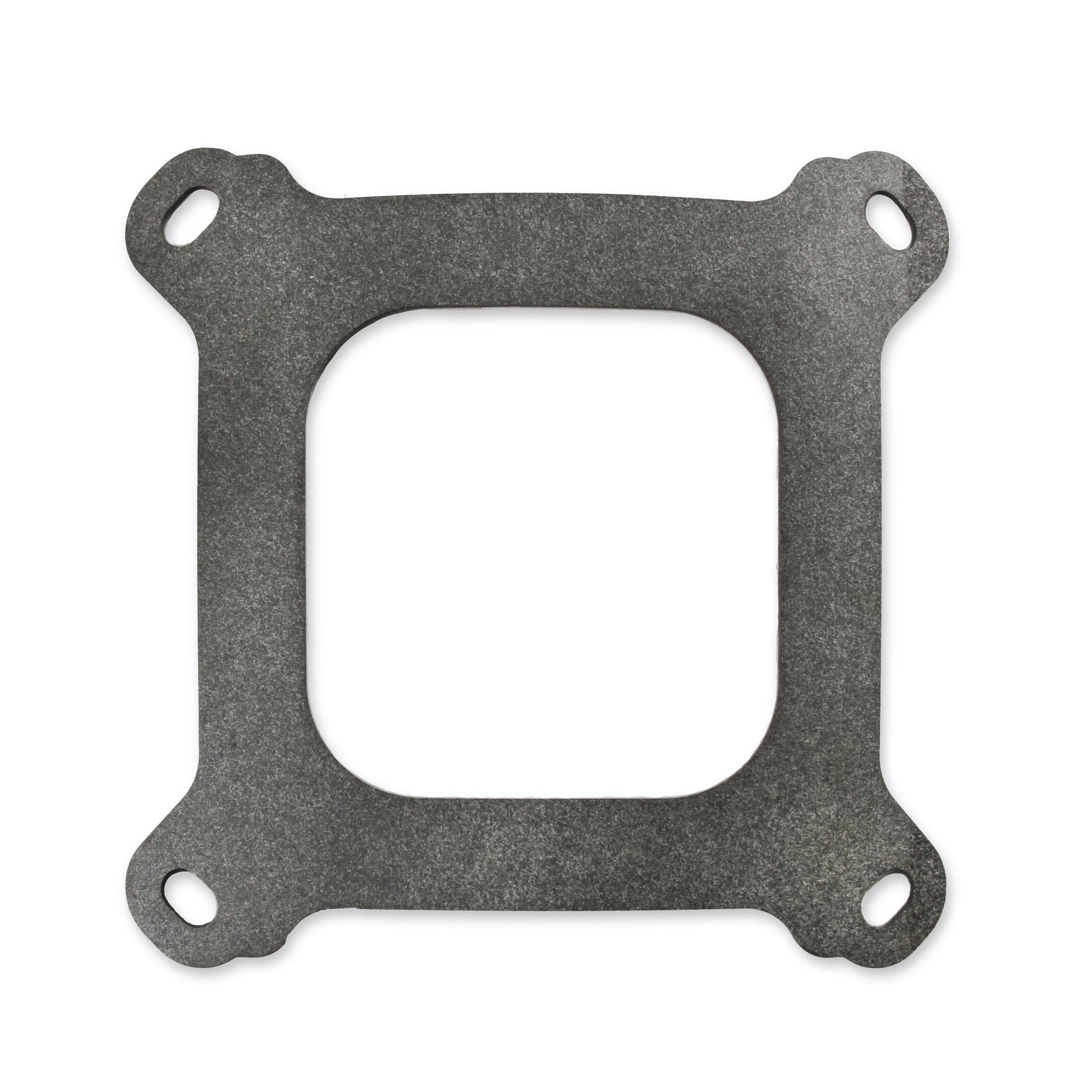

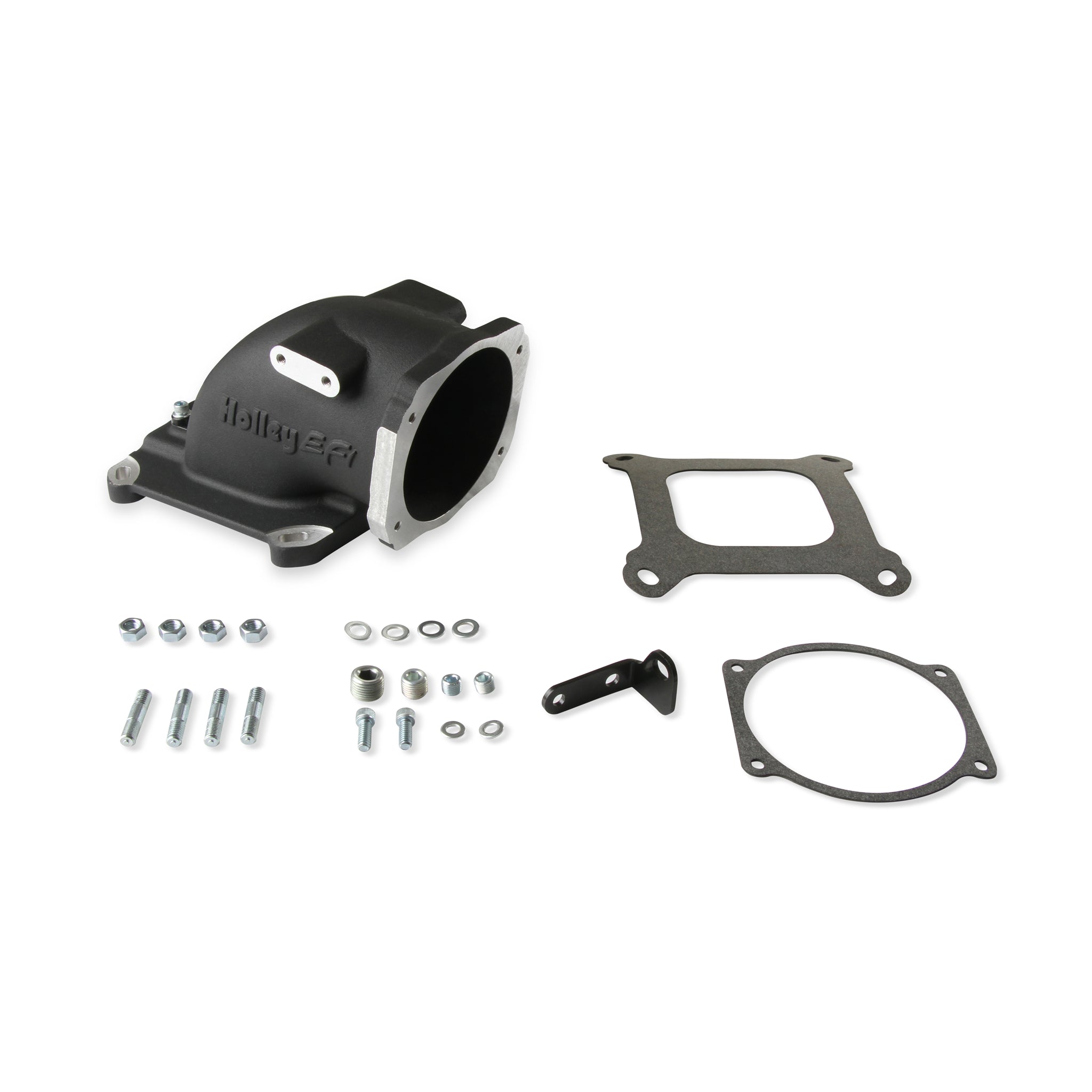

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100 degrees throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Specifications:
| Description_DEF |
Fuel Injection Throttle Body Adapter |
| Description_EXT |
EFI Throttle Body Intake Elbow; Fits Intakes w/4150 Flange; 105mm Throttle Body Opening; 100 Deg. Mounting Angle; Fits GM LS Throttle Bodies; Black Finish; |
| Description_DES |
EFI Throttle Body Intake Elbow-Black Finish |
| Description_FAB |
Fits GM LS Throttle Bodies |
| Description_FAB |
105mm Throttle Body Opening - 100 degrees Mounting Angle |
| Description_FAB |
Fits Intakes w/ 4150 Flange |
| Description_FAB |
Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting |
| Description_FAB |
LS3 Style MAP Sensor Mounting |
| Description_FAB |
(4) Vacuum Ports - (1) Each 1/4" NPT & 3/8" NPT & (2) 1/8" NPT w/ Indirect Baffled Signal |
| Description_FAB |
(2) Throttle Linkage Mounting Bosses |
| Description_FAB |
Sand Cast w/ Black Finish |
| Description_FAB |
Overall Height 5.12" |
| Description_KEY |
throttle; elbow; body; intake; EFI; |
| Description_INV |
INTAKE ELBOW, GM LS THROTTLE 4150, BLACK |
| Description_SHO |
TBdyAdpt |
| Description_MKT |
This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100 degrees throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware. |
| Emission Code |
3 |
| Warranty |
Limited 90 Day |
| Finish |
Black |
| Color |
Black |
| Construction |
Cast |
| Throttle Bore |
105mm |
| Brand |
Holley EFI |
| Fuel System Type |
EFI |
| WARNING CA Proposition 65 |
No |
| Engine |
GM LS1/LS2/LS6 |
| Height |
5.12" |
| Product Type |
Intake Elbow |
| Length |
7.0000 |
| Width |
7.1500 |
| Height |
10.6500 |
| Weight |
4.7200 |
