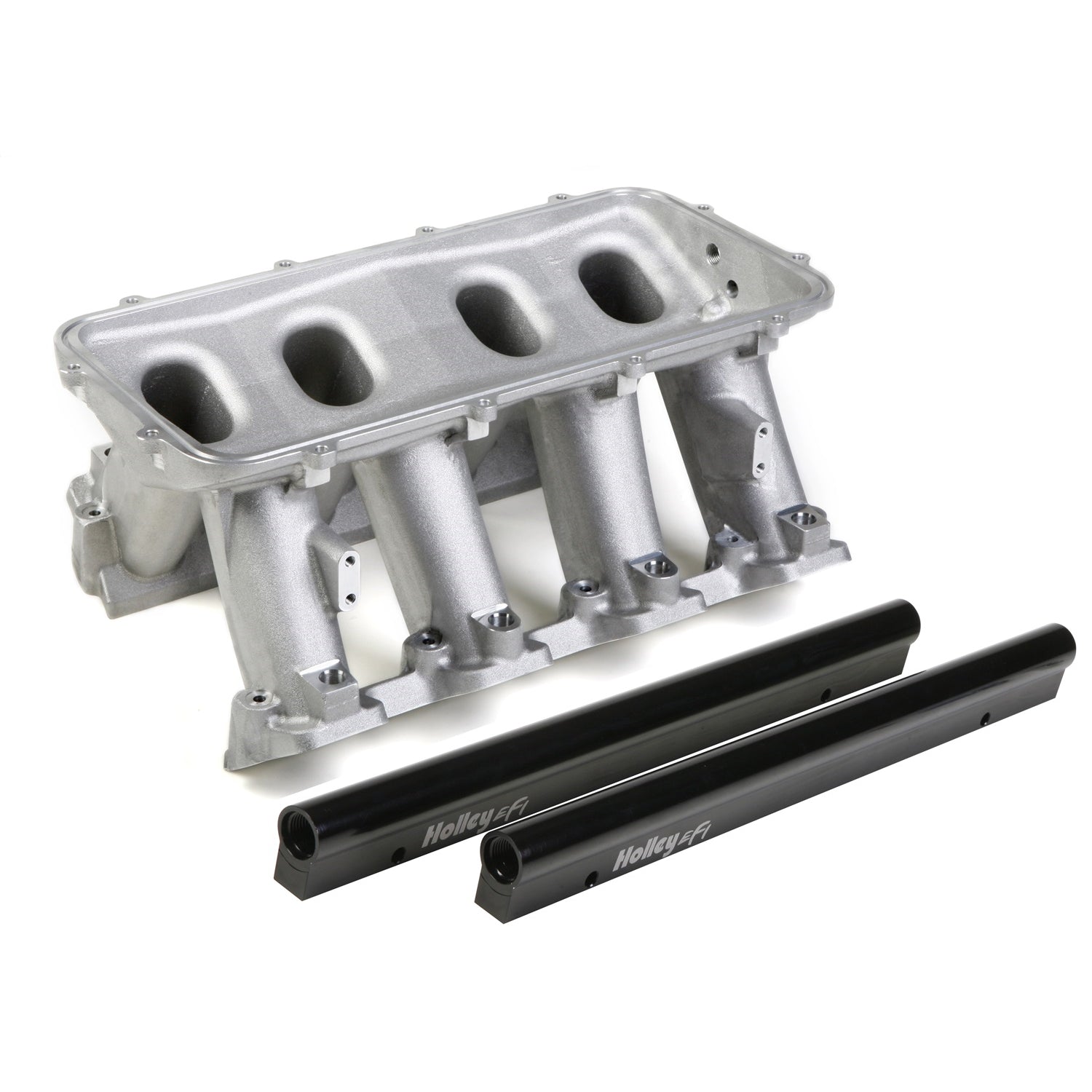

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Specifications:
| Description_ASC |
These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 |
| Description_EXT |
Hi-Ram Lower Intake Manifold; Upper; EFI Base Only; Incl. Fuel Rails; Cast Aluminum; For Use w/LS1/LS2/LS6 Cathedral Port Heads; |
| Description_MKT |
The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_MKT |
ΓÇó The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. |
| Description_MKT |
ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT |
ΓÇó EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_MKT |
ΓÇó Cast aluminum construction. |
| Description_MKT |
ΓÇó Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. |
| Description_SHO |
Intake Manifold |
| Description_INV |
LS1/2/6 HI-RAM, IM EFI, BASE ONLY |
| Description_FAB |
Port Size - 2.49" Height x 1.21" Wide |
| Description_FAB |
Mounting Flange Gasket Type - Standard LS3 Molded O-Ring |
| Description_FAB |
Plenum Top Gasket Type - 3/32" Round O-ring Cord |
| Description_FAB |
Runner Length - 6.58", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.53 in┬▓ |
| Warranty |
Limited 90 Day |
| WARNING CA Proposition 65 |
No |
| Finish |
Silver |
| Type of Component |
Lower Manifold |
| Color |
Natural |
| Product Type |
Intake Manifold Base |
| Engine Make/Size |
GM LS1/LS2/LS6 |
| Construction |
Cast |
| Emission |
Without EGR |
| Number of Carbs |
None; For Fuel Injection |
| Fuel System Type |
EFI |
| RPM Range |
2500-8500 |
| Engine |
GM LS1/LS2/LS6 |
| RPM Power Band |
3500-8000 RPM |
| Position |
Upper |
| Usage |
Street/Hi-Performance |
| Cylinder Head Type |
Standard |
| Brand |
Holley EFI |
| Emission Code |
3, 4 |
| Length |
10.1000 |
| Width |
14.8000 |
| Height |
19.9000 |
| Weight |
29.0650 |
