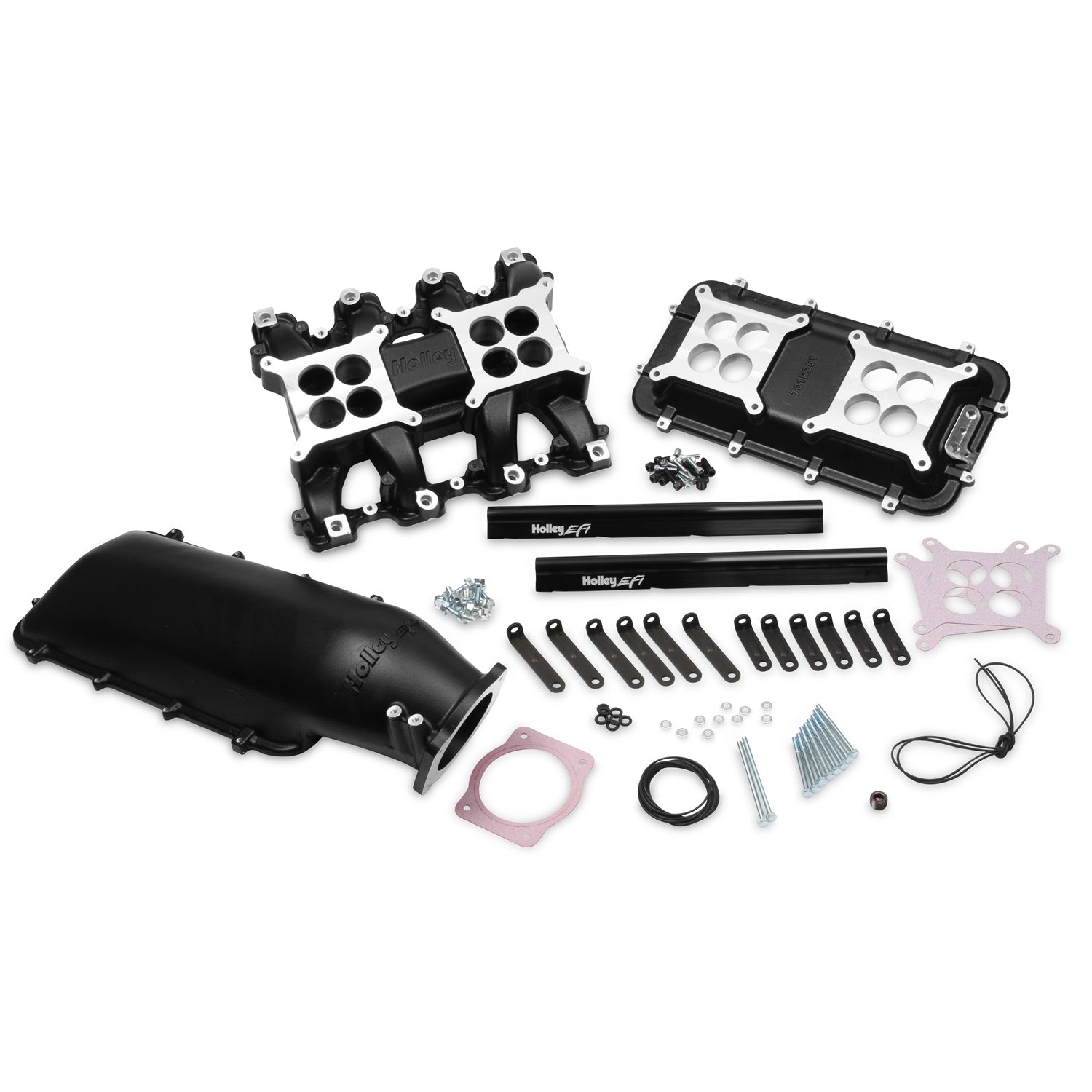

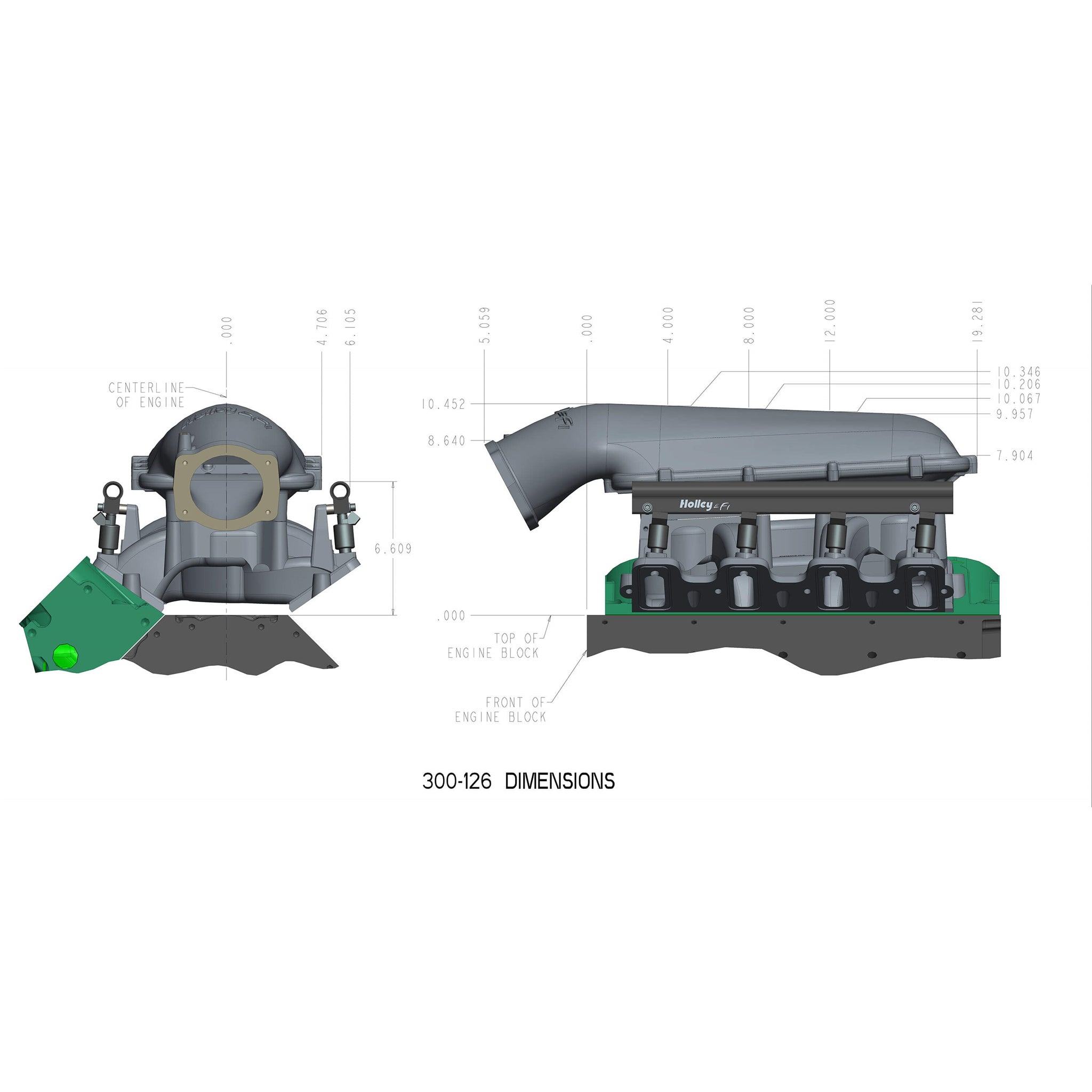

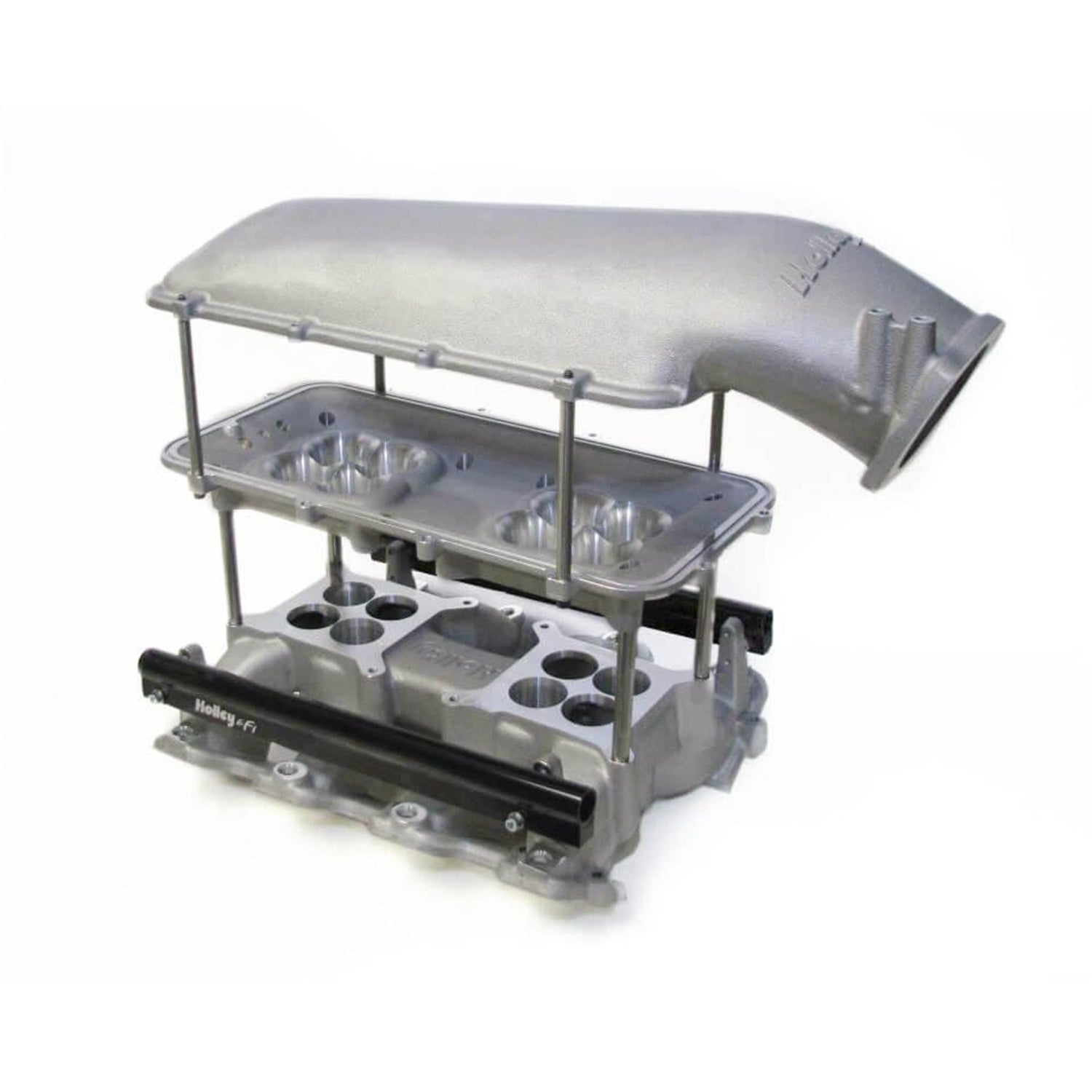

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44 in., the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. Its perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Specifications:
| Description_ASC |
Recalibration of the ECU may be required when using this intake manifold design with OE ECU. Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold. NOTE: these manifolds & fuel rails are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors (OE LS fuel injectors may not fit properly in the intake manifold & fuel rail assembly). *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_DEF |
Engine Intake Manifold |
| Description_DES |
Holley Mid-Rise Intake - GM LS3/L92 w/ 92mm Top - Black |
| Description_INV |
LS3 MID-RISE MOD EFI INTAKE MAN KIT - BL |
| Description_EXT |
All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit Black Ceramic Coated. 1500-6500RPM Power Band. |
| Description_FAB |
1500-6500RPM Power Band |
| Description_FAB |
92MM EFI Plenum |
| Description_FAB |
Overall Height of 10.44 inches |
| Description_FAB |
Mid-Rise manifold for excellent street/strip performance |
| Description_FAB |
Fits GM LS3/L92 engines |
| Description_FAB |
Black Ceramic Coating for an aggresive look in your engine compartment |
| Description_MKT |
The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44 in., the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. Its perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_SHO |
Intake Manifold |
| RPM Range |
1500-6500 |
| Position |
Upper |
| Finish |
Black |
| Color |
Black |
| Emission |
Without EGR |
| Usage |
Racing |
| Warranty |
Limited 90 Day |
| Emission Code |
4 |
| Manifold Type |
Mid Rise |
| Construction |
Cast |
| Rear Height |
9.990 in. |
| Fuel System Type |
EFI |
| Engine Make/Size |
GM LS3/L92 |
| Number of Carbs |
None; For Fuel Injection |
| Front Height |
10.440 in. |
| Brand |
Holley EFI |
| Engine |
GM LS3/L92 |
| Product Type |
Intake Manifold |
| Recommended Use |
Forced Induction |
| RPM Power Band |
2500-7000 RPM |
| WARNING CA Proposition 65 |
No |
| Cylinder Head Type |
Rectangular Port |
| Length |
17.0000 |
| Width |
15.0000 |
| Height |
27.0000 |
| Weight |
43.0000 |
