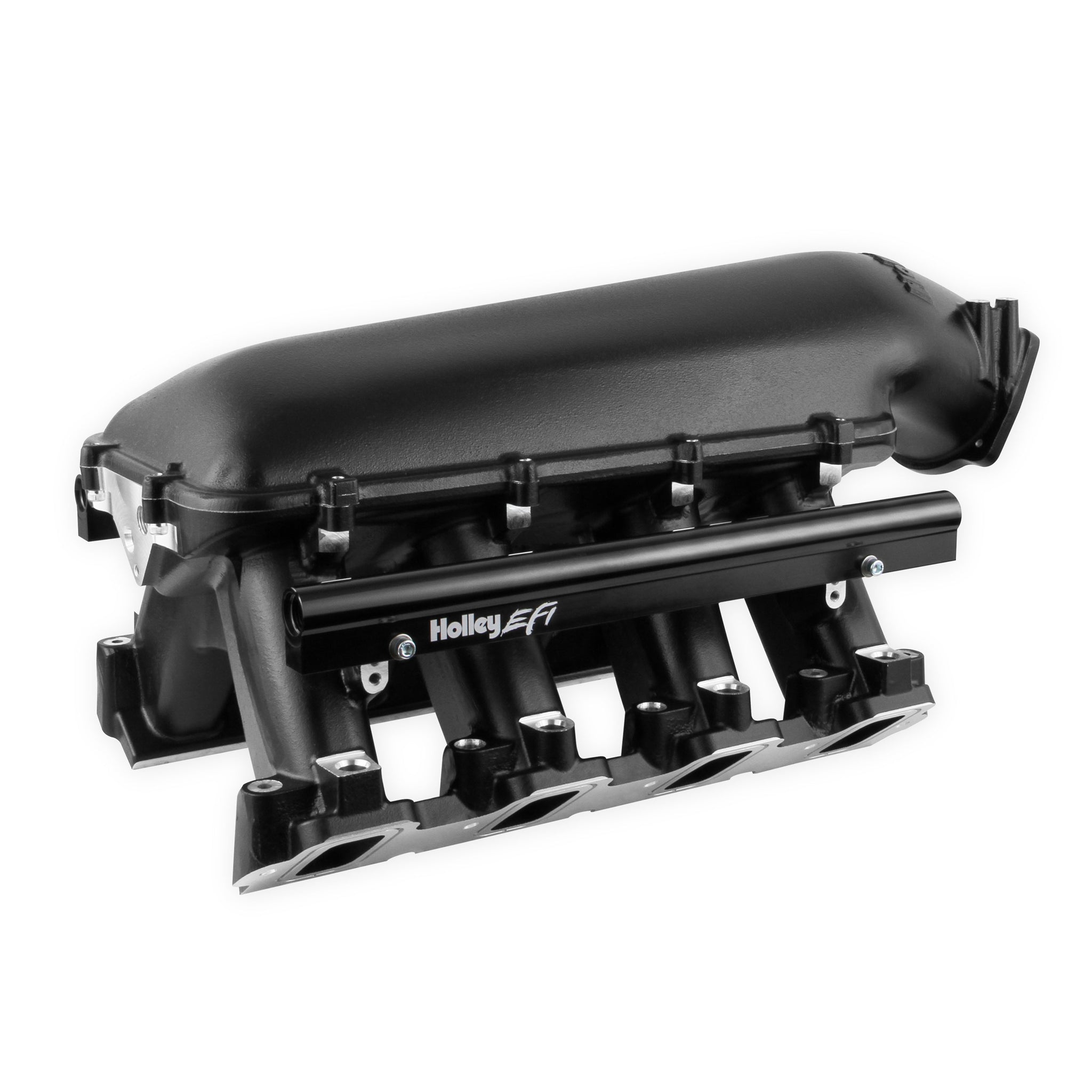

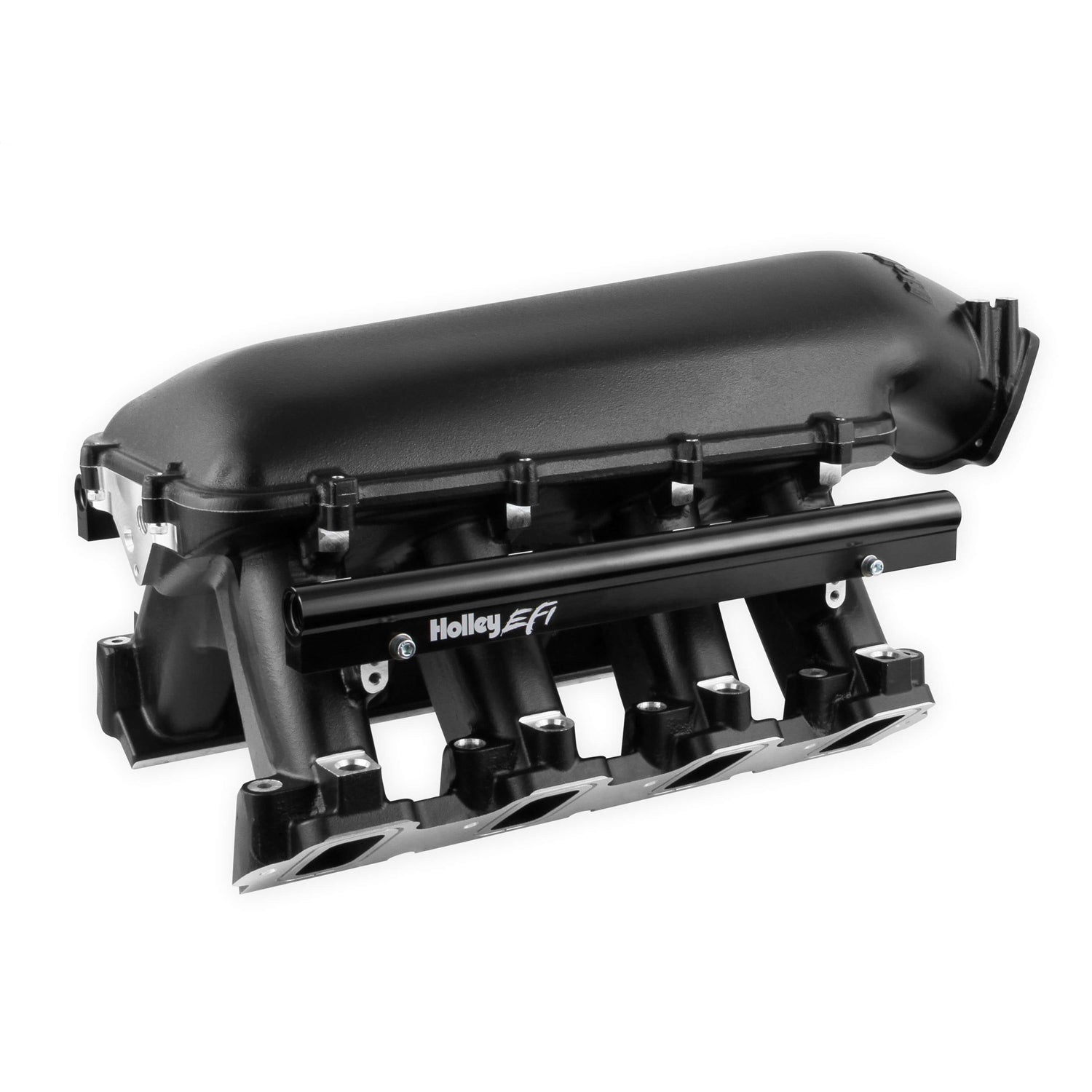

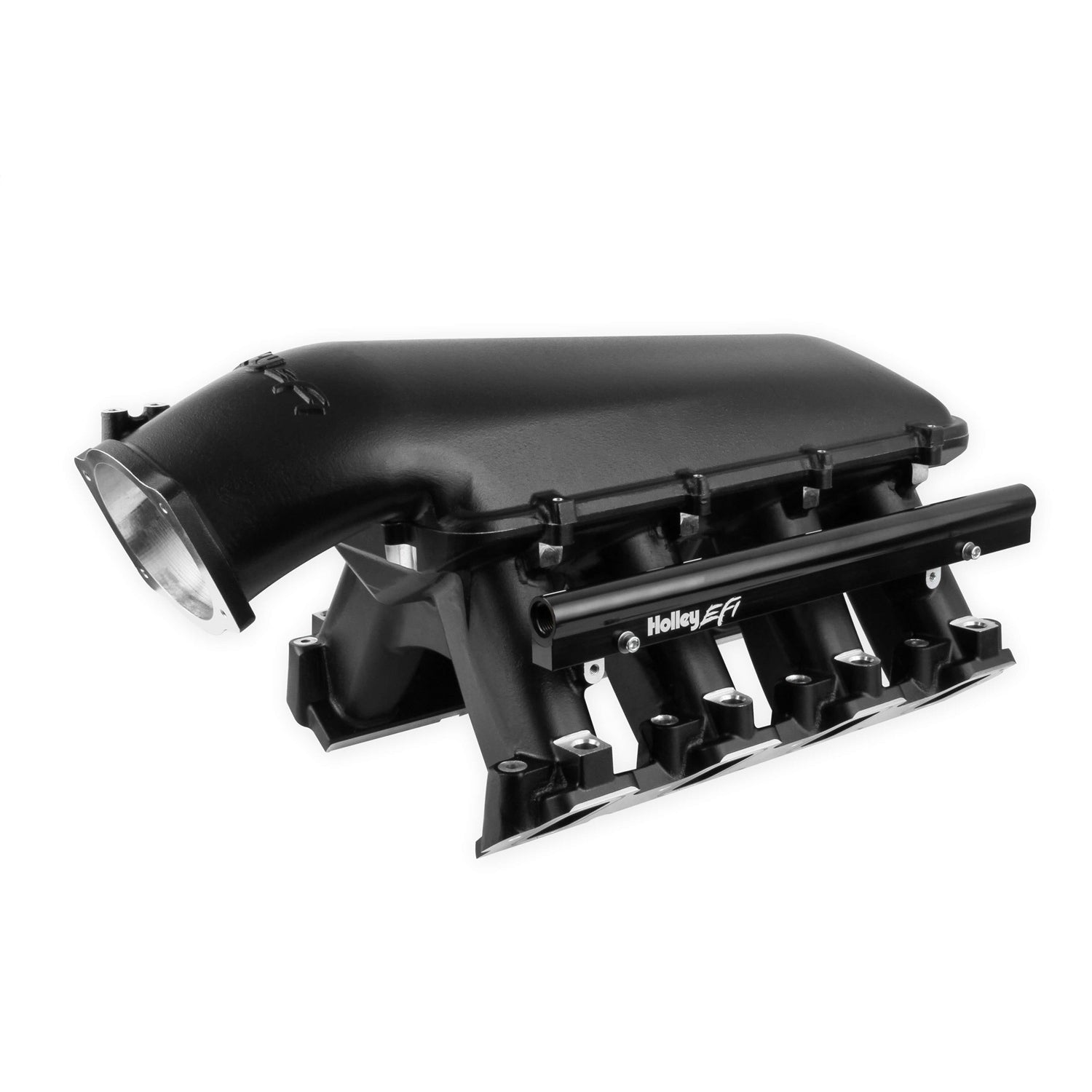

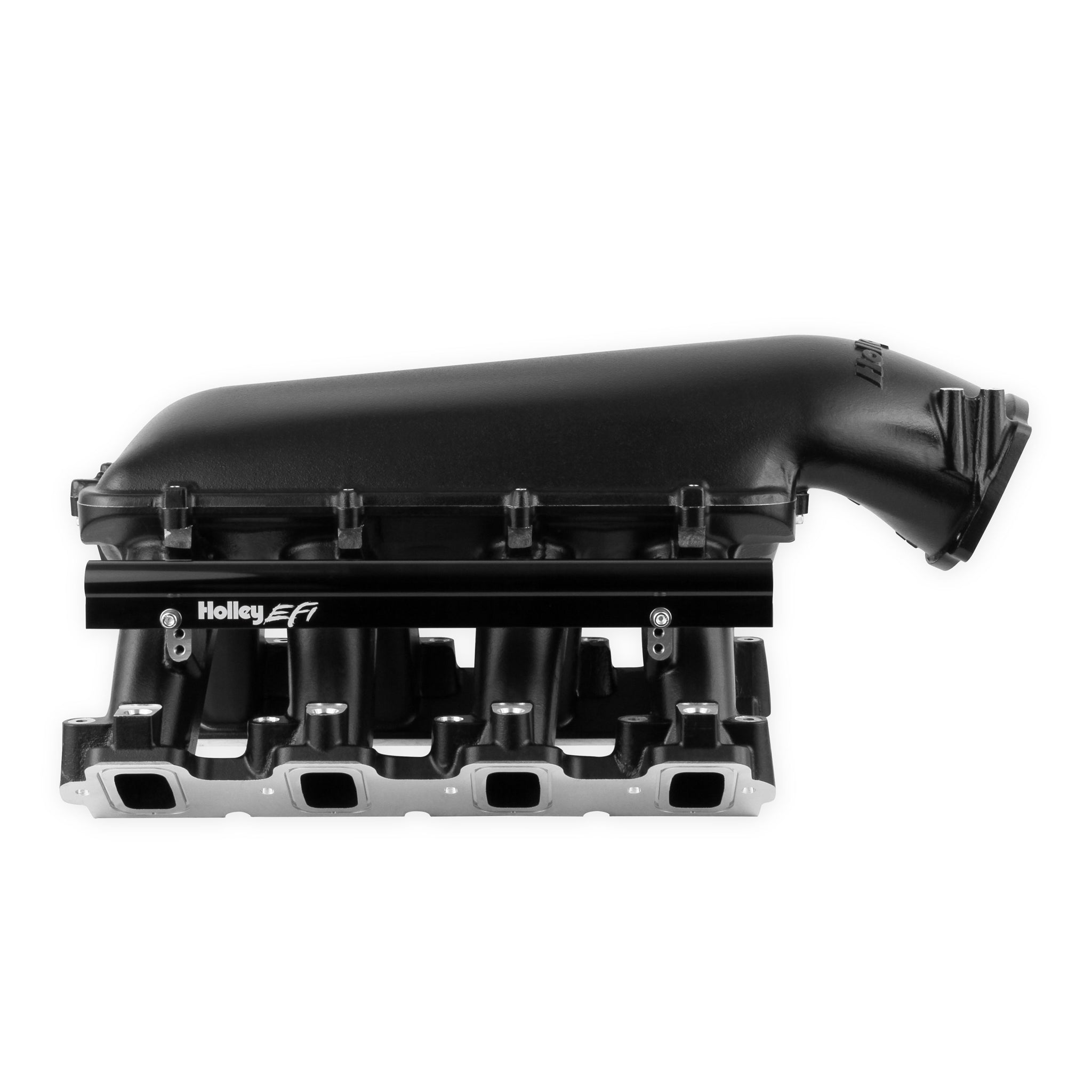

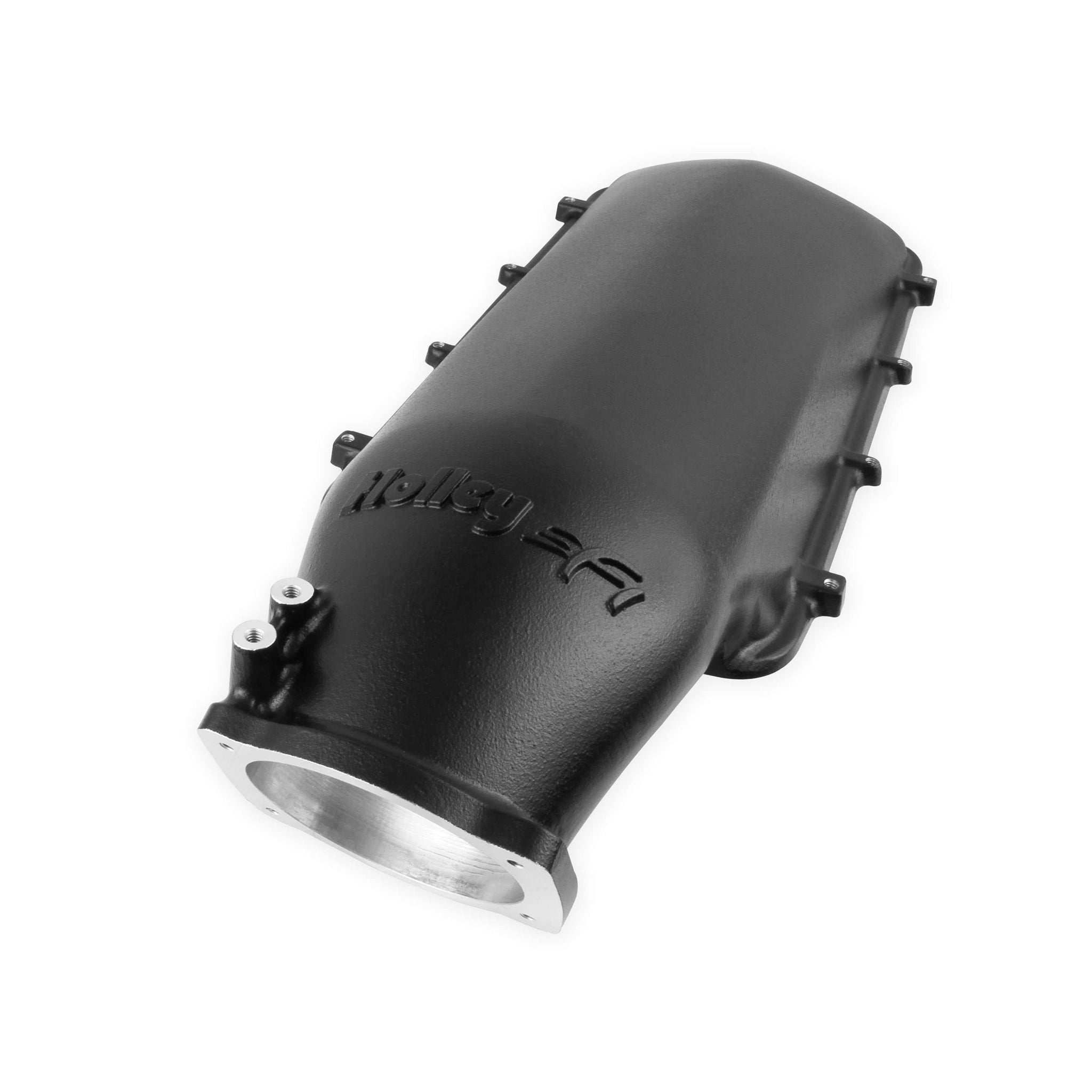

Holley 300-125BK Ls Hi-Ram Efi Manifold- Black Gm Ls7

2 sold in last 8 days
Holley
ds_BBVL_300-125BK
Engine Intake Manifold
$1,778.65
customers are viewing this product
Holley 300-294 Single Plane EFI 4500 Split-Design Race Intake Manifold- GM LS1/LS2/LS6
Holley 300-294 Single Plane EFI 4500 Split-Design Race Intake Manifold- GM LS1/LS2/LS6
$1,069.26
Holley 300-229BK Hi-Ram Lower Manifold - Gm Ls7- Black
Holley 300-229BK Hi-Ram Lower Manifold - Gm Ls7- Black
$1,290.56
Holley 300-125BK Ls Hi-Ram Efi Manifold- Black Gm Ls7
Details

The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Specifications:

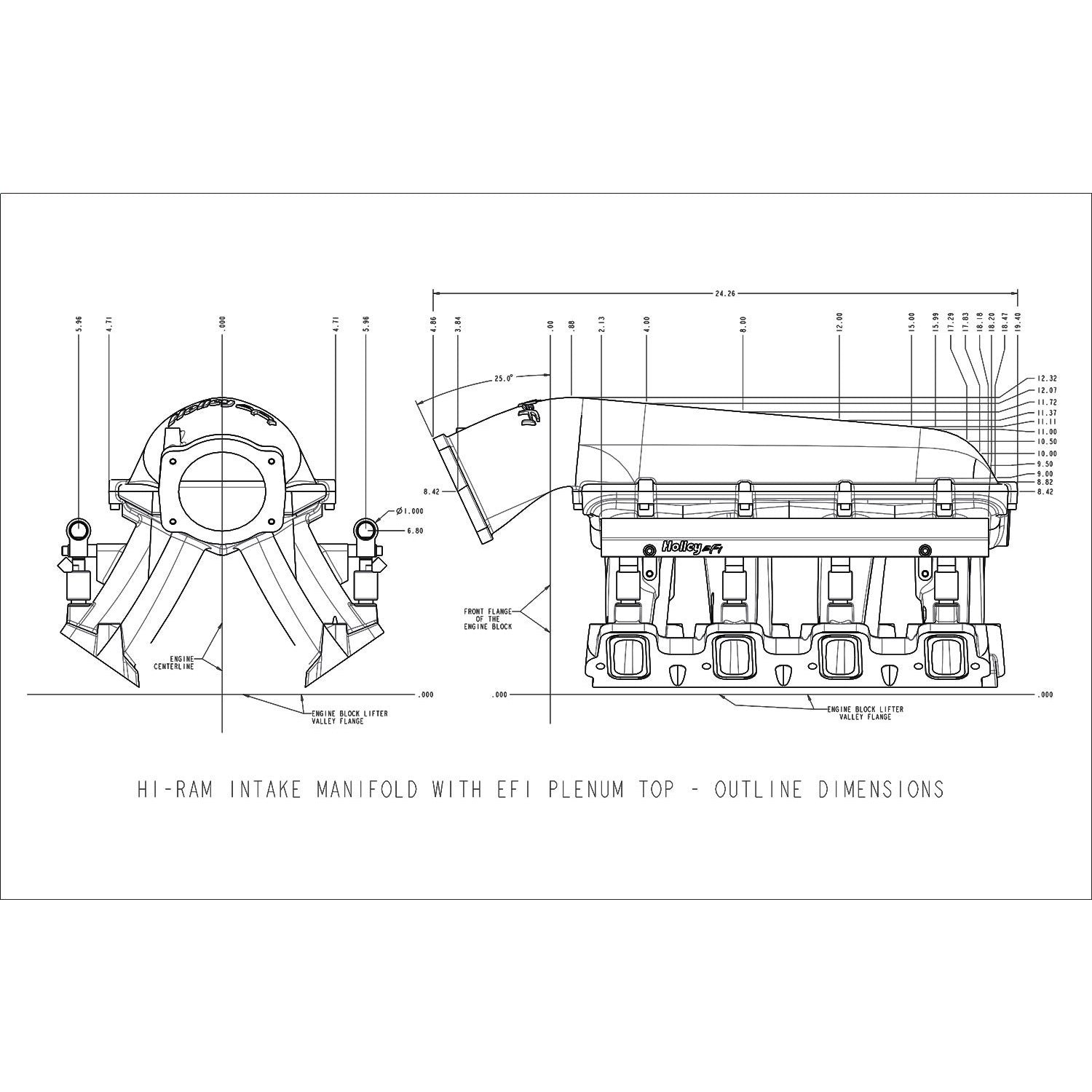

Description_ASC *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Description_DEF Engine Intake Manifold
Description_DES Holley LS Hi-Ram EFI Manifold- Black GM LS7
Description_EXT Hi-Ram Intake Manifold; EFI w/1x105mm Throttle Body; Front/Rear Height 8.42 in.; RPM Power Band 1500-7000; Black;
Description_MKT The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Description_MKT ΓÇó The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Description_MKT ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
Description_MKT ΓÇó EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Description_MKT ΓÇó Cast aluminum construction.
Description_MKT ΓÇó Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Description_INV LS7 HI-RAM IM, EFI, 105MM LS TB, BLACK

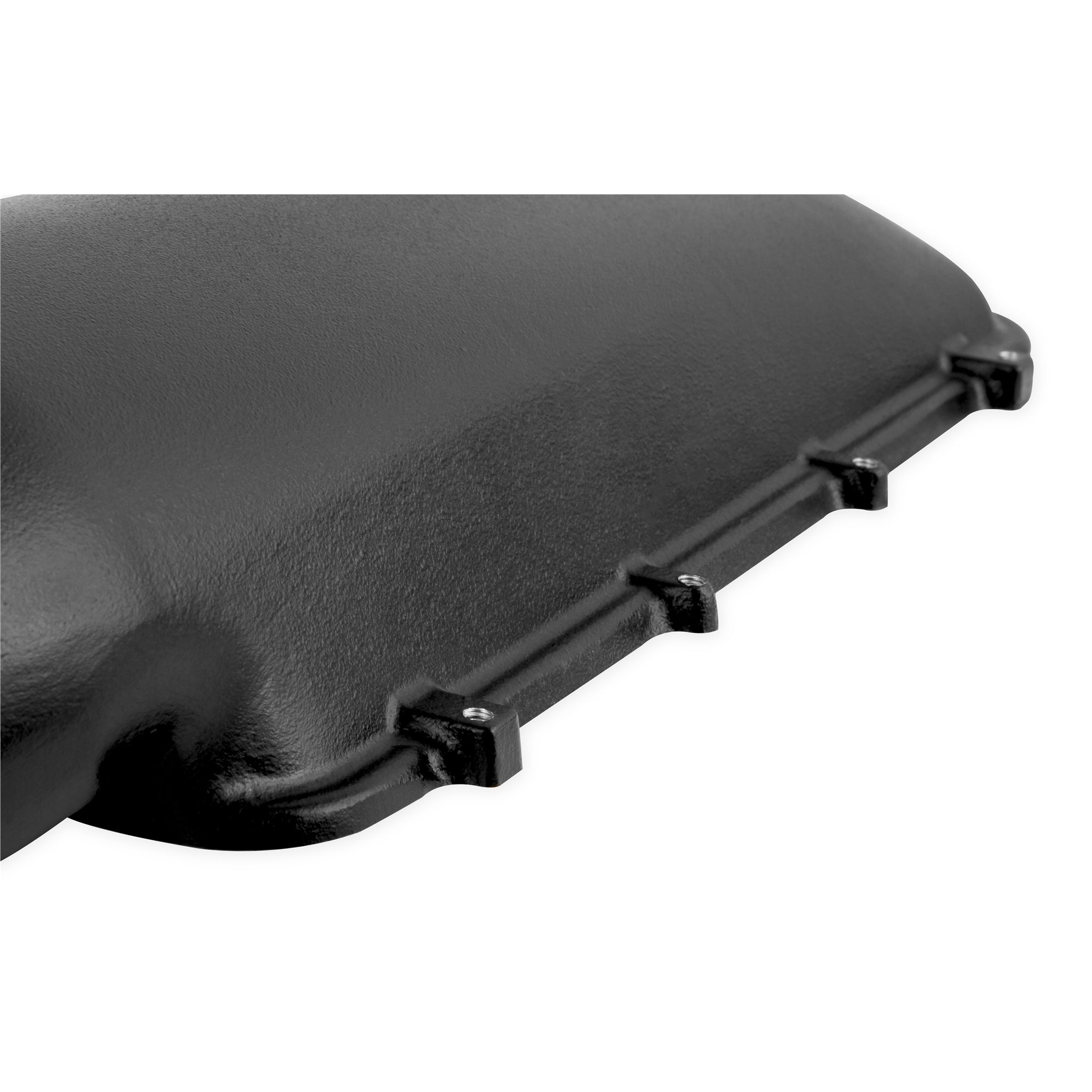

Description_FAB Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.

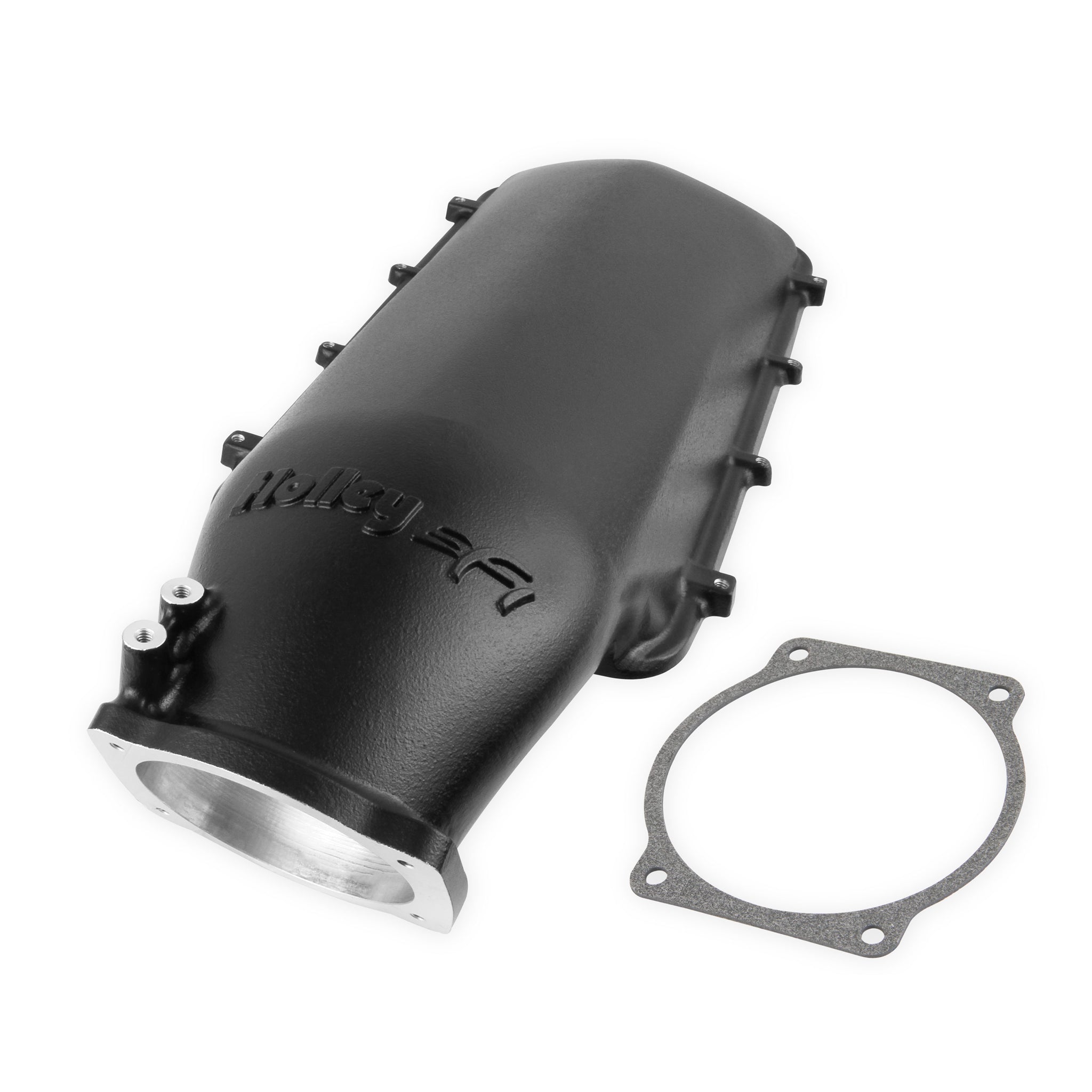

Description_FAB Total Height with 92/105mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
Description_FAB Port Size - 2.49" Height x 1.21" Wide
Description_FAB Mounting Flange Gasket Type - Standard LS3 Molded O-Ring

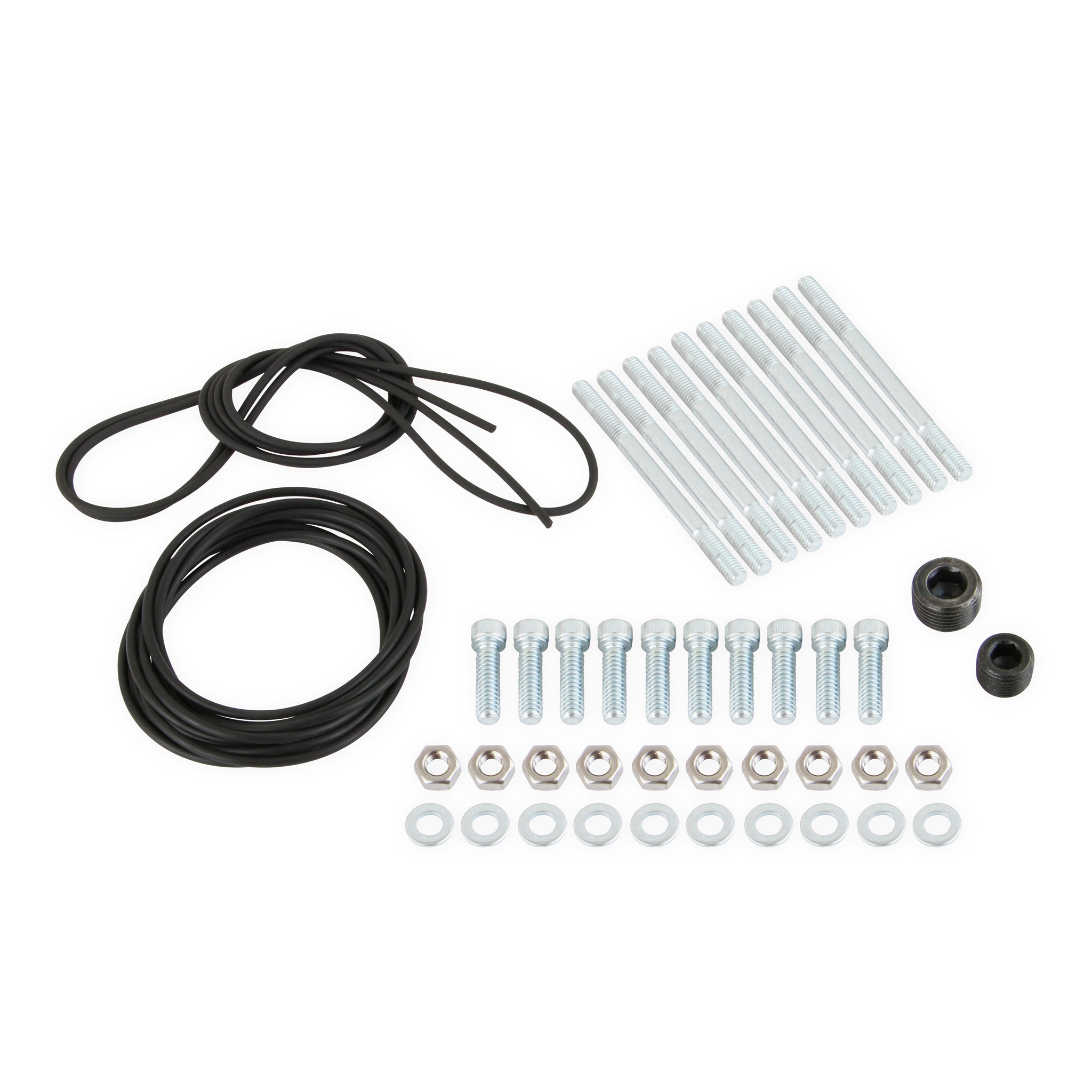

Description_FAB Plenum Top Gasket Type - 3/32" Round O-ring Cord

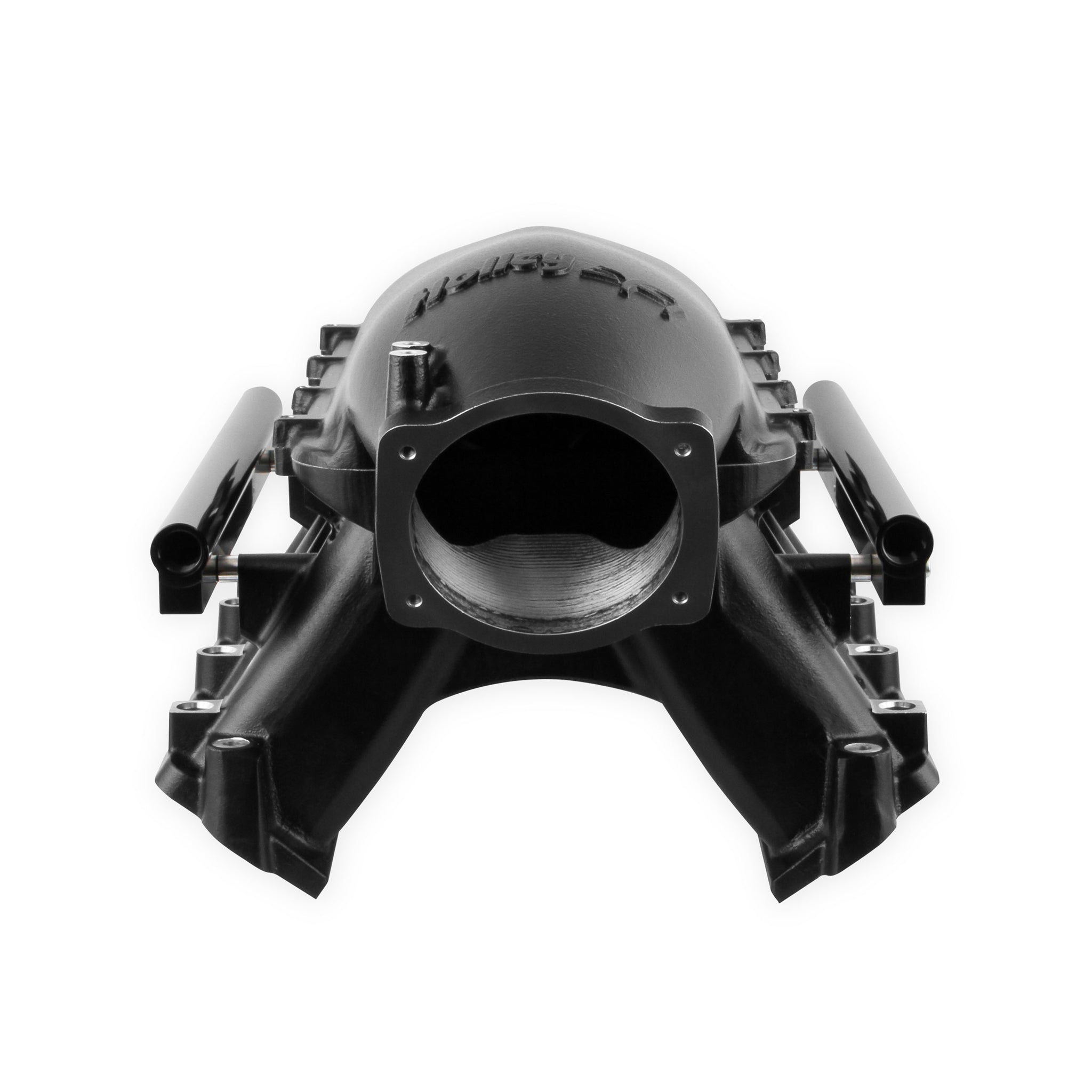

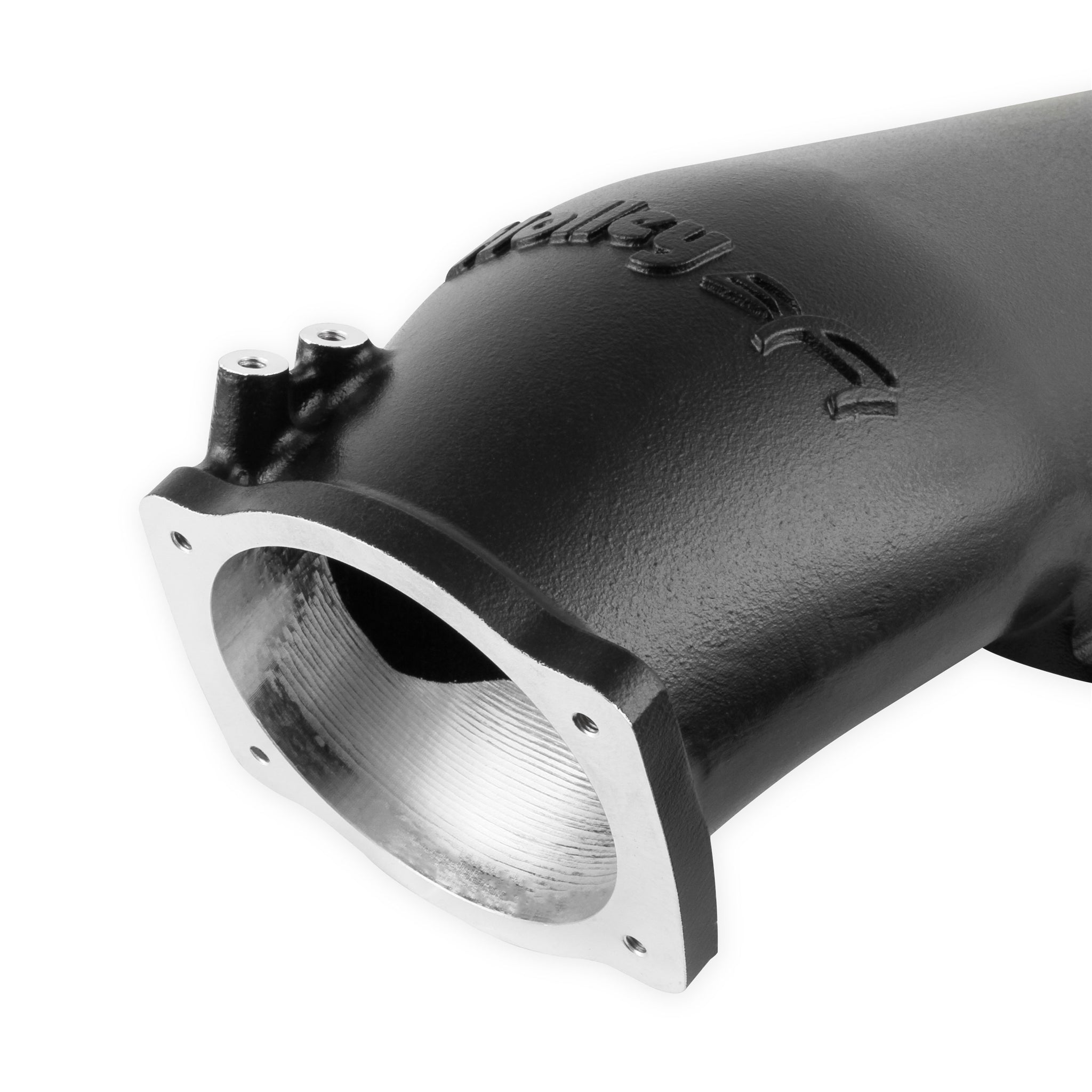

Description_FAB Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
Description_FAB Runner Length - 6.29", As-Cast Runner Cross-Sectional Area - Tapered 4.67 in┬▓ to 2.84 in┬▓
Description_SHO Intake Manifold
RPM Power Band 3500-8000 RPM
Recommended Use Forced Induction
Number of Carbs OEM
Brand Holley EFI
Construction Cast
Flange Style EFI
Engine Make/Size GM LS7
WARNING CA Proposition 65 No
Color Black
Front Height 12.32 inch
Product Type Intake Manifold
Warranty Limited 90 Day
Emission Without EGR
Usage Street/Hi-Performance
RPM Range 1500-7000
Position N/A
Cylinder Head Type LS7
Emission Code 3, 4
Engine GM LS7
Finish Black
Fuel System Type EFI
Manifold Type Hi-Ram
Rear Height 11.00 inch
Length 16.0000
Width 16.0000
Height 30.5000
Weight 37.0000
