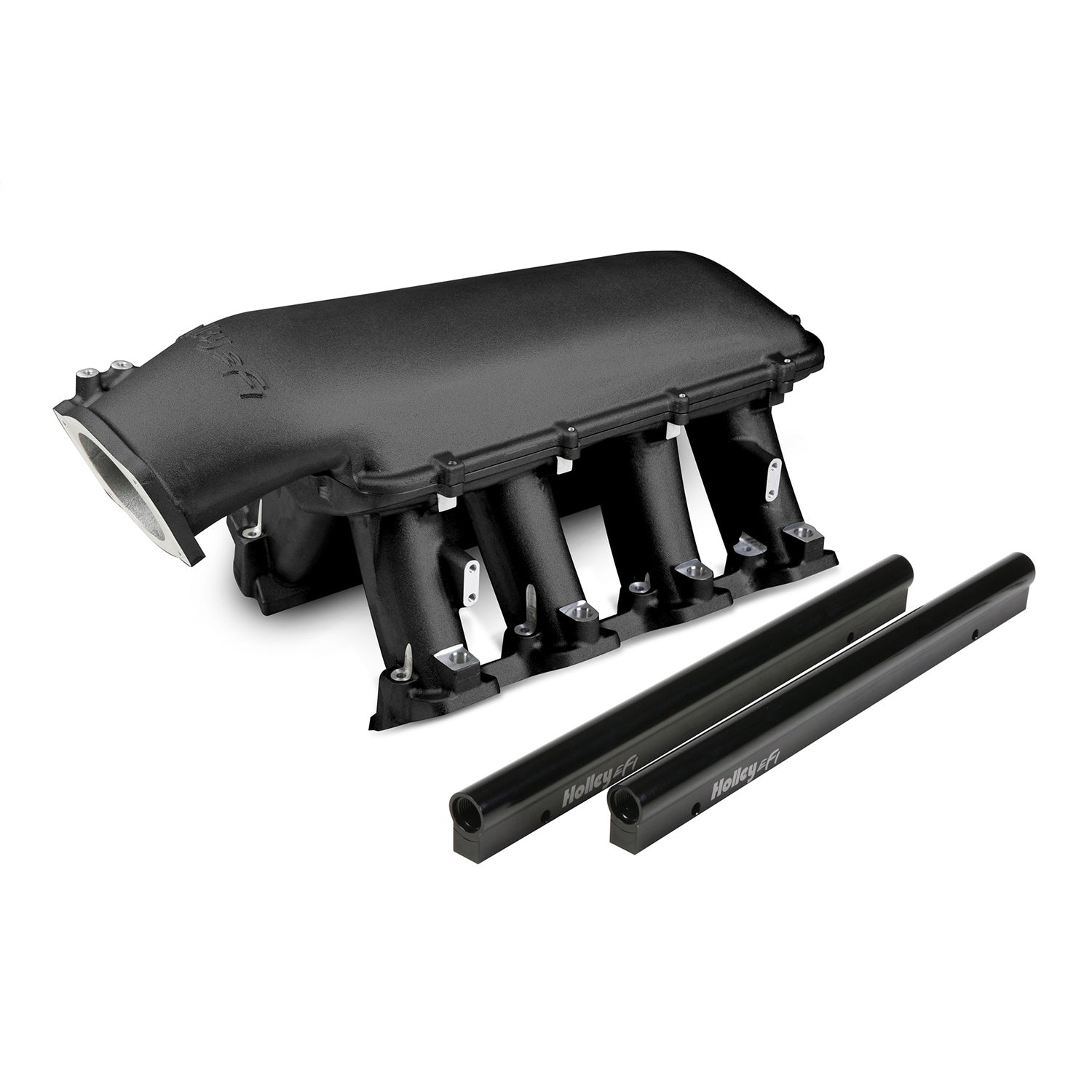

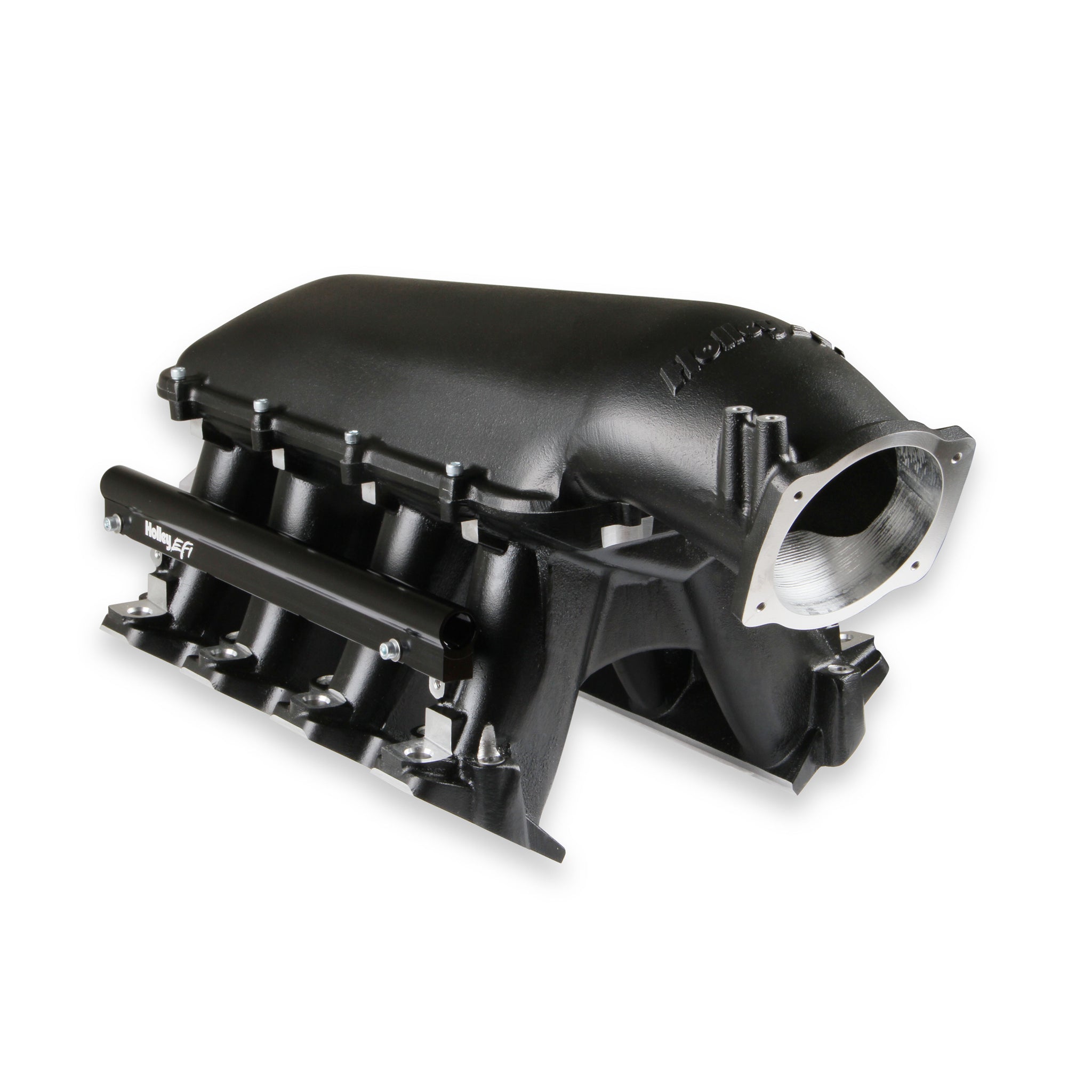

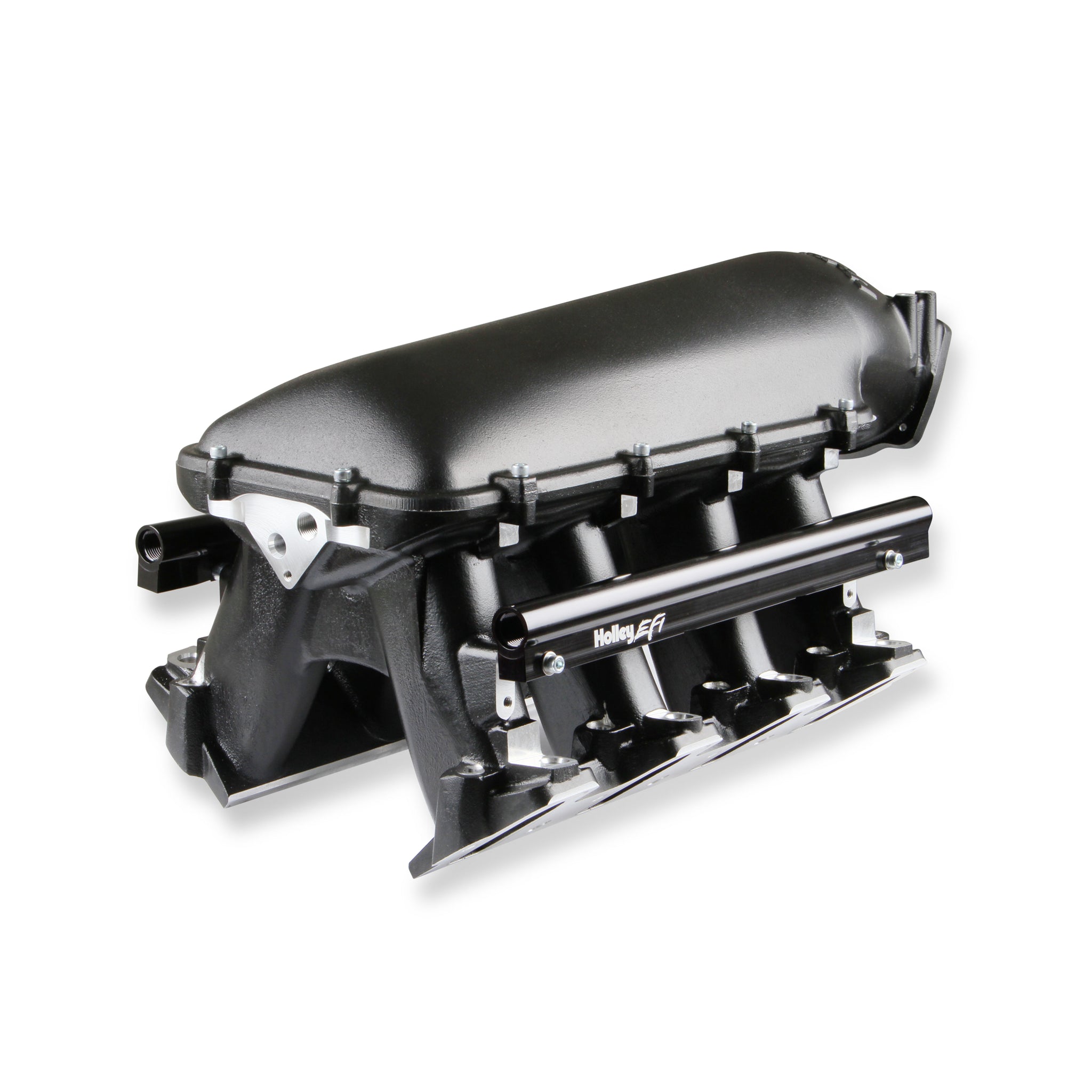

Holley 300-117BK Hi-Ram Intake - GM LS3/L92 - Black

2 sold in last 8 days
Holley
ds_BBVL_300-117BK
Engine Intake Manifold
$1,983.50
$1,983.50
customers are viewing this product
Holley 300-295BK Single Plane 4500 Carbureted Split-Design Race Intake Manifold - GM LS1/LS2/LS6
Holley 300-295BK Single Plane 4500 Carbureted Split-Design Race Intake Manifold - GM LS1/LS2/LS6
$1,136.94
Holley 300-242 351W Ford Hi-Ram EFI Manifold
Holley 300-242 351W Ford Hi-Ram EFI Manifold
$1,825.49 $1,467.52
Holley 300-117BK Hi-Ram Intake - GM LS3/L92 - Black
Details

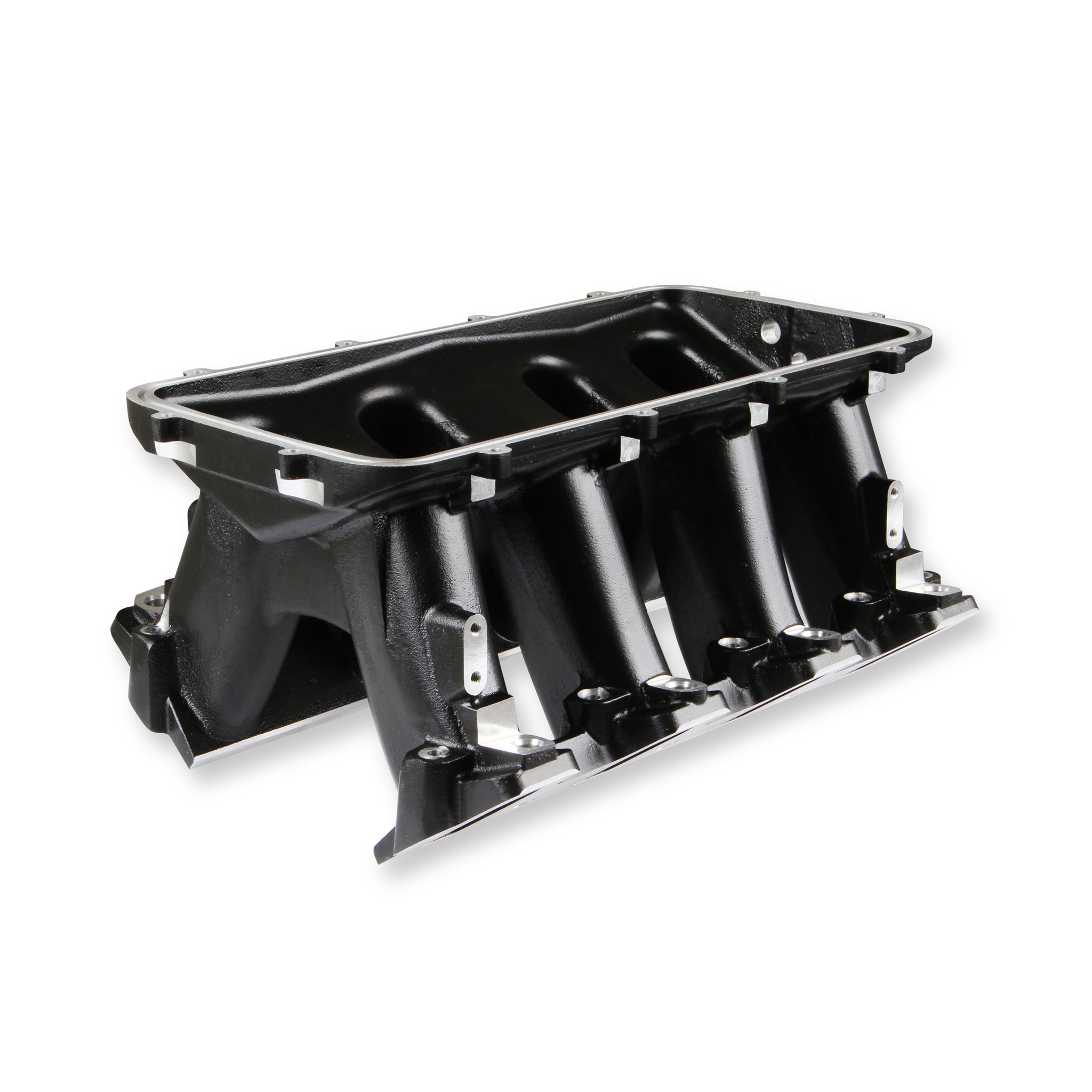

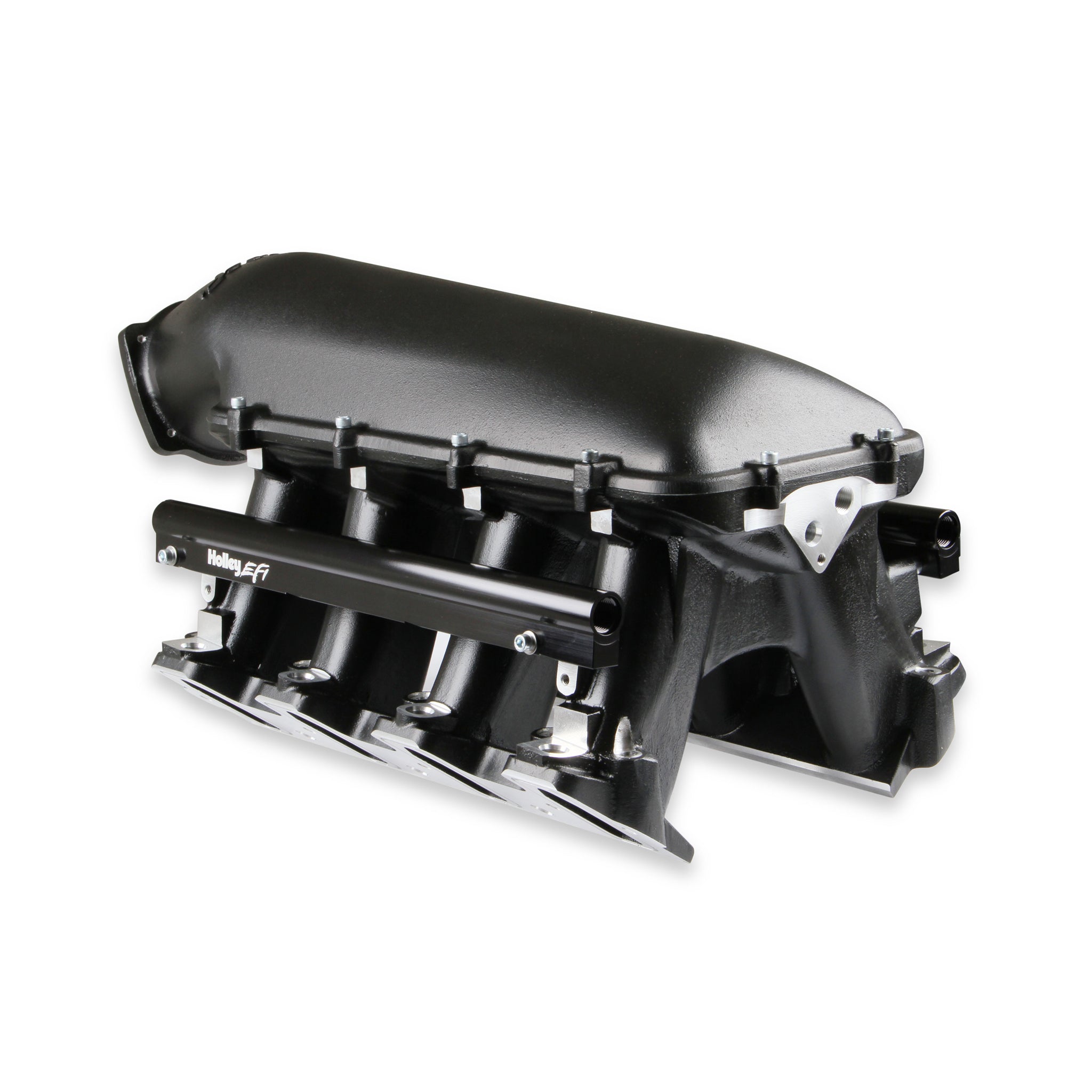

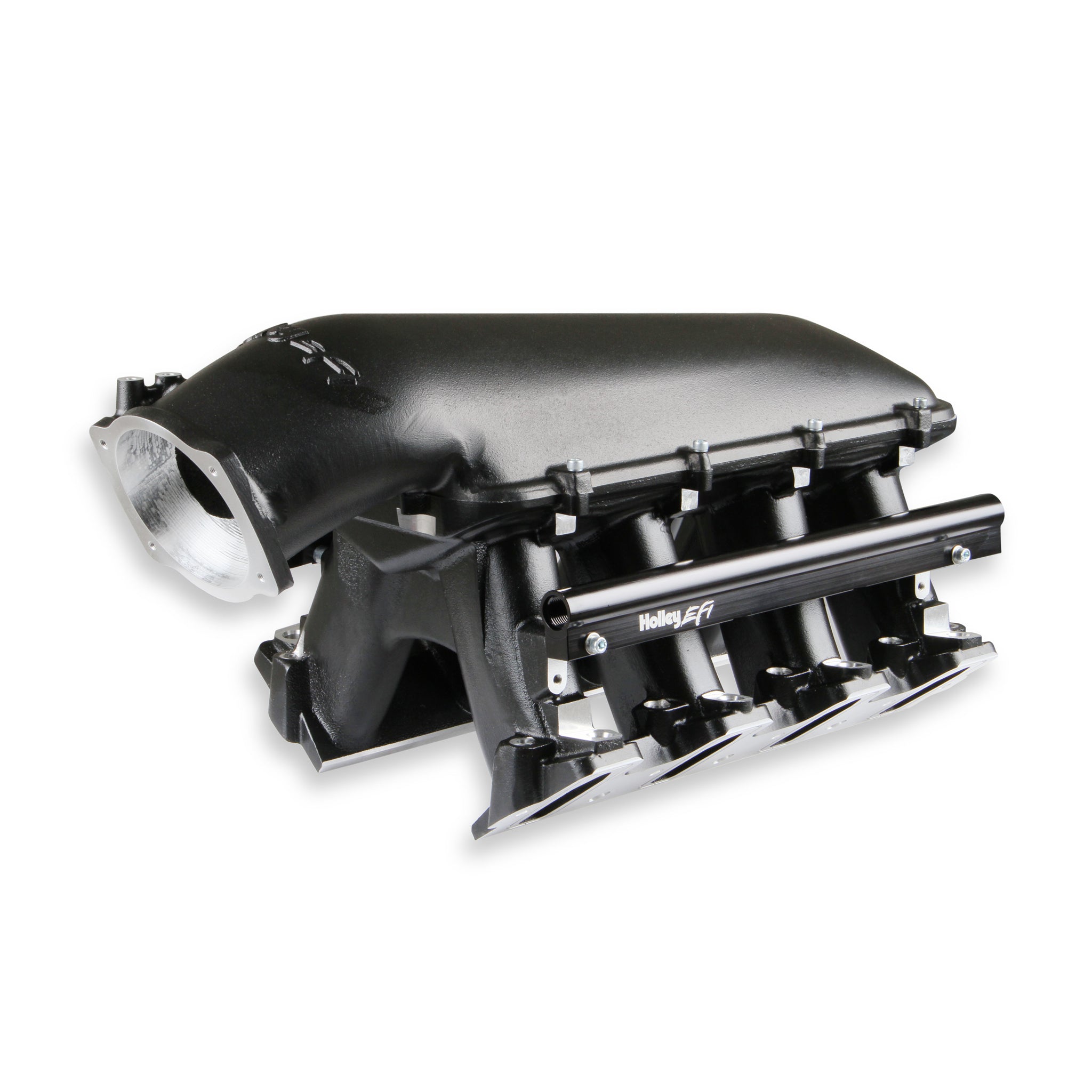

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Specifications:

Description_ASC *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Description_DEF Engine Intake Manifold
Description_DES Holley Hi-Ram Intake - GM LS3/L92 - Black
Description_INV LS3 HI-RAM IM, EFI, 1 X 105MM LS-BLACK
Description_KEY holley; manifold; holley manifold; intake manifold; edelbrock; professional products
Description_EXT Hi-Ram Intake Manifold; Upper; EFI; 1x105mm Throttle Body; Longitudinal Mount Plenum Top; Front/Rear Height 12.32 in.; Incl. Fuel Rails; RPM Power Band 7000-8000; Black Ceramic;
Description_FAB Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.
Description_FAB Total Height with 92/102mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
Description_FAB Port Size - 2.49" Height x 1.21" Wide
Description_FAB Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
Description_FAB Plenum Top Gasket Type - 3/32" Round O-ring Cord

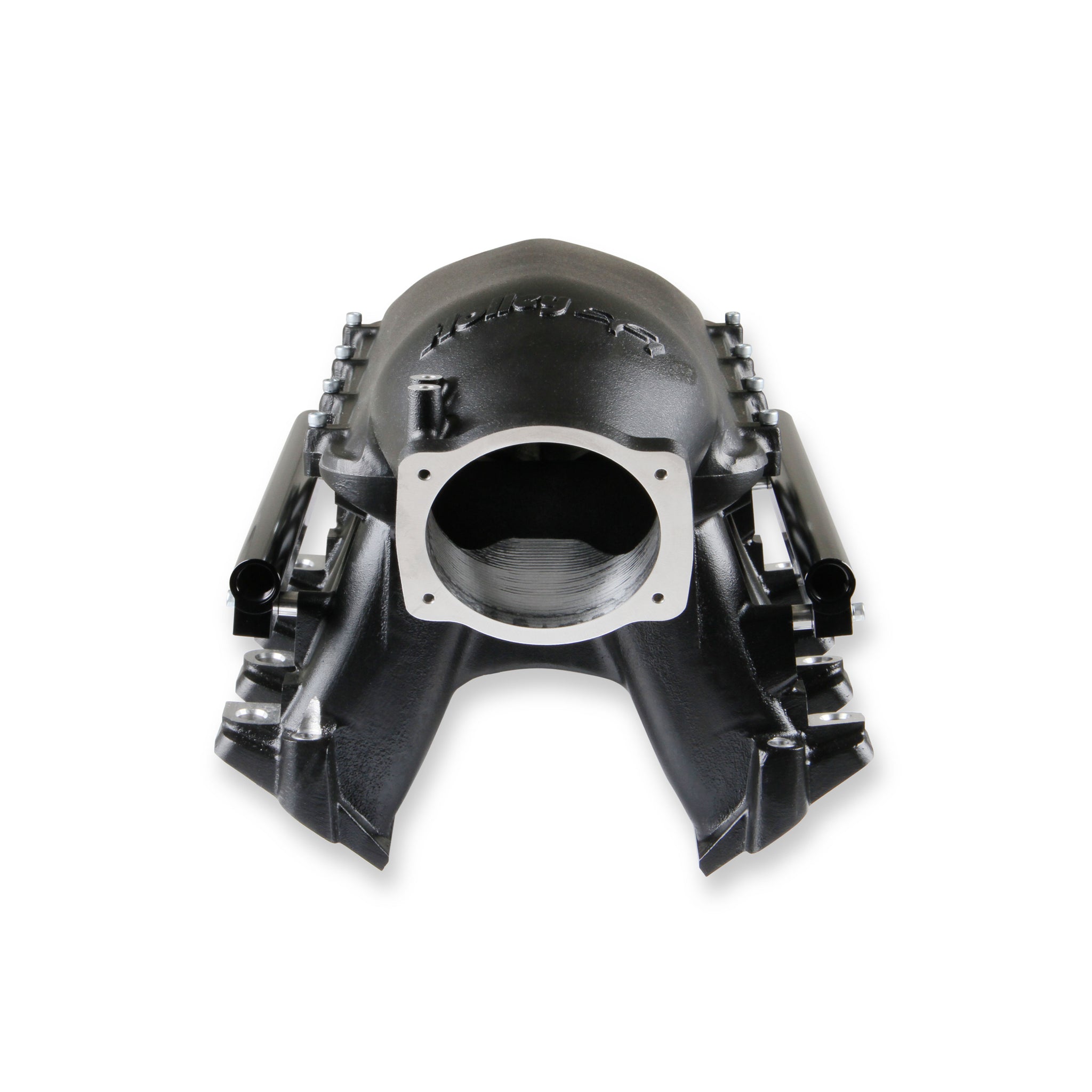

Description_FAB Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
Description_FAB Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.77 in┬▓
Description_SHO Intake Manifold
Description_MKT The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

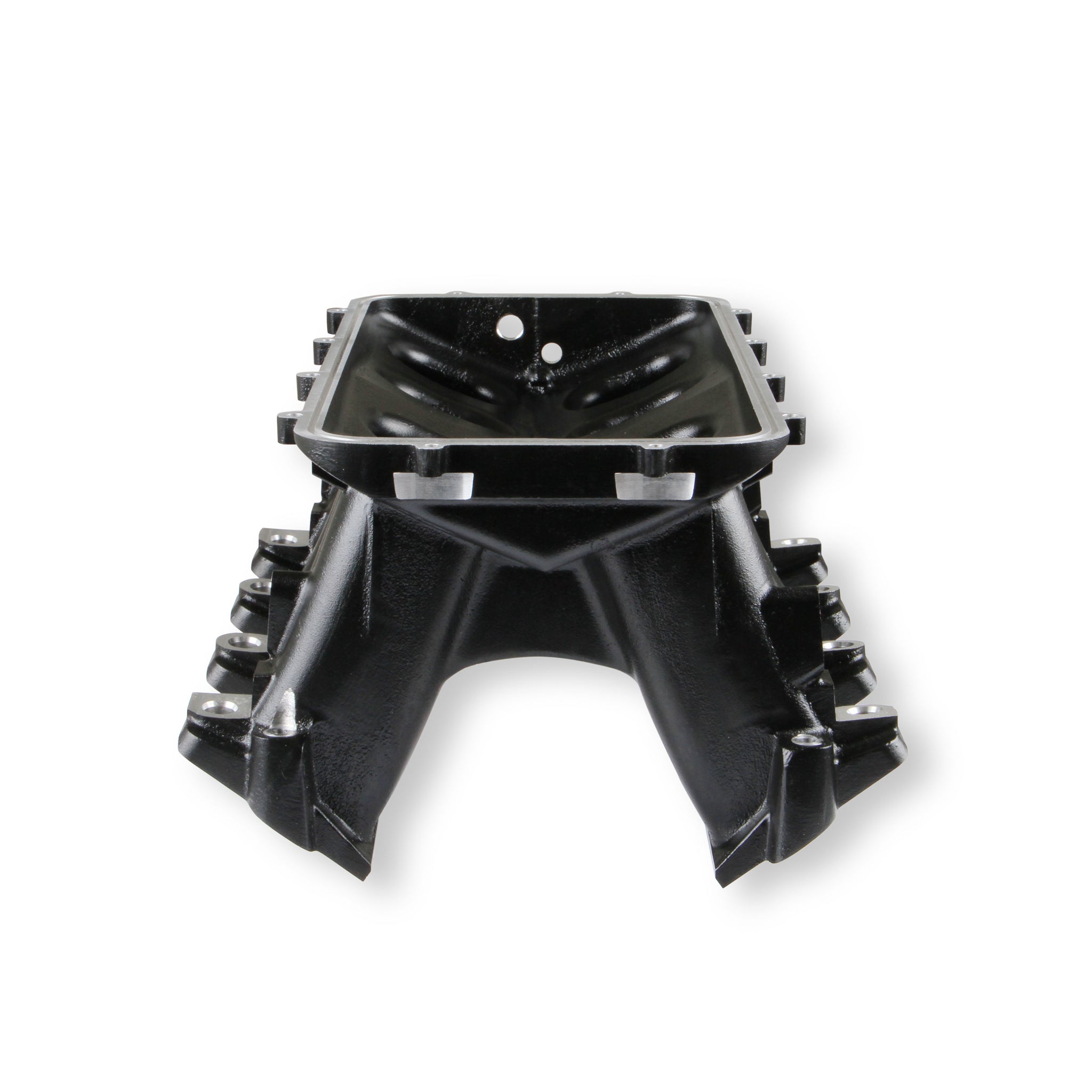

Description_MKT ΓÇó The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Description_MKT ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

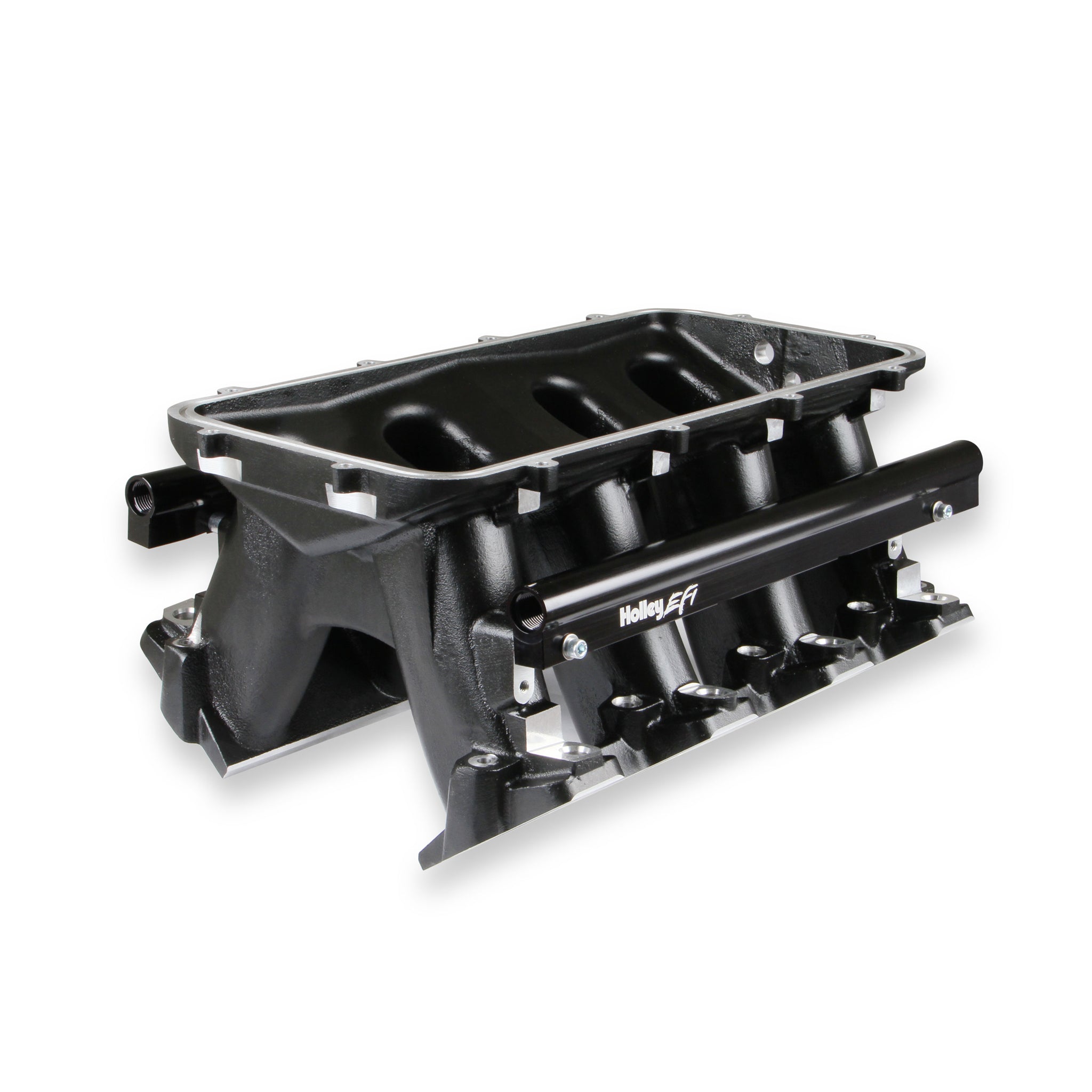

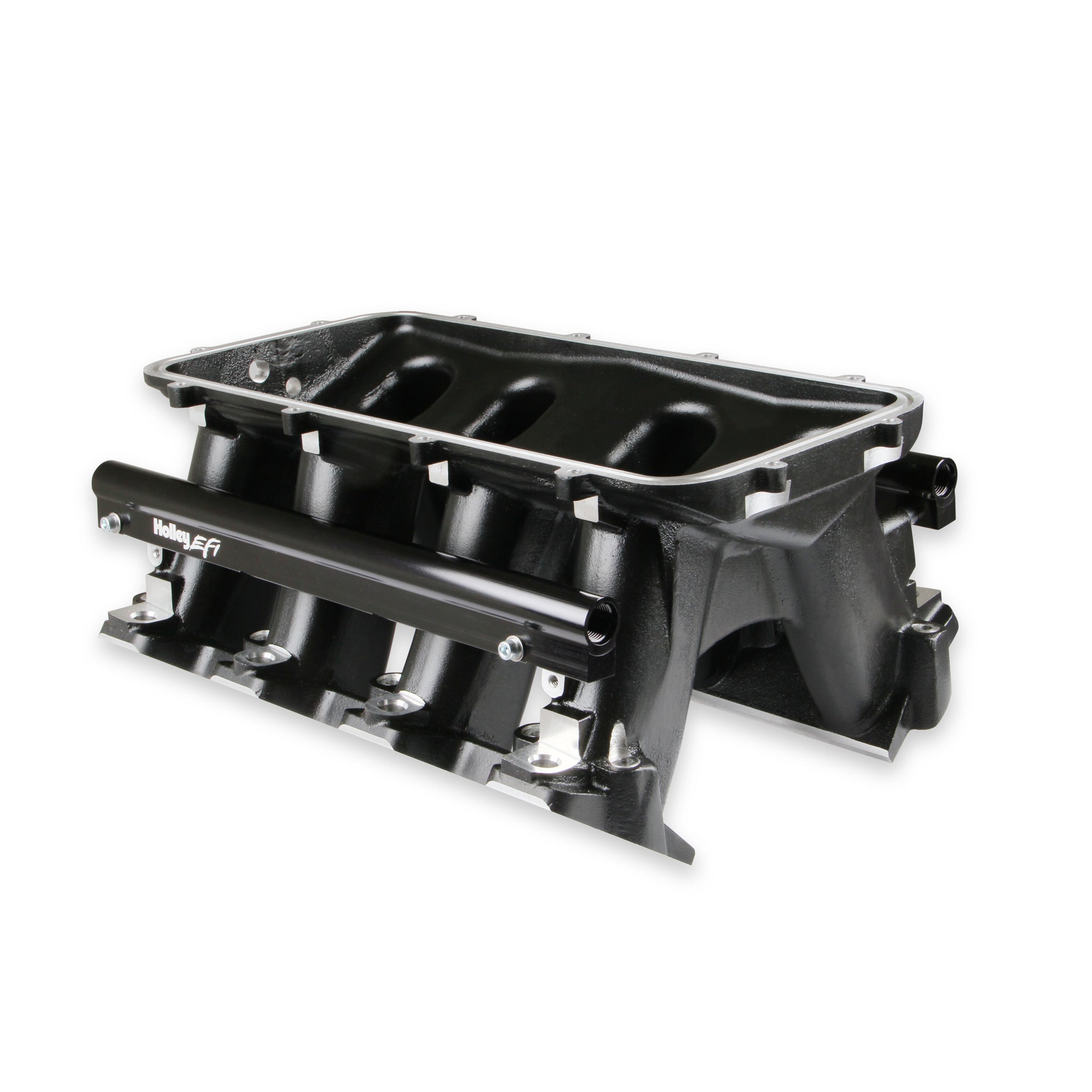

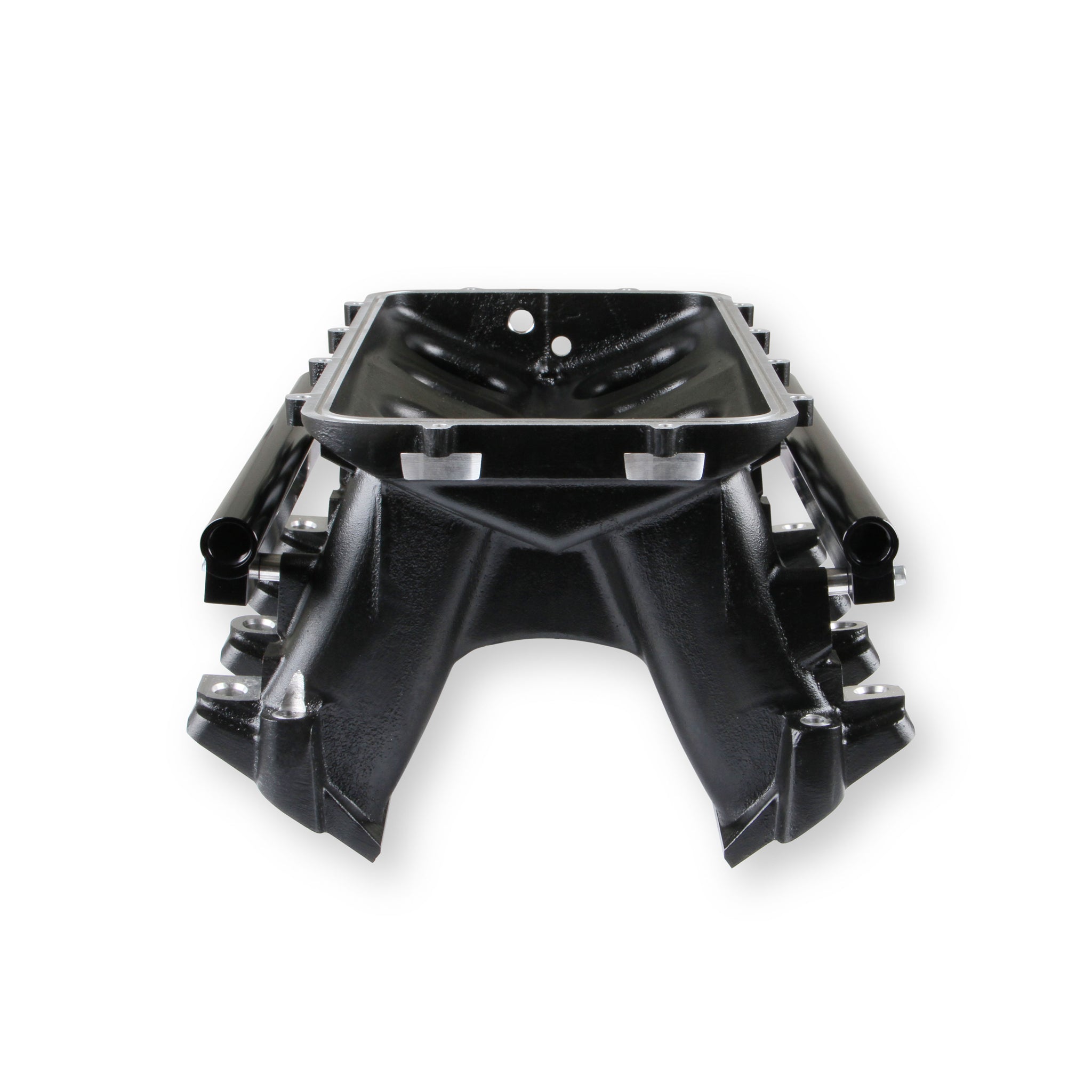

Description_MKT ΓÇó EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Description_MKT ΓÇó Cast aluminum construction.
Description_MKT ΓÇó Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Front Height 12.320 in.
Engine GM LS3/L92
Recommended Use Forced Induction
Number of Carbs None; For Fuel Injection
Brand Holley EFI
Usage Racing
Emission Without EGR
Engine Make/Size GM LS3/L92
Cylinder Head Type Standard
WARNING CA Proposition 65 No
Product Type Intake Manifold
Sale Category Air and Fuel Delivery
Fuel System Type EFI
RPM Range 7000-8000
Rear Height 11.000 in.
Position Upper
Finish Black
Manifold Type Hi-Ram
Construction Cast
Color Black
Emission Code 3, 4
RPM Power Band 3500-8000 RPM
Warranty Limited 90 Day
Length 16.2000
Width 16.8000
Height 26.7000
Weight 31.8500
