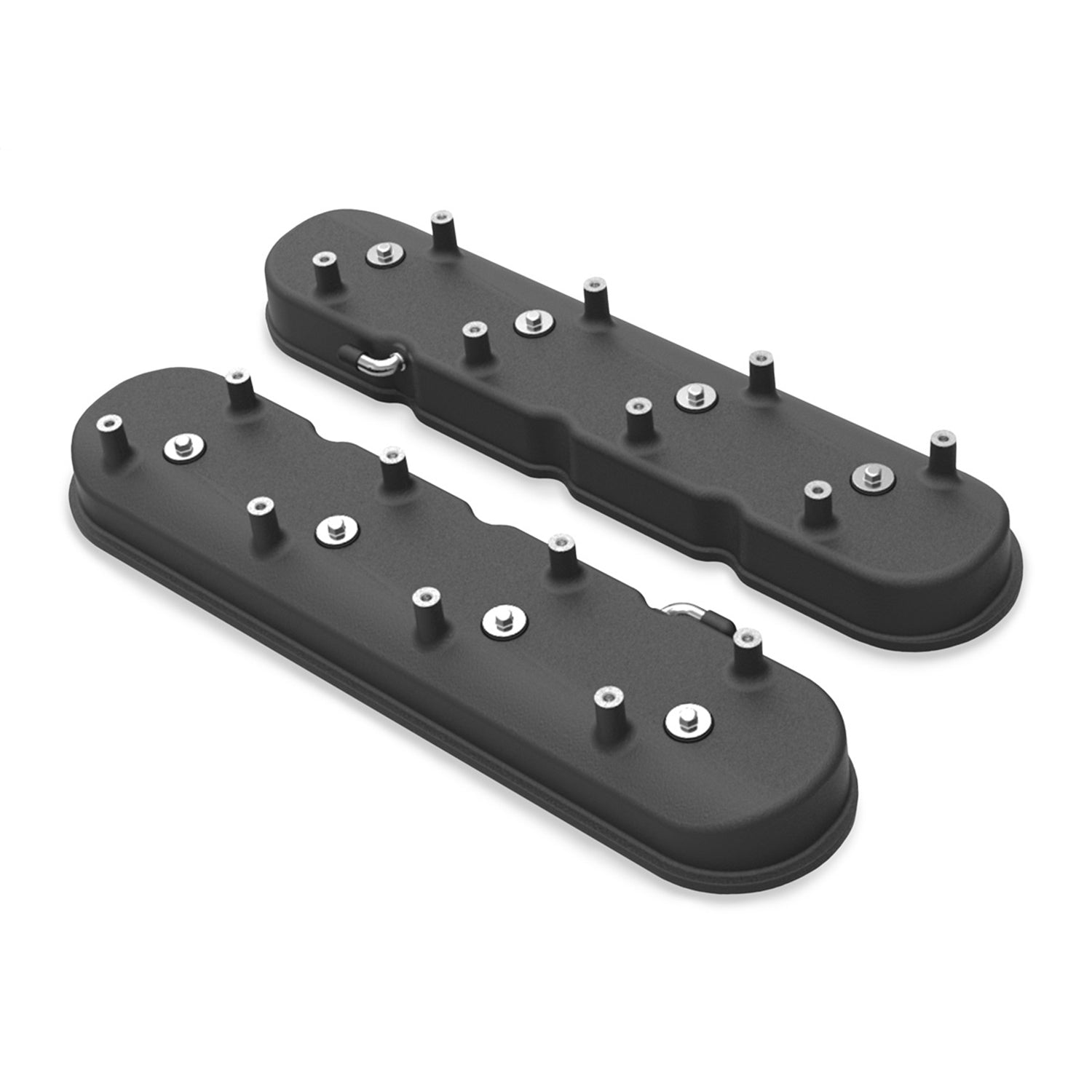

Holleys Tall LS valve covers for dry sump applications are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54 in. of internal clearance over factory height valve covers. The valve covers retain Holleys signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6 and LS7 engines using coils with a standard LS3 bolt spacing of 72mm. These valve covers come ready for installation with lengthened factory style mounting hardware.
Specifications:
| Description_ASC |
The OE Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece LS and Tall LS valve covers and coils. |
| Description_DEF |
Engine Valve Cover Set |
| Description_DES |
Tall LS Valve Covers for Dry Sump Applications - Satin Black |
| Description_INV |
VALVE COVER, TALL LS FOR DRY SUMP APPS. |
| Description_EXT |
Tall LS Dry Sump Valve Covers without Oil Fill, Cast Aluminum - Satin Black Finish |
| Description_KEY |
valve; cover; ls; gm; tall; holley; coil; dry; sump; |
| Description_FAB |
Angled coil mounts deliver a smooth clean look |
| Description_FAB |
Retain the high-tech look and performance of ΓÇ£coil on cover" |
| Description_FAB |
Reuses original gaskets and bolts |
| Description_FAB |
Fits all LS engines using LS1, LS2, LS3, LS6 and LS7 or similar coils with spacing 72mm bolt spacing |
| Description_FAB |
Designed to add an additional 0.54" of internal clearance over factory height valve covers |
| Description_FAB |
Holley's LS covers use proven OE style baffles and vents |
| Description_FAB |
Also available in polished, gloss red and natural cast finishes |
| Description_SHO |
Valve Cover Set |
| Description_MKT |
Holleys Tall LS valve covers for dry sump applications are the latest addition to our extensive line of LS engine components that will add a custom touch to your engine bay and help you to stand out from the crowd. These valve covers were designed to add an additional 0.54 in. of internal clearance over factory height valve covers. The valve covers retain Holleys signature integrated angled coil mounts, and the hi-tech look and performance of coil-on-cover applications. The Holley tall LS valve covers fit LS1, LS2, LS3, LS6 and LS7 engines using coils with a standard LS3 bolt spacing of 72mm. These valve covers come ready for installation with lengthened factory style mounting hardware. |
| Valve Cover Style |
Tall |
| Bolt Pattern |
Center Bolt |
| Brand |
Holley |
| Mounting Hardware Included |
Yes |
| Engine Make/Size |
Chevy LS Series |
| Gasket Or Seal Included |
No |
| Cylinder Head Type |
Standard |
| Features |
No Oil Fill |
| Gaskets Included |
No |
| WARNING CA Proposition 65 |
No |
| Finish |
Satin Black |
| Breather(s) Included |
No |
| Design Type |
Tall Height |
| Emission Code |
2, 4 |
| Gromment(s) Included |
Yes |
| Height |
Tall |
| Oil Fill |
No - Dry Sump |
| Oil Fill Cap Included |
No |
| Product Type |
Valve Cover |
| Style |
Dry Sump |
| Type of Component |
Valve Cover |
| Warranty |
Limited 90 Day |
| Material |
Cast Aluminum |
| Grommets Included |
Yes |
| Baffle Included |
Yes |
| Application |
GM LS Engines |
| Coil Mounting Studs |
Yes |
| Coil Options |
with Coil Stands |
| Construction |
Die Cast Aluminum |
| Logo |
None |
| Quantity |
Pair |
| Length |
4.0000 |
| Width |
11.0000 |
| Height |
21.0000 |
| Weight |
7.0000 |
