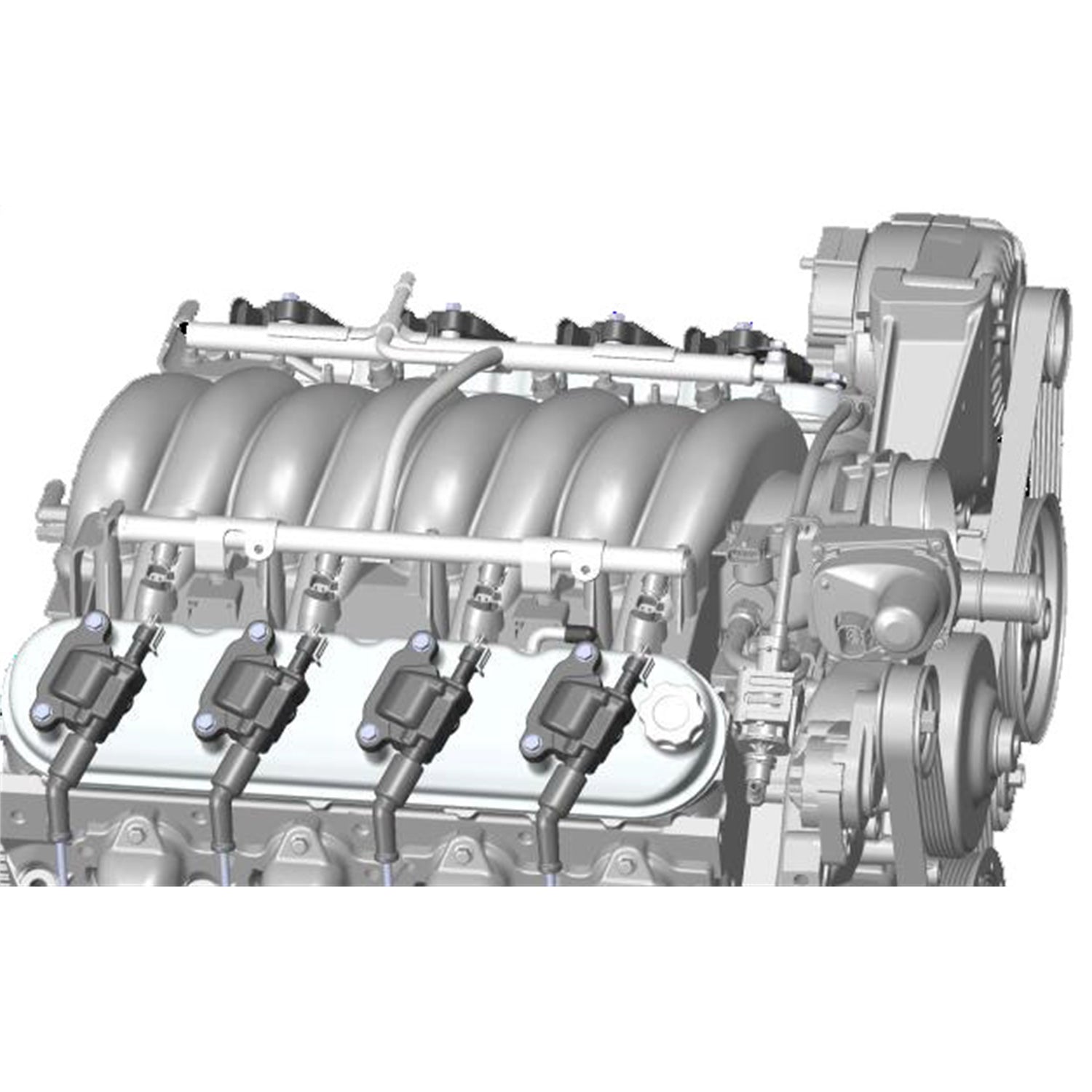

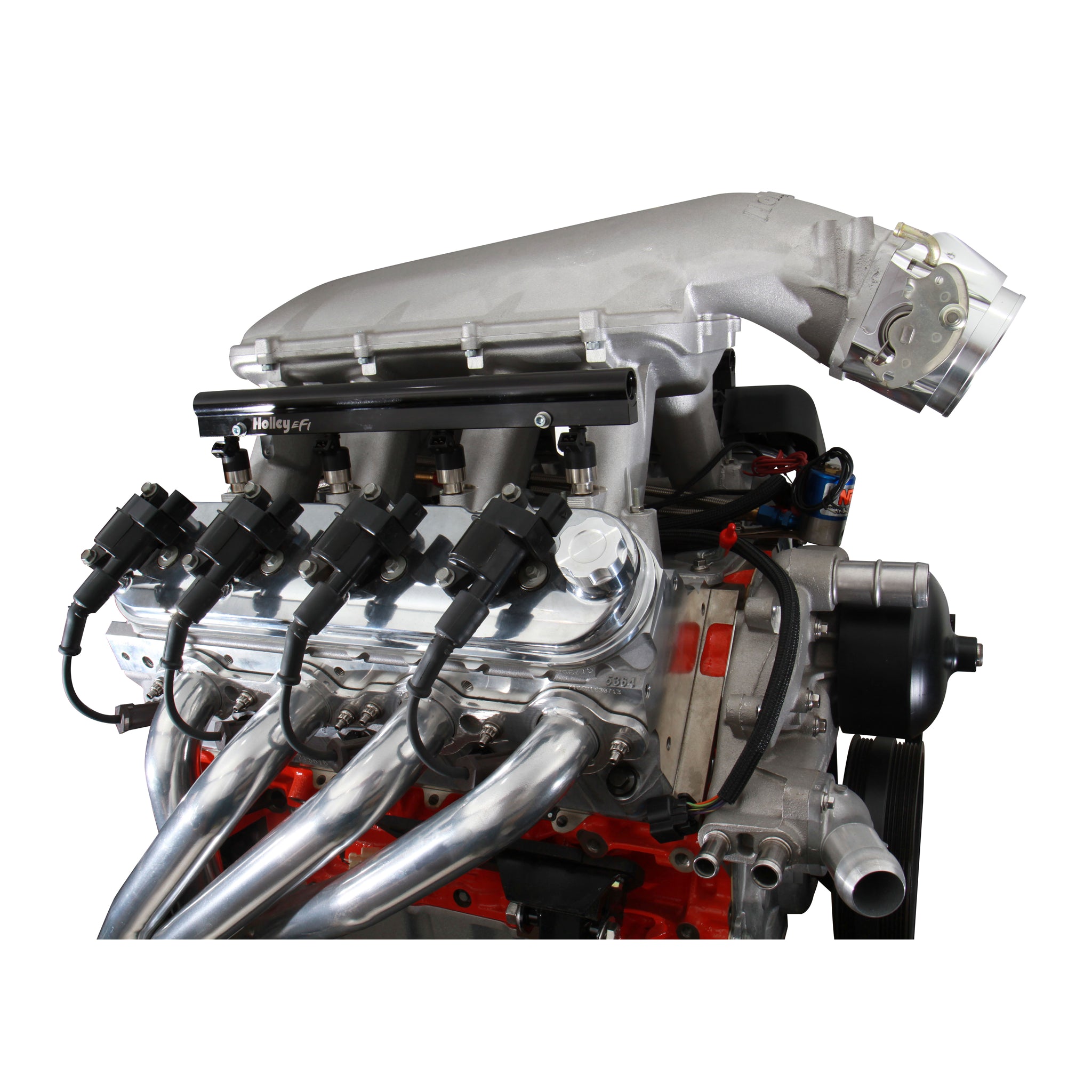

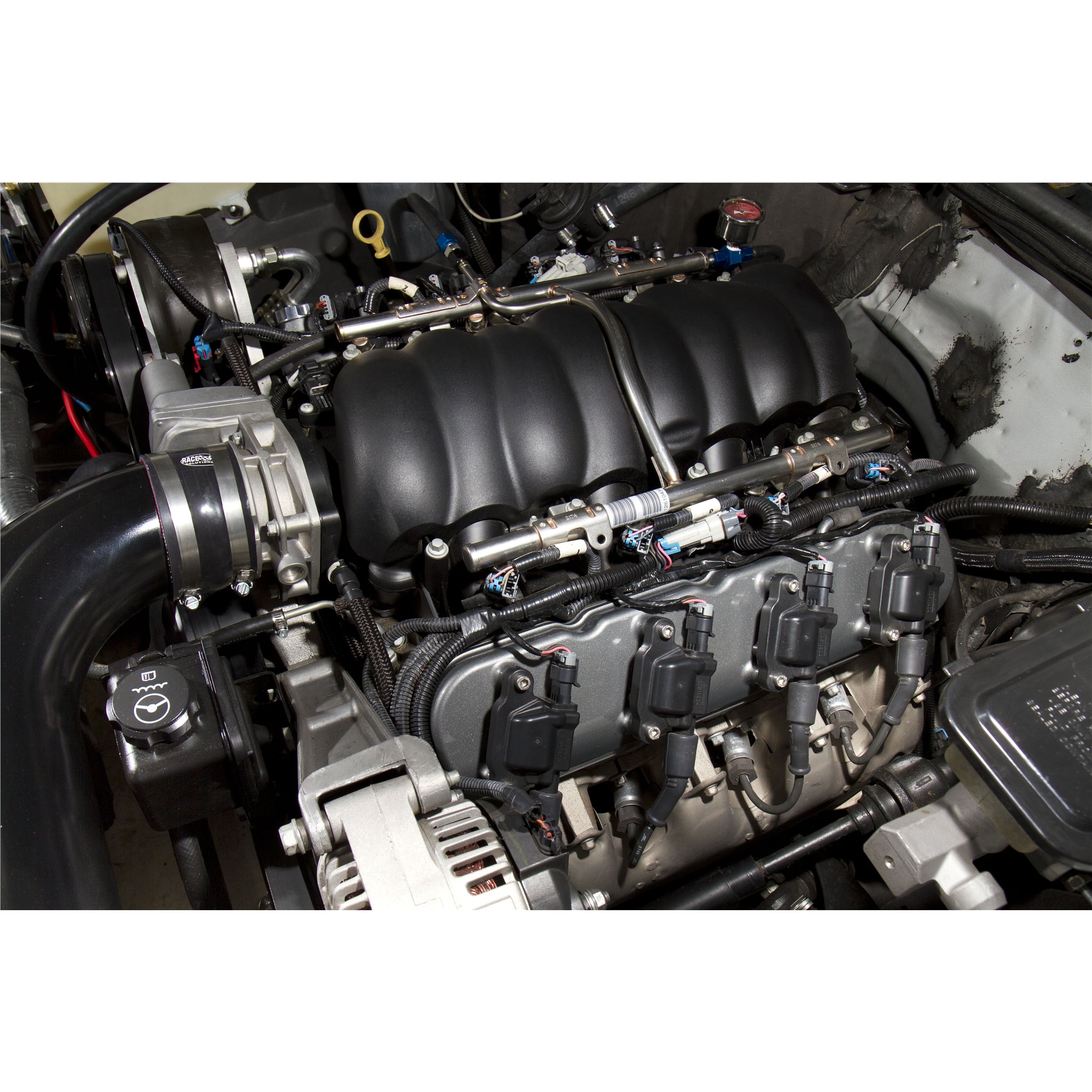

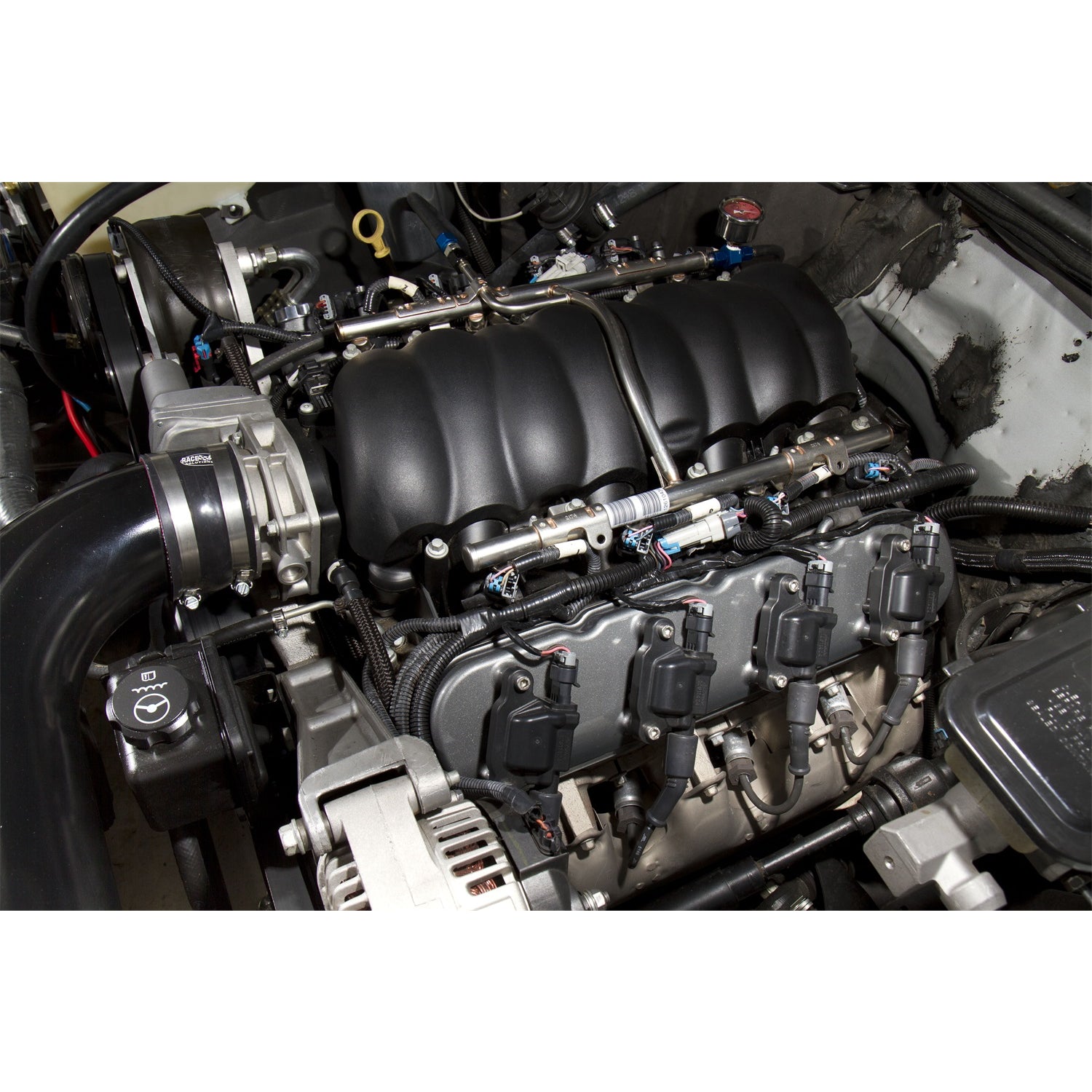

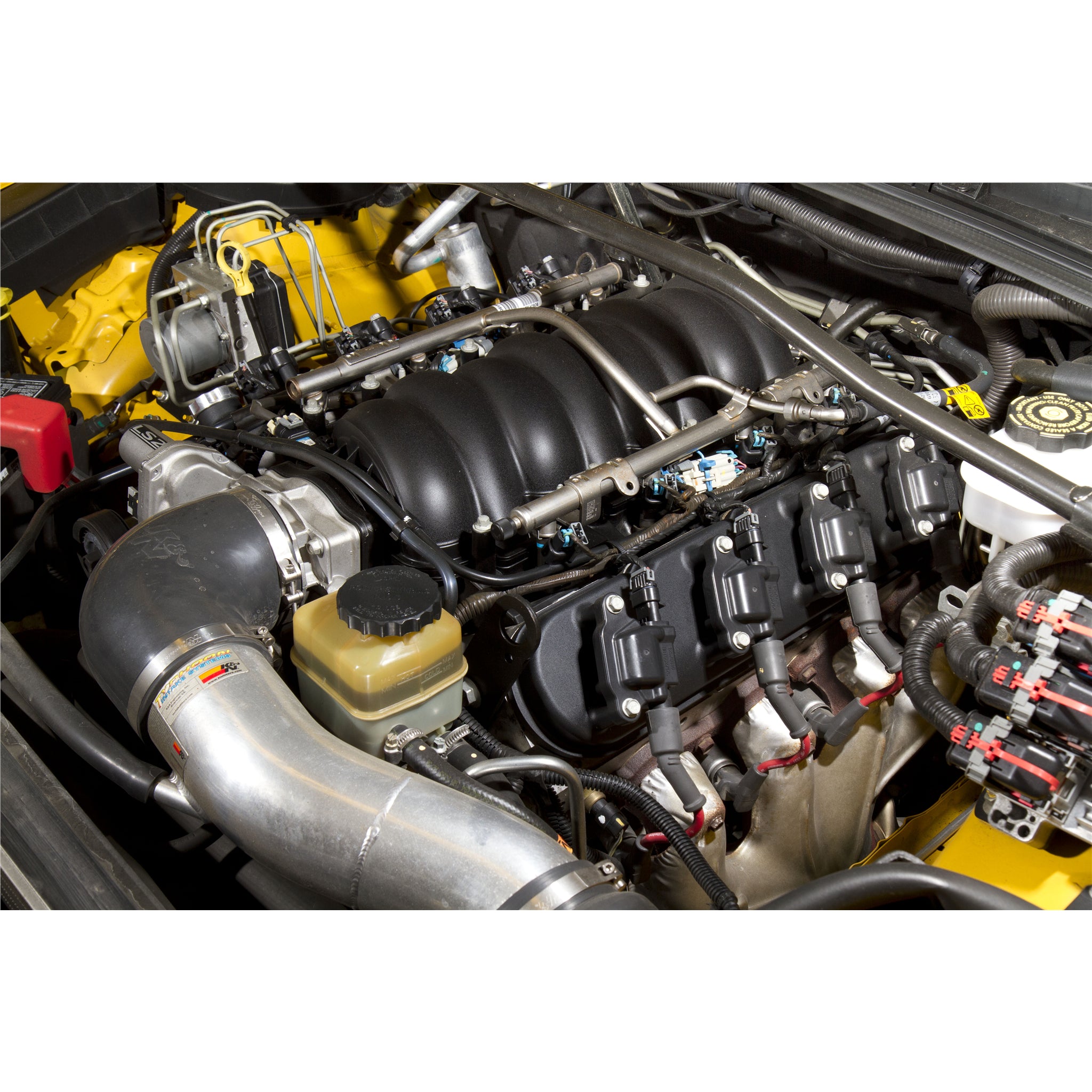

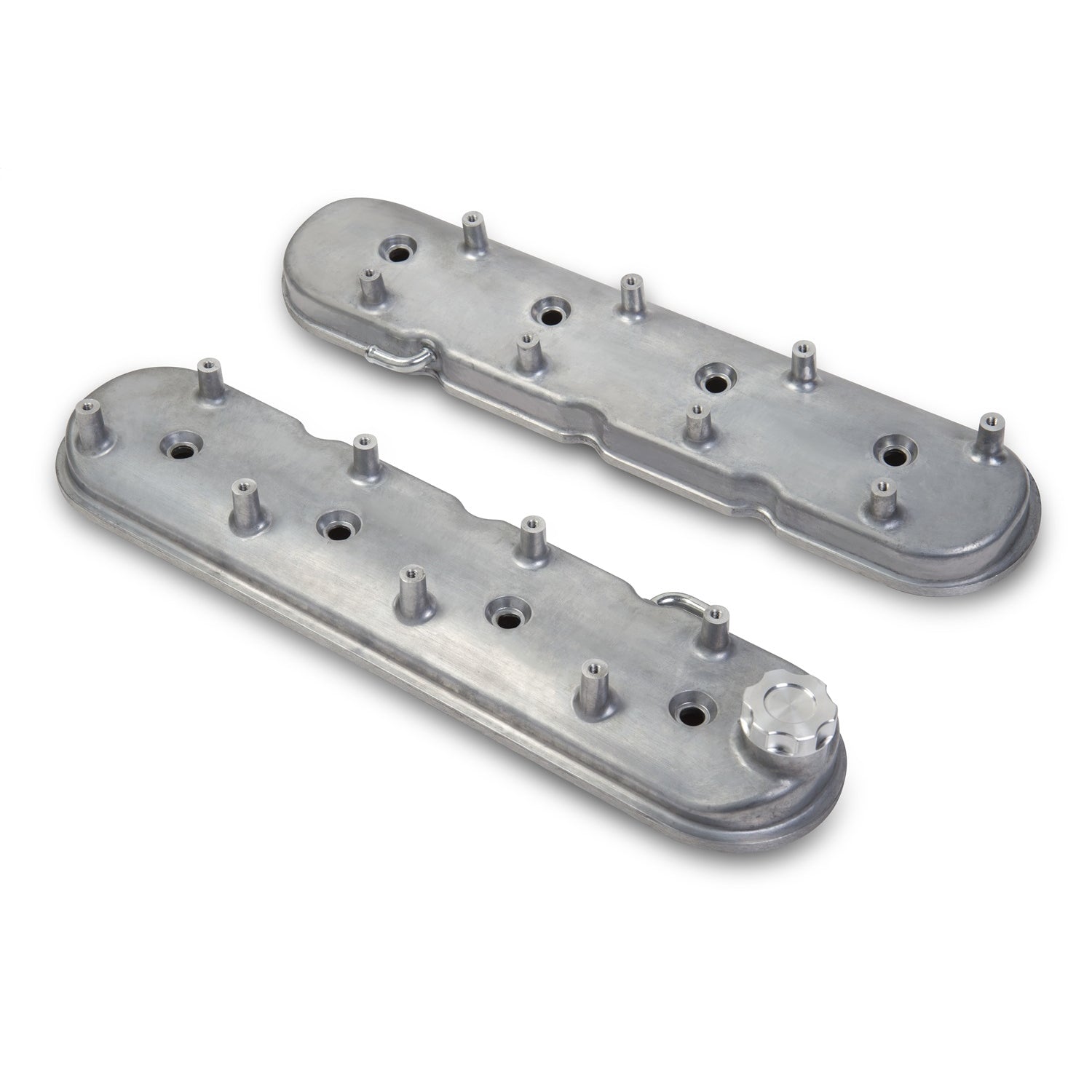

Holley's cast aluminum valve covers for GM LS engines provide a fresh, refined look without the need to relocate the coils. There's no question the factory "coil on cover" design gives the LS that signature high-tech look, but the factory brackets and coil location leave room for improvement. Clean up that signature look with Holley's LS Valve Covers! They incorporate a radiused shape, angled coil mounting, and a billet fill cap. Plus, the coils mount directly to the cover with no need for a bracket in-between. They fit most popular LS series engines and come in Black Krinkle, Satin, Natural Cast, and Polished. Or, paint to match your vehicle's theme!
Specifications:
| Description_ASC |
NOTICE: Natural finish parts are straight from the die cast tooling. These parts are intended to be brush finished, polished, painted, etc. prior to use. These parts will have some visual inconsistencies and tooling marks from the manufacturing process.
The OE Camaro and Corvette accessory brackets may need to be clearenced when installing our cast 2-PC and tall LS valve covers and coils. |
| Description_DEF |
Engine Valve Cover Set |
| Description_DES |
LS Valve Covers - Natural Cast |
| Description_EXT |
Standard Height LS Valve Covers w/ Coil Mounting Posts, Cast Aluminum - Natural Cast Finish |
| Description_INV |
VALVE COVER, LS NATURAL CAST FINISH |
| Description_FAB |
Angled coil mounts deliver a smooth clean look |
| Description_FAB |
Retain the high-tech look and performance of ΓÇ£coil on cover" |
| Description_FAB |

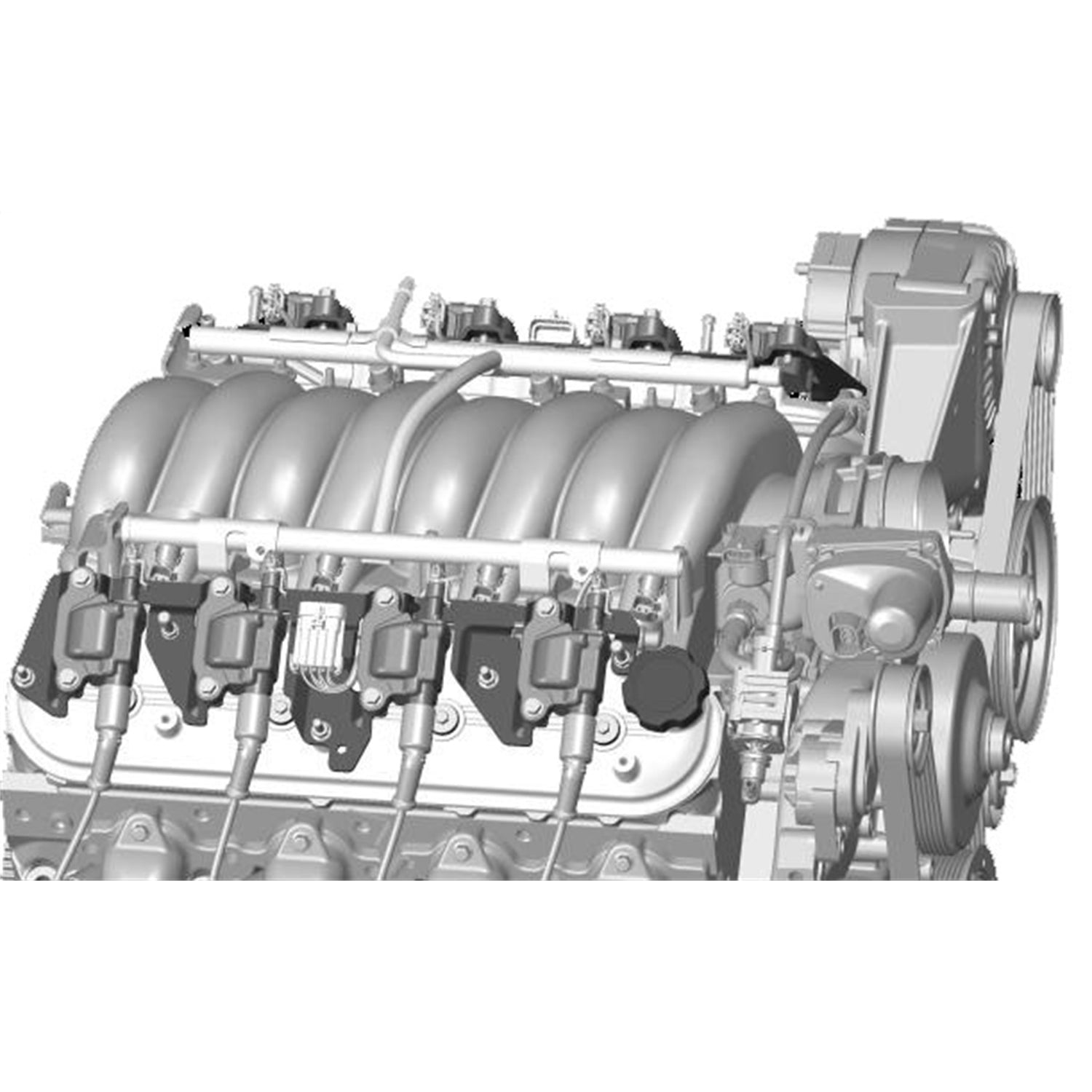

Eliminates unsightly OE style coil brackets |
| Description_FAB |
Billet aluminum oil fill cap |
| Description_FAB |
Reuses original gaskets and bolts |
| Description_FAB |
Fits all LS engines using LS2, LS3, LS7 or similar coils with 72mm bolt spacing |
| Description_FAB |
Clearance for .750" lift cam with stock style rocker arms |
| Description_FAB |

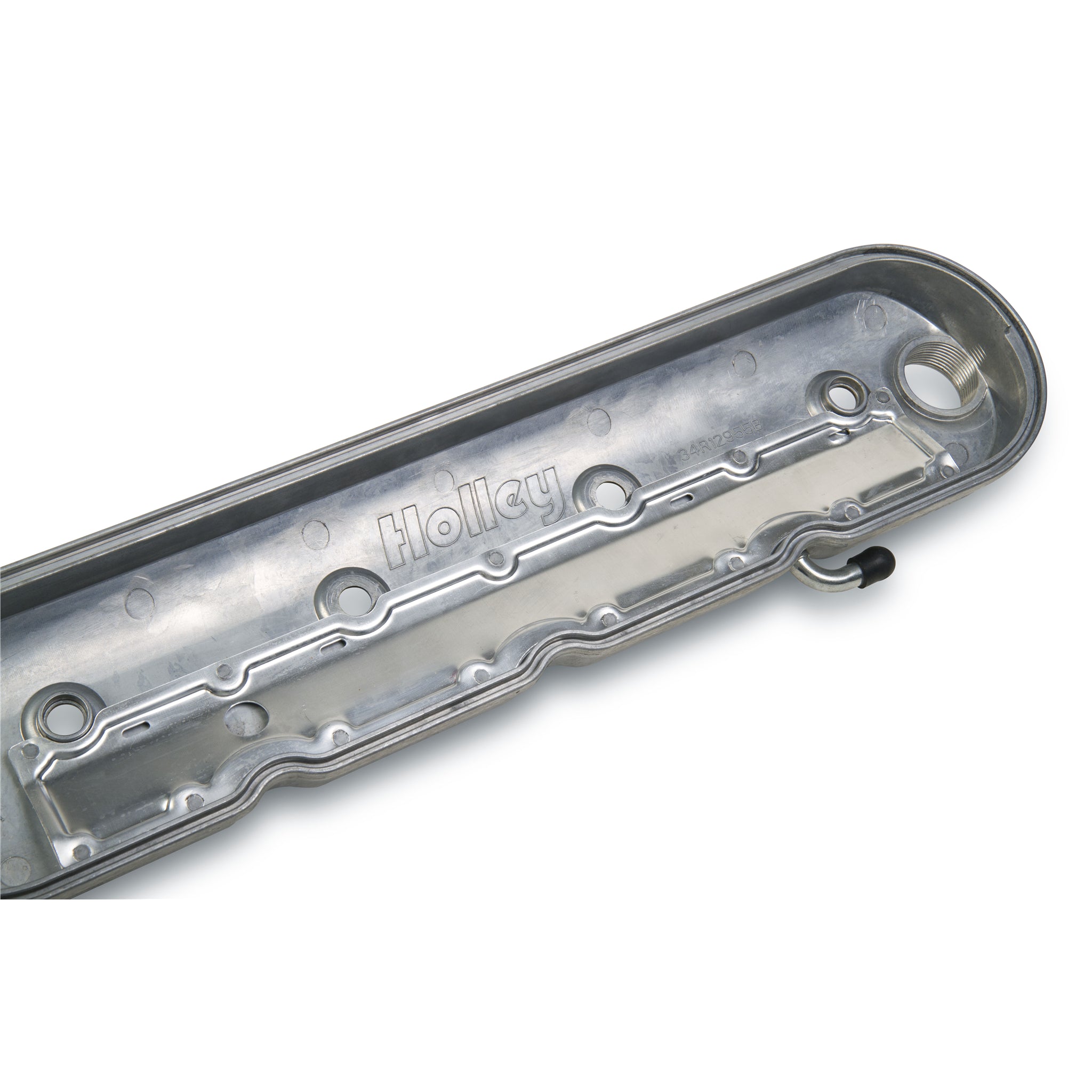

Holley's LS covers use proven OE style baffles and vents |
| Description_FAB |
Also available in satin black & polished |
| Description_KEY |
LS; LSX; LS2; LS3; LS7; LS Swap; GM LS Valve Cover |
| Description_SHO |
Valve Cover Set |
| Description_MKT |
Holley's cast aluminum valve covers for GM LS engines provide a fresh, refined look without the need to relocate the coils. There's no question the factory "coil on cover" design gives the LS that signature high-tech look, but the factory brackets and coil location leave room for improvement. Clean up that signature look with Holley's LS Valve Covers! They incorporate a radiused shape, angled coil mounting, and a billet fill cap. Plus, the coils mount directly to the cover with no need for a bracket in-between. They fit most popular LS series engines and come in Black Krinkle, Satin, Natural Cast, and Polished. Or, paint to match your vehicle's theme! |
| Warranty |
Limited 90 Day |
| WARNING CA Proposition 65 |
No |
| Logo |
None |
| Type of Component |
Valve Cover |
| Finish |
Natural |
| Coil Mounting Studs |
Yes |
| Coil Options |
with Coil Stands |
| Design Type |
Standard Height |
| Gromment(s) Included |
No |
| Product Type |
Valve Cover |
| Quantity |
Pair |
| Material |
Cast Aluminum |
| Engine Make/Size |
Chevy Small Block LS1 |
| Application |
GM LS Engines |
| Breather(s) Included |
No |
| Construction |
Die Cast Aluminum |
| Style |
w/ Coil Mounts |
| Cylinder Head Type |
Standard |
| Valve Cover Style |
Tall |
| Baffle Included |
Yes |
| Bolt Pattern |
Center Bolt |
| Emission Code |
2, 4 |
| Gaskets Included |
No |
| Height |
Standard |
| Oil Fill Cap Included |
Yes |
| Brand |
Holley |
| Mounting Hardware Included |
No |
| Oil Fill |
Yes |
| Length |
3.0000 |
| Width |
11.0000 |
| Height |
21.0000 |
| Weight |
6.0000 |
